    Pictures of your engine test stand

    Hi,

    When I was new in this hobby I built a very nice engine test stand.
    It was easily adjustable for different engines.
    The fuel tank height was adjustable.
    It had variable throttle control for running at a consistent speed.
    Unfortunately, I am now dealing with bigger engines and need a new stand.

    Please post pictures of what you have built or bought.
    I am looking for projects that have some thought put into
    their future use and adjustability for different engines.
    I am not interested in seeing engines bolted to 2x4s and clamped to a picnic table.
    While these may work well they don't give me ideas for what I want to build.

    Thanks for your help,
    KW_Counter

  2. #2
    JohnBuckner's Avatar
    Join Date
    Dec 2001
    Location
    Kingman, AZ
    Posts
    9,269
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

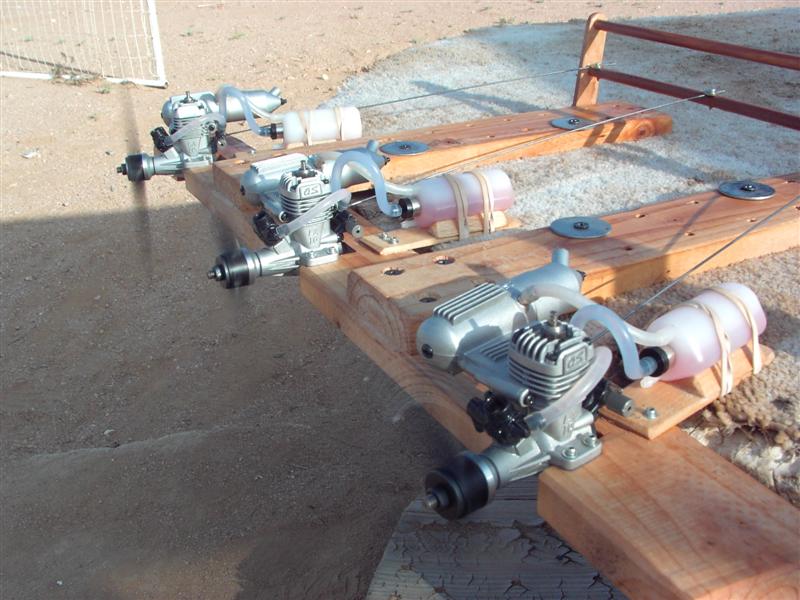

    Here are some of mine and in one case one for multi engines, This one for a trimotor.

    John
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Bz78536.jpg
Views:	48
Size:	86.5 KB
ID:	1775246   Click image for larger version.

Name:	Kf14645.jpg
Views:	49
Size:	66.8 KB
ID:	1775247   Click image for larger version.

Name:	Pu51585.jpg
Views:	19
Size:	41.2 KB
ID:	1775248   Click image for larger version.

Name:	Sl27642.jpg
Views:	13
Size:	39.8 KB
ID:	1775249   Click image for larger version.

Name:	Wh56660.jpg
Views:	12
Size:	22.7 KB
ID:	1775250

    \"Keep your controllines tight\"

  3. #3
    Iflyglow's Avatar
    Join Date
    Oct 2002
    Location
    Clintonville, WI
    Posts
    3,793
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Heres mine. I just finished it.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Rp43705.jpg
Views:	37
Size:	83.1 KB
ID:	1805375

  4. #4

    Join Date
    Apr 2003
    Location
    Hemderson, NV
    Posts
    13,281
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    It's a 4X4 block of wood bolted to a cinder block. I no longer have the room to store a real test stand. I'm keeping my eyes open for one of those saw horse tables the Sear's sells though. They work great and fold up for storage.
    Drinking and driving are illegal, why do bars have parking lots
    Daisy Air Guns, keeping kids off your lawn for 100 years

  5. #5

    Join Date
    Feb 2003
    Location
    Lake County, CA
    Posts
    1,501
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

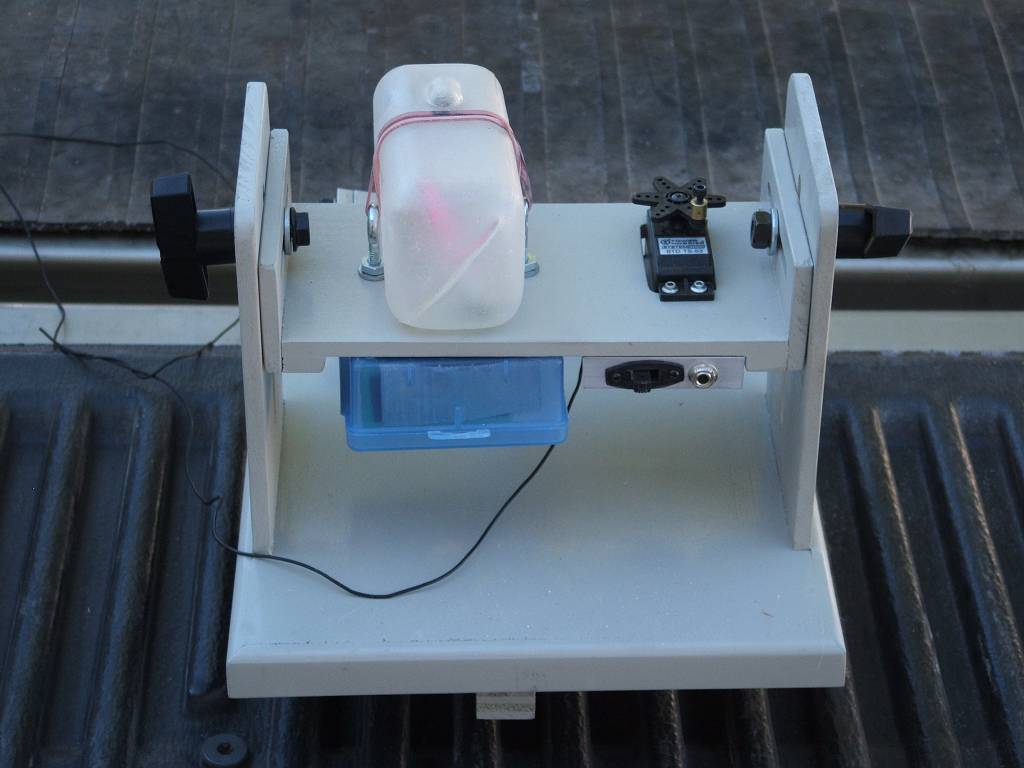

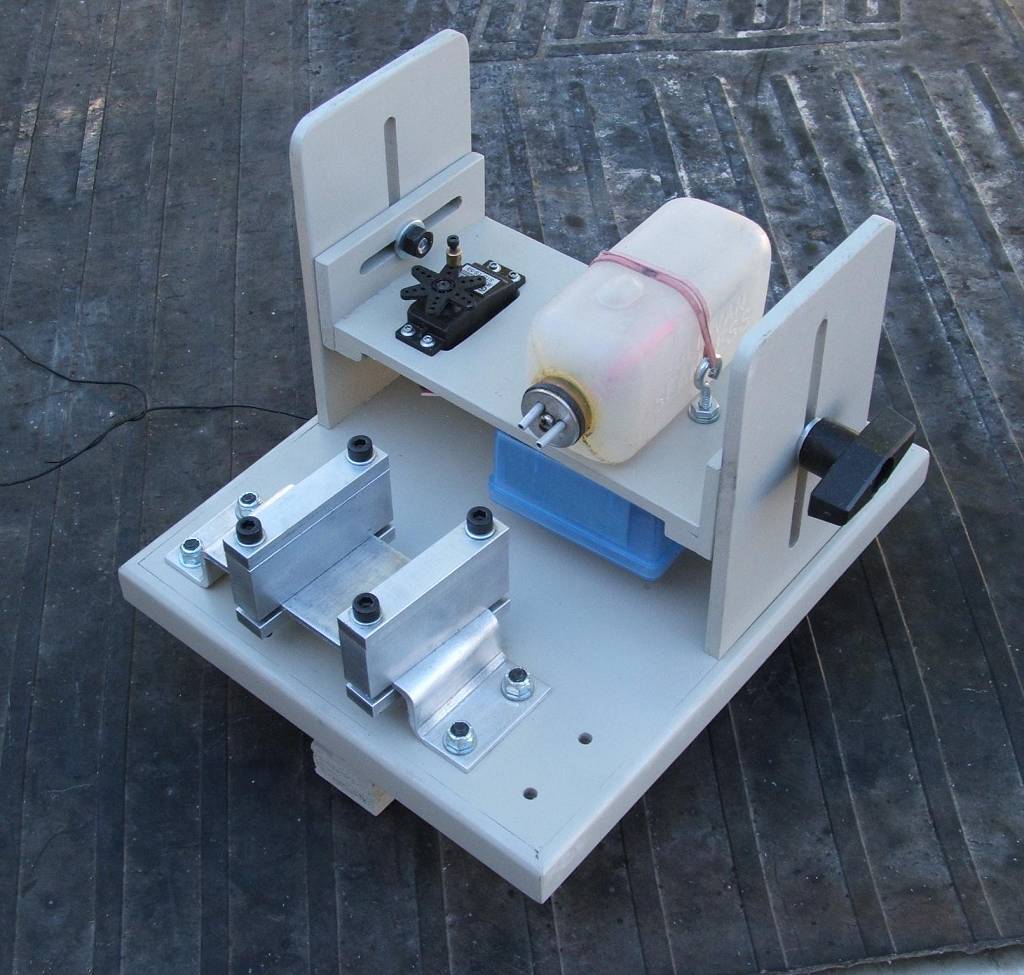

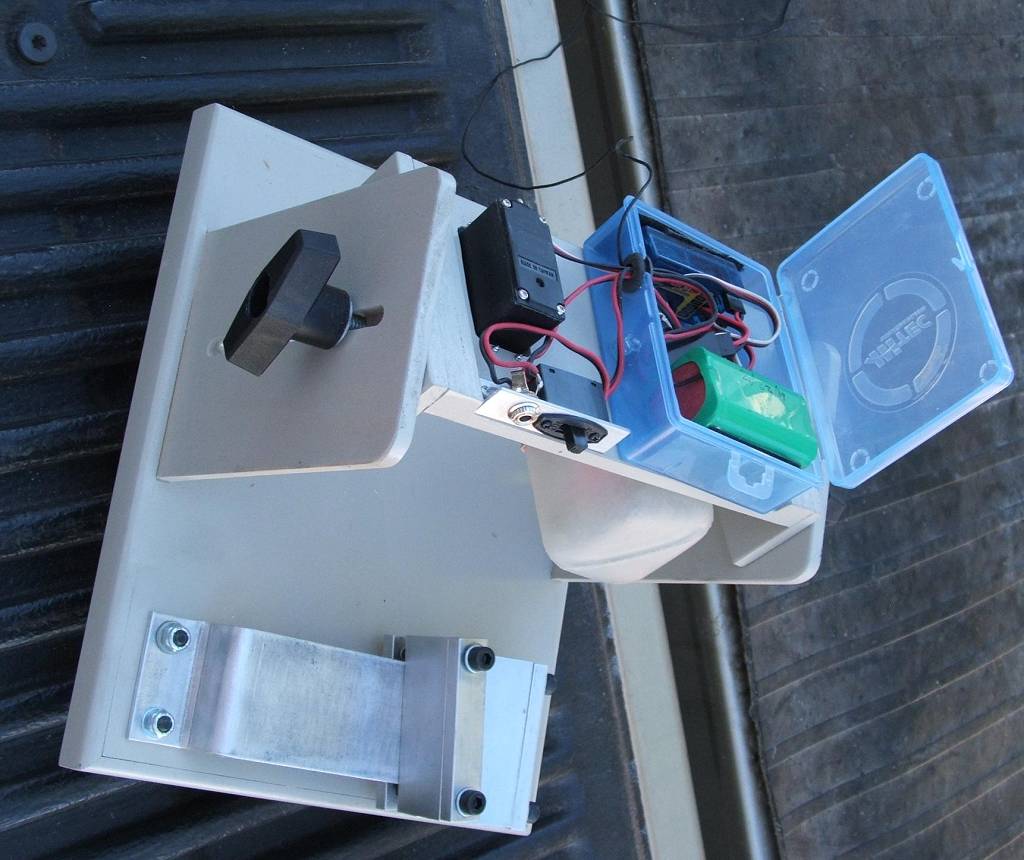

    Okay, here are pictures of the test stand I made after asking this question.
    The base is 3/4" Maple covered cabinet grade plywood from my scrap pile.
    The super structure is Poplar. The paint is Fusion.
    Here is a link to the actual engine mounting bracket:
    [link]http://www.modelshops.org/model-engine-test-stand/model-engine-test-stand.php[/link]
    Please note, on the base it can be moved from side to side for a better fit.
    The receiver and battery are in a plastic (Hitec servo) box for fuel protection.
    The base is designed to be used with my B&D Shop Mate.
    If you have any questions feel free to ask, I'll answer to the best of my ability.

    KW_Counter
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Wu61408.jpg
Views:	22
Size:	119.3 KB
ID:	1808272   Click image for larger version.

Name:	Id96625.jpg
Views:	65
Size:	115.8 KB
ID:	1808273   Click image for larger version.

Name:	Xc78271.jpg
Views:	14
Size:	63.7 KB
ID:	1808274   Click image for larger version.

Name:	Ic84959.jpg
Views:	16
Size:	93.2 KB
ID:	1808275   Click image for larger version.

Name:	Pa33611.jpg
Views:	28
Size:	131.2 KB
ID:	1808276


  6. #6
    JohnBuckner's Avatar
    Join Date
    Dec 2001
    Location
    Kingman, AZ
    Posts
    9,269
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    A beautiful and well thought out stand KW, Kudos

    John
    \"Keep your controllines tight\"

  7. #7

    Join Date
    Feb 2003
    Location
    Lake County, CA
    Posts
    1,501
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    The best part, I got to make sawdust!
    Life is good!

    Thanks, John.

    KW_Counter

  8. #8
    aspeed's Avatar
    Join Date
    Jul 2011
    Location
    Ruthven, ON, CANADA
    Posts
    1,611
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

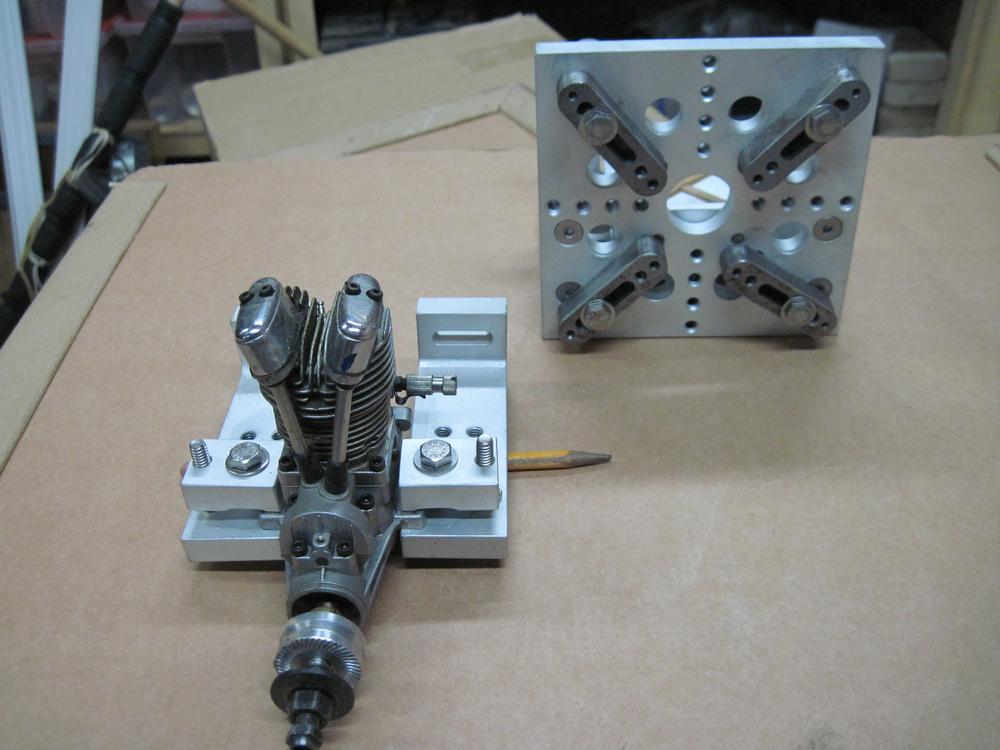

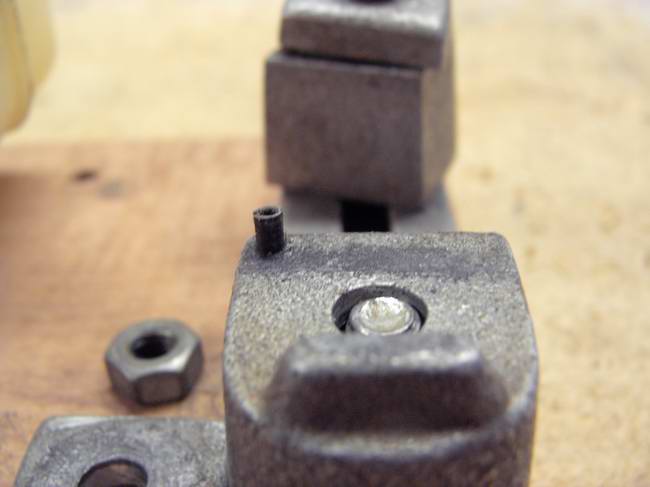

    The machined one has a locating pin on each side, I offset the tank on both for rear exhaust motors, and use soft wire with a Z bend for throttle control. It is fairly soft and stays where you put it. They both have limitations. the manufactured one sometimes makes it impossible to use a muffler because of the big wing nuts, and the one I machined doesn't fit a rear rotor motor. I guess I could machine some material away.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Xv63365.jpg
Views:	15
Size:	113.7 KB
ID:	1808367   Click image for larger version.

Name:	Zu65986.jpg
Views:	10
Size:	108.0 KB
ID:	1808368
    Glow Head Hood # 7

  9. #9

    Join Date
    Jan 2004
    Location
    Bourbonnais , IL
    Posts
    525
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Can the aluminum bracket be purchased in the US? Thanks.

  10. #10
    speedracerntrixie's Avatar
    Join Date
    Jun 2010
    Location
    San Jose, CA
    Posts
    3,991
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

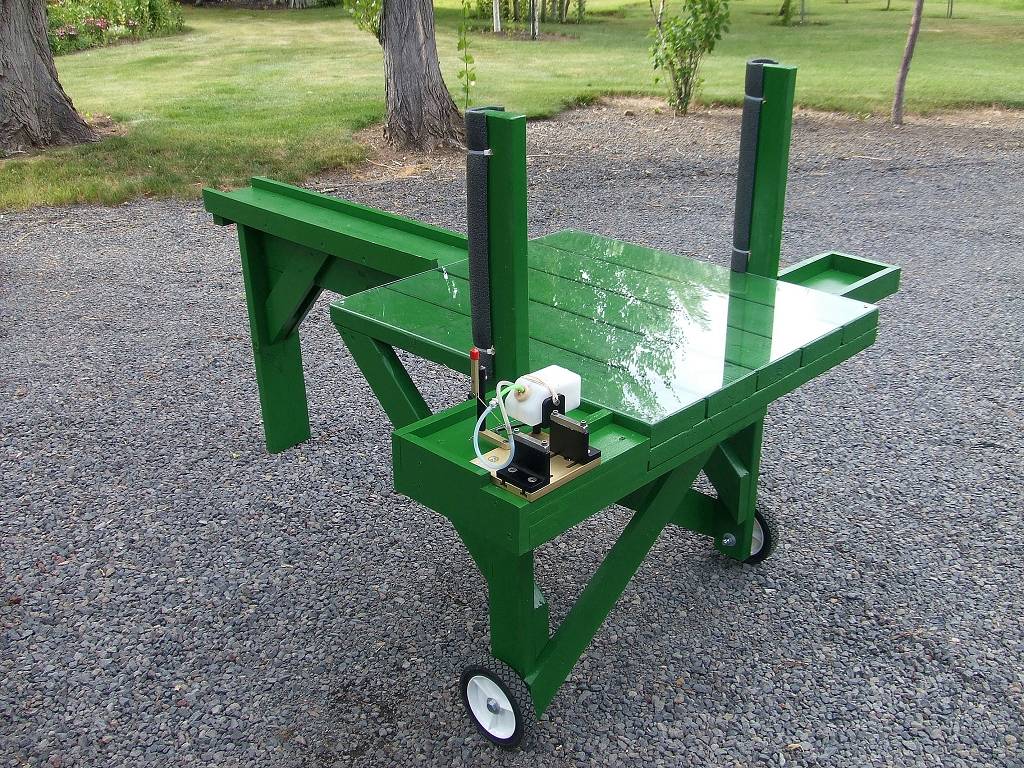

    Sorry just can't resist LOL I'm from the school of breaking them in while in flight. So here are a couple of my test stands




    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Sq46704.jpg
Views:	8
Size:	157.4 KB
ID:	1808380   Click image for larger version.

Name:	Mh21018.jpg
Views:	8
Size:	151.0 KB
ID:	1808381   Click image for larger version.

Name:	Fk18171.jpg
Views:	8
Size:	154.2 KB
ID:	1808382

  11. #11
    aspeed's Avatar
    Join Date
    Jul 2011
    Location
    Ruthven, ON, CANADA
    Posts
    1,611
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    I just made the aluminum one myself out of 1/4" .  I guess you could purchase one from me or get someone else to make it locally. It likely took a couple of hours. I just made mine because the other one didn't fit .049 motors and I needed something else. I really don't use them much for breaking in like the other guy speedracerntrixie says.  I did test out a whole bunch of motors over the winter just to sort out the slower and faster ones, and to see if some swap meet deals worked and it came in handy.
    Glow Head Hood # 7

  12. #12
    JohnBuckner's Avatar
    Join Date
    Dec 2001
    Location
    Kingman, AZ
    Posts
    9,269
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    ORIGINAL: aspeed

    * They both have limitations. the manufactured one sometimes makes it impossible to use a muffler because of the big wing nuts

    Hi aspeed thats likely since when that pattern for those old Tatones was first produced in the sixties, as you know a time when mufflers were for cars not airplanes

    You can use it for some Half A's even with some mufflers. The last time for me in one of my Tatones was my little MP Jet.051 diesel and it has a muffler as well as a throttle. The trick is to loose the big quarter twenty wing nut and replace with a thin Quarter twenty hex nut. Another trick to use the tatones with the little guys is to grind down the bump behind the stud base and the length of the stud itself a bit.

    And I do agree with you there really is no such thing as a one size fits all with stands. While I do not use them for every engine I do find them a far better way to 'learn' a new engine to me.

    Speedracertrixie

    Those are lovely llyushin's - Seems a strange choice for scale warbird racing but interesting


    John
    \"Keep your controllines tight\"

  13. #13

    Join Date
    Jul 2002
    Location
    Canada
    Posts
    842
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

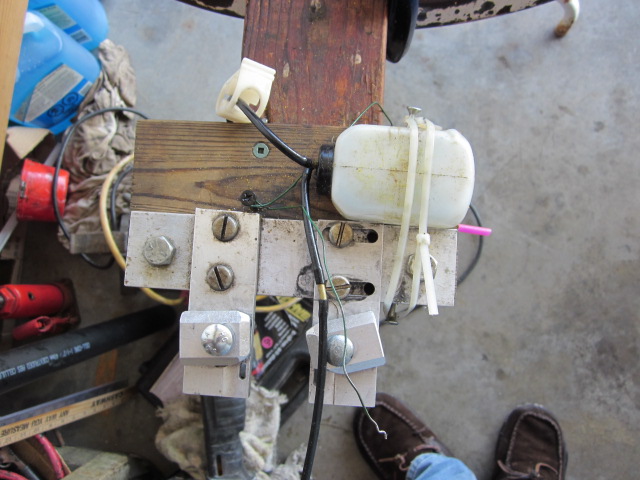

    I have four of these that I made a few years ago. These will work with any engine, any size. The adjustable back mounts are bolted in place they are slotted with three different size mounting threads used for all rear mounted gas and nitro motors. The Saito is sitting in the beam mounts and these too are completely adjustable. You can even mount the engines in the same orientation as it will sit in the airframe. Looking at the fuel tank plate it to is fully adjustable for height.

    Dennis
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ge95466.jpg
Views:	13
Size:	70.9 KB
ID:	1808492   Click image for larger version.

Name:	Mh19830.jpg
Views:	9
Size:	87.8 KB
ID:	1808493   Click image for larger version.

Name:	Qv54661.jpg
Views:	10
Size:	61.7 KB
ID:	1808494   Click image for larger version.

Name:	At54471.jpg
Views:	14
Size:	81.7 KB
ID:	1808495

  14. #14

    Join Date
    Nov 2009
    Location
    Dallas, TX
    Posts
    423
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Dangit Speed! You beat me to it.
    I guess that is why you are Speedracer.

    The Pamster
    AMA 202345
    Balsa USA Brotherhood Member #55

  15. #15
    aspeed's Avatar
    Join Date
    Jul 2011
    Location
    Ruthven, ON, CANADA
    Posts
    1,611
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Dennis.  Far Out Man.  Must be nice to have a CNC.
    Glow Head Hood # 7

  16. #16
    OldScaleGuy's Avatar
    Join Date
    Dec 2005
    Location
    Seymour, IN
    Posts
    2,411
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

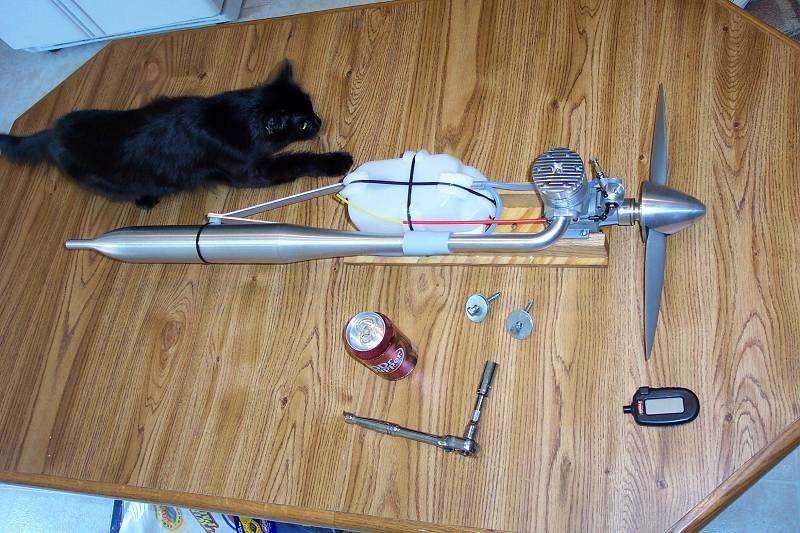

    Mine is very simple. Just a steel plate with clamps on our carport corner post. I drill and tap additional holes as needed for different engines. A typical motor mount can be installed for a glow engine.
    This is not a great picture or video but it is all i have at the moment. If someone wants more detail, i will take more pictures. Here is video of it in action http://www.youtube.com/watch?v=Ld8vicXl5kU
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Sq47320.jpg
Views:	19
Size:	139.4 KB
ID:	1808676
    Steve
    Hellcat Brotherhood #1
    P-47 Thunderbolt Brotherhood #5
    ​Glow Head Brotherhood #17
    Spitfire Brotherhood #144
    Full size airplanes are real, our models are too.

  17. #17
    vega406's Avatar
    Join Date
    Dec 2003
    Location
    Decatur, IL
    Posts
    269
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    [youtube]http://www.youtube.com/watch?v=wKllSthtbjQ[/youtube] one of our memebers did this one day at the field them took it down for testing purpose
    Bill

  18. #18

    Join Date
    Feb 2003
    Location
    Lake County, CA
    Posts
    1,501
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Can the aluminum bracket be purchased in the US? Thanks.
    No, unfortunately not.
    However, the price delivered was less than some of the US products I looked at.

    Good Luck,
    KW_Counter

  19. #19

    Join Date
    Feb 2003
    Location
    Lake County, CA
    Posts
    1,501
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Dennis,

    Very nice job.
    I'll keep that in mind if I ever progress to large gas engines.

    Thanks for sharing.

    KW_Counter

  20. #20

    Join Date
    Sep 2003
    Location
    Bend, OR
    Posts
    1,038
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

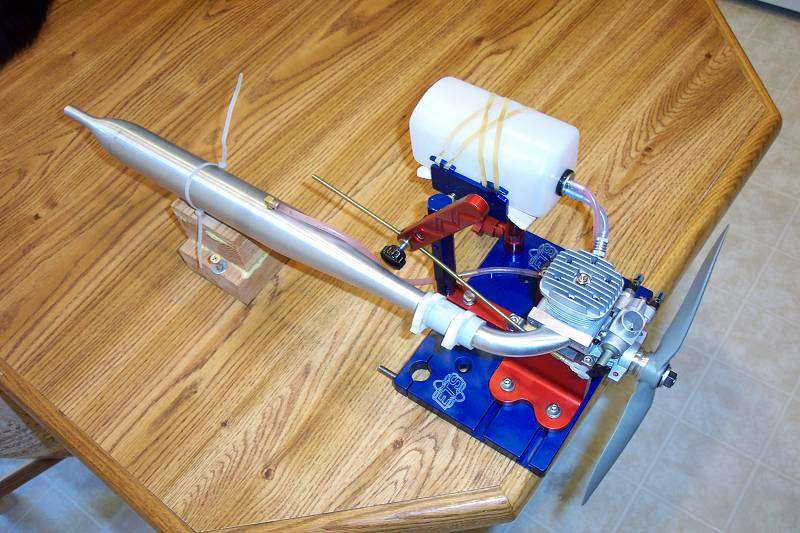

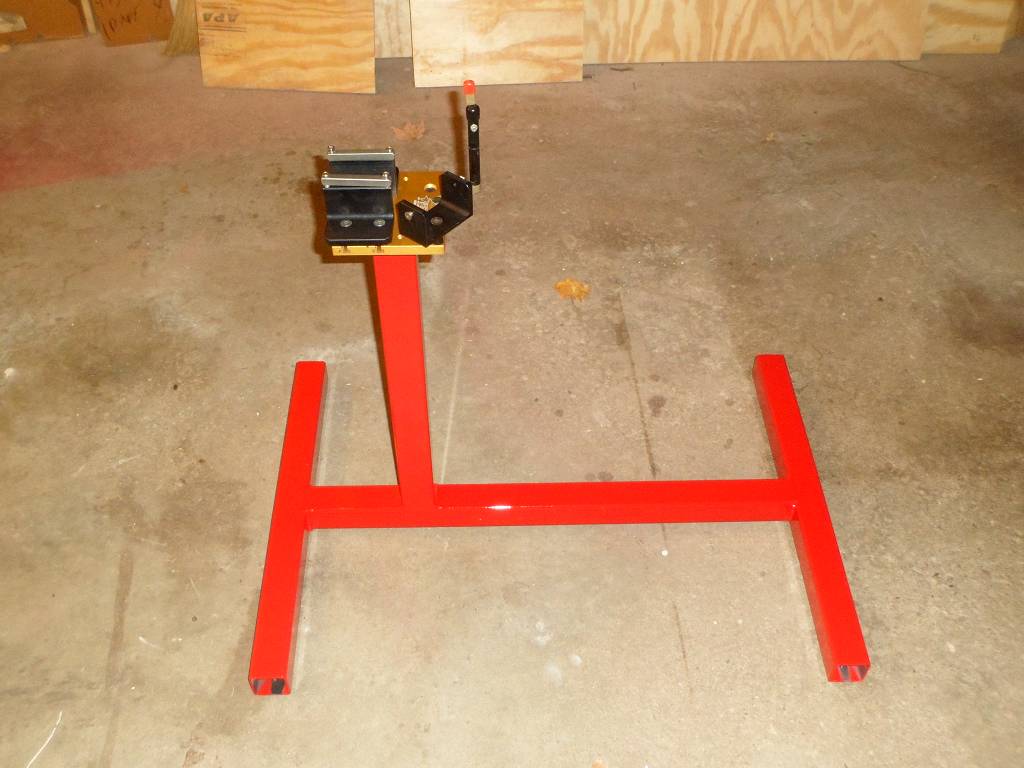

    Here's mine..........I started with a run-in stand that was featured in the AMA Model Aviation and then added the PSP aluminum engine test setup. I added the wheels so I can use it where ever I need to. It's been very very helpful and is very stable.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ge94215.jpg
Views:	23
Size:	249.6 KB
ID:	1810824
    AMA 16066

  21. #21
    JohnBuckner's Avatar
    Join Date
    Dec 2001
    Location
    Kingman, AZ
    Posts
    9,269
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    Indeed very nice setup. Is this in your back yard or at the field? If the field how do you avoid theft?


    John
    \"Keep your controllines tight\"

  22. #22

    Join Date
    Jan 2005
    Location
    Rancho Murieta, CA
    Posts
    2,221
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand

    OS 70 heli on prop, K&B 100DF on prop, Moki 210.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Rp43119.jpg
Views:	24
Size:	69.7 KB
ID:	1810873   Click image for larger version.

Name:	Gb90871.jpg
Views:	12
Size:	116.7 KB
ID:	1810874   Click image for larger version.

Name:	Gl20194.jpg
Views:	11
Size:	76.8 KB
ID:	1810875
    Oooh eee oooh ah ah(the crowd) ting tang walla walla bing bang!(the plane crash)

  23. #23

    Join Date
    Sep 2003
    Location
    Bend, OR
    Posts
    1,038
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pictures of your engine test stand


    ORIGINAL: JohnBuckner

    Indeed very nice setup. Is this in your back yard or at the field? If the field how do you avoid theft?


    John
    Thanks for the compliment. It is in my yard but we have 6 or these stands at our field........not with the engine test feature..........but they've been there for 3-4 years.............no problem. Of course our field is 17 miles out of town in the middle of nowhere so that helps but to this point........20 years.......we've had no theft problems.
    AMA 16066


Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
All times are GMT -6. The time now is 04:20 AM.

SEO by vBSEO 3.6.1 ©2011, Crawlability, Inc.
