Default Identify a kit please

Ok, im at work but will post pictures once i get home to take them. To start, im not a c/l flyer but obtained kits and finished planes from an estate of a friend i use to work with.
I have a kit that is in a mailing tub with a 1/2" profile fuse and unknown at this time, maybe all the parts to build it. I have compared the profile to the Brodak site and it matches a Lightning Streak, ie canopy, tail, both vertical and horizontal. That's the only plus i have at this time. Where it differs at is the Brodak wing has all full ribs were as this kit has 10 1/8" lightply diecut ribs with same number of LE sub ribs. Not a current Lightning Streak.
WS is roughly 48ish" but as i have no plans, hard to give any exact. Also of note is the main gear, I believe it has only one center vertical leg, like c/l racers i have seen in mags.
In going thru his collection, i have not come across any plans to match this and have contacted Brodak for a set of Lightning Streak plans for comparison. Would like to at least correctly ID it.
Thanks
Sam
sam@ata is offline
Reply With Quote
Old 04-25-2016, 05:31 AM
  #2
Bob Jablonski
Senior Member

Bob Jablonski's Avatar

Join Date: Aug 2013
Location: Grovertown, IN
Posts: 170
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

It may be a PDK flight streak. Is it a triangle mailing box with no picture on the outside? that is how he has sent the kits we stock.
Mr. Bob
Countyline Hobbies
Grovertown, IN.
574-540-1123
countylinehobbies@yahoo.com
www.countylinehobbies.com
Bob Jablonski is offline
Reply With Quote
Old 04-25-2016, 02:24 PM
  #3
dennis
My Feedback: (90)

Join Date: Jan 2002
Location: Minersville, PA
Posts: 1,864
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Speaking for Pat King I can emphatically state that he does not use lite ply anything. As stated his kits if small come in the triangle postal boxes and the larger in more conventional boxes.
Dennis
dennis is offline
Reply With Quote
Old 04-25-2016, 05:26 PM
  #4
sam@ata
Thread Starter
My Feedback: (16)

Join Date: Apr 2002
Location: Sellersburg, IN
Posts: 278
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

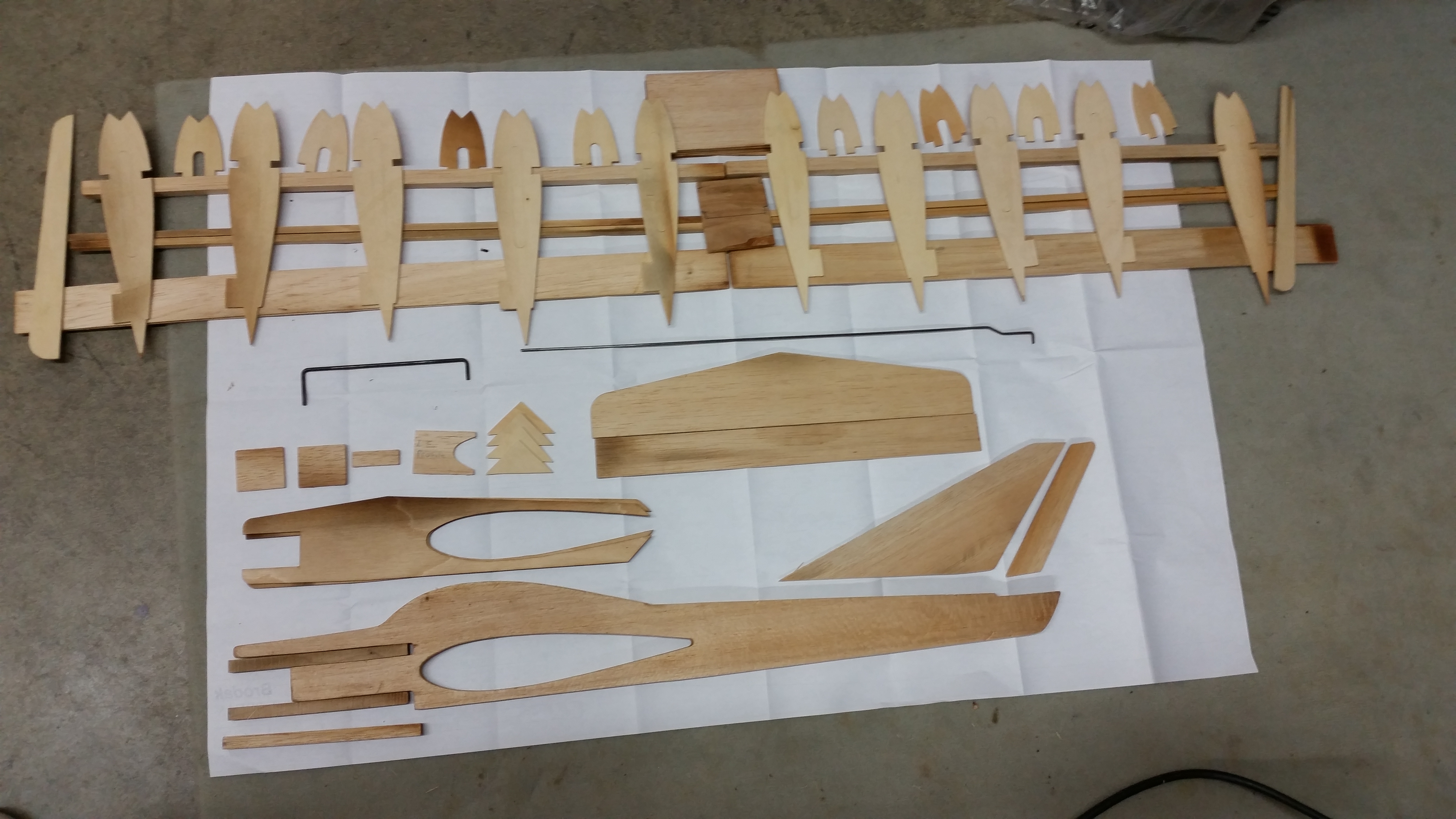

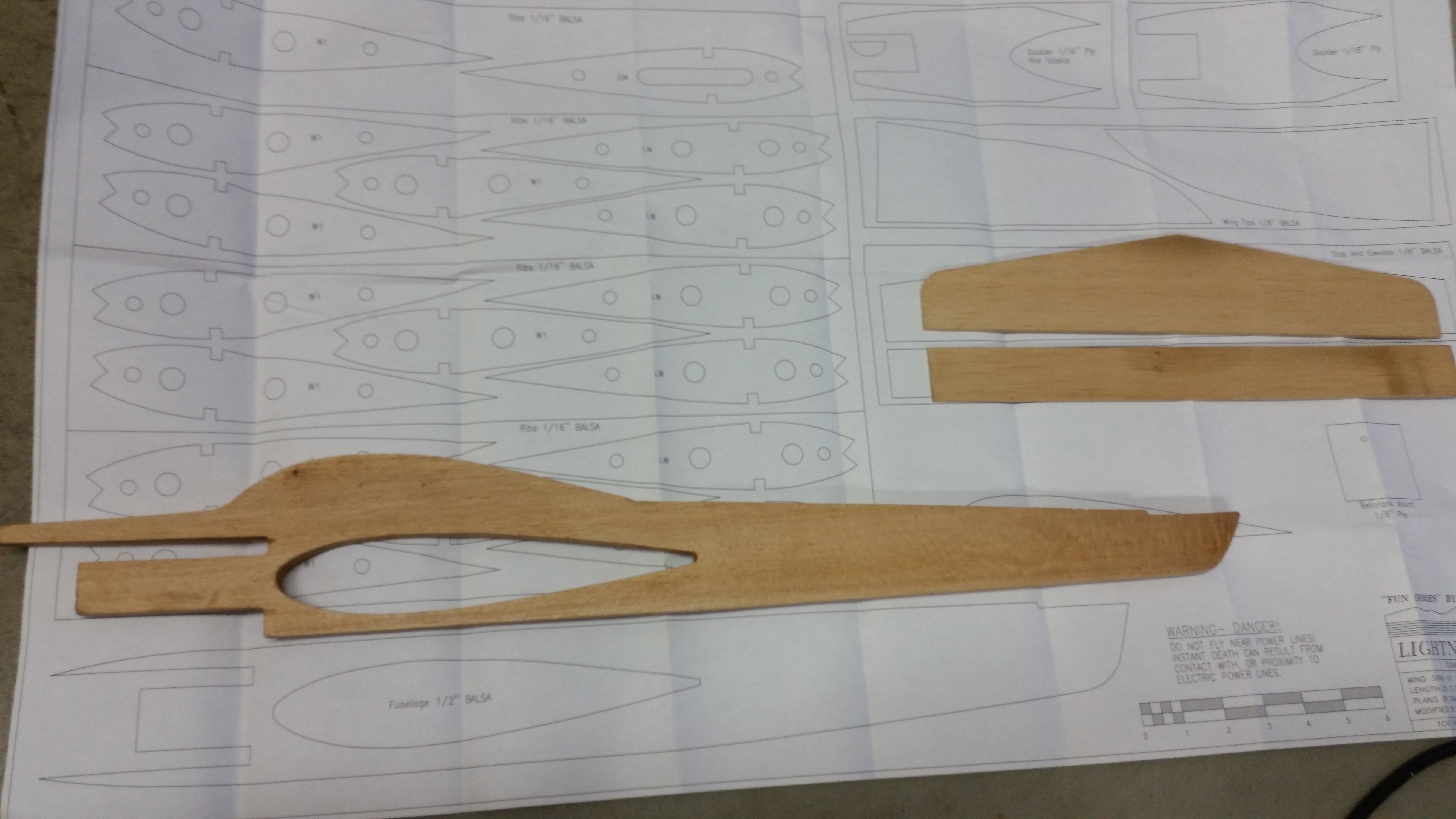

Here are the parts laid out and after getting the plans for a Brodak Lightning Streak, its not really close.

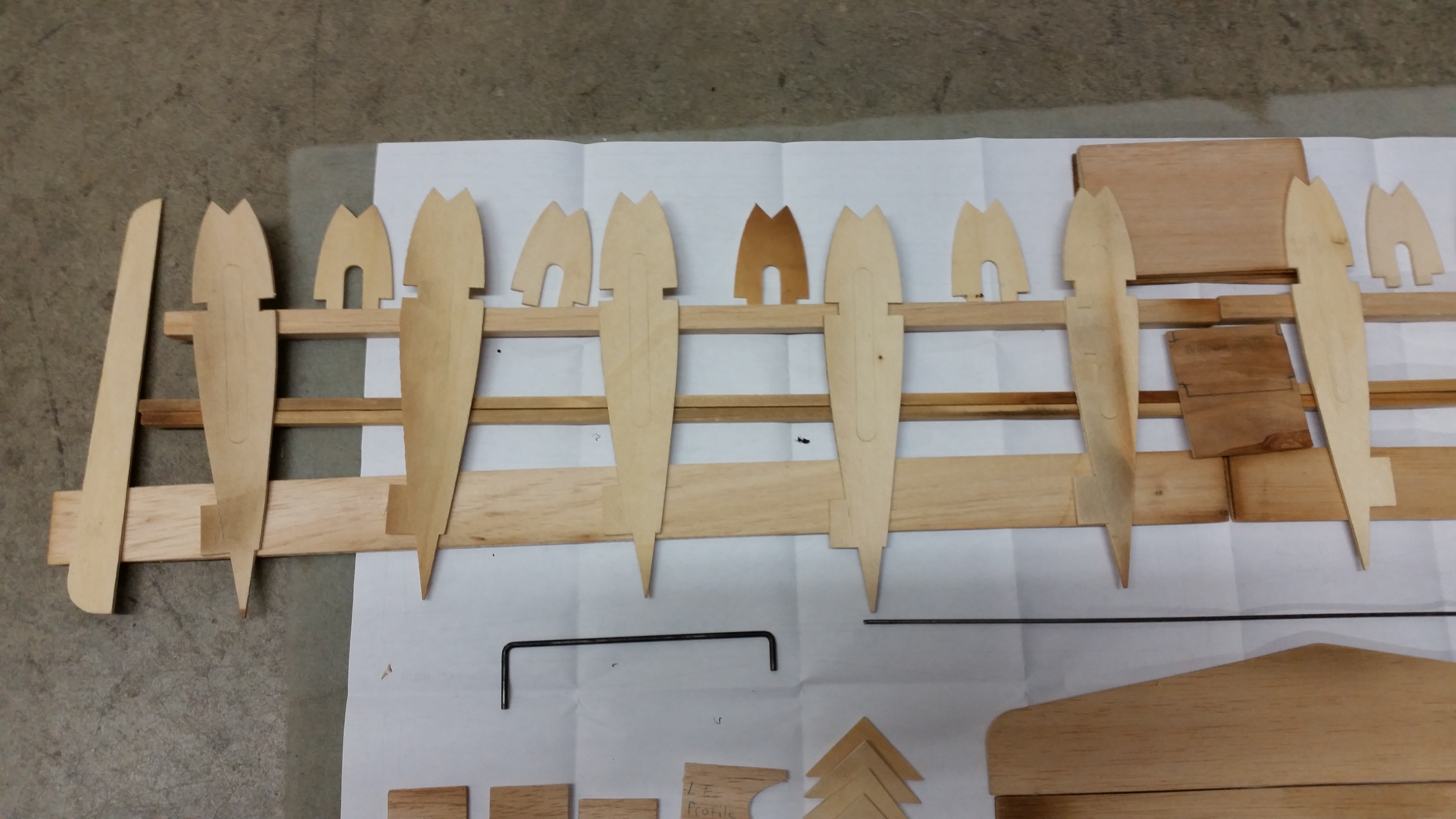

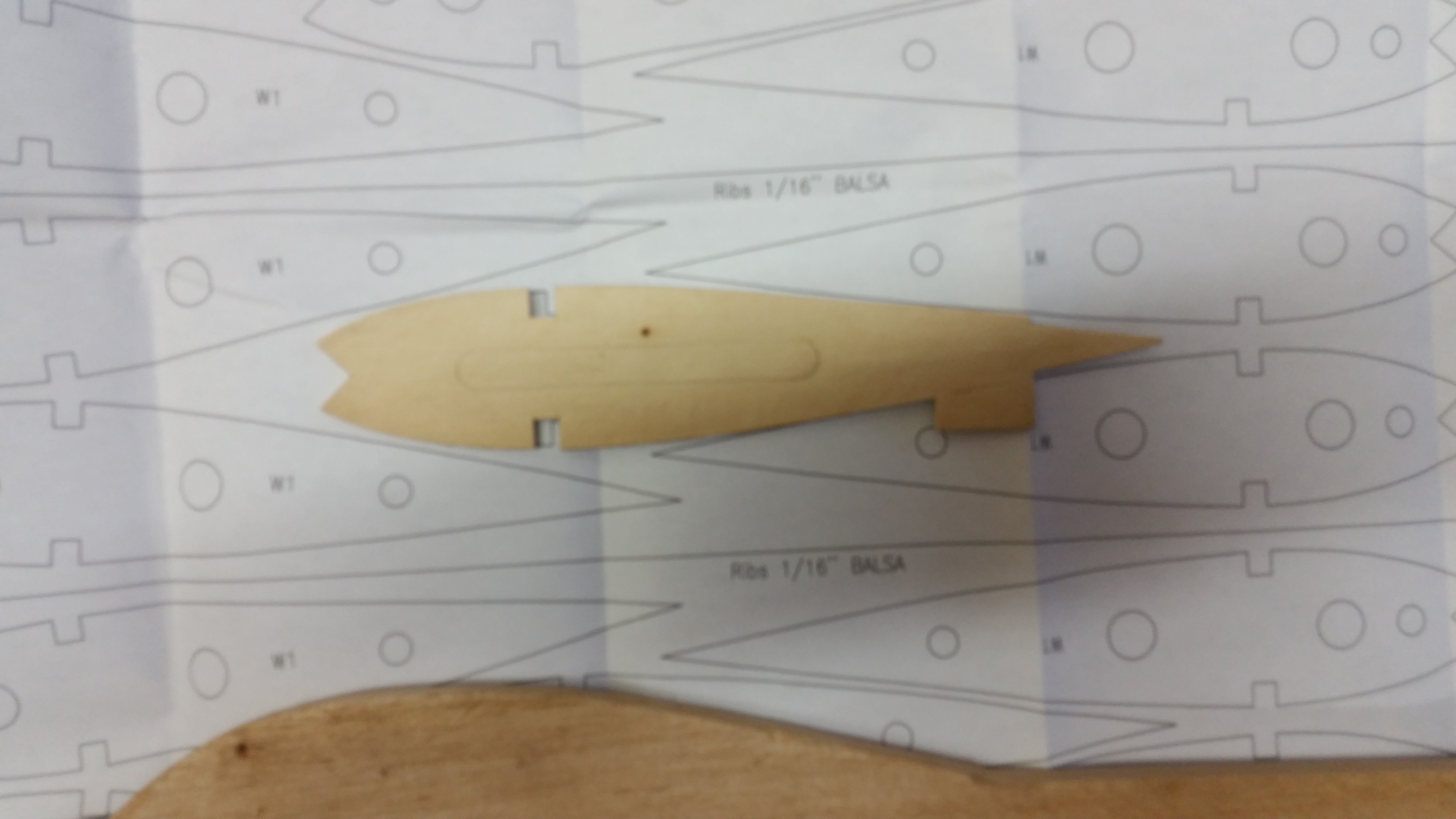

The ribs as i said are 1/8" LPly diecut, the fuse is cut from wide stock as one piece. The spars, LE stock and trailing edge sheeting are 24" on each half. In all the plans that my friend did keep, i have not found any plans that cover these parts so any ideas are appreciated.
