    Pattern ship winglet.

    I've seen some pattern, F3A, F3B planes with a "winglet" on the top of the fuse. What is the purpose of this, or is it just for "show"?

  2. #2
    Jetdesign's Avatar
    Join Date
    May 2008
    Location
    Mason, OH
    Posts
    7,020
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    Theoretically ('cause I've never used one): It is to correct airflow - straighten it out, or 'clean it up' (make less turbulent) before it hits the rudder. It is for better, more accurate rudder control.
    Joe Marri
    Enjoying all things aviation.

  3. #3
    BHolsten's Avatar
    Join Date
    Mar 2007
    Location
    Fayetteville, NC
    Posts
    1,093
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    That is very true Joe,

    It releives the turbulence across the vertical and allows it fly in "cleaner air" and provides more of an EXPO feel to the rudder without the EXPO delay., amoung a few other benefits.




    bholsten

  4. #4

    Join Date
    Mar 2003
    Location
    Perth, AUSTRALIA
    Posts
    1,880
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    Just so you know, F3B airplanes are gliders.
    Go knife edge your cub!

  5. #5
    apereira's Avatar
    Join Date
    Jun 2002
    Location
    Caracas, VENEZUELA
    Posts
    1,531
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    JOL,

    It is called "Canalizer", I have been using them for years and they do work very well, they even improve the flying caracteristics of airframes known to be very good already, and the Canalizer improves them even more, many top pilots in the world have adopted them , even when some, knows the advantages but for a matter of pride (to not accept another competitors idea) they don't use it.

    Regards

  6. #6

    RE: Pattern ship winglet.

    It sounds like something for pattern-mythbusters to confirm or bust.

    Maybe someone would be willing to mount a key fob camera on their plane aimed at the empennage that has been covered with tufts of yarn. Then make some video recordings with and without the canalizer.
    After 5PM slip brains through slot in door.

  7. #7
    Jetdesign's Avatar
    Join Date
    May 2008
    Location
    Mason, OH
    Posts
    7,020
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    There is not much to confirm. In turbine engines we call them 'inlet guide vanes' - the same principal is used to straighten out or direct air flow before it hits an airfoil (compressor blade or turbine blade). Air sticks to surfaces as they move through it, so a flat plate moving through swirling air will definitely clean up some of the turbulence.

    A study could be done to see how effective it is, however I believe guys like Dave L who say they can feel it and that it helps *them with their sequence. I think it would probably do me more harm than good though, at least at this point in my career.
    Joe Marri
    Enjoying all things aviation.

  8. #8

    Join Date
    Mar 2003
    Location
    Perth, AUSTRALIA
    Posts
    1,880
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    I started flying my wind S without one, and then for a giggle, stuck one on with double sided tape.

    The effect was immediate, knife edge was easier, it pulled some of the pitch coupling out, and I reduced my rudder throws as a result.

    Now, of course, People like Bryan Hebert will tell you that it's a fix for a flawed design, which I agree with, but it does fix it.
    Go knife edge your cub!

  9. #9

    RE: Pattern ship winglet.

    Excuse me if I'm skeptical.

    Even if the canalizer works as described, I still don't know a) what to expect when it's added (plus or minus), b) how big it should be, c) what it should be shaped like or d) where it should be placed. Once on my plane, I will be doomed to report that it 'feels' better, lest I admit that I'm a lesser pilot than Mr. Big-Name.

    With the technology we have today we still use guess-and-by golly fad approaches for airplane design.

    I think we could do better.
    After 5PM slip brains through slot in door.

  10. #10

    Join Date
    Nov 2007
    Location
    wexford, IRELAND
    Posts
    912
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.


    ORIGINAL: grotto2

    Excuse me if I'm skeptical.

    Even if the canalizer works as described, I still don't know a) what to expect when it's added (plus or minus), b) how big it should be, c) what it should be shaped like or d) where it should be placed. Once on my plane, I will be doomed to report that it 'feels' better, lest I admit that I'm a lesser pilot than Mr. Big-Name.

    With the technology we have today we still use guess-and-by golly fad approaches for airplane design.

    I think we could do better.
    Hi,
    All of those questions also apply to the 2nd wing on a bi-plane.
    Then that brings a new question ; which is the second wing .
    They also apply to the wing of a mono,, .
    Do you ,or anyone, have exclusively correct answers to any of these questions.
    The F1 guys spend millions ,each, on this stuff and they get new answers almost every time they race.

    Brian

  11. #11
    BHolsten's Avatar
    Join Date
    Mar 2007
    Location
    Fayetteville, NC
    Posts
    1,093
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    As does NASCAR, NASA, Boeing, N.Grumann,..etc,.................................. ........ Innovation is a wonderful thing. Just put one on my plane and love the benefits!

    bholsten

  12. #12
    apereira's Avatar
    Join Date
    Jun 2002
    Location
    Caracas, VENEZUELA
    Posts
    1,531
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    One thing I do know, is the canalizer works, period, I flew my Osmose with and without it, and flies better with it, rolls better and less rudder input is needed, that is better.

    Christophe told me a at Muncie WC he wanted a byplane, and on the Axiome+ he go it, that is why is so big on the +, that thing on being there to correct the design, yes, true on the Oxalys,not anymore on the latest models, but he also says, he does no understand why is it not everybody use it.

    Most great pilots designers have adopted it, Silvestri, many Japanesse, etc. My friend Tuny added the Canalizer to his Passport after flying it for a while and the airplane improved greatly.

    After being using it in different models, I have my own proof, not need to do any research, it works, but not everybody likes it, and a pretty model is something very important in pattern, pattern planes have its own "magic", and there is a plane for everybody for sure, but you also have to like the way a Canalizer looks.

    Regards

  13. #13
    Bill Clark's Avatar
    Join Date
    Jul 2009
    Location
    Apopka, FL
    Posts
    141
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.


    ORIGINAL: Rendegade


    Now, of course, People like Bryan Hebert will tell you that it's a fix for a flawed design, which I agree with, but it does fix it.
    I think he would say its a flawed trim setup not a flawed design.

  14. #14
    DaveL322's Avatar
    Join Date
    Jul 2004
    Location
    Medford, NJ
    Posts
    518
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.


    ORIGINAL: grotto2

    Excuse me if I'm skeptical.

    Even if the canalizer works as described, I still don't know a) what to expect when it's added (plus or minus), b) how big it should be, c) what it should be shaped like or d) where it should be placed. Once on my plane, I will be doomed to report that it 'feels' better, lest I admit that I'm a lesser pilot than Mr. Big-Name.

    With the technology we have today we still use guess-and-by golly fad approaches for airplane design.

    I think we could do better.
    Ron,

    I'm not personally sold on the horizontal component of the Tcan.....depending on the fuse shape and location, a very simple vertical strake can be very effective. The biggest effect is on the pitching behavior in KE. Most modern designs tend to pitch to the belly in KE - unless the CG is quite forward, which causes other trim problems. On every design I've tested a strake or canalizer, adding the device will impart a pitch to the canopy in KE, and the amount of pitch to the canopy is somewhat proportional to the size of the Tcan/strake. I've seen a 1/2" x 6" fin change KE coupling by 3%....very easy way to eliminate Pmix on some planes.

    Regards,
    Regards,

    Dave Lockhart
    Team JR Americas, Thunder Power, Castle Creations, F3A Unlimited, NeuMotors, Team Contra, Central Hobbies, Tech Aero

  15. #15

    RE: Pattern ship winglet.

    Dead-on what I'm getting at, Dave.
    If we really had a handle on what's happening here, we may be able to engineer simpler corrective measures, i.e. a number of smaller flow straighteners at critical points.
    After 5PM slip brains through slot in door.

  16. #16
    DaveL322's Avatar
    Join Date
    Jul 2004
    Location
    Medford, NJ
    Posts
    518
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    I don't have a wind tunnel, but at the end of it all, theory is just that, and actual flight results matter the most. I can do a lot of testing cheaply and quickly with nothing more than an exacto, depron, tape, and foam safe CA

    Regards,
    Regards,

    Dave Lockhart
    Team JR Americas, Thunder Power, Castle Creations, F3A Unlimited, NeuMotors, Team Contra, Central Hobbies, Tech Aero

  17. #17

    RE: Pattern ship winglet.

    A wind tunnel's probably out of the question, but I did suggest a cheap alternative to collect quantitative data.
    After 5PM slip brains through slot in door.

  18. #18
    BHolsten's Avatar
    Join Date
    Mar 2007
    Location
    Fayetteville, NC
    Posts
    1,093
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    I was suggesting a wind tunnel would show the actual laminar air flow, lifting areas, bi-lateral separation, pressure areas and turbulence, etc that the T-CAN. can have or induce when attached to an airframe. It certainly will not impede experimental progress through trial and error. Yes, yarn is simple enough, as it gets the job done on sailing sheets on sail boats and other engineering concepts of motion.

    Dave does wonderful work and the reason I pick his brain from some years to another.

    However, I was just thinking of a larger plexy glass box construction and a large Shulman Electric Ducted fan motor and a colored smoke stick to ignite, perhaps a make shift wind tunnel,..LOL.



    Respectfully,

    bholsten

  19. #19
    Bob Pastorello's Avatar
    Join Date
    Feb 2002
    Location
    El Reno, OK
    Posts
    6,626
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    Hi, guys...some of you may remember me, hopefully you'll also remember Nat Penton...Lousiana's "VoodooGuru", who did tweaks to Pattern airplanes a decade or so before some of the 'magical fixes' were invented by big namers. Nat *KNEW* what he was doing, and I flew his .90 powered Voodoo with a canopy strake/fin like Dave L. describes when I was in FAI. It was - hands down - the very best knife edge-ing plane that I flew, EVER, and his rudder area was reduced as well as it's travels.

    Scientific design would be a wonderful thing, but we have such great experienced and knowledgeable "tweakers" out there that it's really great.

    I don't play pattern anymore, but I do have a couple of "good" planes (which means they fly better now than I ever did) and I enjoy precision. I just wanted to give Nat the recognition for many of his innovations. If I remember correctly, he was also the first to "prove" that pattern planes without airfoil landing gear and pants "flew better"....he and DIck Hanson(way back, now) knew the value and practical benefit of performance over pretty....God bless 'em!!!!!!!!
    "I learned long ago, never to wrestle with a pig. You get dirty, and besides, the pig likes it." - George Bernard Shaw

  20. #20

    Join Date
    Nov 2007
    Location
    wexford, IRELAND
    Posts
    912
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.


    ORIGINAL: DaveL322


    ORIGINAL: grotto2

    Excuse me if I'm skeptical.

    Even if the canalizer works as described, I still don't know a) what to expect when it's added (plus or minus), b) how big it should be, c) what it should be shaped like or d) where it should be placed. Once on my plane, I will be doomed to report that it 'feels' better, lest I admit that I'm a lesser pilot than Mr. Big-Name.

    With the technology we have today we still use guess-and-by golly fad approaches for airplane design.

    I think we could do better.
    Ron,

    I'm not personally sold on the horizontal component of the Tcan.....depending on the fuse shape and location, a very simple vertical strake can be very effective. The biggest effect is on the pitching behavior in KE. Most modern designs tend to pitch to the belly in KE - unless the CG is quite forward, which causes other trim problems. On every design I've tested a strake or canalizer, adding the device will impart a pitch to the canopy in KE, and the amount of pitch to the canopy is somewhat proportional to the size of the Tcan/strake. I've seen a 1/2'' x 6'' fin change KE coupling by 3%....very easy way to eliminate Pmix on some planes.

    Regards,
    Hi Dave,
    I don't doubt ,at all, what you say or have found.
    With that said I will add the following;
    It was CPLR that brought the the T Can,, to this party.
    He has removed the vertical component and now sits the 'winglet' directly on top of the fuz,, .
    I'm assuming he finds it as good or maybe even better.

    All I am saying is that there is ,so far anyway, no one size fits all solution but there are clearly benefits to these 'winglets'.

    Brian

  21. #21
    RC_Pattern_Flyer's Avatar
    Join Date
    Aug 2004
    Location
    San Antonio, TX
    Posts
    1,112
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

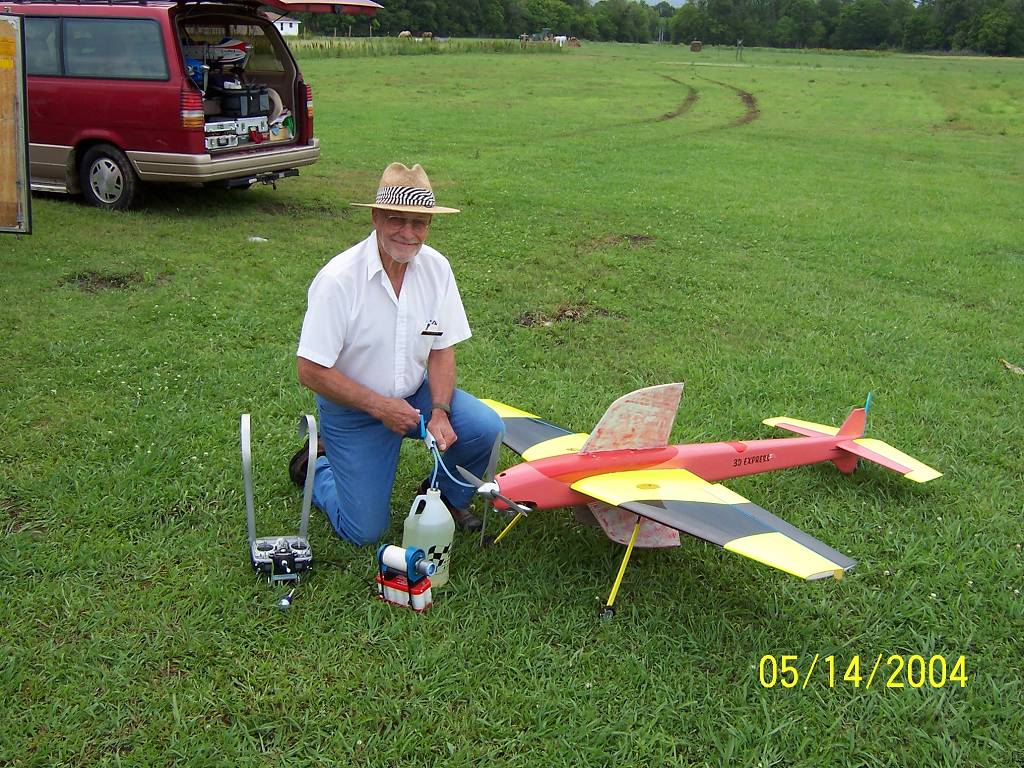

    Nat Penton had fins years before CPLR.

    Mark Hunt continued this with the original Pentathlon and carried it through the evo.

    Chuck Hochhalter
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Mk25362.jpg
Views:	105
Size:	183.2 KB
ID:	1779950
    Mark Hunt Designs

  22. #22
    apereira's Avatar
    Join Date
    Jun 2002
    Location
    Caracas, VENEZUELA
    Posts
    1,531
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    I think this comes from the same idea, Mr. Penton was a great innovator. This one from Germany, just flew at the Liechtenstein Open.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Lj24146.jpg
Views:	128
Size:	160.0 KB
ID:	1779975

  23. #23
    Bob Pastorello's Avatar
    Join Date
    Feb 2002
    Location
    El Reno, OK
    Posts
    6,626
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    You know, those are cool-enough looking that even if they didn't work, it would be worth doing just for conversation's sake....very neat...
    "I learned long ago, never to wrestle with a pig. You get dirty, and besides, the pig likes it." - George Bernard Shaw

  24. #24

    Join Date
    Nov 2007
    Location
    wexford, IRELAND
    Posts
    912
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.


    ORIGINAL: RC_Pattern_Flyer

    Nat Penton had fins years before CPLR.

    Mark Hunt continued this with the original Pentathlon and carried it through the evo.

    Chuck Hochhalter
    Hi,
    I said T Cann,, ,as in winglet, not 'fin' .

    Brian

  25. #25
    RC_Pattern_Flyer's Avatar
    Join Date
    Aug 2004
    Location
    San Antonio, TX
    Posts
    1,112
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Pattern ship winglet.

    Yes sir, my apologies.

    Geoffrey Lumay just completed a composite version of the Voodoo express in Belgium, beautiful plane.

    Chuck
    Mark Hunt Designs
