Default BJCraft BISIDE

Here's info on B.J.'s bipe project. He is calling it the Competition Biside. The name relates to the double natured aspects of a bipe and pattern flying. There are two wings and strong positives along with compromises in a biplane design, hence the two sided aspect of the design. In addition, when you compete against someone they are your foe, but at the same time they are also your flying buddy. This is the two sided aspect of our sport. B.J. decided to roll all this into the name of his new design... Biside.

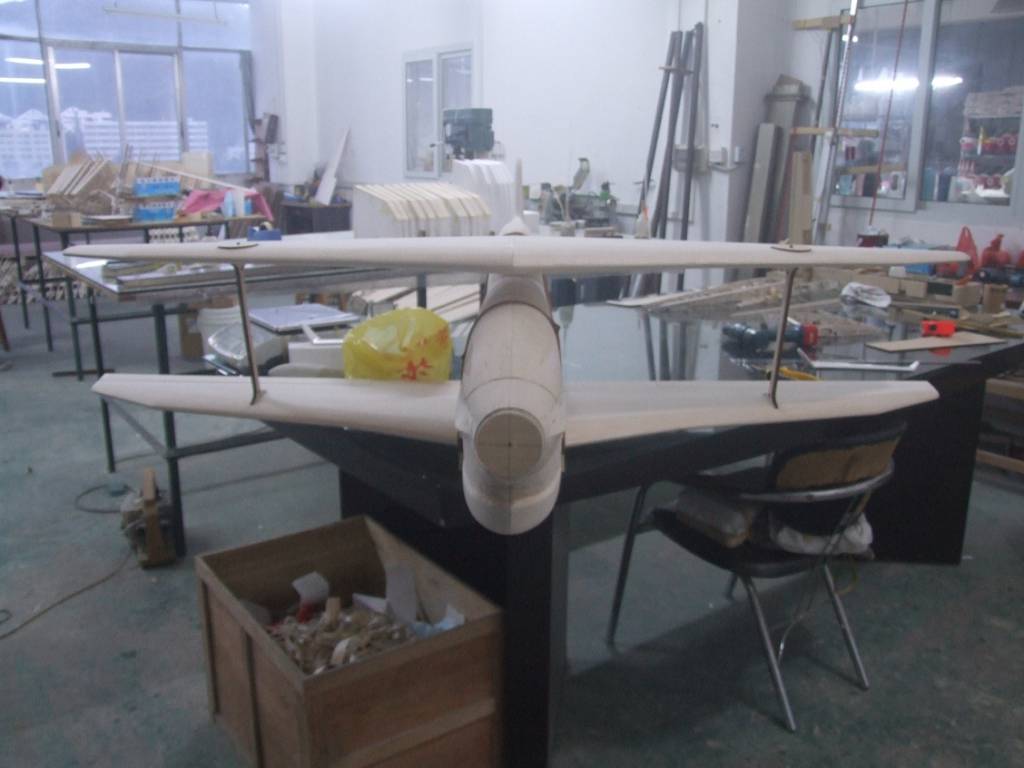

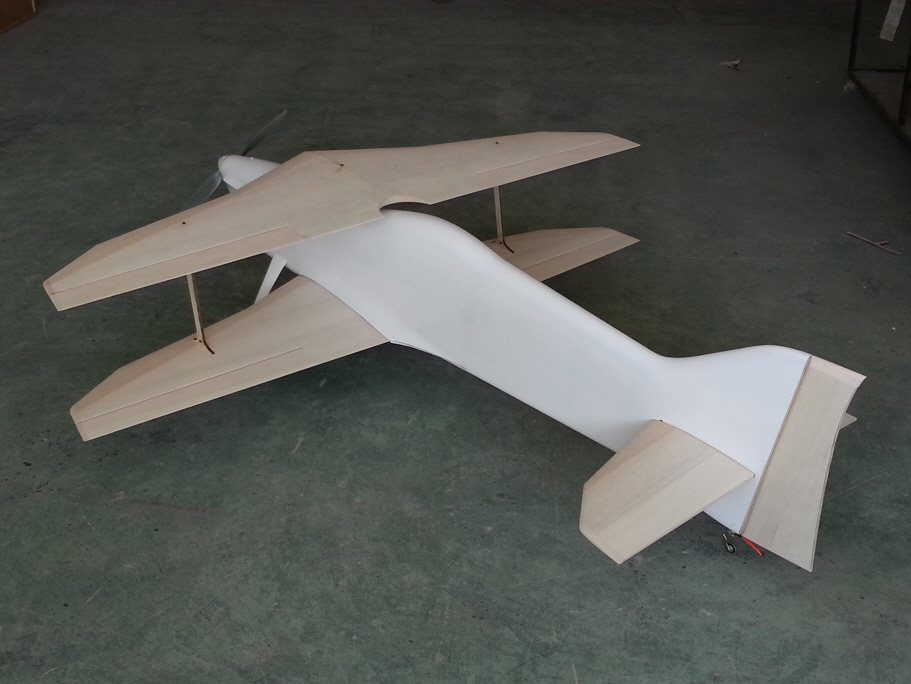

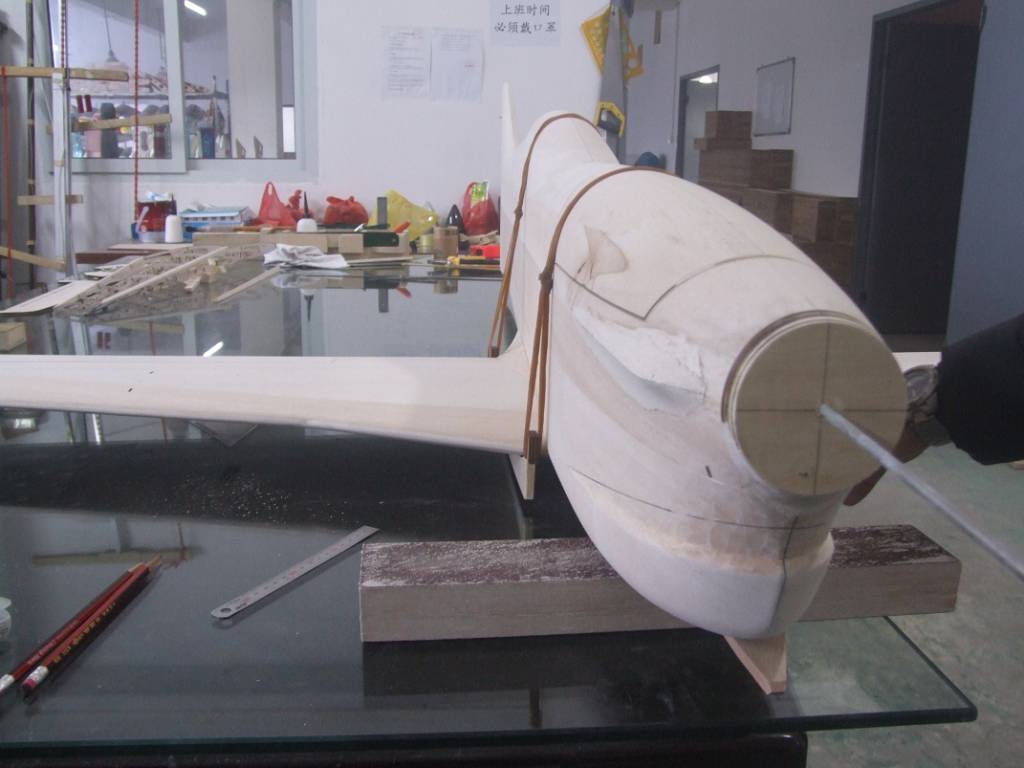

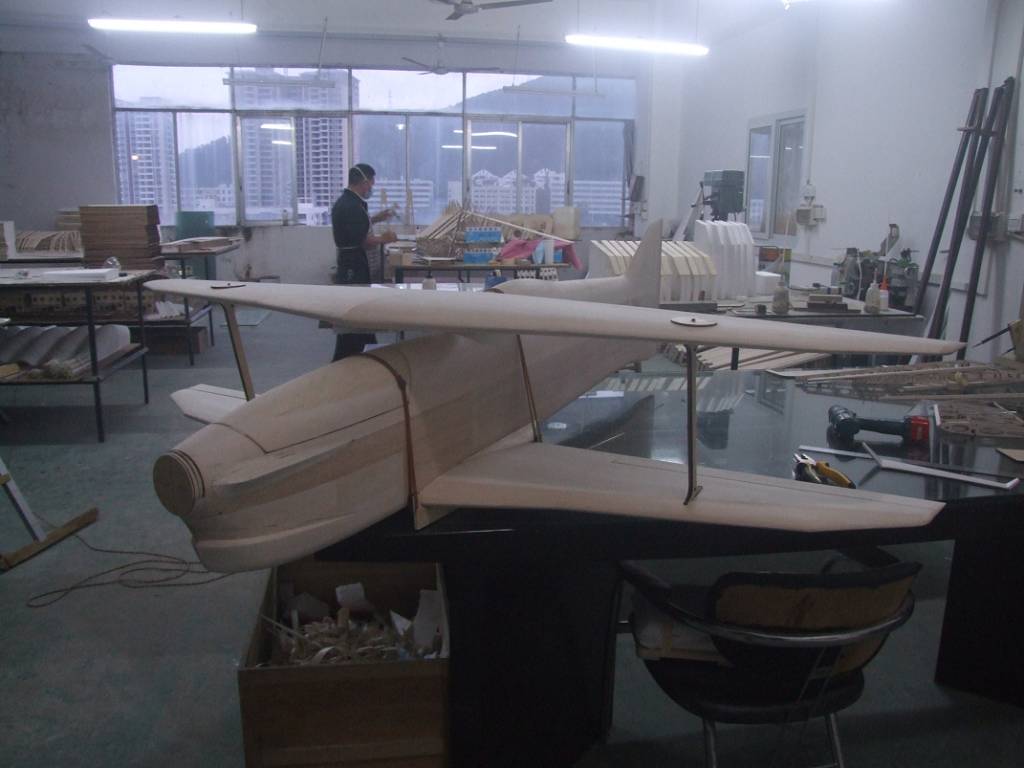

Here are some pics. As usual, he will conduct extensive testing and development prior to releasing it to the market, but the process has started.....

I am really sorry I didn't get a chance to visit him this past week, hopefully I can stop by on my next trip over there.

http://rcone.kr/board/index.html?id=bjair1&no=107
Attached Thumbnails Click image for larger version

Name:	Zw69592.jpg
Views:	797
Size:	51.3 KB
ID:	1830201   Click image for larger version

Name:	Fa85011.jpg
Views:	631
Size:	65.6 KB
ID:	1830202   Click image for larger version

Name:	Ci97936.jpg
Views:	588
Size:	63.5 KB
ID:	1830203   Click image for larger version

Name:	Nl28551.jpg
Views:	729
Size:	68.1 KB
ID:	1830204   Click image for larger version

Name:	Vq52551.jpg
Views:	616
Size:	63.1 KB
ID:	1830205   Click image for larger version

Name:	Gl20342.jpg
Views:	790
Size:	449.9 KB
ID:	1830206   Click image for larger version

Name:	Xq44169.jpg
Views:	906
Size:	74.4 KB
ID:	1830207
shannah is offline
Reply With Quote
Old 12-15-2012, 08:46 AM
  #2
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

A couple interesting features on the Biside:

- DTFS wings, based on the wing planform utilized on the Episode and Nuance DTFS design.
- Flying stabilizer.
- Narrow fuselage.
- Contra option. All of his airframes can be ordered for a Contra Drive, meaning thrust and spinner diameter settings for the Contra Drive.
shannah is offline
Reply With Quote
Old 12-15-2012, 08:59 AM
  #3
AmericanSpectre505

AmericanSpectre505's Avatar

Join Date: Mar 2007
Location: Fayetteville, NC
Posts: 1,235
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

That's what I was waiting for,....it was just a matter of time,..lol.


bholsten
AmericanSpectre505 is offline
Reply With Quote
Old 12-15-2012, 12:49 PM
  #4
g_mkoch

Join Date: Mar 2006
Location: Houston, TX
Posts: 325
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Very exited, was waiting for a bipe from BJ, I guess that this is gonna be my next plane.
g_mkoch is offline
Reply With Quote
Old 12-16-2012, 09:57 PM
  #5
patternflyer1
Senior Member
My Feedback: (11)

patternflyer1's Avatar

Join Date: Jul 2003
Location: Tracy, CA
Posts: 2,074
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

kewl!!!!!!
patternflyer1 is offline
Reply With Quote
Old 02-17-2013, 06:18 PM
  #6
DA4rc
Junior Member
My Feedback: (8)

Join Date: Mar 2002
Location: Huntersville, NC
Posts: 9
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Any more progress to report??
DA4rc is offline
Reply With Quote
Old 02-17-2013, 07:22 PM
  #7
Chris Moon
My Feedback: (8)

Chris Moon's Avatar

Join Date: Dec 2002
Location: Leesburg, VA
Posts: 1,366
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Flight testing according to BJ Park, no price released yet...
Chris Moon is offline
Reply With Quote
Old 03-11-2013, 06:44 PM
  #8
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

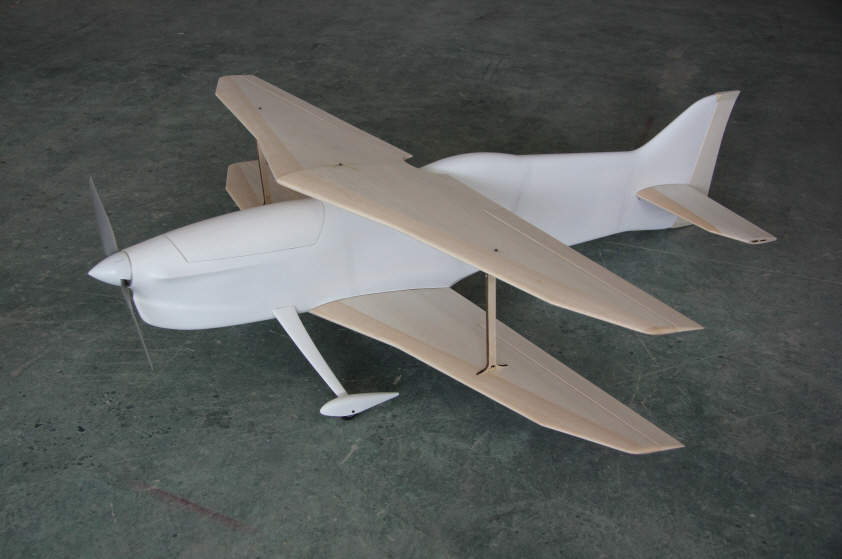

BJ has been making progress on the Biside. Here are the latest pics. I think it looks fantastic. He is hoping to put in the initial test flights this week. He is very deliberate in his testing and release process so this is just the beginning of the Biside introduction. Hopefully all goes well with the flight testing and it makes it to market soon. If it is as awesome as his last two projects then we are in for a treat.

Specs:
Weight 2038g (frame only)

Length 1998 mm

Wing span 1700 mm

wing area 96 dm2

H.Wing area 14.2 dm2

V.wing area 16.8 dm2


Paradigm & Sky!...

BJ CRAFT
Attached Thumbnails Click image for larger version

Name:	Vt57271.jpg
Views:	409
Size:	285.7 KB
ID:	1860936   Click image for larger version

Name:	Dy77771.jpg
Views:	356
Size:	290.4 KB
ID:	1860937   Click image for larger version

Name:	Ej12175.jpg
Views:	383
Size:	281.4 KB
ID:	1860938   Click image for larger version

Name:	Qo40516.jpg
Views:	387
Size:	277.4 KB
ID:	1860939   Click image for larger version

Name:	Wr54617.jpg
Views:	370
Size:	297.0 KB
ID:	1860940   Click image for larger version

Name:	Ze87303.jpg
Views:	349
Size:	281.4 KB
ID:	1860941   Click image for larger version

Name:	Wt59330.jpg
Views:	414
Size:	294.7 KB
ID:	1860942
shannah is offline
Reply With Quote
Old 03-11-2013, 10:16 PM
  #9
ram_z

ram_z's Avatar

Join Date: Feb 2005
Location: Ness-Ziona, ISRAEL
Posts: 182
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

It looks beautiful!

Looking forward for the flight reports!
ram_z is offline
Reply With Quote
Old 03-12-2013, 01:09 AM
  #10
Chris Moon
My Feedback: (8)

Chris Moon's Avatar

Join Date: Dec 2002
Location: Leesburg, VA
Posts: 1,366
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Biside ARF retail price for USA will be $2500
Chris Moon is offline
Reply With Quote
Old 03-12-2013, 02:49 AM
  #11
PeterP

Join Date: Feb 2003
Location: Brisbane, AUSTRALIA
Posts: 475
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE


I would be interested to hear what the designers motivation is for using a flying stab. I played around with flying stabs in the eighties but never had much success. From what I remember it was difficult to get the model trimmed for level flight. I was always chasing the trim and in the end I just reverted back to a normal stab. I guess that the servos are much better these days therefore that may solve that issue. Great looking model!
PeterP is offline
Reply With Quote
Old 03-12-2013, 11:58 AM
  #12
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

BJ describes the flying stab as having several advantages. Aside from weight advantages and ease of incidence changes he feels that it gives the elevator a much more linear control feeling. Keep in mind that the angle of attack of the stab does not change drastically, only small movement is required.
shannah is offline
Reply With Quote
Old 03-12-2013, 12:28 PM
  #13
vquick
My Feedback: (71)

vquick's Avatar

Join Date: Sep 2003
Location: Navarre,FL , FL
Posts: 605
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE


ORIGINAL: F3A Unlimited

Biside ARF retail price for USA will be $2500
What about ARC :-)
vquick is offline
Reply With Quote
Old 03-18-2013, 08:20 AM
  #14
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

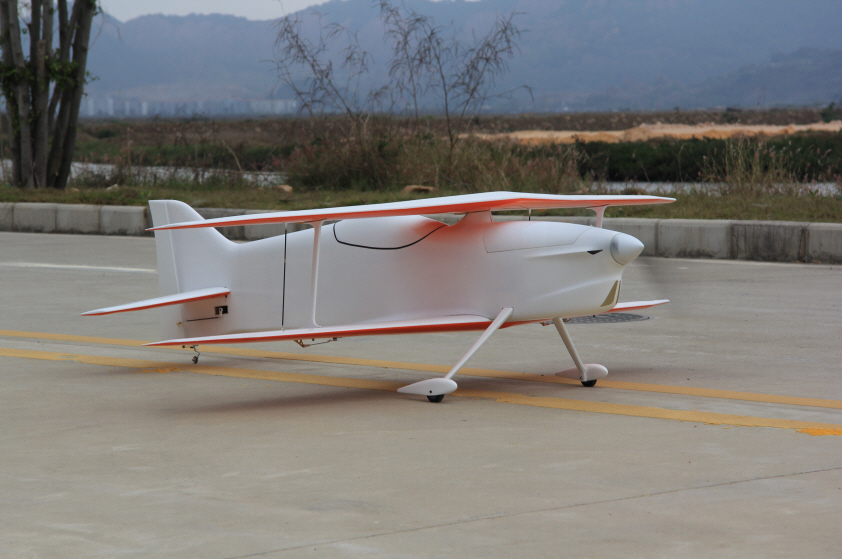

BJ has test flown the Biside. Here are some pics.

Attached Thumbnails Click image for larger version

Name:	Vt57152.jpg
Views:	552
Size:	291.2 KB
ID:	1863417   Click image for larger version

Name:	Hd95006.jpg
Views:	558
Size:	278.5 KB
ID:	1863418   Click image for larger version

Name:	Xc80415.jpg
Views:	580
Size:	279.0 KB
ID:	1863419   Click image for larger version

Name:	Jh14893.jpg
Views:	613
Size:	293.0 KB
ID:	1863420   Click image for larger version

Name:	Gb90689.jpg
Views:	555
Size:	34.5 KB
ID:	1863421   Click image for larger version

Name:	Uz68643.jpg
Views:	613
Size:	25.6 KB
ID:	1863422   Click image for larger version

Name:	Nl29635.jpg
Views:	512
Size:	283.1 KB
ID:	1863423   Click image for larger version

Name:	Ql34316.jpg
Views:	522
Size:	293.4 KB
ID:	1863424

Click image for larger version

Name:	Wb75696.jpg
Views:	647
Size:	295.1 KB
ID:	1863425
shannah is offline
Reply With Quote
Old 03-30-2013, 10:01 PM
  #15
ram_z

ram_z's Avatar

Join Date: Feb 2005
Location: Ness-Ziona, ISRAEL
Posts: 182
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Comments from BJ about the Biside in this link...
[link=http://rcone.kr/board/index.html?id=bjair1&no=110]http://rcone.kr/board/index.html?id=bjair1&no=110[/link]
ram_z is offline
Reply With Quote
Old 03-31-2013, 01:06 AM
  #16
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,110
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Hi Steve,
Would it be possible for you to ask BJ what all up weight he got and with what batteries.
Would be much appreciated.

Brian
serious power is offline
Reply With Quote
Old 04-03-2013, 08:26 AM
  #17
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Hi,
BJ put up a lot of detailed comments on his blog site: http://rcone.kr/board/index.html?id=bjair1&no=110


here's some specific data

Weight

ARC weight 2038g (landing gear, wheel, pants,tail gear all included)

Accessories 1230g (neumotor, apc 20*15, esc, servo, rx battery,EX cords)

Others 272g (covers, Battery bed , rods , horns etc)

Battery 4500mah 10S 1240.3g

Flying 4780 g
shannah is offline
Reply With Quote
Old 04-05-2013, 06:11 AM
  #18
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,110
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Hi Steve,
Thanks.
That is a light bipe.

Brian
serious power is offline
Reply With Quote
Old 05-07-2013, 05:03 AM
  #19
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Hey Guys,
I was able to swing over to see B.J. Park and his father in Zhuhai China this weekend. Luckily, the weather finally cooperated for me so that I could visit and go flying. I tried several times over the past year but Typhoons and strong rains always seemed to get in the way.

Sunday I made the Trek and B.J. And his father met me at the ferry terminal. We went directly to his new factory. Since it was Sunday there was no production going on. But his new shop is much larger. He has a really nice heat curing room for his molded fuselages and also for his clear coated painted items.

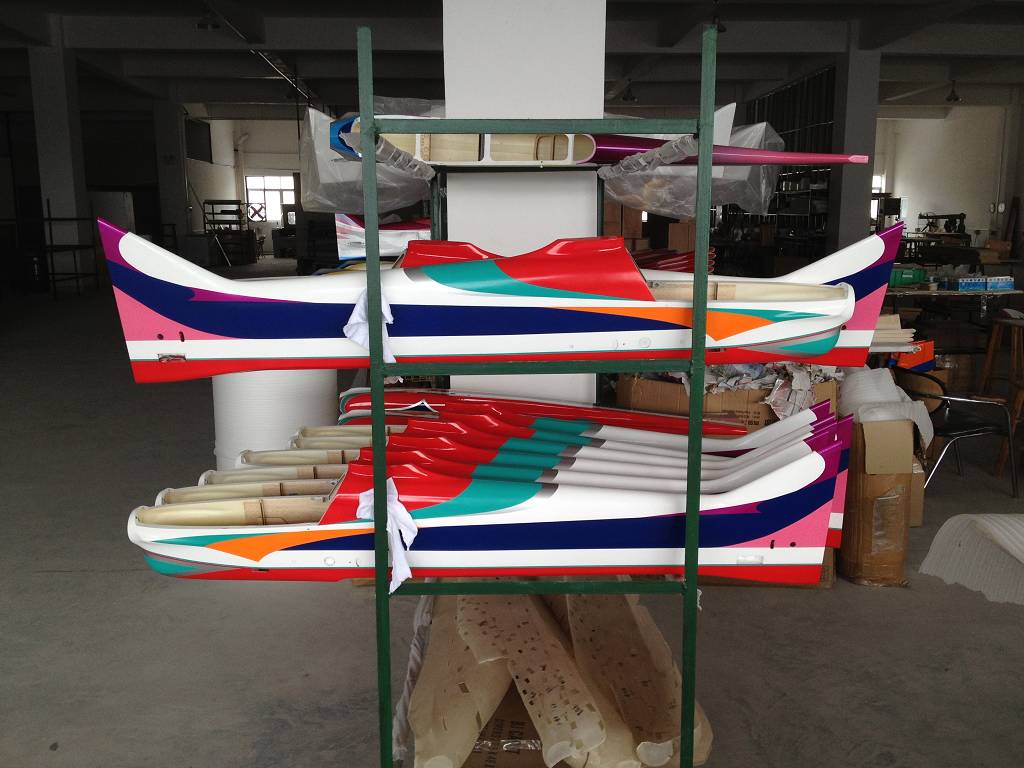

He showed me the new Biside molds and also some secret projects that I can't talk about yet. Sorry...

B.J. is really spending a lot of time and energy on the biplane. He is convinced that bipes are the future. And, so are many of the top Japanese fliers and designers. But, there are a lot of design challenges with bipes. Primary amongst these is roll stability. This is why many bipes don't do well in the wind and why many feel like Kites in certain conditions.

B.J. Has been flying the Biside protoype and has been making step by step changes to the design and setup. It is very tedious work. I had the chance to check out his current status on the Biside. His prototype is a testbed for his design improvements. He has made many changes to the original prototype in order to refine the final product.

We were able to head out to his flying site and put in some flights on the latest Biside prototype. If you look at the pics you will see a few changes to the original design. Most of these changes are only to make the prototype fly the way he wants the final production version to fly. He is going to incorporate several changes. Namely, the wing will shrink, wing shape will change, tail volume will change, fuselage volume will change, and a few other fuselage changes will be incorporated. All in all, the production version will be different than the current prototype.

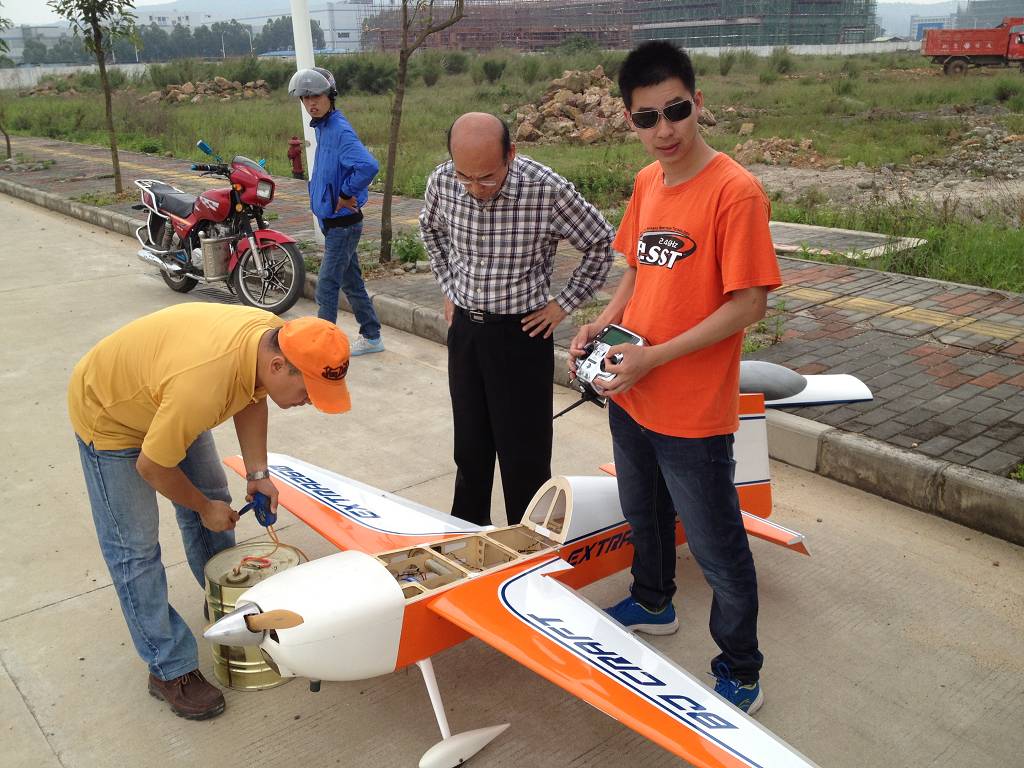

I am attaching some pics from our flying session. We were joined by his talented flying buddy PaPa. This kid is a great flier and very talented 3D pilot as well.

You can see the current form of the Biside. Notice the wing tips on the upper wing. Those were only added to help simulate the updated wing design. They will be gone in production.

The wing planform for production will be drastically different. In a nutshell, the wing area will be reduced. This design had too much lift. So he had to compromise on several aspects in order to get it to perform properly.

But, enough of that. We stuffed the plane into the back of his van (with half of it hanging out) and drove down the street of the industrial park to go fly it. My basic impression was that this thing is huge! Some of that will change when he updates it for production but the biplane really looks different when sitting in the ground.

His prototype used a Neu F3A-1 motor and (I think) a 21x14 prop. I thought to myself that this would be an underpowered dog. No way would that motor and prop give enough performance. I was used to the Pletty Advance powered Episode with epic power and was thinking that this huge biplane would not have the power needed.

So, he got the plane all set up and PaPa (who is the only guy in China that flies Mode II) took off then handed me the TX. I was instantly shocked by how fast and slippery this was. I thought to myself "no way is this a 10 cell Neu powered airplane". It was simply ballistic. I proceeded to flail around and looked like a person who had never flown a precision aircraft. B.J. tried to tell me that it takes less power than I thought and that the flying stabilizer was extremely effective. He was right on all of those accounts. But still, I couldn't fathom how powerful and quick this thing was.

On the next flight we moved the CG forward and tried again. This time I was more prepared for the flight envelope. I dialed back the power significantly and actually started to fly it like a pattern plane. I think I flew it at about 1/3 throttle for almost all maneuvers. The Neu motor throttle response on this airframe was like a Turbo. All of a sudden it would go ballistic. I was shaking my head because I had never flown anything that behaved that way. My Neu powered Nuance was tame in comparison. I can't even imagine what a Pletty Advance would do on that airframe. B.J. and I talked abou this. It seems that a lower power profile and smaller prop combination would be better for this airframe. Even, perhaps, an 8S setup would be more than sufficient. Or, a Himax outrunner would be plenty of power. I still couldn't comprehend how this was possible for such a large airframe.

A few flights later I started to feel comfortable. The snaps were awesome and the spins were as good as the Episode. I caught a glimpse of what B.J. was describing to me as the potential of the bipe.

We ran out of battery packs (some of which had... Get this... 1000 flights! He knows batteries since he was a pioneer with Korean cell manufacturers) and then we went to lunch.

After lunch we figured we had enough time to go flying again so he threw his IMAC Extra 260 in the back of the van and we flew that. PaPa did some cool 3D flying over the water. I got to throw it around a bit then we noticed that time had escaped us and we had to race to the ferry terminal. I got there with just a few minutes to spare.

My day was complete. I saw some cool stuff and visited my good friends. I tested the future and I think it has two wings....
Attached Thumbnails Click image for larger version

Name:	Pn35917.jpg
Views:	499
Size:	76.5 KB
ID:	1879914   Click image for larger version

Name:	Mh19794.jpg
Views:	574
Size:	74.5 KB
ID:	1879915   Click image for larger version

Name:	Jo30873.jpg
Views:	501
Size:	133.5 KB
ID:	1879916   Click image for larger version

Name:	Ca82552.jpg
Views:	493
Size:	75.4 KB
ID:	1879917
shannah is offline
Reply With Quote
Old 05-07-2013, 05:38 AM
  #20
shannah
Thread Starter
My Feedback: (5)

Join Date: Sep 2004
Location: placentia, CA
Posts: 1,155
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

I forgot to mention a couple cool things he had in his shop. First, and foremost was the totally awesome Fantasista 110. This is Akiba's model and was totally stunning. It is very large for a 110 sized model and I was really impressed by the workmanship on this. I was drooling over it. Very nice.

Second, was the very cool Nuance 120. A slightly smaller version of the Nuance but with all the same attention to detail. Not to mention the gorgeous color scheme. Very cool
Attached Thumbnails Click image for larger version

Name:	Ax72954.jpg
Views:	566
Size:	92.0 KB
ID:	1879922   Click image for larger version

Name:	Vq52491.jpg
Views:	546
Size:	77.3 KB
ID:	1879923   Click image for larger version

Name:	Ig12664.jpg
Views:	476
Size:	68.8 KB
ID:	1879924
shannah is offline
Reply With Quote
Old 05-07-2013, 07:31 AM
  #21
MTK
Senior Member

Join Date: May 2004
Location: Whippany, NJ
Posts: 5,386
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE


ORIGINAL: PeterP


I would be interested to hear what the designers motivation is for using a flying stab. I played around with flying stabs in the eighties but never had much success. From what I remember it was difficult to get the model trimmed for level flight. I was always chasing the trim and in the end I just reverted back to a normal stab. I guess that the servos are much better these days therefore that may solve that issue. Great looking model!
I believe most of the efforts with flying stabs I've oberved have had their pivot points too far aft. The forces will tend to diverge control under this condition.The pivotshould be located just fore of the stab's AC or on the AC, and the stab should be statically balanced (will require more weight to be added than if the pivot was located aft). A set of ball bearings might help but not absolutely necessary. Lastly, I believe that the control linkage should be added as far fore as practical.

Looking carefully at BJ Park's stab shape, the guy seems aware of what he needed to do to make this practical. The guy is a thinker....my hat's off
MTK is offline
Reply With Quote
Old 05-07-2013, 08:01 AM
  #22
mups53
My Feedback: (41)

Join Date: Jan 2002
Location: Algonquin Illinois IL
Posts: 2,343
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Thanks Steve great report. I look forward to a day when Chris and I can visit Mr Park. Love the look of the Fantasista 110 too.
I think one of the things that seperates BJ Craft frommany of the other F3A Plane company's is his willingness to test so much before he releases anything new. Plus his design prowess.
Mike
mups53 is offline
Reply With Quote
Old 05-07-2013, 11:11 AM
  #23
flywilly
My Feedback: (121)

Join Date: Feb 2002
Location: glen allen, VA,
Posts: 2,100
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

Hey Mike,
Is F3AUnlimited planning to import the Fantasista 110 and/or the Nuance 120? I still fly glow and would love one or both models!
Thanks,
Will
flywilly is offline
Reply With Quote
Old 05-08-2013, 05:47 AM
  #24
mups53
My Feedback: (41)

Join Date: Jan 2002
Location: Algonquin Illinois IL
Posts: 2,343
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE


ORIGINAL: flywilly

Hey Mike,
Is F3AUnlimited planning to import the Fantasista 110 and/or the Nuance 120? I still fly glow and would love one or both models!
Thanks,
Will
Hey Willy were thinking it. They certainly are beautiful. Keep you posted.
Mike Mueller
mups53 is offline
Reply With Quote
Old 05-08-2013, 03:53 PM
  #25
Chris Moon
My Feedback: (8)

Chris Moon's Avatar

Join Date: Dec 2002
Location: Leesburg, VA
Posts: 1,366
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: BJCraft BISIDE

The Fantasista 110 is electric only as confirmed by BJ Park. We may bring a few in but you are looking at over $1K for a 110 sized plane.
Chris Moon is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
