Electric Pattern Aircraft Discuss epowered pattern aircraft in this forum

Electric ZN Line Xigris C2 Build Thread

Reply
Old 12-05-2009, 11:58 AM
  #1
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default Electric ZN Line Xigris C2 Build Thread

Hi Everyone,

After the vast use, (more than 64,000 views), of my Electric Osmose build thread: http://www.rcuniverse.com/forum/m_6527765/tm.htm
I understood the need of this information for the nouveau flyers.

One thing that I like in our hobby is that almost everyone is willing to help others in building and flying.

I learned most of my knowledge from other people that published their knowledge and ideas.

For example I learned from Chad Northeast in his ZN Line Xigris Build Thread http://www.rcuniverse.com/forum/m_8956458/tm.htm
the uses of the poly urethane glue, Thanks Chad, Please accomplish that thread.

I can never forget one incident that happened to me in the 2001 world championship, I asked one of the Japanese team member to take a picture of the inside installation of one of their plane, and in response he covered the place with a towel. (Remember the fifties, when the Japanese copied almost any American electrical appliance, transistors etc.).

So for the memory of that incident, here is the Xigris Build Thread.

Best regards,

Isaac Najary
najary is offline
Reply With Quote
Old 12-05-2009, 12:13 PM
  #2
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

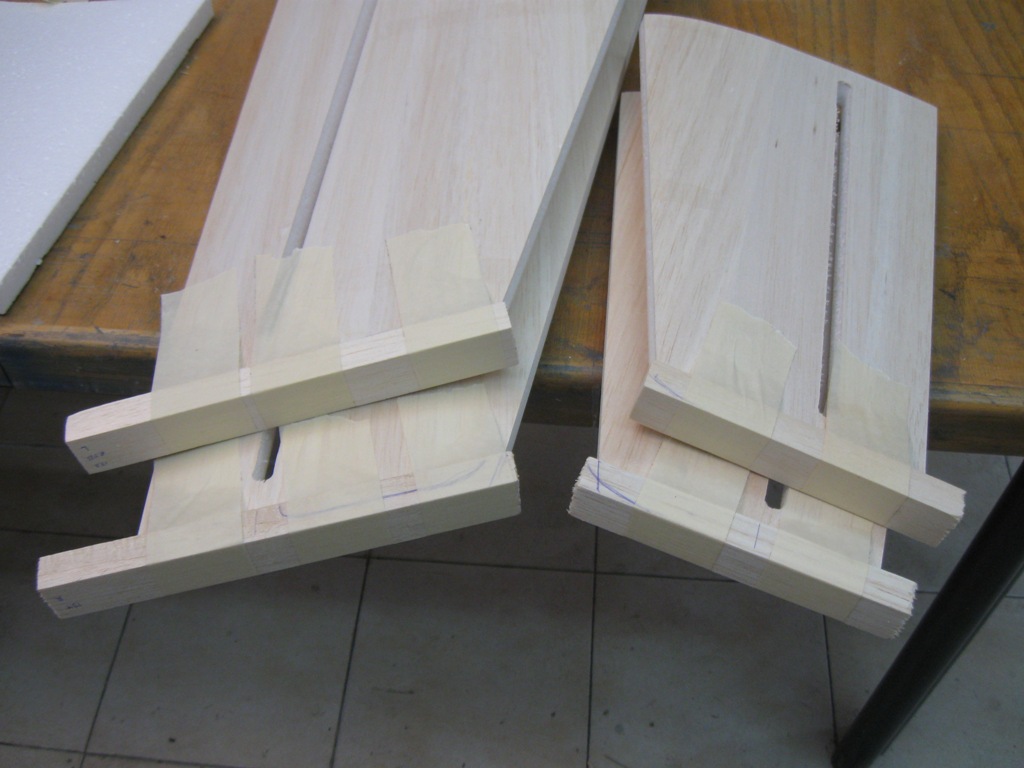

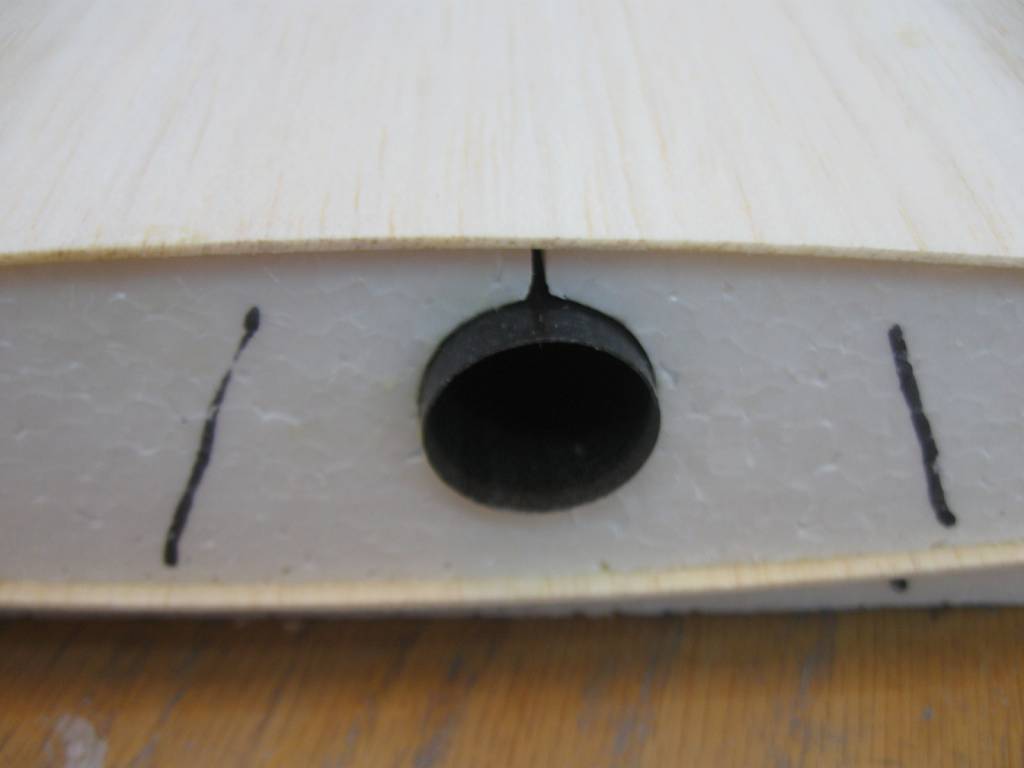

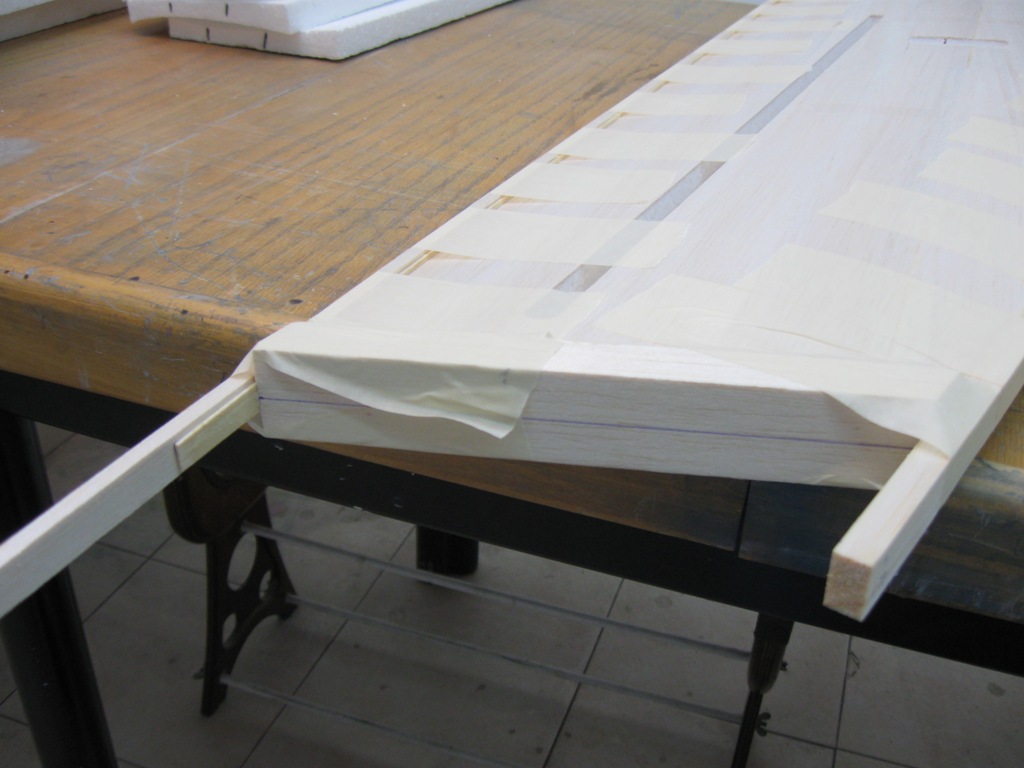

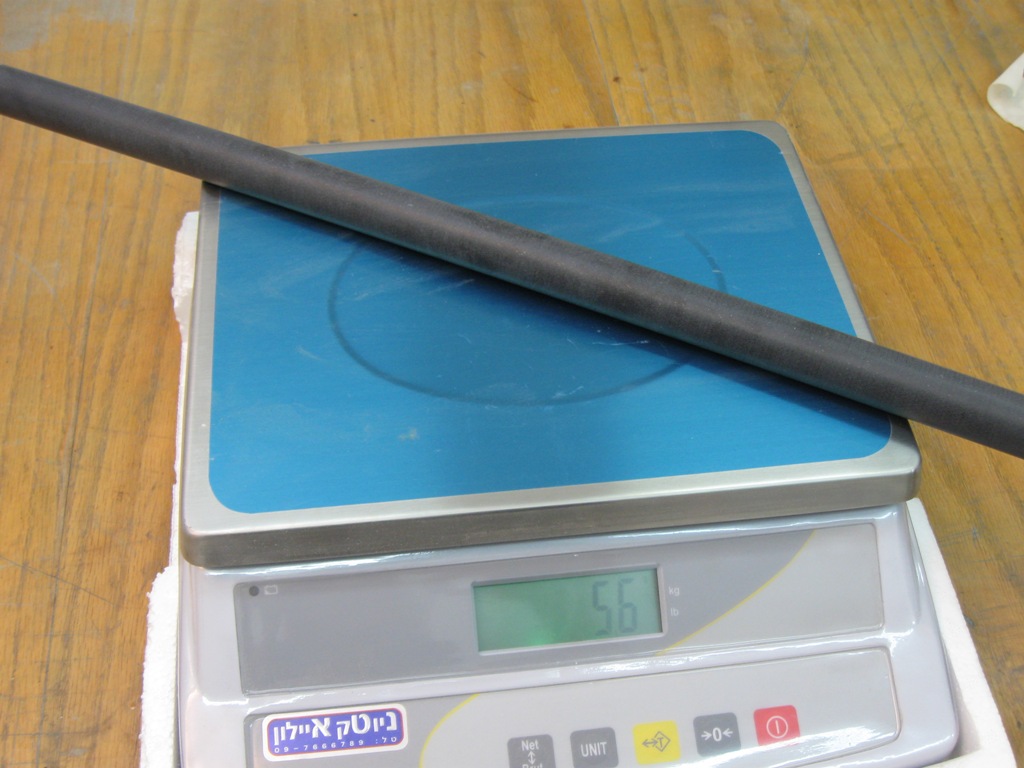

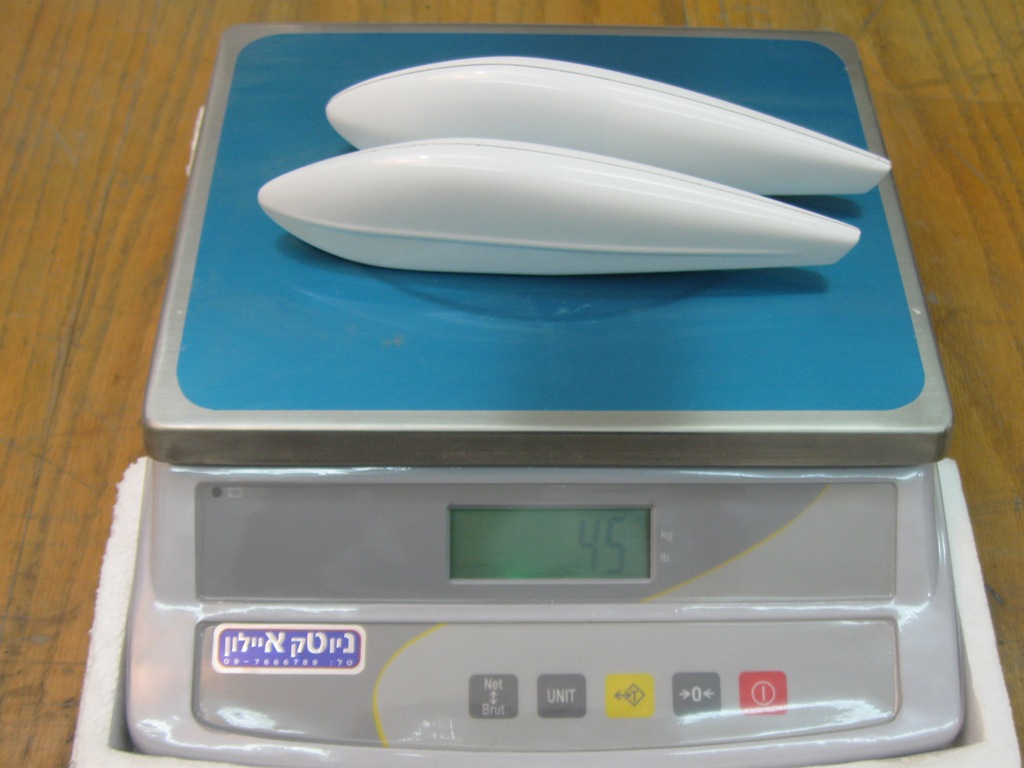

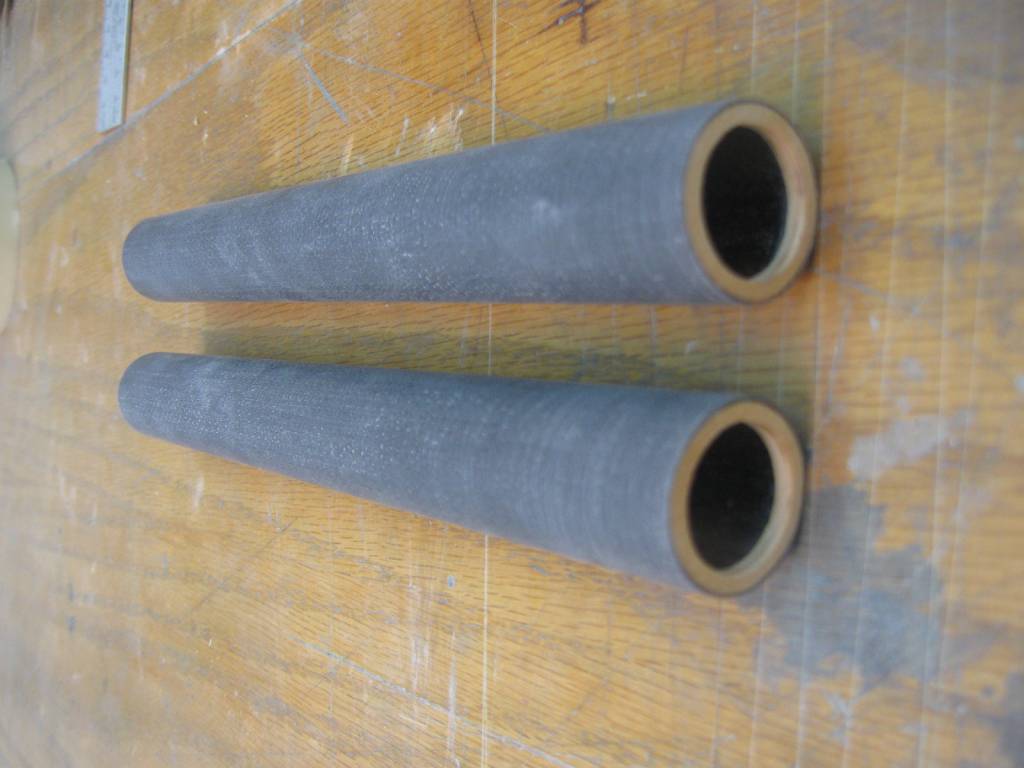

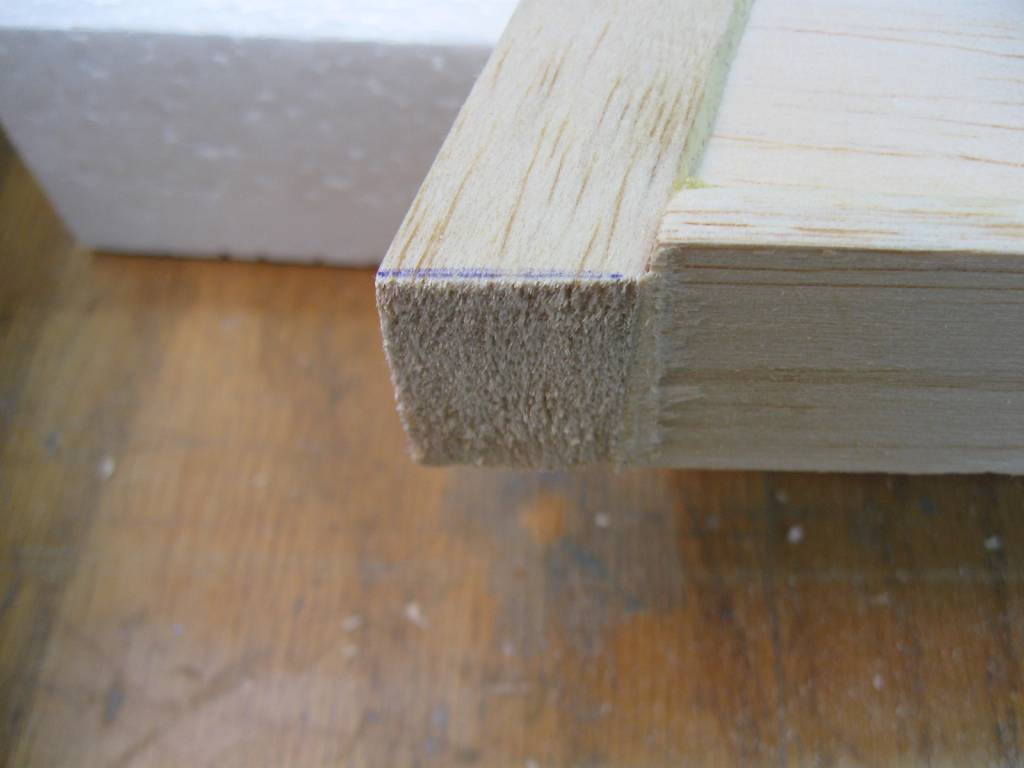

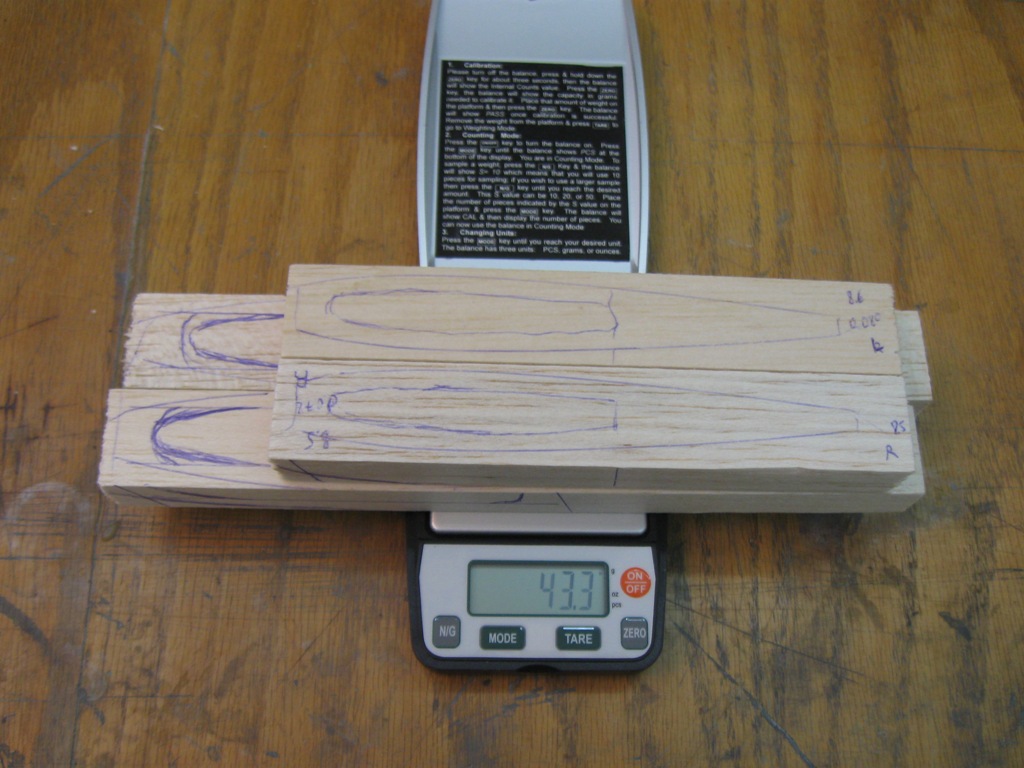

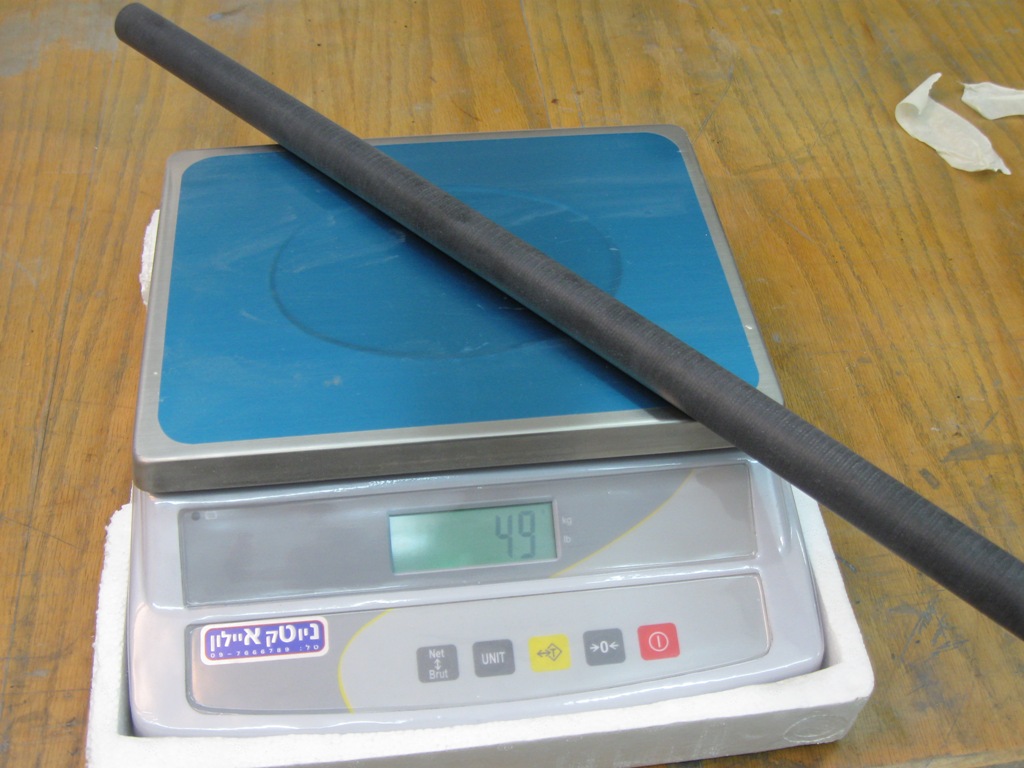

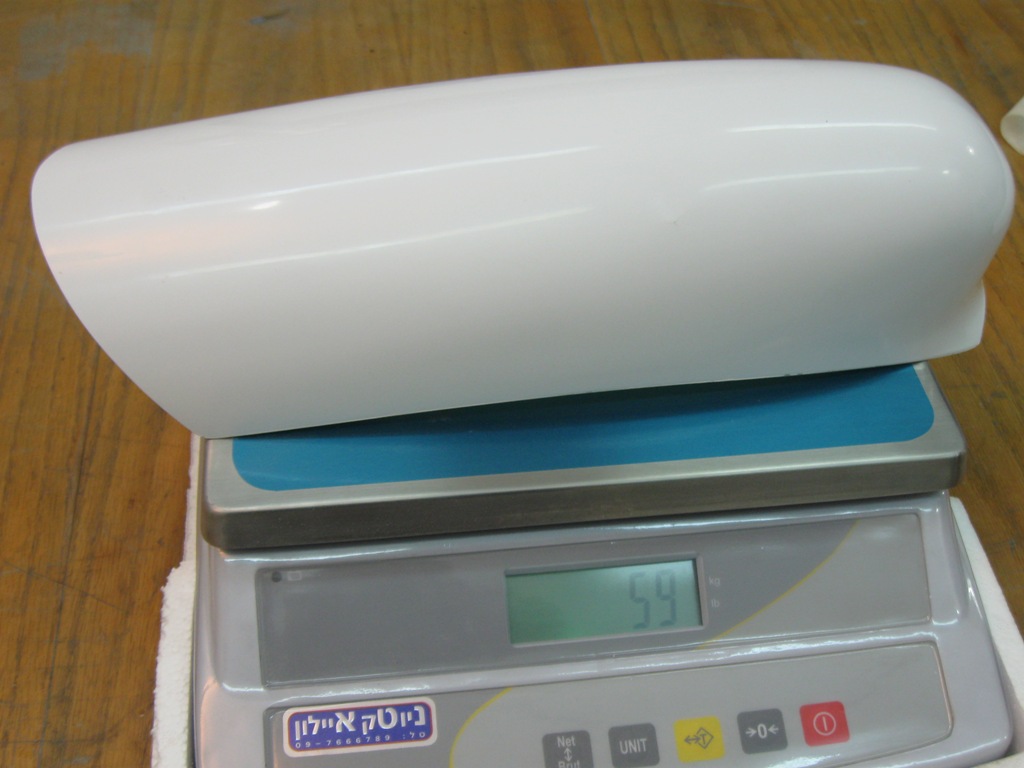

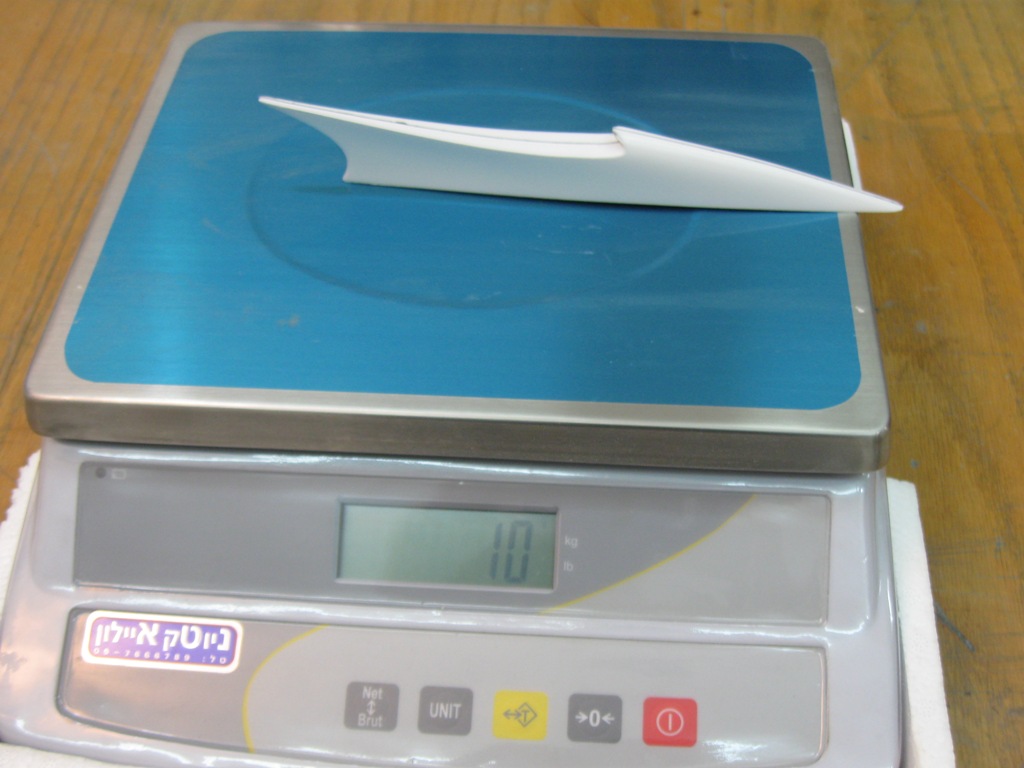

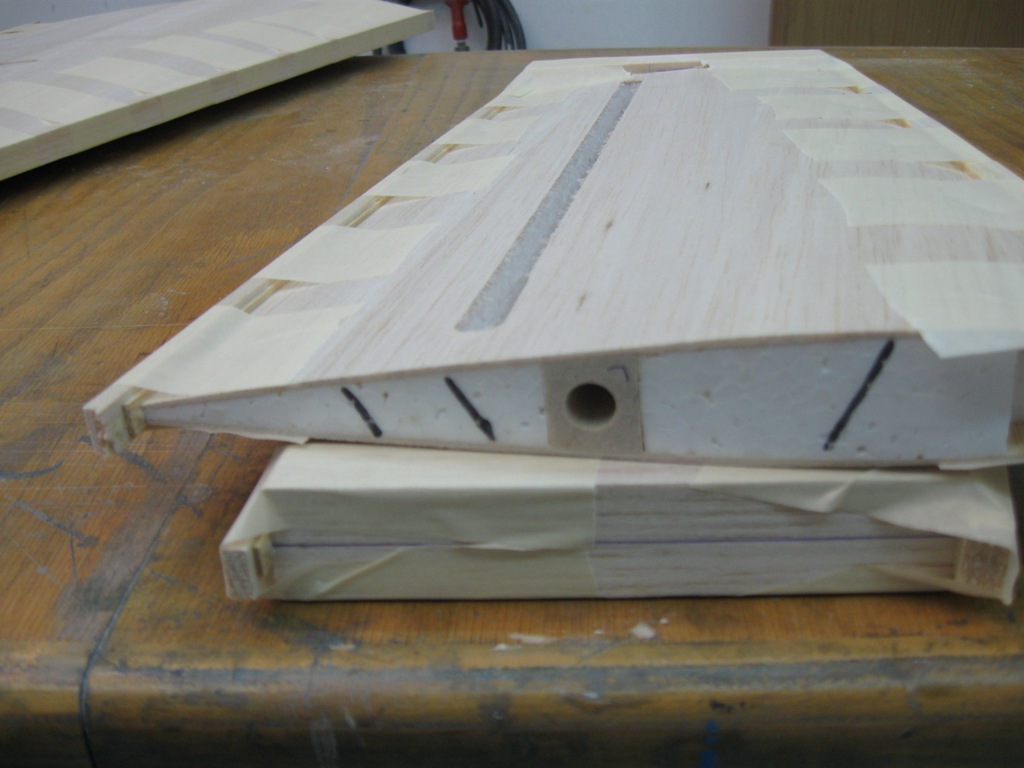

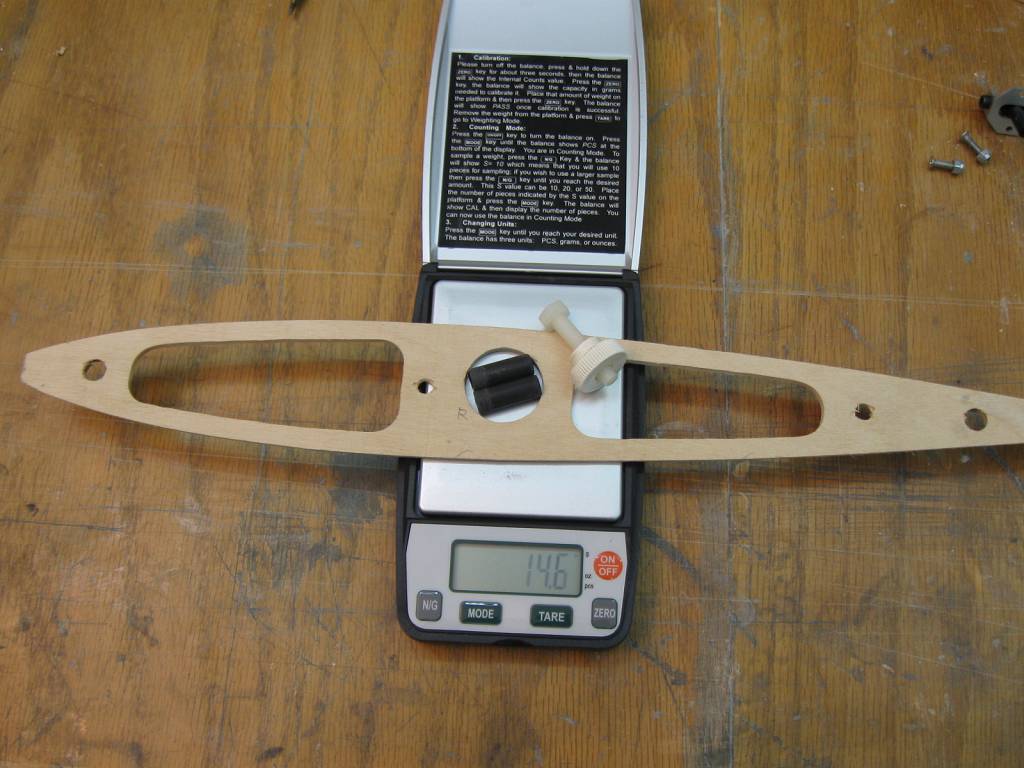

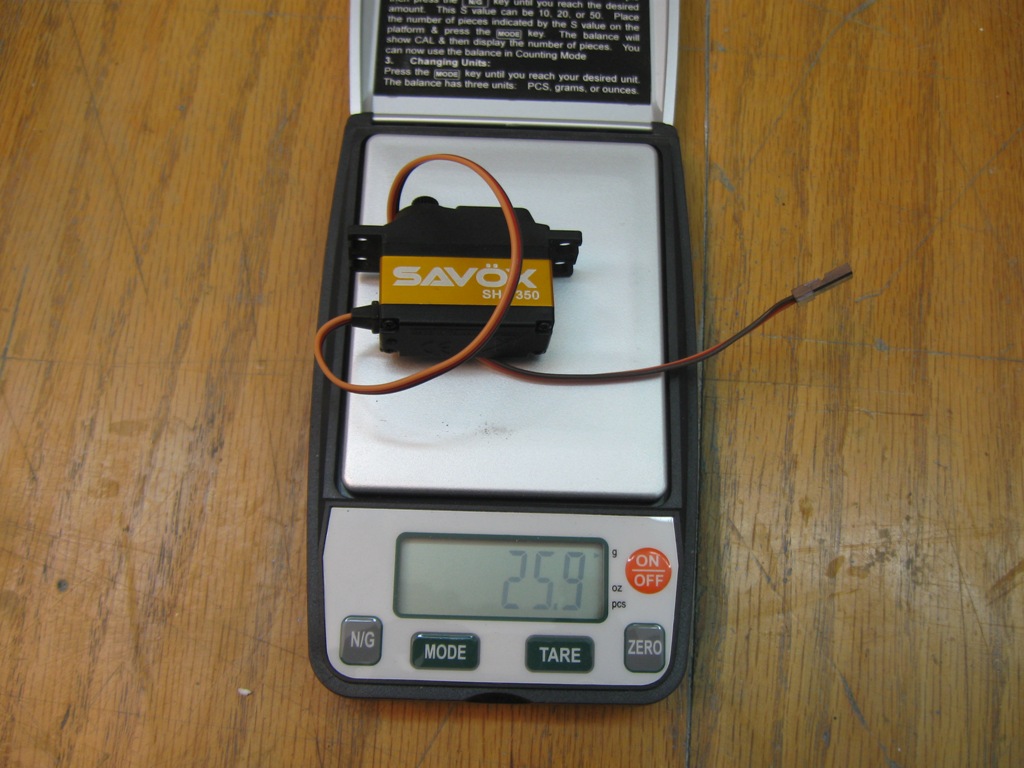

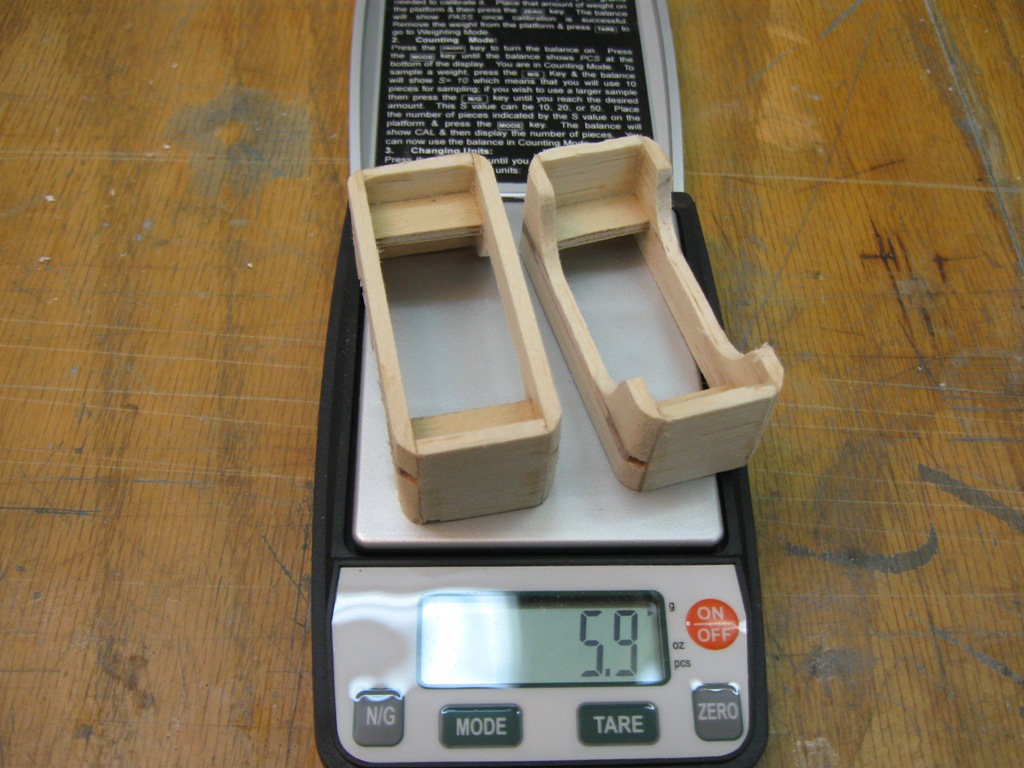

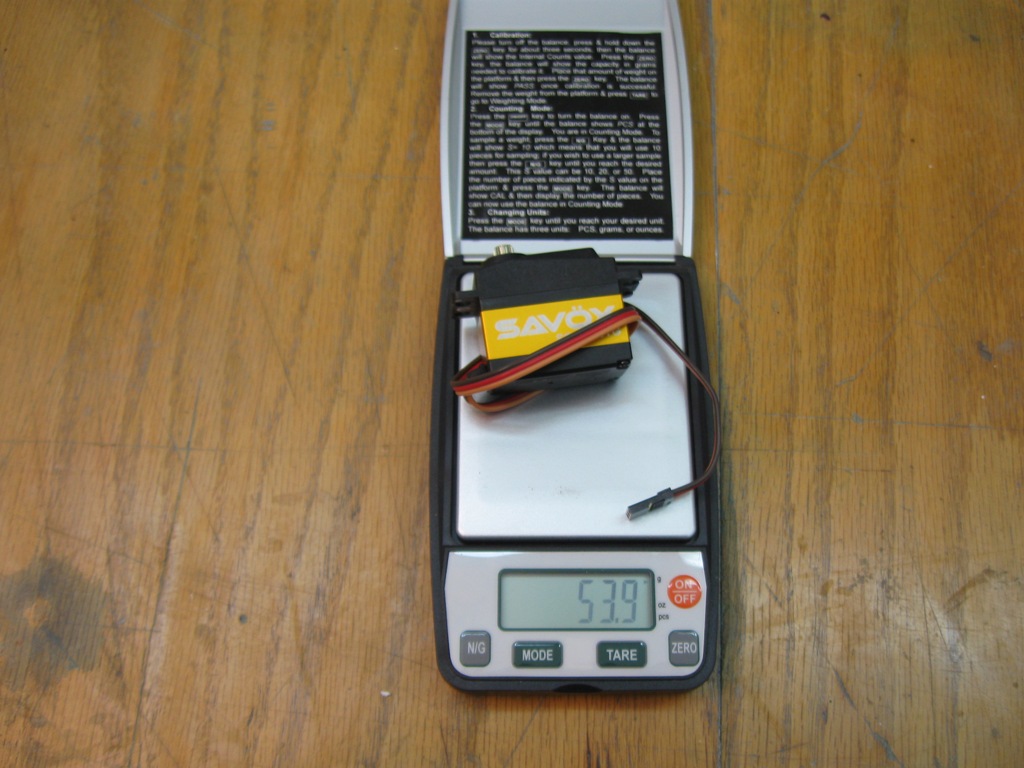

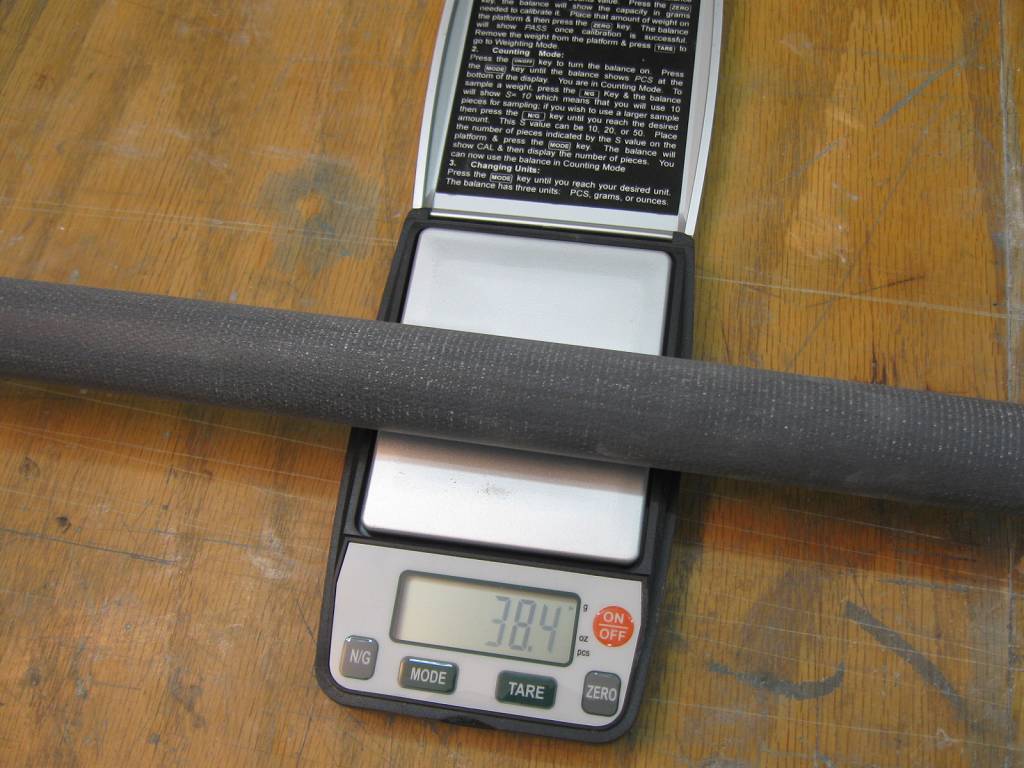

The first thing that I always do when starting a new project is weighing the kit parts.

Isaac Najary
Attached Thumbnails
Click image for larger version

Name:	Tr49288.jpg
Views:	110
Size:	152.3 KB
ID:	1327309   Click image for larger version

Name:	Gb90641.jpg
Views:	101
Size:	113.6 KB
ID:	1327310   Click image for larger version

Name:	Yd83767.jpg
Views:	91
Size:	126.9 KB
ID:	1327311   Click image for larger version

Name:	Ga76387.jpg
Views:	80
Size:	121.7 KB
ID:	1327312   Click image for larger version

Name:	Cn78944.jpg
Views:	87
Size:	152.6 KB
ID:	1327313

Click image for larger version

Name:	Hy34216.jpg
Views:	98
Size:	142.4 KB
ID:	1327314   Click image for larger version

Name:	Jl95118.jpg
Views:	79
Size:	136.4 KB
ID:	1327315   Click image for larger version

Name:	Po48068.jpg
Views:	77
Size:	140.8 KB
ID:	1327316   Click image for larger version

Name:	Ec59268.jpg
Views:	88
Size:	162.2 KB
ID:	1327317   Click image for larger version

Name:	Xj53993.jpg
Views:	79
Size:	173.6 KB
ID:	1327318

Click image for larger version

Name:	Lr74569.jpg
Views:	71
Size:	164.0 KB
ID:	1327319   Click image for larger version

Name:	Oz10284.jpg
Views:	76
Size:	143.5 KB
ID:	1327320
najary is offline
Reply With Quote
Old 12-05-2009, 12:17 PM
  #3
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

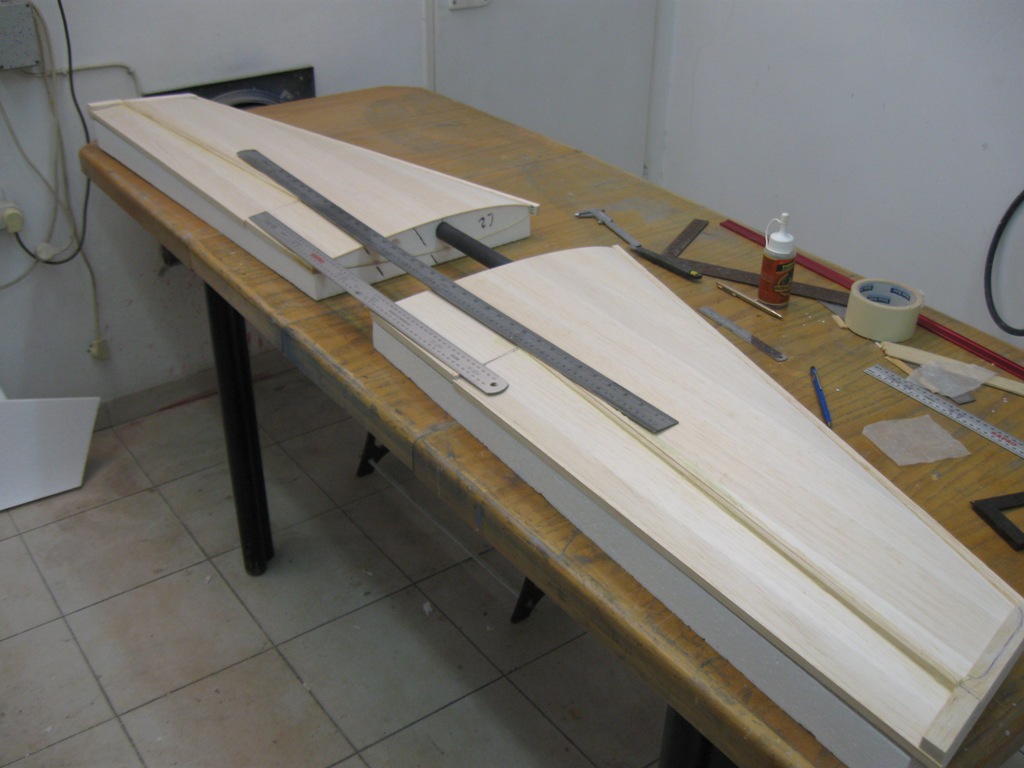

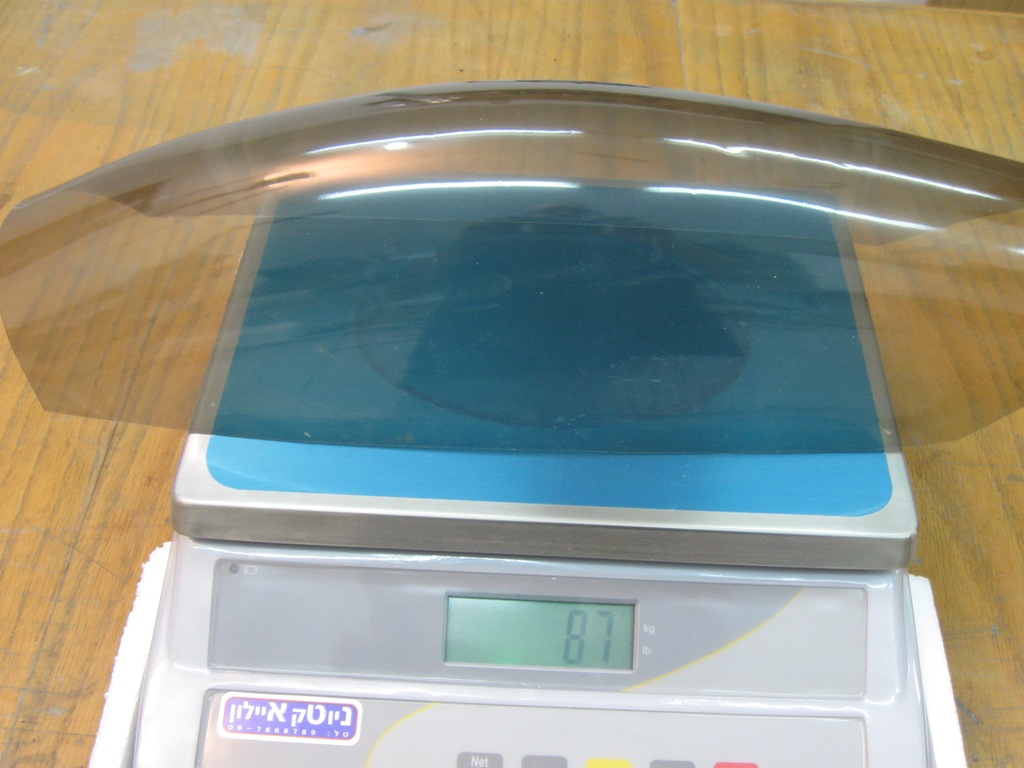

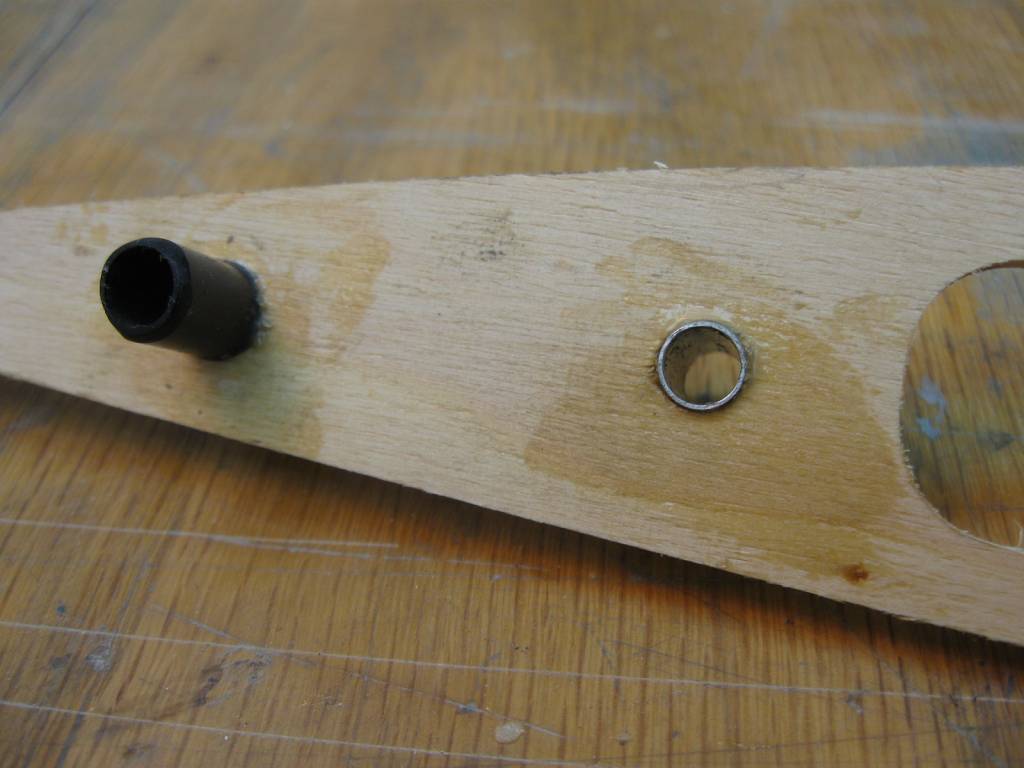

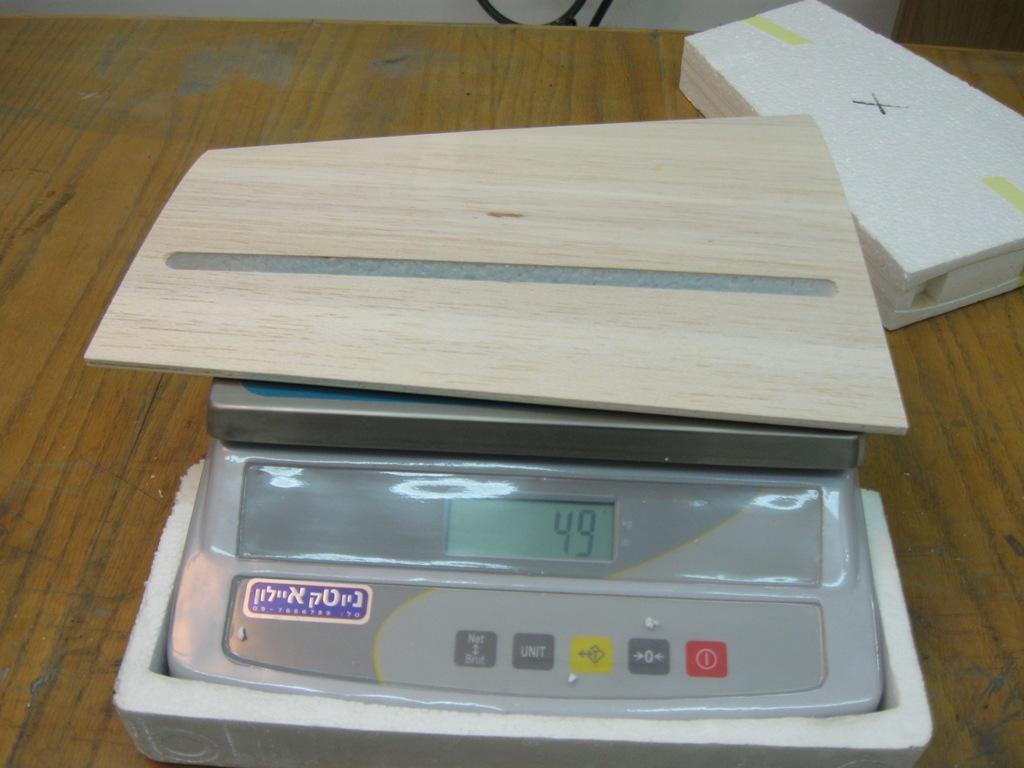

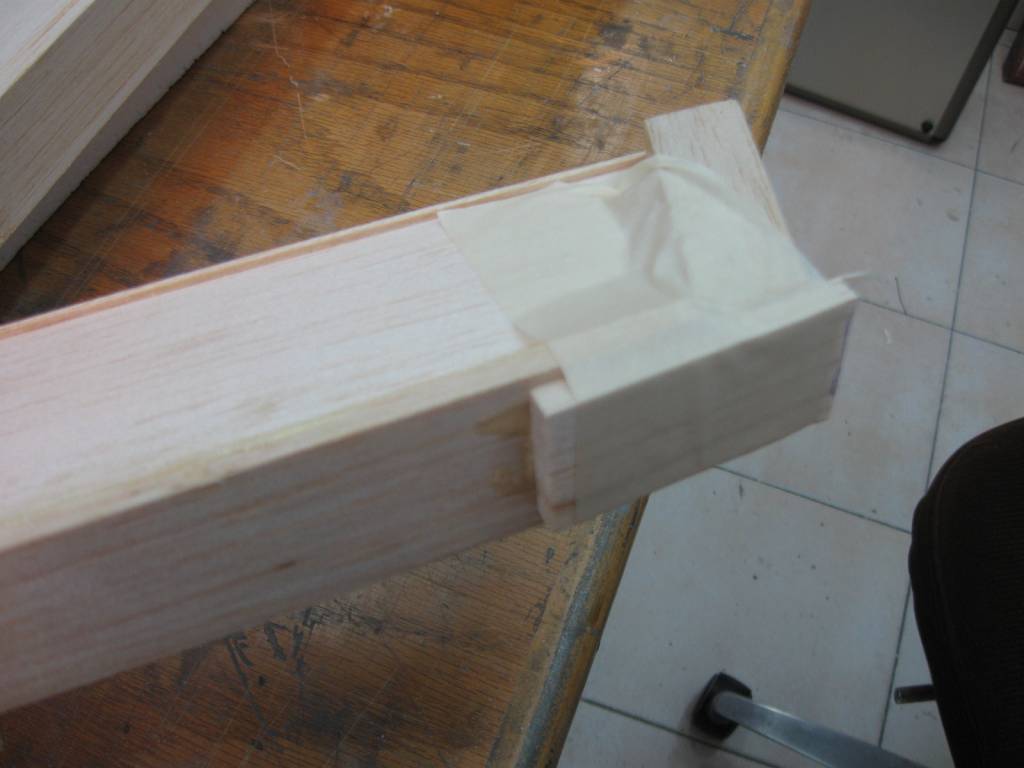

More
Attached Thumbnails
Click image for larger version

Name:	Pn36623.jpg
Views:	80
Size:	154.0 KB
ID:	1327321   Click image for larger version

Name:	Oj28026.jpg
Views:	99
Size:	137.4 KB
ID:	1327322   Click image for larger version

Name:	Ch95718.jpg
Views:	99
Size:	136.3 KB
ID:	1327323   Click image for larger version

Name:	Vp39969.jpg
Views:	87
Size:	163.2 KB
ID:	1327324   Click image for larger version

Name:	Oz29200.jpg
Views:	82
Size:	159.0 KB
ID:	1327325

Click image for larger version

Name:	Ev25314.jpg
Views:	82
Size:	158.9 KB
ID:	1327326   Click image for larger version

Name:	Fh80344.jpg
Views:	83
Size:	156.5 KB
ID:	1327327   Click image for larger version

Name:	Lj33294.jpg
Views:	77
Size:	192.3 KB
ID:	1327328   Click image for larger version

Name:	Ts21747.jpg
Views:	73
Size:	178.8 KB
ID:	1327329   Click image for larger version

Name:	Qc29271.jpg
Views:	76
Size:	206.2 KB
ID:	1327330

najary is offline
Reply With Quote
Old 12-05-2009, 12:54 PM
  #4
jlkonn

jlkonn's Avatar

Join Date: Jan 2003
Location: Back home in, OH
Posts: 1,418
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Isaac,
Thanks for starting this thread!
I have a C1 on order from Chris at F3A Unlimited.
I enjoyed Chad's thread and now looking forward to yours.
They're both going to help me immensely!

JLK
jlkonn is offline
Reply With Quote
Old 12-05-2009, 01:05 PM
  #5
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

The second thing is writing an Excel worksheet with all the parts weights and the moments from the planning C.G.

The moments are used to know in advance where the motor battery tray will be and how much the battery should be moved in order to move the C.G. 1 cm' so the battery tray can be planned properly.

In glow planes, one can know in advance, if the plane is going to be tail or nose heavy and try to eliminate the problem.

I update the Excel during the course of the building process with the actual weights and mark them in green.

The Xigris Excel enclosed herewith,

[size=2]Here is a very important conclusion that came out from the Excel – The plane is going to be tail heavy, the motor battery should be at 27.3 cm from the C.G., that is very close to the motor. I shall do very effort to make the tail as light as possible !!!!

Sorry for the Hebrew,

If someone wants the original Excel, please send me an email to najary@netvision.net.il

Regards,

Isaac Najary
Attached Files
File Type: pdf
Jh17023.pdf (44.5 KB, 112 views)
najary is offline
Reply With Quote
Old 12-05-2009, 01:46 PM
  #6
ExFokkerFlyer

Join Date: May 2002
Location: Coarsegold, CA
Posts: 693
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Isaac,

Thanks for doing this thread! I have a C2 coming this month and your thread is going to help me out immensely. What motor are you planning? Also on the first set of pictures there is tape on the fuselage showing the cutouts for the wing tubes, adjusters, etc. Did you put that on there or did it come that way? It is on both sides or just one?

Tom M

I also sent an email for the Excel file, thank you in advance.
ExFokkerFlyer is offline
Reply With Quote
Old 12-05-2009, 06:23 PM
  #7
Nickolas

Nickolas's Avatar

Join Date: Jun 2004
Location: Athens, GREECE
Posts: 917
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Have a nice building! Is the fuselage made by Krill or ZN?

Savox servos for pattern...nice!
Nickolas is offline
Reply With Quote
Old 12-06-2009, 10:34 AM
  #8
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread


Quote:
ORIGINAL: ExFokkerFlyer

Isaac,

Thanks for doing this thread! I have a C2 coming this month and your thread is going to help me out immensely. What motor are you planning? Also on the first set of pictures there is tape on the fuselage showing the cutouts for the wing tubes, adjusters, etc. Did you put that on there or did it come that way? It is on both sides or just one?

Tom M

I also sent an email for the Excel file, thank you in advance.
Hi Tom,

I planning to use the Hacker C50-14XL,

The tape comes that way, on both sides.

Regards,

Isaac Najary
najary is offline
Reply With Quote
Old 12-06-2009, 10:41 AM
  #9
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread


Quote:
ORIGINAL: Nickolas

Have a nice building! Is the fuselage made by Krill or ZN?

Savox servos for pattern...nice!
Hi Nickolas

The fuselage is made by Krill.

Regards,

Isaac Najary
najary is offline
Reply With Quote
Old 12-06-2009, 10:54 AM
  #10
papaone

papaone's Avatar

Join Date: Mar 2005
Location: Salon, FRANCE
Posts: 1,046
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Hi Najary

I'm very happy to read this thread and look at your pictures.
I hope this thread will be as exceptional as your Osmose Thread. It 's help me to build plane for a friend of mine.
Thank you very much to share your passion.
Claude
papaone is online now
Reply With Quote
Old 12-07-2009, 12:21 PM
  #11
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

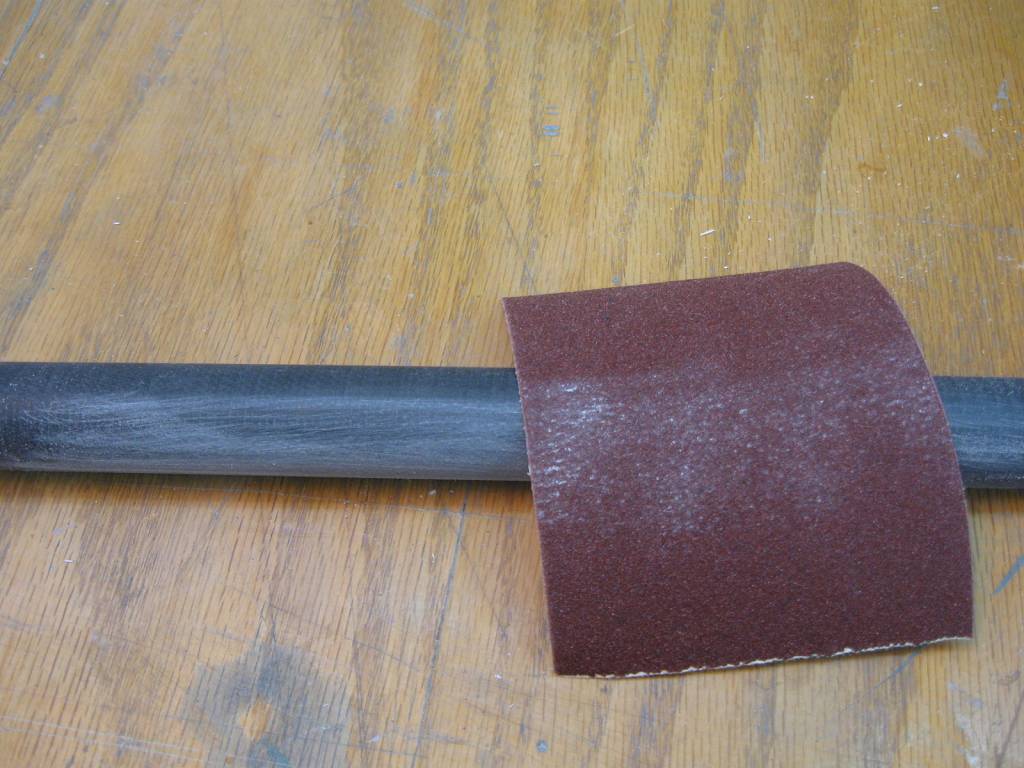

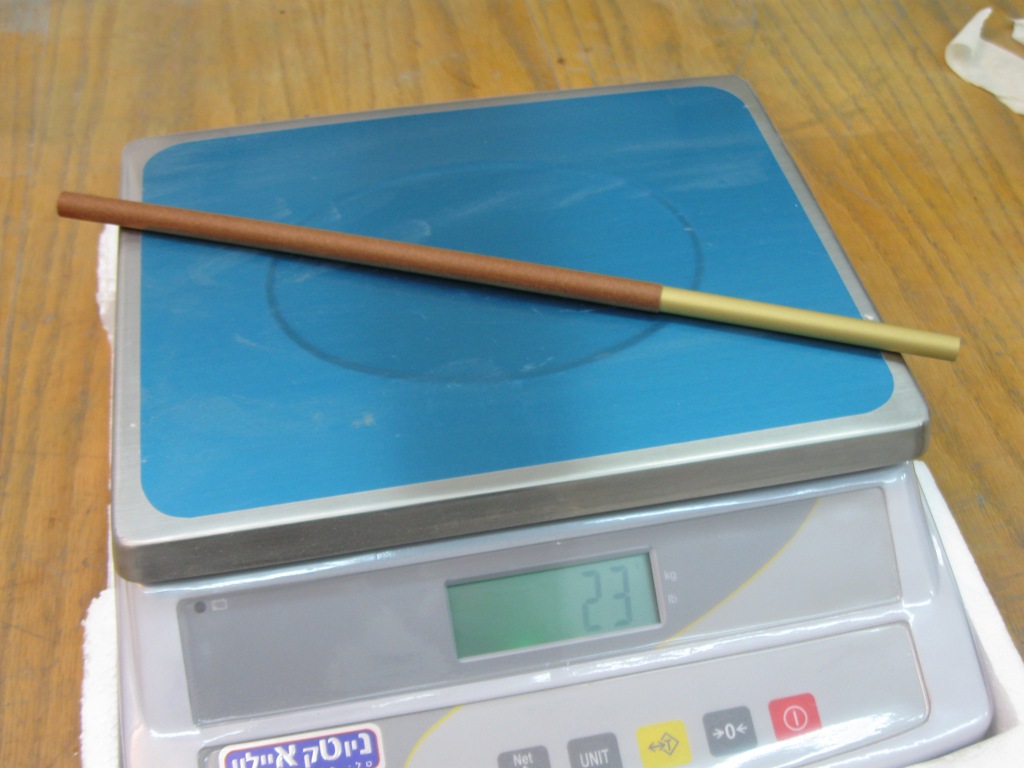

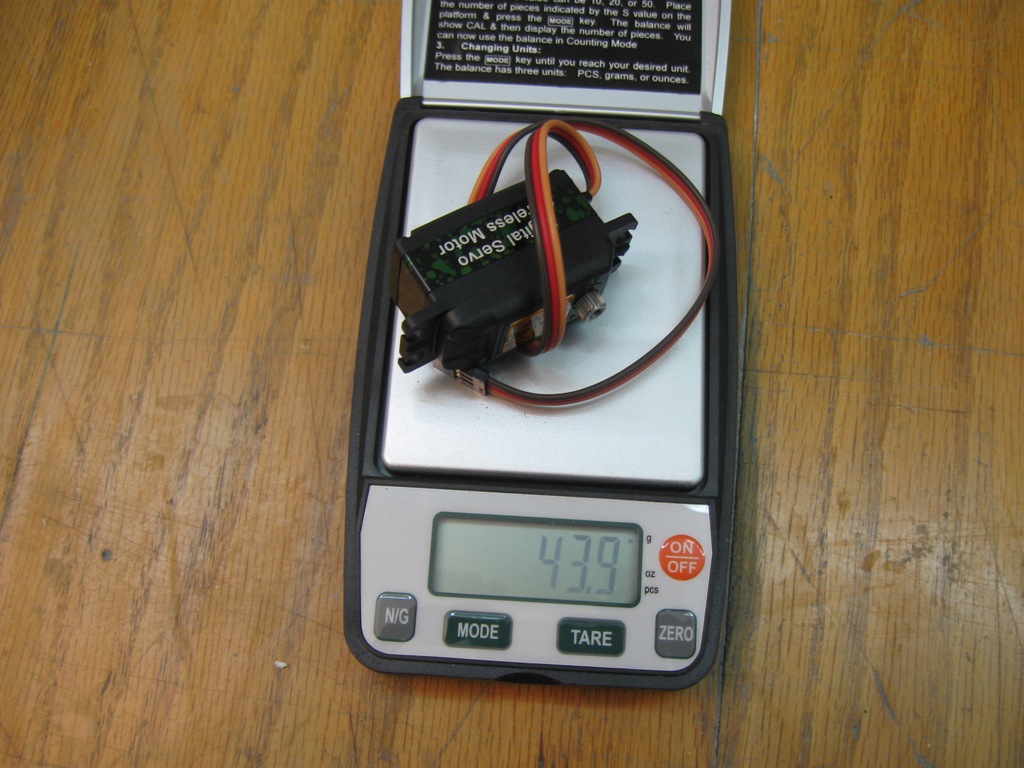

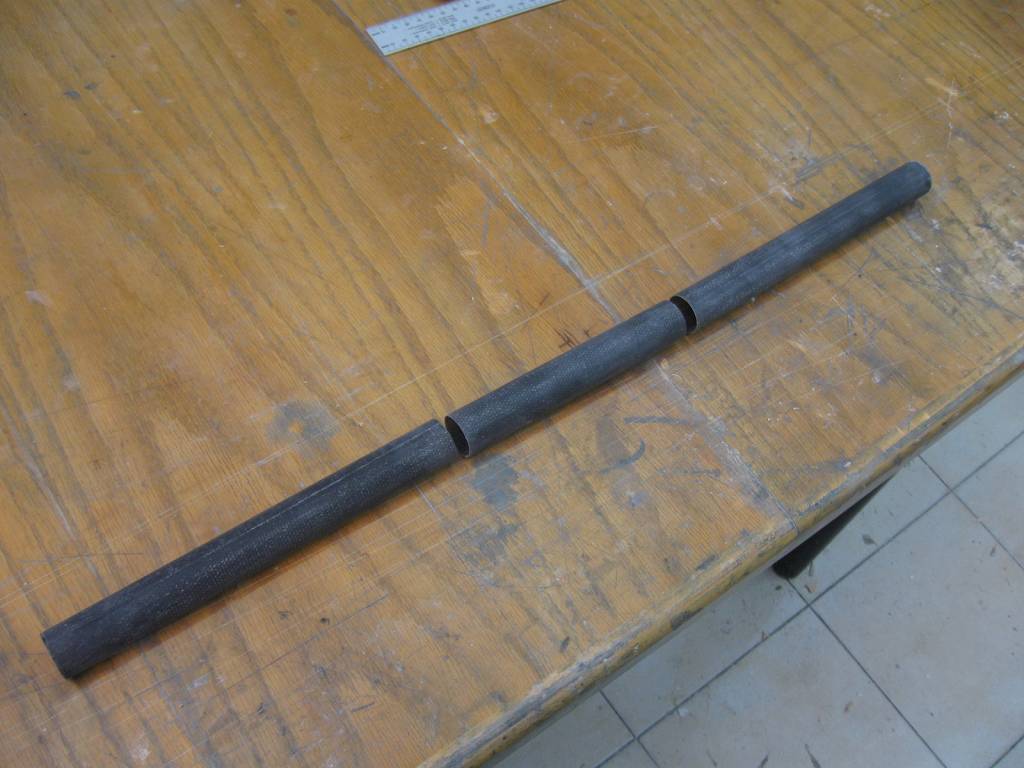

Saving 7.3 garm (43.3-36.0)

Isaac Najary
Attached Thumbnails
Click image for larger version

Name:	Us53520.jpg
Views:	90
Size:	182.4 KB
ID:	1329074   Click image for larger version

Name:	Zv67094.jpg
Views:	98
Size:	198.0 KB
ID:	1329075   Click image for larger version

Name:	Xc80282.jpg
Views:	102
Size:	152.5 KB
ID:	1329076   Click image for larger version

Name:	Mg97445.jpg
Views:	93
Size:	139.2 KB
ID:	1329077
najary is offline
Reply With Quote
Old 12-07-2009, 03:53 PM
  #12
Andy P.

Andy P.'s Avatar

Join Date: Nov 2004
Location: Leicester, , UNITED KINGDOM
Posts: 316
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Now this is one I'm gonna really enjoy, thanks in advance Isaac, popcorn at the ready!
Andy P. is offline
Reply With Quote
Old 12-11-2009, 12:54 PM
  #13
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Here is some data that I recived from J.P. Zardini:

Wing incident +0.25


Air flow incident -0.5


Stab incident 0°


Down trust 2°


Right trust 3.5°


The air flow has unhedral

CG is at 220mm from TE


Regards,

Isaac Najary
najary is offline
Reply With Quote
Old 12-11-2009, 01:23 PM
  #14
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

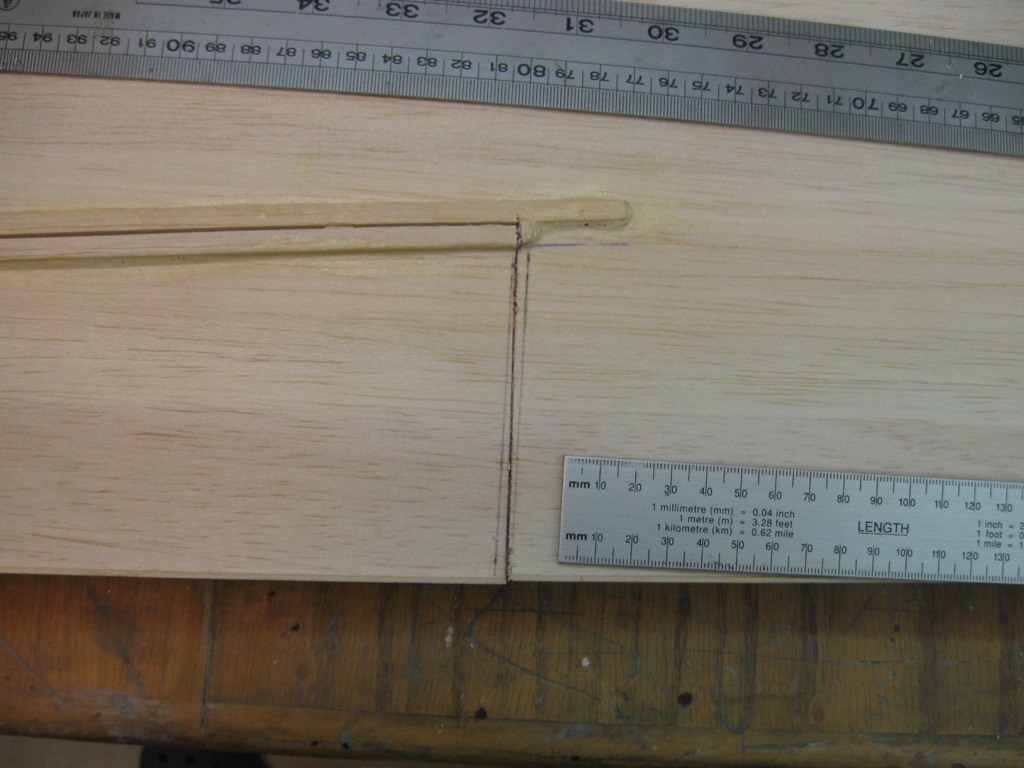

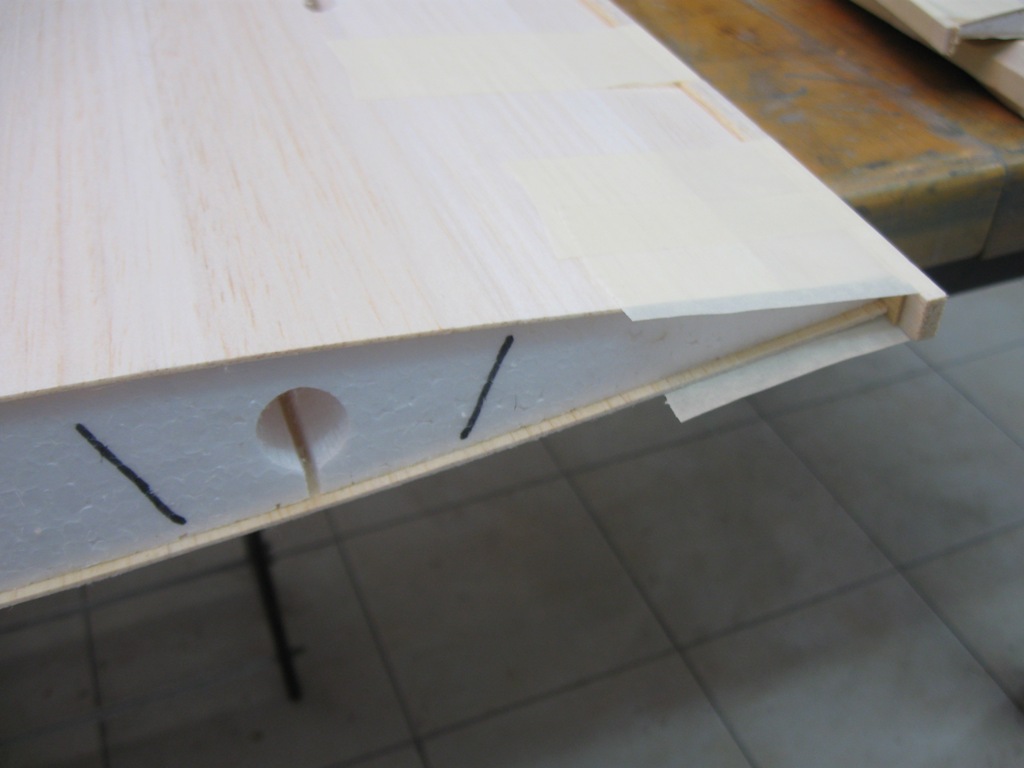

More
Attached Thumbnails
Click image for larger version

Name:	Zx71874.jpg
Views:	97
Size:	143.1 KB
ID:	1332013   Click image for larger version

Name:	Ni23490.jpg
Views:	87
Size:	167.4 KB
ID:	1332014   Click image for larger version

Name:	Hm24142.jpg
Views:	104
Size:	159.9 KB
ID:	1332015   Click image for larger version

Name:	Gz75221.jpg
Views:	93
Size:	156.6 KB
ID:	1332016   Click image for larger version

Name:	Ep86886.jpg
Views:	114
Size:	139.7 KB
ID:	1332017

Click image for larger version

Name:	Ev25068.jpg
Views:	85
Size:	135.3 KB
ID:	1332018   Click image for larger version

Name:	Ya57928.jpg
Views:	107
Size:	102.9 KB
ID:	1332019
najary is offline
Reply With Quote
Old 12-11-2009, 06:12 PM
  #15
Reko

Reko's Avatar

Join Date: Sep 2003
Location: Linkoping, SWEDEN
Posts: 83
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Isaac. Thanks for another quality build thread! I’m looking forward to se how this progresses.

I’m curious about your savoxes. Have you tried them yet?
After having read positive comments about savox on this forum, and others, I bought two SC1258 for evaluation. Initial impression was good, but after testing them side by side with a JR8401 I have decided to never use them. Speed, torque and centring were good, but it had no where the precision and smoothness of the JR. From my experience I would not recommend savox for F3A.

Before you mount them in your model I suggest testing them side by side with the servos you are used to. Mount a long arm to the servo (min 20cm) and se how they respond to the small precise control inputs typical for F3A flight.

/David
Reko is offline
Reply With Quote
Old 12-12-2009, 12:07 PM
  #16
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Hi David,

Before I decided to use the Savox servos, I made a long research for the best servo for each aplication.

Here enclosed comparison table.

My friend use the Savox servo for F3A with great success.

Isaac Najary
Attached Files
File Type: pdf
Jh15849.pdf (42.5 KB, 77 views)
najary is offline
Reply With Quote
Old 12-12-2009, 04:48 PM
  #17
ohadzarko

Join Date: Jun 2005
Location: a, ISRAEL
Posts: 30
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

JR8401 Torque 11.0 Speed 0.19s

SC1258 Torque 12.0 Speed 0.08s

yes slow servo it smooth servo

i have savox servo on many models and i very happy from them
Attached Thumbnails
Click image for larger version

Name:	Bz78766.jpg
Views:	72
Size:	71.9 KB
ID:	1332862
ohadzarko is offline
Reply With Quote
Old 12-13-2009, 12:51 PM
  #18
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Hi all,

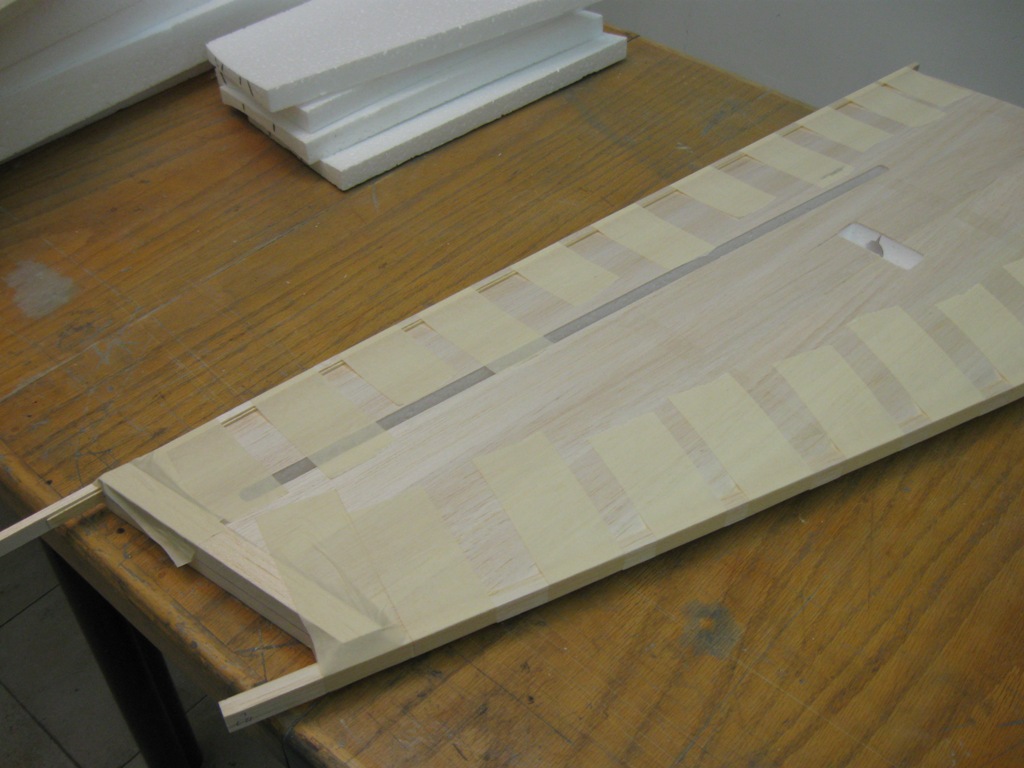

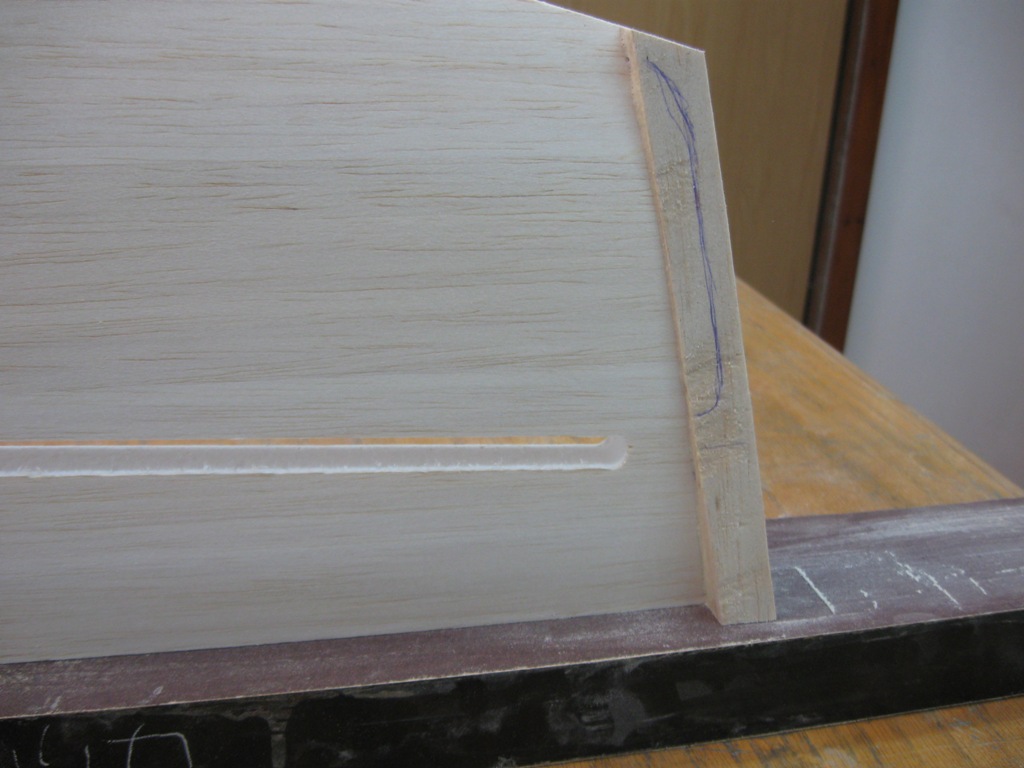

Here I made a mistake in the order which things have to be done !!! [sm=thumbs_down.gif]

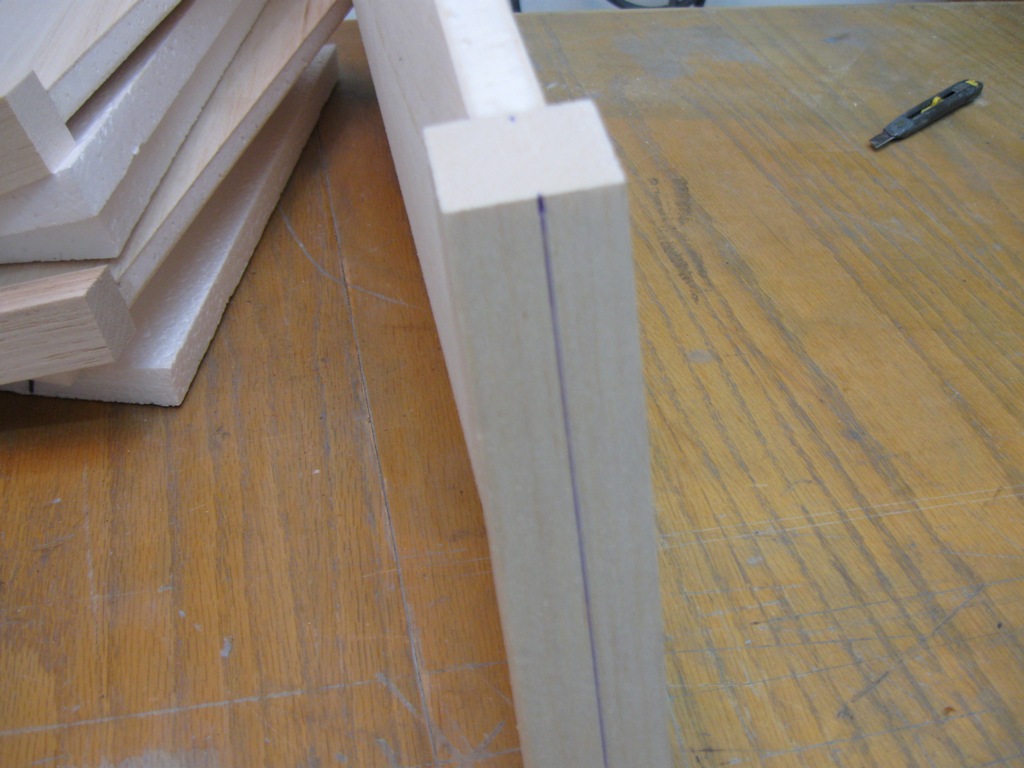

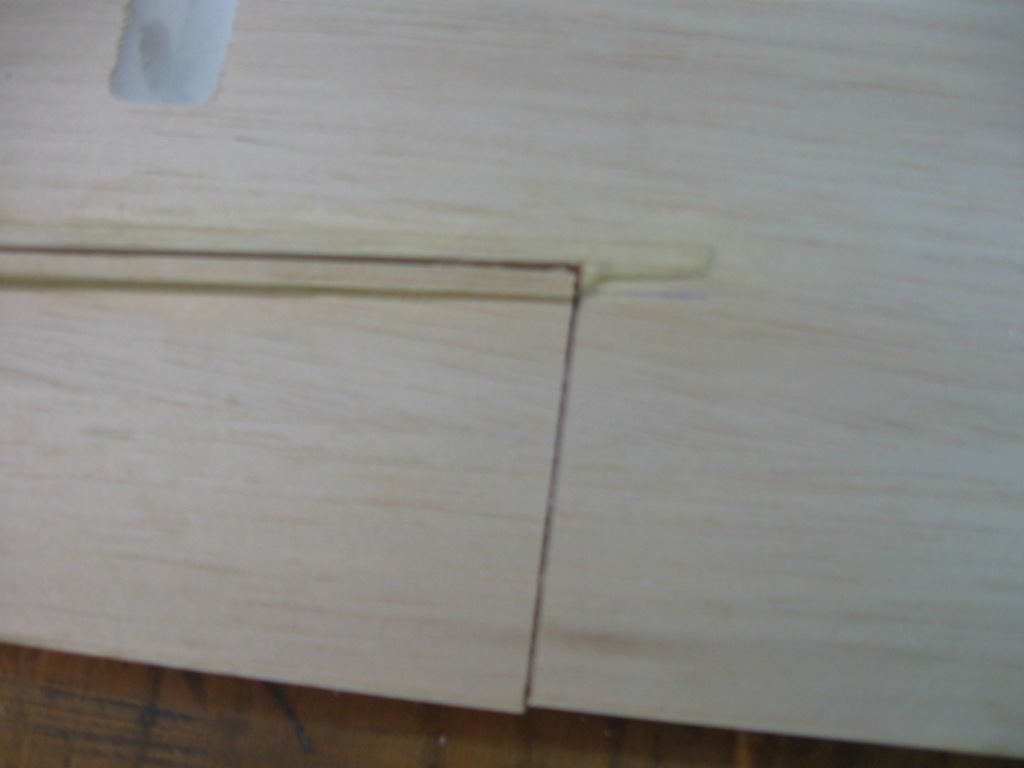

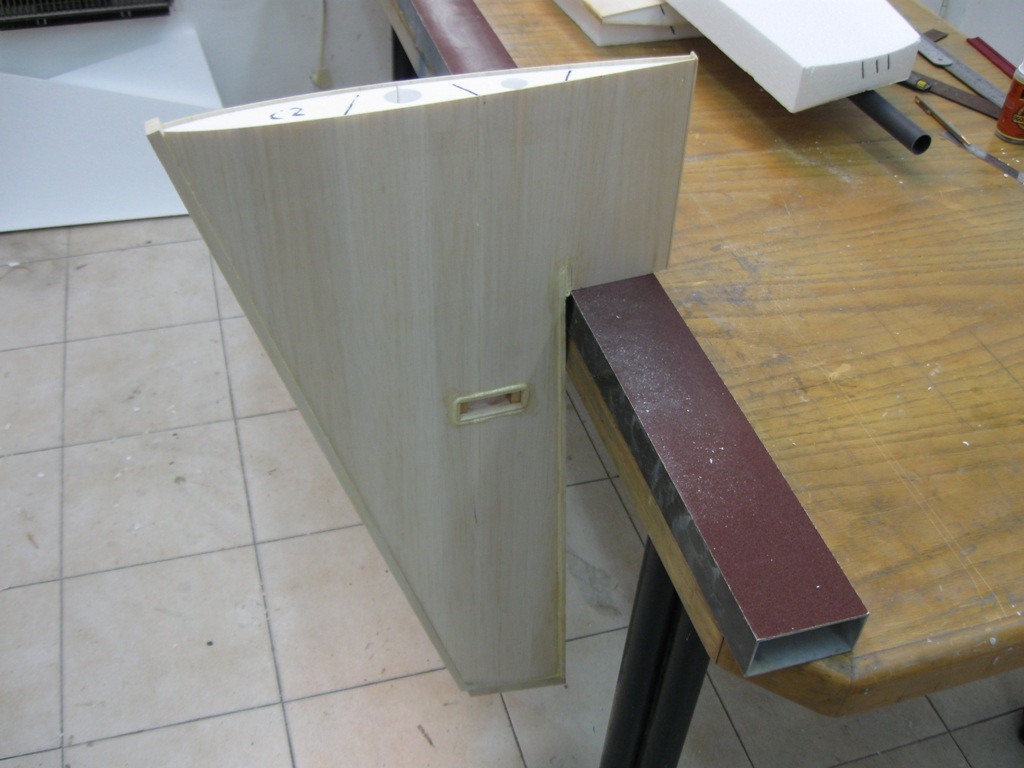

I liked the idea of sharpening the ailerons hinges balsa when the ailerons are still connected to the wings, see Chad post no.5, http://www.rcuniverse.com/forum/m_8956458/tm.htm

As you can see in the pictures, I glued the hinges balsa in place, and I found that as a result, one of the ailerons was warped.[sm=thumbs_down.gif]

To solve the problem I had to cut the ailerons from the wings so the tension can be released.[sm=thumbs_up.gif]

Later, when I will work on the stabs, you will see the right order which things have to be done.

Regards,

Isaac Najary
Attached Thumbnails
Click image for larger version

Name:	Ig13027.jpg
Views:	83
Size:	99.1 KB
ID:	1333450   Click image for larger version

Name:	Pl32473.jpg
Views:	85
Size:	99.9 KB
ID:	1333451   Click image for larger version

Name:	Lq38734.jpg
Views:	84
Size:	183.9 KB
ID:	1333452   Click image for larger version

Name:	Yr48443.jpg
Views:	88
Size:	142.9 KB
ID:	1333453   Click image for larger version

Name:	Am73434.jpg
Views:	88
Size:	141.0 KB
ID:	1333454

Click image for larger version

Name:	Zq96009.jpg
Views:	89
Size:	95.0 KB
ID:	1333455   Click image for larger version

Name:	Wy50085.jpg
Views:	98
Size:	162.5 KB
ID:	1333456   Click image for larger version

Name:	Fe14252.jpg
Views:	90
Size:	51.0 KB
ID:	1333457   Click image for larger version

Name:	Po98364.jpg
Views:	95
Size:	54.6 KB
ID:	1333458
najary is offline
Reply With Quote
Old 12-14-2009, 03:59 AM
  #19
amram

amram's Avatar

Join Date: Sep 2003
Location: Holon, ISRAEL
Posts: 358
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

I am also going to use Savox Servos on my Axiome (Already on the way from Oxai...
Last checked the Ship carrying it was in the middle of the Indian Ocean :-)
I also review the servos Table with Najary and it looks to me like a good choice. The important thing is in-flight test.
The only actual in-flight experience I had with Savox servos was on my Venus 90 which I compete in IMAC competition were I personally did not notice any smoothness issue.

Amram Leshed
F3A Israel


*** Najary, thank you for your effort and for creating another masterpiece thread...
amram is offline
Reply With Quote
Old 12-14-2009, 04:01 AM
  #20
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

More
Attached Thumbnails
Click image for larger version

Name:	Sq46070.jpg
Views:	88
Size:	204.2 KB
ID:	1334099   Click image for larger version

Name:	Je99545.jpg
Views:	98
Size:	205.8 KB
ID:	1334100
najary is offline
Reply With Quote
Old 12-14-2009, 04:06 AM
  #21
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

More
Attached Thumbnails
Click image for larger version

Name:	Tr49035.jpg
Views:	110
Size:	152.7 KB
ID:	1334101   Click image for larger version

Name:	Rm37680.jpg
Views:	100
Size:	166.8 KB
ID:	1334102   Click image for larger version

Name:	Va70930.jpg
Views:	92
Size:	150.6 KB
ID:	1334103   Click image for larger version

Name:	Fy72849.jpg
Views:	84
Size:	223.9 KB
ID:	1334104   Click image for larger version

Name:	Mx23233.jpg
Views:	81
Size:	45.4 KB
ID:	1334105

Click image for larger version

Name:	Tj74043.jpg
Views:	88
Size:	46.9 KB
ID:	1334106   Click image for larger version

Name:	Ac63039.jpg
Views:	89
Size:	68.7 KB
ID:	1334107
najary is offline
Reply With Quote
Old 12-14-2009, 04:11 AM
  #22
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

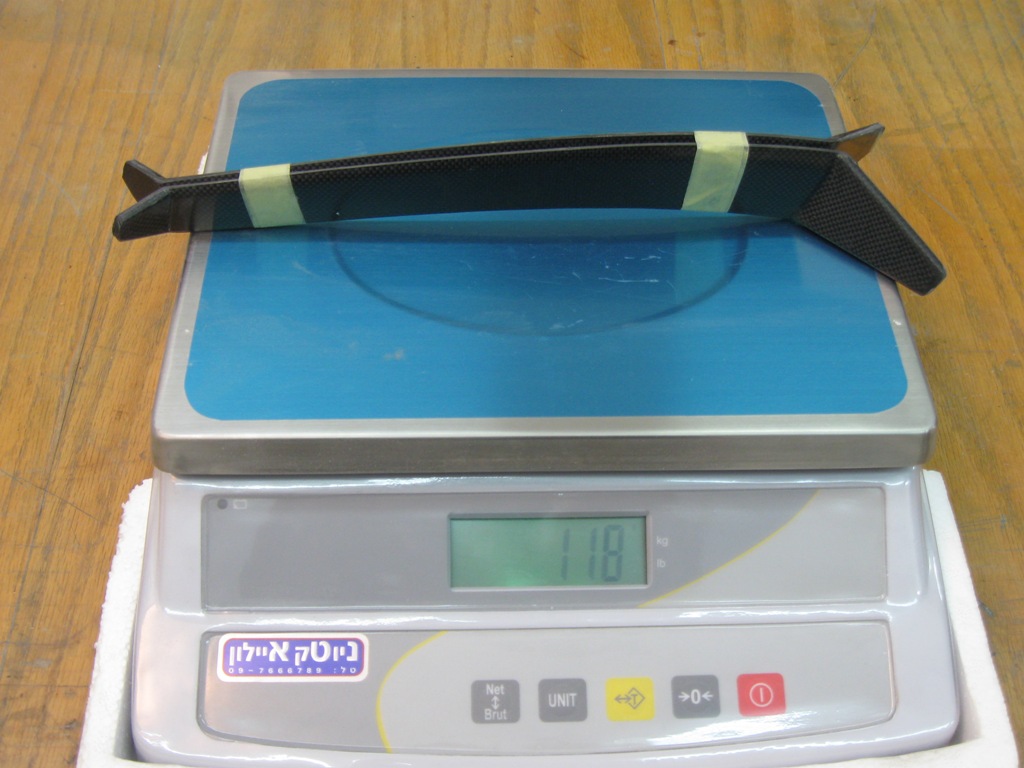

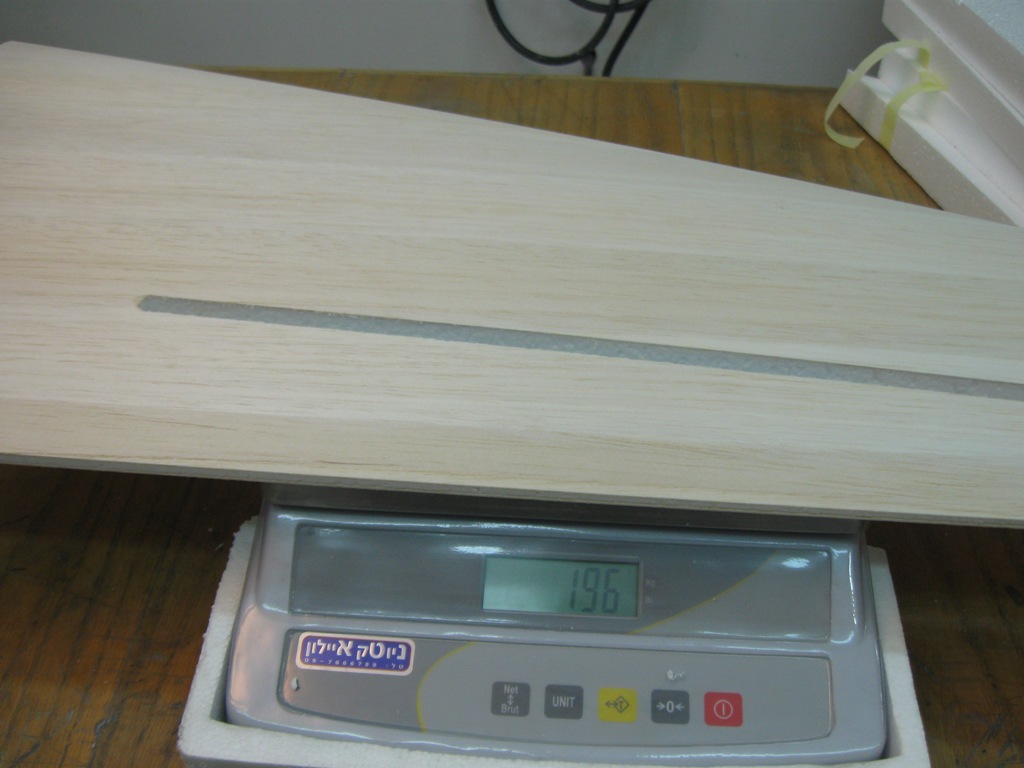

Saving 11.4 gram (49.8-38.4)
Attached Thumbnails
Click image for larger version

Name:	Hf97978.jpg
Views:	79
Size:	90.2 KB
ID:	1334108   Click image for larger version

Name:	Mh21166.jpg
Views:	79
Size:	98.9 KB
ID:	1334109   Click image for larger version

Name:	Rw59012.jpg
Views:	82
Size:	97.4 KB
ID:	1334110   Click image for larger version

Name:	Jc86288.jpg
Views:	67
Size:	82.5 KB
ID:	1334111   Click image for larger version

Name:	Lw20038.jpg
Views:	78
Size:	66.7 KB
ID:	1334112

Click image for larger version

Name:	Tk76408.jpg
Views:	74
Size:	36.7 KB
ID:	1334113
najary is offline
Reply With Quote
Old 12-14-2009, 04:44 AM
  #23
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

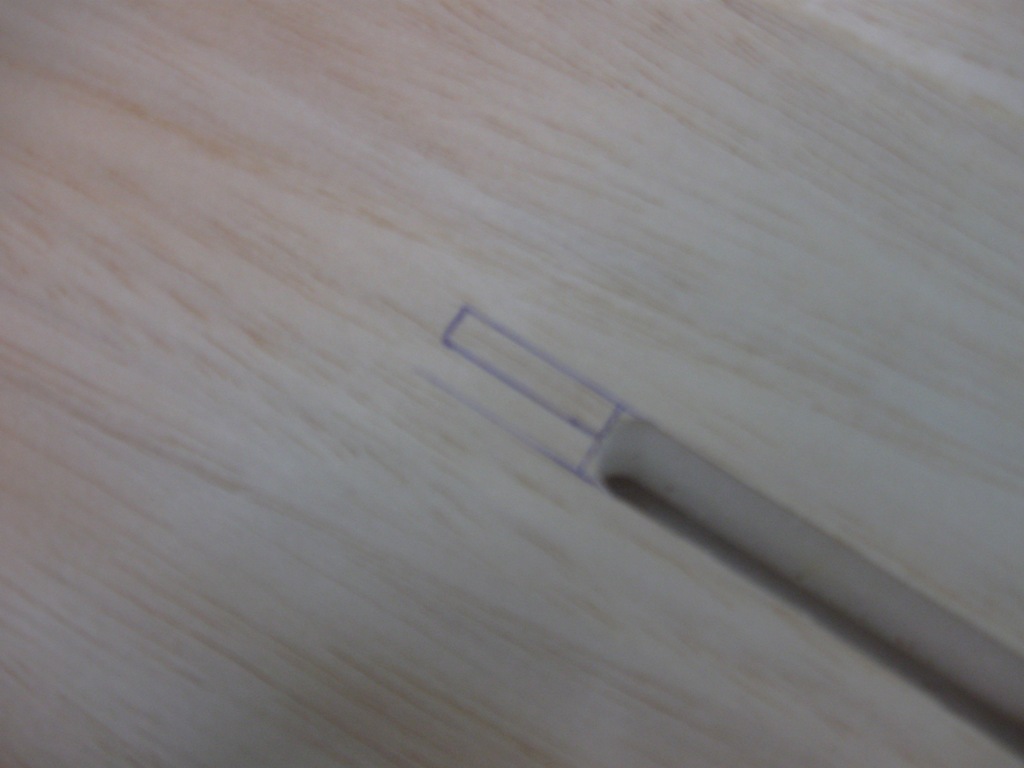

Saving 19 gram = (24.1X2)-(14.6X2)

The original method is: two bolts and wing incident adjusters = 48.2 gram (24.1X2)

My method is only one bolt in more comfortable place and two unrotate pins = 29.2 gram (14.6X2)

The wing incident adjusters will be remove after some flights, when I will be satisfy with the wings incident.

I will be able to reinstall the wing incident adjusters any time I want.

I use this method in my Osmose, and it works great.

Best regards,

Isaac Najary
Attached Thumbnails
Click image for larger version

Name:	Fd92578.jpg
Views:	90
Size:	55.1 KB
ID:	1334134   Click image for larger version

Name:	Mh20106.jpg
Views:	91
Size:	93.9 KB
ID:	1334135   Click image for larger version

Name:	Fk17737.jpg
Views:	82
Size:	93.5 KB
ID:	1334136   Click image for larger version

Name:	Pj17811.jpg
Views:	85
Size:	67.5 KB
ID:	1334137   Click image for larger version

Name:	Wh57255.jpg
Views:	91
Size:	88.0 KB
ID:	1334138

Click image for larger version

Name:	Fw26381.jpg
Views:	95
Size:	47.9 KB
ID:	1334139   Click image for larger version

Name:	Ya55478.jpg
Views:	92
Size:	52.1 KB
ID:	1334140
najary is offline
Reply With Quote
Old 12-15-2009, 04:33 PM
  #24
gadperry

Join Date: Jun 2007
Location: haifa, ISRAEL
Posts: 3
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread

Hi Itsik,
Nice to have a great thread from you again, after the osmose. It is rare, unique and nobel, to share your knowledge with us and as you see, its a great pleasure and an honor to study from you.
I have great experience in building CAMODEL, which has some similarity in the construction, and I noticed your now fond of PU glue. Arnt you afraid that its hard to polish it after?

best regards and keep us informed :-)
Gadi, HAifa
gadperry is offline
Reply With Quote
Old 12-17-2009, 06:53 AM
  #25
najary
Thread Starter

najary's Avatar

Join Date: May 2003
Location: Rishon le-zion, ISRAEL
Posts: 995
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Electric ZN Line Xigris C2 Build Thread


Quote:
ORIGINAL: gadperry

Hi Itsik,
Nice to have a great thread from you again, after the osmose. It is rare, unique and nobel, to share your knowledge with us and as you see, its a great pleasure and an honor to study from you.
I have great experience in building CAMODEL, which has some similarity in the construction, and I noticed your now fond of PU glue. Arnt you afraid that its hard to polish it after?

best regards and keep us informed :-)
Gadi, HAifa
Hi Gadi,

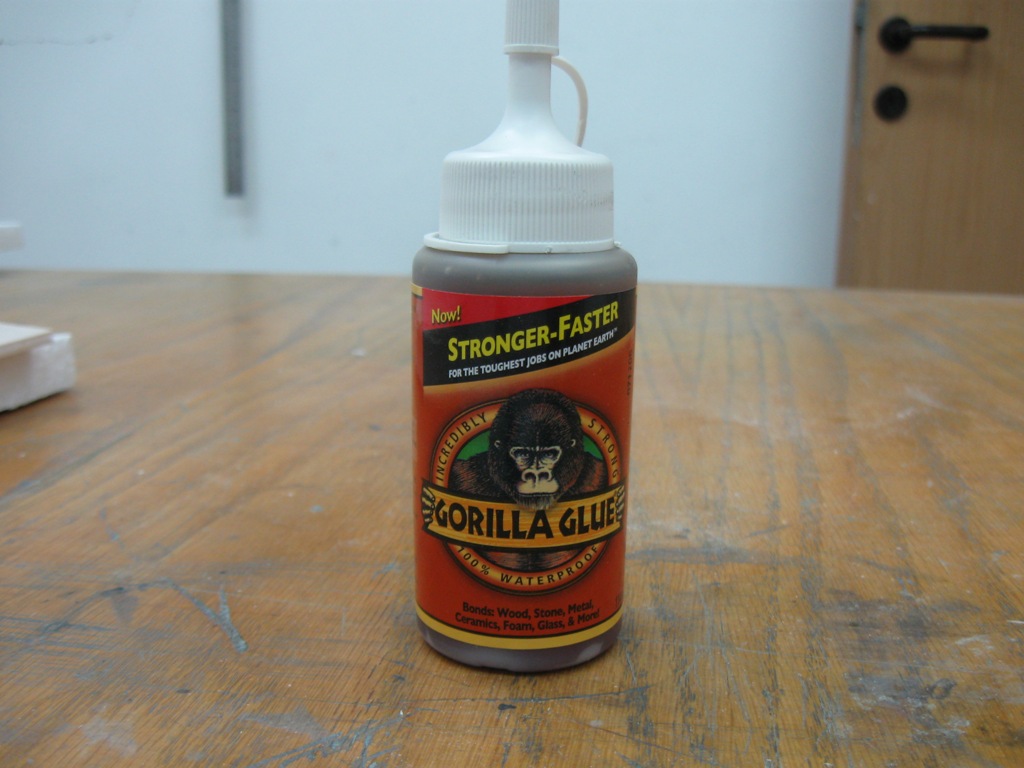

This is the first time that I use poly urethane glue ("Gorilla glue"), For many years I used Epoxy glue for all purposes.

I found the Poly Urethane Glue more suitable than Epoxy glue, for gluing balsa to form and gluing balsa to balsa.

The PU glue is lighter, easier to sand, only one component.

It is always better to have more than one choice to choose form.

But remember, you must use gloves when working with PU glue.

Best regards,

Isaac Najary
najary is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 01:26 AM.
