Electric Pattern Aircraft Discuss epowered pattern aircraft in this forum

Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Reply
Old 06-29-2012, 02:59 AM
  #826
Jason Arnold

Jason Arnold's Avatar

Join Date: Aug 2005
Location: Sydney, AUSTRALIA
Posts: 1,266
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Wow Gav, your first post on RCU....

You're famous mate! Check out the club website.....

Cheers,
Jason.
Jason Arnold is offline
Reply With Quote
Old 06-29-2012, 04:09 AM
  #827
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hey Gavin,

The gearsets are color coded with machined dots on the arms of the driveshaft carrier. Each arm may, or may not, have a dot. The code is interpreted as follows:

0 dots - 9.98:1
1 dot - 10.15:1
2 dots - 10.33:1
3 dots - 10.56:1

The ring gears are coded in the same way.

Brenner ...
Brenner is offline
Reply With Quote
Old 06-30-2012, 09:04 AM
  #828
gmr1948

Join Date: Dec 2004
Location: Ocala, FL
Posts: 28
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Brenner,

I believe you are using a YGE controller. How do you turn on brake during flight?

gmr1948 is offline
Reply With Quote
Old 06-30-2012, 04:44 PM
  #829
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

I have a separate channel, mixed into throttle. I use it to switch the brake on and off for different maneuvers.

Brenner...
Brenner is offline
Reply With Quote
Old 07-01-2012, 01:51 PM
  #830
Jason Arnold

Jason Arnold's Avatar

Join Date: Aug 2005
Location: Sydney, AUSTRALIA
Posts: 1,266
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

If anyone is interested in what the Gavinator looks like check out our club homepage at http://cksmac.com/home There's also a picture of the Gavman deep in concentration flying a practice P13 sequence.

You'll also see Shane Lysaght's full composite Wind S Pro with contra-drive fitted. Scroll down a little further and you'll see me nursing my new Spark Dynamic without contra-drive...

Cheers,
Jason.
Jason Arnold is offline
Reply With Quote
Old 07-06-2012, 12:48 AM
  #831
Malcolm H

Malcolm H's Avatar

Join Date: Oct 2002
Location: glasgow, UNITED KINGDOM
Posts: 647
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

This weekend saw the Triple Crown Home International F3A Competition between England, Ireland and Scotland. Scotland was the host country and the contest took place at Castle Kennedy airfield in the south west corner of the country.

Four teams take part with an International team made up of fliers from each country. Five Contradrives were flown by Steve Burgess and myself from Scotland and Brian Carolan, Paul Houlihan and Niall O' Sullivan from Ireland.

Our "auld enemy" England won, Scotland were second, Ireland third and the International team fourth. The contest is low key with the social side being as important as the serious bit but traditionally it is where the latest pattern innovations and designs show up in our part of the world. Our Contras sparked a lot of interest and I wouldn't be surprised if others now follow.

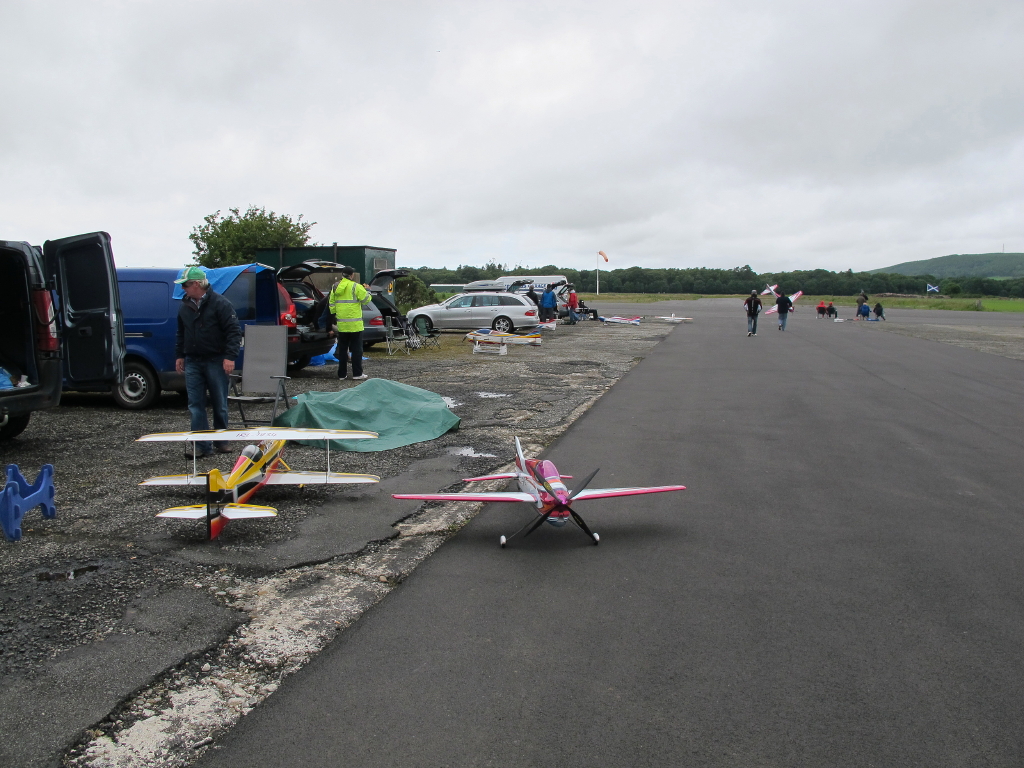

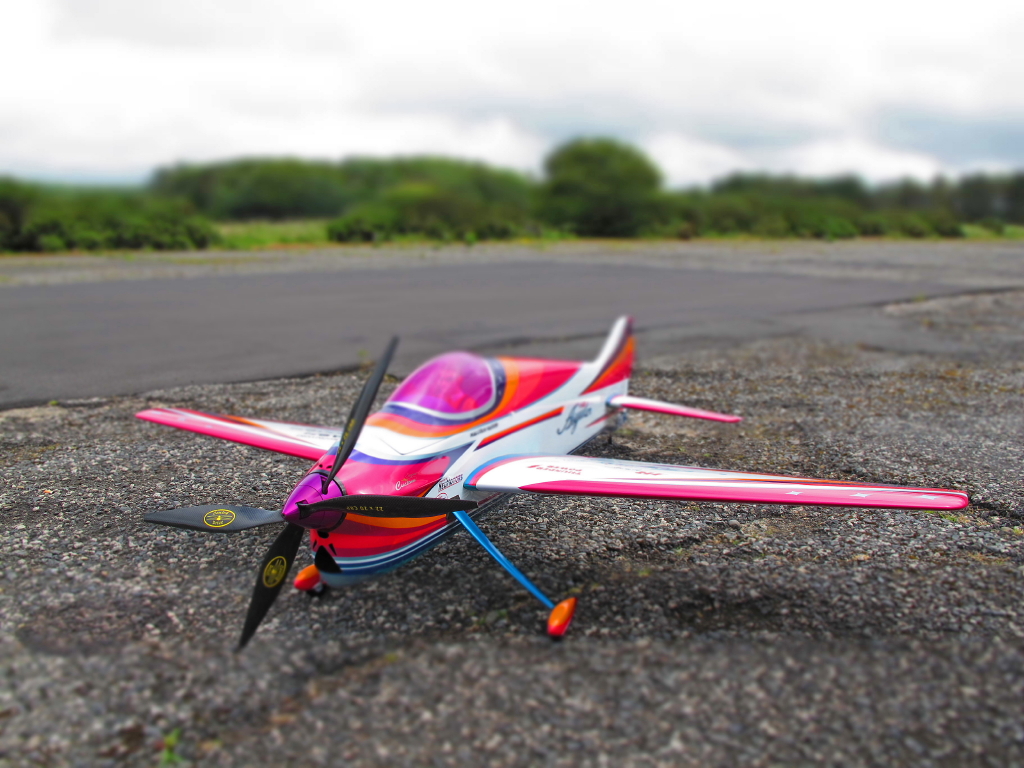

Pics of the Scottish Team, all the flyers and a couple of ambience shots attached.

Malcolm
Attached Thumbnails
Click image for larger version

Name:	Yw67568.jpg
Views:	55
Size:	720.0 KB
ID:	1779109   Click image for larger version

Name:	Kf13190.jpg
Views:	52
Size:	620.0 KB
ID:	1779110   Click image for larger version

Name:	Tz66807.jpg
Views:	58
Size:	643.4 KB
ID:	1779111   Click image for larger version

Name:	Rl25661.jpg
Views:	43
Size:	589.9 KB
ID:	1779112   Click image for larger version

Name:	Cn78047.jpg
Views:	47
Size:	609.0 KB
ID:	1779113

Click image for larger version

Name:	Md52368.jpg
Views:	50
Size:	571.4 KB
ID:	1779114
Malcolm H is online now
Reply With Quote
Old 07-06-2012, 05:54 AM
  #832
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hey Malcolm,

Thanks for posting the pictures. All of the planes are immaculate.

How was the weather? It's hard to believe that you guys are wearing jackets in July. Here in the American Midwest it was 103F (40C) this last weekend.

The previous weekend we had a regional constest in Chicago, and while it wasn't as prestigious as the triple Crown, it was also well attended by Contras. There were six in total. The pilots were myself, Dave Snow, Mike Gaishin, Bill Ahrens, Dan Landis, and Bobby Satalino. Dave, Dan & Bill all flew clipped 22x20s on the rear with a mix of clipped 22x20s and 22x22s on the front. It was impressive to watch these guys fly F13 on Sunday with this setup.

Here are some pictures.

Brenner ...
Attached Thumbnails
Click image for larger version

Name:	Db84755.jpg
Views:	45
Size:	95.4 KB
ID:	1779155   Click image for larger version

Name:	Kf13337.jpg
Views:	51
Size:	113.2 KB
ID:	1779156   Click image for larger version

Name:	Fc90054.jpg
Views:	46
Size:	103.1 KB
ID:	1779157   Click image for larger version

Name:	Lg17995.jpg
Views:	50
Size:	100.6 KB
ID:	1779158   Click image for larger version

Name:	Ay73860.jpg
Views:	47
Size:	90.7 KB
ID:	1779159

Click image for larger version

Name:	Ez82567.jpg
Views:	49
Size:	95.3 KB
ID:	1779160
Brenner is offline
Reply With Quote
Old 07-06-2012, 09:32 AM
  #833
Malcolm H

Malcolm H's Avatar

Join Date: Oct 2002
Location: glasgow, UNITED KINGDOM
Posts: 647
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Brenner I wish we could import some of your weather!

It was typically 13 - 14 C and mega windy blowing out 90 degrees for most of the weekend. While some of the Contras were running 22 x 20 front and rear others stuck with the 22 x 20, 22 x 18 mixed set and coped fine with 20 mph+ winds. It just goes to show that with the Contra you can pick your flying style and it will deliver.

Malcolm
Malcolm H is online now
Reply With Quote
Old 07-06-2012, 12:25 PM
  #834
AmericanSpectre505

AmericanSpectre505's Avatar

Join Date: Mar 2007
Location: Fayetteville, NC
Posts: 1,191
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Good stuff gentleman,...[8D]

Bholsten
AmericanSpectre505 is offline
Reply With Quote
Old 07-08-2012, 08:13 AM
  #835
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

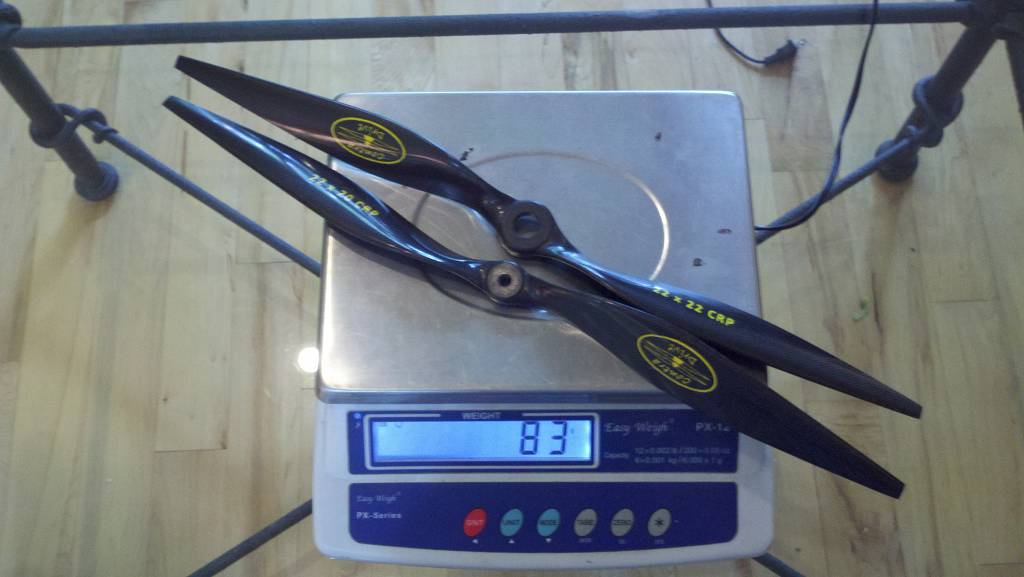

Mike Gaishin has been optimizing his process for making props. Here are some pictures of the latest props that he's made. These props have the same finish, and are as stiff and strong as the props we have been making at 50g. Mike thinks that he can keep the average weight at about 40g, +/- a few grams.

Mike is able to preserve the strength and stiffness through careful optimization of the internal air pressure during molding, the mold temperature, the carbon fiber to resin ratio, and the ratio of cloth to tow.

For now, we will continue to make props at 50g, but we hope to start bringing the weight down in the near future.

Brenner ...
Attached Thumbnails
Click image for larger version

Name:	Xv65472.jpg
Views:	52
Size:	49.6 KB
ID:	1779849   Click image for larger version

Name:	Bw73634.jpg
Views:	54
Size:	55.6 KB
ID:	1779850   Click image for larger version

Name:	Wb75604.jpg
Views:	54
Size:	56.0 KB
ID:	1779851
Brenner is offline
Reply With Quote
Old 07-08-2012, 08:46 AM
  #836
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Just this last week I was able to get a set of Dave Snow wings in the air with my Contra powered Wind S Pro. These wings were built and covered by Dave himself, so all I had to do was mount them. My immediate thoughts with regard to comparision with the stock Wind S Pro built up wings are as follows:

1/.. Dave's wings are lighter by about four ounces. (113g)
2/.. Exits from snaps are easier to hit consistently.
3/.. Dave's wings are noticeably faster than the stock panels. I'm flying with a set of 22x20 front and rear props and they at least as fast as when I fly the stock wings with a 22x22 rear and a 22x20 front.
4/.. I've moved my CG back about 12mm from where I had it with the stock wings. (I'm still experimenting with this though ..)

These wings are not a direct copy of the Wind S Pro wings. They are replicas of the Spark wings that Dave is building for Andrew Jesky, which are also not direct copies of the Krill Spark wings.

All in all, I am very happy with the switch. My AUW has gone from 5075g to 4910g, (includes swapping out the wing tube as well..) and I figure I'm going to pick up points on all my snaps at least.

Brenner ...
Brenner is offline
Reply With Quote
Old 07-09-2012, 03:11 AM
  #837
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,065
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hi Brenner / anyone,
Do you know anything of this ;

Attached Thumbnails
Click image for larger version

Name:	Fc90345.jpg
Views:	77
Size:	160.0 KB
ID:	1780082
serious power is online now
Reply With Quote
Old 07-09-2012, 03:24 AM
  #838
Hans Meij

Join Date: Apr 2002
Location: Schoonhoven, NETHERLANDS
Posts: 658
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

A lot of innovations are built into this model.
As this is the contra-drive thread, the motor is a Pletty Advance with own build drive. Props are direct driven.
Hans Meij is online now
Reply With Quote
Old 07-09-2012, 03:28 AM
  #839
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

How does it fly?
Brenner is offline
Reply With Quote
Old 07-09-2012, 03:54 AM
  #840
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,065
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes


Quote:
ORIGINAL: Hans Meij

A lot of innovations are built into this model.
As this is the contra-drive thread, the motor is a Pletty Advance with own build drive. Props are direct driven.
Hi Hans,
Are you able to elaborate some on the motor / drive and props.

Brian
serious power is online now
Reply With Quote
Old 07-09-2012, 04:02 AM
  #841
Hans Meij

Join Date: Apr 2002
Location: Schoonhoven, NETHERLANDS
Posts: 658
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hi Brian,
Saw the model on two WorldCup events and could peek into it and ask Peter some questions. For 'real' info please ask Peter.
Hi Brenner,
Yes it flew very well.
Hans Meij is online now
Reply With Quote
Old 07-09-2012, 04:19 AM
  #842
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Is there any reduction gearbox between the props and the motor? Also, what size are the props?

Brenner ...
Brenner is offline
Reply With Quote
Old 07-13-2012, 07:16 AM
  #843
Passport1

Join Date: Dec 2002
Location: Tucson, AZ
Posts: 1,211
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

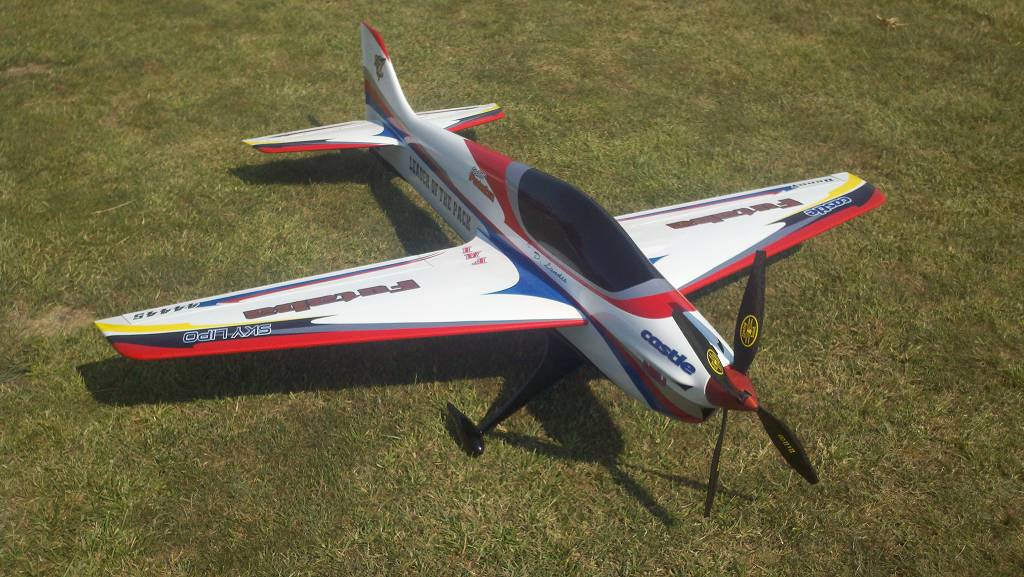

Hey Brenner Thanks for everything. heres a pic of my Worlds Visa converted and it flys so straight and true I love it. I only have 3% down elev mixed to throttle and maybe a .5% mix rudder to ail/elev for the Knife edge triangles. This plane is one of 2 or 3 we built with the elipitical which was considerably slower then the stock Visa but has plenty of speed when need be. Props are reshaped to the APC's as close as I could make them and with the 25C TP 5000's its got plenty mo. Front is a 20.5x20 and the rear is 20.75x22. Here is a pic of the polished drive I am using at this time. I am going to use the painted one with the stars as the back up.


The second pic slithered across my shoes when I was doing the knife edge loop. I came very close to crashing lol as well as something else.

C
Attached Thumbnails
Click image for larger version

Name:	Ki18740.jpg
Views:	56
Size:	68.7 KB
ID:	1781448   Click image for larger version

Name:	Ni24296.jpg
Views:	55
Size:	102.5 KB
ID:	1781449
Passport1 is offline
Reply With Quote
Old 07-13-2012, 08:31 AM
  #844
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hey Chip,

The polished spinner looks very sharp! I'm looking forward to seeing your setup fly.

Brenner ...
Brenner is offline
Reply With Quote
Old 07-25-2012, 04:46 AM
  #845
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,065
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hi,
Is chip using the contra at the Nat's - if so it seems to be going well.
BTW Brenner - you are not doing too bad yourself - goog luck with the rest of it.

Brian
serious power is online now
Reply With Quote
Old 07-25-2012, 09:31 AM
  #846
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Thanks Brian,

Yes, Chip is flying the Contra. I saw his second round of F about an hour ago. He's doing great!

I won the first round in masters, but I had my score zeroed for missing a judging assignment. Right now I'm waiting to fly the last two rounds of masters.

Brenner...
Brenner is offline
Reply With Quote
Old 07-25-2012, 09:54 AM
  #847
pippy

Join Date: Jan 2004
Location: Galway, IRELAND
Posts: 212
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Hi Brenner, way to go. I didn't know your nats was on the same time as my European champs. Good to hear things are going well. I have 5 flights now in Practice at temperatures over 30°C (hot for us)..all going well so far. Everything, motor, batteries and me running hot that in Ireland..
Best of luck
pippy is offline
Reply With Quote
Old 07-25-2012, 10:53 AM
  #848
underdw

underdw's Avatar

Join Date: Nov 2004
Location: Erie CO
Posts: 356
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Is Dave Lockhart flying a Contra?

How are the Contras doing in the sound checks? Must be OK.
underdw is offline
Reply With Quote
Old 07-25-2012, 11:02 AM
  #849
serious power

Join Date: Nov 2007
Location: wexford, IRELAND
Posts: 1,065
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Quote:
ORIGINAL: pippy

Hi Brenner, way to go. I didn't know your nats was on the same time as my European champs. Good to hear things are going well. I have 5 flights now in Practice at temperatures over 30°C (hot for us)..all going well so far. Everything, motor, batteries and me running hot that in Ireland..
Best of luck
Hi Paul,
You must be sight-seeing or something.
The GB boys are doing about 20 flights a day

Brenner; that sucks - you won't do that again
I'm delighted things are going well for you.

Brian
serious power is online now
Reply With Quote
Old 07-25-2012, 06:13 PM
  #850
Brenner
Thread Starter

Join Date: Jul 2007
Location: Bridgman, MI
Posts: 711
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Contra Rotating Propeller Drive for f3a 2m Pattern Planes

Sound checks are tomorrow. By the way, I made the final in Masters. We fly tomorrow at eight. I did get a courtesy sound check, and I was at 94db.

Dave Lockhart flew his Contra all through the prelims, and then switched to his single prop for the semis. He told me that he switched because he hasn't had enough time to trim his Contra powered plane for the double knife edge snap in F.

Brenner...

PS-> by the way, temperatures here in Muncie are about 35C...
Brenner is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 12:08 PM.
