Gas Engines Questions or comments about gas engines can be posted here

New Evolution 10cc gas engine

Reply
Old 12-20-2012, 06:44 AM
  #151
Pete Bergstrom

Join Date: Apr 2002
Location: Champaign, IL
Posts: 424
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: mujenpwr

Has any R&D been done with one mounted inverted (carb down)?

Very curious about that.


Thx
Yes we have. As a matter of fact the Corsair in the video has the engine mounted about 15 degrees from vertical so the muffler stays mostly hidden. Remember the point of this engine is to bring gas/petrol economy to the glow engine world and we did this as economically and as reliably as possible using existing technology, i.e. tank position, etc. If you take care to aline the tank with the center of the carburetor (or as close as possible) the engine doesn't care what direction it faces. Use the included fuel tubing, filters and clunks and you are sure to have success.

Pete

Pete Bergstrom is offline
Reply With Quote
Old 12-20-2012, 06:53 AM
  #152
AJsToyz

AJsToyz's Avatar

Join Date: Feb 2006
Location: Maybee, MI
Posts: 2,724
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Ok, now we're talking!! All the proper plumbing to make it work included!!
AJsToyz is offline
Reply With Quote
Old 12-20-2012, 07:18 AM
  #153
David DeWitt

David DeWitt's Avatar

Join Date: Aug 2002
Location: Lakeland, FL
Posts: 261
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

OK I couidn't resist, I just ordered one also. Test it out on a Ugly Stik.
David DeWitt is offline
Reply With Quote
Old 12-20-2012, 08:34 AM
  #154
vertical grimmace

vertical grimmace's Avatar

Join Date: Mar 2004
Location: ft collins , CO
Posts: 7,148
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: Pete Bergstrom

The ignition that comes with this engine is 2s LiPo or LiFe ready and there is no need for a voltage regulator. We have been doing most of our testing with a 2s LiFe battery almost exclusively for its size, price and convenience.

Pete
That is nice it will take higher voltage. I was considering the IBEC though to eliminate the need for 2 batteries on board. If I have one with enough capacity through the IBEC, then I can use the same for the ignition and the RX. It seems many are being successful with these.
vertical grimmace is offline
Reply With Quote
Old 12-20-2012, 09:05 AM
  #155
shooboy

Join Date: Sep 2011
Location: rochester, NY
Posts: 23
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Hi guys, Will I need to buy a different fuel tank other than the one that comes in my Hangar 9 Warhawk 50 ARF? If I do need a new tank does anyone know the size and manufacturer I should look for ? Also, does the ignition box have to be kept as far away as possible from my servos and receiver ? Thanks in advance, Shoo
shooboy is offline
Reply With Quote
Old 12-20-2012, 09:10 AM
  #156
AJsToyz

AJsToyz's Avatar

Join Date: Feb 2006
Location: Maybee, MI
Posts: 2,724
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Should be able to use the stock tank with the new plumbing that comes with the engine. Its a good practice to keep the radio equipment as far from the ignition as possible.
AJsToyz is offline
Reply With Quote
Old 12-20-2012, 09:38 AM
  #157
rhd-RCU

rhd-RCU's Avatar

Join Date: Jan 2002
Location: burlington, WI
Posts: 713
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

You will also need a gas stopper.
rhd-RCU is offline
Reply With Quote
Old 12-20-2012, 09:59 AM
  #158
on_your_six

Join Date: Jun 2009
Location: Maryland, MD
Posts: 1,360
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Typically on Gas setups, we have two batteries... to separate the electrical noise from the ignition system from the radio... we even have fiber cutoff switched to keep the two apart... I don't see this changing. I do appreciate allowing the use of a 2s lipo to power the ignition module... long past due.

Quote:
ORIGINAL: vertical grimmace
Quote:
ORIGINAL: Pete Bergstrom
The ignition that comes with this engine is 2s LiPo or LiFe ready and there is no need for a voltage regulator. We have been doing most of our testing with a 2s LiFe battery almost exclusively for its size, price and convenience.
Pete
That is nice it will take higher voltage. I was considering the IBEC though to eliminate the need for 2 batteries on board. If I have one with enough capacity through the IBEC, then I can use the same for the ignition and the RX. It seems many are being successful with these.
on_your_six is offline
Reply With Quote
Old 12-20-2012, 11:43 AM
  #159
shooboy

Join Date: Sep 2011
Location: rochester, NY
Posts: 23
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Thanks for the advice guys, much appreciated. I do have one gas powered plane, a big Ohio R/C Ultimate Bipe with a Sachs 2.6 engine, but I didn't set it up and I haven't flown it yet, so I'm still raw on the gas side of things. Shoo
shooboy is offline
Reply With Quote
Old 12-20-2012, 12:04 PM
  #160
airborneSGT

airborneSGT's Avatar

Join Date: Jun 2004
Location: APO, AE, GERMANY
Posts: 1,619
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

If you don't like what the engine is supplied with (I am guessing tygon anyway) you can buy your own at nearly every hobby shop:


http://www.horizonhobby.com/products/DUB505

or

http://www.horizonhobby.com/products...tubing-3SUL207

Also make sure that whatever method you use to supply your model fuel has the same type of tubing. I use these for gas:

http://www.jerseymodeler.com/

but you can make your own fueler on the cheap.
airborneSGT is offline
Reply With Quote
Old 12-20-2012, 12:13 PM
  #161
Pete Bergstrom

Join Date: Apr 2002
Location: Champaign, IL
Posts: 424
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: airborneSGT

If you don't like what the engine is supplied with (I am guessing tygon anyway) you can buy your own at nearly every hobby shop:


http://www.horizonhobby.com/products/DUB505

or

http://www.horizonhobby.com/products...tubing-3SUL207

Also make sure that whatever method you use to supply your model fuel has the same type of tubing. I use these for gas:

http://www.jerseymodeler.com/

but you can make your own fueler on the cheap.
The engine is supplied with 18" of black FPM (viton) tubing. This is not neopreme tubing. We worked at sourcing the FPM so our users would not have to deal with the stiffness of the tygon, and tygon tubing used inside small fuel tanks is absolutely useless as a clunk line. It is so stiff it never lets the clunk move.

The only thing we didn't provide was a gas proof stopper for your fuel tanks because of the number of different tank styles out there.

Shoo - the tank that comes with the H9 P-40 has a stopper in it that is gas compatible. In some installation we have replaced the 11oz tank that comes with it with an 8 oz tank and then used the extra room to mount the ignition and/or ignition battery. 8 ozs will get you 24 minutes of wide open flying with the 10cc. For planning purposes you should expect 1/3 oz per minute of wide open flying time.

The smallest tank we recommend is a 6 oz ... below that and there really isnt enough room for a clunk to move around and be effective.

Pete

Pete Bergstrom is offline
Reply With Quote
Old 12-20-2012, 12:57 PM
  #162
airborneSGT

airborneSGT's Avatar

Join Date: Jun 2004
Location: APO, AE, GERMANY
Posts: 1,619
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Pete

Oh wow you guys thought of it all! I would have suggested the viton or black smoke type line because of its flexibility. I think this setup should be a winner for your target market. I am gonna get one just to give it a go.
airborneSGT is offline
Reply With Quote
Old 12-20-2012, 01:11 PM
  #163
vertical grimmace

vertical grimmace's Avatar

Join Date: Mar 2004
Location: ft collins , CO
Posts: 7,148
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

One thing I recommend to those new to gas is NOT to use a stopper at all for your tank. They are a serious failure point, and fail they do, often. Gas compatibale or not. You want a tank with a screw on cap. Bennet built makes them. The Fiji water bottle is good too. There is a company that sells a ready to run tank that is only 8 oz. that would be perfect for this engine. I ran it for 2 years on my DLE 20, but replaced it for a larger one this year. I will post a link when I find it.
Here it is. http://www.fourtituderc.com/foutitude_smoke_add_003.htm

My IBEC is optically isolated and also incorporates a kill switch as well. Valley view sells these and they are manufactured by RCXcel. I just have not tried it out yet.
vertical grimmace is offline
Reply With Quote
Old 12-20-2012, 02:22 PM
  #164
k3 valley flyer

Join Date: Jan 2004
Location: Bourbonnais , IL
Posts: 546
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

I am going to try SEF (small engine fuel) next season in my gassers, it is no ethanol 93 octane and comes in either 40 to 1 or 50 to 1. Probably will get in quart bottles, could I add more oil to a guart of 50 to 1 to get to 20 to 1, and if so how much?
k3 valley flyer is offline
Reply With Quote
Old 12-20-2012, 02:28 PM
  #165
Pete Bergstrom

Join Date: Apr 2002
Location: Champaign, IL
Posts: 424
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: k3 valley flyer

I am going to try SEF (small engine fuel) next season in my gassers, it is no ethanol 93 octane and comes in either 40 to 1 or 50 to 1. Probably will get in quart bottles, could I add more oil to a guart of 50 to 1 to get to 20 to 1, and if so how much?
You would need to add 1.1 oz of oil to the container of 50:1 to get 20:1 oil mix.

Pete

Pete Bergstrom is offline
Reply With Quote
Old 12-20-2012, 02:33 PM
  #166
corvettez06

Join Date: Sep 2011
Location: Morton, IL
Posts: 103
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Yes, you need to add .96 ounces to that to get a 20:1 ratio.
corvettez06 is offline
Reply With Quote
Old 12-20-2012, 03:06 PM
  #167
Spridal

Join Date: Feb 2010
Location: Palm Springs, CA
Posts: 120
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Just pulled the trigger and mine should be here tomorrow. I hope to get it tuned on the test stand and ready for when my Meridian gets here. I'm told they will begin to ship on the 28th.
Spridal is offline
Reply With Quote
Old 12-20-2012, 06:01 PM
  #168
J-3

Join Date: Feb 2002
Location: Saint Peters, MO
Posts: 262
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

I ordered mine yesterday at 9AM and got today at 11AM. I am impressed with my initial once over this engine, I hope it runs as good as it looks!
It is a nice touch they provided Viton fuel line, a nice fuel filter and a weighted gas clunk with a filter. The ignition unit is 1.5" long, 7/8" wide, and 1 1/16" tall.
The ignition unit also came with some kind of electronic device with Futaba servo end on one side, and a micro servo fitting on the other end. I'll have to read the manual to figure out what this is for?
I will have fun with this engine! Brian
J-3 is offline
Reply With Quote
Old 12-20-2012, 06:38 PM
  #169
Pete Bergstrom

Join Date: Apr 2002
Location: Champaign, IL
Posts: 424
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: J-3

I ordered mine yesterday at 9AM and got today at 11AM. I am impressed with my initial once over this engine, I hope it runs as good as it looks!
It is a nice touch they provided Viton fuel line, a nice fuel filter and a weighted gas clunk with a filter. The ignition unit is 1.5" long, 7/8" wide, and 1 1/16" tall.
The ignition unit also came with some kind of electronic device with Futaba servo end on one side, and a micro servo fitting on the other end. I'll have to read the manual to figure out what this is for?
I will have fun with this engine! Brian
the cable you describe is designed to go between the tach output of the ignition and to be plugged into a Spektrum telemetry unit to provide rpm readings to your transmitter.

Pete

Pete Bergstrom is offline
Reply With Quote
Old 12-20-2012, 06:47 PM
  #170
J-3

Join Date: Feb 2002
Location: Saint Peters, MO
Posts: 262
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Thanks Pete, I was reading the manual as you posted with the answer. I must say it looks like you put as much into the manual as you did everything else, nice to see pictures too!
Brian
J-3 is offline
Reply With Quote
Old 12-20-2012, 07:07 PM
  #171
raubold

Join Date: Nov 2004
Location: Tehachapi, CA
Posts: 303
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: airraptor

The weight of a 75 and a power of a 46. Sounds good lol
what 46 is cranking these number with that prop ?? EVO 12 x 6 @ 11,100 rpm
raubold is offline
Reply With Quote
Old 12-20-2012, 08:35 PM
  #172
Kmot

Kmot's Avatar

Join Date: Jun 2003
Location: Northridge, CA
Posts: 10,904
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

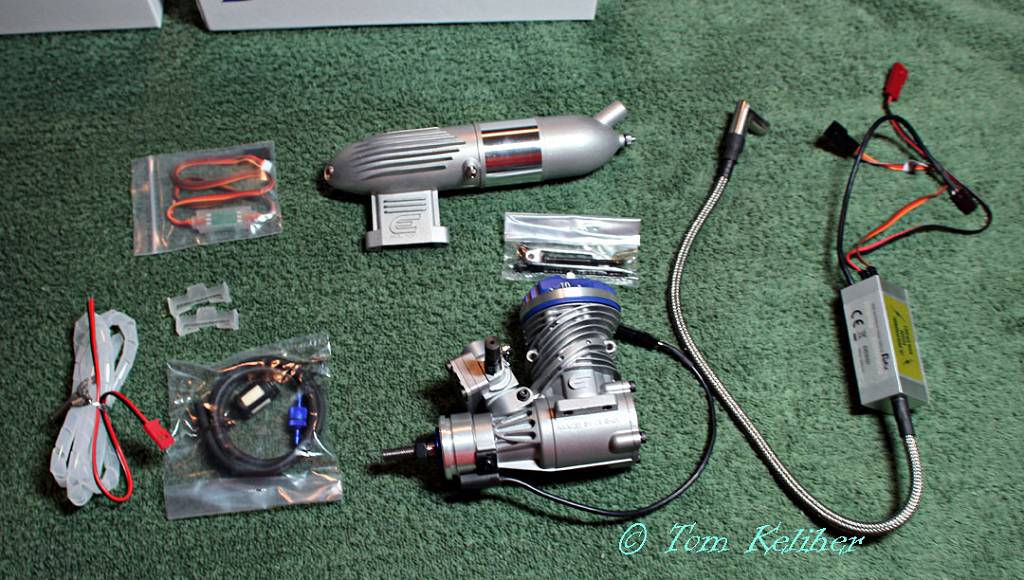

Unboxing video.

[youtube]http://www.youtube.com/watch?v=2ZqWal6Jhnk[/youtube]

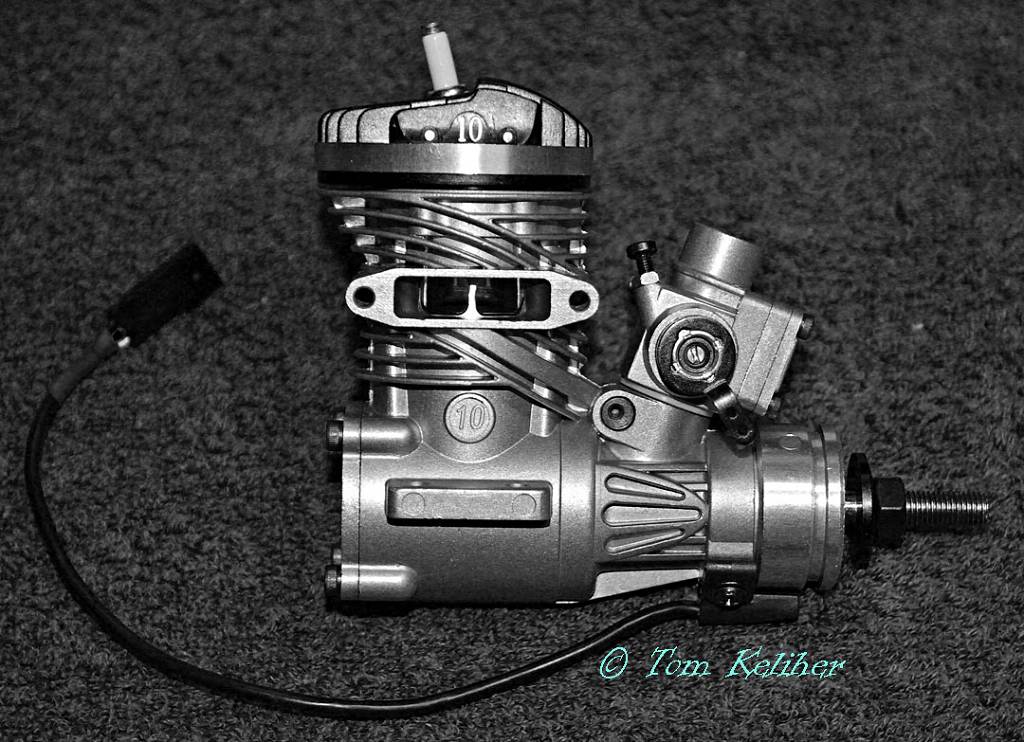

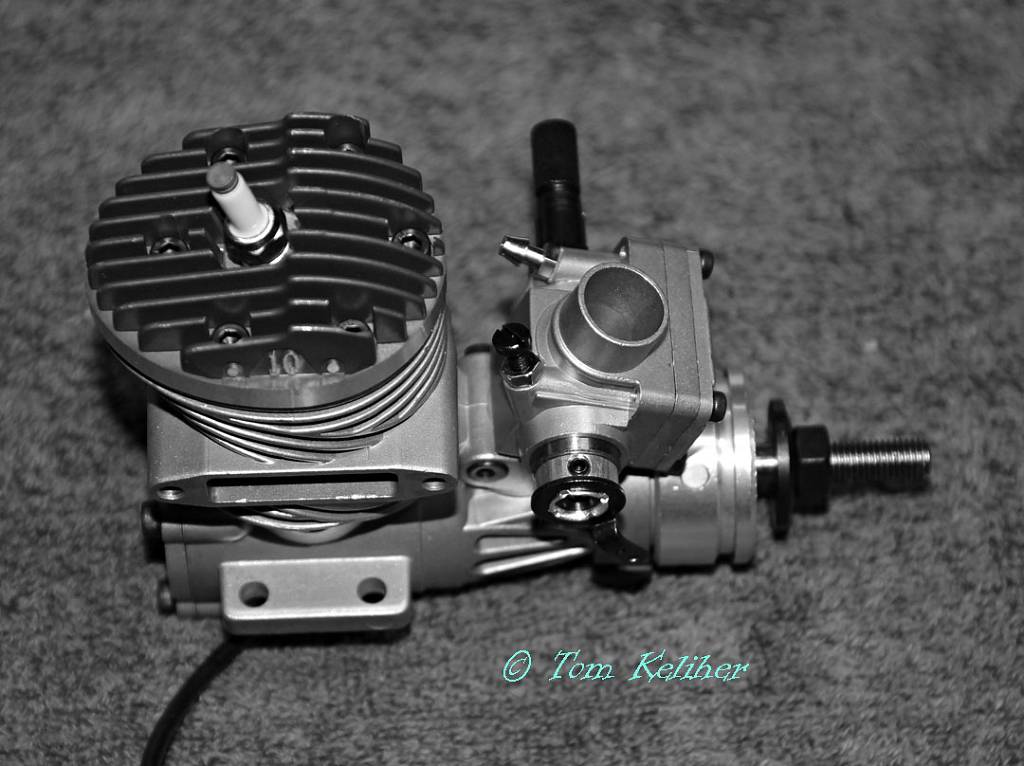

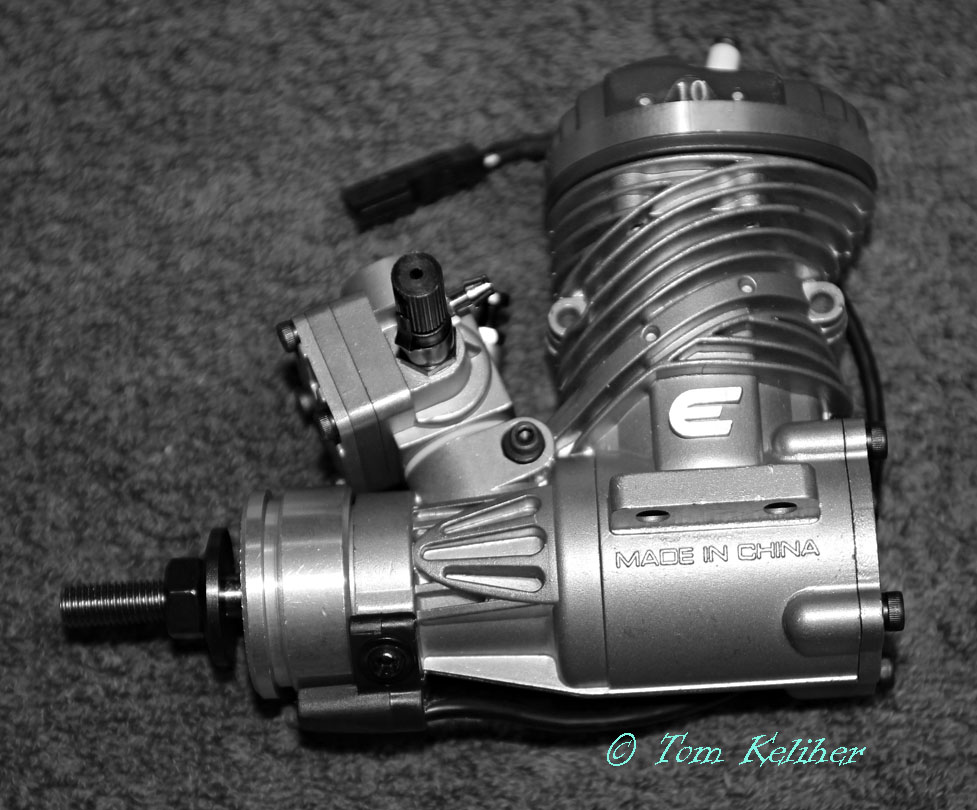

Attached Thumbnails
Click image for larger version

Name:	Ay73605.jpg
Views:	42
Size:	97.4 KB
ID:	1832445   Click image for larger version

Name:	Fa85775.jpg
Views:	59
Size:	127.1 KB
ID:	1832446   Click image for larger version

Name:	Pu52776.jpg
Views:	43
Size:	140.9 KB
ID:	1832447   Click image for larger version

Name:	Ex68093.jpg
Views:	40
Size:	168.0 KB
ID:	1832448   Click image for larger version

Name:	Pa34889.jpg
Views:	40
Size:	93.5 KB
ID:	1832449
Kmot is offline
Reply With Quote
Old 12-20-2012, 10:12 PM
  #173
kevstra22

Join Date: Nov 2008
Location: Honolulu, HI
Posts: 28
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Great job Kmot!

Who's going to post the first test run video?
kevstra22 is offline
Reply With Quote
Old 12-21-2012, 04:29 AM
  #174
AJsToyz

AJsToyz's Avatar

Join Date: Feb 2006
Location: Maybee, MI
Posts: 2,724
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine

Just went back and looked at the Magnum .52 and it has a couple things in common.
Attached Thumbnails
Click image for larger version

Name:	Vt58641.jpg
Views:	42
Size:	6.7 KB
ID:	1832502
AJsToyz is offline
Reply With Quote
Old 12-21-2012, 04:53 AM
  #175
NJRCFLYER2

Join Date: Jul 2004
Location: Randolph, NJ
Posts: 874
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: New Evolution 10cc gas engine


Quote:
ORIGINAL: geeter

yes i would like to see smaller and lighter cdi boxes too. 3 oz ain't bad. you can use an i bec or u bec i think it's called and run the same battery for ign as for rx power. that saves some weight and space............RON
Yes, it's called an IBEC. And it adds a safety cut off feature for the ignition module power.
NJRCFLYER2 is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 09:29 AM.
