Default Computer Aided Design for Scale Model

I am in the beginning stages of drawing plans for a scale competition homebuilt. I have the full size plans and want to find out how to make the most accurate outline. Can you recommend a program? As part of this hobby, I am happy to learn. TIA
cjtyped is offline
Reply With Quote
Old 03-03-2019, 06:52 AM
  #2
thevirginian

Join Date: Apr 2004
Location: chesapeake, VA
Posts: 1,858
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

How large are the "full scale plans"? Are you using Autocad, or a 3D program? There are full scale plotters for commercial use on the market for converting full scale scale raster drawings into vector lines. But for the home use I can only imagine to physically measure every part on your plans and scale them down by whatever your desired size might be. Without a 3D program it would be a somewhat cumbersome task to down size a full scale airplane, though.
thevirginian is offline
Reply With Quote
Old 03-03-2019, 09:48 AM
  #3
TomCrump

TomCrump's Avatar

Join Date: Apr 2003
Location: Traverse City, MI
Posts: 7,607
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default



3 view
I built my Ryan Brougham from 3 views which were printed out to my desired scale (1/5). I don't feel that "full size plans" are necessary. The 3 views provide the accurate outline. All that was left was to shape parts to fit in those outlines.
TomCrump is offline
Reply With Quote
Old 03-03-2019, 09:51 AM
  #4
TomCrump

TomCrump's Avatar

Join Date: Apr 2003
Location: Traverse City, MI
Posts: 7,607
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default


Pic

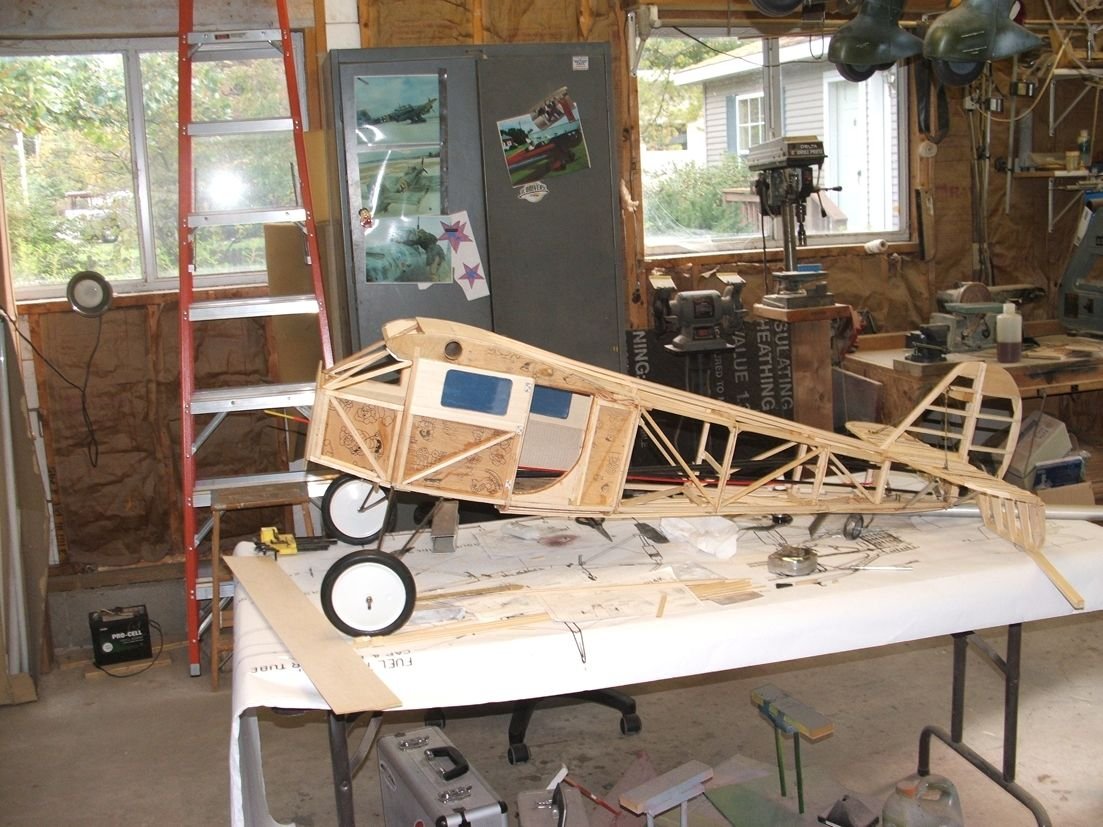

of fuselage construction being built over printed 3 view.
TomCrump is offline
Reply With Quote
Old 03-03-2019, 09:56 AM
  #5
thevirginian

Join Date: Apr 2004
Location: chesapeake, VA
Posts: 1,858
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Nice job! But I think he was talking about full scale plans. And how he could down size them.
thevirginian is offline
Reply With Quote
Old 03-03-2019, 10:08 AM
  #6
TomCrump

TomCrump's Avatar

Join Date: Apr 2003
Location: Traverse City, MI
Posts: 7,607
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Originally Posted by thevirginian View Post
Nice job! But I think he was talking about full scale plans. And how he could down size them.
My point is that full size plans are nice to look at but are cumbersome to deal with when building a scale model. 3 views provide the needed outlines. The model airplane parts are just that, and don't require full sized plans to design them.
TomCrump is offline
Reply With Quote
Old 03-08-2019, 11:00 PM
  #7
Chad Veich
My Feedback: (60)

Join Date: Dec 2001
Location: Litchfield Park, AZ
Posts: 7,541
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Originally Posted by cjtyped View Post
I am in the beginning stages of drawing plans for a scale competition homebuilt. I have the full size plans and want to find out how to make the most accurate outline. Can you recommend a program? As part of this hobby, I am happy to learn. TIA
I use AutoCAD exclusively because that is the software that I had to learn in order to do my professional work. It is fantastic for designing model airplanes and I highly recommend it but there are other software packages that will do a fine job and for far less money. Some are even free! I know that many folks are getting very good mileage out of Sketchup which is freeware but there are other free or relatively inexpensive options. None of them are going to guarantee an accurate outline, that will be up to you.
Chad Veich is offline
Reply With Quote
Old 03-11-2019, 03:58 PM
  #8
mirion

Join Date: Sep 2018
Location: Frankenmuth, MI
Posts: 32
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

+1 for Sketchup. I recently retired and lost access to AutoCAD which I had used for 30 years. Because I was reentering model aviation and I could not justify the cost of AutoCAD I tried Sketchup and it a perfect "free" replacement, you just have to adjust to different icons but all the same functionality.
mirion is offline
Reply With Quote
