Kit Building If you're building a kit and have questions or want to discuss kit building post it here.

Sig Ryan STA

Reply
Old 09-26-2012, 04:43 PM
  #176
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

It's suprising how long it takes to drill a few holes in ribs when you do it out of sequence....anyway it's done and I'll be sure to drill the second set of ribs for the right wingusinga drill press. Aileron leading edge has been clamped and ready to receive its ribs. You can also see in the last photo where I havephoto copiedthe wing tip from the plans and have glued it to a piece of MDF. I will cut the profile of the wing tip giving me a perfect jig to clamp the balsa laminations.
Attached Thumbnails
Click image for larger version

Name:	Fd91289.jpg
Views:	106
Size:	155.2 KB
ID:	1805340   Click image for larger version

Name:	Bz79357.jpg
Views:	95
Size:	98.2 KB
ID:	1805341   Click image for larger version

Name:	Hf99060.jpg
Views:	103
Size:	137.5 KB
ID:	1805342
VincentJ is online now
Reply With Quote
Old 09-27-2012, 04:57 AM
  #177
raptureboy

raptureboy's Avatar

Join Date: Dec 2005
Location: Kempton PA
Posts: 2,598
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

What amazes me is the quality of the wood and the well thought out engineering of this kit. Compared to whatI see in todays arfs this is light years ahead. Would this be like back to the future? I hope SIG would consider making this one again.
raptureboy is offline
Reply With Quote
Old 09-27-2012, 05:08 AM
  #178
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

+1 raptureboy, I couldn't agree more. So far the wood has been super and the fuse is rock solid if built properly. The wing could use some updating but all in all this is a great build. Hello SIG are you listening....
VincentJ is online now
Reply With Quote
Old 09-27-2012, 08:13 AM
  #179
raptureboy

raptureboy's Avatar

Join Date: Dec 2005
Location: Kempton PA
Posts: 2,598
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Here you go guys http://www.ebay.com/itm/Sig-RC-27-Ry...item4847fb679bI'd love to ahve her but I'm about to spend $3000 for dental work$299 aint bad.
raptureboy is offline
Reply With Quote
Old 09-27-2012, 08:24 AM
  #180
WacoNut

WacoNut's Avatar

Join Date: Jan 2005
Location: Blanchester, OH
Posts: 6,562
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

I would love to see it brought back as an updated 1/4 or 1/3 scale size.
Later!!
Anthony
WacoNut is offline
Reply With Quote
Old 09-27-2012, 10:35 AM
  #181
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Now that would be cool....
VincentJ is online now
Reply With Quote
Old 09-27-2012, 03:07 PM
  #182
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

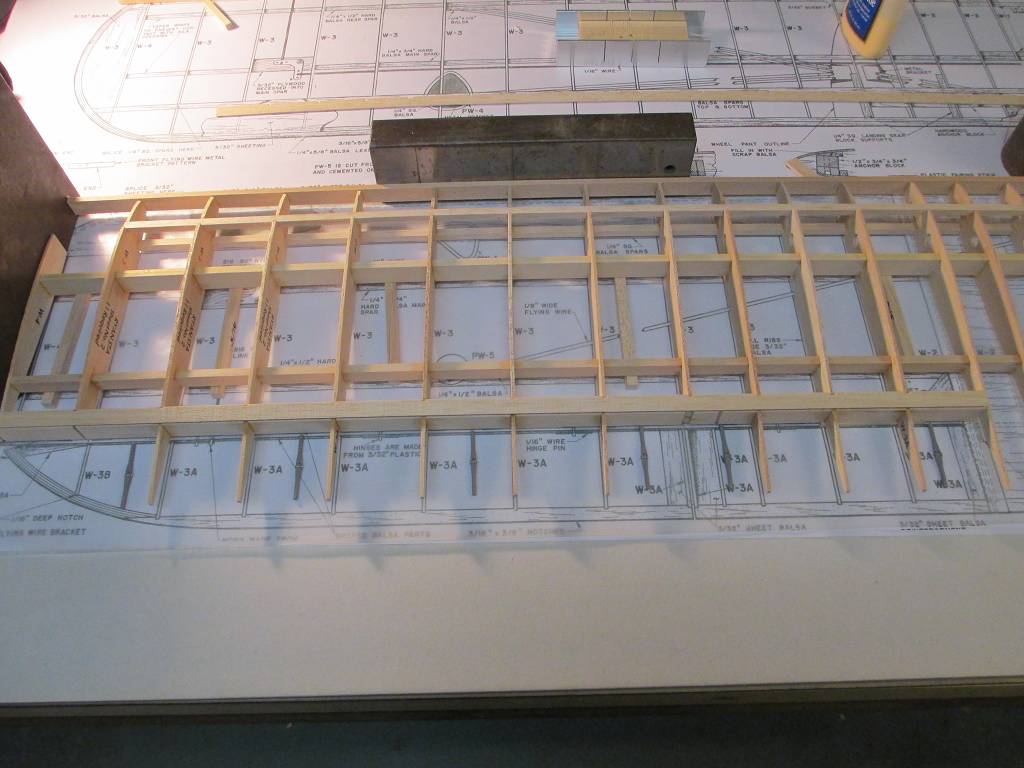

Some nights you get lots accomplished, others...not so much. I guess that's to be expected in any build, but hey any progress is good right? Tonight's photo is of the jig that I made for the wing tips whichI completed this evening.Guess you can now tell what kind of night tonight was!
Attached Thumbnails
Click image for larger version

Name:	Vs55617.jpg
Views:	88
Size:	142.8 KB
ID:	1805571
VincentJ is online now
Reply With Quote
Old 09-28-2012, 01:31 PM
  #183
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Couple of early pictures tonight. First photo shows the future locations of the Robart hinges. Their will be four on each aileron and two on each flap. I am in the process of gluing in the additional blocking necessary for this style hinge to have. The second photo shows the four 1/4" x 1/16" balsa strips which will make-up the wing tip. I soaked the strips in water for about 45 minutes and then put them on this jig to dry. Tomorrow I will glue each piece together making one solid piece. For tonights preliminary bending only two clamps were needed.
Attached Thumbnails
Click image for larger version

Name:	Ge96506.jpg
Views:	103
Size:	86.1 KB
ID:	1805820   Click image for larger version

Name:	Xv63466.jpg
Views:	115
Size:	98.6 KB
ID:	1805821
VincentJ is online now
Reply With Quote
Old 09-29-2012, 08:03 AM
  #184
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

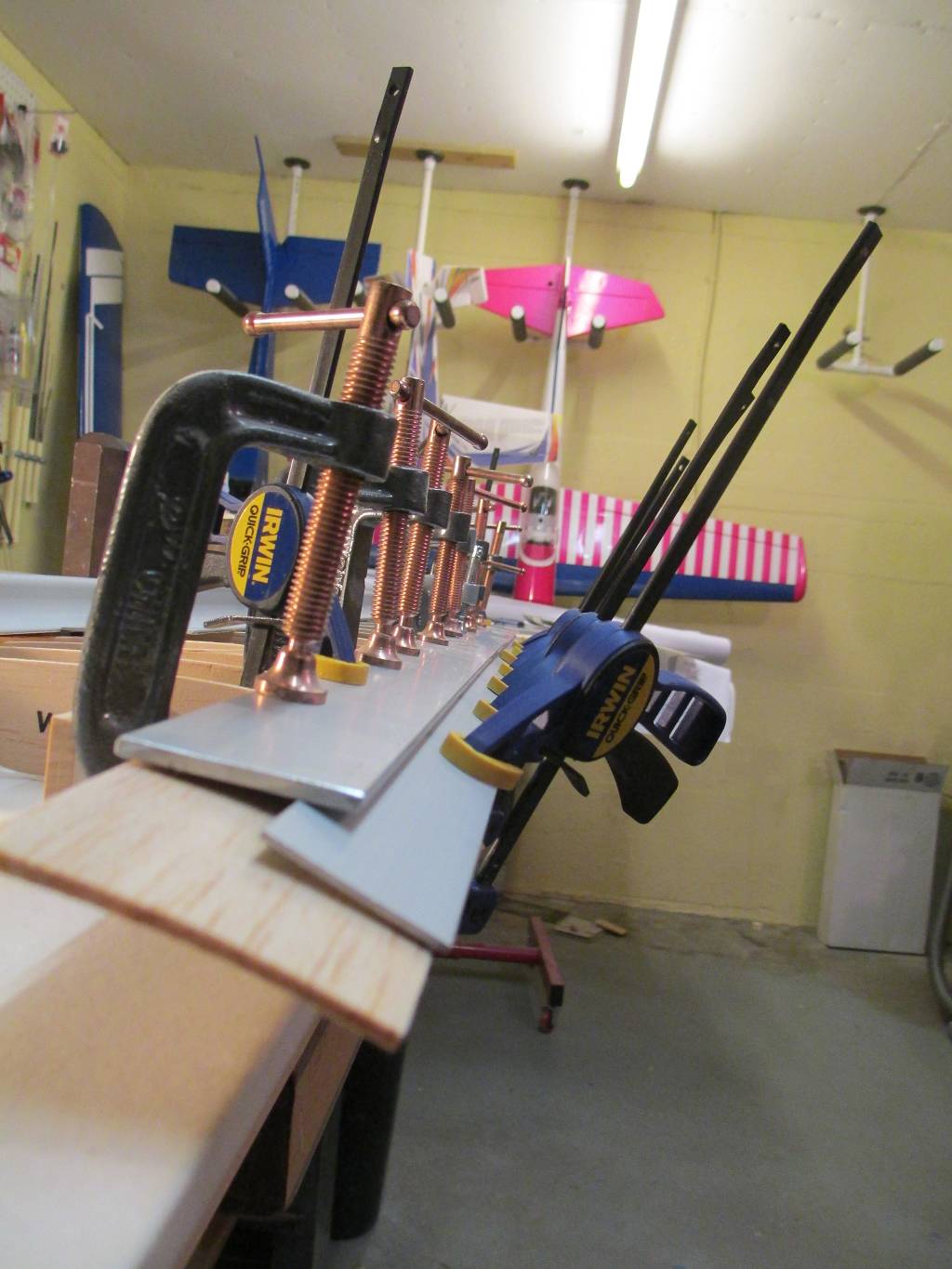

Funny what we in this hobby get excited about, I got up at 4:00 am just to glue the wing tip laminationsthat was drying all night in the jig. I released the clamps around 10:30 am and as you can see it held itsshape in the jig perfectly. When placed on the plans it should be a perfect fit. Should look like a million bucks with some minor sanding...

Side Notes:
  1. I took a piece of scotch transparent tape and laid a strip of it down on the jig in the event glue dripped from the laminations. Thispreventsyou from bonding your wing tip to the jig.
  2. After removing the clamps but before removing your wing tip from the jig, make an index mark on your wing tip, it will aide you in proper alignment when fitting to the wing.
Attached Thumbnails
Click image for larger version

Name:	Fd91955.jpg
Views:	88
Size:	97.7 KB
ID:	1805993   Click image for larger version

Name:	Fc90051.jpg
Views:	82
Size:	100.5 KB
ID:	1805994   Click image for larger version

Name:	Li21006.jpg
Views:	94
Size:	89.0 KB
ID:	1805995
VincentJ is online now
Reply With Quote
Old 09-29-2012, 10:22 AM
  #185
Cub Flyer Fresno

Cub Flyer Fresno's Avatar

Join Date: Jan 2010
Location: Reedley, CA
Posts: 1,806
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Cool!  Nice job VJ.  I'm learning, keep on going!

Take care,
David
Cub Flyer Fresno is offline
Reply With Quote
Old 09-29-2012, 10:55 AM
  #186
acerc

acerc's Avatar

Join Date: Sep 2006
Location: The Sunshine state, when it's not raining!
Posts: 8,108
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

That's pretty cool there VJ, but too much work for me. I too use water buta little differenet in the method, I use magnets over the plans.
acerc is offline
Reply With Quote
Old 09-29-2012, 11:54 AM
  #187
Cub Flyer Fresno

Cub Flyer Fresno's Avatar

Join Date: Jan 2010
Location: Reedley, CA
Posts: 1,806
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Show off!
Cub Flyer Fresno is offline
Reply With Quote
Old 09-29-2012, 12:38 PM
  #188
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

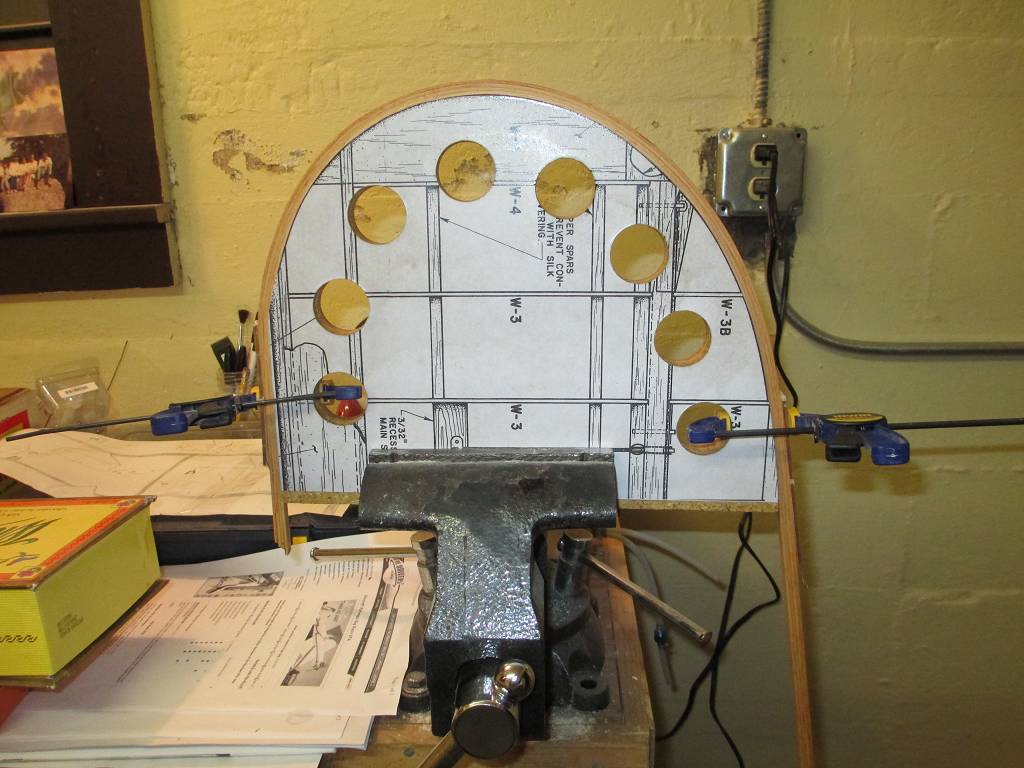

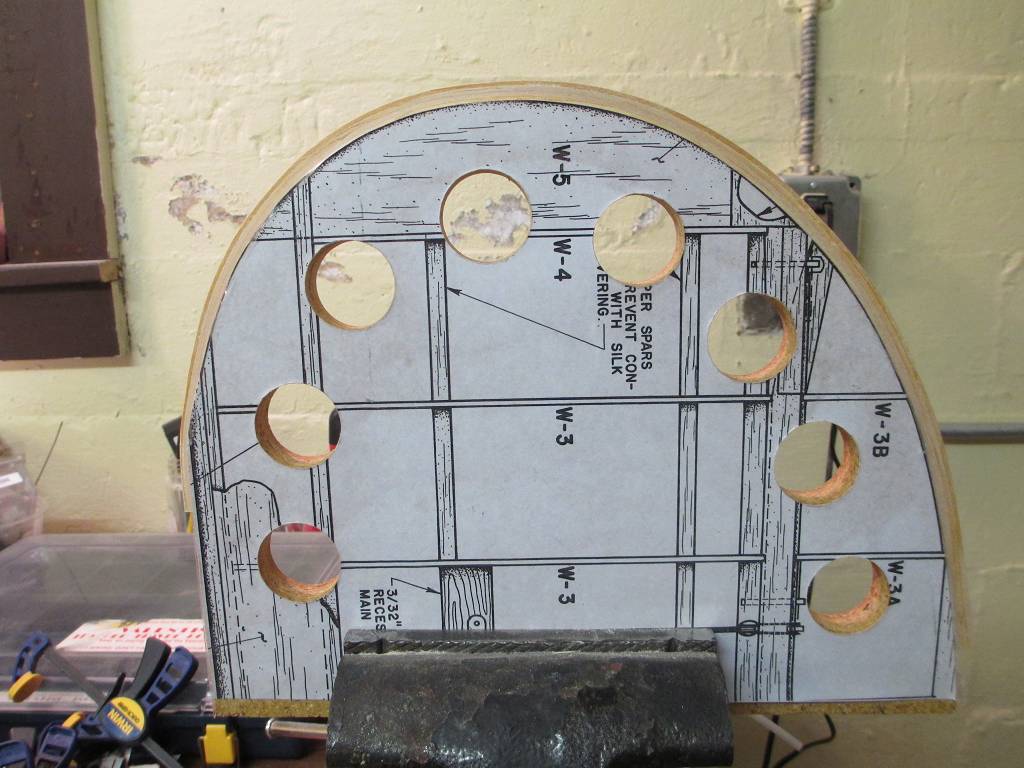

Ah yes the advantages of the magnetic build board. One day I'll break down and buy one! But building the jig was very theraputic at least give me that ....

Next on the agenda was to attatch a 3/32" balsa wing tip to the chord line of rib W-4. After measuring where the chord line was, I had to attach the wing tip perfectly squareto this line. I suppose thier are many ways to accomplish this, buthere is the wayI chose to do it. I hung the wing off the build table, using a square kept it in the position that I was looking for, it was easy to do. (Also visible in the 1st photo are the hinge blocks that I glued on.)
Attached Thumbnails
Click image for larger version

Name:	Ec88799.jpg
Views:	116
Size:	139.5 KB
ID:	1806050   Click image for larger version

Name:	Ig13113.jpg
Views:	122
Size:	54.8 KB
ID:	1806051   Click image for larger version

Name:	Pn36800.jpg
Views:	106
Size:	117.6 KB
ID:	1806052
VincentJ is online now
Reply With Quote
Old 09-30-2012, 03:04 AM
  #189
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

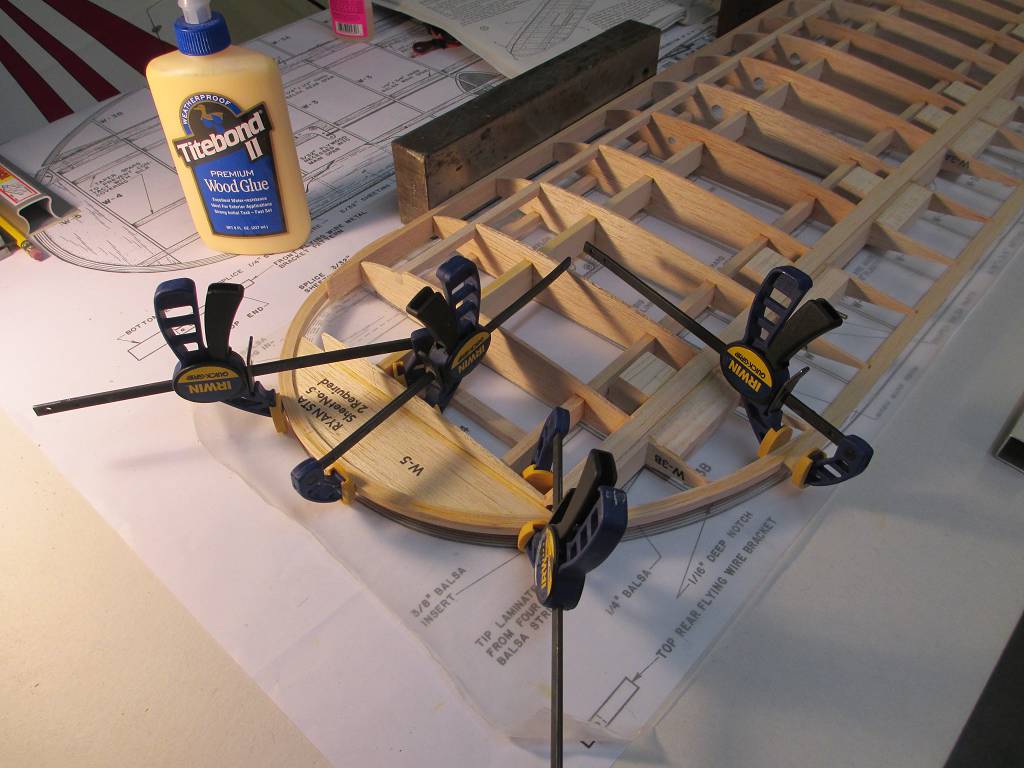

Thought before I went out this morning (flying) I would glue the wing tip to the left wing. Here are the photos.
Attached Thumbnails
Click image for larger version

Name:	Tq48794.jpg
Views:	109
Size:	90.2 KB
ID:	1806289   Click image for larger version

Name:	Wu60321.jpg
Views:	112
Size:	87.4 KB
ID:	1806290   Click image for larger version

Name:	Lj23454.jpg
Views:	115
Size:	75.7 KB
ID:	1806291
VincentJ is online now
Reply With Quote
Old 09-30-2012, 01:06 PM
  #190
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

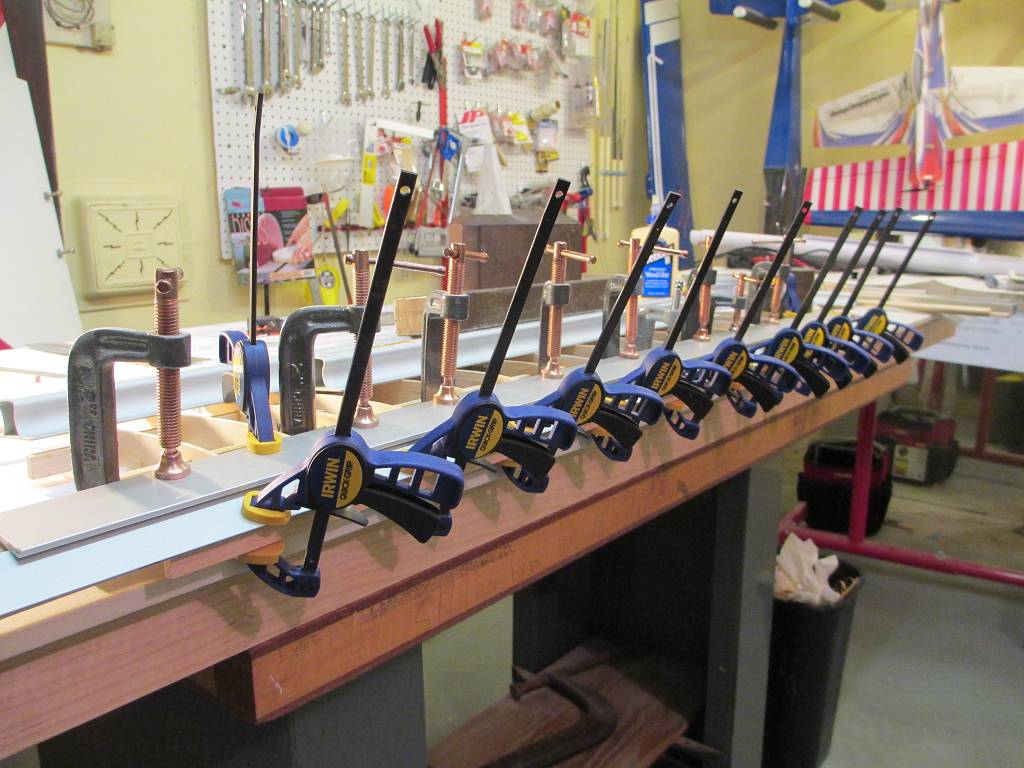

Only got in one flight before it started to rain . So I went home and started to sheet the top of the leading edge with 2" x 3/32" sheeting. If anyone asks you what you want for your birthday or the holidays, you can't go wrong if you ask for clamps...
Attached Thumbnails
Click image for larger version

Name:	Us55341.jpg
Views:	99
Size:	102.9 KB
ID:	1806506   Click image for larger version

Name:	Sq48020.jpg
Views:	97
Size:	116.3 KB
ID:	1806507
VincentJ is online now
Reply With Quote
Old 09-30-2012, 02:44 PM
  #191
Cub Flyer Fresno

Cub Flyer Fresno's Avatar

Join Date: Jan 2010
Location: Reedley, CA
Posts: 1,806
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Looking good VJ!  And, WOW, you've got a few clamps.  But no matter how much I ask for something... well... you know!

Gosh, I can't wait to get started on my Ryan.  Only problem is I need to buy one.  And that's not the only problem, I need to finish my Cub first!  RATS!
Cub Flyer Fresno is offline
Reply With Quote
Old 09-30-2012, 05:15 PM
  #192
SunDevilPilot

SunDevilPilot's Avatar

Join Date: May 2002
Location: Gilbert, AZ
Posts: 2,016
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Beautiful lamination on the wing tips! Something magical about pulling the part off the form and it holding its curve.

That's the next step on my Nieuport build.
SunDevilPilot
SunDevilPilot is offline
Reply With Quote
Old 10-01-2012, 03:37 AM
  #193
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

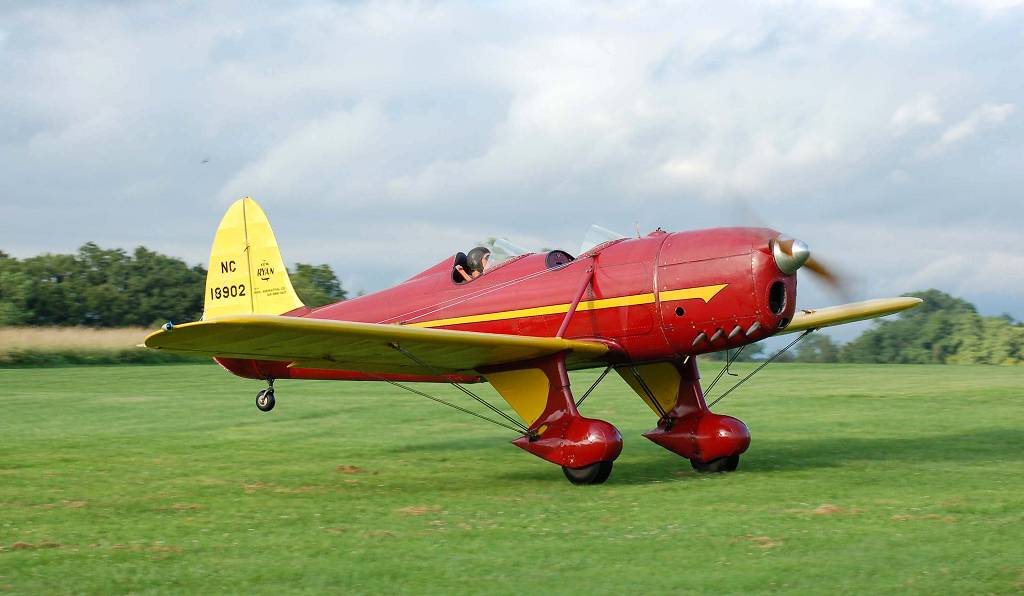

Never too early to start to think about paint, so many choices...
Attached Thumbnails
Click image for larger version

Name:	Mk25695.jpg
Views:	60
Size:	60.8 KB
ID:	1806772   Click image for larger version

Name:	Om32040.jpg
Views:	63
Size:	70.0 KB
ID:	1806773   Click image for larger version

Name:	Mk27310.jpg
Views:	71
Size:	65.6 KB
ID:	1806774
VincentJ is online now
Reply With Quote
Old 10-01-2012, 05:25 AM
  #194
OldScaleGuy

OldScaleGuy's Avatar

Join Date: Dec 2005
Location: Seymour, IN
Posts: 2,796
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Are you taking votes?
I vote for the Bob Gosney scheme. Kind of the "tradional" scheme but still great looking especially with the checkerboard bottom.
OldScaleGuy is offline
Reply With Quote
Old 10-01-2012, 06:54 AM
  #195
raptureboy

raptureboy's Avatar

Join Date: Dec 2005
Location: Kempton PA
Posts: 2,598
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Your really making progress there VJ. I almost bought a set of plans for a 1/4 scale this weekend at a meet. I went to the Golden Age air Museum here in Pa for a 3 day RC event for planes from 1941 and older.
http://www.goldenageair.org/index.htm It's a great place and they are a group of dedicated volunteers helping to preserve the early days of aviation. Here are my 2 entrys, I have smoke on the Sterman and I want to install some in my Ryan.
Attached Thumbnails
Click image for larger version

Name:	Xu62758.jpg
Views:	35
Size:	141.4 KB
ID:	1806841
raptureboy is offline
Reply With Quote
Old 10-01-2012, 07:28 AM
  #196
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

OldScaleGuy, I think I know what my favorite is but I'm curious to see what you all think.

Raptureboy, that looks like a wonderful museum I bet you had a great time there. You mentioned that you almost bought a 1/4 scale plan, was it for a Ryan or some other type of aircraft? Stearman is really beautiful, can't quite read what the name ison the cowl. I would love to go on the WACO ride!
VincentJ is online now
Reply With Quote
Old 10-01-2012, 07:50 AM
  #197
raptureboy

raptureboy's Avatar

Join Date: Dec 2005
Location: Kempton PA
Posts: 2,598
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

Well, i've tried to add a picture of my ryan stm 8 times now but the connection keeps dropping so maybe later. Thanks Vincent, it was a great day and only one mishap, one guy forgot to attach his wing struts on his Mr Mulligan and the wing folded on lift off.You can't preflight enough. Yes the plans were for a Ryan Sta, I should have bought them for $10 but oh well. The nose art is of my mom from the 40's made for me by Callie Graphics. She was an airplane inspector at Brookly field in Mobile Ala, when she was 19 and was featured in Ken Burns movie THEWAR a few years ago. The good Lord willing we will celebrate her 90th birthday next March. Here is a close up of the work, my dad had a nickname for her; Wampas Cat, being she's from the south you can only imagine what that wasGrowing up she could fix anything around the house with a hammer,screwdriver, and pliers
Attached Thumbnails
Click image for larger version

Name:	Ig11208.jpg
Views:	42
Size:	61.6 KB
ID:	1806850
raptureboy is offline
Reply With Quote
Old 10-01-2012, 08:12 AM
  #198
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

What a wonderful story, your dad was a very fortunate man. Sounds like my kind of woman!
VincentJ is online now
Reply With Quote
Old 10-01-2012, 12:55 PM
  #199
VincentJ
Thread Starter

VincentJ's Avatar

Join Date: Mar 2011
Location: Peterborough, NH
Posts: 3,161
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA

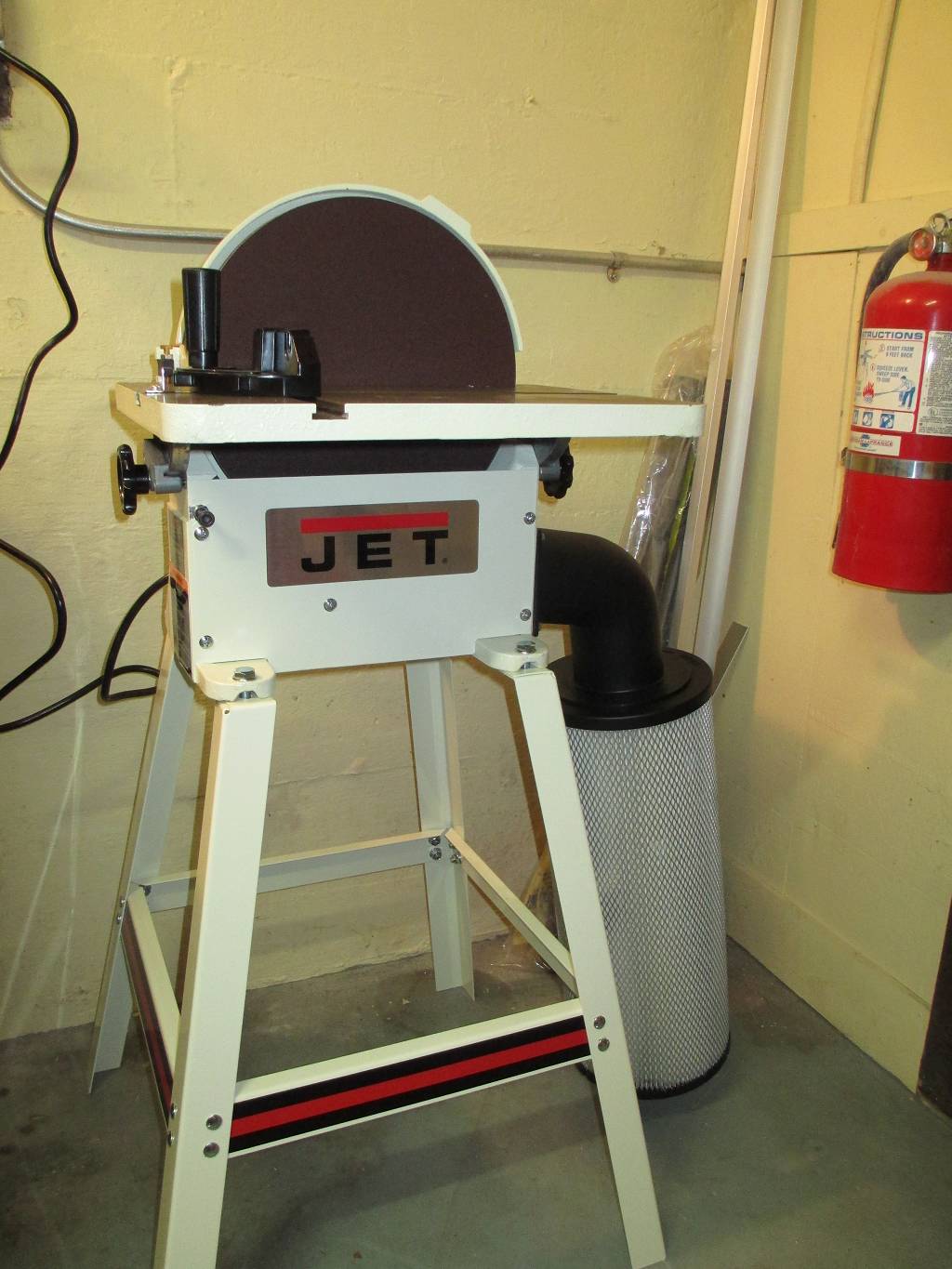

Guess what arrived at my back door today. A brand new Jet 12"disc sander that I've been eyeing for quite awhile. This will be a welcome addition to my workshop. Compared to my 6" disc sander that had a cheap wobbly aluminum table with a not so accurate miter gage, I'll be in sanding heaven!
Attached Thumbnails
Click image for larger version

Name:	If10428.jpg
Views:	54
Size:	134.6 KB
ID:	1806985
VincentJ is online now
Reply With Quote
Old 10-01-2012, 01:43 PM
  #200
SunDevilPilot

SunDevilPilot's Avatar

Join Date: May 2002
Location: Gilbert, AZ
Posts: 2,016
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Sig Ryan STA


Quote:
ORIGINAL: VincentJ

Guess what arrived at my back door today. A brand new Jet 12"disc sander that I've been eyeing for quite awhile. This will be a welcome addition to my workshop. Compared to my 6" disc sander that had a cheap wobbly aluminum table with a not so accurate miter gage, I'll be in sanding heaven!
There is nothing wobbly on that one! I was surprised at how big it was when mine arrived. The wind out of the port is like a leaf blower. My Ryobi one always threw dust in my face as I sanded. This one leaves no trace of dust on the part / table. It all gets sucked up by the internal hampster wheel fan and shot out of the exhaust port. Your filter on the port will work perfect!

SunDevilPilot

SunDevilPilot is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 01:58 PM.
