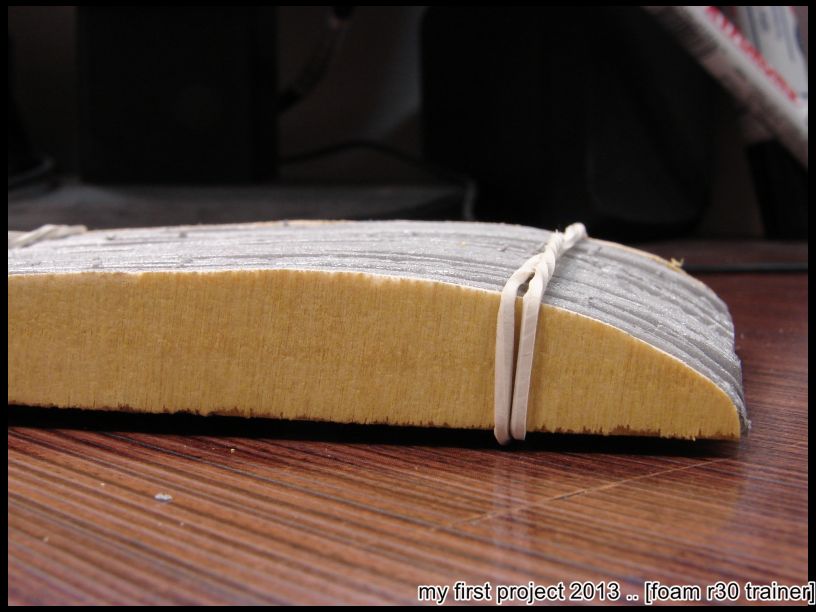

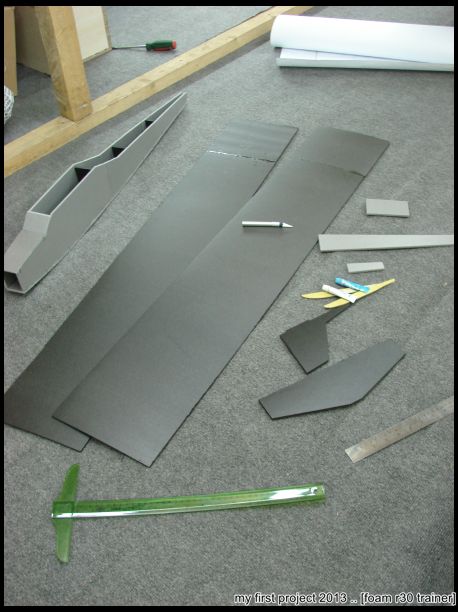

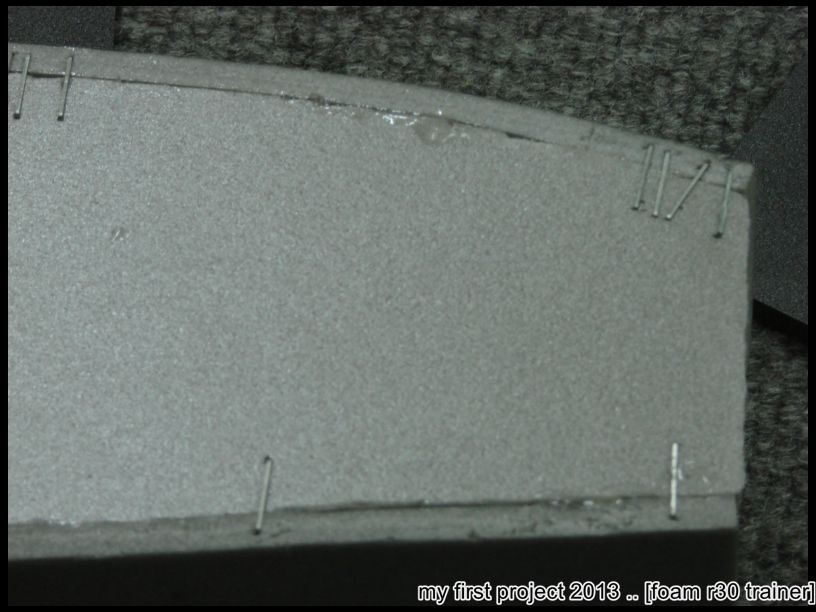

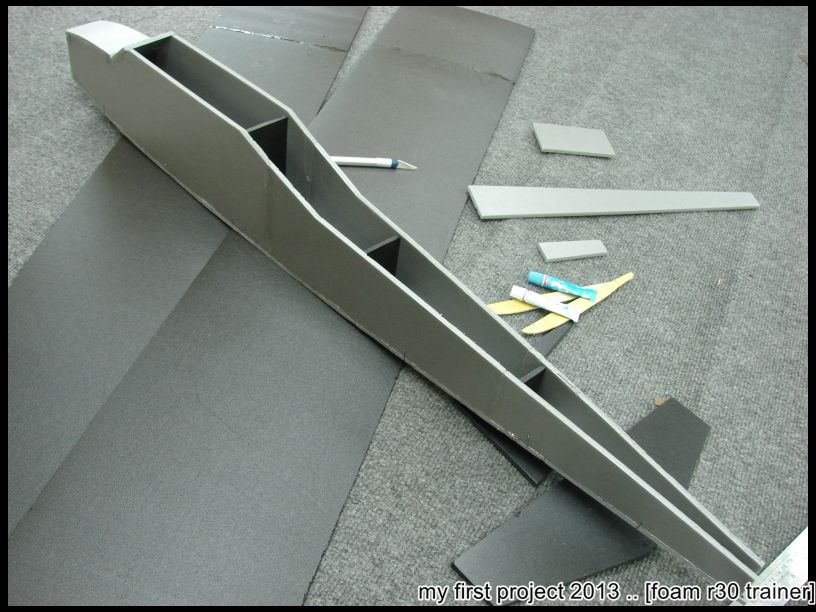

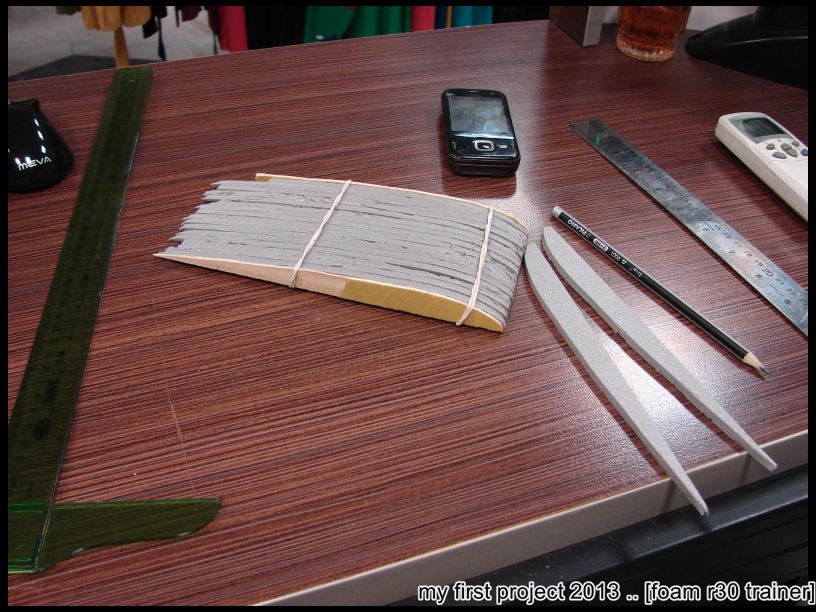

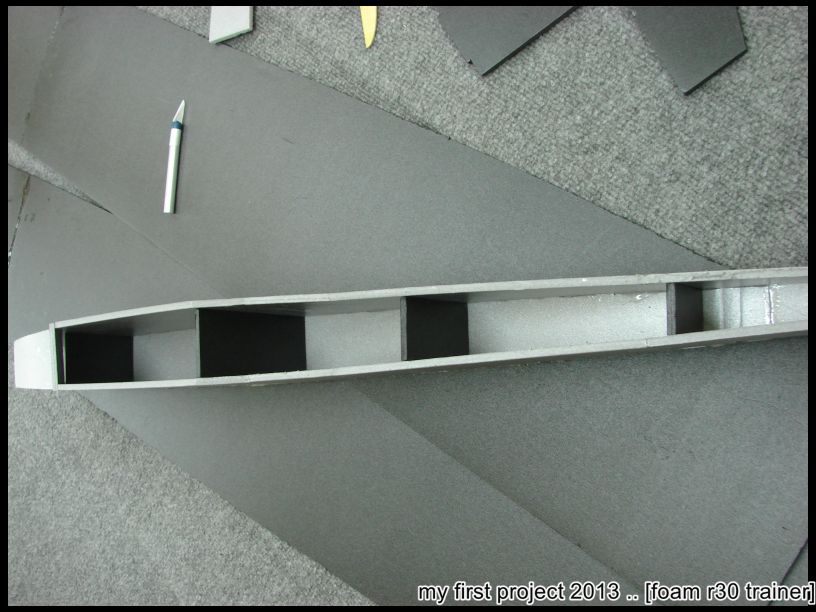

hello everybody .. I am a beginner in the world of modeling .. and I want to make my own model ..So I started with a foam model ..This plan was designed by my friend that he is more experienced than me in modeling ..
at the first ,I don't decided to take pictures of the process .. butto avoid any mistakes ,I decided to take pictures of it here to consult with your. .
any way ..I draw your attention to the pictures whit any additional explanation!




i very tried that slices and cuts should be cleaned but this is first my own project (it amended at the future projects )

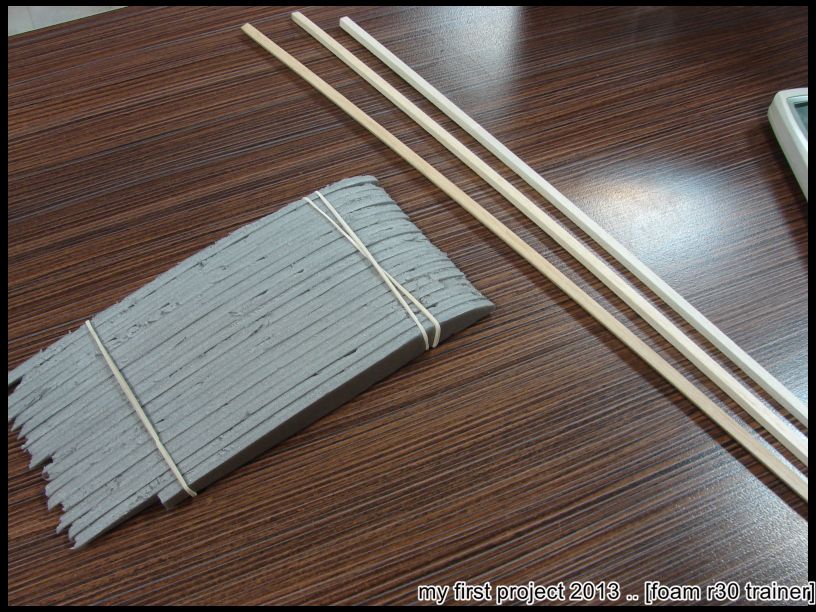

ok ..I used balsa beams with dimensions of 5mm x 5mm x 1meter to strengthen the wings




I used to make beams groove of the cutter 5 mm.





to be continue
