    Intimidator II Construction Thread

    The recent questions about the Intimidator II gave me an excuse to start a new thread.

    I got my Intimidator II for Christmas. Now is a good time to start.

    The kit includes the wood parts, wing cores, and landing gear.

    Carbon fiber and other construction material will have to be purchased.

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Bz78709.jpg
Views:	78
Size:	77.7 KB
ID:	1737202   Click image for larger version.

Name:	Rm37779.jpg
Views:	44
Size:	78.5 KB
ID:	1737203   Click image for larger version.

Name:	Xc78219.jpg
Views:	57
Size:	94.4 KB
ID:	1737204   Click image for larger version.

Name:	Zt53749.jpg
Views:	41
Size:	85.0 KB
ID:	1737205   Click image for larger version.

Name:	Gr93984.jpg
Views:	74
Size:	82.2 KB
ID:	1737206


  2. #2

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Join the two wide balsa skins as a book cover.

    Leave a 1/8" gap between the skins.

    Masking tape works fine.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Mk26909.jpg
Views:	40
Size:	74.7 KB
ID:	1737207   Click image for larger version.

Name:	Cx76244.jpg
Views:	27
Size:	79.4 KB
ID:	1737208

  3. #3

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Tear a 3/4" wide piece of 7 thousandths thick piece of carbon laminant.

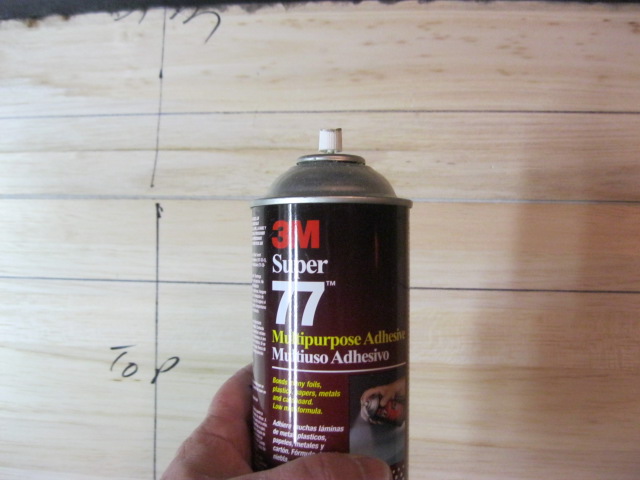

    Tack it in place on the bottom skin with 3M77.

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ay73456.jpg
Views:	43
Size:	115.7 KB
ID:	1737209   Click image for larger version.

Name:	Up49303.jpg
Views:	33
Size:	75.0 KB
ID:	1737210

  4. #4

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Cut a 5" wide piece of 2 ounce fiberglass cloth.

    Tack it in place with 3M77. The fiberglass cloth will strengthen the surface for stiff ailerons.

    Lay a piece of 3/4 ounce fiberglass cloth over the entire wing skin.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Om32018.jpg
Views:	27
Size:	83.1 KB
ID:	1737211   Click image for larger version.

Name:	Xs57600.jpg
Views:	38
Size:	78.5 KB
ID:	1737212   Click image for larger version.

Name:	Bg92168.jpg
Views:	39
Size:	79.3 KB
ID:	1737213

  5. #5

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

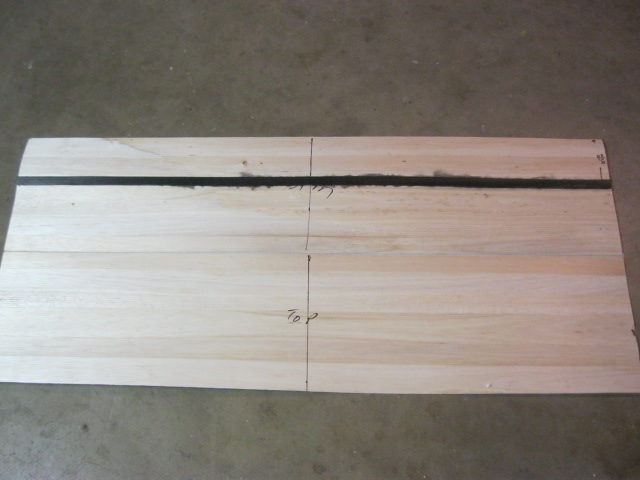

    Use a razor saw to cut a slot for the vertical carbon spar (36" X 1/2" x 21 thousandths thick).

    The vertical carbon is installed on the top surface.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Vt56889.jpg
Views:	26
Size:	83.8 KB
ID:	1737214

  6. #6

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Waxed paper is tacked in place on the wing shucks.

    I will later use a homemade vacuum bag made from a piece of plastic tarp.

    The edges are later sealed with latex caulking. Use the cheap stuff as you only need it to seal a short period of time.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ro41988.jpg
Views:	24
Size:	61.0 KB
ID:	1737216   Click image for larger version.

Name:	Wr56090.jpg
Views:	30
Size:	104.7 KB
ID:	1737217   Click image for larger version.

Name:	Af90921.jpg
Views:	28
Size:	90.5 KB
ID:	1737218   Click image for larger version.

Name:	Ic83276.jpg
Views:	31
Size:	105.1 KB
ID:	1737219

  7. #7

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

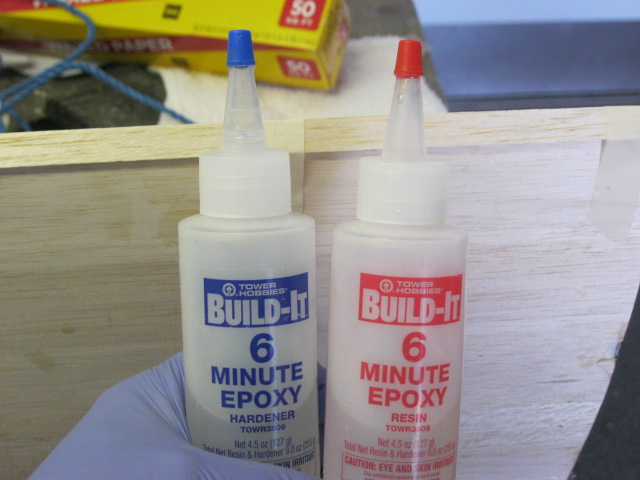

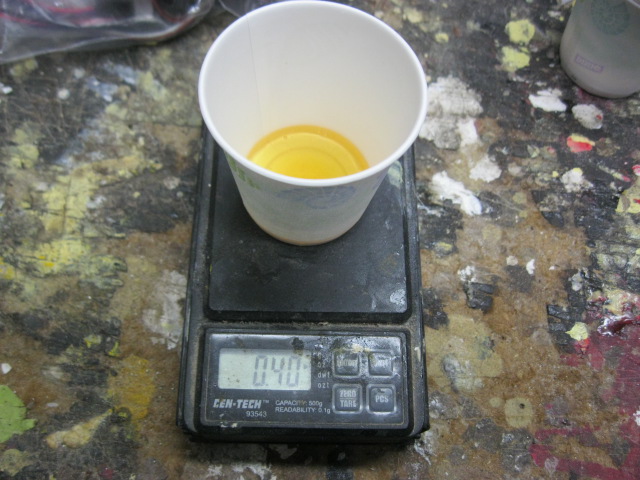

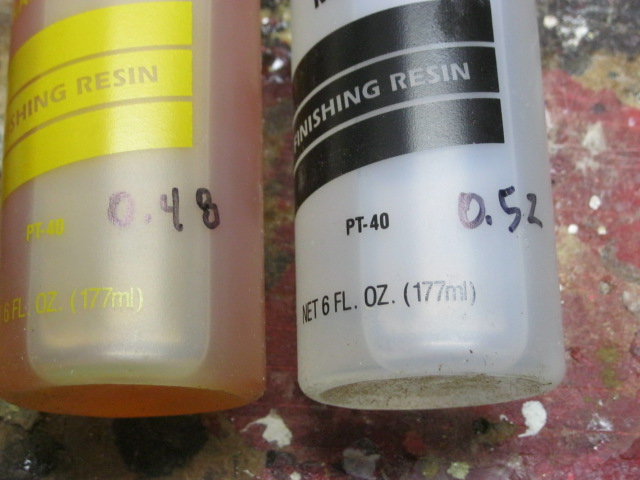

    Mix about 0.4 ounce of finishing resin.

    Use an epoxy brush to smear the glue in the slot. Slide the 36" x 1/2" x 21 thousandths thick piece of laminant in place.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ca82759.jpg
Views:	19
Size:	122.0 KB
ID:	1737220   Click image for larger version.

Name:	Mh19658.jpg
Views:	25
Size:	86.3 KB
ID:	1737221

  8. #8

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

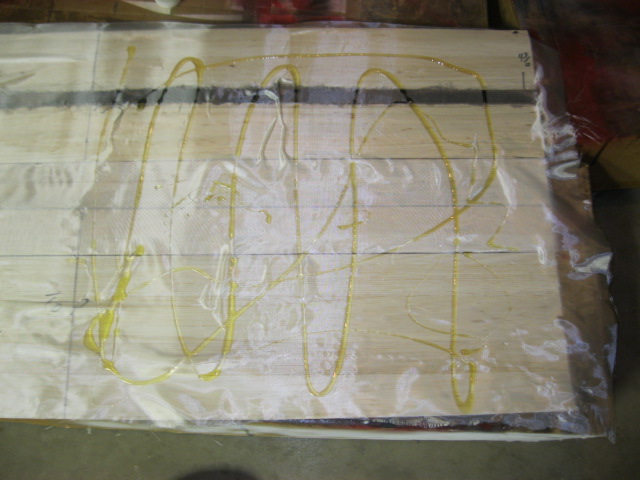

    Mix about an ounce of finishing resin and then add about a 10% (cap full) of 91% alcohol. The total weight with alcohol is about 1.1 ounces.

    This is then applied to the right or left side of the skin. Squeegee the epoxy as needed to spread out.

    The other side is done the same way.

    Slide the wing core between the balsa skins.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Yw66937.jpg
Views:	27
Size:	92.3 KB
ID:	1737223   Click image for larger version.

Name:	Cx75693.jpg
Views:	22
Size:	104.3 KB
ID:	1737224   Click image for larger version.

Name:	Gl20260.jpg
Views:	21
Size:	131.9 KB
ID:	1737225   Click image for larger version.

Name:	Qo38701.jpg
Views:	43
Size:	96.9 KB
ID:	1737226   Click image for larger version.

Name:	Ni25023.jpg
Views:	40
Size:	88.5 KB
ID:	1737227

    Click image for larger version.

Name:	Ze87106.jpg
Views:	34
Size:	81.1 KB
ID:	1737228   Click image for larger version.

Name:	Cw63427.jpg
Views:	29
Size:	83.1 KB
ID:	1737229

  9. #9

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Temporarily pin the wing shucks together making sure the parts are lined up.

    Tape parts together with masking tape and remove the pins. You don't want to puncture the vacuum bag.

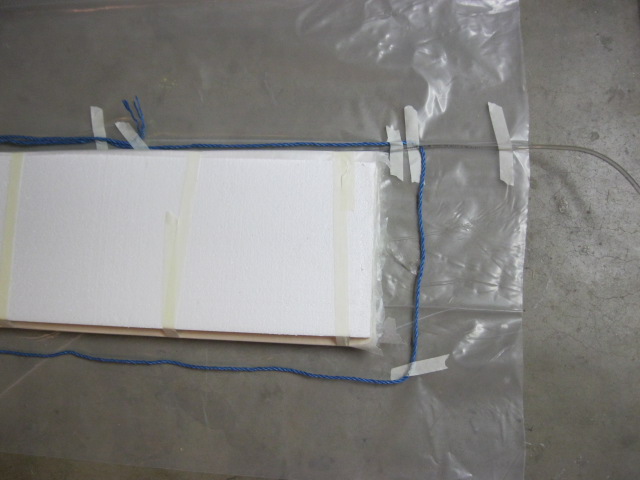

    A piece of rope is taped in place around the wing parts.

    Lay a long piece of paper towel on the top of the cores.

    Tape the vacuum tube in place and apply a bead of caulking around the cores as needed.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ec89339.jpg
Views:	27
Size:	75.6 KB
ID:	1737230   Click image for larger version.

Name:	Rm36400.jpg
Views:	26
Size:	79.2 KB
ID:	1737231   Click image for larger version.

Name:	Bg93402.jpg
Views:	30
Size:	86.4 KB
ID:	1737232

  10. #10

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    The top of the tarp is folded over and the caulking is sealed. I just step on the edges to join the surfaces.

    Turn on the vacuum pump to remove the air from the bag. Air pressure makes a superior clamp to hold parts in place while the glue is drying.

    It was relatively cold in the garage so I placed the wing cores between layers of electric blanket. The warm surface insures that parts dry reasonably quickly (8 to 15 hours).
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Tr51908.jpg
Views:	32
Size:	87.7 KB
ID:	1737235   Click image for larger version.

Name:	Je99660.jpg
Views:	32
Size:	113.1 KB
ID:	1737236

  11. #11
    scottfl78's Avatar
    Join Date
    Feb 2004
    Location
    FORT WORTH, TX
    Posts
    1,386
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    GSJames and I started my wing yesterday. At noon today I can take the wing out of the bag and continue the build. I look forward to watching yours.
    Scott
    Fort Worth Thunderbirds
    -Vision 50, Raptor 30, EXI 450SE CF
    -ExtremeFlight Yak

  12. #12

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    The sheeting was trimmed and the triangular balsa leading edge was glued on with 5-minute epoxy.

    Masking tape held the leading edge in place until the glue dried.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Vt58715.jpg
Views:	26
Size:	75.0 KB
ID:	1737718   Click image for larger version.

Name:	Vq50646.jpg
Views:	29
Size:	57.7 KB
ID:	1737719   Click image for larger version.

Name:	Hm23519.jpg
Views:	27
Size:	90.4 KB
ID:	1737720

  13. #13

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

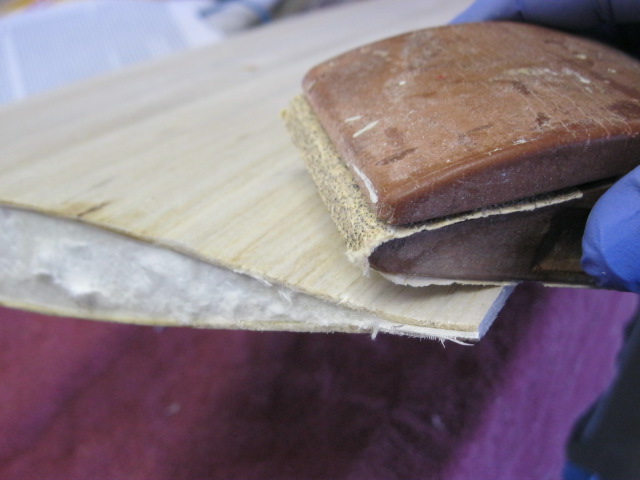

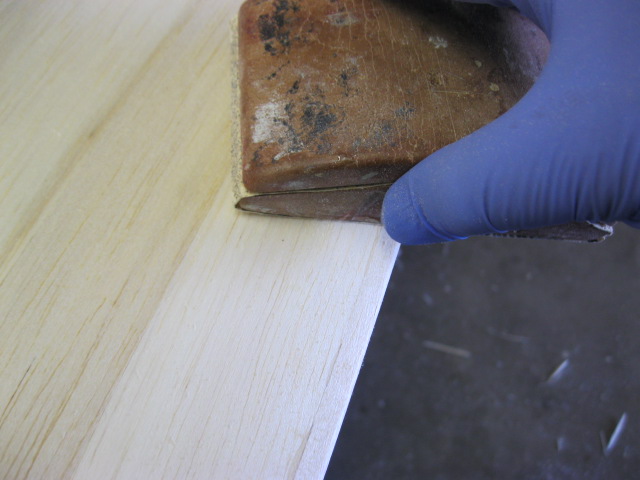

    The leading edge was shaped with a sanding block.

    The surface should rounded as needed. I used an old specialized sanding block for this service.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Qo40285.jpg
Views:	31
Size:	85.5 KB
ID:	1737721   Click image for larger version.

Name:	Je99519.jpg
Views:	41
Size:	95.0 KB
ID:	1737722

  14. #14

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Trim the trailing edge with a razor saw to make a 9 7/8" wide cord.

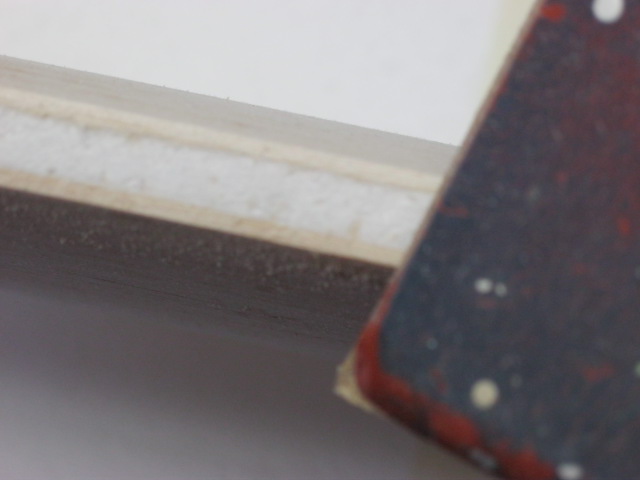

    The trailing edge sheeting was shaped with a sanding block.

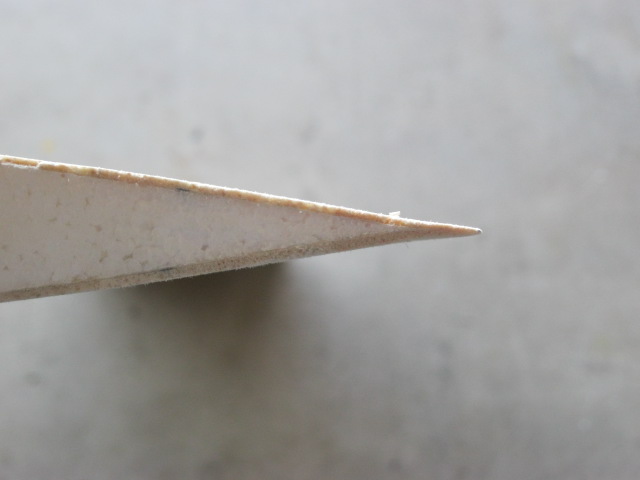

    The fiberglass between the sheets makes a nice sharp trailing edge.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Fd93395.jpg
Views:	32
Size:	93.4 KB
ID:	1737723   Click image for larger version.

Name:	Sn40194.jpg
Views:	31
Size:	82.5 KB
ID:	1737724   Click image for larger version.

Name:	Mr40319.jpg
Views:	44
Size:	81.9 KB
ID:	1737725   Click image for larger version.

Name:	Nh11031.jpg
Views:	58
Size:	53.3 KB
ID:	1737726

  15. #15

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    The sheeted wing weighs in at 10.5 ounces after sanding and shaping.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Om32396.jpg
Views:	28
Size:	93.7 KB
ID:	1737727

  16. #16
    scottfl78's Avatar
    Join Date
    Feb 2004
    Location
    FORT WORTH, TX
    Posts
    1,386
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Can't wait till you get to the fuselage. I have mocked mine up with clamps to check fit and the (2) plywood blocks that will take the 4 screws to hold the wing on don't look right in my kit. They are labeled "front bolt" and "rear bolt" but they do not seem to fit in the correct slots. They actually fit better in the opposite positions. (Clamp side is front of the plane) I must have something wrong but the formers are all unique and will not fit any other way.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ge96075.jpg
Views:	56
Size:	50.4 KB
ID:	1737738   Click image for larger version.

Name:	Ql33238.jpg
Views:	44
Size:	47.7 KB
ID:	1737739
    Scott
    Fort Worth Thunderbirds
    -Vision 50, Raptor 30, EXI 450SE CF
    -ExtremeFlight Yak

  17. #17

    Join Date
    Nov 2007
    Location
    Fritch, TX
    Posts
    1,614
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    The fuselage should be the widest at the trailing edge of the wing.

    You've gotten farther than me at this point.


  18. #18
    scottfl78's Avatar
    Join Date
    Feb 2004
    Location
    FORT WORTH, TX
    Posts
    1,386
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    well.. with the "front bolt" wing bolt block in the rear it is. I can't believe that he would have typoed with the laser. Who knows. I can make it work this way but the one that says "rear bolt" does have the slot for aileron control horns to fit in. I am in no hurry. Will wait for you to get to this stage and see what you think. thanx

    PS what type of glue will you be using on the fuselage?
    Scott
    Fort Worth Thunderbirds
    -Vision 50, Raptor 30, EXI 450SE CF
    -ExtremeFlight Yak

  19. #19
    GSJames's Avatar
    Join Date
    Nov 2003
    Location
    Weatherford, TX
    Posts
    485
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Scottfl78 just sent me a couple of pictures and sure enough, National Balsa labeled them backward. Scott H, see if you can verify this...
    Gary James
    AMA CD 68845, NMPRA 15I, RCCA #908

  20. #20

    Join Date
    Aug 2004
    Location
    Paola, KS
    Posts
    2,612
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Looks to me like the front and rear may be correct, but you have the rear one 180 degrees rotated. The opening should point toward the center of the wing, not toward the tail on that rear mount.
    Out of all the places we could be, this is one of them.

  21. #21
    scottfl78's Avatar
    Join Date
    Feb 2004
    Location
    FORT WORTH, TX
    Posts
    1,386
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Yeah was just showing the writing on the parts and their width. Here is what she looks like.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ig13304.jpg
Views:	91
Size:	51.6 KB
ID:	1737875
    Scott
    Fort Worth Thunderbirds
    -Vision 50, Raptor 30, EXI 450SE CF
    -ExtremeFlight Yak

  22. #22

    Join Date
    Dec 2001
    Location
    farmington, CT
    Posts
    603
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    ORIGINAL: scottfl78

    Yeah was just showing the writing on the parts and their width. Here is what she looks like.
    That is correct in the last pic. Here is a pic of how they are supposed to be
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Cz79754.jpg
Views:	28
Size:	72.9 KB
ID:	1737881   Click image for larger version.

Name:	Hf99185.jpg
Views:	30
Size:	72.9 KB
ID:	1737882

  23. #23

    Join Date
    Dec 2001
    Location
    farmington, CT
    Posts
    603
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    ScottFL78,

    Pay close attention to how you glue up the fuse doublers. On the ones I have built, the writing is on the outside of the balsa. Just make sure you glue the doubler on the correct side of the fuse side. The right fuse side is shorter than the left in front of the wing saddle to give the plane right thrust so they are not symmetrical. A couple of my buddies have glued the doubles on the wrong side. The plane is also designed with 1 degree (I believe) of down thrust

  24. #24
    scottfl78's Avatar
    Join Date
    Feb 2004
    Location
    FORT WORTH, TX
    Posts
    1,386
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    haha yeah GSJames helped me glue them so they are correct. The instructions says there is right and down thrust. Looks like maybe a degree or so not much.
    Scott
    Fort Worth Thunderbirds
    -Vision 50, Raptor 30, EXI 450SE CF
    -ExtremeFlight Yak

  25. #25

    Join Date
    Aug 2004
    Location
    Paola, KS
    Posts
    2,612
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Intimidator II Construction Thread

    Scott H - where do you get your CF material for the wings? I'm about to do a Q500 wing or two, and was just wondering.

    Thanks,
    Out of all the places we could be, this is one of them.


Page 1 of 6 123 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
All times are GMT -6. The time now is 12:44 PM.

SEO by vBSEO 3.6.1 ©2011, Crawlability, Inc.
