I have been looking for a set of missiles to fit my Euro Fighter. I have been shocked to find the prices of ordnance kits just a little steep. (Sorry just cheap)
So I started to look at other options.
Using rocket tubes to make the missile
Modeling my own with glass
Find a commercial product (Park Plastics fit the bill but I am not very good at plastic models)
Dreaming up some silly way of make a missile.
So I started with just making a drawing to scale the size I needed.
Bought a ¾ inch dowel at Lowes. (found the lightest one they had)
The shaped the pointy end to the right shape.
Then I decided to try and lighten the body tube (this probably did not matter since the Euro weights in at 32lbs)
So I drilled out the ¾ inch dowel with a ½ inch drill (had to cut the body in half so the drill would reach deep enough. (This trick dropped the weight in half)
Glued the two pieces back together (this 17 inch shape dowel only weights 38 grams)
I am going to use G10 for the fins.
So I started to look at other options.
Using rocket tubes to make the missile
Modeling my own with glass
Find a commercial product (Park Plastics fit the bill but I am not very good at plastic models)
Dreaming up some silly way of make a missile.

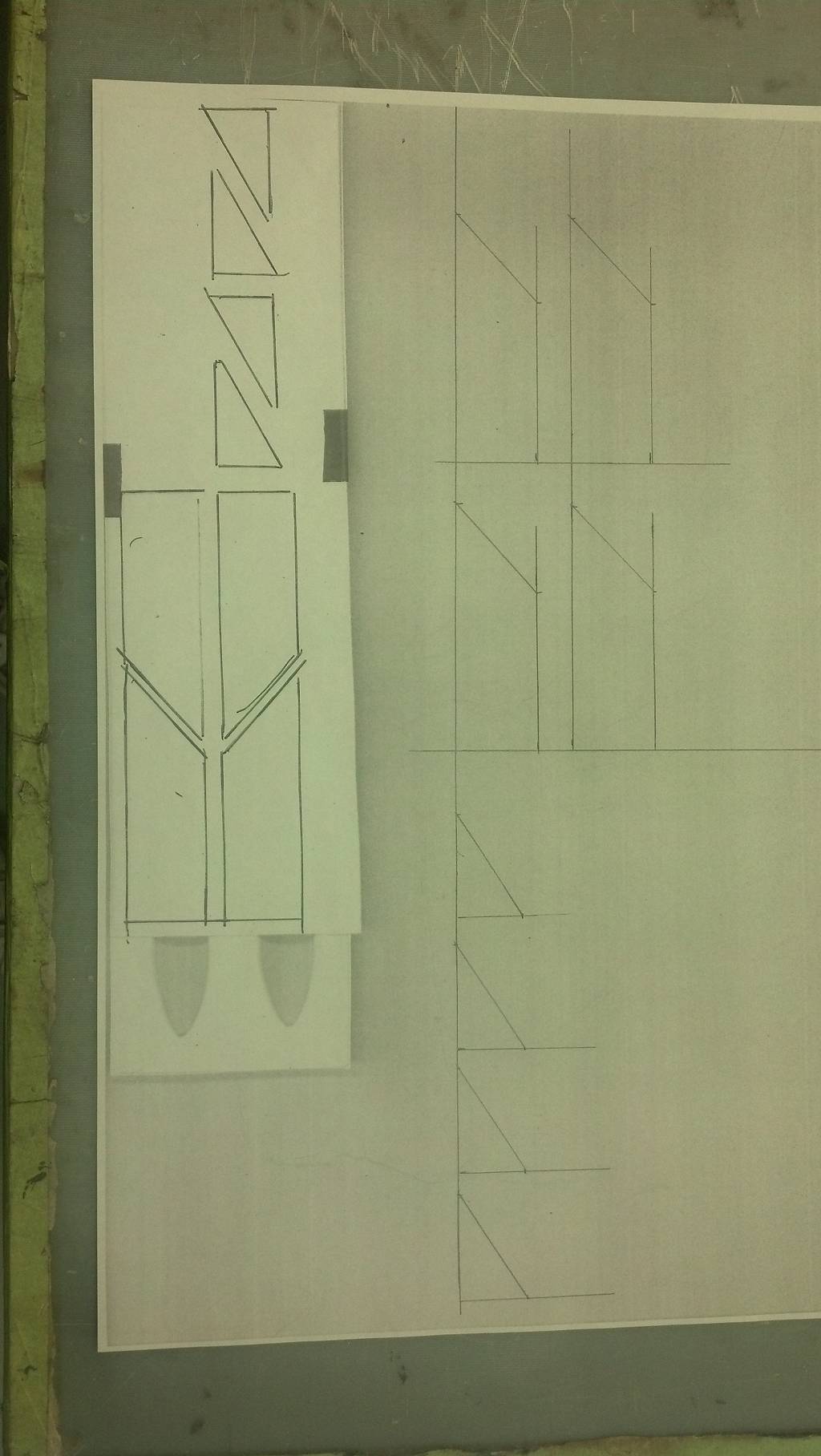

So I started with just making a drawing to scale the size I needed.
Bought a ¾ inch dowel at Lowes. (found the lightest one they had)

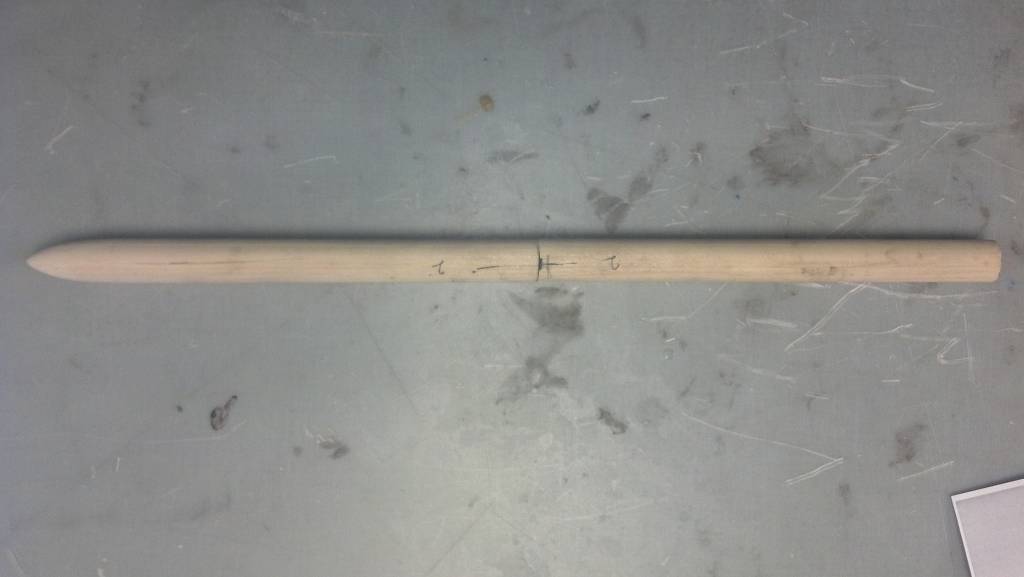

The shaped the pointy end to the right shape.
Then I decided to try and lighten the body tube (this probably did not matter since the Euro weights in at 32lbs)

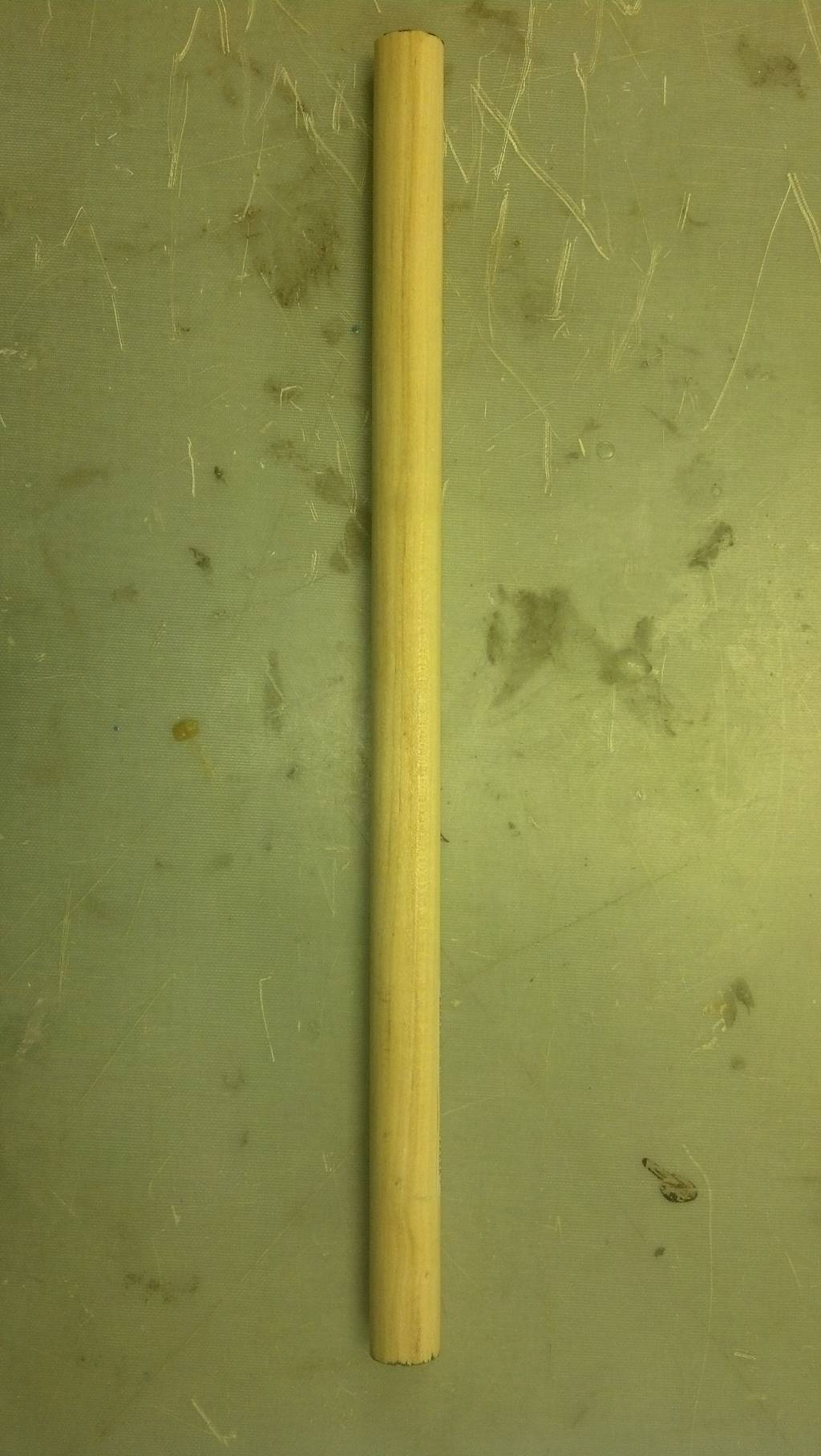

So I drilled out the ¾ inch dowel with a ½ inch drill (had to cut the body in half so the drill would reach deep enough. (This trick dropped the weight in half)
Glued the two pieces back together (this 17 inch shape dowel only weights 38 grams)
I am going to use G10 for the fins.
#2
RE: Making a Missile for static display
Looking good.
Would like to see the finished product so keep the information and picks coming please.
Always happy to see other peoples ideas and builds no matter what it mite be.
Ivan
#3
My Feedback: (57)
RE: Making a Missile for static display
The absolute easiest way is to spend some time at hobbytown USA at the rocketry section. They sell rocket bodies and noses as spare parts. Find the right shape and length, then make all the fins out of polyply or similar. My problem is always finding a nose that looks like ordnance. You obviously have a lathe of some sort, so shaping one up should be easy.
That's it, I need to find myself a small hobby lathe!
David
That's it, I need to find myself a small hobby lathe!
David
#4
My Feedback: (58)
Join Date: Sep 2005
Location: Racine,
WI
Posts: 632
Likes: 0
Received 0 Likes
on
0 Posts
RE: Making a Missile for static display
Great Idea making your own missles.....
How do you expect to attach them??
At our local hobby shop they have a large selection of model rockets to make missles
Good luck with your project and post your pictures
Hoss
How do you expect to attach them??
At our local hobby shop they have a large selection of model rockets to make missles
Good luck with your project and post your pictures
Hoss
#5
My Feedback: (57)
RE: Making a Missile for static display
Those hardwood missiles would be a piece o'cake. I would leave some material inside (he stated he milled it out some), and just drill two counterbored holes. The holes should pass thorugh the missle, into the support rail, and into the wing. If they are tip missles, I just place two 4-40 Du-Bro threaded inserts in the wing tip. If the wing tip is hardwood reinforced already, just tap the holes. The missle rail is jsut sandwiched in so it doesnt really need any internal material to guide the mounting bolts.
Ideally, you want the missle retaining bolts to be as loose installed as possible without the missles reaping apart in flight (they don't need a lot of torque!). This is in case you have a hard landing....so that the missle assembly breaks loose vs tearing out your wing tip. I make my missle rails out of balsa blocks, so they break off easily before damaging the wing. I cover the bottom with .006 Aluminum sheet, to protect from runway scrapes.
Ideally, you want the missle retaining bolts to be as loose installed as possible without the missles reaping apart in flight (they don't need a lot of torque!). This is in case you have a hard landing....so that the missle assembly breaks loose vs tearing out your wing tip. I make my missle rails out of balsa blocks, so they break off easily before damaging the wing. I cover the bottom with .006 Aluminum sheet, to protect from runway scrapes.
#7
Senior Member
Join Date: Aug 2006
Location: Petah-Tikva, ISRAEL
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
RE: Making a Missile for static display
Hi, Take a look at post 32 and 41 for some ideas on building and attaching the missiles...
http://www.rcuniverse.com/forum/m_77..._2/key_/tm.htm
http://www.rcuniverse.com/forum/m_77..._2/key_/tm.htm
#11
My Feedback: (106)
RE: Making a Missile for static display
ORIGINAL: FalconWings
The absolute easiest way is to spend some time at hobbytown USA at the rocketry section. They sell rocket bodies and noses as spare parts. Find the right shape and length, then make all the fins out of polyply or similar. My problem is always finding a nose that looks like ordnance. You obviously have a lathe of some sort, so shaping one up should be easy.
That's it, I need to find myself a small hobby lathe!
David
The absolute easiest way is to spend some time at hobbytown USA at the rocketry section. They sell rocket bodies and noses as spare parts. Find the right shape and length, then make all the fins out of polyply or similar. My problem is always finding a nose that looks like ordnance. You obviously have a lathe of some sort, so shaping one up should be easy.
That's it, I need to find myself a small hobby lathe!
David
#12
My Feedback: (57)
RE: Making a Missile for static display
ORIGINAL: hooker53
David. Chek out the combo lath and mill at Harbor. Will make about anything for the scale stuff we do. Get a one time 25% off coupon and carry it home. I used a smaller one (unimat) for years on small gun parts even after having full size lathe and mills.
ORIGINAL: FalconWings
The absolute easiest way is to spend some time at hobbytown USA at the rocketry section. They sell rocket bodies and noses as spare parts. Find the right shape and length, then make all the fins out of polyply or similar. My problem is always finding a nose that looks like ordnance. You obviously have a lathe of some sort, so shaping one up should be easy.
That's it, I need to find myself a small hobby lathe!
David
The absolute easiest way is to spend some time at hobbytown USA at the rocketry section. They sell rocket bodies and noses as spare parts. Find the right shape and length, then make all the fins out of polyply or similar. My problem is always finding a nose that looks like ordnance. You obviously have a lathe of some sort, so shaping one up should be easy.
That's it, I need to find myself a small hobby lathe!
David
thanks for the tip!
#13
RE: Making a Missile for static display
I have tried the Parkflyer Plastics and I think it is a great product and an even better price.
I could not build plastic models very well and still cannot put the Park Flyer Missiles together any better, plus I would have to put a dowel inside the plastic body to help hold it in place with a screw.

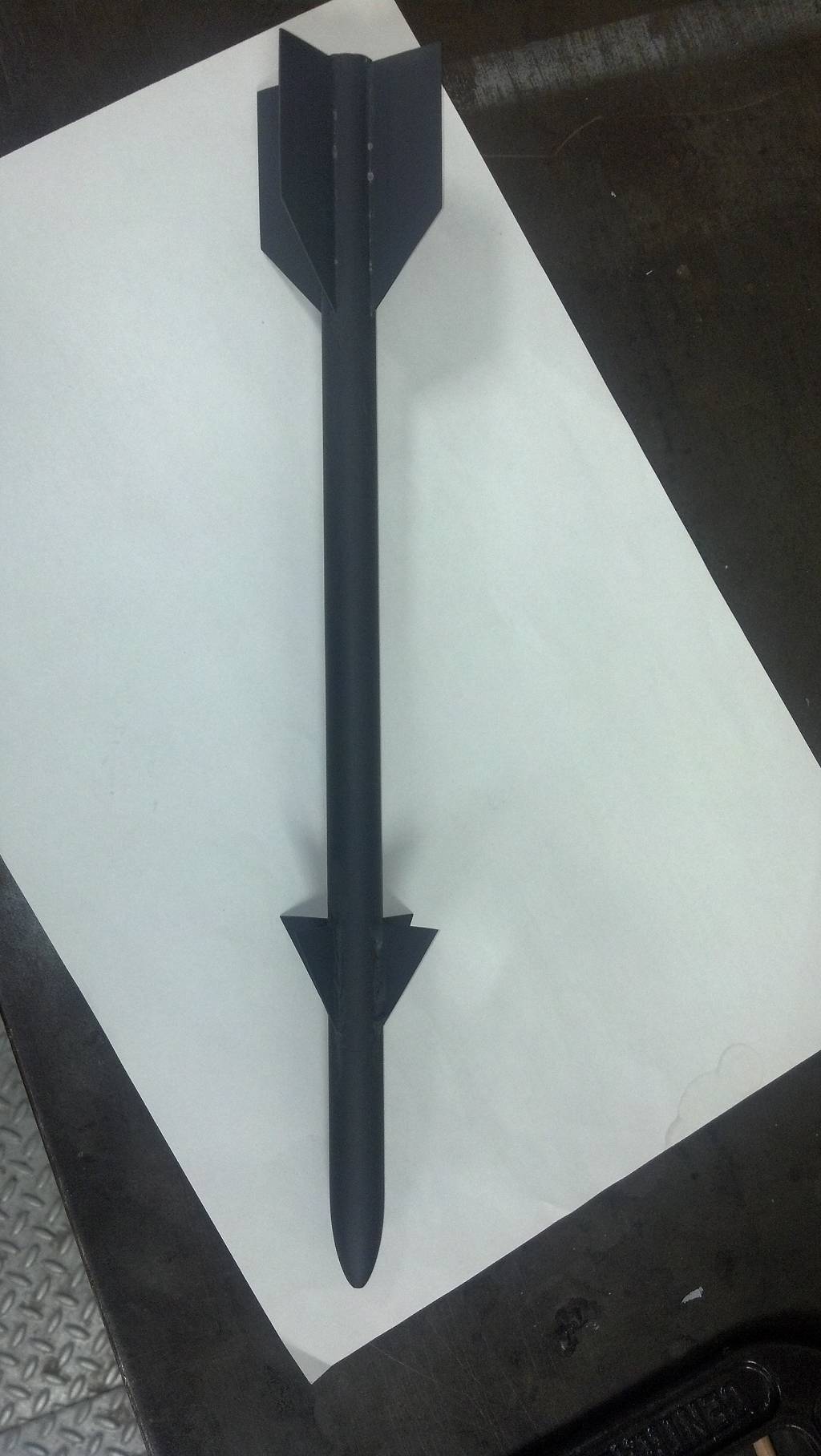

Got the tubes sanded and primed.
I used the trick where you wrap paper around the tube and cut it with no over lap, then fold it into quarters, put it back around the tube and I have 4 perfect spaces to mark the locations for the fins.
Got all of the fins cut out of G-10, used a pattern and stuck to the G-10 with stick glue.
Next I plan on slotting the fin locations to help hold the fins in place.
I could not build plastic models very well and still cannot put the Park Flyer Missiles together any better, plus I would have to put a dowel inside the plastic body to help hold it in place with a screw.
Got the tubes sanded and primed.
I used the trick where you wrap paper around the tube and cut it with no over lap, then fold it into quarters, put it back around the tube and I have 4 perfect spaces to mark the locations for the fins.
Got all of the fins cut out of G-10, used a pattern and stuck to the G-10 with stick glue.
Next I plan on slotting the fin locations to help hold the fins in place.
#15
Senior Member
My Feedback: (97)
Join Date: Sep 2004
Location: Tampa, FL
Posts: 1,653
Likes: 0
Received 0 Likes
on
0 Posts
RE: Making a Missile for static display
Depends on what missile you are making. On most the text would be so small, it would be hard to see. American ordnance and some from other countries have a colored band around the missile, in the case of an AIM-9 Sidewinder, it is just aft of the influence fuze and the fins. The color would be blue for training or brown for a live warhead. The very tip of an AIM-9 is dark green glass for the IR seeker. The influence fuze is also a detail you can include, its located just aft of the seeker head and guidance unit.
Denny
Denny
#16
My Feedback: (1)
Join Date: May 2003
Location: Orangeville, ON, CANADA
Posts: 8,658
Likes: 0
Received 2 Likes
on
2 Posts
RE: Making a Missile for static display
ORIGINAL: Wclays
Got all of the fins cut out of G-10, used a pattern and stuck to the G-10 with stick glue.
Next I plan on slotting the fin locations to help hold the fins in place.
Got all of the fins cut out of G-10, used a pattern and stuck to the G-10 with stick glue.
Next I plan on slotting the fin locations to help hold the fins in place.
Slotting the tubes and gluing the fins in that way versus surface mounting will make the world of difference for durability. I'm sure you know already but don't forget to scuff the G-10 with a Scotchbrite or 220-320 paper to remove the surface gloss and any residual release compounds.
#17
RE: Making a Missile for static display

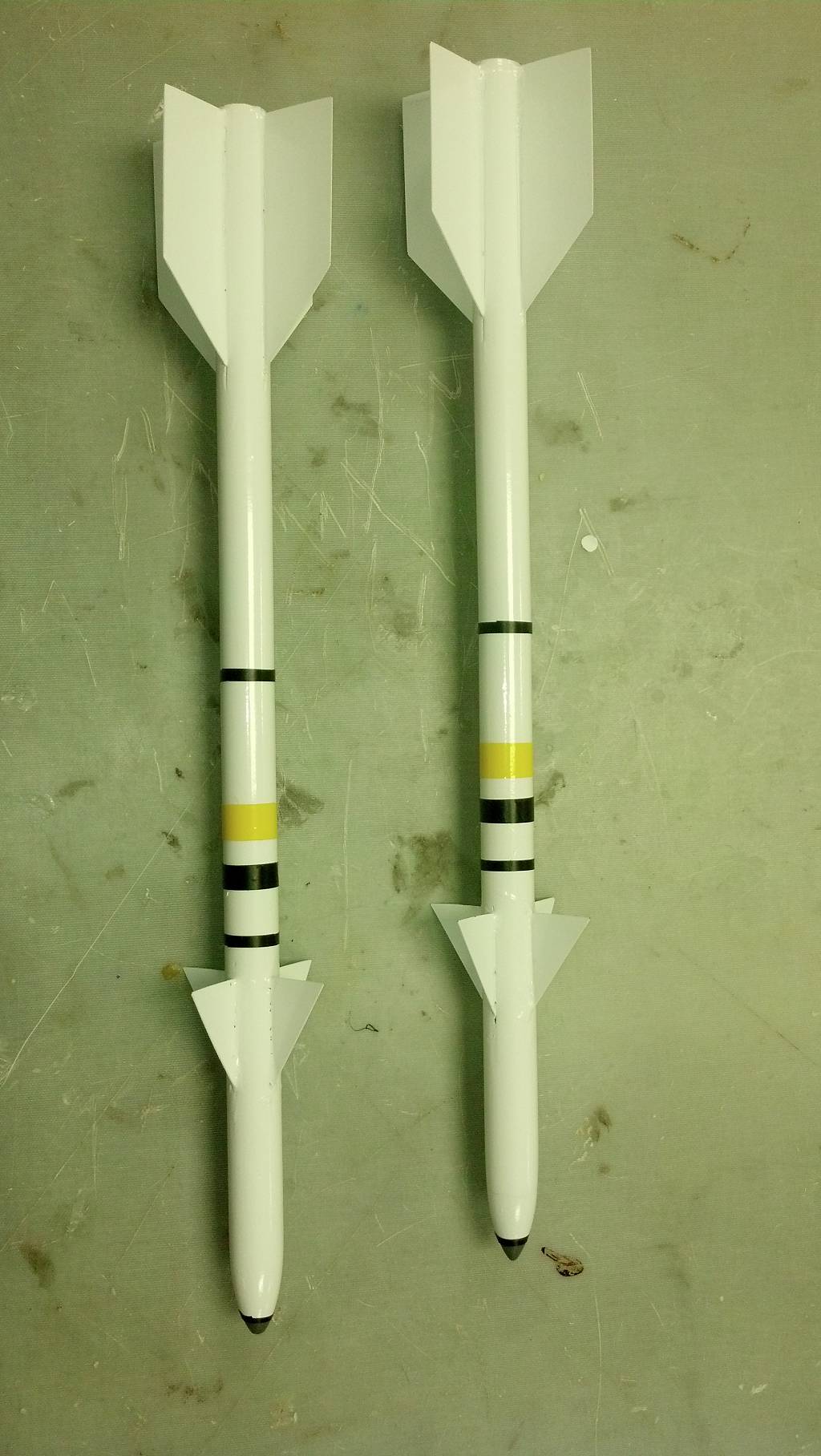

Finally finished the missile set for the Euro.
Got the fins glued on and primer on them, sprayed them white.
I know the bands and colors s are not correct but I did not want to spend that much time on them, plus it is just for fun.

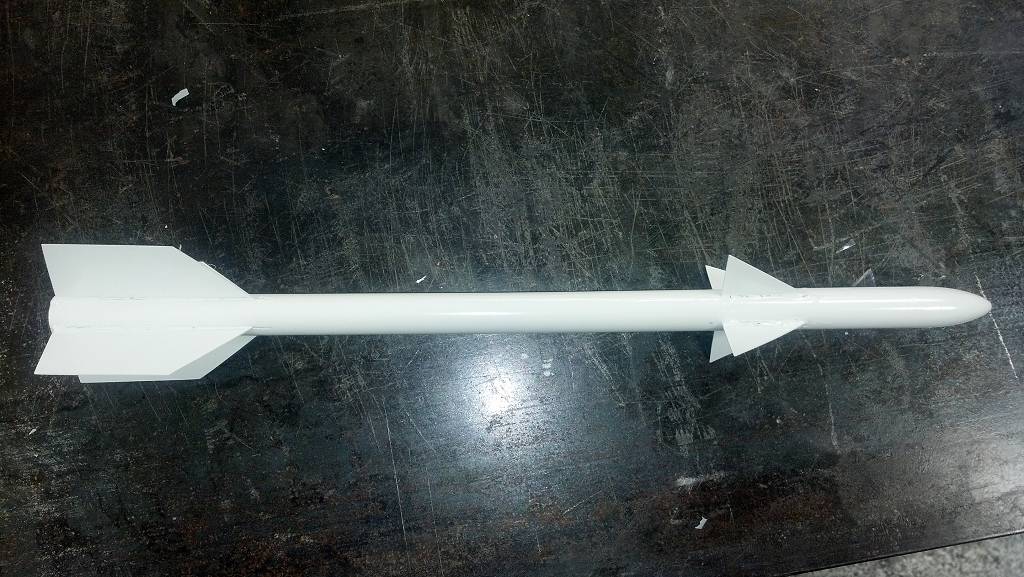

The final weight of each missile is only 56 grams (they are 17 inches long), the last picture is a missile from a Global jet club kit and it weights in at 70 grams (ouch)
