    Sky Master F-16 Conversion and Facelift

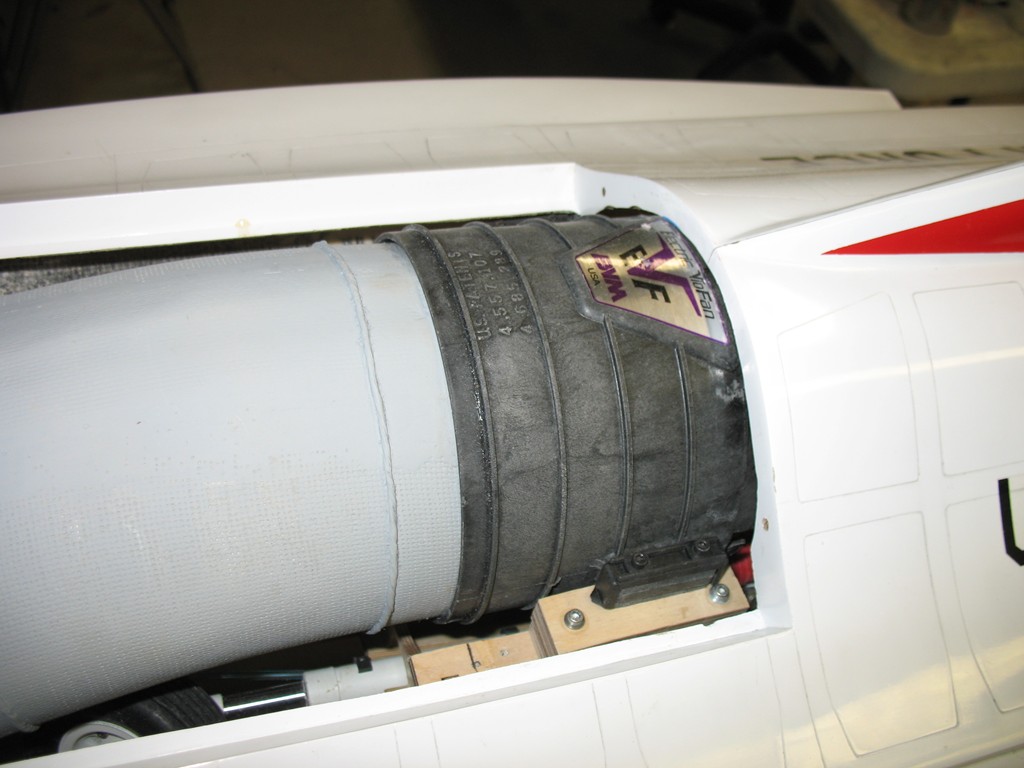

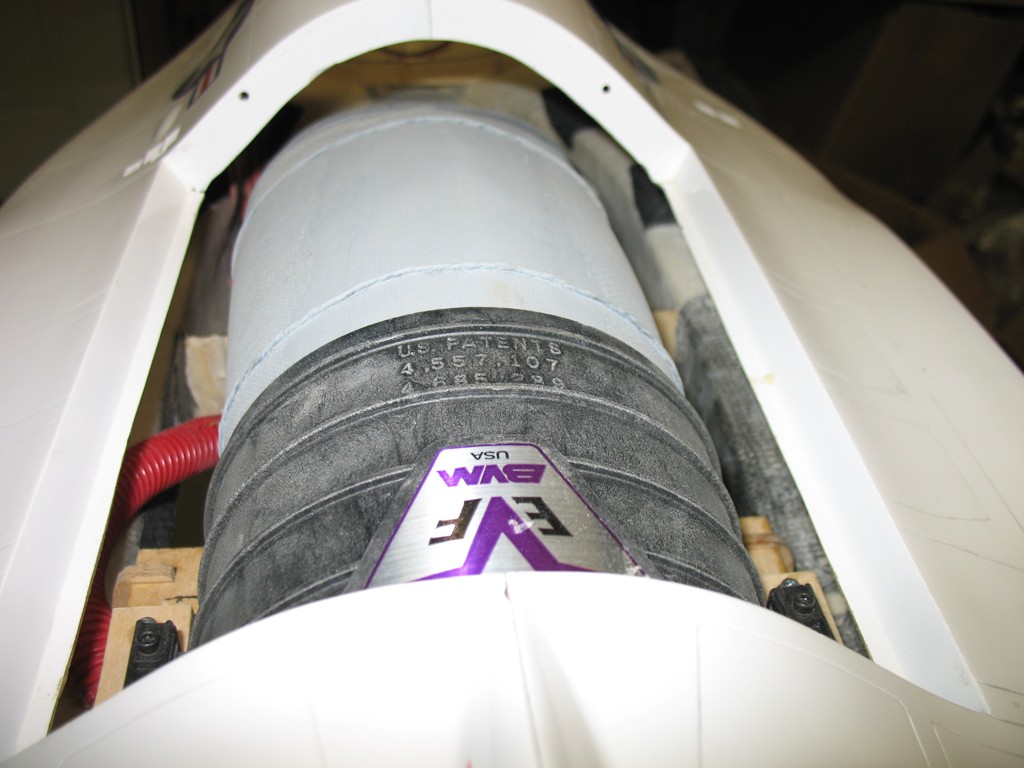

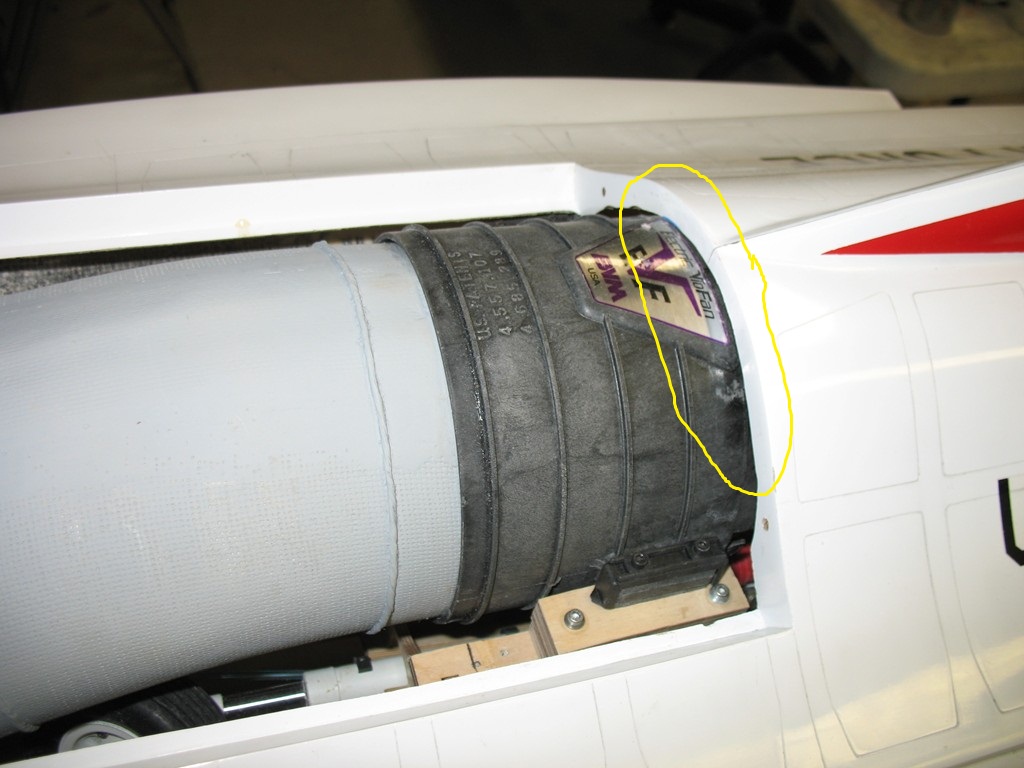

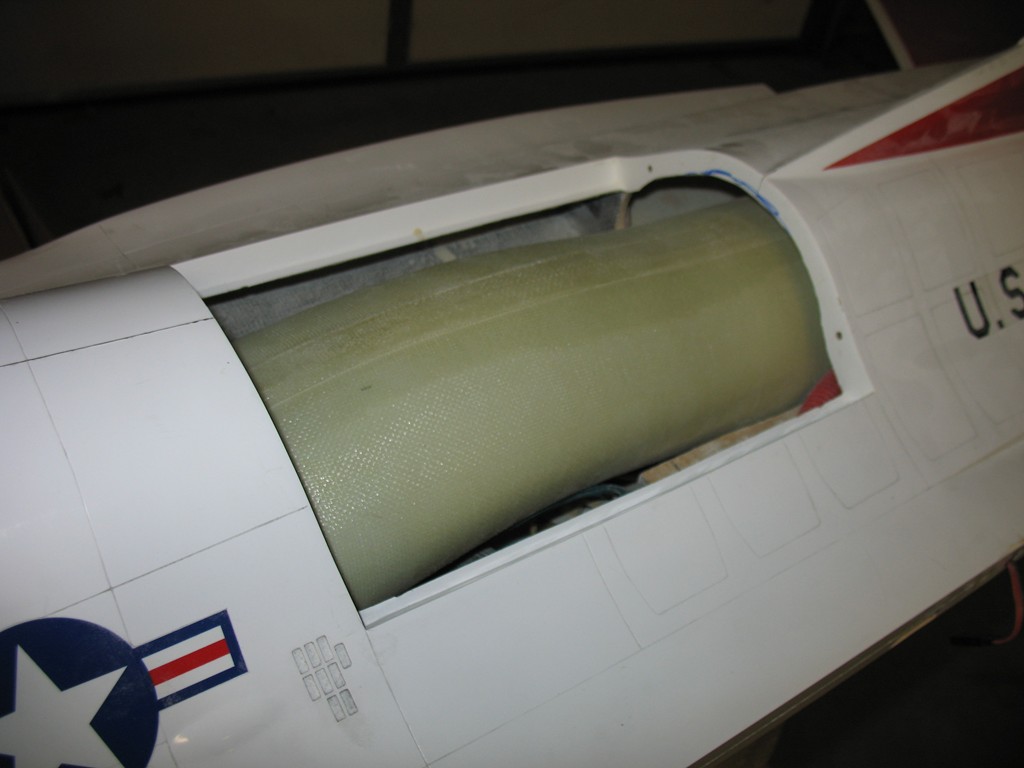

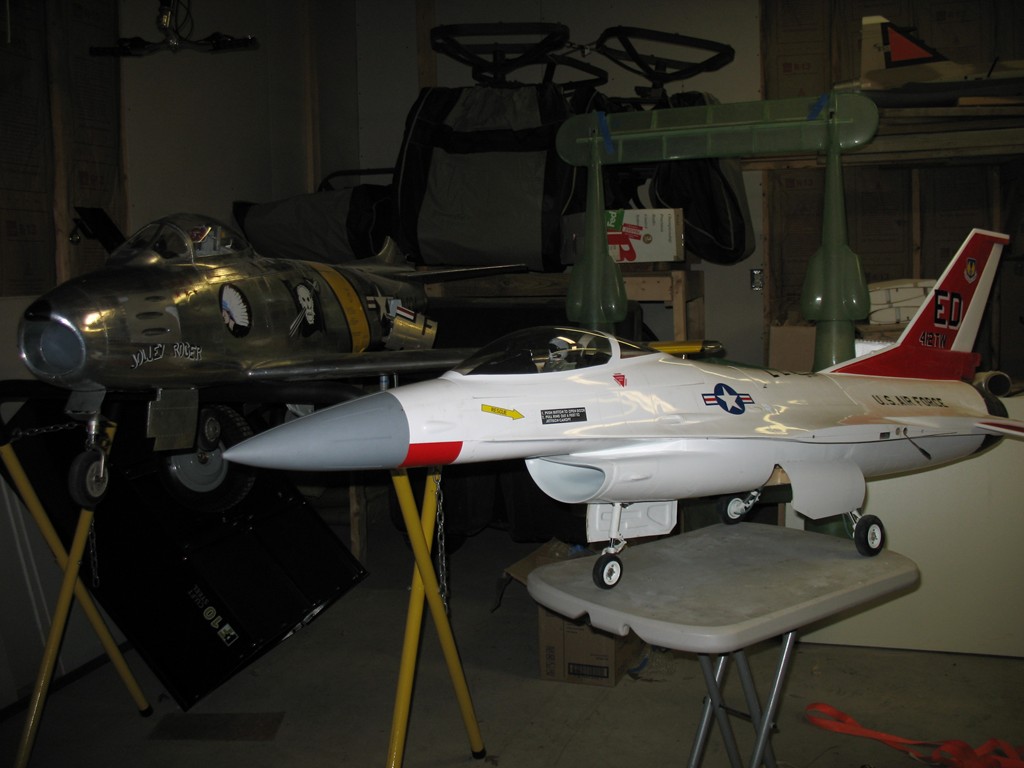

    Now that the move is completed and I'm settled into the new workshop I thought it was time to show what I've been working on. I'm glassing and detailing my buddies 80 inch BVM F-86. While waiting for the glass to dry I started converting my Sky Master F-16 using a BVM EVF fan. The first thing I needed to do was remove the existing ducting. I got the replacement ducting from a friend. When trying to get the ducting in the fuse I found I couldn't get it past the nose gear formers. I wanted to re-enforce the gear formers with a layer of carbon fiber away so I knocked them out. I placed the front section of the ducting in the fuse and centered against the intake lip. There was a gap at the top corners where the ducting wasn't as wide as the intake opening so I laid tape in that area, then I tape laid tape all around the ducting to hold it in place. Next, I mixed some epoxy and milled fiber glass and poured it inside the fuse around the ducting and stood the fuse on its nose. Once the epoxy had cured, the tape was removed. The epoxy fixed the ducting in place and filled the gaps. I used filler to make a smooth trasition from the intake lip to the ducting (Photo 1). The next step was to reinstall the nose gear formers (Photo 2). After that, the rear section of the ducting was attached. It was about eight inches too long (Photo 3). Measurements were taken to get it to mate to the front of the fan and the extra length was cut off. The opening that mated to the fan was too small so the duct was split open down the seam. The front part of the duct was temporarily reattached to itself with ca. The rear of the duct was opened to the size needed to mate to the fan and a wood former was inserted in the rear opening to hold the duct open at the correct diameter. The wedge shaped opening of the ducting where it had been split was glassed over. When the glass had dried, filler was used inside the duct to give it a smooth finish and the duct was primed and painted. The fan was installed and run up (Photo 4, Photo 5, Photo 6 & Photo 7). I am very pleased to see the fan run with very little ducting loss. It is running at 5400 watts which is the same power seen on the BVM Electra. With winter setting in, it looks like I will have to wait until Spring to fly it.

    Kirk
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ig12009.jpg
Views:	16
Size:	104.4 KB
ID:	1331616   Click image for larger version.

Name:	Dy79524.jpg
Views:	19
Size:	55.3 KB
ID:	1331617   Click image for larger version.

Name:	Lq36313.jpg
Views:	12
Size:	90.9 KB
ID:	1331618   Click image for larger version.

Name:	Sm29196.jpg
Views:	15
Size:	121.2 KB
ID:	1331619   Click image for larger version.

Name:	Ep87048.jpg
Views:	11
Size:	127.6 KB
ID:	1331620

    Click image for larger version.

Name:	Of59145.jpg
Views:	15
Size:	121.5 KB
ID:	1331621   Click image for larger version.

Name:	Fh80788.jpg
Views:	14
Size:	125.4 KB
ID:	1331622

  2. #2

    Join Date
    Jan 2002
    Location
    Bakersfield, CA
    Posts
    3,449
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    who's P38 amigo

    is your cell # still the same?
    Todd
    Meister, Aero Acc., Sierra, Glennis, Get Stencils, Shinden, Warbird Colors, Fliteskin, VicRC, Holman, Bates customer

  3. #3
    gunradd's Avatar
    Join Date
    Aug 2008
    Location
    Springhill, FL
    Posts
    1,248
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Nice install bro! Looking forward to hearing about the flight performance.

  4. #4
    k12rc's Avatar
    Join Date
    Feb 2007
    Location
    reidsville, NC
    Posts
    750
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    very nice work thinking of trying electric my self
    don\'\'\'\'\'\'\'\'\'\'\'\'\'\'cry\'\'\'\'\'\'\'\' till\'\'\'\'\'\'\'\'it hits

  5. #5

    Join Date
    Mar 2008
    Location
    Trofa, PORTUGAL
    Posts
    464
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift


    ORIGINAL: k_sonn

    Now that the move is completed and I'm settled into the new workshop I thought it was time to show what I've been working on. I'm glassing and detailing my buddies 80 inch BVM F-86. While waiting for the glass to dry I started converting my Sky Master using a BVM EVF fan. The first thing I needed to do was remove the existing ducting. I got the replacement ducting from a friend. When trying to get the ducting in the fuse I found I couldn't get it past the nose gear formers. I wanted to re-enforce the gear formers with a layer of carbon fiber away so I knocked them out. I placed the front section of the ducting in the fuse and centered against the intake lip. There was a gap at the top corners where the ducting wasn't as wide as the intake opening so I laid tape in that area, then I tape laid tape all around the ducting to hold it in place. Next, I mixed some epoxy and milled fiber glass and poured it inside the fuse around the ducting and stood the fuse on its nose. Once the epoxy had cured, the tape was removed. The epoxy fixed the ducting in place and filled the gaps. I used filler to make a smooth trasition from the intake lip to the ducting (Photo 1). The next step was to reinstall the nose gear formers (Photo 2). After that, the rear section of the ducting was attached. It was about eight inches too long (Photo 3). Measurements were taken to get it to mate to the front of the fan and the extra length was cut off. The opening that mated to the fan was too small so the duct was split open down the seam. The front part of the duct was temporarily reattached to itself with ca. The rear of the duct was opened to the size needed to mate to the fan and a wood former was inserted in the rear opening to hold the duct open at the correct diameter. The wedge shaped opening of the ducting where it had been split was glassed over. When the glass had dried, filler was used inside the duct to give it a smooth finish and the duct was primed and painted. The fan was installed and run up (Photo 4, Photo 5, Photo 6 & Photo 7). I am very pleased to see the fan run with very little ducting loss. It is running at 5400 watts which is the same power seen on the BVM Electra. With winter setting in, it looks like I will have to wait until Spring to fly it.

    Kirk
    I love that jet.

    João Matos

    joaomatosjets.blogspot.com

  6. #6
    rcjet lynch's Avatar
    Join Date
    Mar 2006
    Location
    tamarac, FL
    Posts
    513
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Looks great Kirk, let us know how it flies.
    BVM/SkyMaster/Thunder Power/Team JR/evoJet factory rep Rob Lynch AKA Goldfinger

  7. #7
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Thanks guys.

    Todd My cell # hasn't changed. The P-38 is a Yellow Aircraft.

    Rob I'll let you guys know how it flies. I'll try to get video.

    Kirk

  8. #8

    Join Date
    Jan 2009
    Location
    UNITED KINGDOM
    Posts
    111
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Very nice Kirk. iv been looking at my f-16 and have been very keen to try the Dynemax fan in it. Does your friend sell these duct sets? was thinking of trying the dynemax fan with the open duct and see how it goes first before doing any kind of mods. Cant wait to see yours go

    Simon

  9. #9
    DelGatoGrande's Avatar
    Join Date
    Mar 2004
    Location
    ATHENS, , GREECE
    Posts
    2,605
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Kirk this is sweet![8D]
    Best Regards George
    www.rcjet.gr \"props are for boats\"

  10. #10
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Thanks Simon and George.

    Simon, I think the dynamax would be a really tight fit, if it fit at all. I had to remove some of the mounting rails in order for the EVF to fit. I also had to raise the EVF 3/4 of an inch off of the mounting rails so the ducting would clear the main gear when they are retracted, so I had to also remove some of the rear former (see photo). This former is a structural former that the wing spar and main gear mounts attach to and I would not advise removing too much of it.

    Kirk
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Yw69187.jpg
Views:	8
Size:	164.1 KB
ID:	1334195

  11. #11
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    I just changed the name of this thread to Sky Master F-16 Conversion and Facelift. I decided to change the paint scheme. I'm a big fan of the P-47 and when I saw the photos of the P-47 commerative scheme kdubose posted (in this thread) I knew that was the scheme I wanted on my F-16.

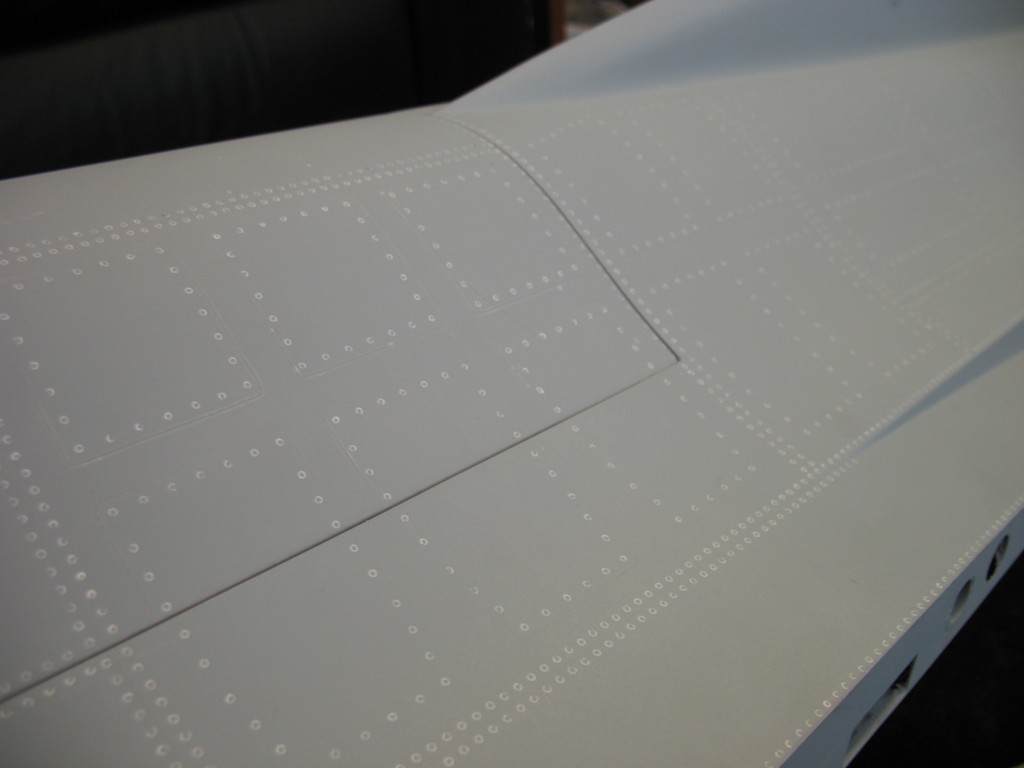

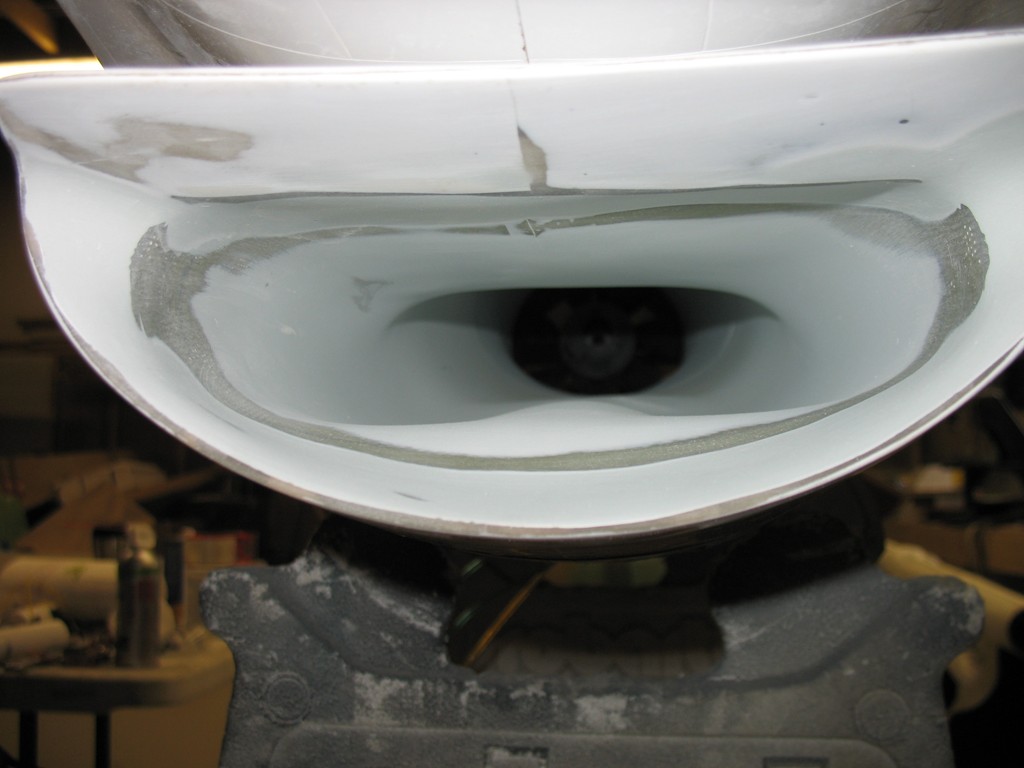

    Over the weekend my Black & Decker Mouse sander and I spent a couple of hours removing the red paint and sanding the white gel coat. I shot some white primer over the areas where the red paint had been removed.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Mk24931.jpg
Views:	24
Size:	60.8 KB
ID:	1334196   Click image for larger version.

Name:	Cx74408.jpg
Views:	19
Size:	46.2 KB
ID:	1334197   Click image for larger version.

Name:	Om32633.jpg
Views:	16
Size:	55.6 KB
ID:	1334198

  12. #12
    gunradd's Avatar
    Join Date
    Aug 2008
    Location
    Springhill, FL
    Posts
    1,248
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    lol that will be easy to see! It looks nice.

  13. #13
    rcjets_63's Avatar
    Join Date
    Feb 2008
    Location
    Tempe, AZ
    Posts
    2,261
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    I love the blue nose with stars. Very nice. Say, looking back at the photos on your first post, whose F-14 kit is that?

    Regards,

    Jim
    Jim

    Jeti USA Flight Team, bavarianDEMON / DemonAero team, MKS Servos USA, National Vice-President - Jet Pilots Organization
    http://www.espritmodel.com, http://www.demonaero.com, http://www.mksservosusa.com, http://www.jetpilots.org

  14. #14

    Join Date
    Jun 2004
    Location
    Ft. Lauderdale, FL & RTP, NC, FL
    Posts
    32
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    ...I still love this scheme!

    Not sure where this photo was from. It may have been here on RCU.
    -kd

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Qo38753.jpg
Views:	12
Size:	45.1 KB
ID:	1334338

  15. #15

    Join Date
    Sep 2002
    Location
    Charlottesville, VA
    Posts
    591
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift


  16. #16
    smchale's Avatar
    Join Date
    Jun 2002
    Location
    Malvern, PA
    Posts
    2,454
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Kirk,
    Nice color scheme choice, and nice work fitting the new fan. Can't wait to see it fly in the spring!
    Sean McHale - Malvern, PA
    "Strive for simplicity. You never have to repair what you leave out." - Bill Lear
    Kingtech Turbines - www.kingtechturbines.com

  17. #17
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Thanks guys,


    ORIGINAL: rcjets_63

    I love the blue nose with stars. Very nice. Say, looking back at the photos on your first post, whose F-14 kit is that?

    Regards,

    Jim
    The F-14 is a a Philip Avonds. HobbyBarn sells the plans and canopy and they used to sell the glass fuse you saw in the above photo.

    Kirk

  18. #18
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

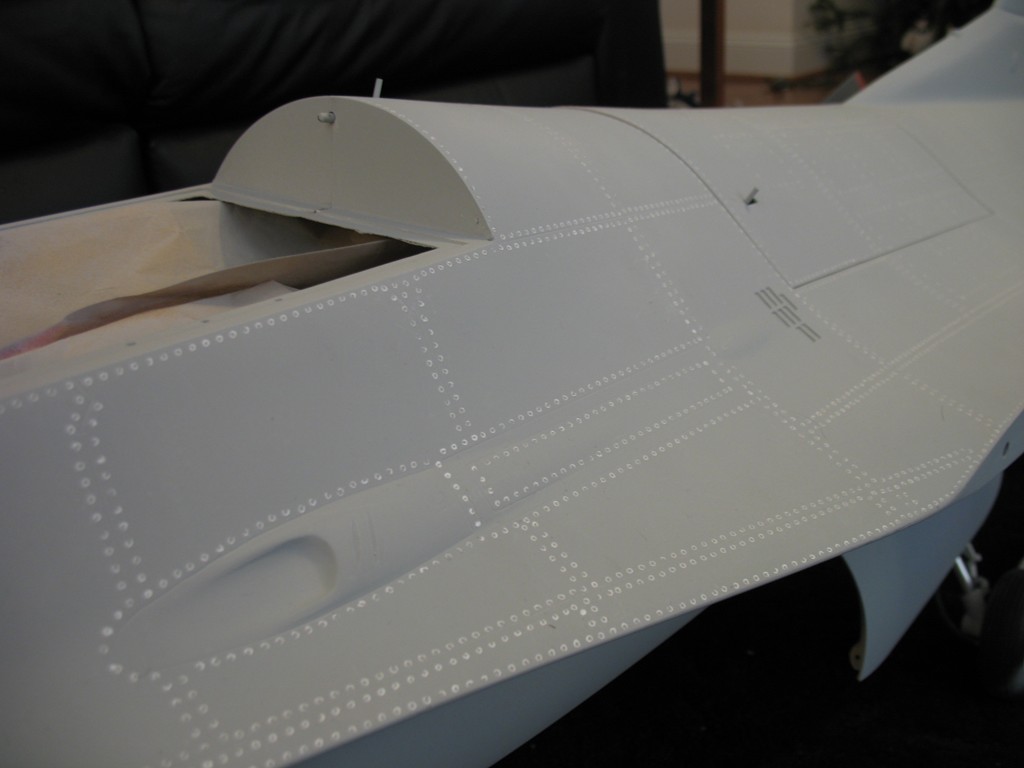

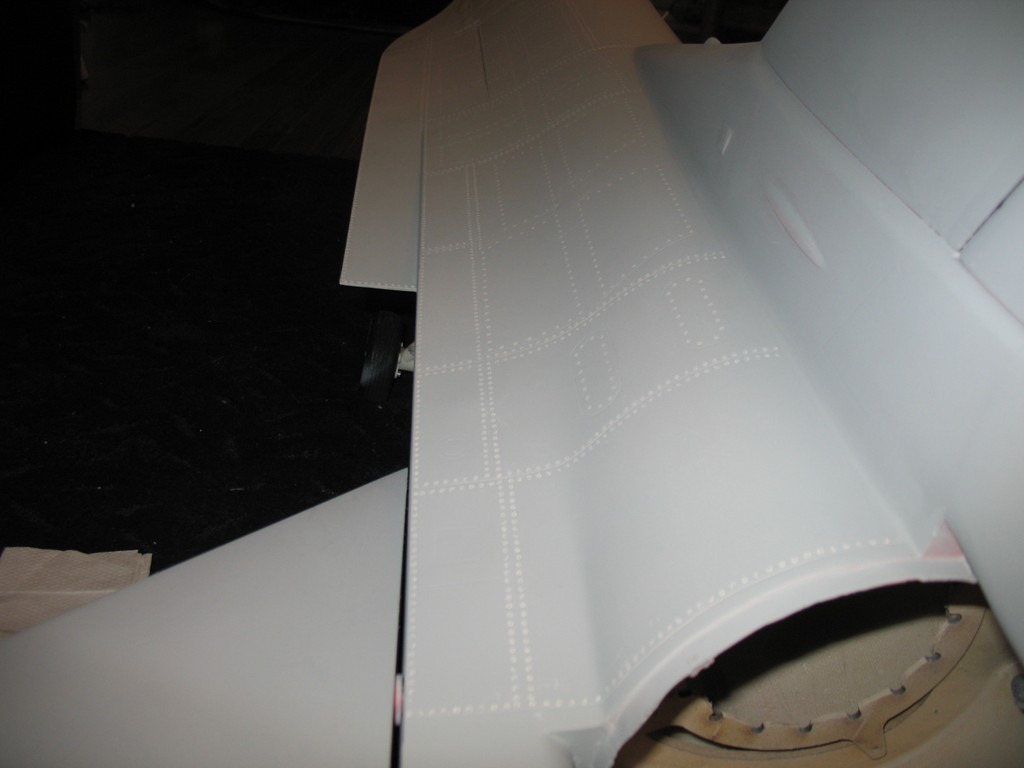

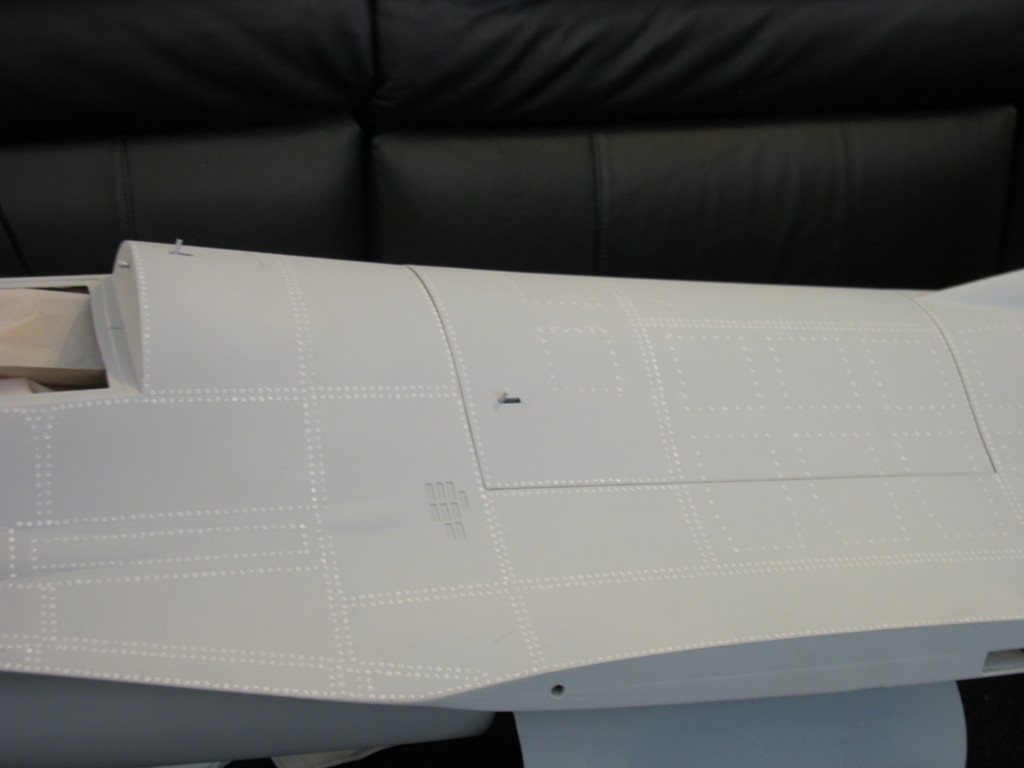

    The facelift continues. I've added some detail around the panel lines and hatch covers on the left side of the fuse. Now, back to detailing
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ki19124.jpg
Views:	9
Size:	76.9 KB
ID:	1347196   Click image for larger version.

Name:	Je10527.jpg
Views:	12
Size:	80.2 KB
ID:	1347197   Click image for larger version.

Name:	Kp33614.jpg
Views:	10
Size:	70.0 KB
ID:	1347198   Click image for larger version.

Name:	Au56649.jpg
Views:	9
Size:	69.2 KB
ID:	1347199   Click image for larger version.

Name:	Se45616.jpg
Views:	9
Size:	81.7 KB
ID:	1347200

    Click image for larger version.

Name:	Sj73800.jpg
Views:	8
Size:	73.4 KB
ID:	1347201   Click image for larger version.

Name:	Eg78616.jpg
Views:	10
Size:	68.7 KB
ID:	1347202

  19. #19
    gunradd's Avatar
    Join Date
    Aug 2008
    Location
    Springhill, FL
    Posts
    1,248
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Krik that thing looks good man! I was thinking about doing the same on my F16- did you use a soldering iron with a tube?

  20. #20
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift


    ORIGINAL: gunradd

    Krik that thing looks good man! I was thinking about doing the same on my F16- did you use a soldering iron with a tube?
    Thanks. Yep, I'm using a 1/16th brass tube (with the end sharpened) attached to a soldering iron.

  21. #21

    Join Date
    Feb 2006
    Location
    Honolulu, HI
    Posts
    29
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Hey Kirk

    Happy New Year Is that the same 16 you had here? Looking nice as always.

    John

  22. #22
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift


    ORIGINAL: Doksa

    Hey Kirk

    Happy New Year Is that the same 16 you had here? Looking nice as always.

    John
    Hey John,

    Thanks and Happy New Year to you also. Yes, it's the same F-16 I had when I lived in Hawaii. It's 3 years old now and it was time for a new color scheme and power system upgrade.

    Kirk

  23. #23
    JohnVH's Avatar
    Join Date
    Dec 2001
    Location
    Ferndale, WA
    Posts
    15,746
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    Hey Kirk! When your done with this youll be a viper master, want to pimp my byron f16 for me? hehe
    ORIGINAL: jefflangton
    Time to bend over and let your head pop out!!!!

  24. #24
    k_sonn's Avatar
    Join Date
    Feb 2002
    Location
    Issaquah, WA
    Posts
    2,392
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift


    ORIGINAL: JohnVH

    Hey Kirk! When your done with this youll be a viper master, want to pimp my byron f16 for me? hehe
    Send it my way John. As soon as I'm finished detailing Roberto's 80 inch BVM F-86, I'll pimp out your byron F-16

  25. #25
    JohnVH's Avatar
    Join Date
    Dec 2001
    Location
    Ferndale, WA
    Posts
    15,746
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Sky Master F-16 Conversion and Facelift

    haha, didnt realize Roberto had that sabre too. I cant afford to pay people to pimp my jets, maybe you should just buy it from me instead
    ORIGINAL: jefflangton
    Time to bend over and let your head pop out!!!!
