    RE: Radiance F3A - new pattern kit

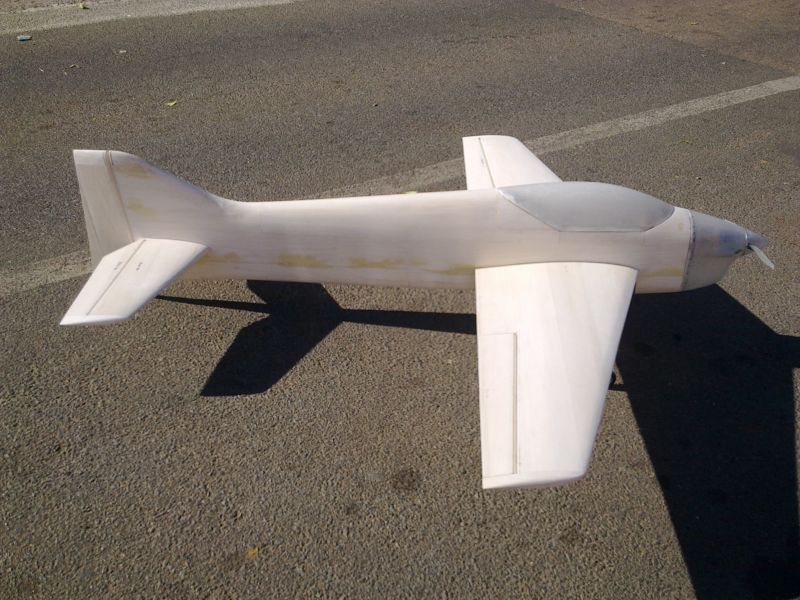

    As you can see, there's enough space inside the cowl for the OS33, but you would probably need to replace the standard exhaust with a tuned pipe.
    Please keep in mind that the structure was tested with electric power only.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Zx70019.jpg
Views:	123
Size:	109.1 KB
ID:	1744622

  2. #52

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

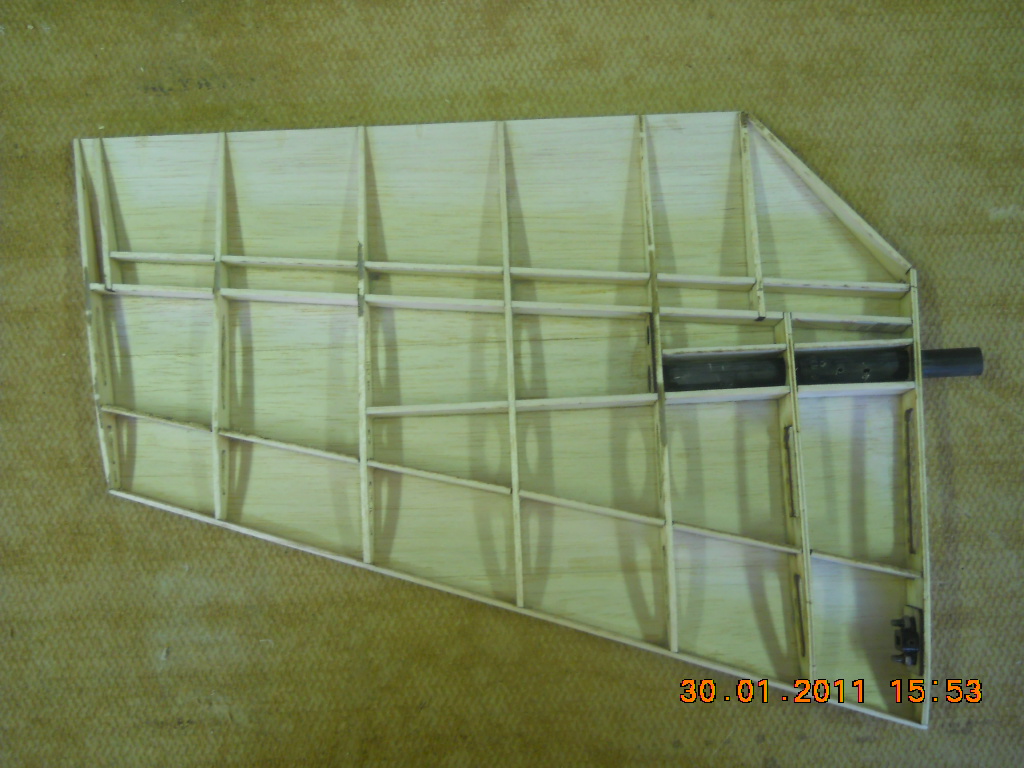

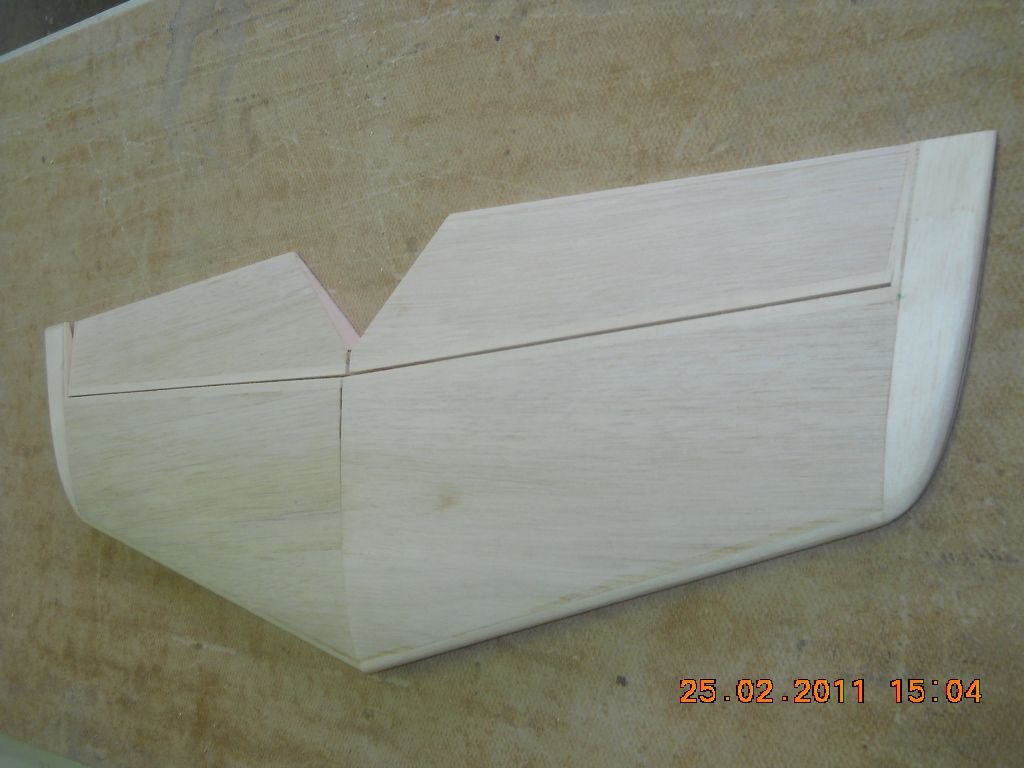

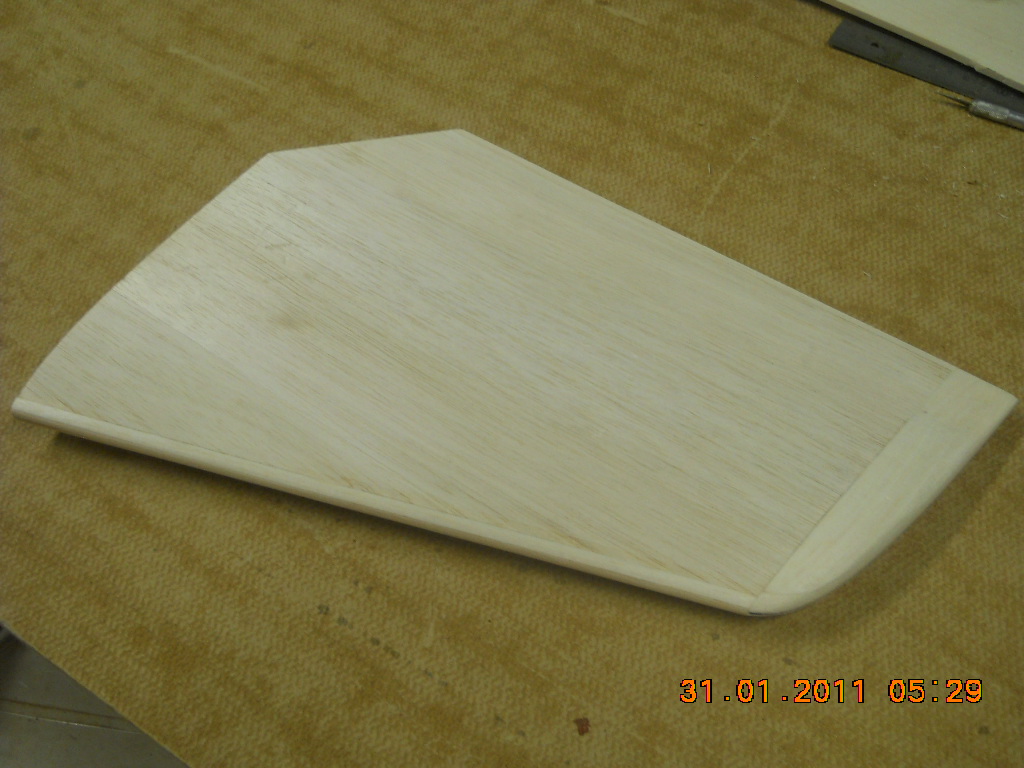

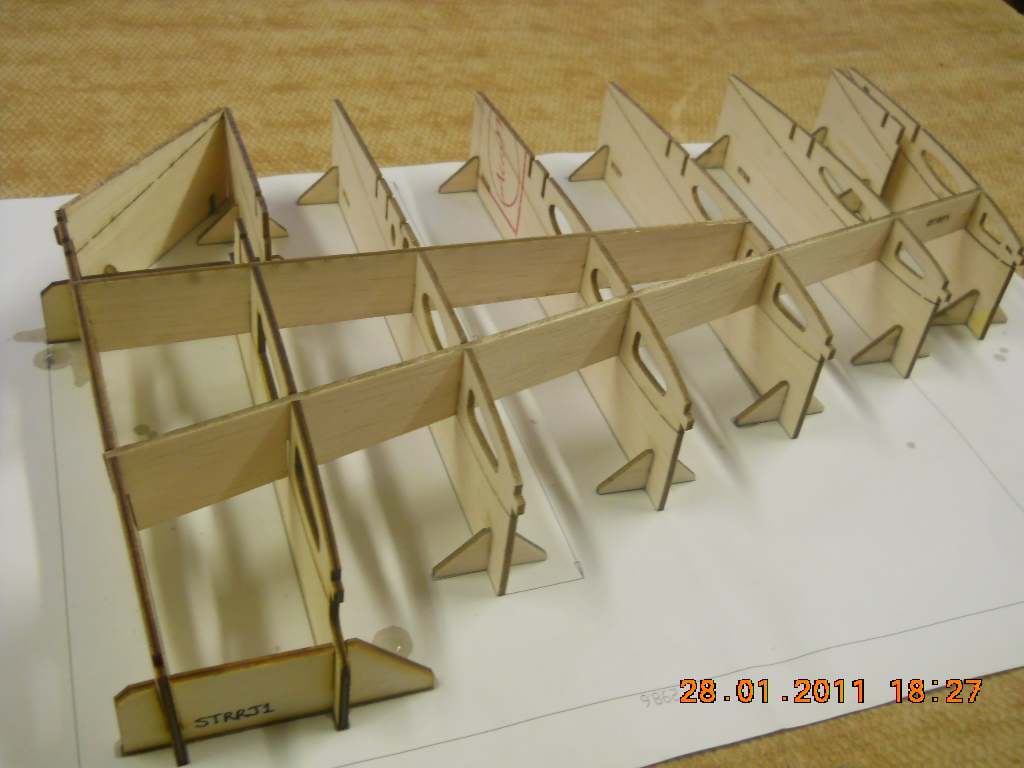

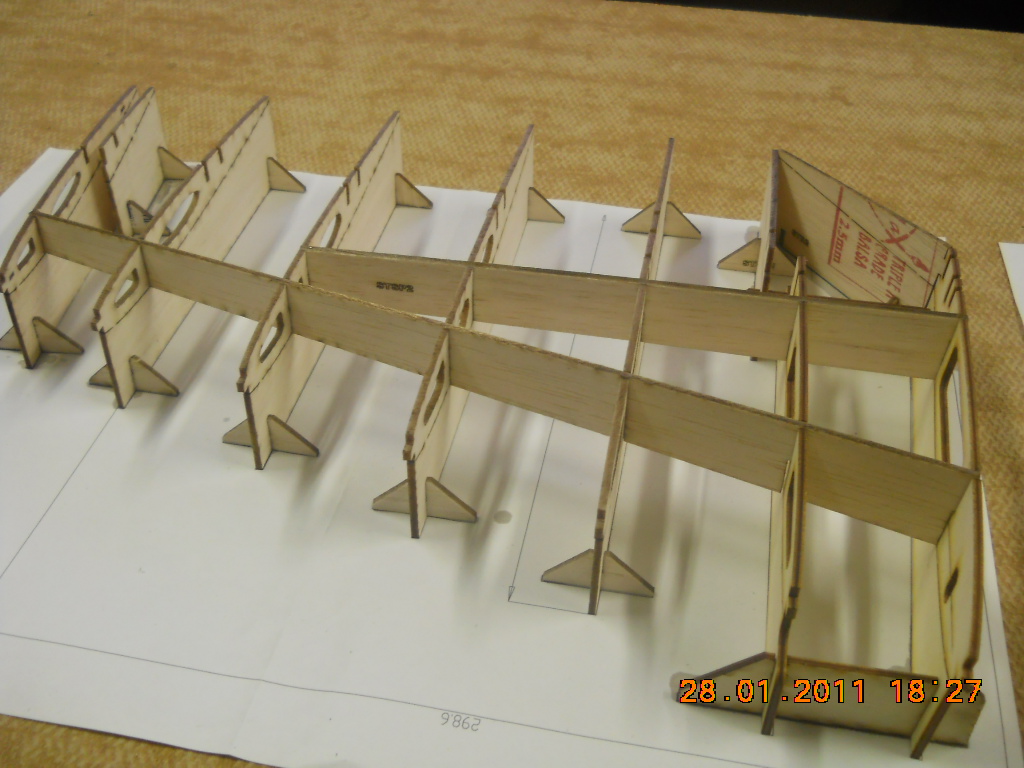

    More work on the stabs:
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Kh17679.jpg
Views:	70
Size:	284.2 KB
ID:	1744625   Click image for larger version.

Name:	Je98820.jpg
Views:	69
Size:	296.1 KB
ID:	1744626   Click image for larger version.

Name:	Lr39360.jpg
Views:	66
Size:	301.4 KB
ID:	1744627   Click image for larger version.

Name:	Bv60286.jpg
Views:	84
Size:	290.1 KB
ID:	1744628   Click image for larger version.

Name:	Xi60734.jpg
Views:	59
Size:	275.9 KB
ID:	1744629

    Click image for larger version.

Name:	Qh66483.jpg
Views:	70
Size:	276.1 KB
ID:	1744630   Click image for larger version.

Name:	Km99342.jpg
Views:	71
Size:	291.7 KB
ID:	1744631   Click image for larger version.

Name:	Wu71227.jpg
Views:	69
Size:	291.3 KB
ID:	1744632   Click image for larger version.

Name:	Az46931.jpg
Views:	88
Size:	301.0 KB
ID:	1744633   Click image for larger version.

Name:	Xj52873.jpg
Views:	81
Size:	303.3 KB
ID:	1744634


  3. #53

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

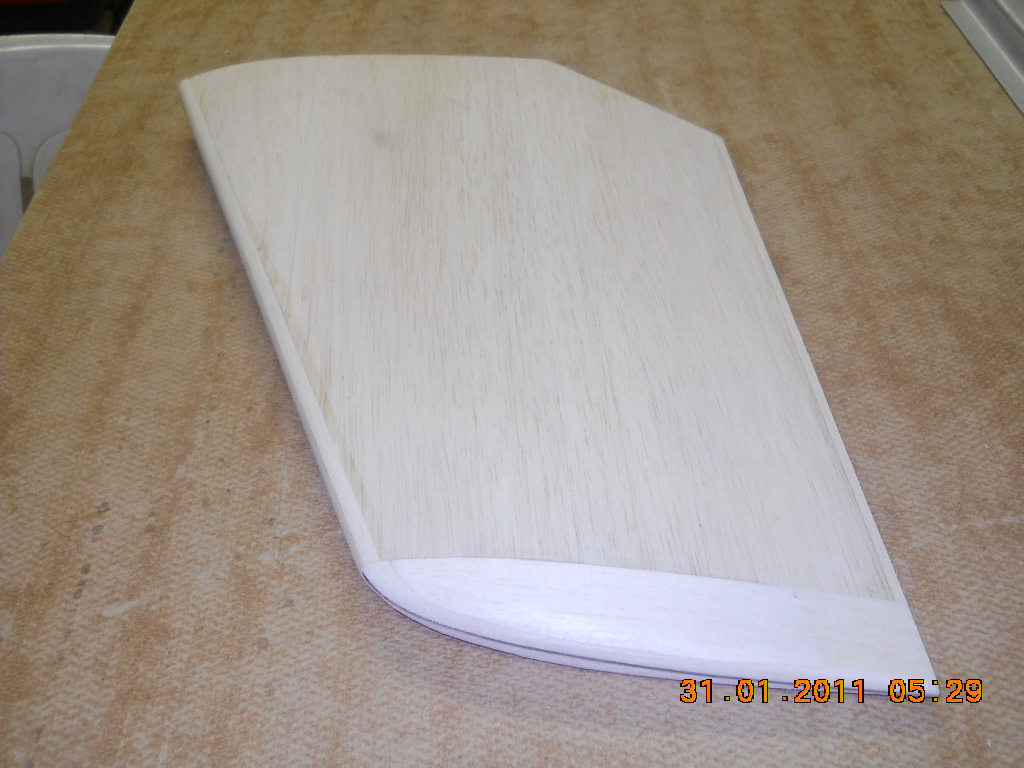

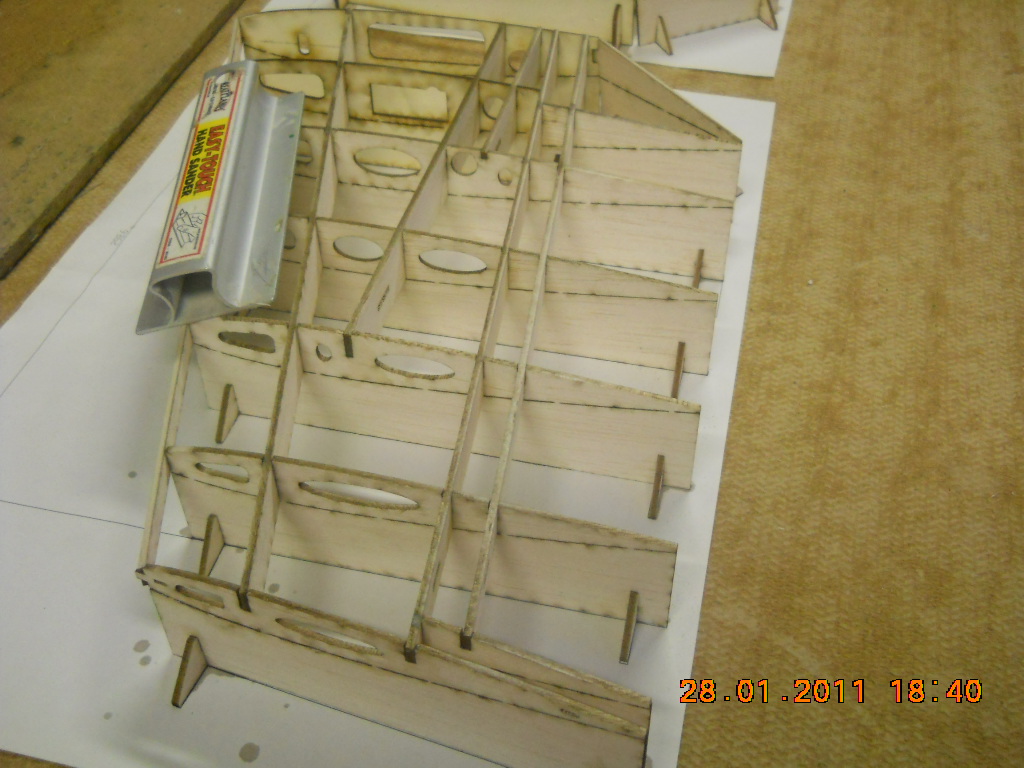

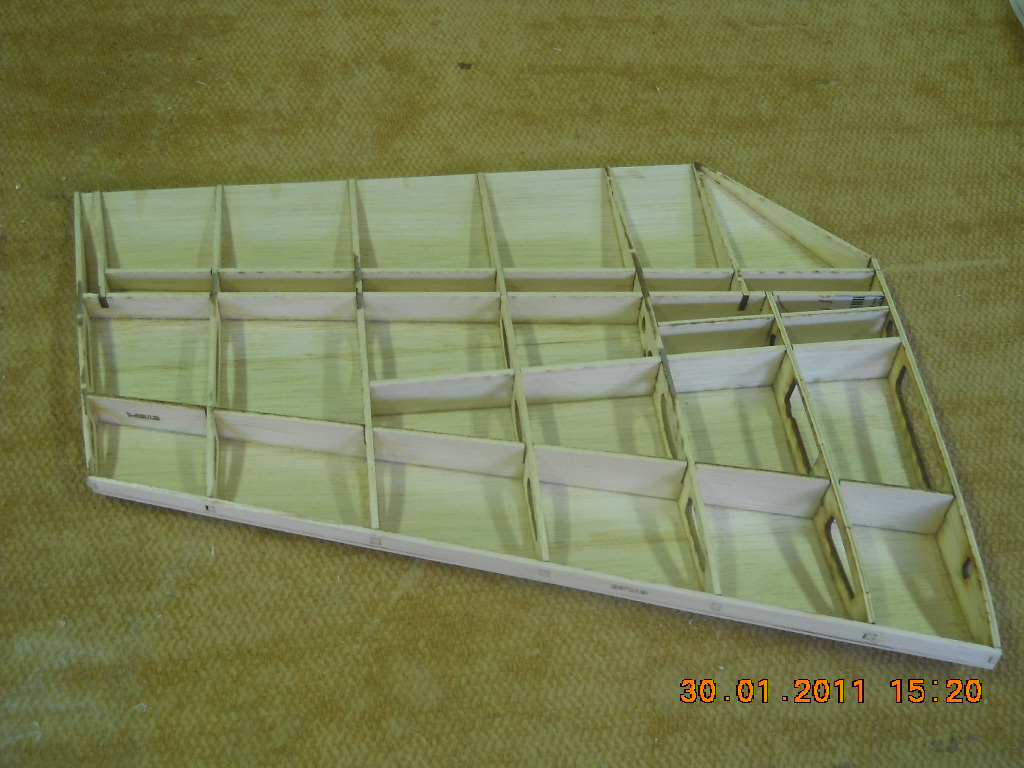

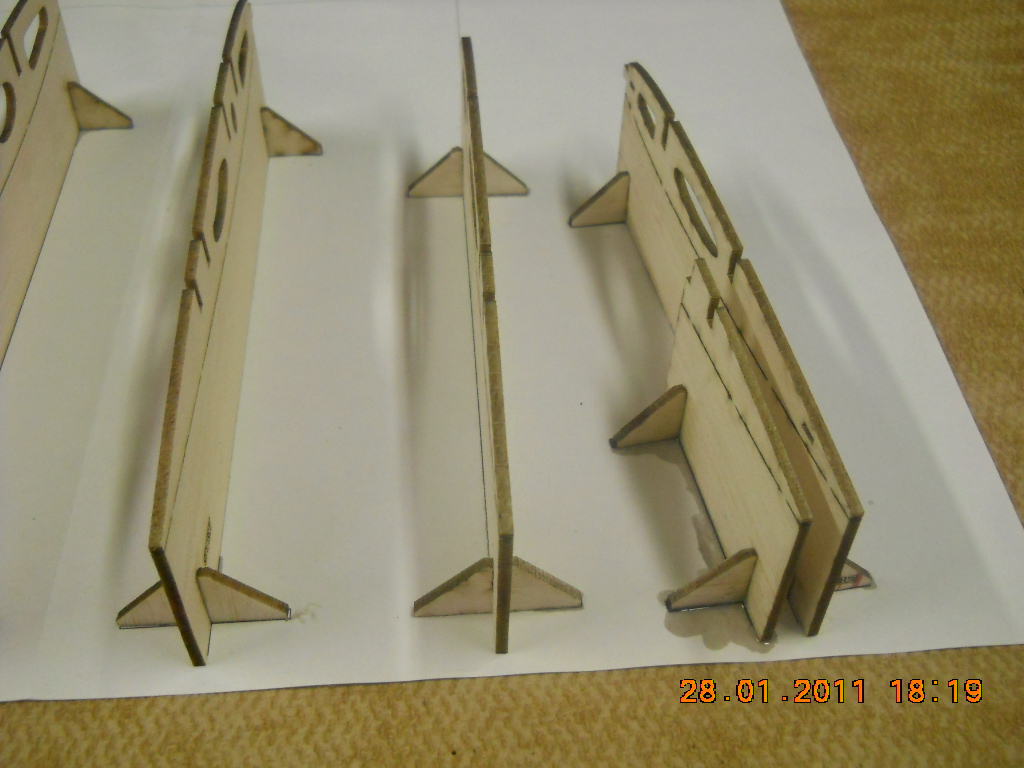

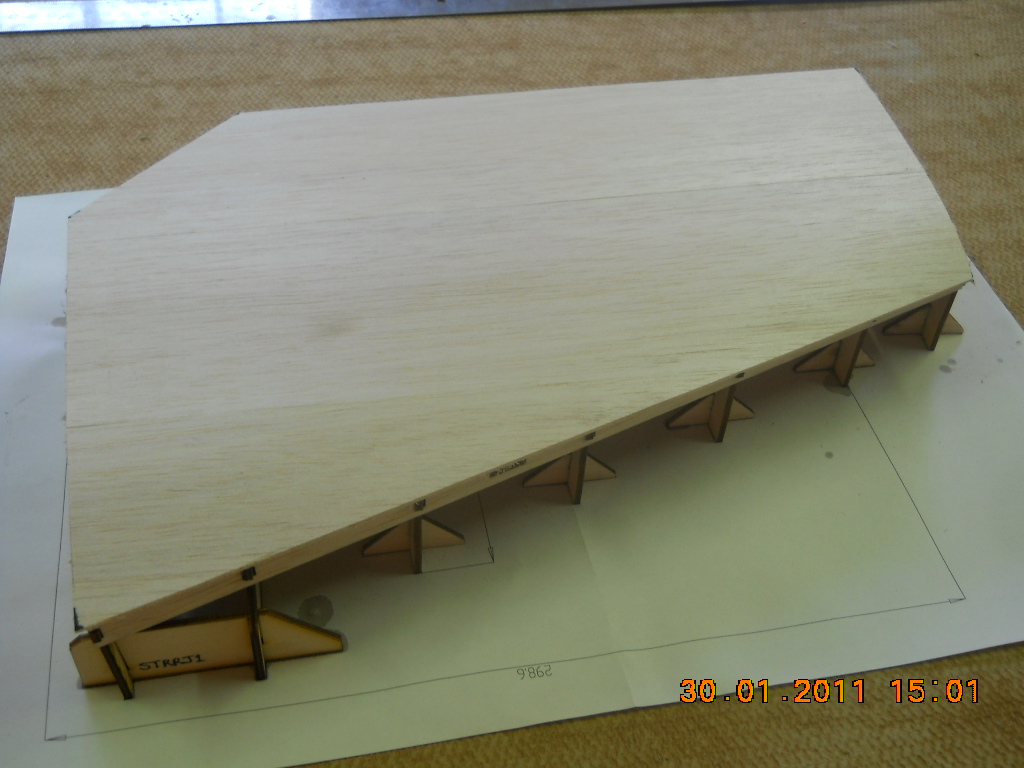

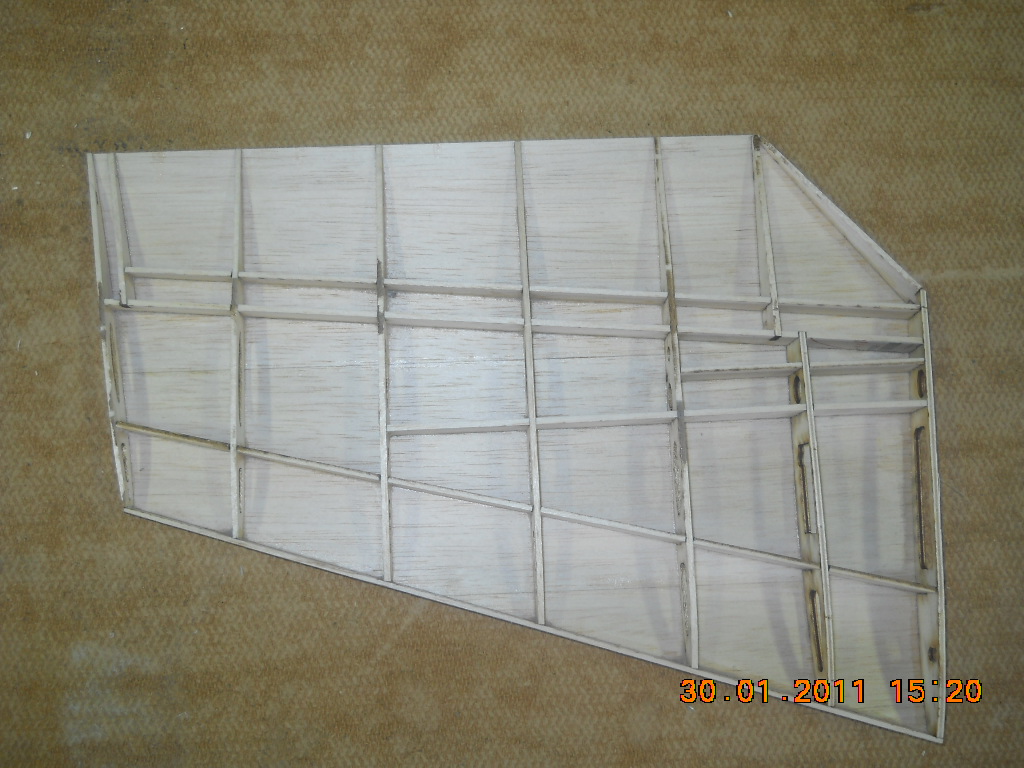

    Final operations on the stabs:
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Fd92702.jpg
Views:	75
Size:	300.0 KB
ID:	1745975   Click image for larger version.

Name:	Yu63516.jpg
Views:	67
Size:	290.1 KB
ID:	1745976   Click image for larger version.

Name:	Ty65109.jpg
Views:	58
Size:	283.3 KB
ID:	1745977   Click image for larger version.

Name:	Sm29686.jpg
Views:	50
Size:	277.9 KB
ID:	1745978   Click image for larger version.

Name:	Bm75907.jpg
Views:	66
Size:	275.2 KB
ID:	1745979

    Click image for larger version.

Name:	Ev25043.jpg
Views:	67
Size:	291.6 KB
ID:	1745980   Click image for larger version.

Name:	Fh80337.jpg
Views:	57
Size:	282.3 KB
ID:	1745981

  4. #54
    MTK's Avatar
    Join Date
    May 2004
    Location
    Whippany, NJ
    Posts
    4,758
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    The OS33GT is a powerful 2 stroke that produces considerable vibration. I would not put this engine in a plane without proper soft mounting. A hyde type mount set-up with 1" standoffs works fine. The minimum donut thickness should be 1" for better isolation.
    Regards,
    MattK
    (Rcmaster199@aol.com)

  5. #55
    guille2006's Avatar
    Join Date
    Jan 2006
    Location
    MaranelloModena, ITALY
    Posts
    630
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Alex; what servo are mounting on the stab? It's inside the stab; isn't?
    Great Plane!!!
    Exocet Engineering & Design; Maranello (ITA).

  6. #56

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    ORIGINAL: guille2006

    Alex; what servo are mounting on the stab? It's inside the stab; isn't?
    Great Plane!!!

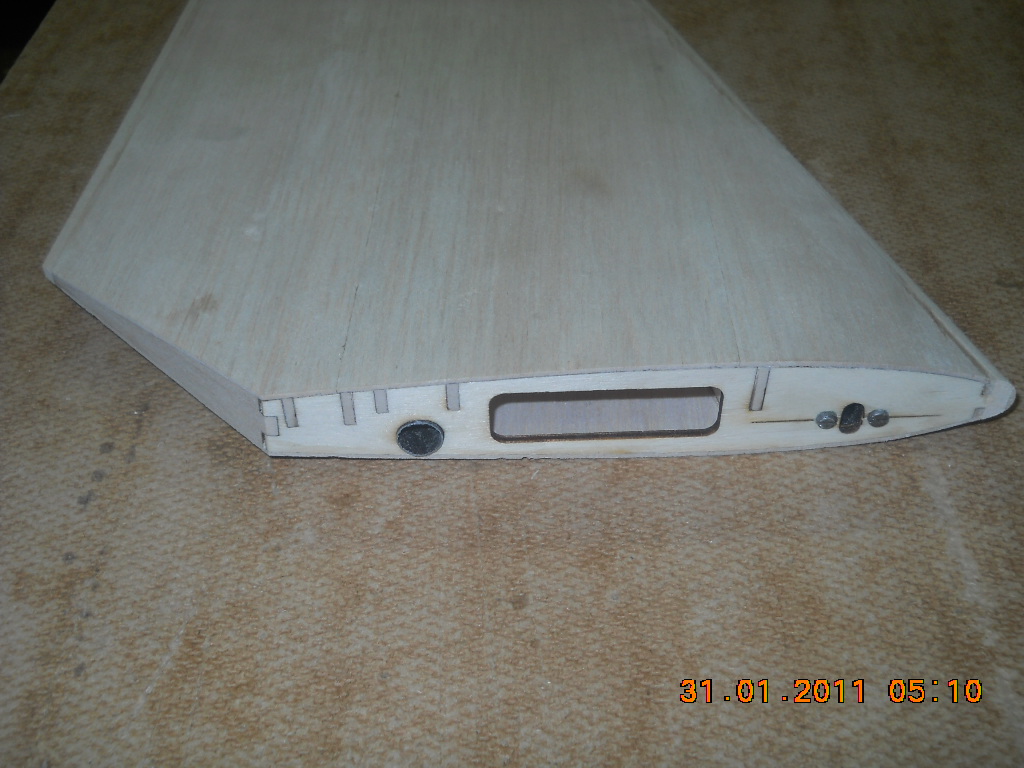

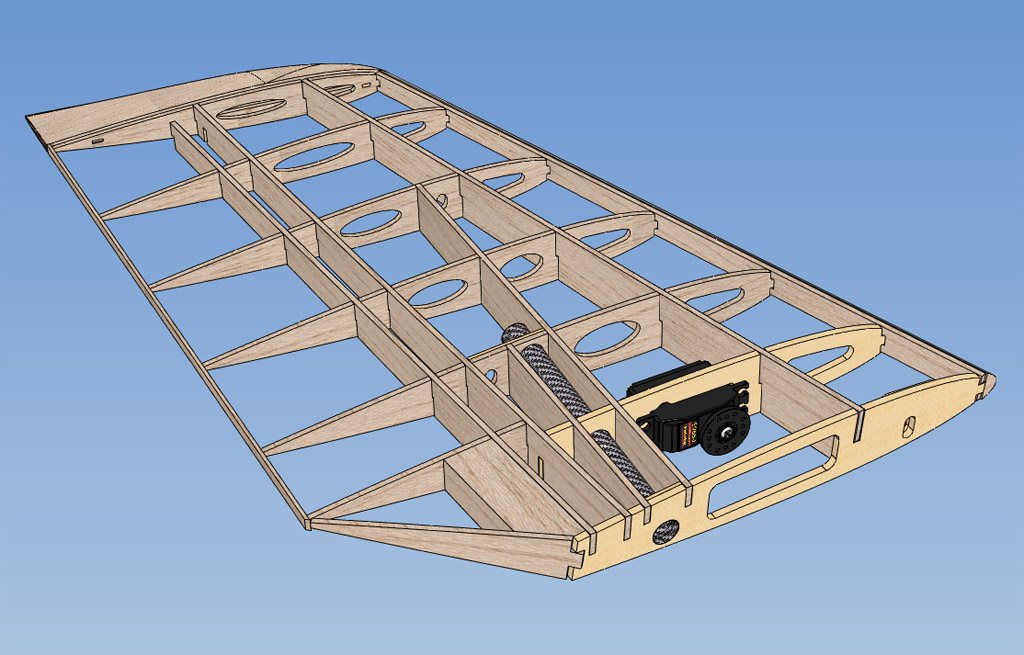

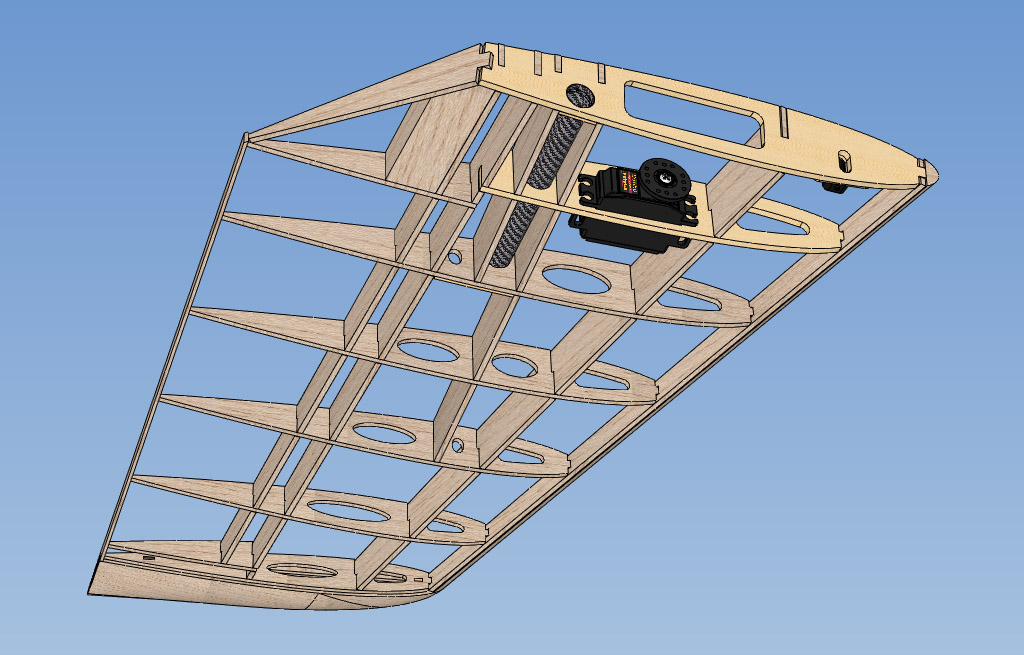

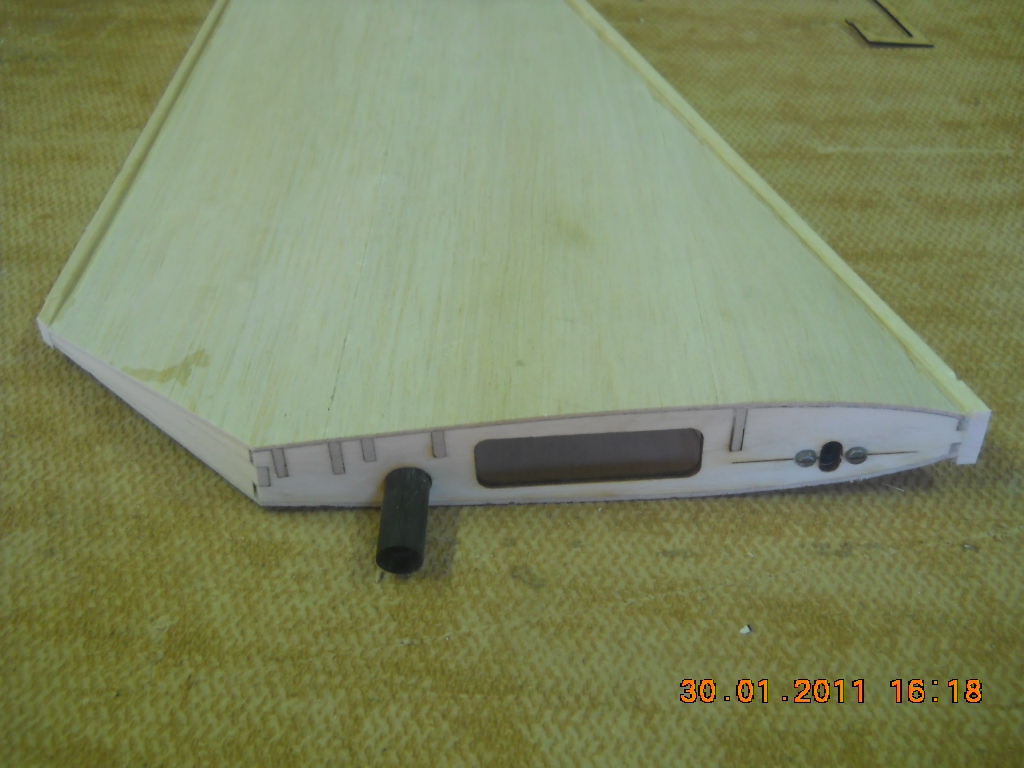

    Thanks Guille. Yes the elevator servos are installed inside the stab as illustrated in the attached pictures.
    The hole in the supporting rib is dimensioned for the Futaba S9650 as it is probably the most popular choice for elevator servos.
    It would be easy though to install any other servo of similar size.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ay73877.jpg
Views:	111
Size:	180.0 KB
ID:	1746308   Click image for larger version.

Name:	Db86228.jpg
Views:	107
Size:	186.5 KB
ID:	1746309

  7. #57

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

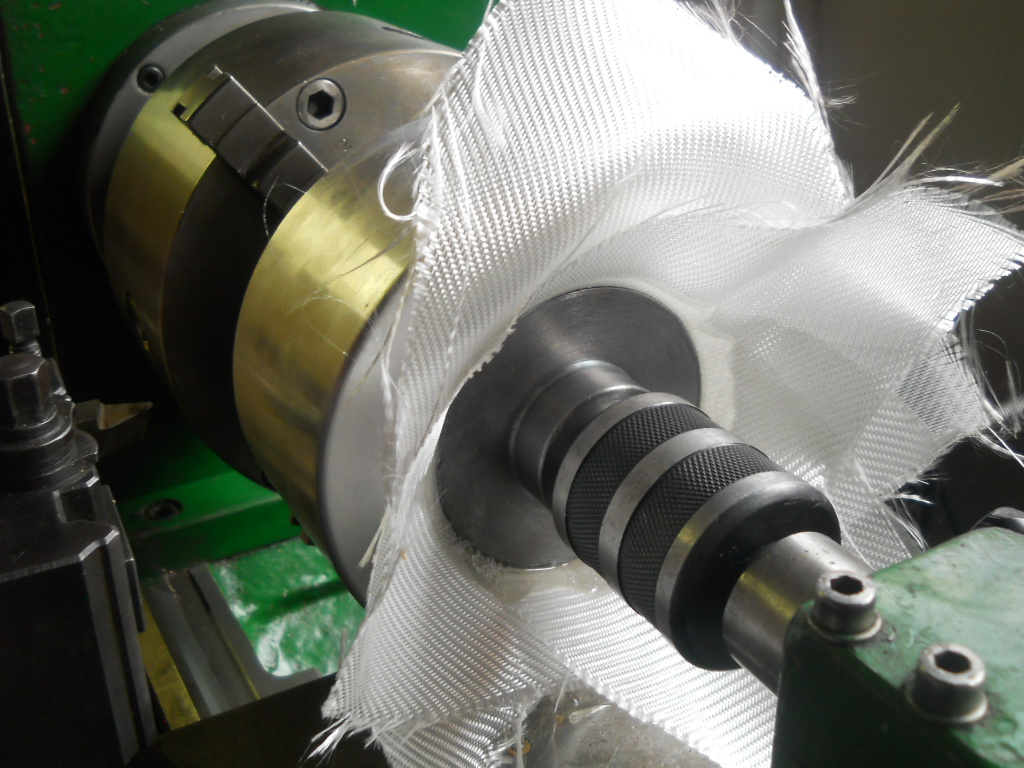

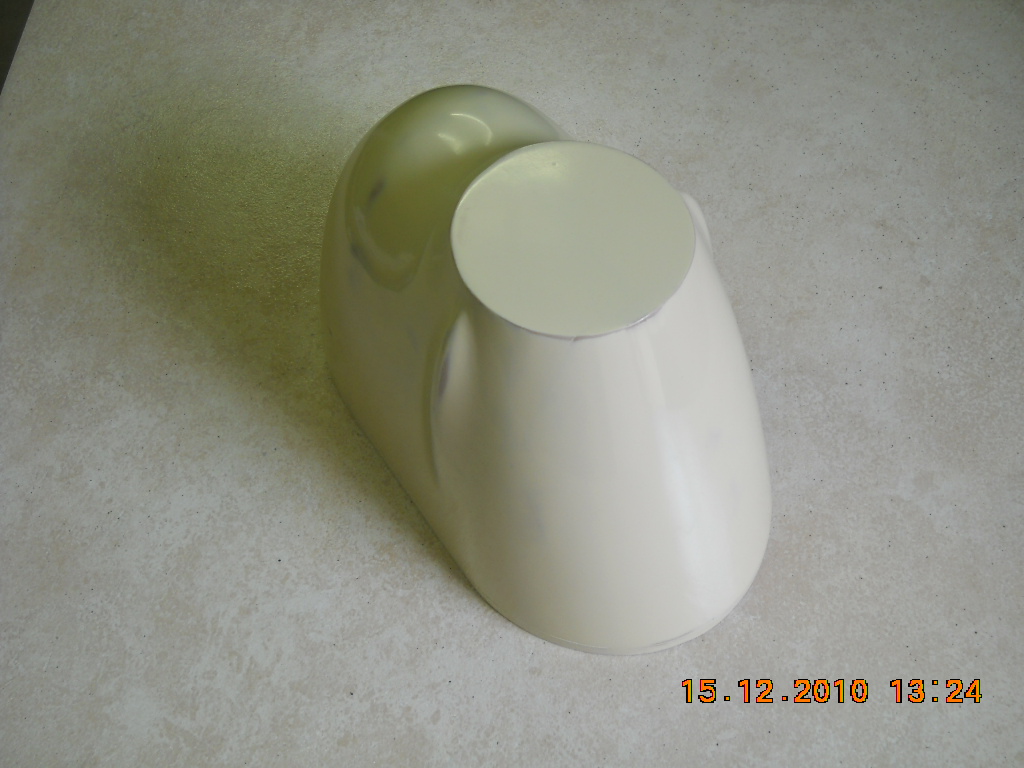

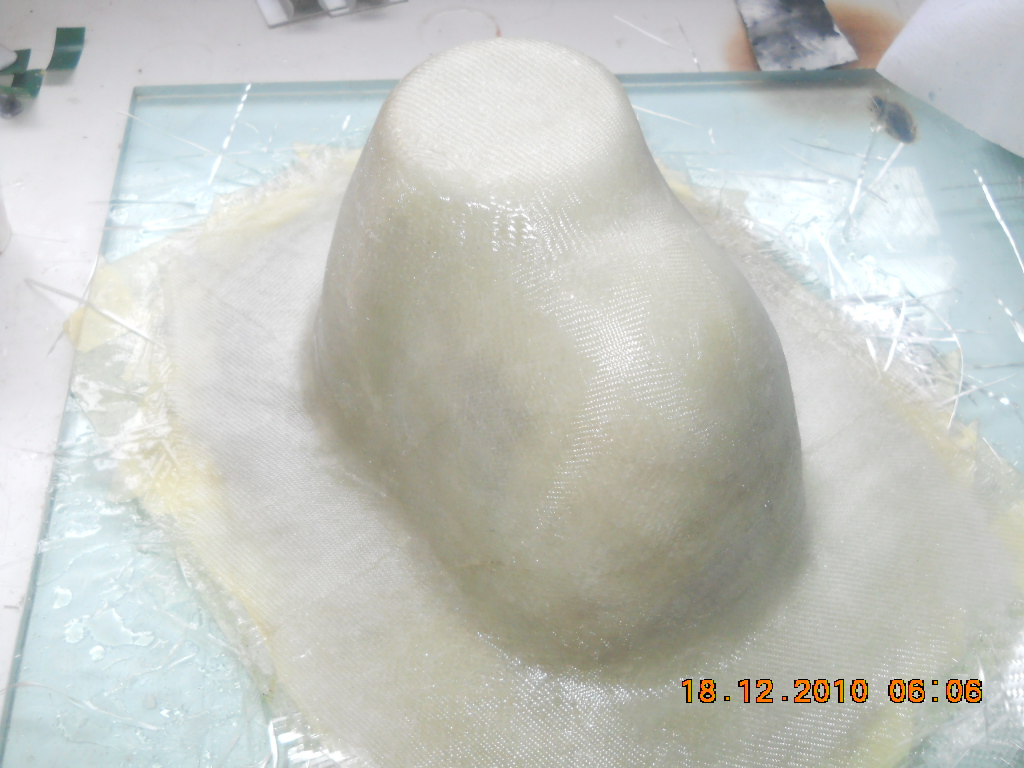

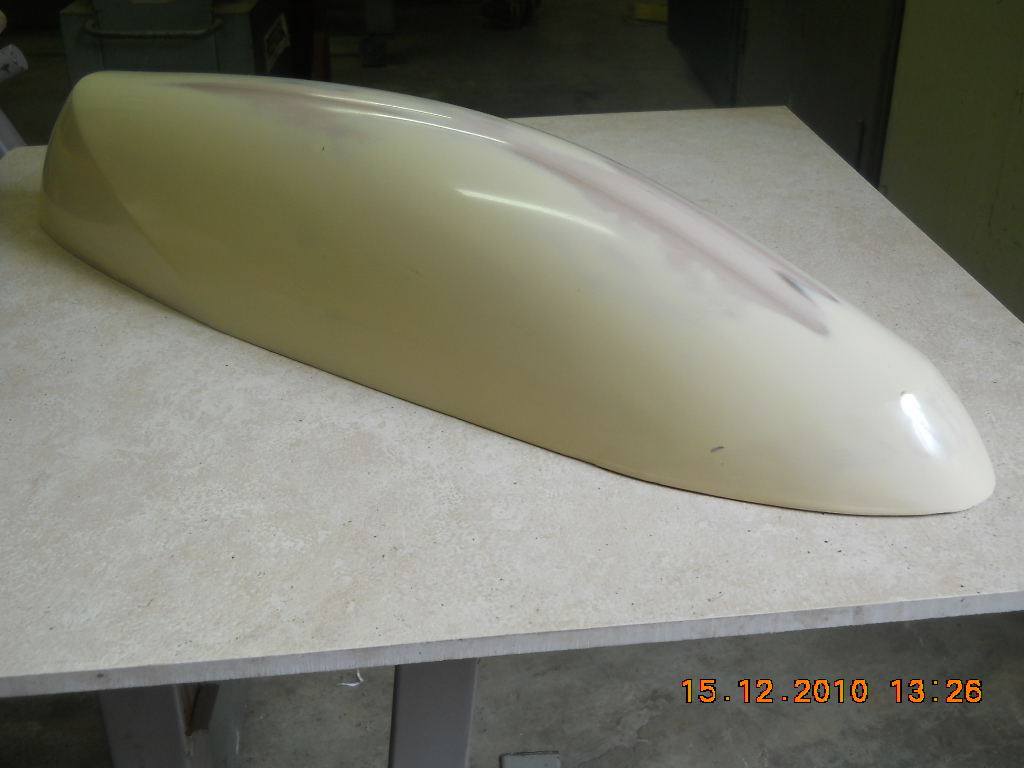

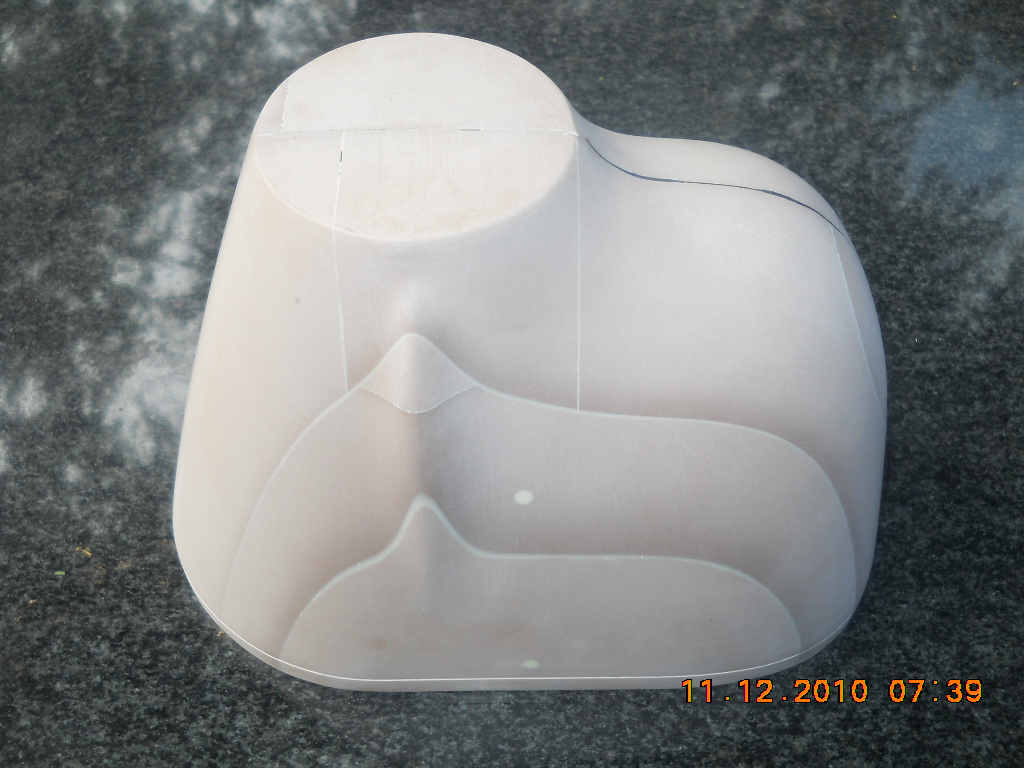

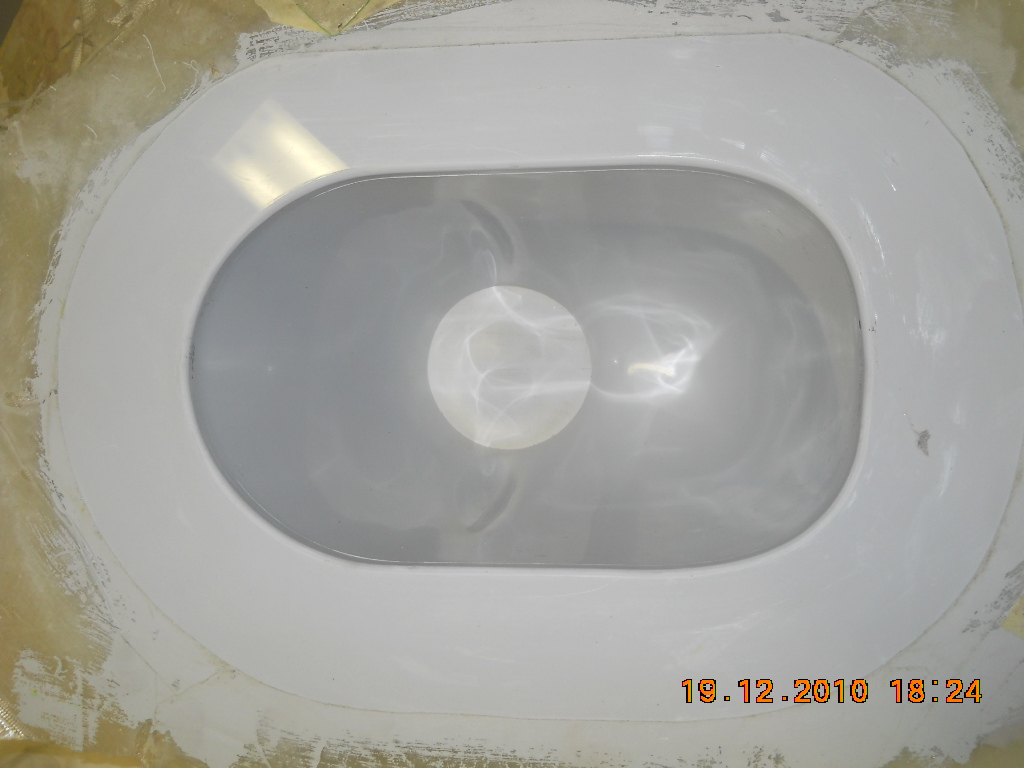

    I attached a few pictures from the molding process of the cowl and canopy. The mold plugs were all CNC machined following the CAD 3D models.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Us52601.jpg
Views:	111
Size:	287.9 KB
ID:	1746642   Click image for larger version.

Name:	Mh20252.jpg
Views:	108
Size:	294.5 KB
ID:	1746643   Click image for larger version.

Name:	Qv55347.jpg
Views:	117
Size:	290.0 KB
ID:	1746644   Click image for larger version.

Name:	Qk22823.jpg
Views:	85
Size:	283.5 KB
ID:	1746645   Click image for larger version.

Name:	Bm76008.jpg
Views:	84
Size:	269.1 KB
ID:	1746646

    Click image for larger version.

Name:	Zq97264.jpg
Views:	84
Size:	295.2 KB
ID:	1746647   Click image for larger version.

Name:	Ya56535.jpg
Views:	85
Size:	256.3 KB
ID:	1746648

  8. #58

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

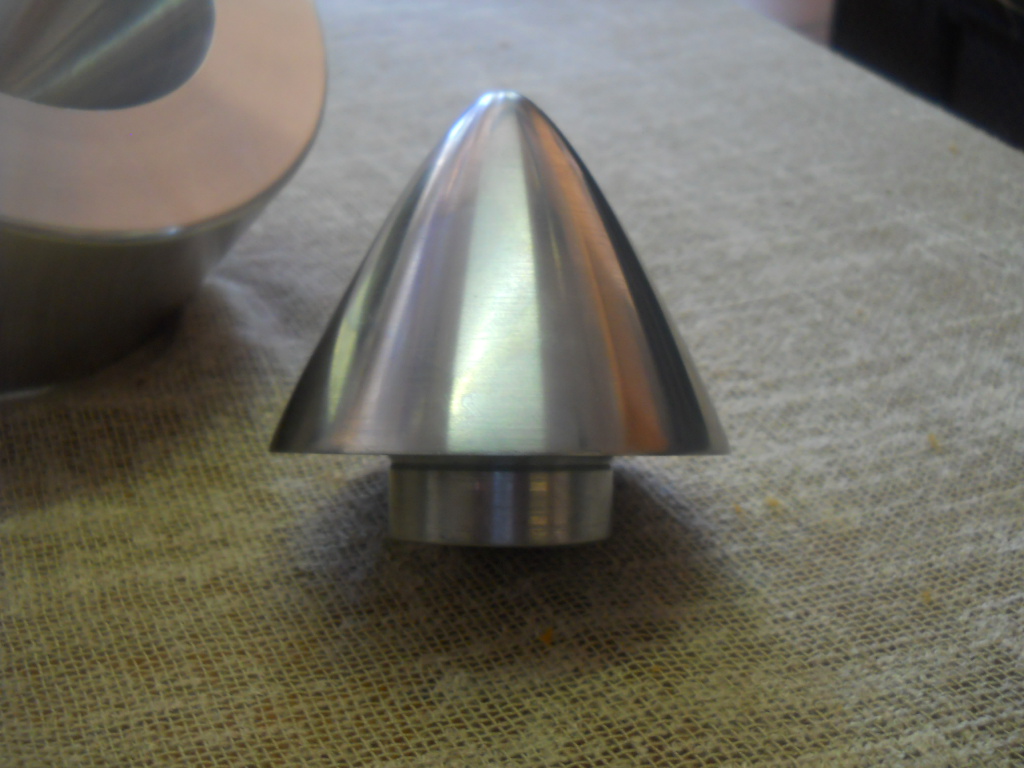

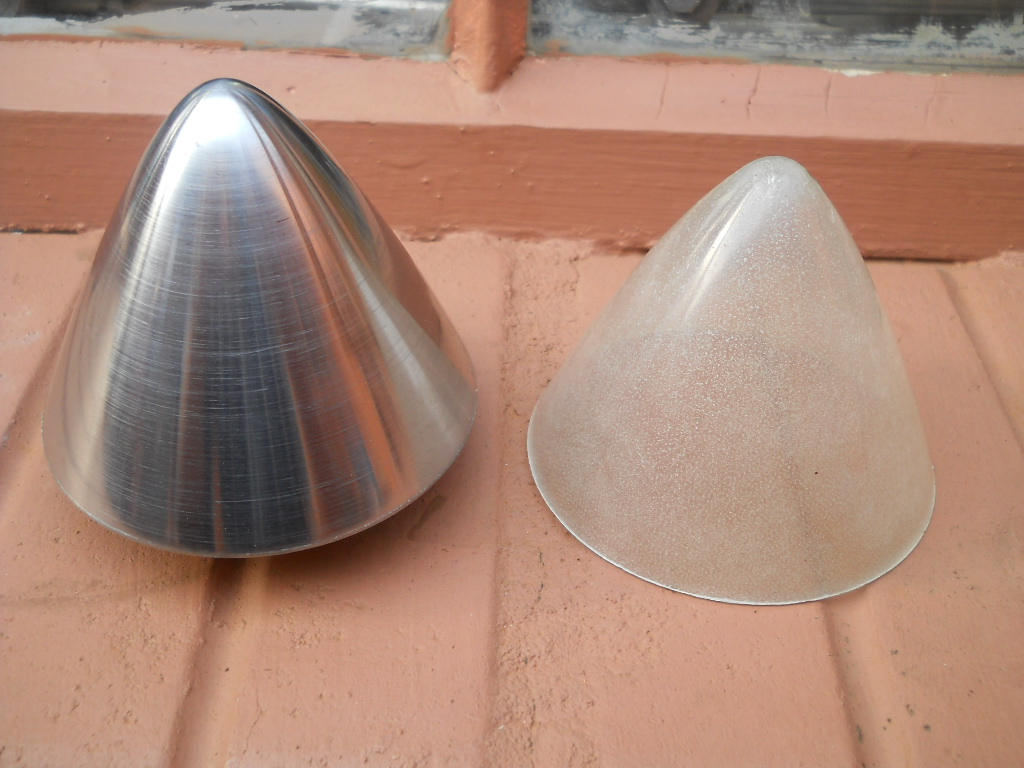

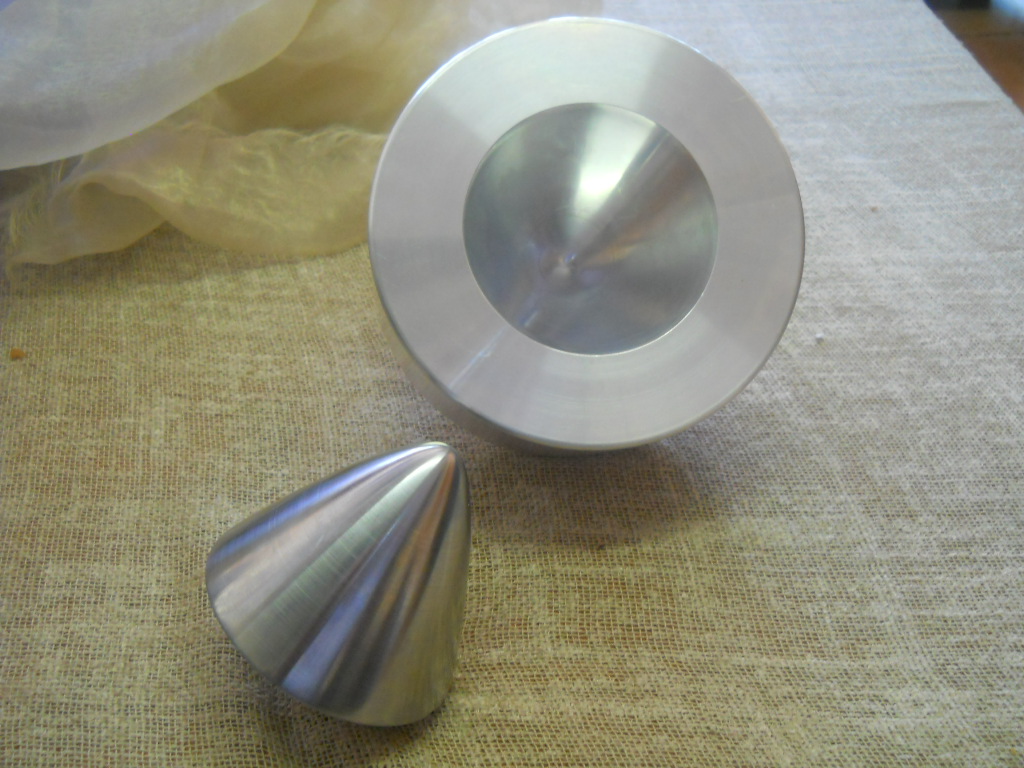

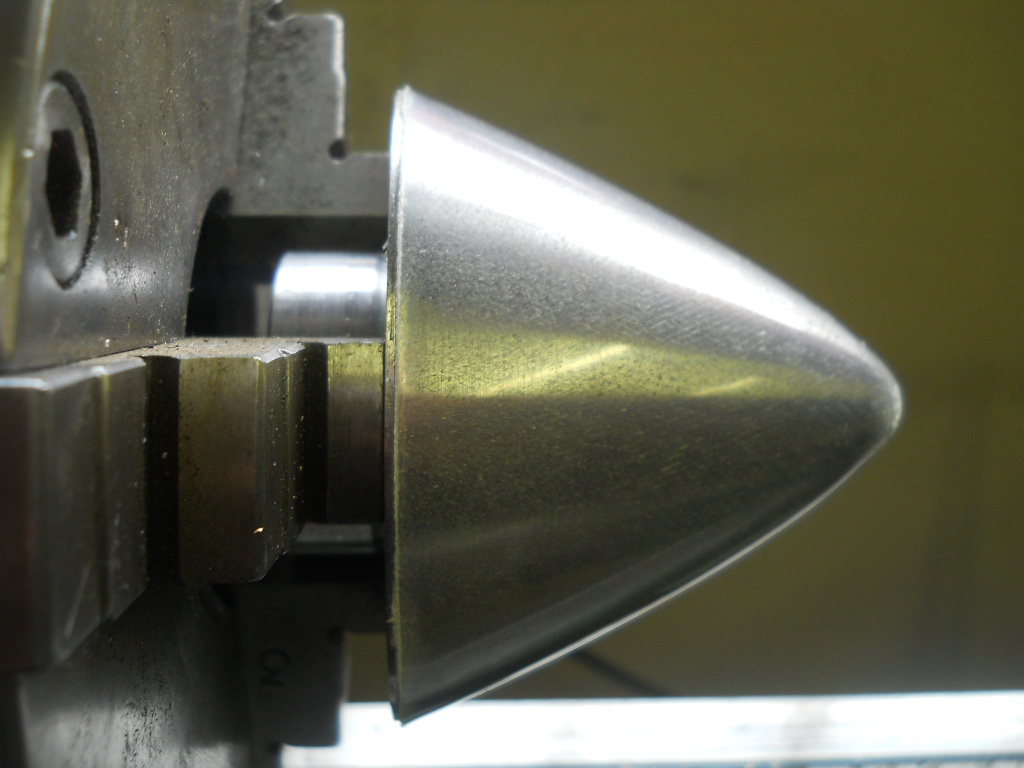

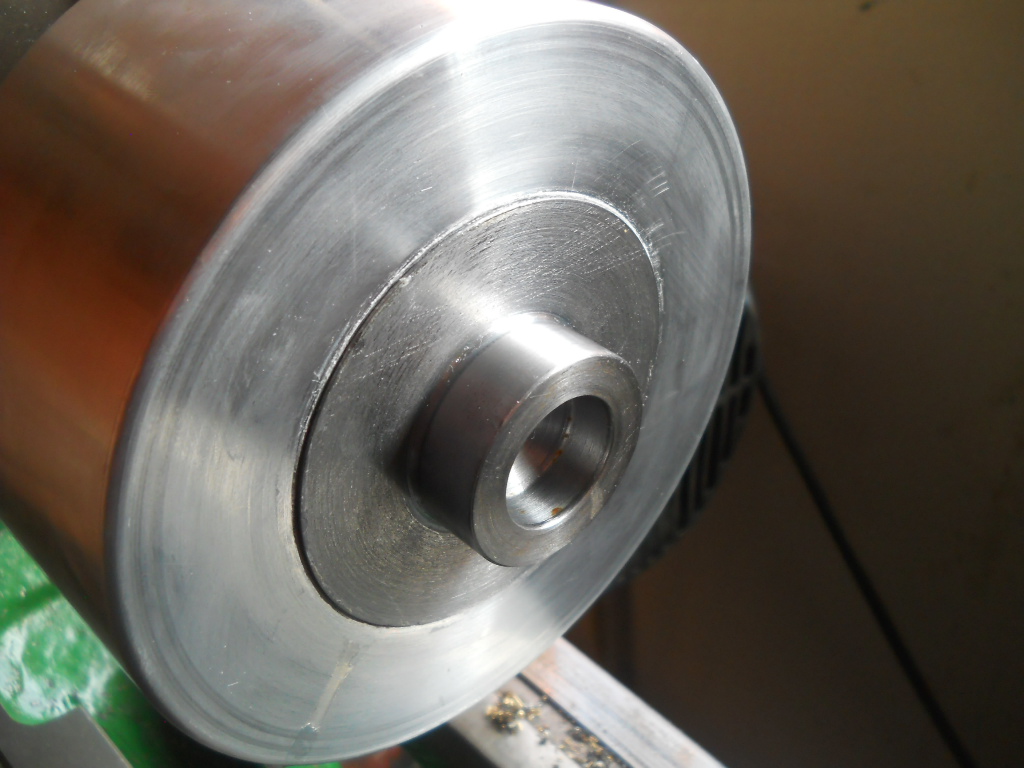

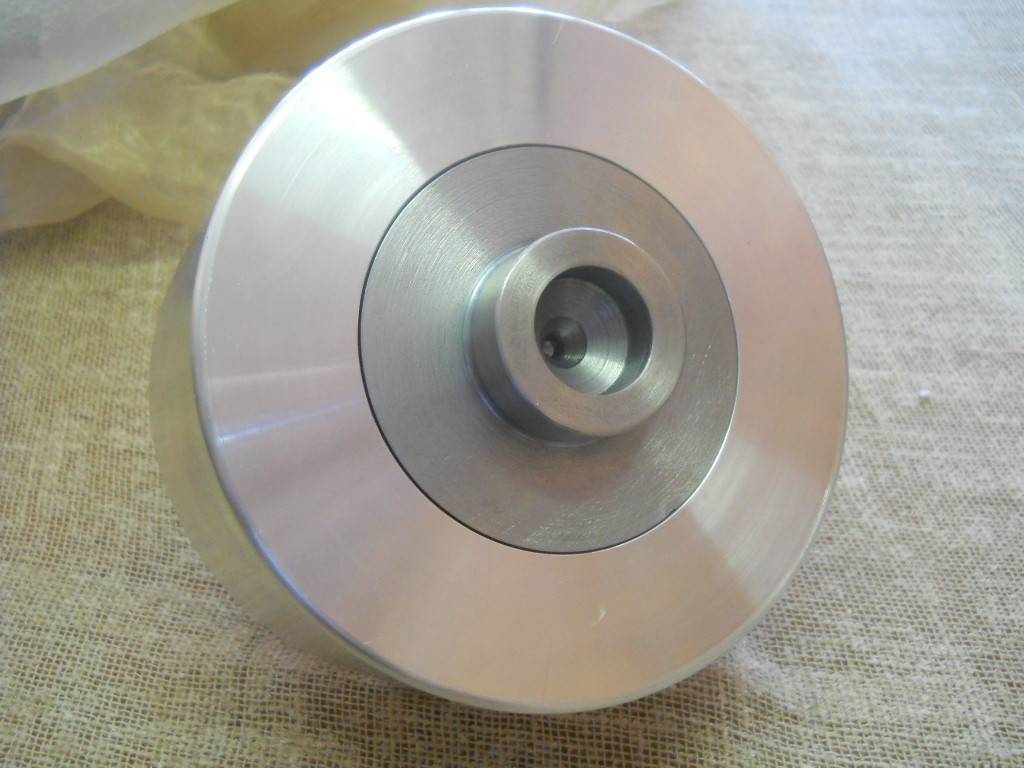

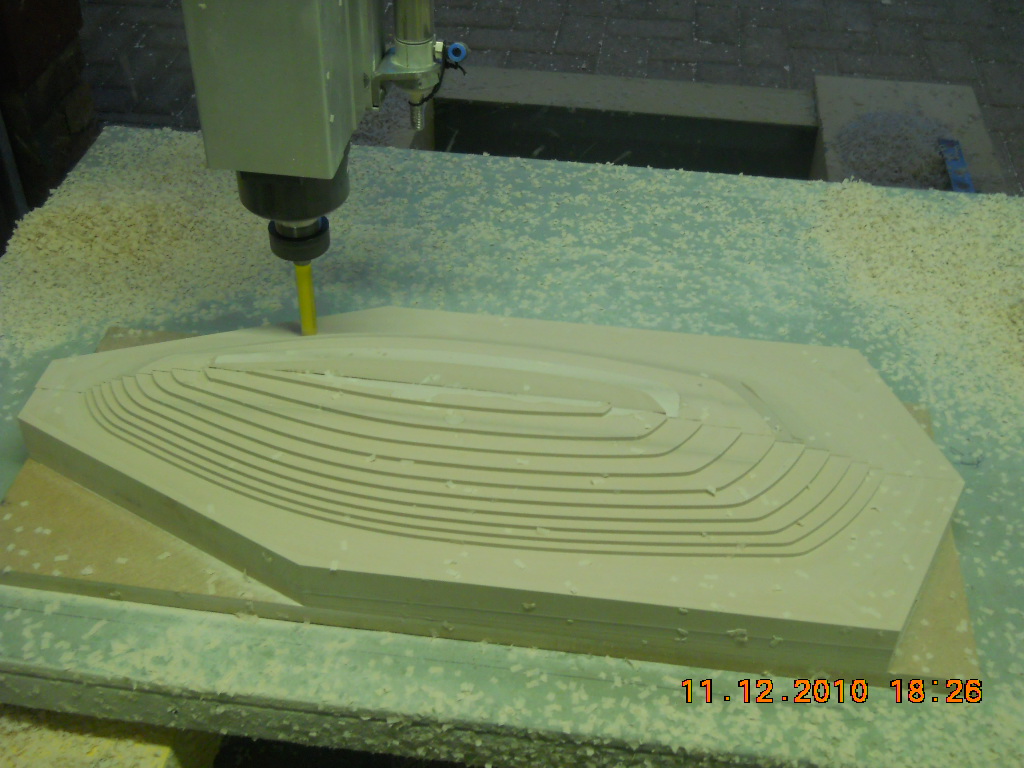

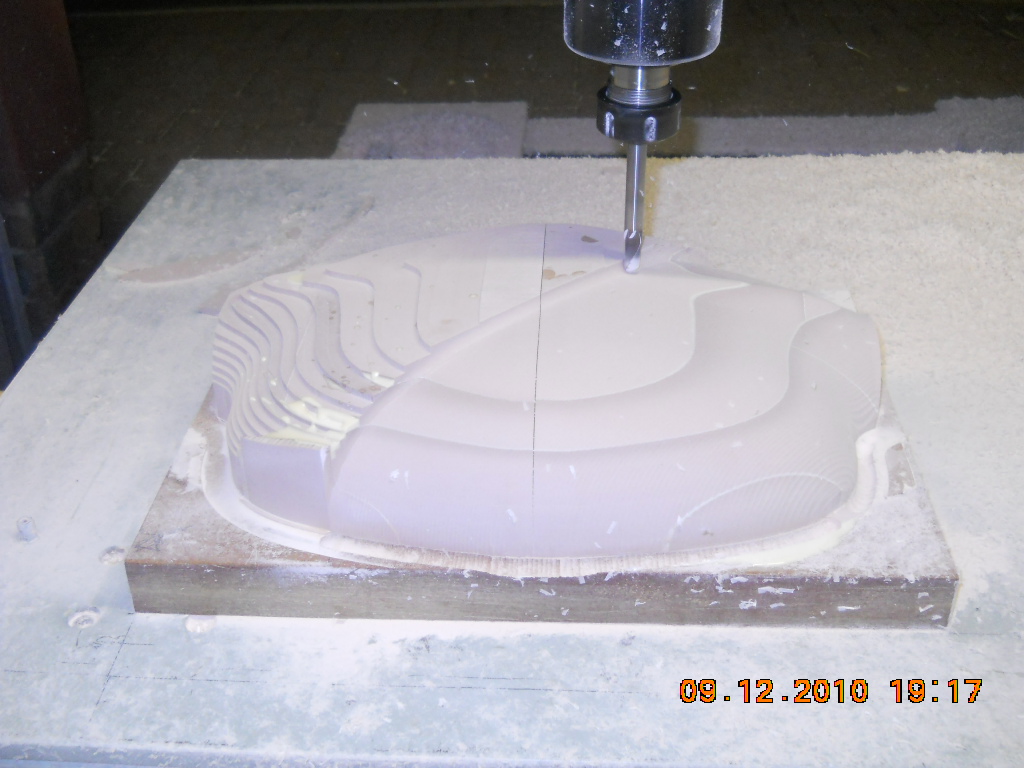

    For the spinner, we decided to use a CNC machined mold and also a press tool to make sure the final part will run true without any vibrations. After the epoxy resin is cured, the excess material is also cut using a lathe.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Sp45375.jpg
Views:	80
Size:	299.1 KB
ID:	1746649   Click image for larger version.

Name:	Sn39679.jpg
Views:	60
Size:	286.6 KB
ID:	1746650   Click image for larger version.

Name:	Jo29905.jpg
Views:	59
Size:	288.8 KB
ID:	1746651   Click image for larger version.

Name:	Lf94645.jpg
Views:	69
Size:	303.1 KB
ID:	1746652   Click image for larger version.

Name:	Lw19160.jpg
Views:	63
Size:	273.4 KB
ID:	1746653

    Click image for larger version.

Name:	Qh64960.jpg
Views:	62
Size:	266.1 KB
ID:	1746654   Click image for larger version.

Name:	Ln12109.jpg
Views:	86
Size:	290.2 KB
ID:	1746655   Click image for larger version.

Name:	Rq55851.jpg
Views:	80
Size:	249.8 KB
ID:	1746656

  9. #59

    Join Date
    Apr 2010
    Location
    Cape Town, SOUTH AFRICA
    Posts
    2,742
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    THanks Alex for the information on fitting the OSGT33 in the cowl. Thats very reassuring.

    Also good work on the moulds. This is a very professional job. Thanks for bringing this very cost effective kit to the market at such a good level of quality.

  10. #60

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

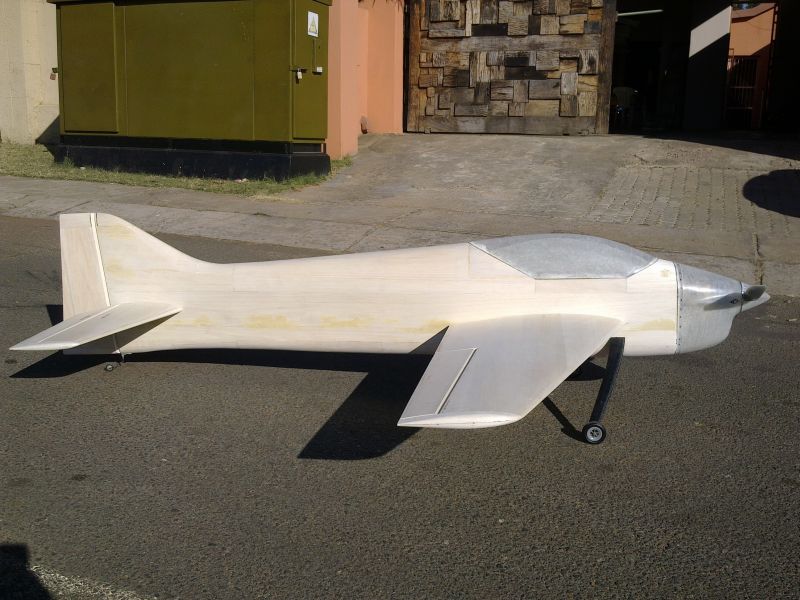

    Last pictures before painting / covering, showing the assembled model with cowl, canopy and spinner fitted. Sorry for the low resolution:
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Us55135.jpg
Views:	161
Size:	104.1 KB
ID:	1749192   Click image for larger version.

Name:	Rm36376.jpg
Views:	117
Size:	111.5 KB
ID:	1749193   Click image for larger version.

Name:	Pu50882.jpg
Views:	138
Size:	111.9 KB
ID:	1749194   Click image for larger version.

Name:	Fy72335.jpg
Views:	117
Size:	116.1 KB
ID:	1749195

  11. #61

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    2 renders of the model with our suggested paintscheme:




  12. #62
    rcpattern's Avatar
    Join Date
    Oct 2003
    Location
    Great Mills, MD
    Posts
    2,835
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    That is a great looking airplane. Very well done,

    Arch
    Team Futaba, Aero-Model / Hacker, Tech Aero Designs, F3A Unlimited, Team BJ Craft, Thunder Power RC, Castle Creations

  13. #63

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Arch, thank you for the kind words. I'm glad you like it.

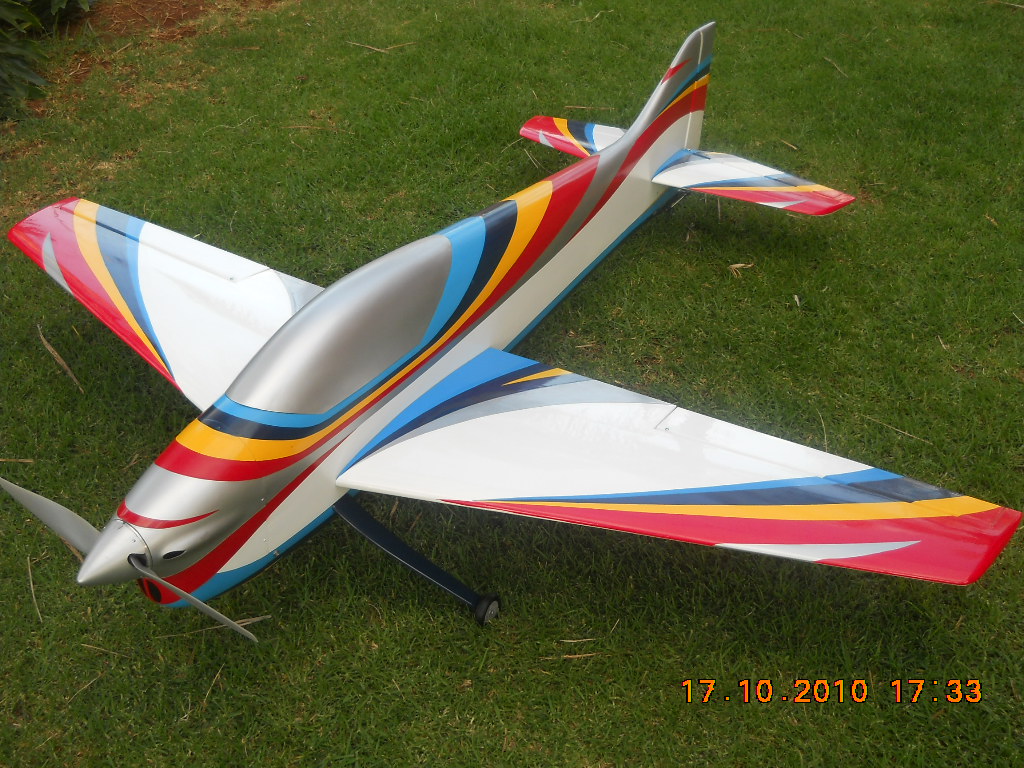

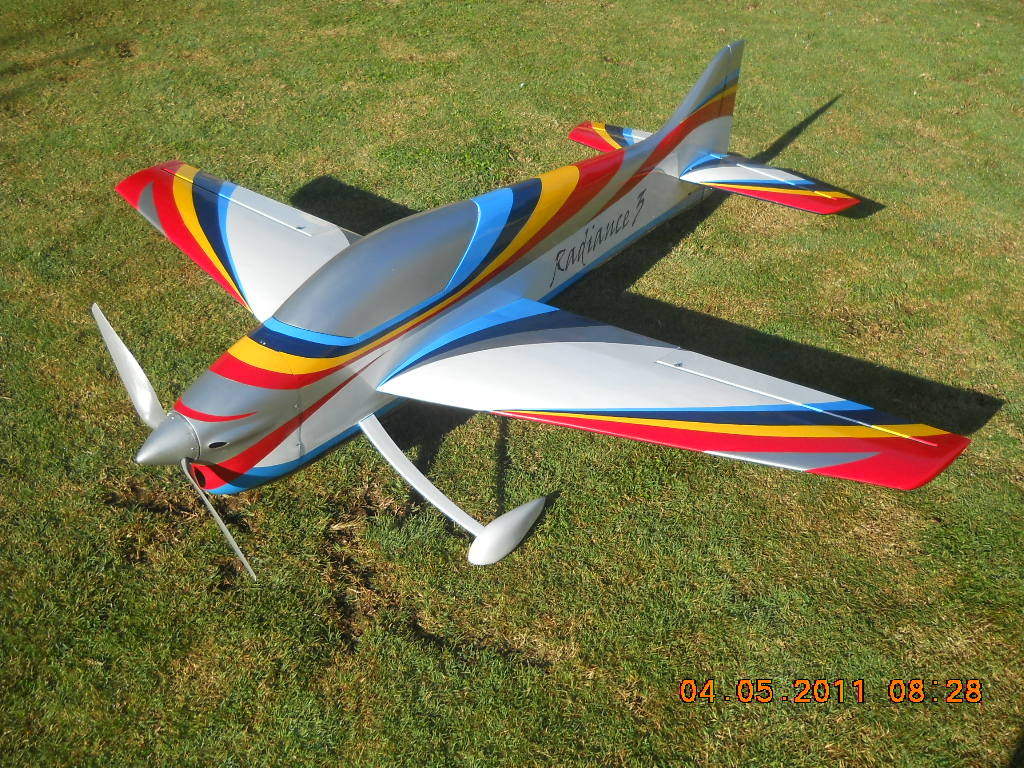

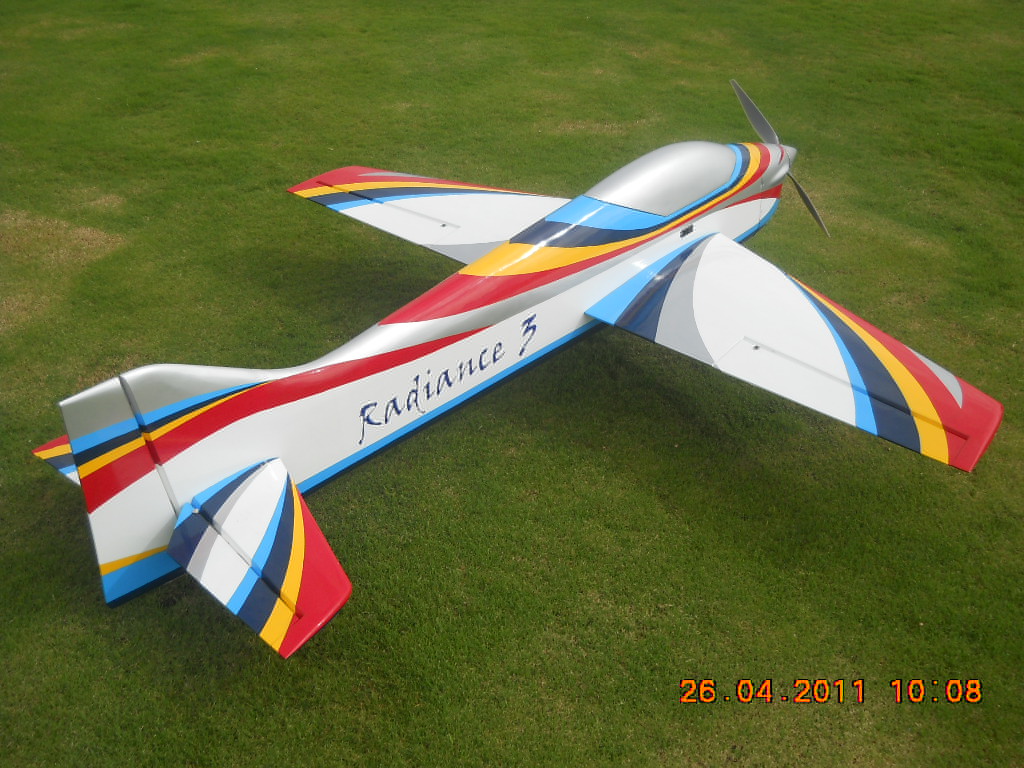

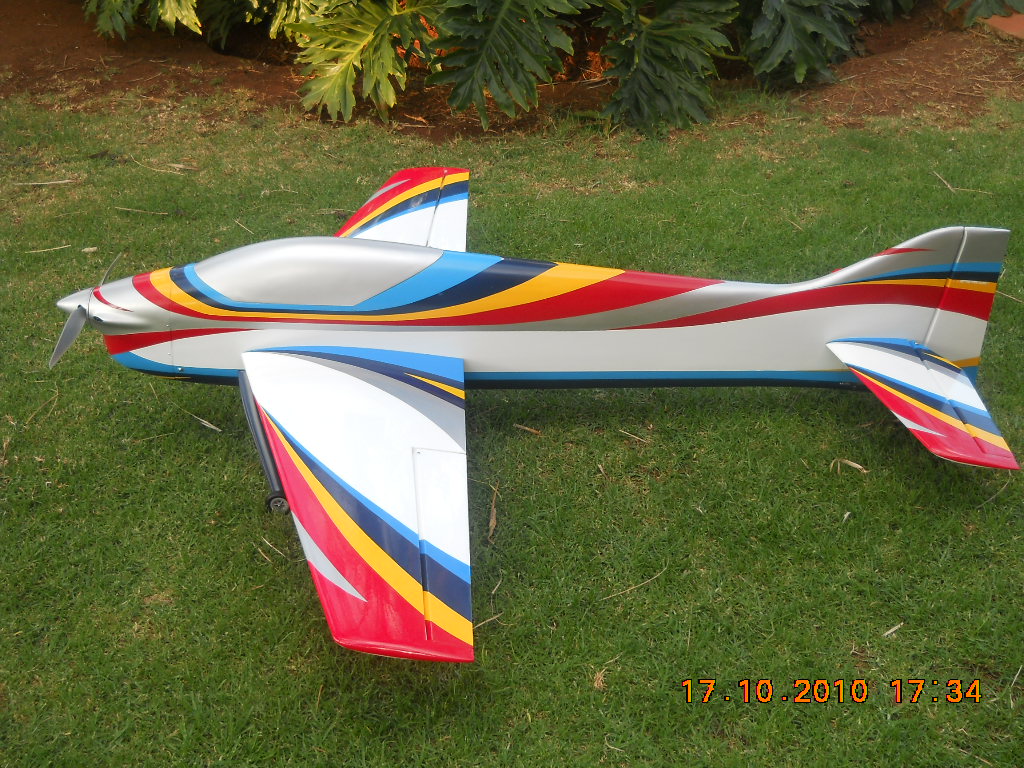

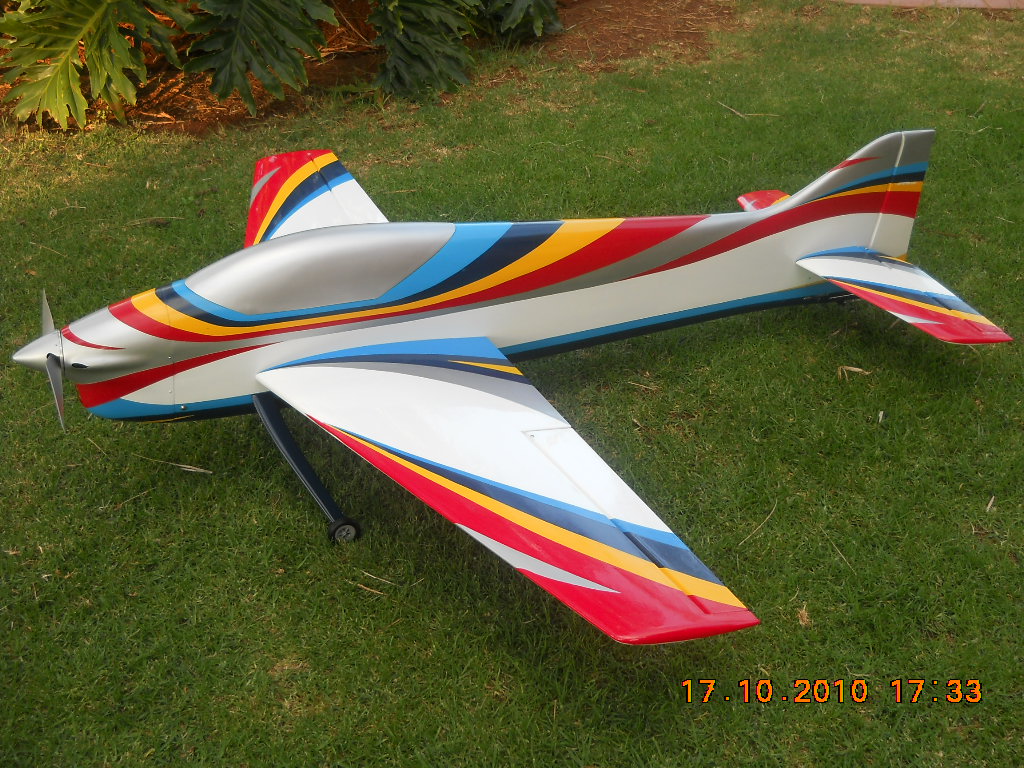

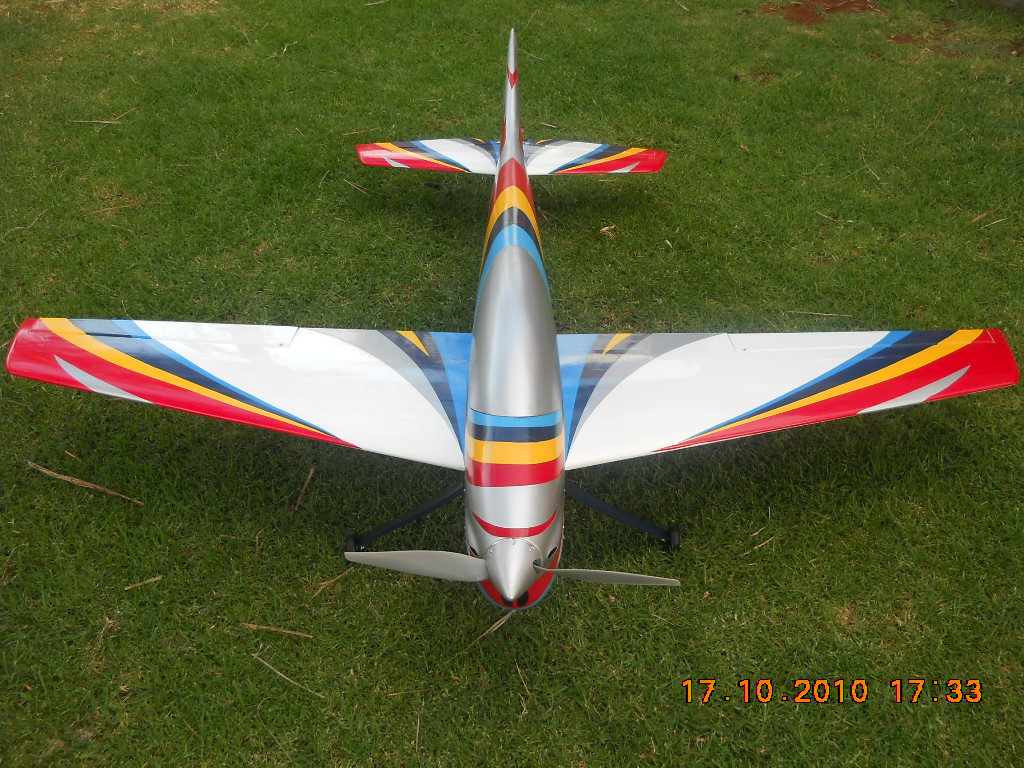

    And now finally some pictures of the finished V2 and V3 prototypes. Tommie decided to switch the red and silver colors and it turned out pretty nice.
    Please note that the kit version has longer ailerons and a different, better looking spinner.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ay75089.jpg
Views:	147
Size:	301.5 KB
ID:	1749693   Click image for larger version.

Name:	Gb88399.jpg
Views:	147
Size:	305.8 KB
ID:	1749694   Click image for larger version.

Name:	Jp32702.jpg
Views:	94
Size:	292.6 KB
ID:	1749695   Click image for larger version.

Name:	Ic85181.jpg
Views:	96
Size:	301.8 KB
ID:	1749696   Click image for larger version.

Name:	Sd45050.jpg
Views:	96
Size:	289.8 KB
ID:	1749697

    Click image for larger version.

Name:	Br12067.jpg
Views:	101
Size:	298.6 KB
ID:	1749698   Click image for larger version.

Name:	Qt30737.jpg
Views:	92
Size:	286.0 KB
ID:	1749699

  14. #64

    Join Date
    Oct 2006
    Location
    St. Louis, MO
    Posts
    13
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hello Alex,

    Is this model intended to be covered entirely with iron on film (I understand paint would be required on fiberglass parts)? I'm curious as to the impact of glassing/painting on overall weight.

    Thanks!
    - Steve

  15. #65

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hi Steve,

    You're right, paint is required for the cowl, canopy and spinner. The fuselage can be either film covered or glassed/painted, it's your choice. The film for the fuselage weights around 80g, glass/paint is a little heavier (~240g) so you need to be careful. You can find more details in Claude's post here (post #118). I would say if you decide to go with glass/paint you need to choose the lightest balsa you can find for sheeting the fuselage.

  16. #66
    stonyZ's Avatar
    Join Date
    Sep 2002
    Location
    CANADA
    Posts
    72
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    hi are plans available for this plane? thanks

  17. #67

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Sorry, the model is only available as a kit.

  18. #68
    gdaddy's Avatar
    Join Date
    Jun 2005
    Location
    West Jordan, UT
    Posts
    52
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hi, really beautiful airplane!

    Could you post the general dimensions of the fuselage? I'm interested in knowing how tall it is at the canopy and the width as well. Its kind of hard to tell in the pics.

    Thank you!

  19. #69

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Thanks Gdaddy, here are the dimensions you asked for:

    - max fuselage height in the canopy area: 340mm
    - max fuselage width: 160mm
    - rudder is 414mm tall

    In general Radiance is a little bigger than the Integral.

  20. #70

    Join Date
    Oct 2006
    Location
    St. Louis, MO
    Posts
    13
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit


    ORIGINAL: Alex Voicu

    As you can see, there's enough space inside the cowl for the OS33, but you would probably need to replace the standard exhaust with a tuned pipe.
    Please keep in mind that the structure was tested with electric power only.
    Hi Alex,

    Did you model the entire OS 33 in Solidworks too? If so, would you be willing to share a file?

    -Steve



  21. #71

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Sorry Steve, i don't have a 3D model of the OS33. I used a 1:1 scale picture from the engine manual.

  22. #72

    Join Date
    Oct 2006
    Location
    St. Louis, MO
    Posts
    13
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hi Alex,

    What are the chances that you'd offer a 'IC/wet power compatible' fuselage at some point in the future?

    It seems that you did a masterful job of optimizing the structure for electric power. I suspect trying to use an engine like the OS 33 or one of the YS's would be more involved than simply confirming that it fits the cowl and then 'beefing' things up.

    - Steve

  23. #73

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hi Steve,

    Maybe in the future, if the sales go well, we will be able to offer a IC power version, but at the moment it would be too expensive for us to retool for IC power, build new airframes and test them. Don't know about the OS33, but looking at other kits designed for the YS170 like the japanese Wingray, i would say the structure is at least equally strong.

  24. #74

    Join Date
    Apr 2003
    Location
    Vikersund, NORWAY
    Posts
    725

    RE: Radiance F3A - new pattern kit

    Hi
    I see that the cowling are put on the fuse with some smal screws, is the front big enough to slide a normal outrunner in??
    I lokking after a new project for next winter but dont like a cowl that are mounted like that.
    So I was think maybe glue it in place as they normally do on the japaneese kits and either mount the engine from front or from the inside off the fuse.
    Rune Gjelsnes
    email: rungjels@gmail.com
    Norway

  25. #75

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    305
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Radiance F3A - new pattern kit

    Hi Rune,

    Radiance is designed for backmounted outrunner motors. The diameter of the spinner is 82mm, so i would say you can slide a regular outrunner in through the front of the cowl, but not with the X mount installed. Anyway, if you choose to glue the cowl in place, i'm not sure you will be able to access the motor screws easily.

    If you are concerned about the small cowl screws, you don't have to drill them through the side of the fuselage. There is a way to hide them inside the model (drill the holes through the firewall and cowl frame).


Page 3 of 5 FirstFirst 12345 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
All times are GMT -6. The time now is 02:48 PM.

SEO by vBSEO 3.6.1 ©2011, Crawlability, Inc.
