    RE: Designing a new pattern model

    I watch many days. It works pretty much good to fly!

  2. #52
    cdodom's Avatar
    Join Date
    Jan 2008
    Location
    Lakeland, FL
    Posts
    394
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    hey I think you can import that file into a simulator like the G4.5 and you can fly it....or thats what I heard
    Chris Odom ;Custom Airframes of America ; Team Airtronics; Team Cool Power; Team YS Parts and Services

  3. #53

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: ELIAS SOPEOGLOU

    Yes Alex ,this is what I mean by milling ,having an exactly half fuse plug milled with guides in mdf is way much progressed work than cutting formers out of wood for a wooden fuse!!
    There is another suggestion though .You said you are laser cutting the formers.You can also cut vertical slises of your male plug with your laser cutter and join them to form your male plug .Every 20 or so slices you would have to make sure they arein the correct lengthwise position.
    You can also split your fuse plug in 3 pieces if you can find a 700mm mill and join them on a board.
    Iยดm throwing any ideas that come in to my mind ,one of them I wish it works for you !

    nice work
    Elias
    Elias,
    There will be a wood version anyway. A friend of mine asked me if i can design a simplified wooden version and i accepted. The design is done and i'm waiting for the lasercut parts.

    For the composite version i will need a little time, but it remains my primary target. The mold plug will be made of lasercut sections and depron blocks, all covered with fiberglass in the end. The work done by our french friends at www.f3a.fr is really inspiring (registration is needed to view the forums). There's a thread about one of the french designs here: http://www.rcuniverse.com/forum/m_72...tm.htm#7222837
    I would love to mill the mold plug and i'm sure i can find solutions for all technical difficulties, but it's just too expensive for me. Will have to do it the old fashioned way

  4. #54

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: cdodom

    hey I think you can import that file into a simulator like the G4.5 and you can fly it....or thats what I heard
    I doubt you can import CAD surfaces in any simulator. Game graphic engines usually work with polygonal surfaces and a complete rework of the model would be needed.

  5. #55
    BHolsten's Avatar
    Join Date
    Mar 2007
    Location
    Fayetteville, NC
    Posts
    1,058
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Elias,

    That is just pure AWESOME LOOKING,.......I want one,...........................


    Best Regards,

    Bill Holsten

    Advantage Hobby Fliton Field Rep/Custom Airframes of America/Dragon Fire Customs/Duralite/Guardian America.

  6. #56

    Join Date
    Aug 2005
    Location
    New York, NY
    Posts
    678
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Alex,

    I went though the thread & it was simply amazing....... were helpful for some one who wants to build his own F3A fiberglass fuselage.





    ORIGINAL: Alex Voicu


    ORIGINAL: ELIAS SOPEOGLOU

    Yes Alex ,this is what I mean by milling ,having an exactly half fuse plug milled with guides in mdf is way much progressed work than cutting formers out of wood for a wooden fuse!!
    There is another suggestion though .You said you are laser cutting the formers.You can also cut vertical slises of your male plug with your laser cutter and join them to form your male plug .Every 20 or so slices you would have to make sure they arein the correct lengthwise position.
    You can also split your fuse plug in 3 pieces if you can find a 700mm mill and join them on a board.
    Iยดm throwing any ideas that come in to my mind ,one of them I wish it works for you !

    nice work
    Elias
    Elias,
    There will be a wood version anyway. A friend of mine asked me if i can design a simplified wooden version and i accepted. The design is done and i'm waiting for the lasercut parts.

    For the composite version i will need a little time, but it remains my primary target. The mold plug will be made of lasercut sections and depron blocks, all covered with fiberglass in the end. The work done by our french friends at www.f3a.fr is really inspiring (registration is needed to view the forums). There's a thread about one of the french designs here: http://www.rcuniverse.com/forum/m_72...tm.htm#7222837
    I would love to mill the mold plug and i'm sure i can find solutions for all technical difficulties, but it's just too expensive for me. Will have to do it the old fashioned way
    I will say it only once Yak 54 the best aerobatic plane ever made.

  7. #57

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

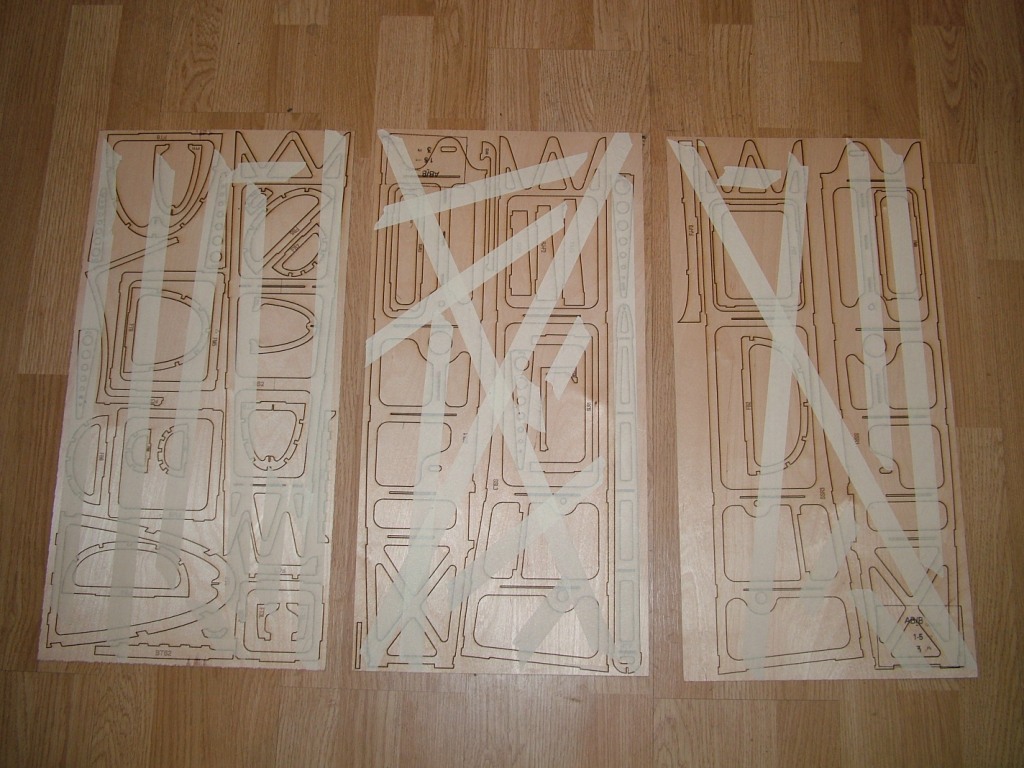

    Here's the wood version i was talking about. It was designed as electric only, but with some effort it can probably be converted for glow power. Comparing to the composite fuselage, i had to simplify the shape as much as possible for easier construction. I had only 15 days to design the whole structure, so i didn't have time for a paintscheme or pretty pictures In order to keep the costs to a minimum, i had to split each side of the central fuselage box in 3 pieces and use smaller and a lot cheaper plywood sheets. The structure will be covered with 1.5mm balsa and the canopy and motor cover will be fiberglass construction.

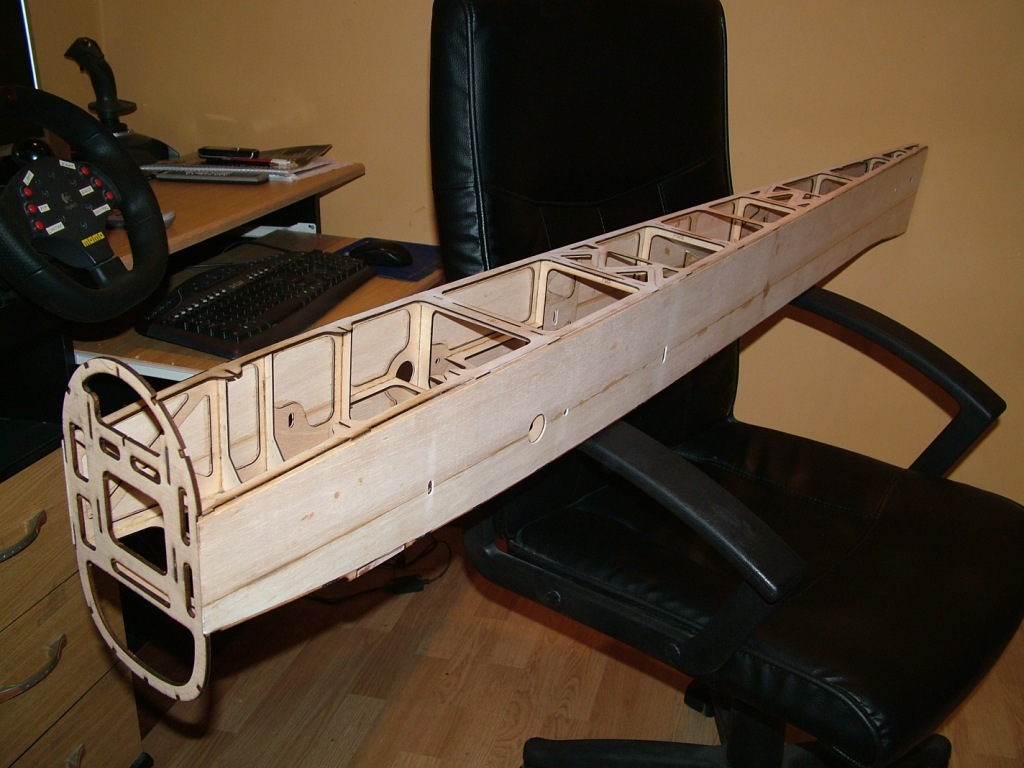

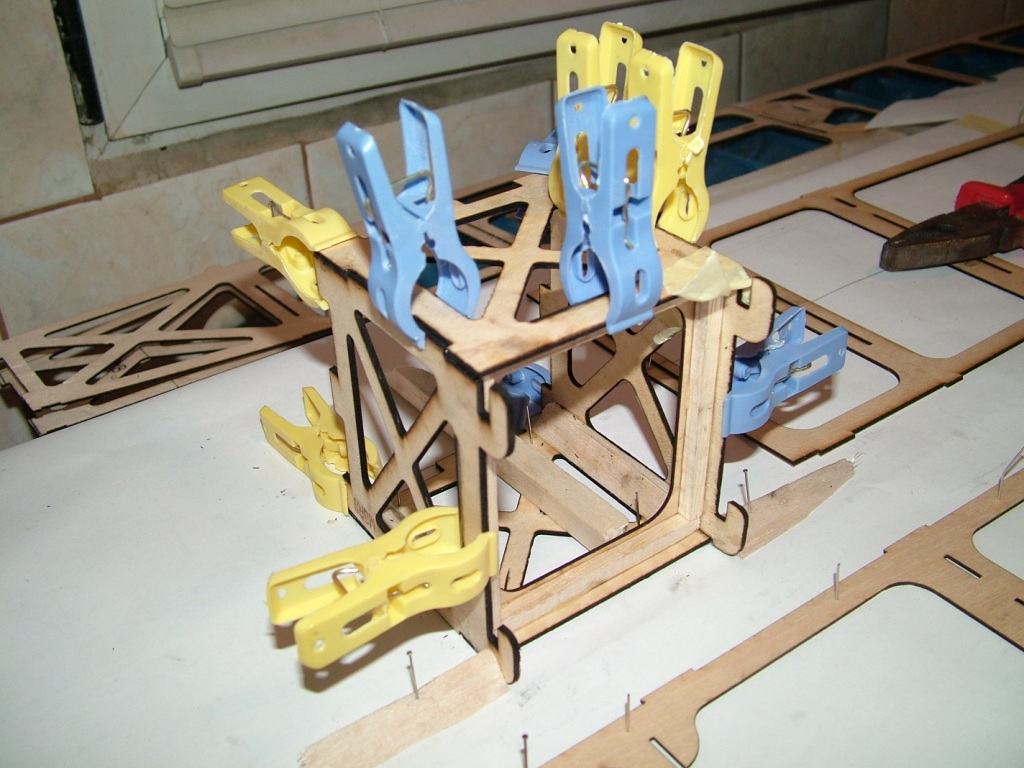

    I got the lasercut parts and i started building the prototype yesterday, so this time you'll see a few building pictures, not just Solidworks renders








  8. #58

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

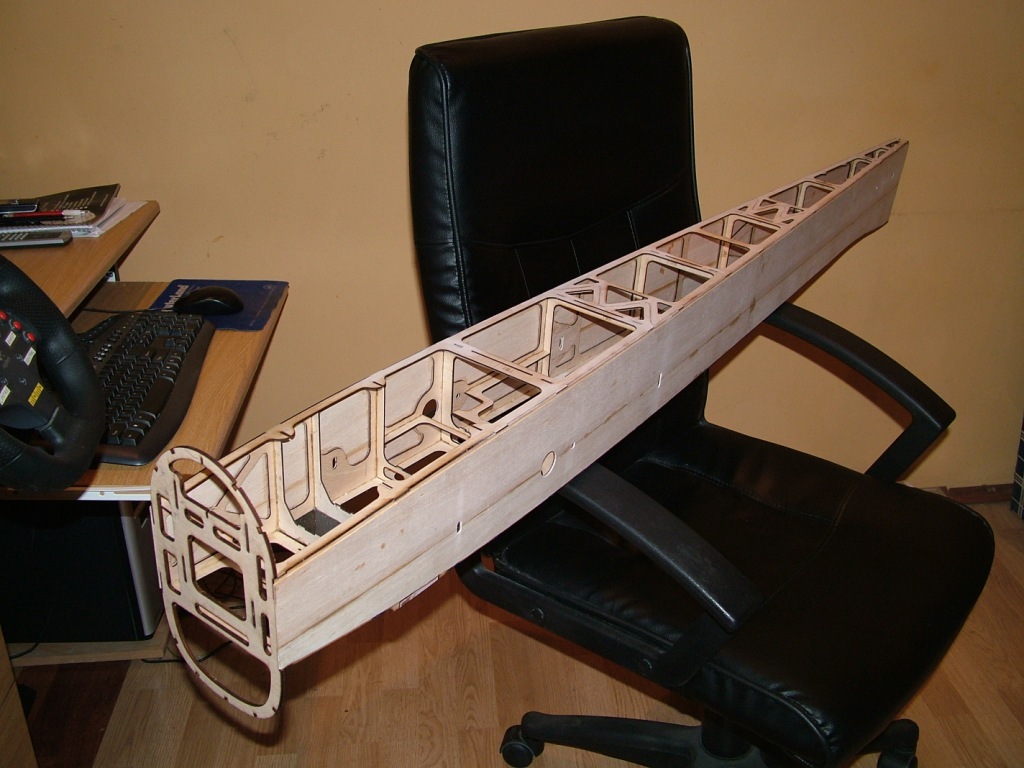

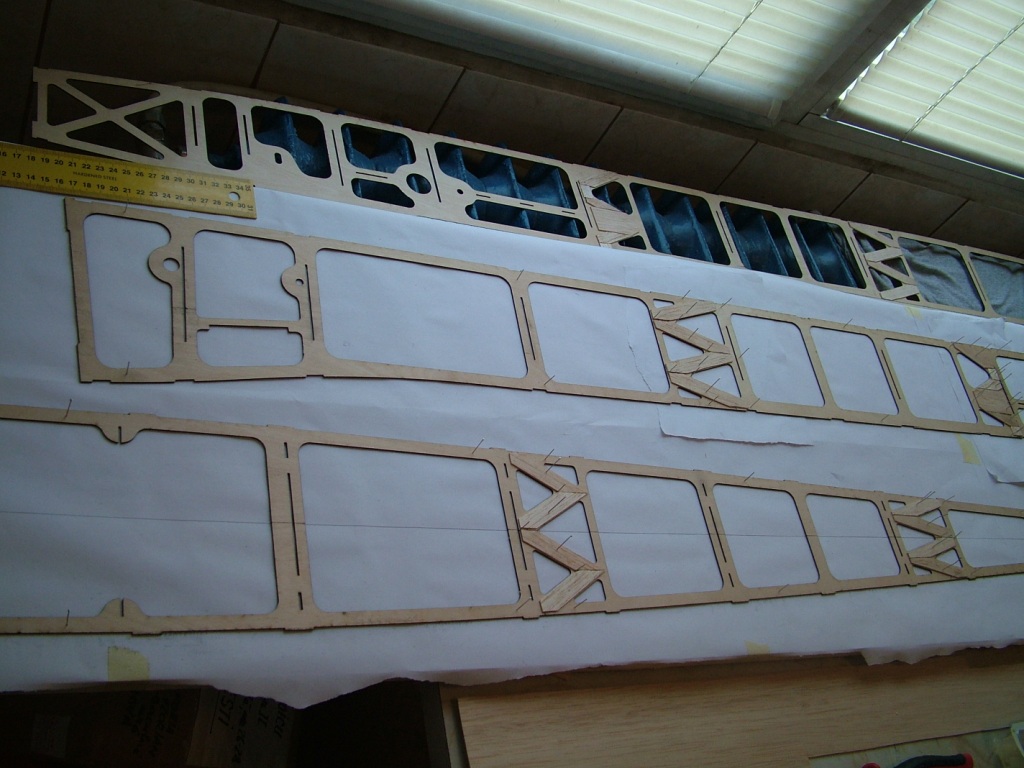

    The lasercut parts look good, maybe the 2mm plywood parts are a little burned around the edges but it should be ok. I started by assembling the sides of the fuselage central box, and while waiting for the epoxy to cure, i put together the basic structure for the canopy an cowling mold plugs and started working on the motor support.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Ur52346.jpg
Views:	17
Size:	202.0 KB
ID:	1254256   Click image for larger version.

Name:	Pk29781.jpg
Views:	13
Size:	174.9 KB
ID:	1254257   Click image for larger version.

Name:	Ze86669.jpg
Views:	12
Size:	196.4 KB
ID:	1254258   Click image for larger version.

Name:	Mf97012.jpg
Views:	10
Size:	200.3 KB
ID:	1254259   Click image for larger version.

Name:	Gr91474.jpg
Views:	12
Size:	194.1 KB
ID:	1254260

    Click image for larger version.

Name:	Hy33940.jpg
Views:	12
Size:	197.8 KB
ID:	1254261   Click image for larger version.

Name:	Ik90103.jpg
Views:	12
Size:	203.1 KB
ID:	1254262   Click image for larger version.

Name:	Vt67853.jpg
Views:	10
Size:	194.3 KB
ID:	1254263   Click image for larger version.

Name:	Wu31823.jpg
Views:	12
Size:	187.8 KB
ID:	1254264   Click image for larger version.

Name:	Iu91699.jpg
Views:	12
Size:	211.3 KB
ID:	1254265

    Click image for larger version.

Name:	Kp70833.jpg
Views:	14
Size:	221.2 KB
ID:	1254266

  9. #59

    Join Date
    Mar 2008
    Location
    , PORTUGAL
    Posts
    3
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Alex fantastic job.

    just a little note, i think you need to make something to force the air getting out of the fuselage.
    in the F3a Sebart models they just open an air exit on the down part of the fuselage and cover with orocover one of the vertical parts of fuselage, or in most of oxai models they put a 45 degrees balsa sheets just a little bit before the wing tube in the fuselage.

    probably you already think what i just told, but i case you don't...

  10. #60

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    I thought about it but haven't decided exactly where to cut the opening for the air exit. It will be somewhere behind the wing, on the belly but i'll try to avoid cutting any of the balsa stringers. The 45 degrees balsa sheet is a good idea.
    Thanks.

  11. #61
    Jeff Boyd 2's Avatar
    Join Date
    Mar 2005
    Location
    Adelaide, AUSTRALIA
    Posts
    730
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Just curious . .

    Is the former/framework for the cowl and canopy to be used for mold making ??

    Cheers, JB
    South Australian Pattern Association web = http://sapa-f3a.blogspot.com/

  12. #62

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Yes, that's for the canopy and cowling mold plugs. I plan to fill the spaces with foam blocks, and the plywood frames will give me a good reference how much to sand when profiling the foam blocks. The foam is too soft so i'll add a layer or two of GF to harden the surface.

  13. #63

    Join Date
    Aug 2005
    Location
    Oulu, FINLAND
    Posts
    191
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Landing gear area seems a bit too lightly constructed.

  14. #64

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    The landing gear support is hidden by the battery tray in the screenshots above, but is made of 6mm hard plywood. It is glued between 2mm plywood formers, with balsa reinforcements around the perimeter. Will add some carbon fiber to the area just to make sure.

  15. #65

    Join Date
    Feb 2003
    Location
    Etobicoke, ON, CANADA
    Posts
    44
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Will the wood version be available as a kit. I would love to get one.

    The way you designed it with the smaller plywood sheets, you could finally get a patter plane kit that doesn't cost an arm and a leg to ship (provided you get your foam cores cut locally).

    Looks really nice!!

    Cheers,
    Dave


  16. #66

    Join Date
    Aug 2006
    Location
    Roswell, GA
    Posts
    5,206
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    just provide a laser cut file for us and we will all build one of these beauties.
    David

  17. #67

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: DavidMC

    Will the wood version be available as a kit. I would love to get one.

    The way you designed it with the smaller plywood sheets, you could finally get a patter plane kit that doesn't cost an arm and a leg to ship (provided you get your foam cores cut locally).

    Looks really nice!!

    Cheers,
    Dave


    Hi Dave,

    Sure, if there's enough interest i can probably provide a short kit. But first i need to build the prototype and make all the necessary adjustments. As always with a new model, there are a large number of unknowns, and weight is one of them. Will have to wait and see the result.
    Most plywood sheets are 610x310mm and the rest are even smaller, so size would be quite small indeed.

  18. #68

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    Small update: added carbon fiber to the mounting plates for the motor, gear, rudder servo and tailwheel. The firewall is made of 4mm liteply and 200g glassfiber on both sides, but i'm thinking about replacing it with something stronger. I added 1.5 mm balsa sheets to the sides of the fuselage box and put it together to make sure all parts fit perfectly. So far so good.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Om34305.jpg
Views:	10
Size:	200.1 KB
ID:	1257051   Click image for larger version.

Name:	Ws56865.jpg
Views:	11
Size:	173.9 KB
ID:	1257052   Click image for larger version.

Name:	Uz69526.jpg
Views:	11
Size:	200.5 KB
ID:	1257053   Click image for larger version.

Name:	Ga77916.jpg
Views:	11
Size:	166.0 KB
ID:	1257054   Click image for larger version.

Name:	Kv17197.jpg
Views:	12
Size:	166.9 KB
ID:	1257055

    Click image for larger version.

Name:	Zq96649.jpg
Views:	20
Size:	212.7 KB
ID:	1257056

  19. #69

    Join Date
    Jul 2004
    Location
    Randolph, NJ
    Posts
    858
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: Alex Voicu

    Small update: added carbon fiber to the mounting plates for the motor, gear, rudder servo and tailwheel. The firewall is made of 4mm liteply and 200g glassfiber on both sides, but i'm thinking about replacing it with something stronger. I added 1.5 mm balsa sheets to the sides of the fuselage box and put it together to make sure all parts fit perfectly. So far so good.
    Very impressive work on this! One suggestion for weight savings is to construct the firewall from 1/4" cross grain balsa laminated with CF cloth. I use small dowels embedded in the balsa to create the mounting hardpoints. This is very strong and much lighter than a plywood, or CF laminated plywood firewall. The firewall I did for my Integral came out to 1.6 oz. You can do the same for the landing gear mounts. If you really want to save weight in the main landing gear mounts, I recommend studying how Wistmodel designed the Vivat, Prestige and Bravo. There's nothing else out there that I know of that is so light and durable as their system.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Vt57680.jpg
Views:	8
Size:	95.8 KB
ID:	1257067   Click image for larger version.

Name:	Pk29763.jpg
Views:	9
Size:	155.3 KB
ID:	1257068   Click image for larger version.

Name:	In27444.jpg
Views:	8
Size:	169.3 KB
ID:	1257069   Click image for larger version.

Name:	Ys48897.jpg
Views:	15
Size:	22.0 KB
ID:	1257070   Click image for larger version.

Name:	It10085.jpg
Views:	9
Size:	21.0 KB
ID:	1257071

    Click image for larger version.

Name:	Qh66575.jpg
Views:	11
Size:	11.9 KB
ID:	1257072   Click image for larger version.

Name:	Pr26523.jpg
Views:	11
Size:	34.9 KB
ID:	1257073   Click image for larger version.

Name:	Ml37932.jpg
Views:	12
Size:	95.2 KB
ID:	1257074
    Ed Alt
    Tech-Aero Designs LLC

  20. #70

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: NJRCFLYER2

    Very impressive work on this! One suggestion for weight savings is to construct the firewall from 1/4'' cross grain balsa laminated with CF cloth. I use small dowels embedded in the balsa to create the mounting hardpoints. This is very strong and much lighter than a plywood, or CF laminated plywood firewall. The firewall I did for my Integral came out to 1.6 oz. You can do the same for the landing gear mounts. If you really want to save weight in the main landing gear mounts, I recommend studying how Wistmodel designed the Vivat, Prestige and Bravo. There's nothing else out there that I know of that is so light and durable as their system.
    Thanks for the suggestions. The landing gear idea is very ingenious and i'll keep it in mind for the composite version. The wood structure was designed with a hard LG mounting plate and changing it would require a major redesign of the area.

    For the firewall i need something that's 4mm or 1/6" thick, so i don't have to modify other parts. Do you think CF laminated 4mm cross grain balsa will work or is it too fragile? Since i'm going to lasercut another firewall, i can test a few ideas.

  21. #71

    Join Date
    Mar 2005
    Location
    Saffron Walden, UNITED KINGDOM
    Posts
    536
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    For the firewall i need something that's 4mm or 1/6" thick, so i don't have to modify other parts. Do you think CF laminated 4mm cross grain balsa will work or is it too fragile? Since i'm going to lasercut another firewall, i can test a few ideas.
    I have used CF laminated end grain 4mm balsa as a firewall in the past for 160 2-stroke F3A motors-the only addition was to anchor the captive nuts, for the motor mount, in separate little doughnuts of liteply glued to the rear face, to avoid piercing the CF skin.
    200 gram cloth, or even 90 gram, works fine.
    Nowadays, I use two layers of 2mm liteply, bonded together with the outer grain of the two layers at 90 degrees to each other;
    and faced with any choice of 200 gram glasscloth, 200 or 90 gram Carbon fibre cloth, whichever is available.
    This firewall has worked for me, for electric, 2-stroke, 4-stroke, without problems.

  22. #72
    MTK's Avatar
    Join Date
    May 2004
    Location
    Whippany, NJ
    Posts
    4,598
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model


    ORIGINAL: Alex Voicu


    ORIGINAL: NJRCFLYER2

    Very impressive work on this! One suggestion for weight savings is to construct the firewall from 1/4'' cross grain balsa laminated with CF cloth. I use small dowels embedded in the balsa to create the mounting hardpoints. This is very strong and much lighter than a plywood, or CF laminated plywood firewall. The firewall I did for my Integral came out to 1.6 oz. You can do the same for the landing gear mounts. If you really want to save weight in the main landing gear mounts, I recommend studying how Wistmodel designed the Vivat, Prestige and Bravo. There's nothing else out there that I know of that is so light and durable as their system.
    Thanks for the suggestions. The landing gear idea is very ingenious and i'll keep it in mind for the composite version. The wood structure was designed with a hard LG mounting plate and changing it would require a major redesign of the area.

    For the firewall i need something that's 4mm or 1/6'' thick, so i don't have to modify other parts. Do you think CF laminated 4mm cross grain balsa will work or is it too fragile? Since i'm going to lasercut another firewall, i can test a few ideas.
    4 mm end grained balsa laminated with carbon cloth on both sides is very strong. For electric, 3 mm end grain is fine. Vacuum bag it as Ed showed to achieve the best contact and highest carbon to epoxy ratio.

    I also think this is nice work.

    MattK
    Regards,
    MattK
    (Rcmaster199@aol.com)

  23. #73

    Join Date
    Aug 2006
    Location
    Bucharest, ROMANIA
    Posts
    265
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    I was a little busy last week, but i finally found some time to work on the fuselage the last couple of evenings. The fuselage box is now finished and the hot air deflector installed.
    I am still amazed how well all the parts assembled together without sanding anything and how stiff the structure is. I made a few small mistakes though, but it's nothing serious.
    I cut 2 more firewalls and i'll use carbon cloth on both sides to make it stronger.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Qn38495.jpg
Views:	16
Size:	209.4 KB
ID:	1263976   Click image for larger version.

Name:	Vr53451.jpg
Views:	13
Size:	202.6 KB
ID:	1263977   Click image for larger version.

Name:	Sx63212.jpg
Views:	13
Size:	190.7 KB
ID:	1263978   Click image for larger version.

Name:	Un33546.jpg
Views:	17
Size:	181.0 KB
ID:	1263979   Click image for larger version.

Name:	Mx22770.jpg
Views:	13
Size:	191.3 KB
ID:	1263980

    Click image for larger version.

Name:	Ri68649.jpg
Views:	13
Size:	179.0 KB
ID:	1263981   Click image for larger version.

Name:	Zb60467.jpg
Views:	15
Size:	223.0 KB
ID:	1263982   Click image for larger version.

Name:	Vt68448.jpg
Views:	12
Size:	214.3 KB
ID:	1263983   Click image for larger version.

Name:	Bz48470.jpg
Views:	17
Size:	185.4 KB
ID:	1263984   Click image for larger version.

Name:	Lx11054.jpg
Views:	12
Size:	193.3 KB
ID:	1263985

    Click image for larger version.

Name:	Kq73334.jpg
Views:	13
Size:	184.3 KB
ID:	1263986

  24. #74

    Join Date
    Dec 2001
    Location
    San Diego, CA
    Posts
    3,395
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    I'd love to build one of these when you get the final version done (or even beta version done). I'm one of those crazy people that actually enjoys building my airplanes still..
    Doug Cronkhite

  25. #75

    Join Date
    Mar 2004
    Location
    Moss, NORWAY
    Posts
    498
    Gallery
    My Gallery
    Models
    My Models
    Ratings
    My Feedback

    RE: Designing a new pattern model

    I'm one of those crazy people that actually enjoys building my airplanes still..
    I think there is quite a lot of crazy people out there...

    Alex, there is a lack of good basic built up models suitable for pattern/F3A in the 2m size. (Ok, there are some, but there is room for more.)
    A "short kit" consisting of milled/laser cut plywood parts, composite canopy and cowling, and possibly plywood templates for wing cutting, would probably sell quite well, and be cheap to ship. I think it would be easier for you to sell a few of these, than full composite models.

    Nice work.

    Regards,
    Magne


Page 3 of 8 FirstFirst 12345 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
All times are GMT -6. The time now is 08:01 PM.

SEO by vBSEO 3.6.1 ©2011, Crawlability, Inc.
