Old 12-15-2010, 01:28 PM
  #226
sc204
Thread Starter

Join Date: Jul 2005
Location: , NY
Posts: 583
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

There were lots of leftover parts in my bag. Meant to be used as alignment pins somewhere. I think I was told that they were a holdover from the Impact kit. Same basic bag of accessories included with all the pattern kits. I think I did use the tube portion when I added adjustable incidence to the wing.

Stuart
sc204 is offline
Reply With Quote
Old 12-15-2010, 01:54 PM
  #227
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

OK, makes sense. Thanks Stuart!

Volkert
wagen017 is offline
Reply With Quote
Old 12-19-2010, 11:14 AM
  #228
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Update on weights: my Valiant is now completely finished except for propellor, motor, controller and battery tray. The weight is now 2.888 grams.

With my Pletty Evo30-10 (585gr), spin opto 99(105gr), RASA prop (72gr) and 2x5S Rhino 4900 (1272gr) that would leave me with 78grams to mounting all this. Looking good!

Sofar I have built the Valiant completely stock with the parts supplied. I left out all the reinforcements and "dampening" needed for YS vibrations. I can post some pictures + equipment list if there is interest.

Volkert
wagen017 is offline
Reply With Quote
Old 12-19-2010, 11:58 AM
  #229
rene69

Join Date: Feb 2006
Location: Cedar Park, TX
Posts: 93
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Please post some pictures.
Thanks
Rene
rene69 is offline
Reply With Quote
Old 12-20-2010, 12:02 PM
  #230
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

You want pictures, you get pictures!!

Here we go:

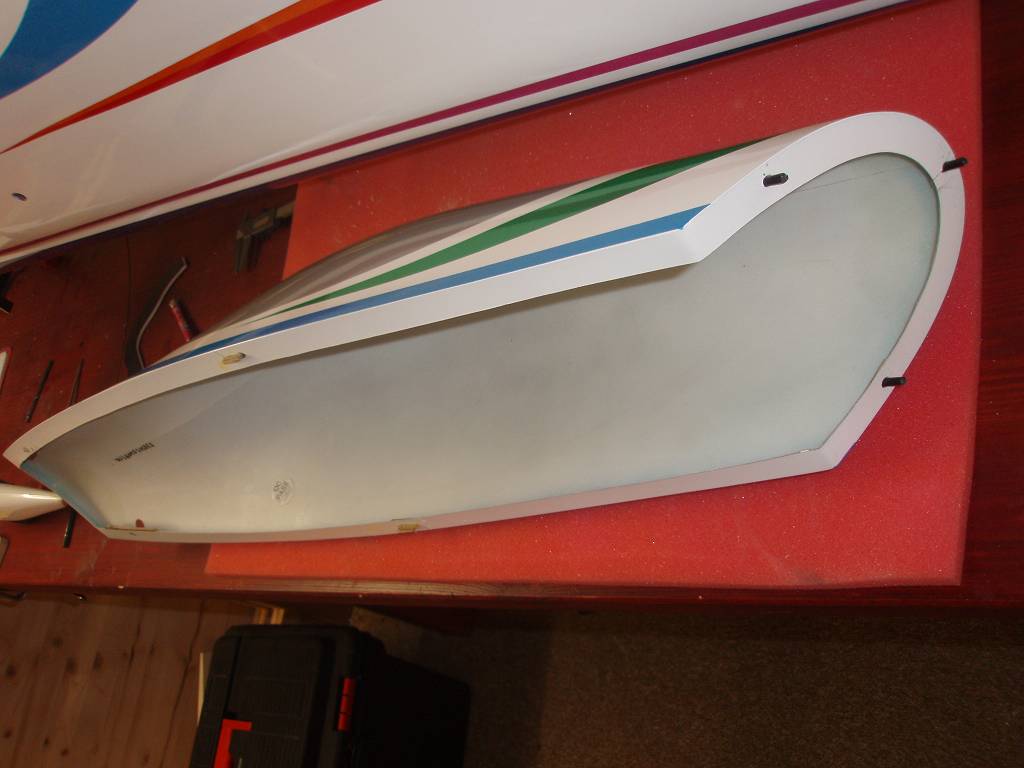

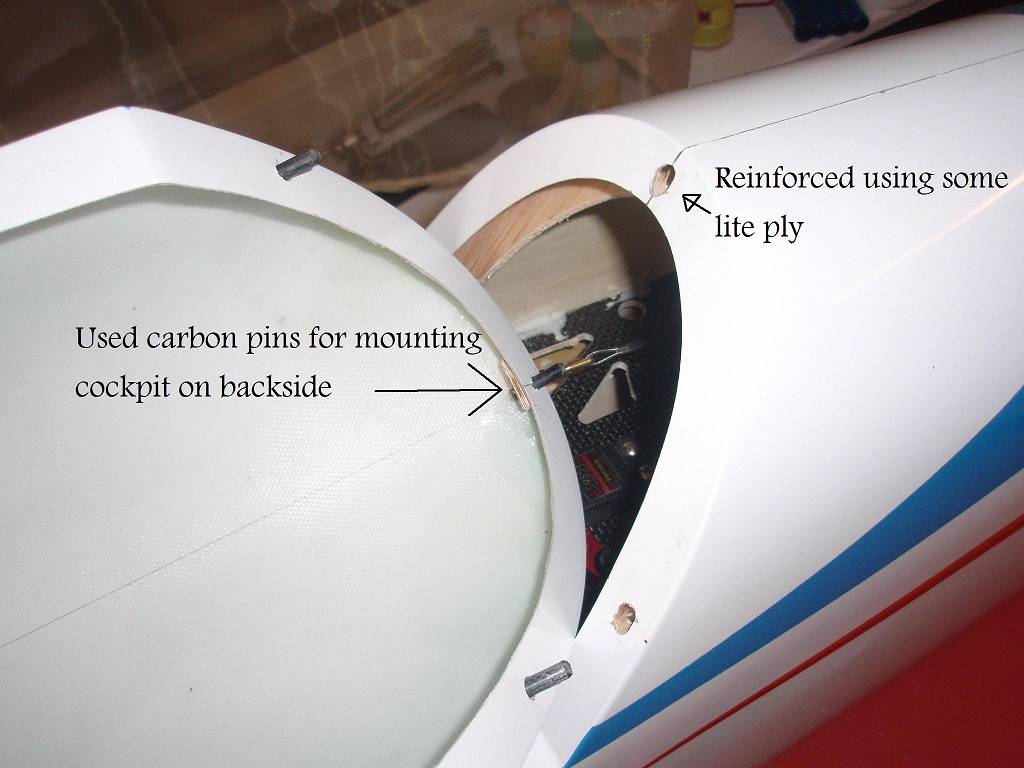

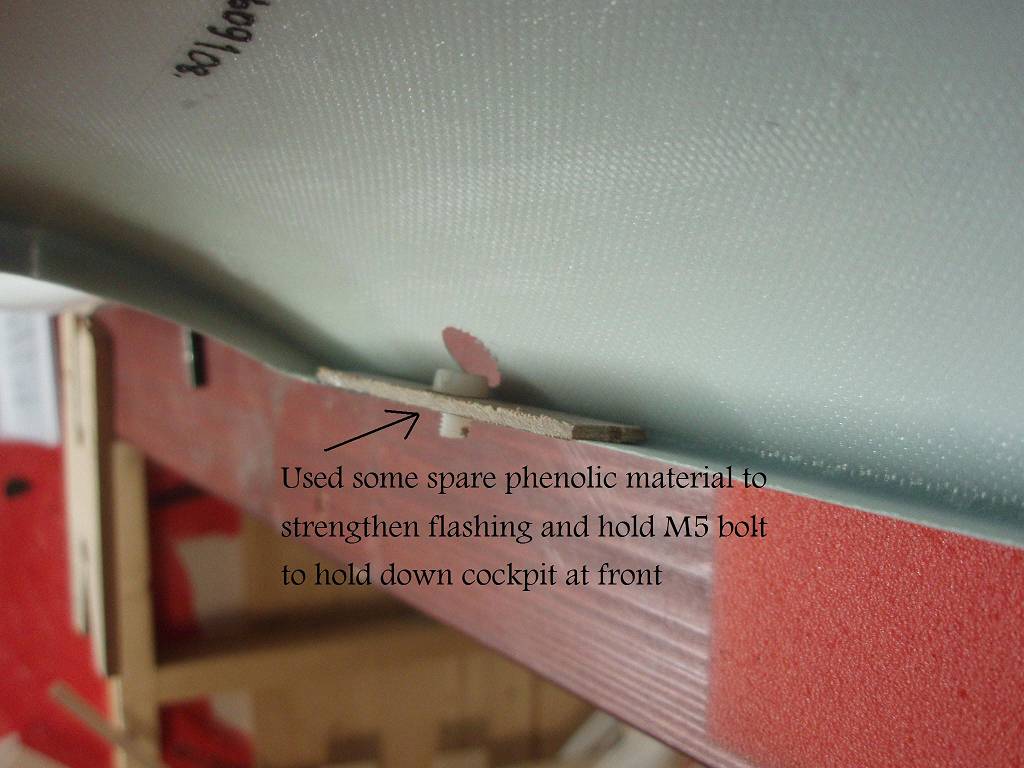

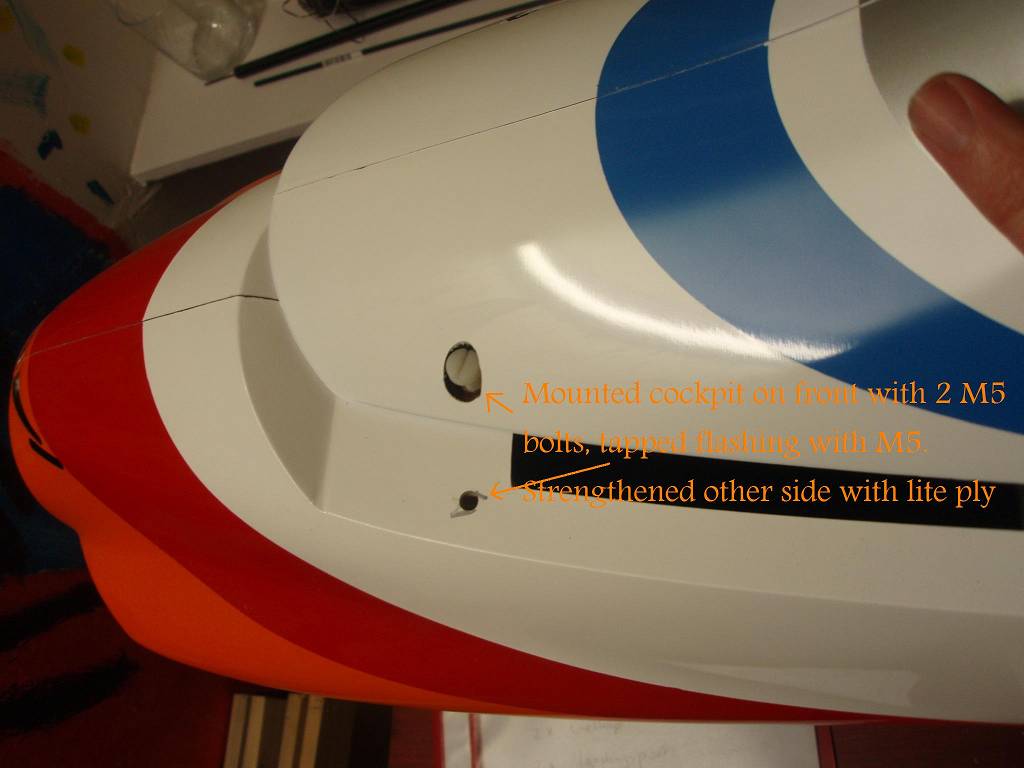

1. mounting cockpit. About the only part of the build where you have to think yourself....

Attached Thumbnails
Click image for larger version

Name:	Rp42513.jpg
Views:	20
Size:	67.9 KB
ID:	1536414   Click image for larger version

Name:	Rp42348.jpg
Views:	24
Size:	53.1 KB
ID:	1536415   Click image for larger version

Name:	Db84090.jpg
Views:	22
Size:	61.5 KB
ID:	1536416   Click image for larger version

Name:	Mj24609.jpg
Views:	23
Size:	70.2 KB
ID:	1536417   Click image for larger version

Name:	Yw68260.jpg
Views:	25
Size:	80.8 KB
ID:	1536418
wagen017 is offline
Reply With Quote
Old 12-20-2010, 12:18 PM
  #231
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

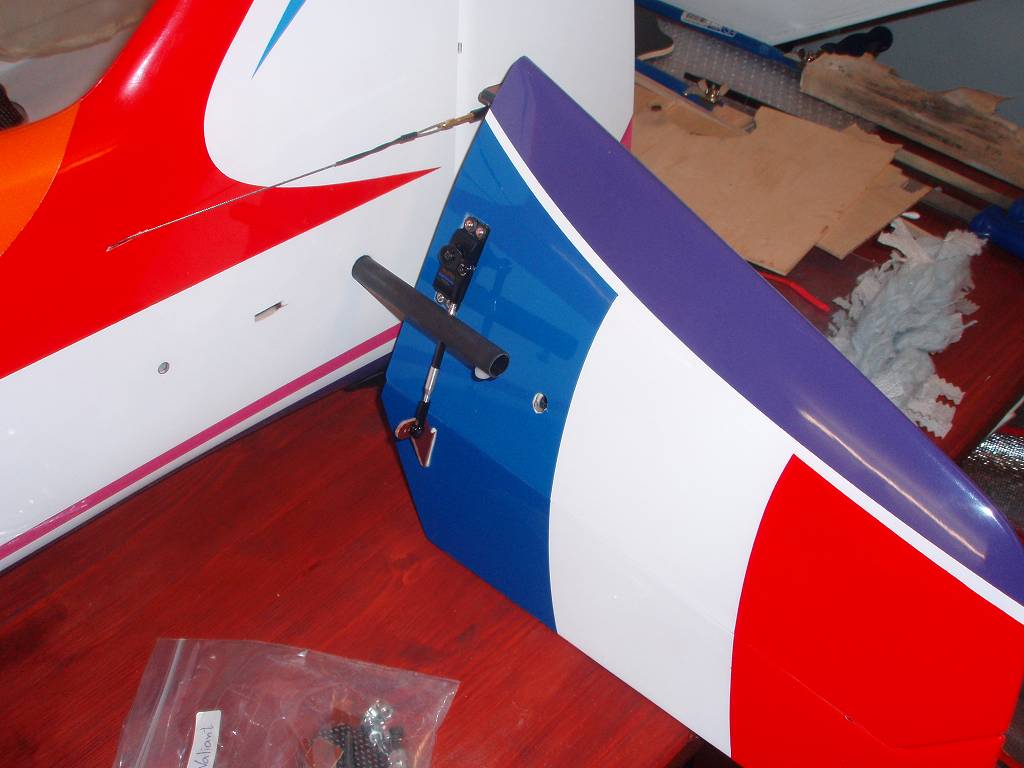

details on wings and stabilisers. I used the same methods for the linkages.
Attached Thumbnails
Click image for larger version

Name:	Xv64037.jpg
Views:	19
Size:	106.6 KB
ID:	1536428   Click image for larger version

Name:	Sq47711.jpg
Views:	20
Size:	62.7 KB
ID:	1536429   Click image for larger version

Name:	Xv63515.jpg
Views:	22
Size:	70.2 KB
ID:	1536430
wagen017 is offline
Reply With Quote
Old 12-20-2010, 12:20 PM
  #232
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

This is really hard work! I can only upload one picture at the time!

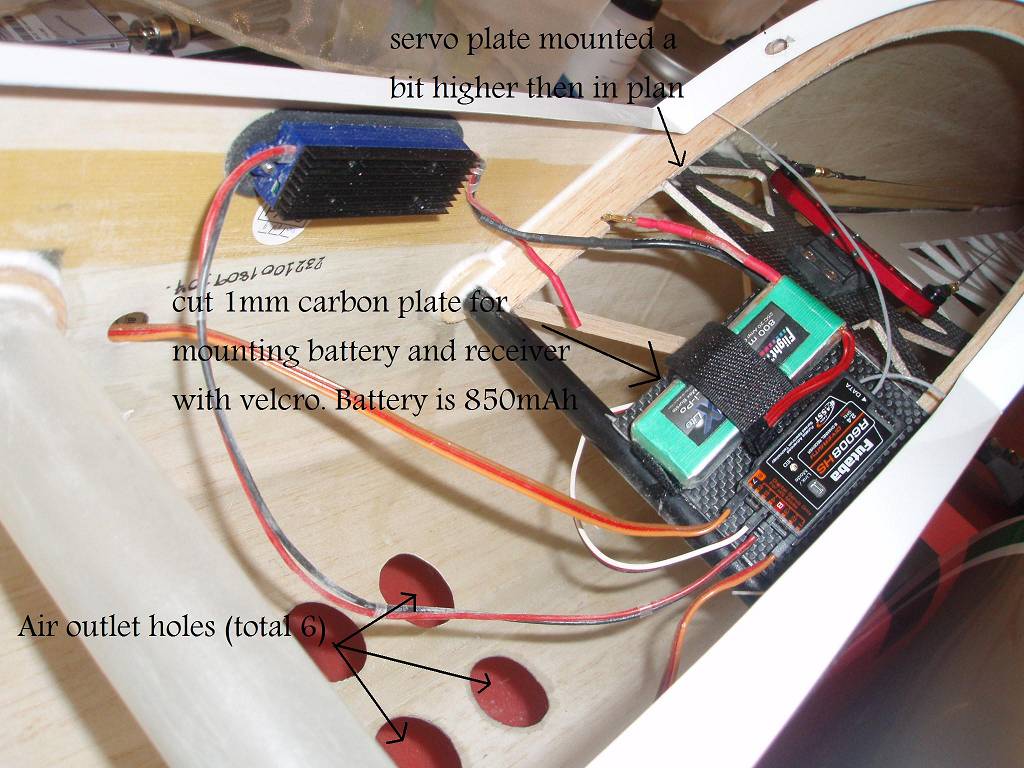

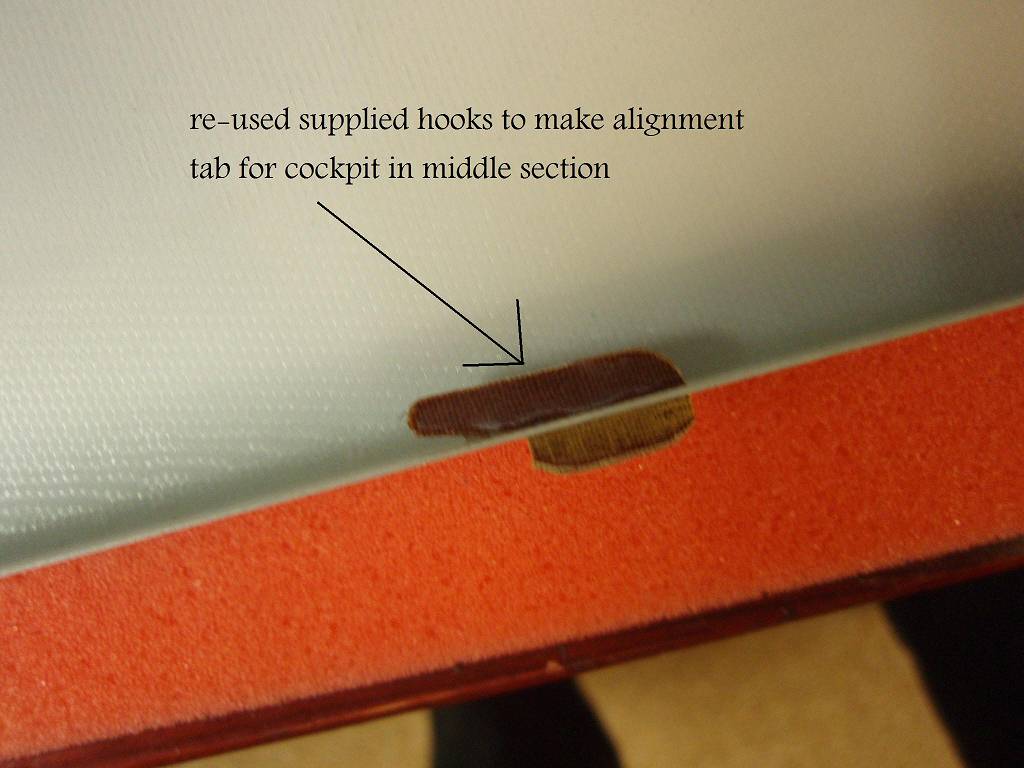

Here some others, I wrote the details in the pictures:
Attached Thumbnails
Click image for larger version

Name:	Ki20761.jpg
Views:	21
Size:	118.7 KB
ID:	1536431   Click image for larger version

Name:	Bz79011.jpg
Views:	15
Size:	59.4 KB
ID:	1536432
wagen017 is offline
Reply With Quote
Old 12-20-2010, 12:25 PM
  #233
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Equipment used:
Futuba 6008 HS receiver
JR9411 2x for ailerons
Futaba 9351 for rudder + SWG extention for extra throw
Futaba BLS153 2x for elevators
850mAh battery
Emcotech Single bat switch. I always remove the charge wire and 2nd receiver feed wire (saves 6 grams)

Volkert
wagen017 is offline
Reply With Quote
Old 12-20-2010, 01:29 PM
  #234
Hans Meij

Join Date: Apr 2002
Location: Schoonhoven, NETHERLANDS
Posts: 658
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Quote:
ORIGINAL: wagen017
Emcotech Single bat switch. I always remove the charge wire and 2nd receiver feed wire (saves 6 grams)
Volkert check the tightness of the connector. They can be a bit loose. A backup feedline is not bad in that respect.

Hans Meij is online now
Reply With Quote
Old 12-20-2010, 01:40 PM
  #235
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

will do!!

Volkert
wagen017 is offline
Reply With Quote
Old 12-21-2010, 05:04 AM
  #236
rene69

Join Date: Feb 2006
Location: Cedar Park, TX
Posts: 93
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Thanks for the pictures. The a/c looks really good. I'm in the building face right now. Will use a YS170 and JR radio.
Merry Christmas and good flights in 2011.
Regards
Rene
rene69 is offline
Reply With Quote
Old 12-26-2010, 12:45 PM
  #237
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

today put my Valiant together to check alignments and work on the throws. This is a great plane and I love how it looks!!!! Also the build quality is great. For those of you that like the Jason Schulman scheme, they are still available even if it is not mentioned on the website so get one while you can!!

If I take the cockpit railing as my zero the plane actually came out quite flat. A little incidence on the wing (0.2 degrees) and no incidence (0) on the elevator halves.

I wonder about the incidence measurements, anybody did measure them?

Another question on the throws. In the manual the throws are mentioned for the snaps (23 degrees aileron, elevator 14 up, 18 degrees down, rudder 20 degrees). I wonder what the normal throws are.

Volkert
wagen017 is offline
Reply With Quote
Old 12-26-2010, 09:45 PM
  #238
eryildirim

Join Date: Nov 2005
Location: MANISA, TURKEY
Posts: 10
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Hello Volkert


The incidence of the wing must be 0.6 deg comparing to the base of the canopy.
Beveled shape of the trailing edge of the wing causes misalignment of the back leg of the measurement device So temporarily fill it with a piece of balsa and fix it with a two side tape. Then you will measure correct incidence.
Stabs are 0 deg.
For stall turn you need a high deflection of rudder.
My rudder touches to elevators on both side.

Ahmet Eryildirim
eryildirim is offline
Reply With Quote
Old 12-27-2010, 08:02 AM
  #239
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

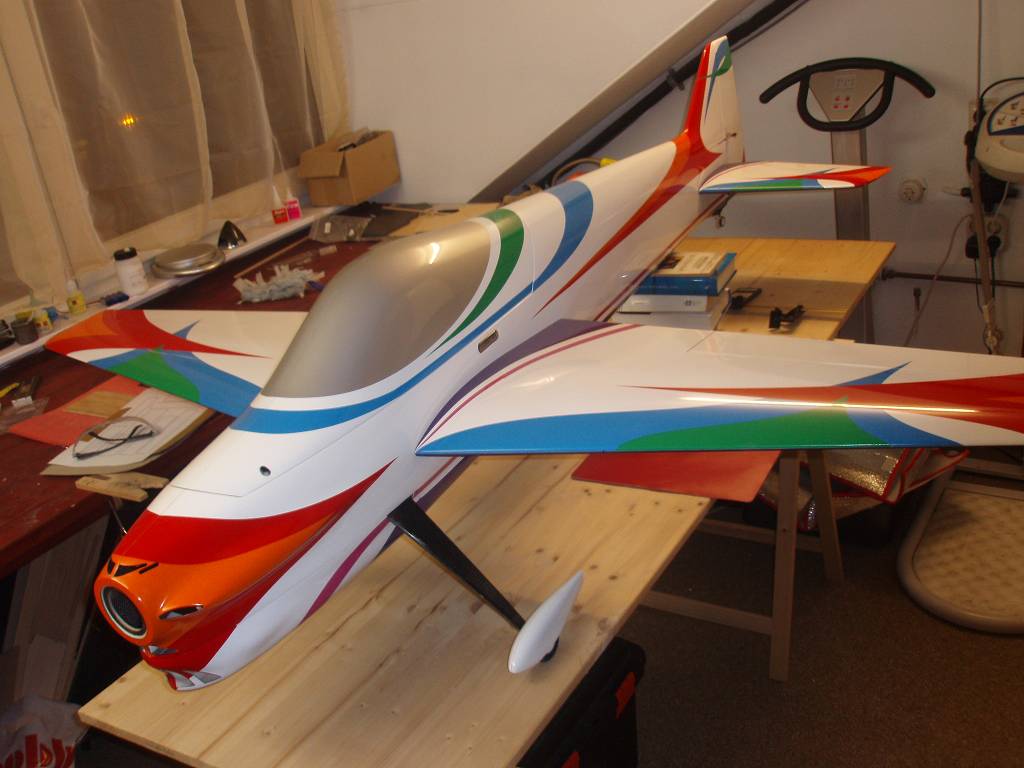

Here with the picture, couldn't upload it yesterday!

Volkert
Attached Thumbnails
Click image for larger version

Name:	Vt56386.jpg
Views:	20
Size:	75.5 KB
ID:	1538587
wagen017 is offline
Reply With Quote
Old 12-27-2010, 09:41 AM
  #240
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Quote:
ORIGINAL: eryildirim

Hello Volkert


The incidence of the wing must be 0.6 deg comparing to the base of the canopy.
Beveled shape of the trailing edge of the wing causes misalignment of the back leg of the measurement device So temporarily fill it with a piece of balsa and fix it with a two side tape. Then you will measure correct incidence.
Stabs are 0 deg.
For stall turn you need a high deflection of rudder.
My rudder touches to elevators on both side.

Ahmet Eryildirim
Right on the money! You were right about the trailing edge. Now I measured 0,5 degrees positive.

My rudder comes about parallel on the elevator halves, but I cannot get it further. What do you need to sand away to get it like that? I tried around the junction, but it did not make a difference.


Volkert
wagen017 is offline
Reply With Quote
Old 12-27-2010, 12:49 PM
  #241
pattratt

Join Date: Jul 2007
Location: Humble, TX
Posts: 564
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Volkert

I had to open up the hinge slots. Keep moving it back and forth you will be able to see where you need to clearance. It's a great flying aircraft.

Dick
pattratt is offline
Reply With Quote
Old 01-04-2011, 09:30 PM
  #242
kochj

Join Date: Dec 2005
Location: Victoria, MN
Posts: 3,933
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

flyncajun
Or anyone else that did the chin per-manual....

How exactly does it work?
Do you FOrce the two pins (bolts) throught the wire?? Which moves the wire out of the way to allow the rounded bolts out/in ??
Or do you make a slot on the outside of the fuse so it slides??
Do you then pull the wire on both sides and then pull the chin out???

Could you show some pictures of a finished example..???
It would be very helpfull and most appreciated...

Justin..
Attached Thumbnails
Click image for larger version

Name:	Wu61215.jpg
Views:	14
Size:	59.4 KB
ID:	1542611
kochj is offline
Reply With Quote
Old 01-18-2011, 04:00 PM
  #243
Tangy Tom

Join Date: Sep 2005
Location: ., KAZAKHSTAN
Posts: 28
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Hi,

Can anyone tell me what diameter the wing tube and tail plane tubes are for the Valiant?

Thanks
Tangy Tom is offline
Reply With Quote
Old 01-18-2011, 04:48 PM
  #244
Mastertech

Mastertech's Avatar

Join Date: Nov 2004
Location: Dalzell, SC
Posts: 1,411
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

You make small slots in the fuse side where the wire goes through. Do not force them in or out.

Tim
Mastertech is offline
Reply With Quote
Old 01-18-2011, 07:11 PM
  #245
sc204
Thread Starter

Join Date: Jul 2005
Location: , NY
Posts: 583
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

I know the wing tube is 30mm but not the most accurate of tubes. Poor quality compared to other wing tubes, and heavy.
sc204 is offline
Reply With Quote
Old 01-19-2011, 04:59 AM
  #246
Tangy Tom

Join Date: Sep 2005
Location: ., KAZAKHSTAN
Posts: 28
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Hello,

Yes I was looking at the weights some of you guys posted and it does seem heavy. I am going to order a 30mm PBG tube which should save me around 50g.

Does anyone else know the diameter of the tail tube as I am going to purchase a PBG tail tube as well.

Thanks
Tangy Tom is offline
Reply With Quote
Old 01-19-2011, 06:38 AM
  #247
Torben Parsberg

Join Date: Nov 2006
Location: hedensted, DENMARK
Posts: 144
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

hallo
I have order a new tube from PBG
they made it for me 68cm long dia 3cm and a weight at 64g
comp arf tube 126g[:-] and its not round ,,
Torben Parsberg is offline
Reply With Quote
Old 01-19-2011, 07:18 AM
  #248
sc204
Thread Starter

Join Date: Jul 2005
Location: , NY
Posts: 583
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

I also replaced the wing tube with an aftermarket version. I had to add some clear packing tape to make it fit better as you are right the original is not perfectly round. Half of the weight difference was lost due to this. I realized I can not measure the stab tube as I have the stab glued in to minimize any slop.

Stuart
sc204 is offline
Reply With Quote
Old 01-19-2011, 11:26 AM
  #249
wagen017

Join Date: Oct 2003
Location: Eindhoven, NETHERLANDS
Posts: 960
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Tom, maybe you can measure the stab tube on your Valiant and let us all know!

I read somewhere a discussion regarding stiffness of wingtube and its effect on plane alignment during flight. There must be a reason for this massive wingtube. I was surprised the first time I saw it.

Volkert

PS: I am still awaiting my new motor; once I have it I will post final weights
wagen017 is offline
Reply With Quote
Old 02-01-2011, 09:30 AM
  #250
H

Join Date: Aug 2004
Location: coleshill, UNITED KINGDOM
Posts: 67
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF Valiant

Hi Does anyone have the supplier contact details for the pbg wing and tail tubes in the US please.
Adrian
H is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 10:21 PM.
