Hi all,

I was starting up the boiler in our basement yesterday and found some RCM plans for an aircraft called a C.A.T.(canard assisted tailless) I thought I had lost all my plans long ago due to water damage.

Does anyone happen to have RCM 8-90 that they could scan the construction article for me, or is there any other way a person could obtain a copy of the article?

Calvi
Calvinman is offline
Reply With Quote
Old 10-01-2013, 10:17 AM
  #2
Roguedog

Roguedog's Avatar

Join Date: Feb 2007
Location: Norco, CA
Posts: 921
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Do a Search on Ebay for that issue.

Then do a search in yahoo. There are several used magazine websites out there.
Roguedog is offline
Reply With Quote
Old 10-07-2013, 01:59 PM
  #3
Av8rJo

Join Date: Feb 2005
Location: Anton, CO
Posts: 2
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Calvi are you still looking for the construction article for the C.A.T. ?

I found the article on the CAT. It is about ten pages, so if you can send me a private message with your email, I will scan it and email it to you.

Joe
Av8rJo is offline
Reply With Quote
Old 10-08-2013, 08:47 AM
  #4
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Thanks Av8rJo,

That would be great, I have been searching the house and cannot find it, must have been with the water damaged plans I threw out. I have been wanting to build this one for many years, and this winter it is going to happen thanks to your generous offer!

Calvi
Calvinman is offline
Reply With Quote
Old 10-09-2013, 12:29 PM
  #5
ser00

Join Date: Apr 2008
Location: Houston, TX
Posts: 276
Default

Hi Calvinman,

Here is the construction article that you are looking for.

Happy flying and soft landings!
ser00 is offline
Reply With Quote
Old 10-09-2013, 01:14 PM
  #6
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Thank you ser00 and Av8rJo, this will keep me out of trouble for part of the long winter ahead I'm sure, will post some pics once she starts to go together.

Calvi
Calvinman is offline
Reply With Quote
Old 11-22-2013, 07:34 AM
  #7
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Getting Started,

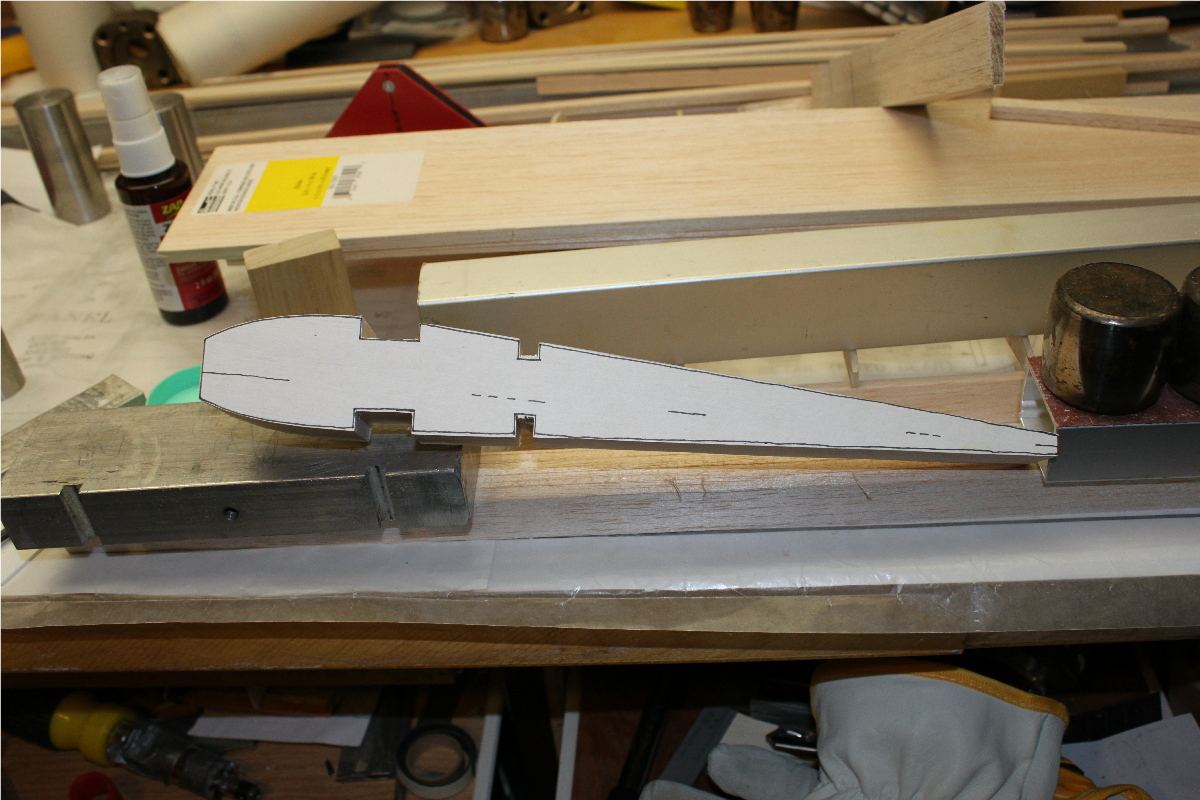

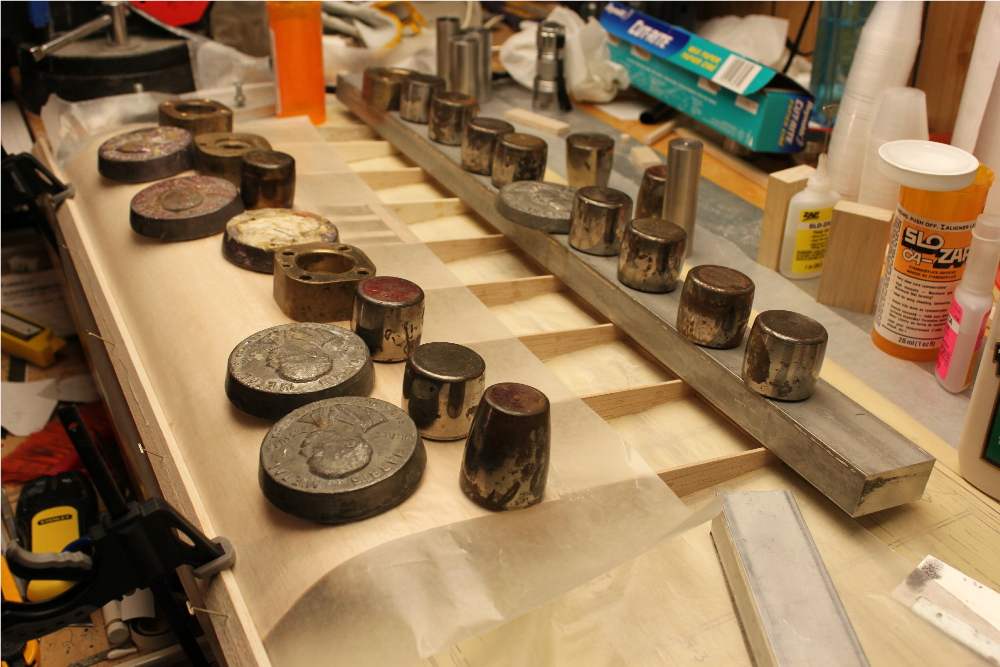

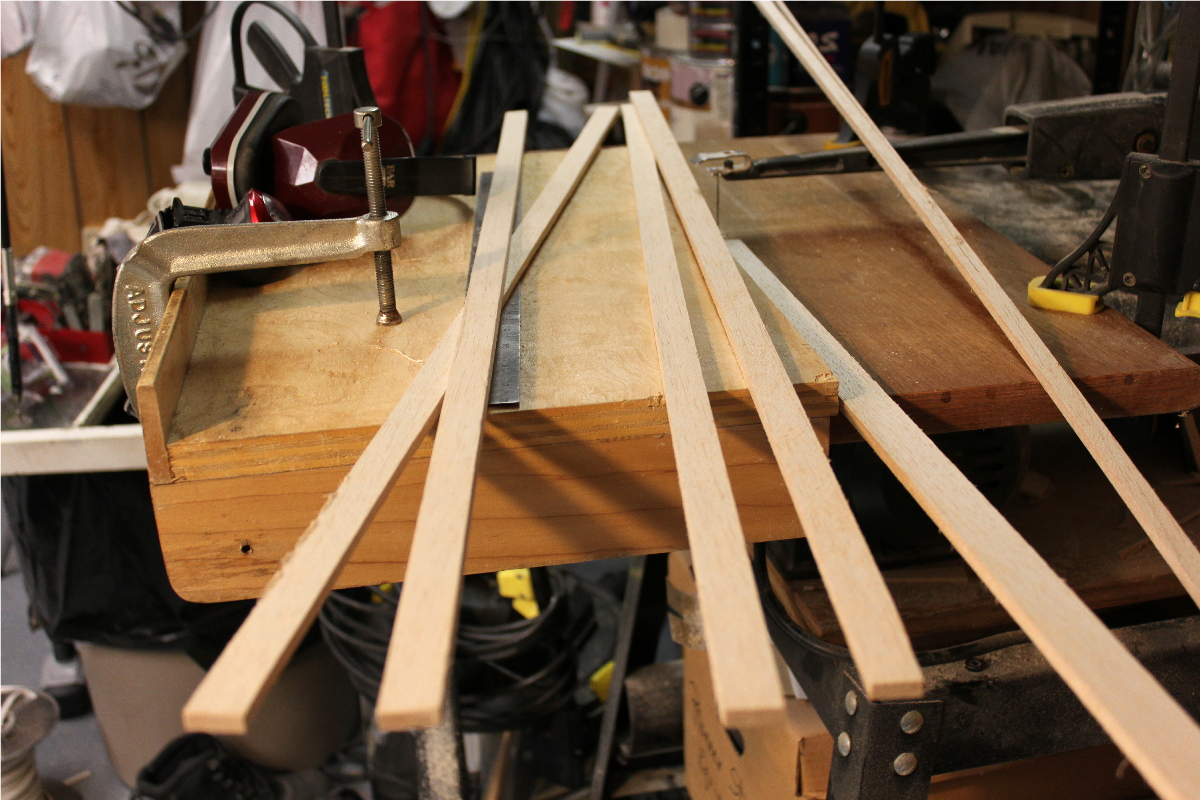

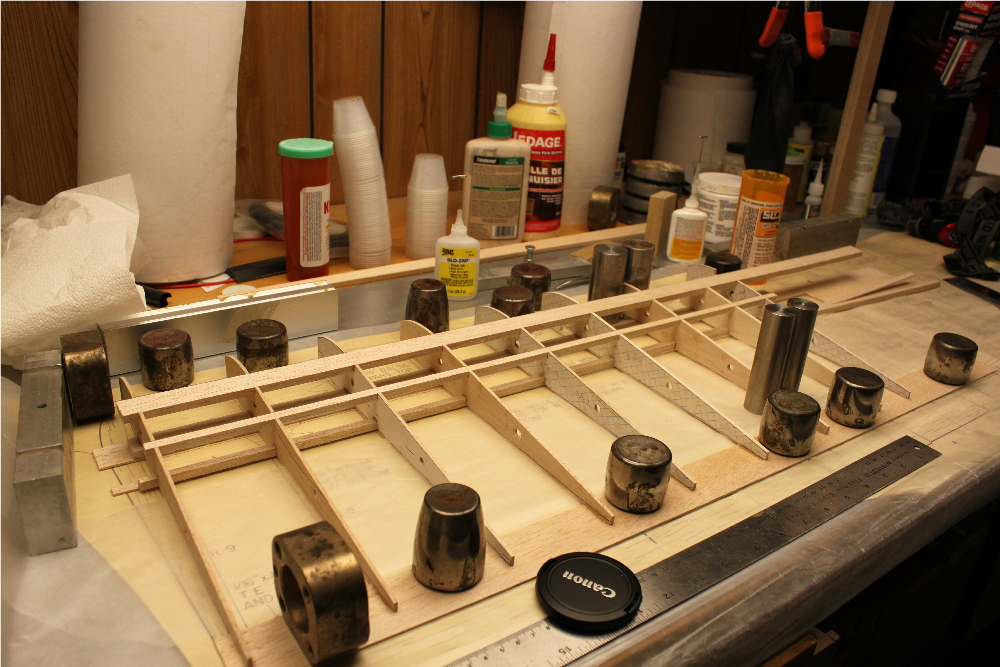

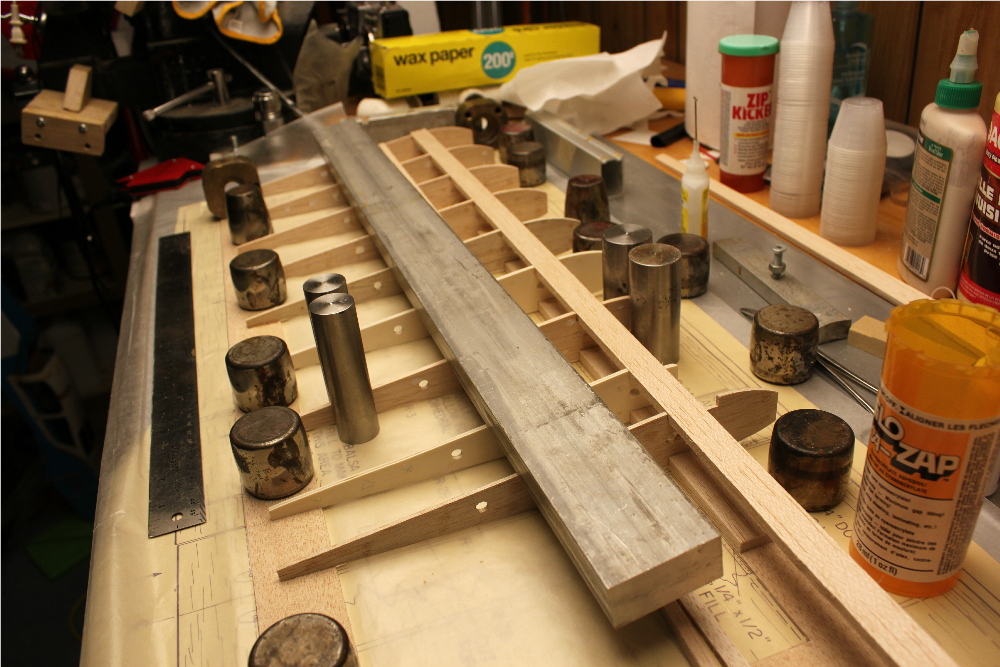

I cut a stack of the outer ribs, and thought I could hold them freehand at 90 degrees to the belt sander Doh! Second attempt is going better, should have them sanded to final shape this weekend. I cut the front spars(3/4 x 1/4") using my scroll saw, they turned out good after a few false starts(more clamps are better!). [ATTACH=CONFIG]1941211[/ATTACH][ATTACH=CONFIG]1941212[/ATTACH][ATTACH=CONFIG]1941213[/ATTACH][ATTACH=CONFIG]1941214[/ATTACH]

Calvi
Attached Thumbnails
Click image for larger version

Name:	oops.JPG
Views:	59
Size:	365.2 KB
ID:	1941211   Click image for larger version

Name:	ribs.JPG
Views:	61
Size:	501.3 KB
ID:	1941212   Click image for larger version

Name:	spar.JPG
Views:	59
Size:	580.1 KB
ID:	1941213   Click image for larger version

Name:	spardone.JPG
Views:	49
Size:	584.7 KB
ID:	1941214
Calvinman is offline
Reply With Quote
Old 11-29-2013, 01:45 PM
  #8
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

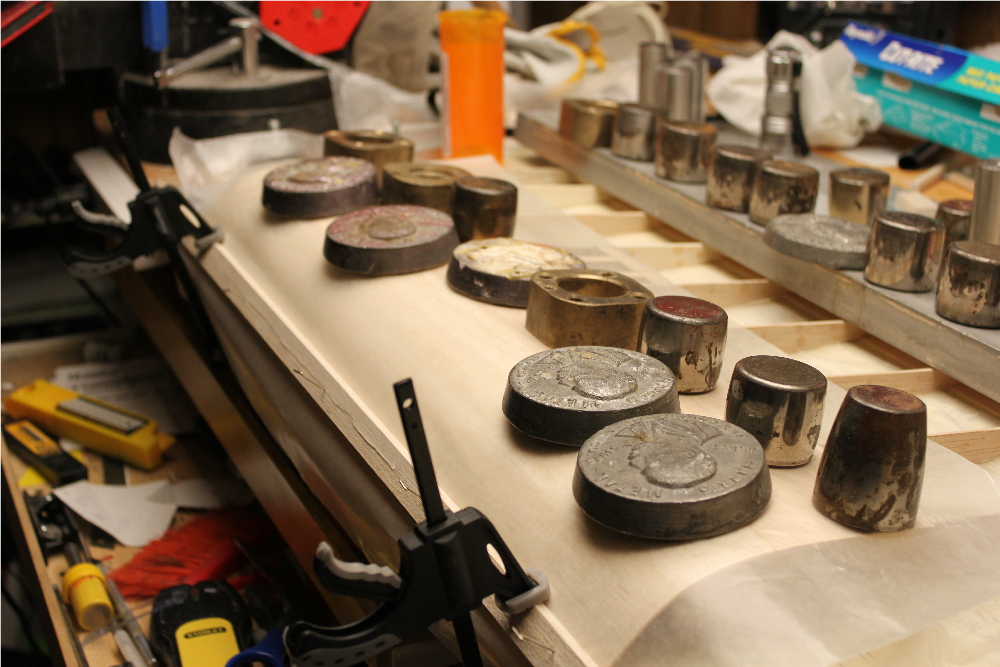

Got the Ribs all fitting nicely

[ATTACH=CONFIG]1943449[/ATTACH][ATTACH=CONFIG]1943450[/ATTACH]
Attached Thumbnails
Click image for larger version

Name:	Picture 013.jpg
Views:	49
Size:	331.5 KB
ID:	1943449   Click image for larger version

Name:	Picture 014.jpg
Views:	43
Size:	320.8 KB
ID:	1943450
Calvinman is offline
Reply With Quote
Old 12-01-2013, 10:28 AM
  #9
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

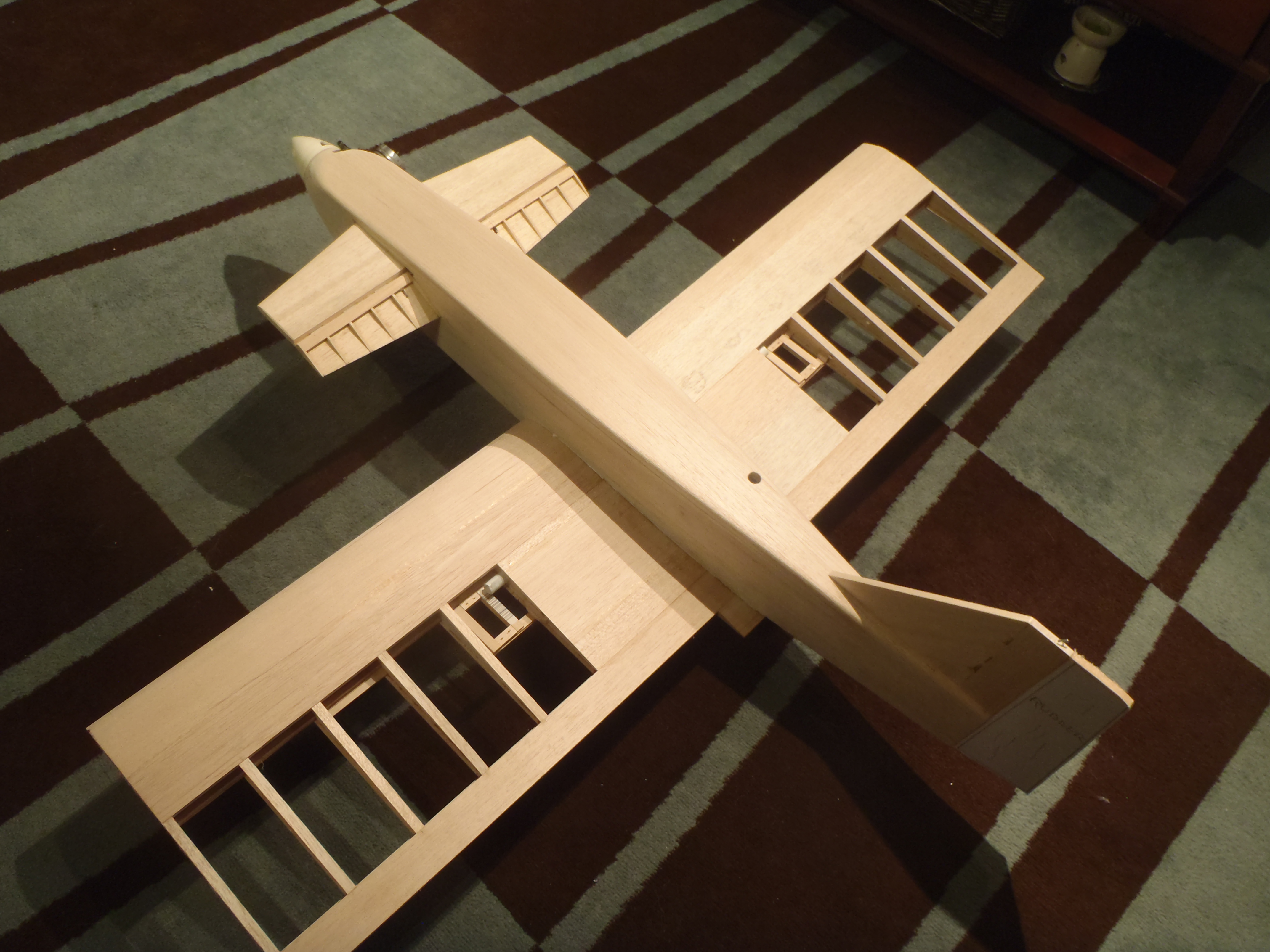

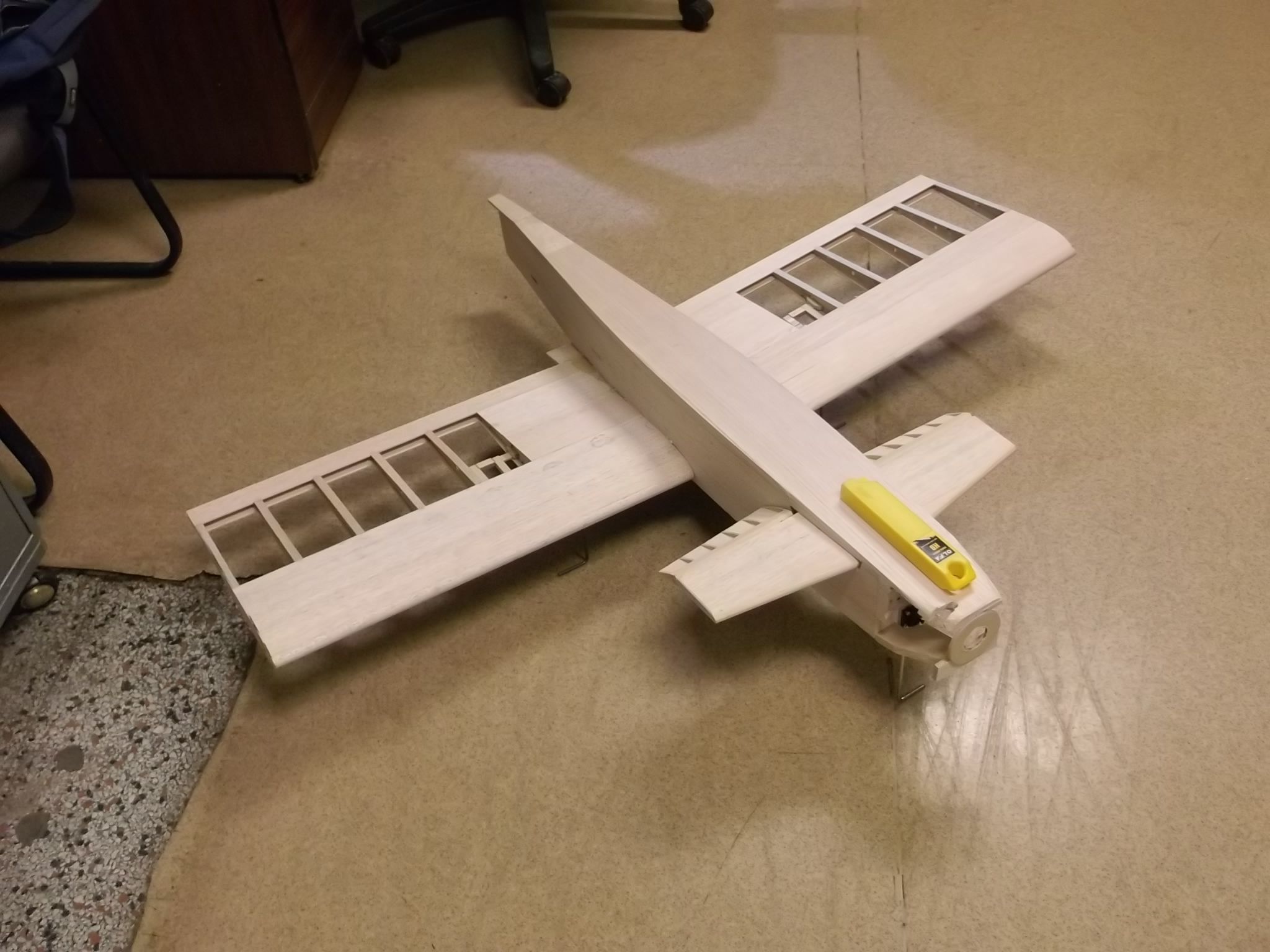

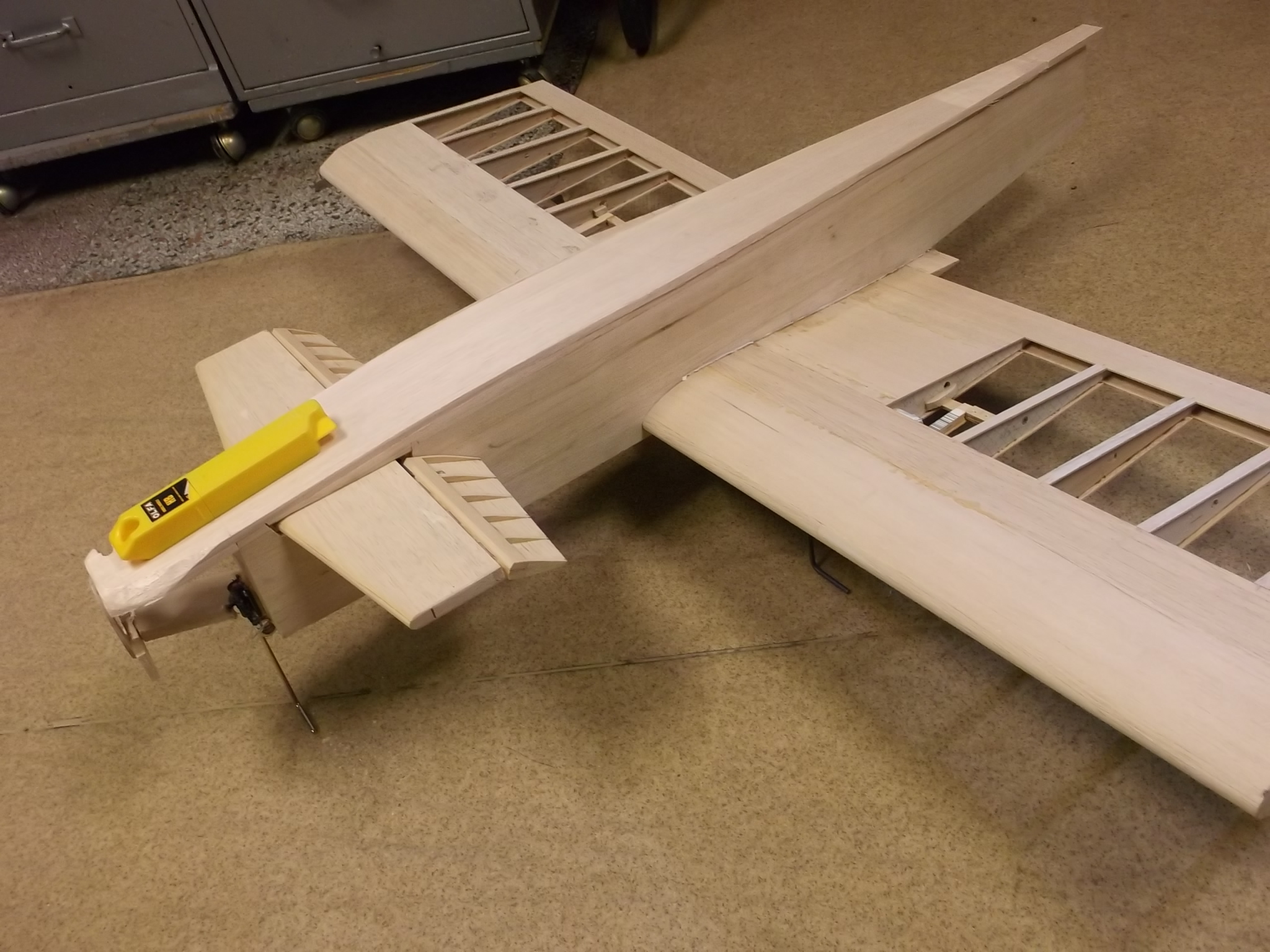

Left wing is laid out, just gotta get some more 1/16 balsa and cut a trailing edge.

[ATTACH=CONFIG]1943997[/ATTACH][ATTACH=CONFIG]1943998[/ATTACH][ATTACH=CONFIG]1943999[/ATTACH]

Oh wrong CAT

Calvi
Attached Thumbnails
Click image for larger version

Name:	IMG_0588.JPG
Views:	86
Size:	378.3 KB
ID:	1943997   Click image for larger version

Name:	IMG_0616.JPG
Views:	62
Size:	416.6 KB
ID:	1943998   Click image for larger version

Name:	IMG_0618.JPG
Views:	45
Size:	419.2 KB
ID:	1943999
Calvinman is offline
Reply With Quote
Old 12-13-2013, 09:29 AM
  #10
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

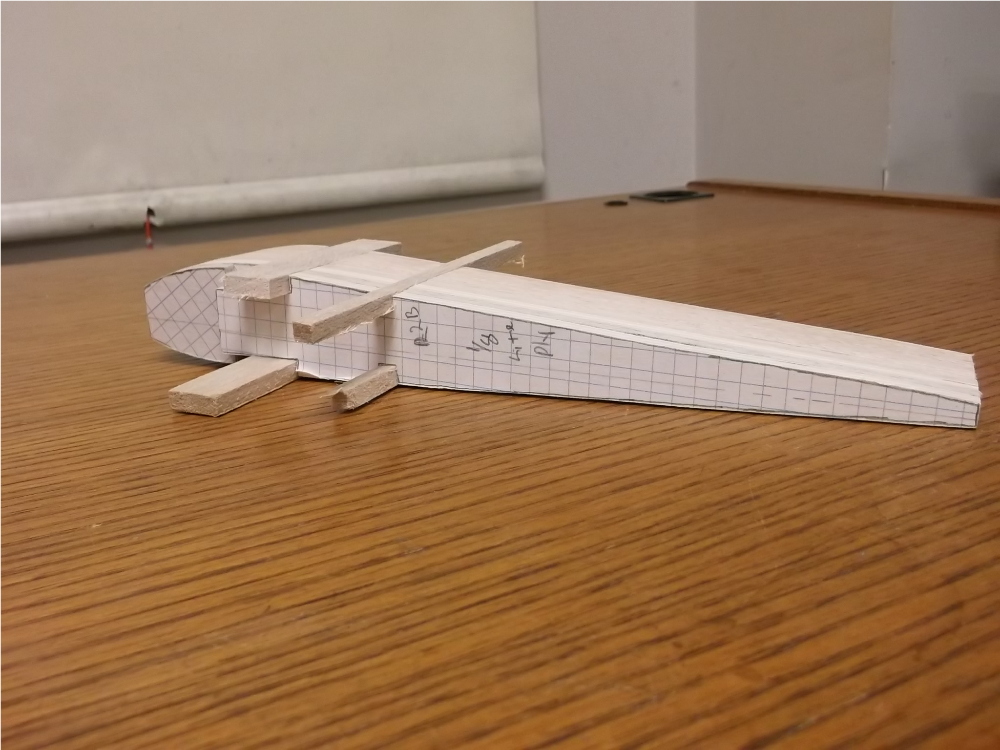

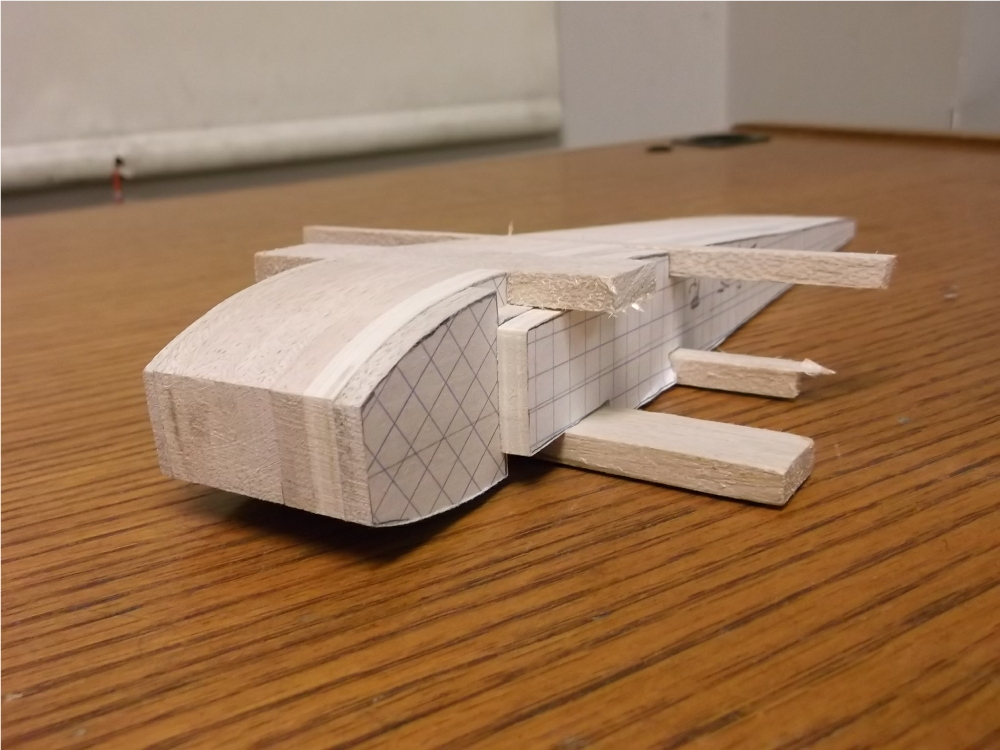

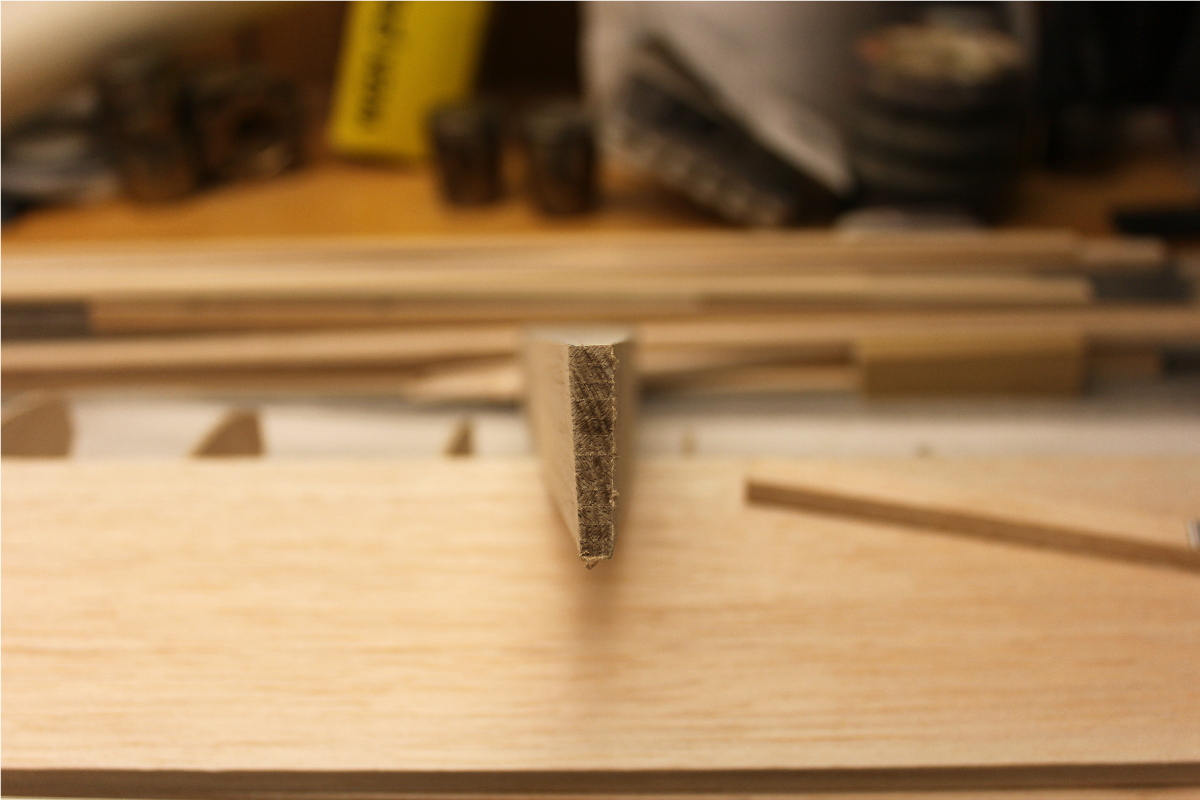

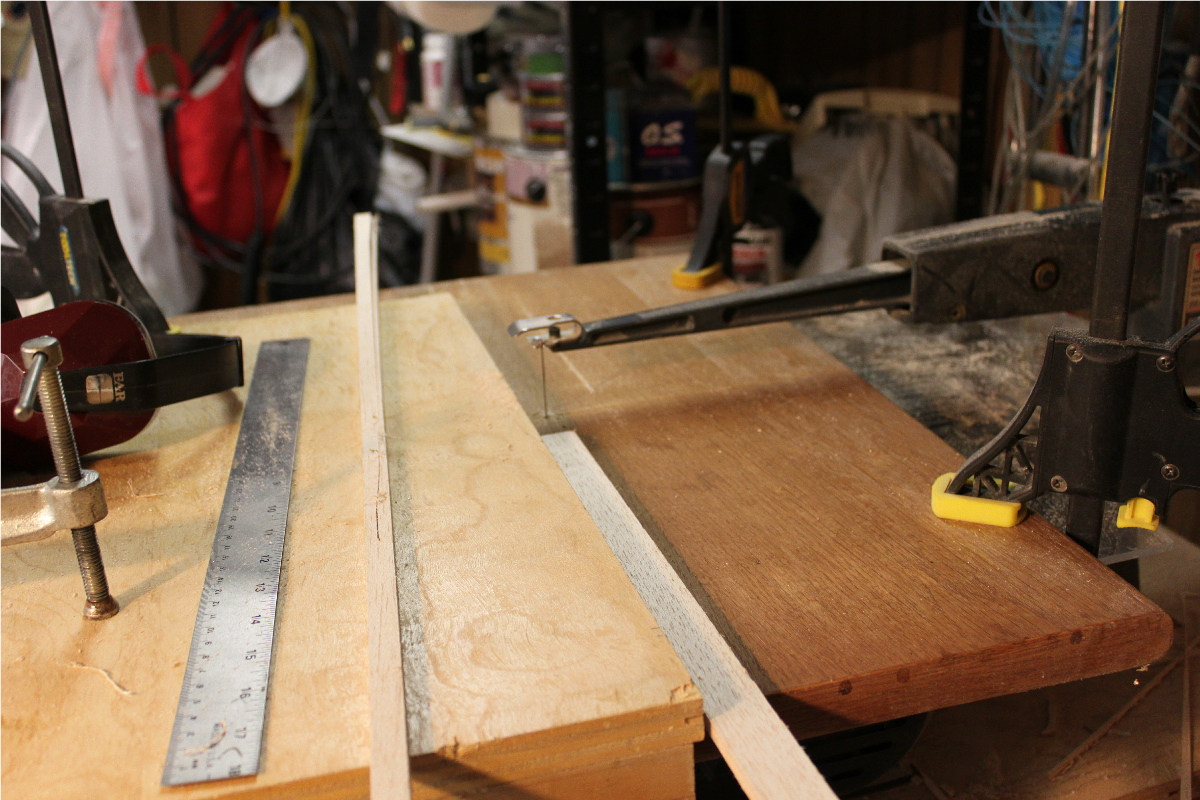

Got a little more work done, I had to make up my own landing gear blocks as the LHS did not have any. I had some 2" x 1/4" poplar that used to be available at our local Rhona hardware store, they claim that the supplier stopped sending them stock when I asked why they did not have any anymore. Too bad that is the last of it. Anyway here are a few pics.[ATTACH=CONFIG]1947231[/ATTACH][ATTACH=CONFIG]1947234[/ATTACH][ATTACH=CONFIG]1947232[/ATTACH][ATTACH=CONFIG]1947233[/ATTACH]
Attached Thumbnails
Click image for larger version

Name:	LGblock.JPG
Views:	39
Size:	376.4 KB
ID:	1947231   Click image for larger version

Name:	LGblock1.JPG
Views:	37
Size:	399.8 KB
ID:	1947232   Click image for larger version

Name:	LGblock2.JPG
Views:	42
Size:	280.6 KB
ID:	1947233   Click image for larger version

Name:	LGblock3.JPG
Views:	36
Size:	363.3 KB
ID:	1947234
Calvinman is offline
Reply With Quote
Old 12-15-2013, 07:50 AM
  #11
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

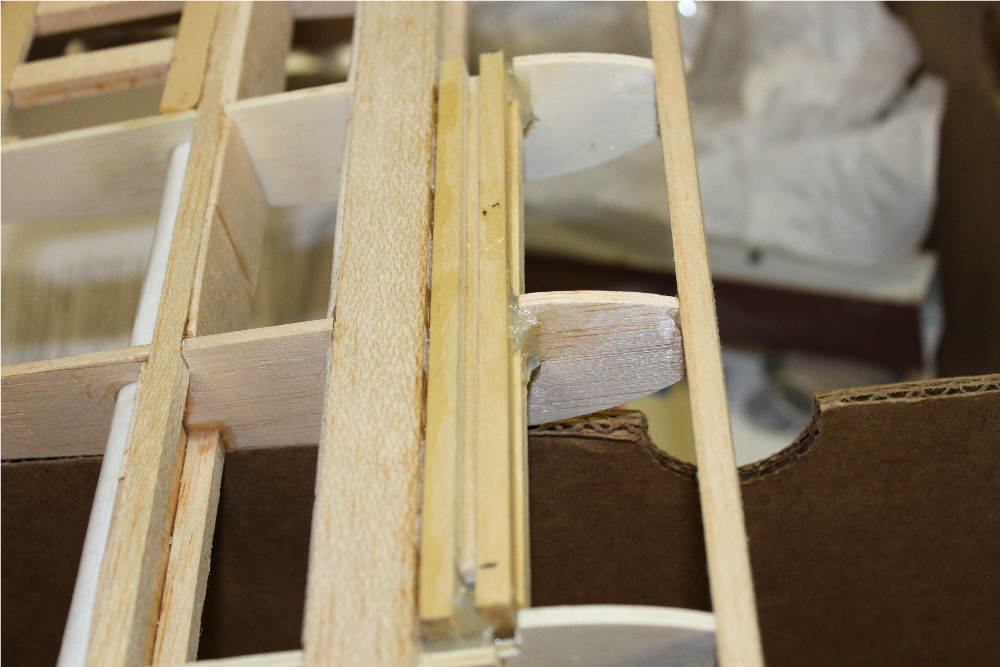

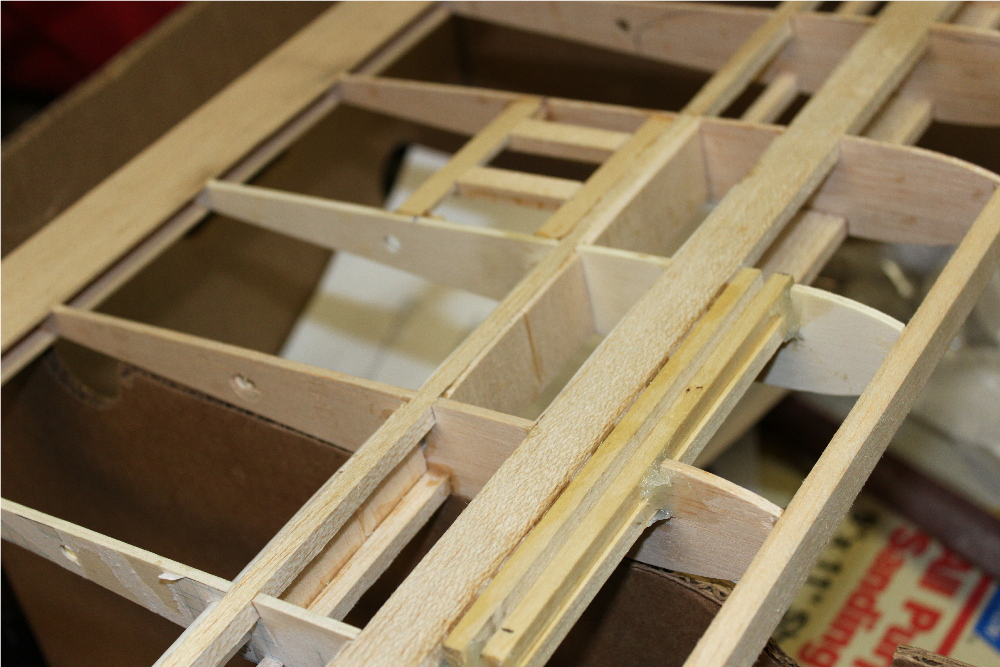

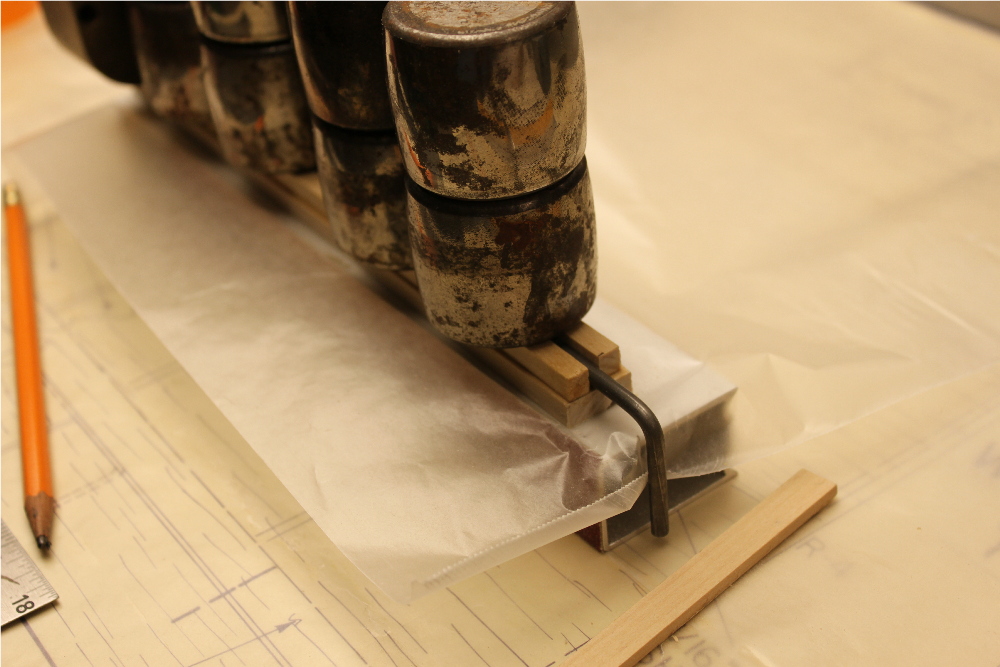

Ok, all shear webbing in and landing gear blocks in place, I can put some sheeting on the wing panels. This is fairly easy with the short(24") constant cord panels.[ATTACH=CONFIG]1947668[/ATTACH][ATTACH=CONFIG]1947669[/ATTACH][ATTACH=CONFIG]1947670[/ATTACH]
Attached Thumbnails
Click image for larger version

Name:	wing sheeting.JPG
Views:	37
Size:	361.4 KB
ID:	1947668   Click image for larger version

Name:	wingsheeting2.JPG
Views:	35
Size:	400.8 KB
ID:	1947669   Click image for larger version

Name:	winsheeting1.JPG
Views:	31
Size:	363.0 KB
ID:	1947670
Calvinman is offline
Reply With Quote
Old 12-15-2013, 12:21 PM
  #12
yojoelay

Join Date: Apr 2007
Location: Brisbane, AUSTRALIA
Posts: 235
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

I love those old sliding servo tray designs. Neat design, looking forward to following along.

Joel
yojoelay is offline
Reply With Quote
Old 12-15-2013, 01:13 PM
  #13
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

That is the part that is scaring me about this build Joel, I may just use some mixing in the radio it will be easyer in two ways, I will not have to hook up the linkage to the canard everytime I put the wing on, and I won't have to build a sliding tray. I see that dubro sells a mechanical mixer for this purpose and I may use one of these when I build a crusader(RCM).

Calvi
Calvinman is offline
Reply With Quote
Old 12-15-2013, 06:21 PM
  #14
yojoelay

Join Date: Apr 2007
Location: Brisbane, AUSTRALIA
Posts: 235
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Hi Calvinman,

A computer radio would definitely be the way to go. It's interesting that, back in the 1970's and 80's, someone was so keen to have a plane with those surface movements that they put together this solution. It makes me thankful for modern computer radios!

I see your in the 'Peg, hope you're keeping warm. I have relations from Portage and an old flatmate from Winnipeg.

Joel
yojoelay is offline
Reply With Quote
Old 12-15-2013, 06:58 PM
  #15
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Thanks Joel, it is supposed to warm up to -4 C tomorrow, we have been in an unseasonal cold snap for 2 weeks now with the temps dipping to almost -30 overnight! Brrrr. I have worked with a few people from Portage and they are fine people, myself I haled from Brandon and made a connection with the Portagers right away as we were small town folks living in the big city.

I remember when the CAT construction article came out in RCM and it taking me quite a while to get my head around what the designer was even talking about with the sliding tray, I am glad I don't have to use one but I may just have to build one so I can say I did

Calvi

Calvi
Calvinman is offline
Reply With Quote
Old 01-11-2014, 01:32 AM
  #16
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

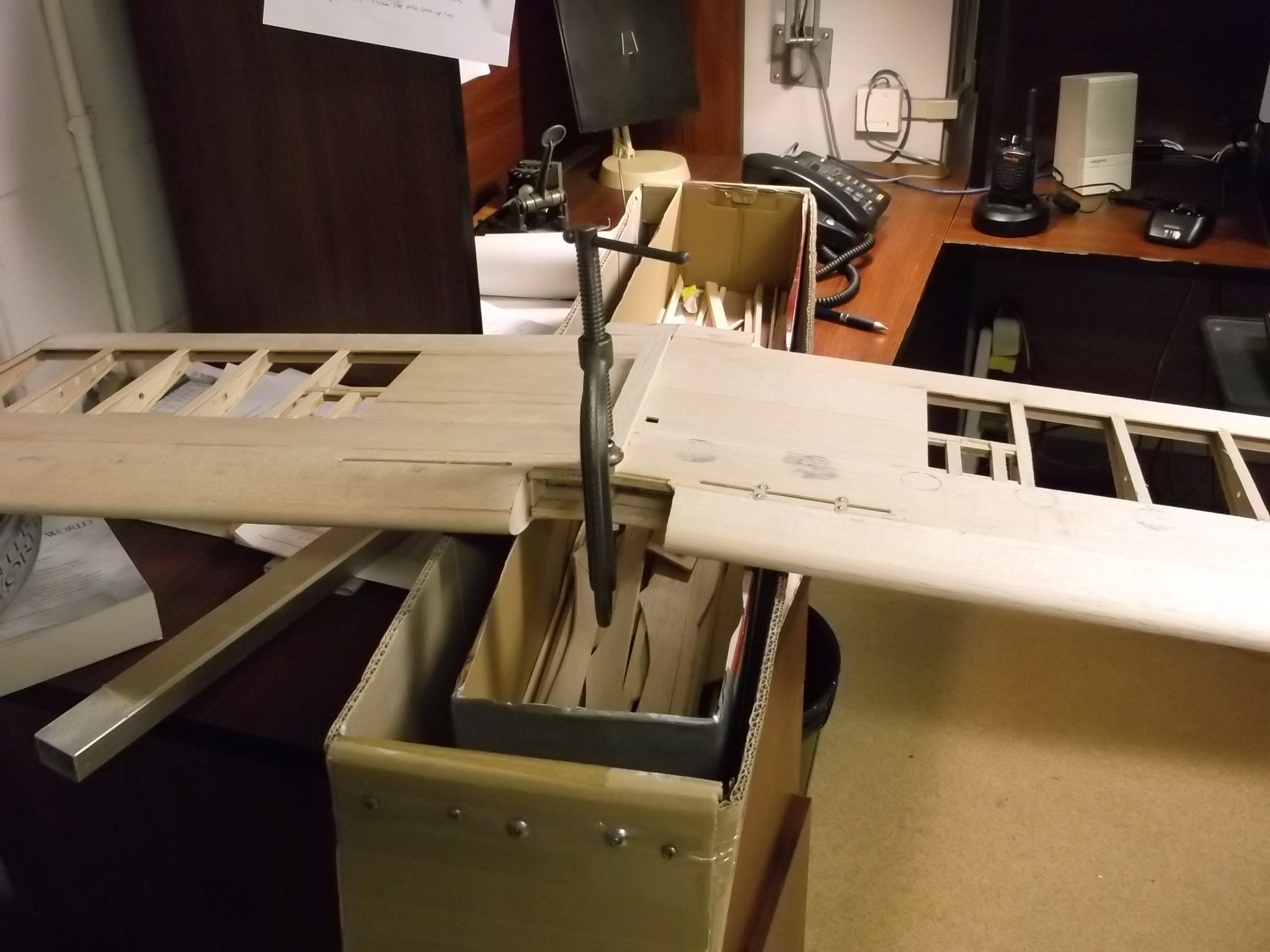

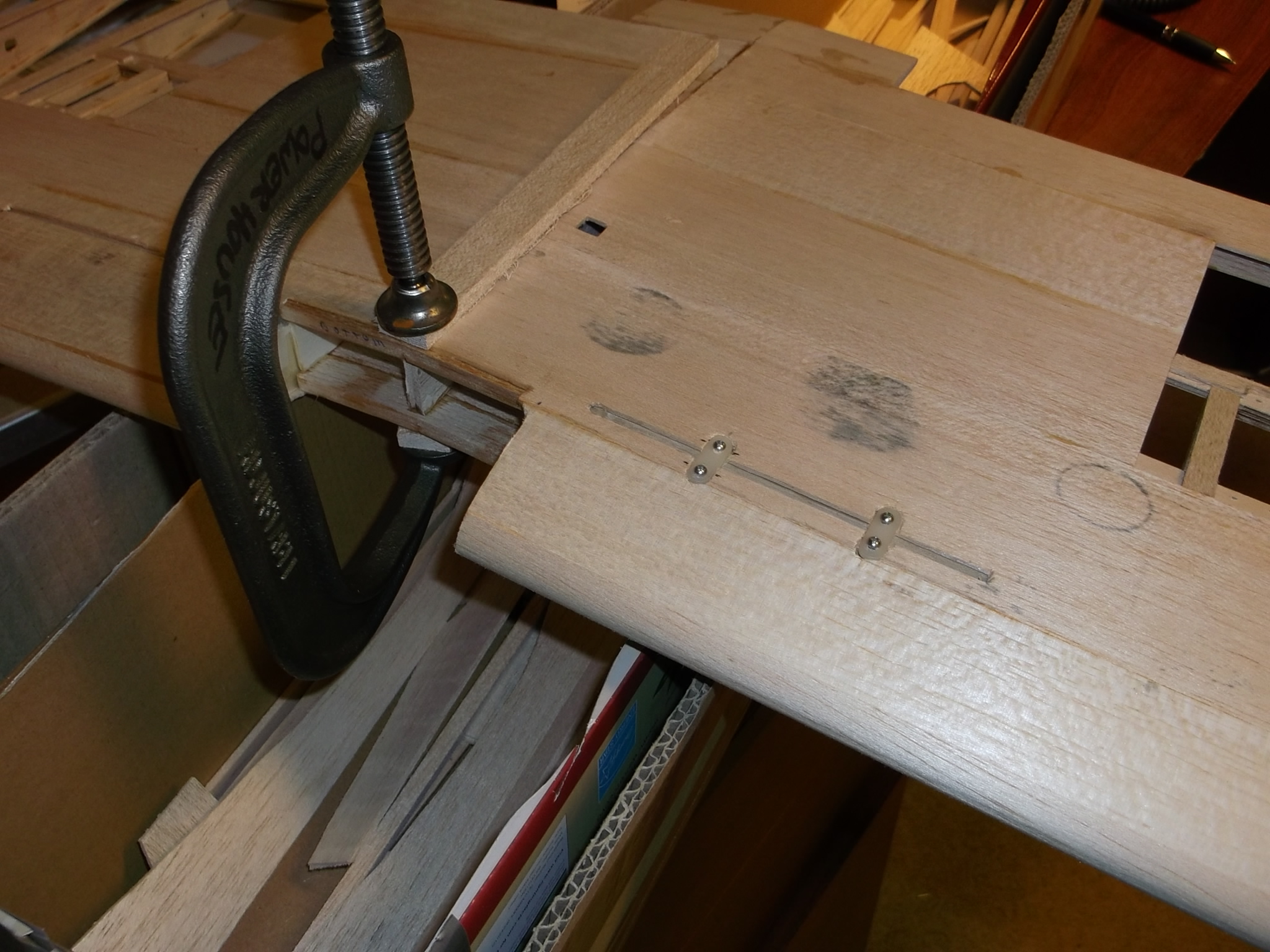

Well, I got the wing joined, center section cut out and 1/4 x 1/2 filler epoxied and clamped in place. next is the front dihedral brace.[ATTACH=CONFIG]1956334[/ATTACH][ATTACH=CONFIG]1956335[/ATTACH]

Calvi
Attached Thumbnails
Click image for larger version

Name:	wing (1).jpg
Views:	45
Size:	893.7 KB
ID:	1956334   Click image for larger version

Name:	wing.jpg
Views:	34
Size:	948.6 KB
ID:	1956335
Calvinman is offline
Reply With Quote
Old 04-17-2014, 09:34 PM
  #17
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Well I have made a little progress. I am building two planes at once, an Ultra Sport 40 and the CAT. The canard is a cut down stab from a 40 size corsair. [ATTACH=CONFIG]1987842[/ATTACH][ATTACH=CONFIG]1987843[/ATTACH][ATTACH=CONFIG]1987844[/ATTACH]
Attached Thumbnails
Click image for larger version

Name:	DSCF3172.JPG
Views:	37
Size:	943.1 KB
ID:	1987842   Click image for larger version

Name:	DSCF3173.JPG
Views:	50
Size:	877.0 KB
ID:	1987843   Click image for larger version

Name:	DSCF3174.JPG
Views:	34
Size:	918.8 KB
ID:	1987844
Calvinman is offline
Reply With Quote
Old 04-23-2014, 06:10 AM
  #18
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

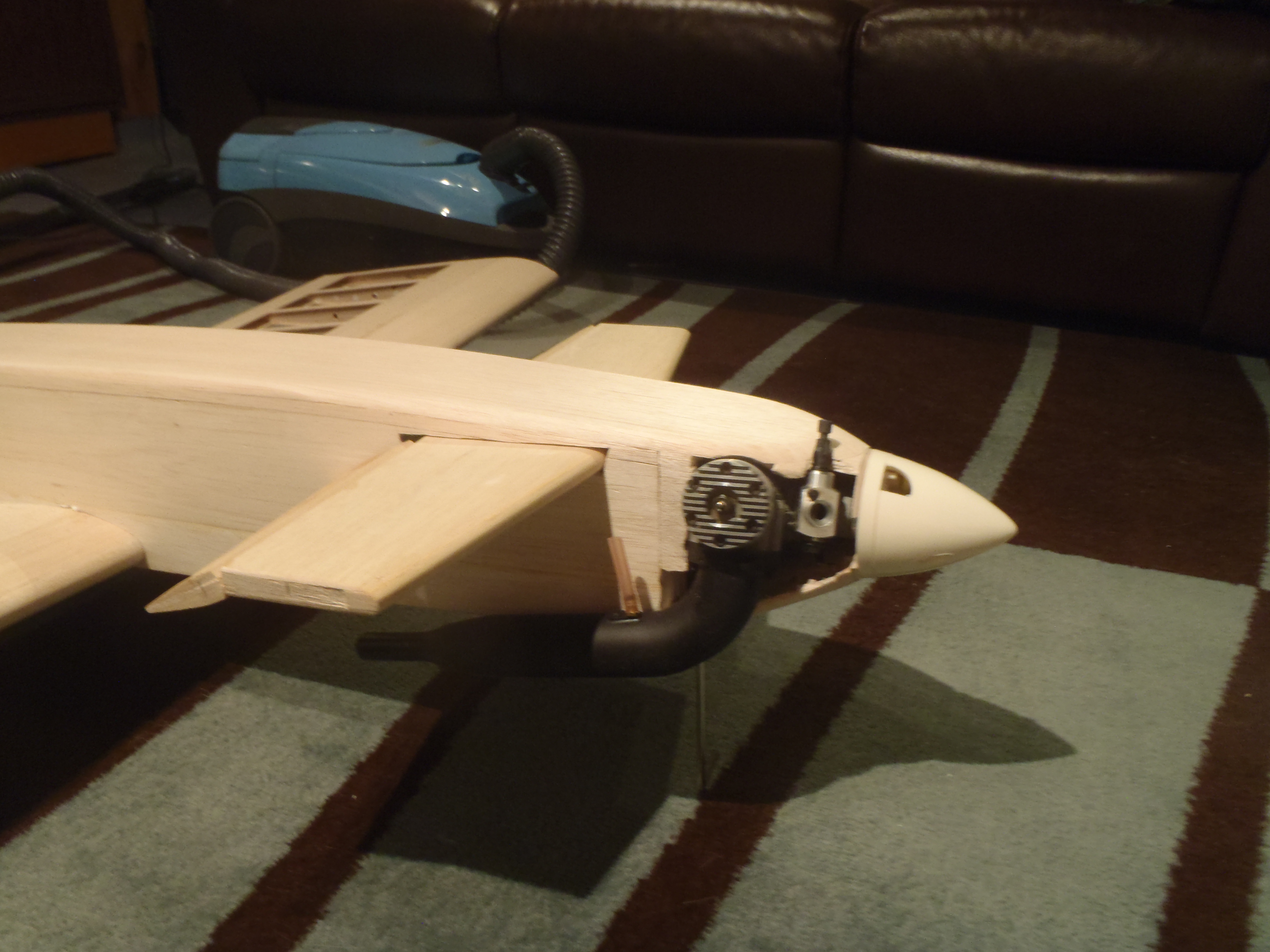

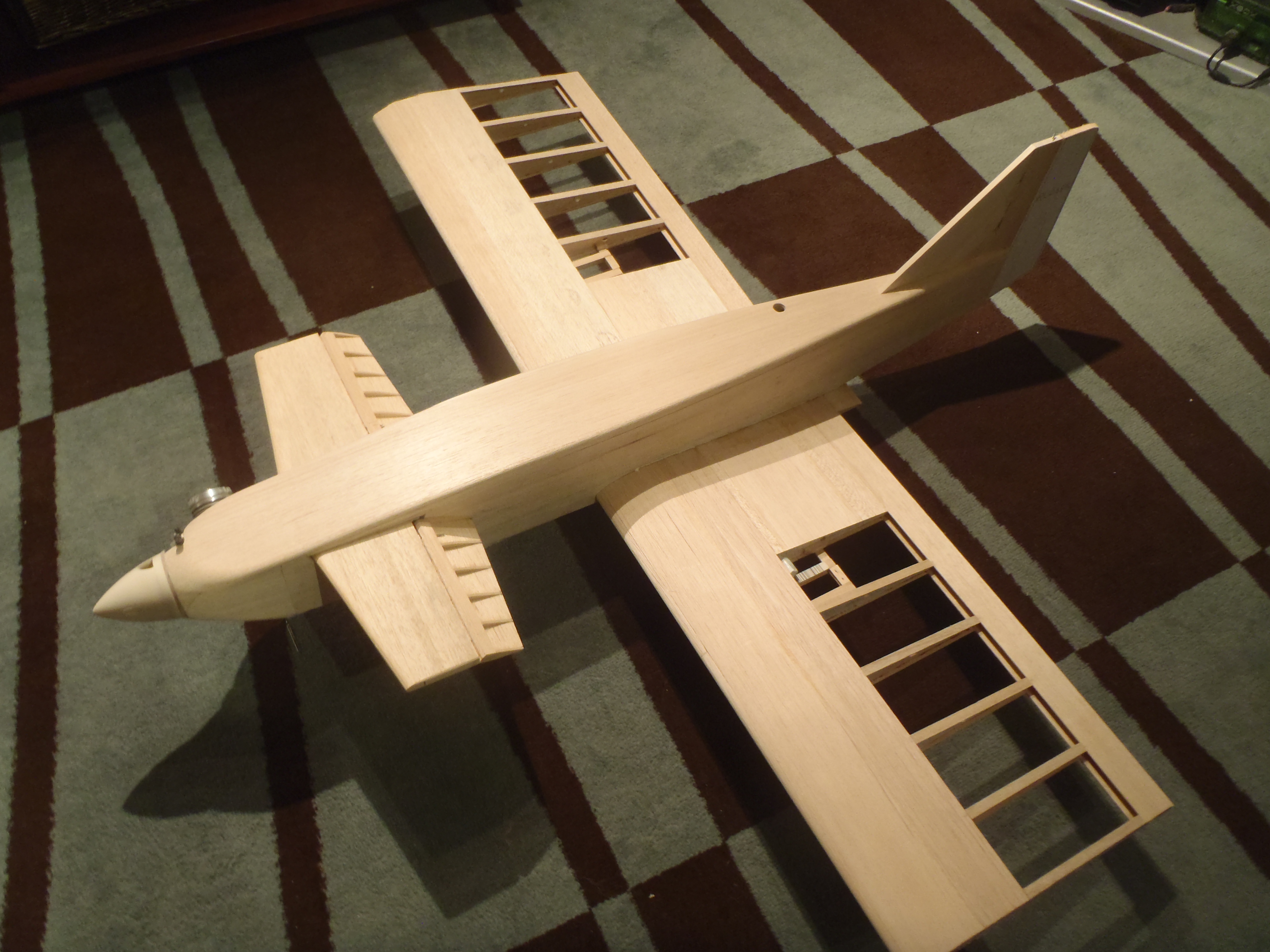

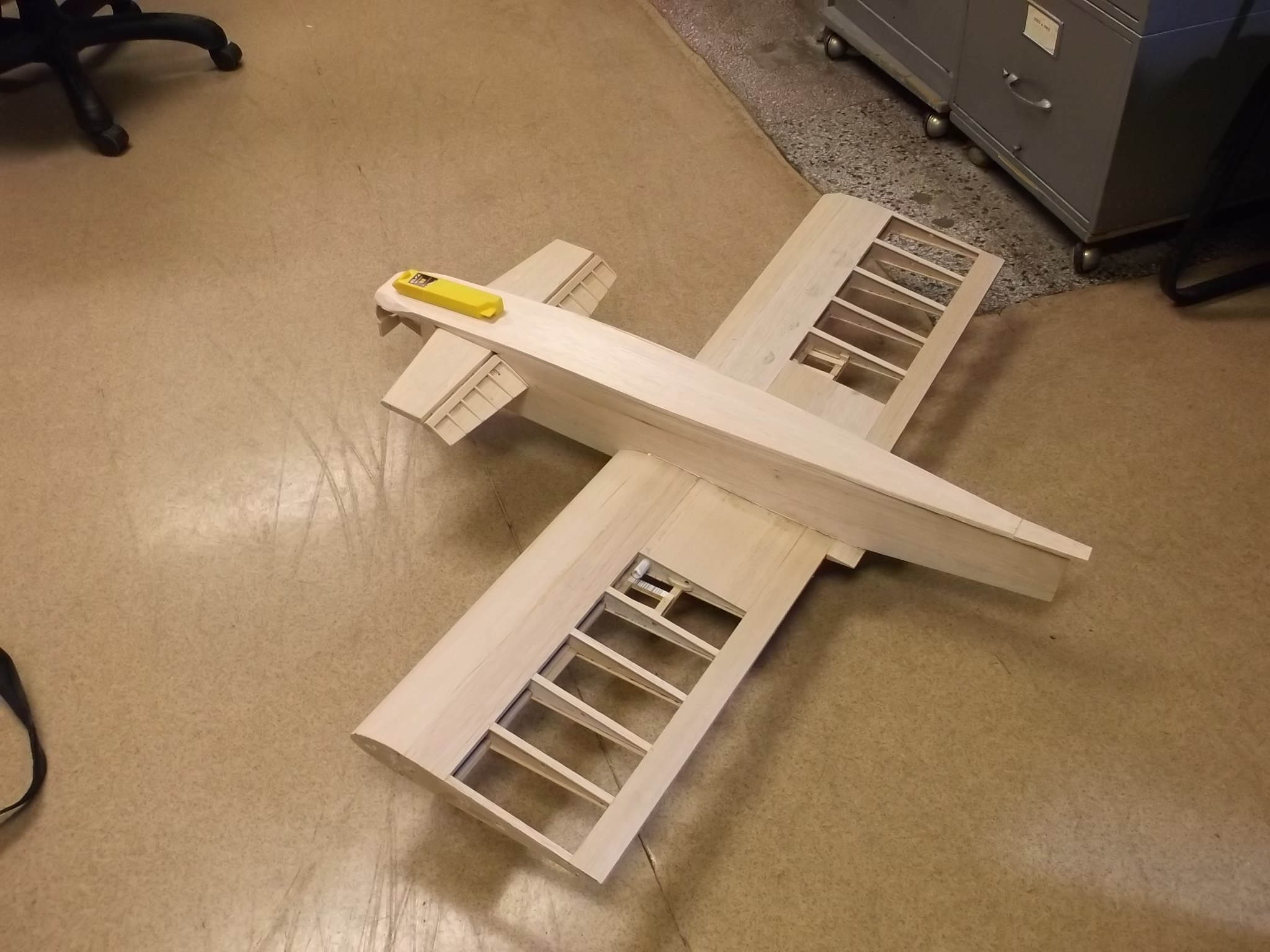

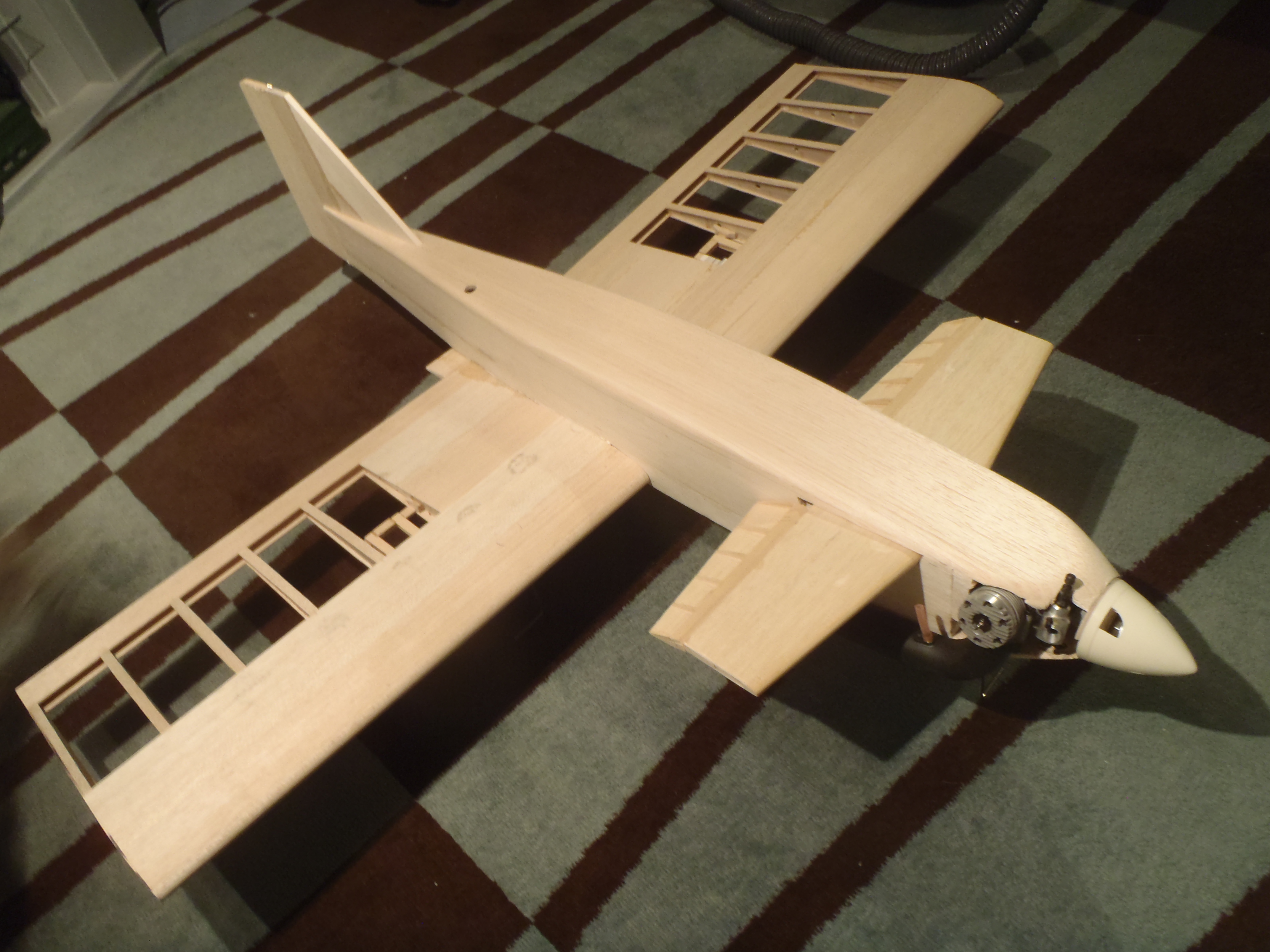

A little more progress.



[ATTACH=CONFIG]1989234[/ATTACH][ATTACH=CONFIG]1989235[/ATTACH][ATTACH=CONFIG]1989236[/ATTACH][ATTACH=CONFIG]1989237[/ATTACH]


Too bad I forgot about any right thrust until after I Mounted the engine and shaped the cowl

Calvi
Attached Thumbnails
Click image for larger version

Name:	four.JPG
Views:	35
Size:	2.66 MB
ID:	1989234   Click image for larger version

Name:	one.JPG
Views:	33
Size:	2.77 MB
ID:	1989235   Click image for larger version

Name:	three.JPG
Views:	49
Size:	2.76 MB
ID:	1989236   Click image for larger version

Name:	two.JPG
Views:	43
Size:	2.69 MB
ID:	1989237

Last edited by Calvinman; 04-23-2014 at 06:15 AM.
Calvinman is offline
Reply With Quote
Old 05-05-2014, 07:22 AM
  #19
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

LOL I started covering the CAT and was using some offcuts from a previous job. I did not notice until I started using some fresh covering from the roll that the offcuts felt a lot thicker, I managed to cover one half of my rudder with covering with the backing still on it! No wonder I had to turn up the heat on my trim tool. DOH!
Calvinman is offline
Reply With Quote
Old 05-14-2014, 10:37 AM
  #20
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

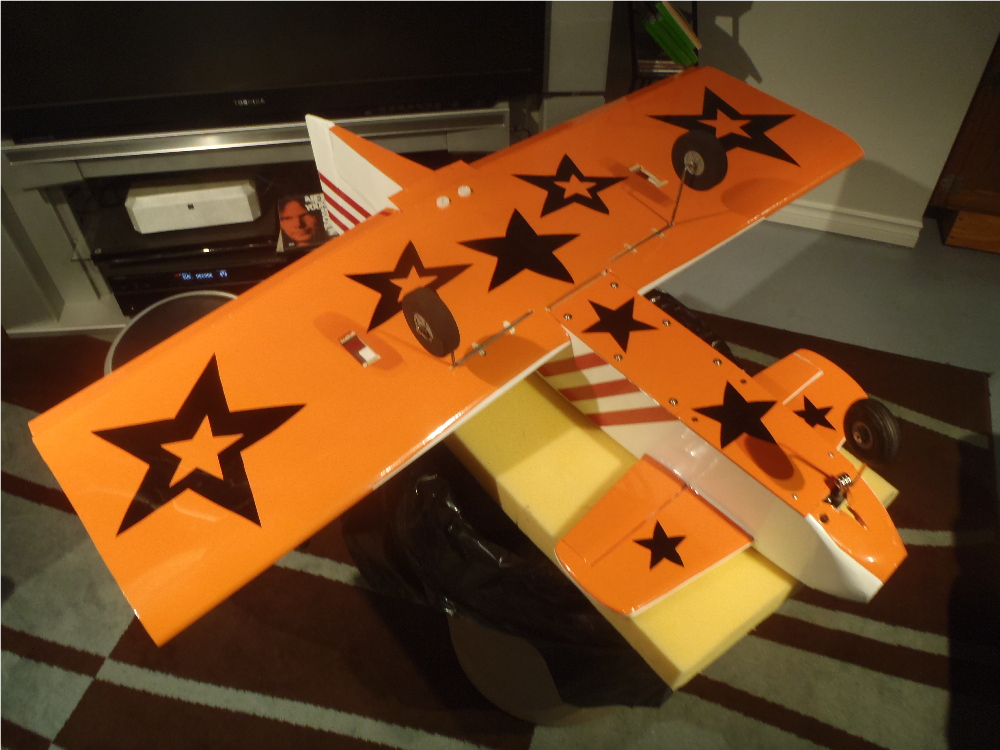

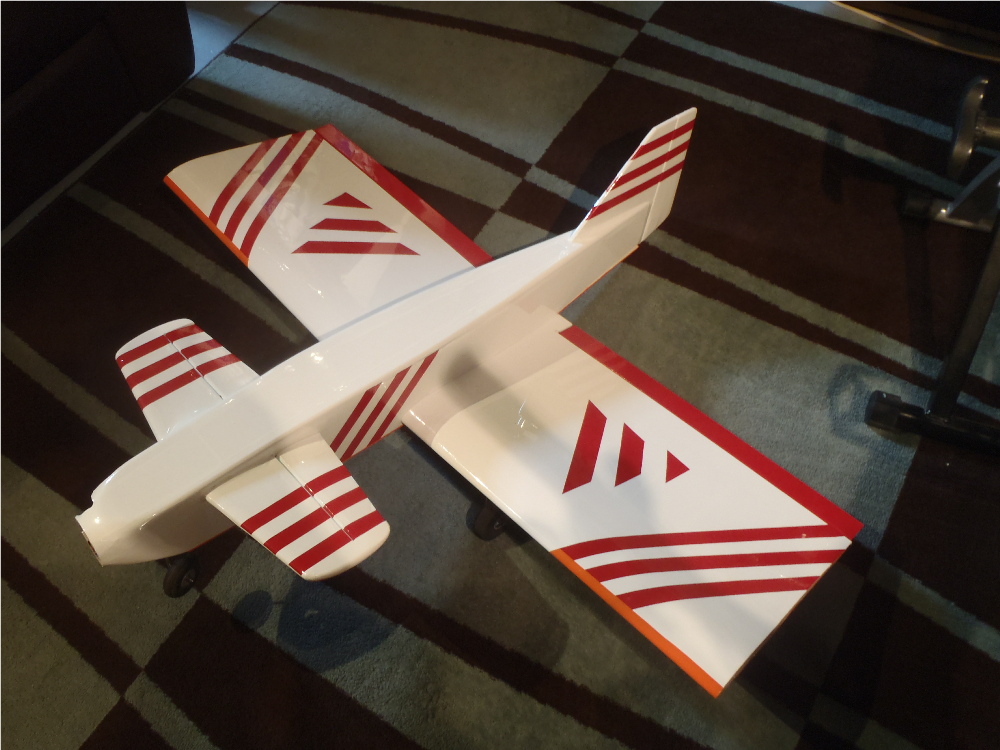

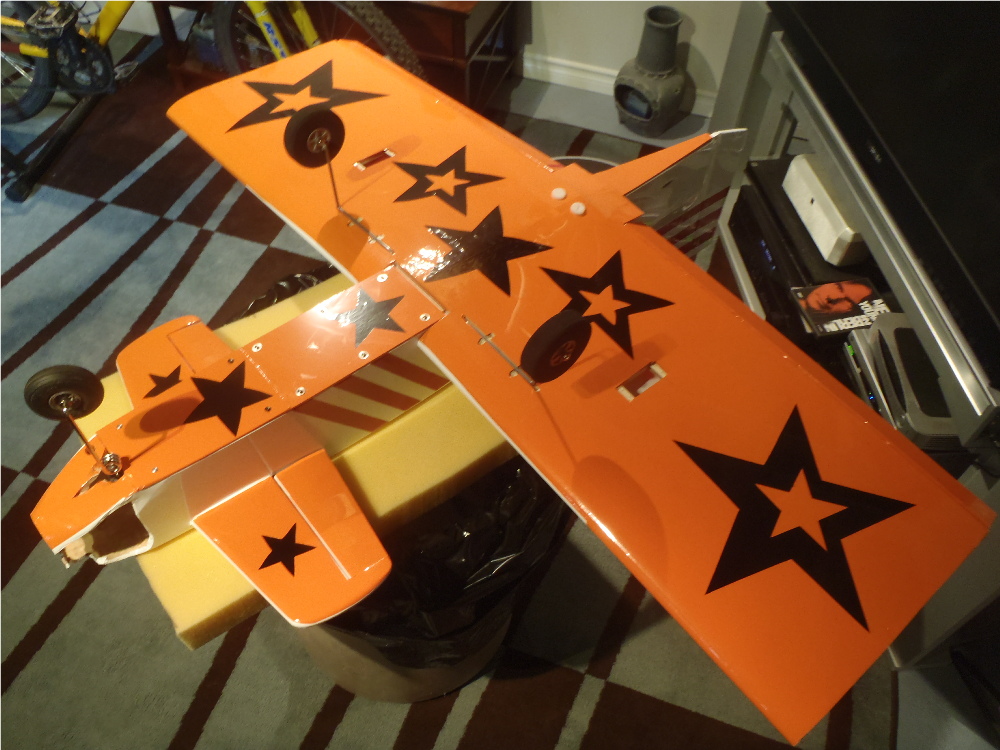

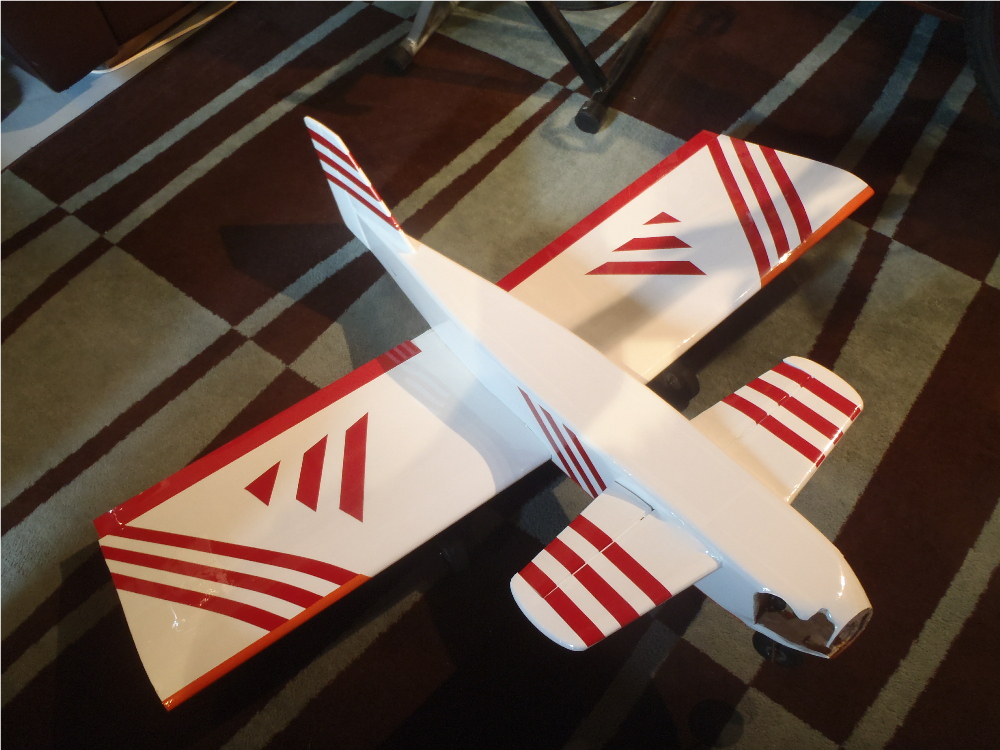

Got it covered, Red and white on top and Orange and Black for the bottom.


[ATTACH=CONFIG]1995287[/ATTACH][ATTACH=CONFIG]1995288[/ATTACH][ATTACH=CONFIG]1995289[/ATTACH][ATTACH=CONFIG]1995290[/ATTACH]


Now I have to get the radio gear installed and it is off for a test flight!
Attached Thumbnails
Click image for larger version

Name:	catcover1.JPG
Views:	33
Size:	291.9 KB
ID:	1995287   Click image for larger version

Name:	catcover2.JPG
Views:	26
Size:	305.4 KB
ID:	1995288   Click image for larger version

Name:	catcover3.JPG
Views:	42
Size:	285.2 KB
ID:	1995289   Click image for larger version

Name:	catcover4.JPG
Views:	39
Size:	318.9 KB
ID:	1995290
Calvinman is offline
Reply With Quote
Old 05-14-2014, 11:37 AM
  #21
bogbeagle

Join Date: Apr 2003
Location: York, UNITED KINGDOM
Posts: 1,296
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default

Very interested to hear how this thing flies.

From the PDF document, it sounds pretty good.

Could make a good hand-launch knock-about model.
bogbeagle is offline
Reply With Quote
Old 05-15-2014, 03:42 AM
  #22
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Hi Bogbeagle,

Another week or two and I should be able to report on its flying ability. It is ideal for hand launching with the CG in front of the wing, but the fuse is just a little on the large side to grip well, but we will see. A handle on top of the fuse would be handy too.
Calvinman is offline
Reply With Quote
Old 06-19-2014, 01:38 PM
  #23
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Maiden flight short but sweet I was suffering with bad fuel and we tried and tried to set the engine up not knowing it was sour fuel. I managed to get it airbourne, climb maybe 40 feet, then the engine died it landed straight ahead with only a minor bend to the front gear.

I have not had a chance to get it out again but was pleased with it's seemingly docile handling. I am hoping to be able to get the plans copied but I have cut them up a bit for ease of building so I hope this does not make it impossible to copy them. I would also like to wait and see if the plane is going to be a keeper before doing so.

Calvi
Calvinman is offline
Reply With Quote
Old 07-24-2014, 12:57 PM
  #24
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

I am happy to report that I got another flight it on the CAT. I am still having trouble with the motor and will have to try it on 5% nitro. I was only able to get the MDS to stay running if I kept the throttle under 50% open. After a long roll out to build speed she lifted off very gracfully and climbed out with with no problems. Once up to cruising speed it wanted to climb so I had to put in a considerable amount of down trim. I flew it for five or six minutes and after getting over seeing the tail flying in front of the wing found it to be quite relaxing to fly.

When I came in on final the engine quit and it glided in for a very smooth landing with a nice roll out! I found out from some of my fellow club members there is a copy place very close to where I live so I will be checking in with them to see if they can make a digital copy of the plans for me I may have to build another this winter myself.

Calvi
Calvinman is offline
Reply With Quote
Old 07-31-2014, 12:39 PM
  #25
Calvinman
Thread Starter

Join Date: Mar 2013
Location: Winnipeg, MB, CANADA
Posts: 722
Default

Two more flights with the CAT, still can't get that MDS48 to run with the throttle over 50% open. I pulled the motor yet again, sealed up the carb as best I could, reset the needles to factory. I found the low speed needle to be open only one turn, it should be 2 I hope this makes the difference. If that MDS still gives me grief I am going to slap in an OS46FX or an OS50 I have kicking around here so I can fly this thing with some power to get me out of trouble.

The flights were fun I have a little too much down trim in it which works nice it dives in on the flybys and as the speed picks up it starts to climb out to a nice altitude to turn. I find I have to use a but more rudder in turns than I am used to. On high rates it does a nice roll, not very axial, but it does it in a hurry. I tried a loop, but with only half throttle it was lacking and at the top did more of a flop making the loop look more like an apostrophe Landings are very easy unless you try to do a high alpha without throttling up. I stalled it in on my last flight about 3 feet off the deck, the only damage was my prop and it bent the nose gear.

I dropped by a local printing shop that was recommended by a fellow club member and they say they can copy the plans even though I have cut them up into four pieces. I am going to get them copied sooner or later so anyone interested in building a CAT can download the plans once I get that done.

Calvi
Calvinman is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 06:57 PM.
