TURNIGY C580L -870 Brushless Inrunner EDF motor

Old 07-14-2017, 11:51 PM
  #76
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades (with intake lip 2,old rotor)
CASLE PHOENIX EDGE HV 120
WELLPOWER SE10S,5000mAh,30C

I used in this test:
-motor timing : low
-pwm rate..... : 8kHz
-power out.....: 100%
-static thrust .: 46N (48N)

See posts 15 and 36!
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-4B. WELLPOWER 10S- 5000- 30C-2017.07.12-1.jpg
Views:	51
Size:	183.2 KB
ID:	2224346   Click image for larger version

Name:	CHANGESUN 120-4B. WELLPOWER 10S- 5000- 30C-2017.07.14-1.jpg
Views:	60
Size:	184.6 KB
ID:	2224347

Last edited by JOZSEF; 07-30-2017 at 06:51 AM.
Old 07-14-2017, 11:53 PM
  #77
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Here is a video from the 10S 2017.07.14.test:


Last edited by JOZSEF; 07-19-2017 at 02:29 AM.
Old 07-15-2017, 12:08 AM
  #78
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades(with intake lip 2,old rotor)
CASLE PHOENIX EDGE HV 120
12S TURNIGY nano-tech 6000mAh 25-50C

I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 100%
-static thrust .: 66N (68N)

See post 73!
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-4B. TURNIGY nano-tech-12S-6000-25-50C-2017.07.14-1.jpg
Views:	59
Size:	173.0 KB
ID:	2224348

Last edited by JOZSEF; 07-30-2017 at 06:52 AM.
Old 07-15-2017, 01:51 AM
  #79
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Here is a video from the 12S 2017.07.14.test:


Last edited by JOZSEF; 07-19-2017 at 02:30 AM.
Old 07-15-2017, 05:58 AM
  #80
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

I am going to test the CHANGESUN Ø 120mm 4 blades with the intake lip 2 and the exhaust pipe Ø100MM at aft.

See posts 40 and 41!
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-4B.-20.JPG
Views:	49
Size:	376.4 KB
ID:	2226207

Last edited by JOZSEF; 07-30-2017 at 06:59 AM.
Old 08-14-2017, 04:18 AM
  #81
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

I tested this EDF unit (post 80) 10S and 12S twice due to the rpm and the static thrust .

CHANGESUN Ø 120mm 4 blades (with intake lip 2,old rotor,exhaust pipe Ø100mm at aft)
CASLE PHOENIX EDGE HV 120
WELLPOWER SE10S,5000mAh,30C

I used in this test:
-motor timing : low
-pwm rate…...:8kHz
-power out…. : 100%
-static thrust. : 44N (46N)
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-4B. WELLPOWER 10S- 5000- 30C-2017.07.14-1.jpg
Views:	37
Size:	184.6 KB
ID:	2227904   Click image for larger version

Name:	CHANGESUN 120-4B. WELLPOWER 10S- 5000- 30C-2017.08.13-1.jpg
Views:	36
Size:	174.0 KB
ID:	2227905
Old 08-14-2017, 04:36 AM
  #82
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades (with intake lip 2,old rotor,exhaust pipe Ø100mm at aft)
CASLE PHOENIX EDGE HV 120
12S TURNIGY nano-tech 6000mAh 25-50C

I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 100%
-static thrust .: 56N (62N)
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-4B. TURNIGY nano-tech-12S-6000-25-50C-2017.07.14-1.jpg
Views:	73
Size:	173.0 KB
ID:	2227909   Click image for larger version

Name:	CHANGESUN 120-4B. TURNIGY nano-tech-12S-6000-25-50C-2017.08.13-1.jpg
Views:	44
Size:	177.6 KB
ID:	2227910
Old 09-16-2017, 02:12 AM
  #83
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Earlier,I bought a CHANGESUN Ø120mm 12bl. EDF because I liked the shape of the rotor blades.

The first impressions were:
-the rotor and the plades material and the surface are excellent
-the edf house material is weaker and not as strong as CHANGESUN Ø120 4bl. house.

I decided to insert this motor and test epx. 100-120A.I wanted to know the data of this EDF at these amperes.

The first test was not successful ,because the blades touched the inner side of the house and the ESC switched off due to the high ampere and the high temperature.During the test I used the WATTMETER for checking the ampere. See the pictures!

After the test I checked once more the motor hole diameter in the motor shaft which is a little bigger than it should be.
My turner makes a new,more accurate rotor shaft for this motor and we are going to check the diameter of the inner side of EDF house.
I am going to rebalancing the rotor.
I have to change the set up in the ESC.
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-12Bl.-1.JPG
Views:	35
Size:	233.5 KB
ID:	2232137   Click image for larger version

Name:	CHANGESUN 120-12Bl.-2.JPG
Views:	35
Size:	304.3 KB
ID:	2232138   Click image for larger version

Name:	CHANGESUN 120-12Bl.-3.JPG
Views:	35
Size:	268.9 KB
ID:	2232139   Click image for larger version

Name:	CHANGESUN 120-12Bl.-4.JPG
Views:	37
Size:	299.6 KB
ID:	2232140

Last edited by JOZSEF; 09-16-2017 at 03:17 AM.
Old 09-17-2017, 04:10 AM
  #84
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 12 blades
CASLE PHOENIX EDGE HV 120
12S TURNIGY nano-tech 6000mAh 25-50C

I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 66,7%
-static thrust .: 42N
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-12Bl. TURNIGY nano-tech-12S-6000-25-50C-2017.09.11-1.jpg
Views:	41
Size:	176.0 KB
ID:	2232386   Click image for larger version

Name:	CHANGESUN 120-12Bl. TURNIGY nano-tech-12S-6000-25-50C-2017.09.11-first part-1.jpg
Views:	36
Size:	166.3 KB
ID:	2232387

Last edited by JOZSEF; 09-17-2017 at 04:14 AM.
Old 09-18-2017, 12:18 AM
  #85
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Here is a video from the 12S 2017.09.11.first part of this day test:
Old 10-08-2017, 02:30 AM
  #86
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 12 blades

My measures are in ”mm” :
- the shaft of the motor diameter…….: Ø7,96
- the factory shaft adapter diameters: Ø8,02, Ø16,38, Ø10,00
- the new shaft adapter diameters…..: Ø7,99, Ø16,42, Ø10,04
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-12Bl.-5-old shaft.JPG
Views:	41
Size:	348.0 KB
ID:	2240344   Click image for larger version

Name:	CHANGESUN 120-12Bl.-6-new shaft.JPG
Views:	40
Size:	373.9 KB
ID:	2240345
Old 10-16-2017, 01:28 AM
  #87
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

The EDF unit run well with the new rotor shaft.

CHANGESUN Ø 120mm 12 blades
CASLE PHOENIX EDGE HV 120
12S TURNIGY nano-tech 6000mAh 25-50C

I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 72,2%
-static thrust .: 42N
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-12Bl. TURNIGY nano-tech-12S-6000-25-50C-2017.10.14-1.jpg
Views:	62
Size:	171.0 KB
ID:	2241335
Old 10-29-2017, 01:38 AM
  #88
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

I have decided to make a 6 blades rotor from 12 blades because this electro motor can and likes to run on higher rpm.
Then, I can compare the parameters with the CHANGESUN Ø 120mm 12 blades and 4 blades EDF.
Old 11-05-2017, 11:40 AM
  #89
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

I have made 6 blades rotor. It is ready for test. I used UFO glue for gluing the rotor blades.
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-6Bl.-1.JPG
Views:	61
Size:	389.2 KB
ID:	2243738
Old 11-16-2017, 10:12 AM
  #90
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 6 blades
CASLE PHOENIX EDGE HV 120
WELLPOWER SE 10S,5000mAh,30C

I used in this test:
-motor timing : low
-pwm rate…...: 8kHz
-power out…..: 100%
-static thrust. : 41-42N
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-6B. WELLPOWER 10S- 5000- 30C-2017.11.11-1..jpg
Views:	55
Size:	163.1 KB
ID:	2245294   Click image for larger version

Name:	CHANGESUN 120-6B. WELLPOWER 10S- 5000- 30C-2017.11.16-1..jpg
Views:	41
Size:	164.2 KB
ID:	2245295
Old 11-18-2017, 11:18 AM
  #91
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

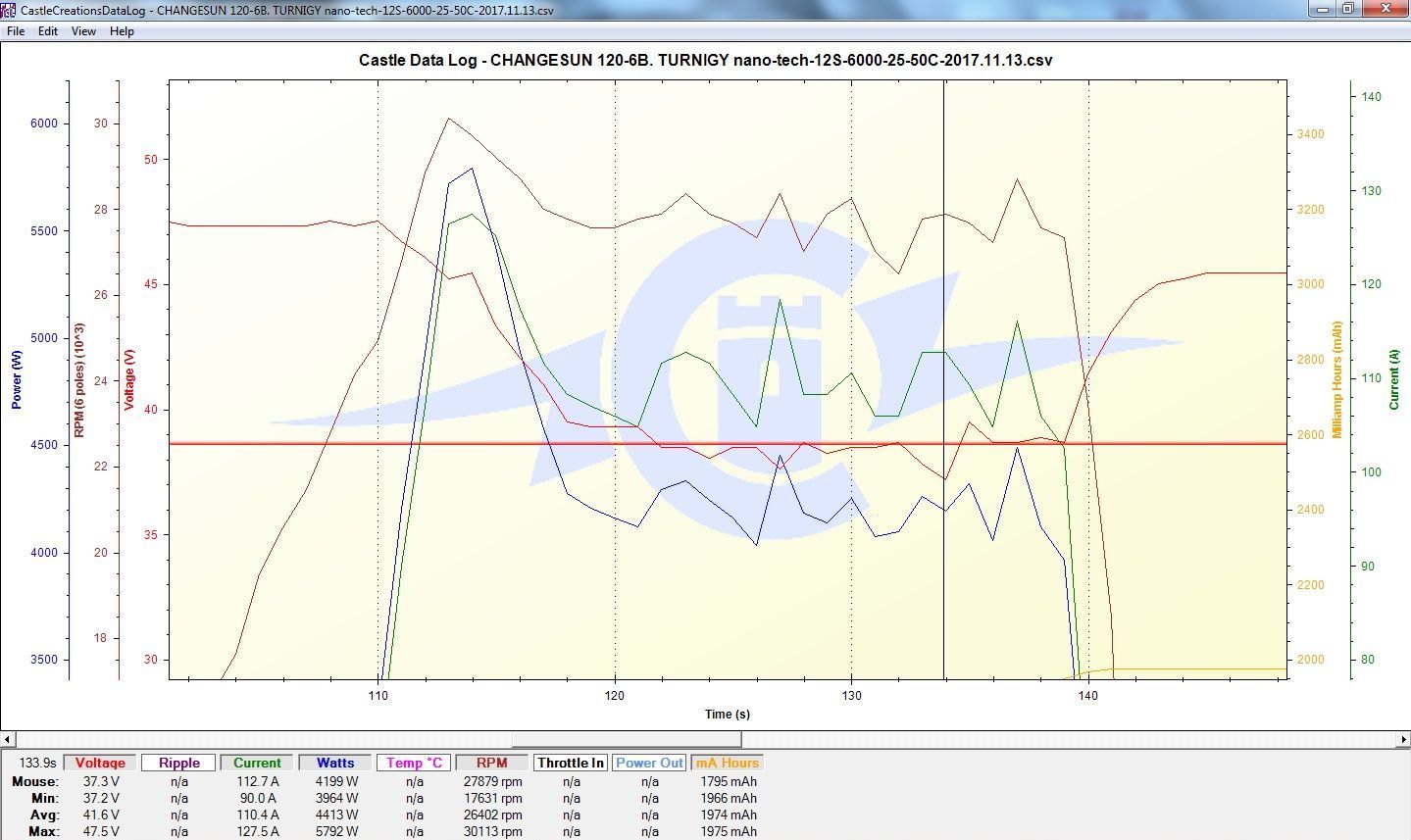

I used 2 types of accumulators during the CHANGESUN Ø 120mm 6 blades 12S test.
I started the test with 12S TURNIGY nano-tech 6000mAh 25-50C.
At higher rpm the EDF pulsed.My friend’s opinion is that the discharge rate(25-50C) is not enough for this test.I tested the EDF twice and got the same result.
Then I tested this EDF with an old 12S ZIPPY 5000mAh 45C. During these tests there weren’t pulses.I tested the EDF at 50N.

If somebody has opinion on pulsing of the EDF, please write me(us)!

CHANGESUN Ø 120mm 6 blades
CASLE PHOENIX EDGE HV 120
12S ZIPPY 5000mAh 45C

I used in this test:
-motor timing : low
-pwm rate…...: 8kHz
-power out…..: 92,2%
-static thrust. : 50N
Attached Thumbnails Click image for larger version

Name:	CHANGESUN 120-6B. ZIPPY-12S-5000-45C-2017.11.16-1.jpg
Views:	48
Size:	174.9 KB
ID:	2245487   Click image for larger version

Name:	CHANGESUN 120-6B. ZIPPY-12S-5000-45C-2017.11.16-2.jpg
Views:	47
Size:	169.8 KB
ID:	2245488
Old 12-14-2017, 11:38 AM
  #92
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

I had made several EDF test and I saw what is important is the clear airflow in the EDF.
I didn’t like the older exhaust pipe parameters of the CHANGESUN Ø 120mm 4 blades so at first I redesigned a new exhaust pipe where I did not change the outside diameter only I reduced the diameter aft of the electro motor air cooling canal.
After that I will make a seven degree exhaust pipe Ø 100mm at aft then I test these two exhaust pipes together.
I hope I will get better result in this test than in the old one.
Attached Thumbnails Click image for larger version

Name:	3. CHANGESUN 120-4BL-S.E.stu. ver.1.jpg
Views:	24
Size:	248.0 KB
ID:	2247638   Click image for larger version

Name:	3. CHANGESUN 120-4BL-S.E.stu. ver.2.jpg
Views:	28
Size:	355.9 KB
ID:	2247639   Click image for larger version

Name:	3. CHANGESUN 120-4BL-S.E.stu. ver.3.jpg
Views:	24
Size:	322.4 KB
ID:	2247640   Click image for larger version

Name:	3. CHANGESUN 120-4BL-S.E.stu. ver.4.jpg
Views:	22
Size:	274.4 KB
ID:	2247641   Click image for larger version

Name:	3. CHANGESUN 120-4BL-S.E.stu.ver.5.jpg
Views:	29
Size:	357.7 KB
ID:	2247642
Old 12-16-2017, 02:20 AM
  #93
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

There is the seven degree exhaust pipe Ø 100mm at aft.
There are the two exhaust pipes together.
Attached Thumbnails Click image for larger version

Name:	4. CHANGESUN 120-4BL-S.E.stu.ver.1.jpg
Views:	24
Size:	336.9 KB
ID:	2247779   Click image for larger version

Name:	4. CHANGESUN 120-4BL-S.E.stu.ver.2.jpg
Views:	30
Size:	117.1 KB
ID:	2247780   Click image for larger version

Name:	3-4. CHANGESUN 120-4BL-S.E.stu.ver.1.jpg
Views:	35
Size:	477.4 KB
ID:	2247781   Click image for larger version

Name:	3-4. CHANGESUN 120-4BL-S.E.stu.ver.2.jpg
Views:	32
Size:	312.5 KB
ID:	2247782
Old 01-19-2018, 09:26 AM
  #94
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

One of the M2 screws broke in the front part of the motor.I changed them to M3 screws.
The printed third exhaust pipe is not as nice as I expected to be because I hadn’t saved the 3D drawing corretly but I can still use it for the test.
Attached Thumbnails Click image for larger version

Name:	TURNIGY C580L -870-11.JPG
Views:	32
Size:	413.6 KB
ID:	2251573   Click image for larger version

Name:	CHANGESUN 120-4B.-21.JPG
Views:	26
Size:	625.8 KB
ID:	2251574   Click image for larger version

Name:	CHANGESUN 120-4B.-22.JPG
Views:	26
Size:	706.5 KB
ID:	2251575   Click image for larger version

Name:	CHANGESUN 120-4B.-23.JPG
Views:	26
Size:	588.2 KB
ID:	2251576

Last edited by JOZSEF; 01-20-2018 at 10:08 AM.
Old 04-15-2018, 11:06 AM
  #95
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

For the following tests I am using CHANGESUN Ø 120mm 4blades EDF with the new rotor,
because the old one broke during an unsuccessful test.

First, I tested the older accumulators and the EDF with intake lip 2 to get to know the initial parameters.
Old 04-16-2018, 12:42 AM
  #96
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades(with intake lip 2,new rotor)
CASLE PHOENIX EDGE HV 120
12S ZIPPY 5000mAh 45C


I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 100%
-static thrust .:
48-50N


Last edited by JOZSEF; 04-16-2018 at 01:03 AM.
Old 04-16-2018, 11:25 AM
  #97
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades(with intake lip 2,new rotor,exhaust pipe 2)
CASLE PHOENIX EDGE HV 120
12S ZIPPY 5000mAh 45C


I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 100%
-static thrust .: 52-56N



Old 04-20-2018, 12:25 AM
  #98
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Old 04-23-2018, 02:38 AM
  #99
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

CHANGESUN Ø 120mm 4 blades(with intake lip 2,new rotor,exhaust pipe 2-3)
CASLE PHOENIX EDGE HV 120
12S ZIPPY 5000mAh 45C


I used in this test:
-motor timing : low
-pwm rate .....: 8kHz
-power out ....: 100%
-static thrust .: 53-57N


.


.
Old 05-23-2018, 12:10 PM
  #100
JOZSEF
Thread Starter

Join Date: Jan 2008
Location: KECSKEMET, HUNGARY
Posts: 203
Likes: 0
Received 0 Likes on 0 Posts
Default

Here are some thoughts of the pulsing.
These accumulators were used and old at this time.
In the first part of this test I had set up in the ESC „Voltage Cutoff”- 38,67 V then I set 35,29 V.
During the test the ESC regulated back due to the voltage was lower than the „Cutoff Voltage” and it changed the rpm too.
One 6S of two accumulators is defective.



.


.


.


.

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
