1/3 scale project

Old 08-02-2010, 04:52 AM
  #1
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default 1/3 scale project

Yup here we go again...
ive put a halt to most my other project ie; 1/3scale buggy, jet boat, diff, etc

anywhoo i dont want give to much info on this build coz it may end up on the back burnner lol

everything ive learn with the other project is being employed on this build....

heres some pics... and loads of em

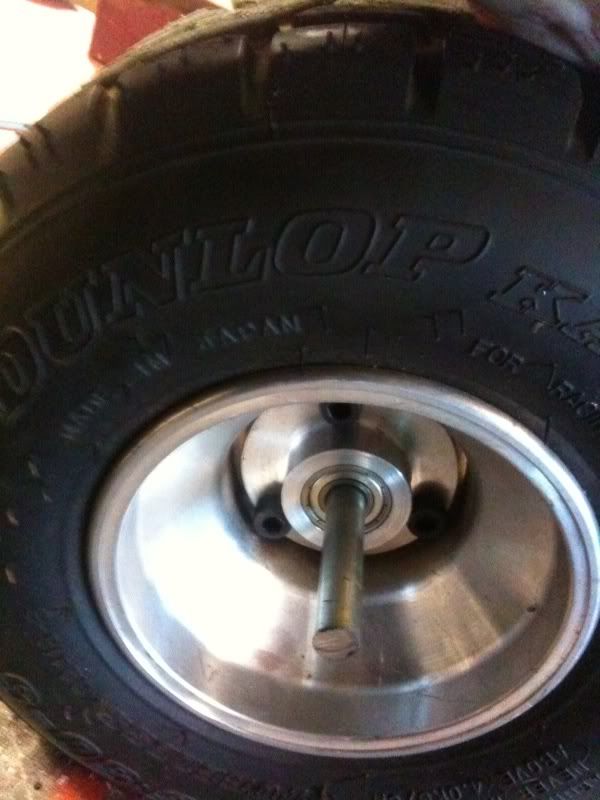

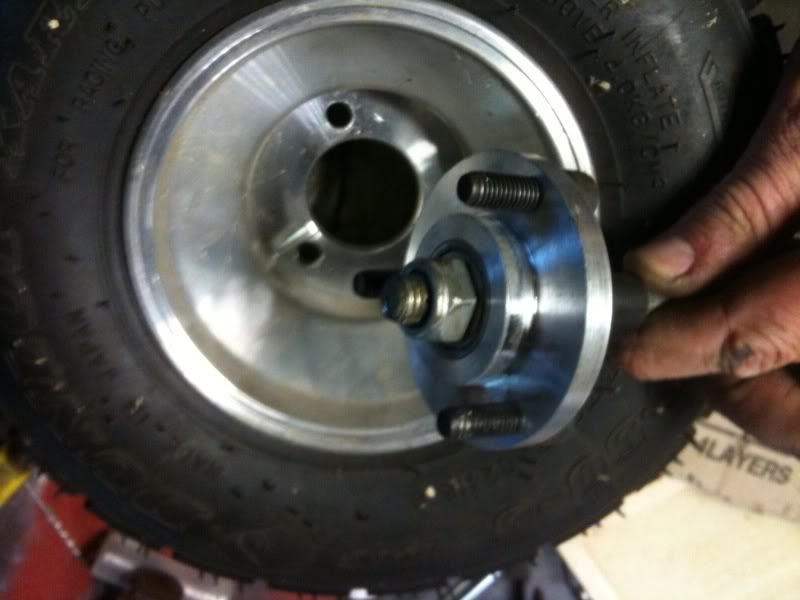

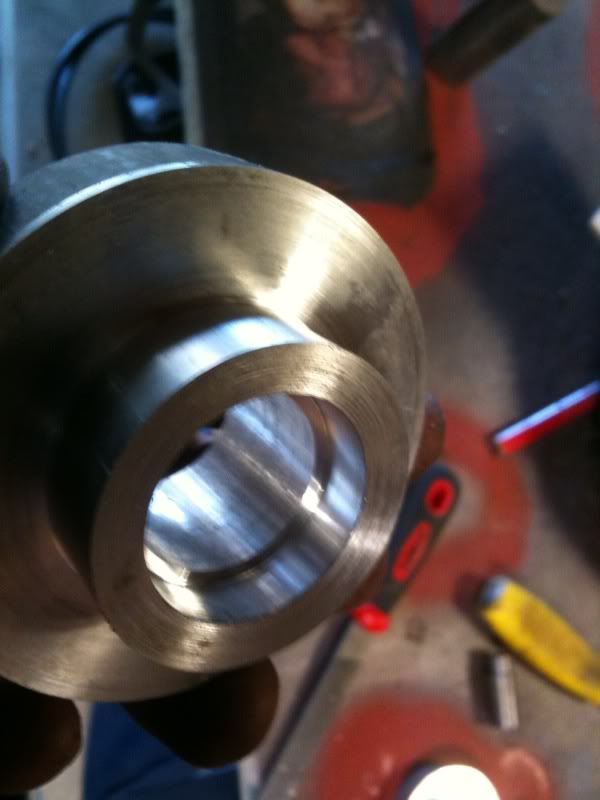

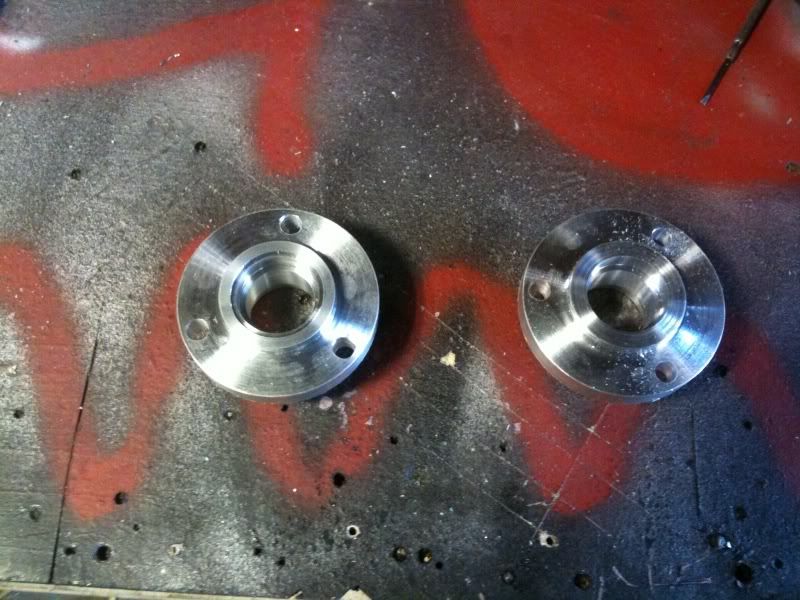

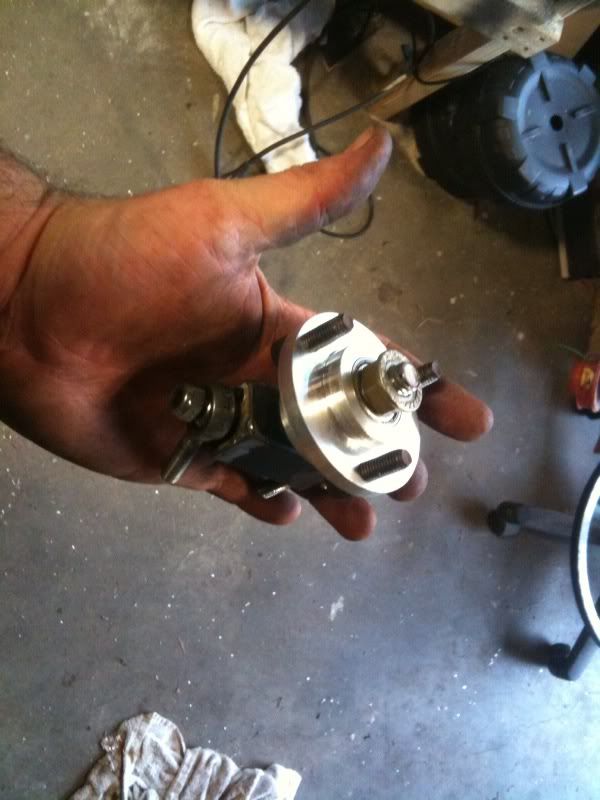

started with the front hubs

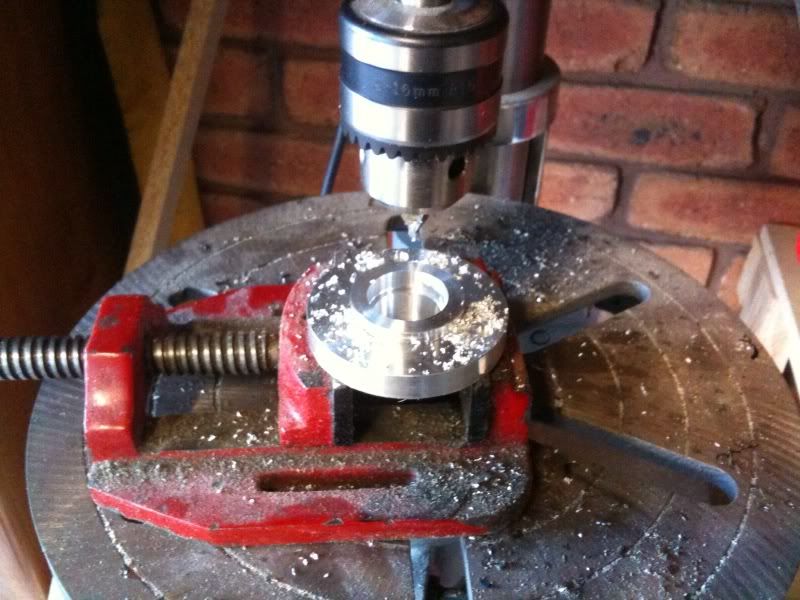

70mm stock Allu round

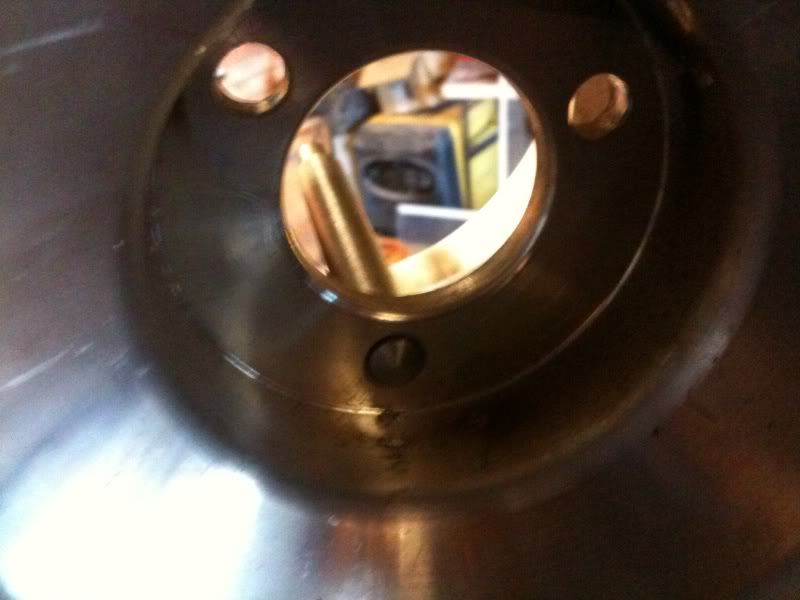

machined a center punch to mark the center for the wheel nut holes















and a teaser pic of what it is





next is the front hub uprights
Old 08-02-2010, 06:55 AM
  #2
Giorgos_cupra

Giorgos_cupra's Avatar

Join Date: Jun 2008
Location: , GREECE
Posts: 576
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

Good luck with your project mate!!I surely hope not to end up in the back burner.Looking forward to see more
Old 08-02-2010, 07:43 AM
  #3
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project


and a teaser pic of what it is




?????????????????????????
? ?
?????????????????????????




Old 08-02-2010, 12:10 PM
  #4
pinkducky
Senior Member

Join Date: May 2009
Location: Temecula, CA
Posts: 127
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

WoW, this is going to be awesome! Any more pics you can post???
Old 08-02-2010, 08:30 PM
  #5
Soloratov
My Feedback: (1)

Join Date: Feb 2005
Location: Manchester, NY
Posts: 629
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

oh god no! Your gonna beat me to my hummer!!!!! NOOOOOOOOOOO!

Oh who am I kidding. After 10 years and 4 redesigns, I had to expect this. If only money grew on trees........hehe. I can not wait to see how this turns out Mad. I may just end up stealing some ideas from ya if your not careful.
Old 08-03-2010, 05:43 AM
  #6
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

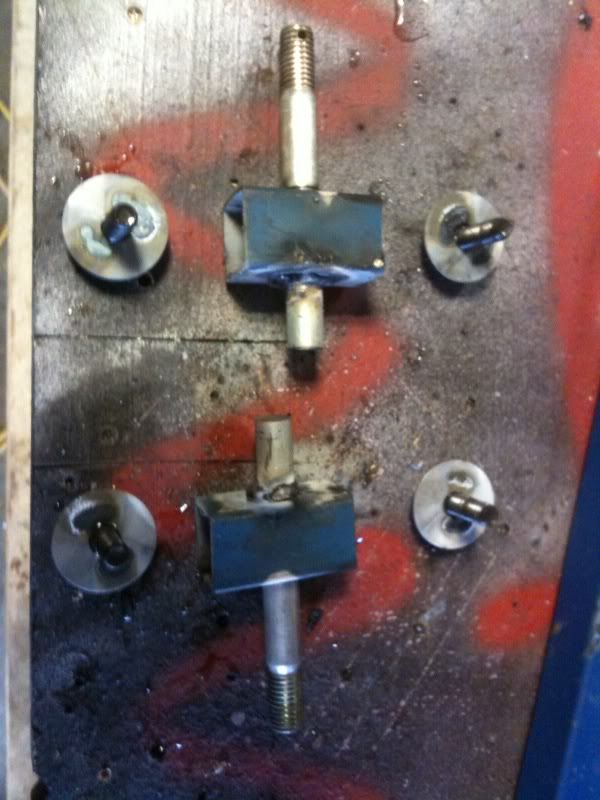

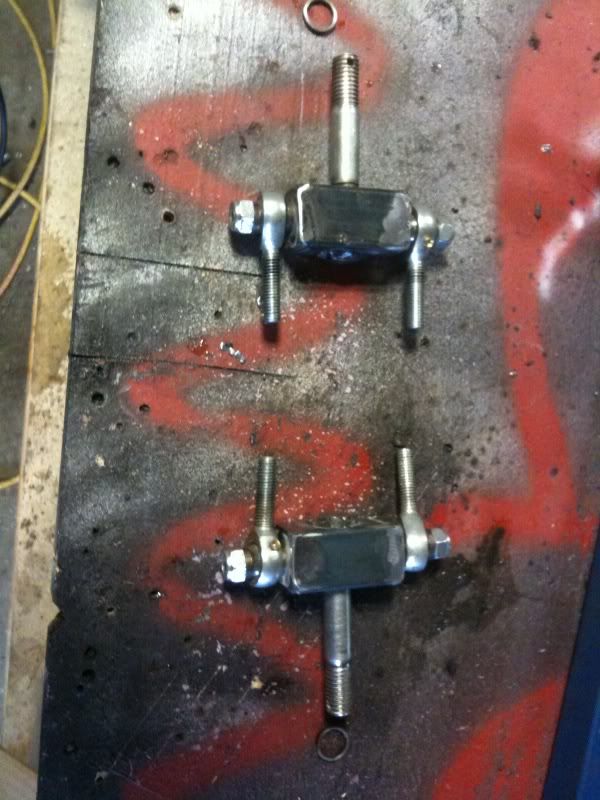

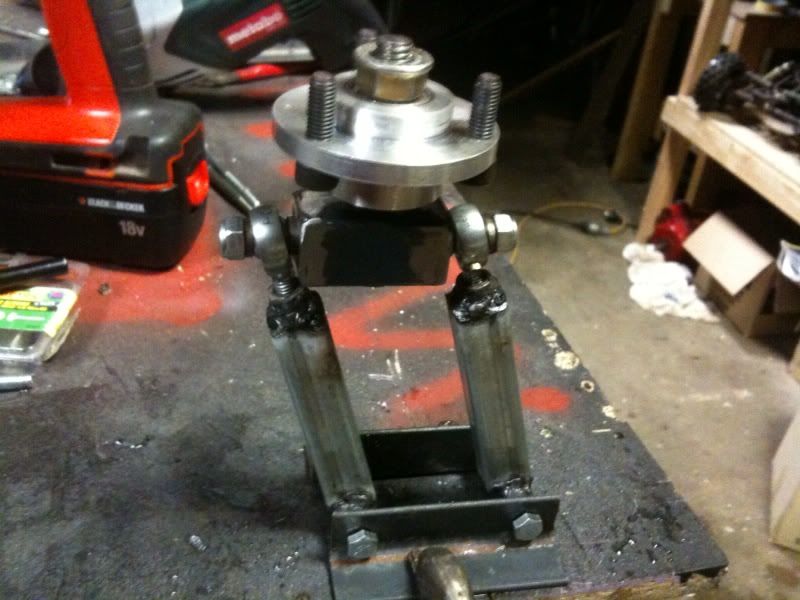

made the uprights tonight

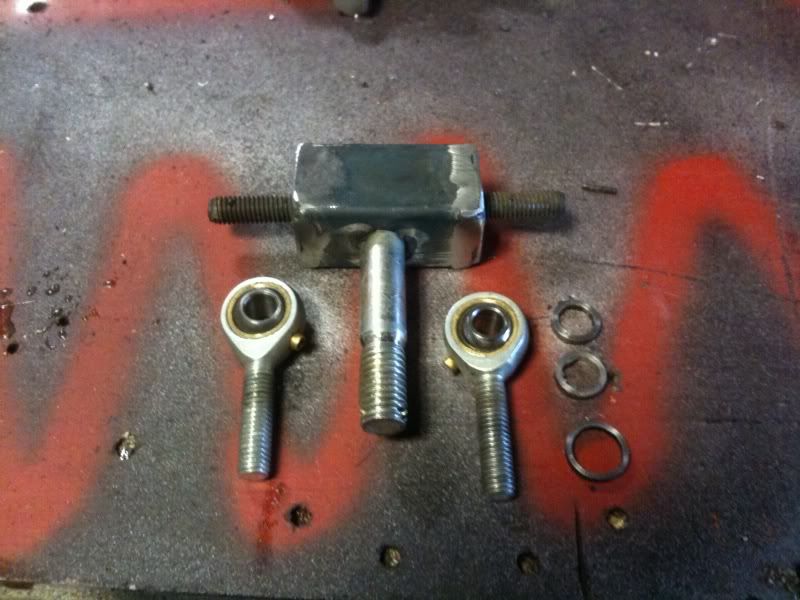

M8 bolts welded into big washers,


welded and cleaned up

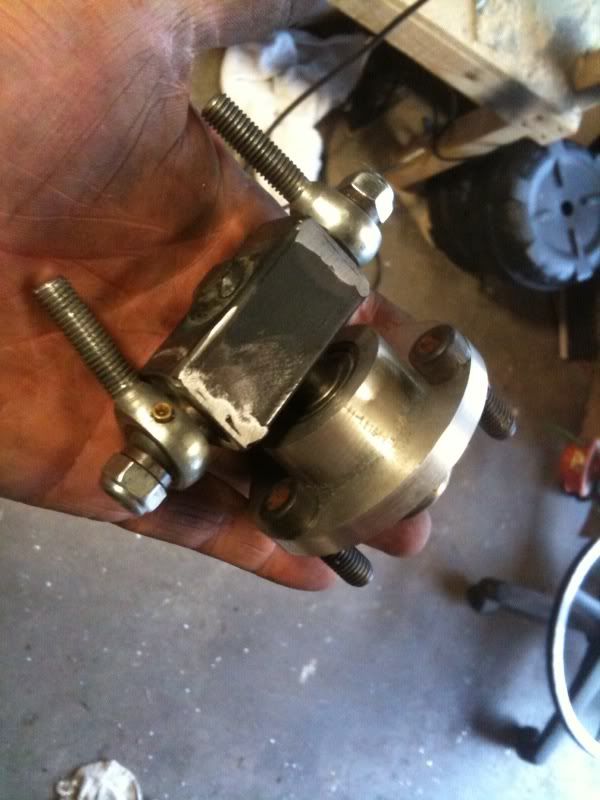

ball ends make good ......well.... ball joints LOL

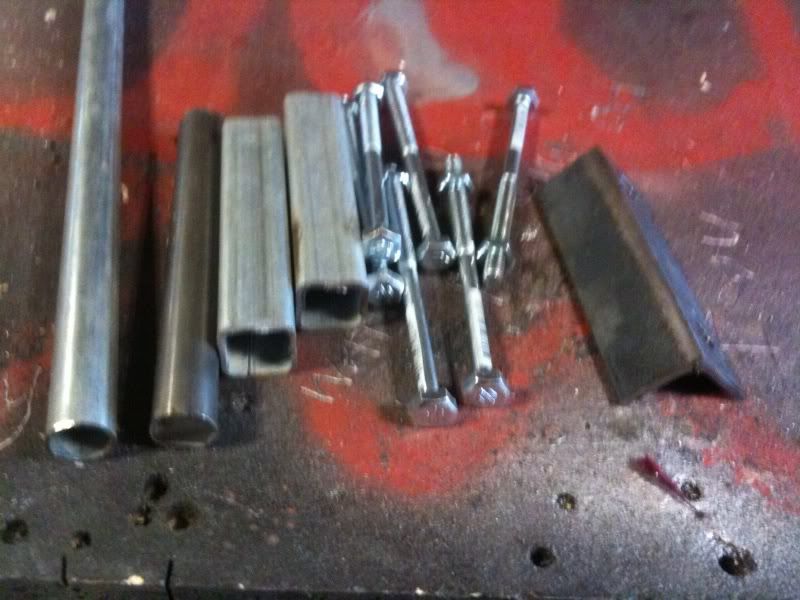

using the arms from my 1/3scale buggy project... but gave it the ass as its sloppy and rusty etc so will be making new arms tomorrow

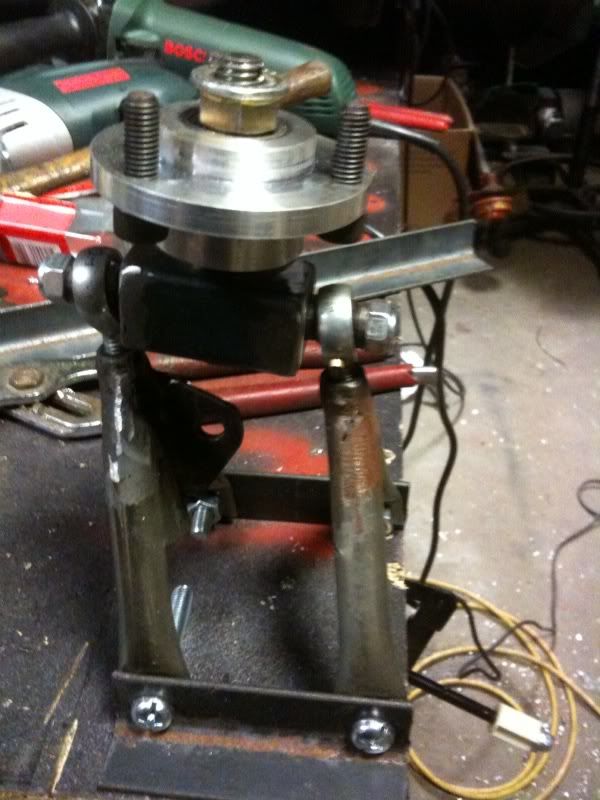

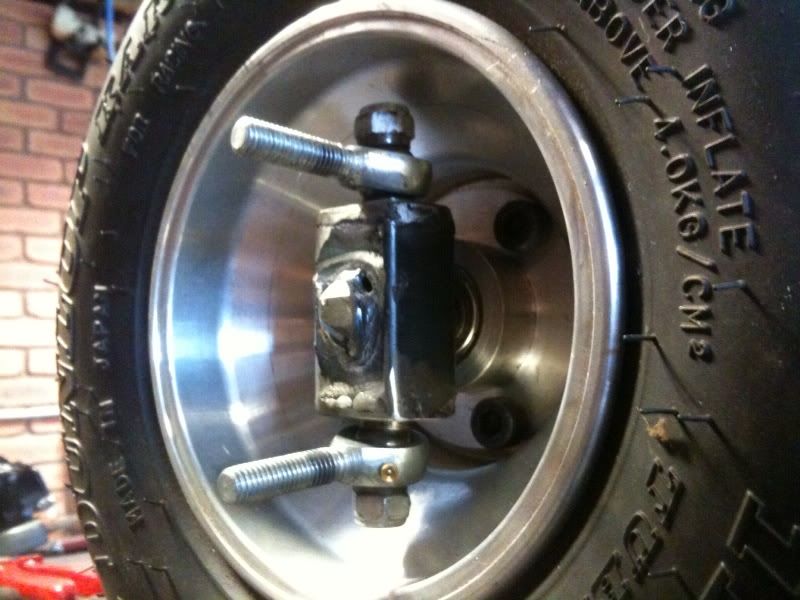

mock up

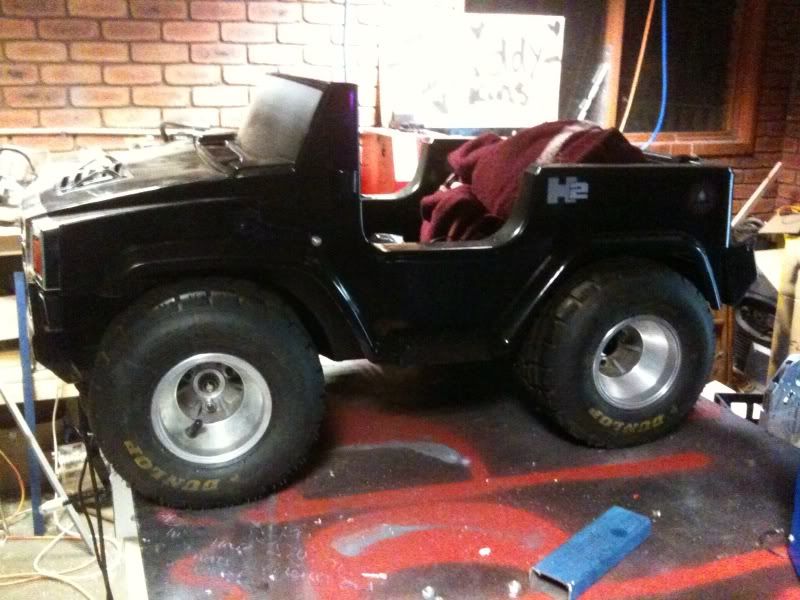

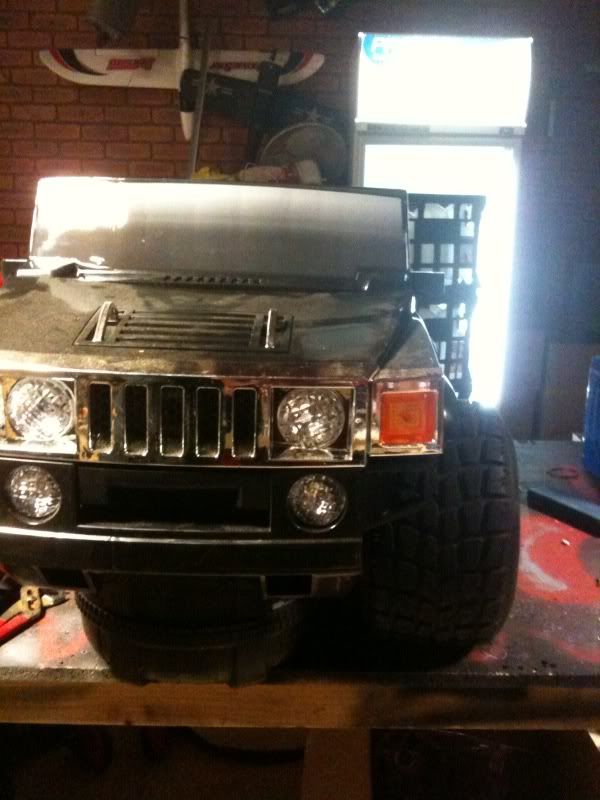

been thinking... the hummer body is not in proportion... of course coz its a kids toy... its too short for the width so should i cut and lenghen it to look more realistic or leave as is???


Cheers
Old 08-03-2010, 06:34 AM
  #7
Mudgy
Senior Member

Mudgy's Avatar

Join Date: Apr 2007
Posts: 851
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

leave it as is mate. It's an R/C, so all poetic license surely is permitted
Old 08-03-2010, 08:01 AM
  #8
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

I'd probably cut and lengthen it myself.
Looks a bit cartoony as it sits there at the moment....



Although it is kinda cool
Kinda like those Dub City toy cars.


Maybe make up some pimpin' hubcaps?






















Old 08-03-2010, 09:36 PM
  #9
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

Are they gokart front wheels on there?






Old 08-03-2010, 10:11 PM
  #10
kenazzo2000
Senior Member

Join Date: Feb 2005
Location: paola, MALTA
Posts: 1,665
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

nice work keep us all updated good luck mate
Old 08-04-2010, 12:16 AM
  #11
Jgilk1
Senior Member

Jgilk1's Avatar

Join Date: Jul 2010
Location: spokane , WA
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

i hope that isnt a way for you to scare off the little neighbor kids wait why make it rc just install a gas pedal and a break pedal... har har har
Old 08-04-2010, 03:25 AM
  #12
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

ORIGINAL: Dirty_Vinylpusher

Are they gokart front wheels on there?

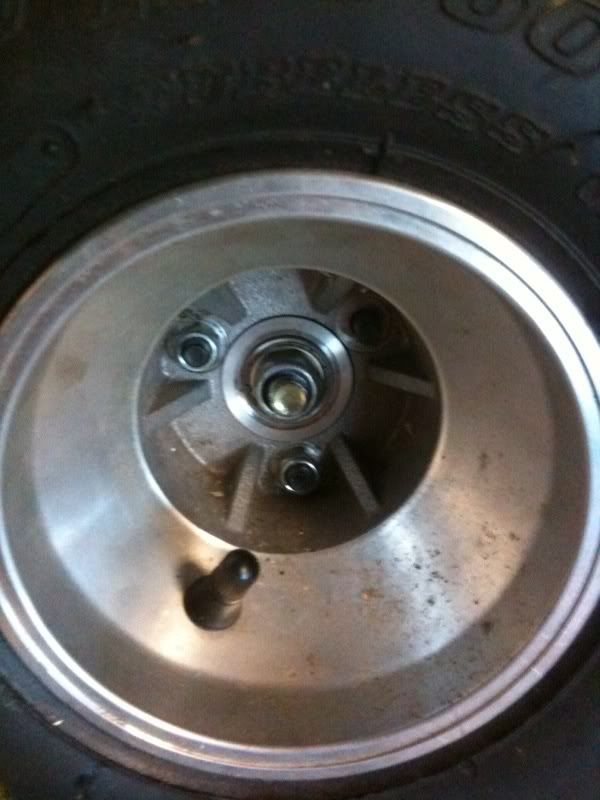

rear wheels.. i need 2 more for the back also...

probably should have gone with ffront wheels lol ohh well

Old 08-04-2010, 03:26 AM
  #13
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

after 3 different designs and pulling half my hair out,,,, i finally decided on the simplest one :-[







(not alot of pics from a long frustrating day lol)
Old 08-04-2010, 03:32 AM
  #14
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

I've just started to make the front end for my huge build as well.
All I can say mate, is that it's gonna be pretty similar to yours.
Pics tomorrow hopefully.









Old 08-08-2010, 02:59 AM
  #15
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

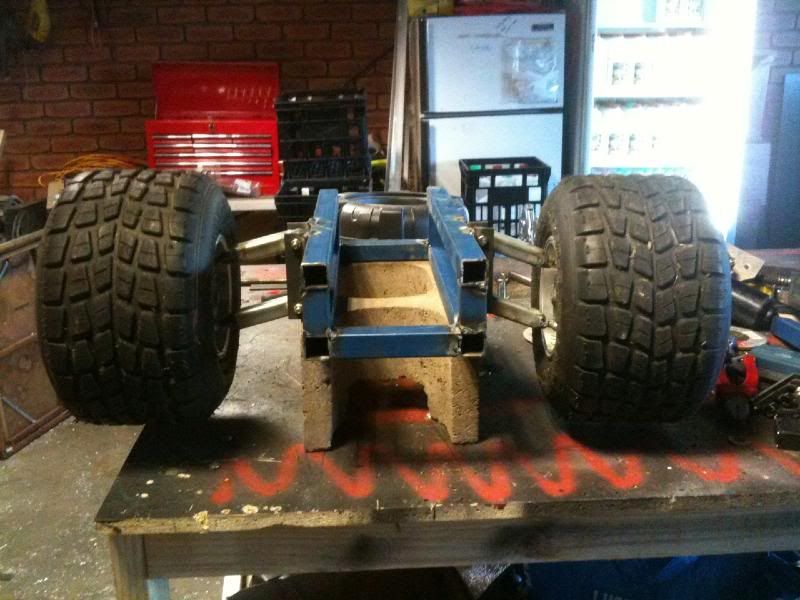

starting the the front end today....

its all going to be segmented so the front end which will be in one piece and contain the steering, front sus, steering servo,etc
will bolt onto the rear end which will contain the driveline , fuel tank, rear sus etc

anyhoo

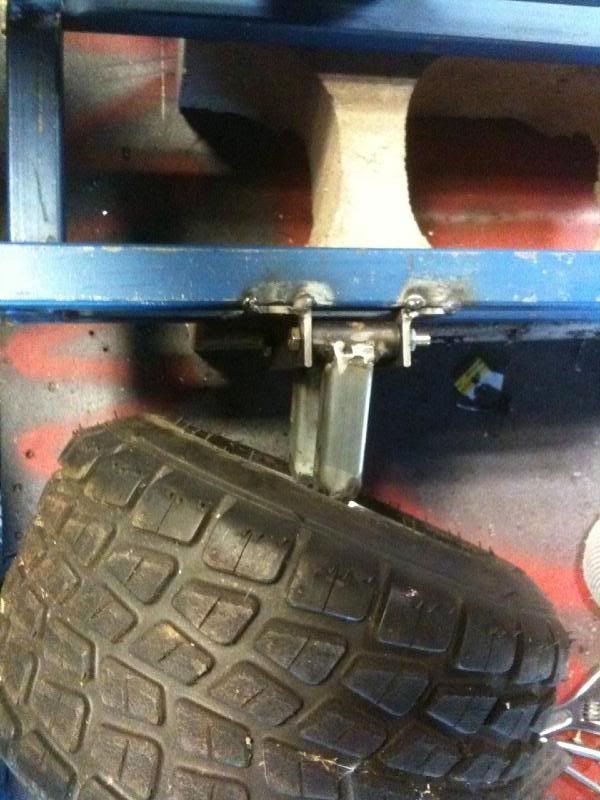

i need to squeeze a shock into this spot... coz i dont wanna mess around with counter lever shocks....i dont mind sacraficing a little steering lock for ease of shock placment





next will be steering and shocks
Old 08-08-2010, 03:10 AM
  #16
bentley marshall
Senior Member

Join Date: Jun 2006
Location: morrinsvillewaikato, NEW ZEALAND
Posts: 1,696
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

you sure that will be strong enuff???
Old 08-08-2010, 06:28 AM
  #17
Mudgy
Senior Member

Mudgy's Avatar

Join Date: Apr 2007
Posts: 851
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

if your tight for space have you thought about bell cranks 'n' inboard shocks? just an idea...looking good mate
Old 08-11-2010, 03:29 AM
  #18
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

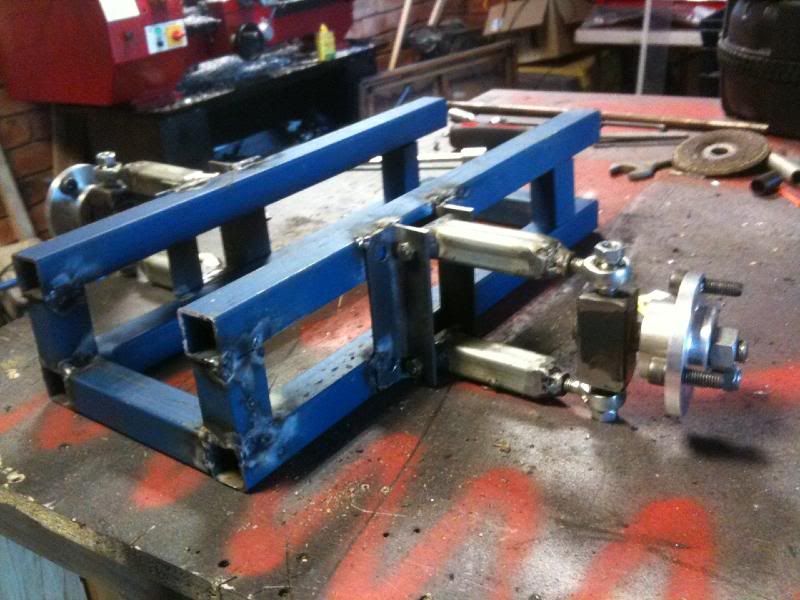

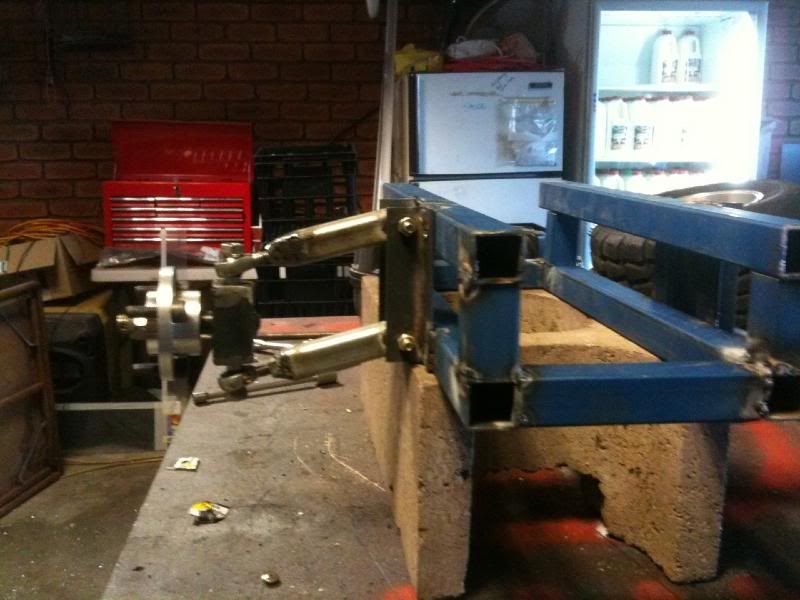

made a start on shocks today....... man what a hassle!!! went through 5 different designs, trial , error, ,throwing stuff, lol

couldnt effectively mount shocks normally so i had to resort to inboard shocks (,counter lever,,,bell crank,, etc) which i didnt really wanna do but ohh well

seatled on a good easy design using gas struts



made a sleeve to fit into the shock body and the endcap...giving me an area to drill and tap a fill hole and possibly to drill and tap another hole for a ressie







i soldered them together to seal it then tac welded for strength



the shaft is hardened steel so welding a bolt on the end was the only way LOL



one side assembled





next is the other side then steering.....
Old 08-11-2010, 04:45 AM
  #19
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

Nice one mate.
I've started to think about this home made shock business again.
I like your idea with making the little end cap bit.
Something I can do now that I have a lathe....



Did you do anything to the washer that's on the end of the shaft?

Cut slits in the side or anything like that to let the oil pass through?




Also, when you say that you soldered them together..... what do you mean by that?












Old 08-11-2010, 05:13 AM
  #20
Mudgy
Senior Member

Mudgy's Avatar

Join Date: Apr 2007
Posts: 851
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

Good idea.


BTW "wash yer hands, Geoffrey" !!!
Attached Thumbnails Click image for larger version

Name:	Us54652.jpg
Views:	14
Size:	61.5 KB
ID:	1482403
Old 08-11-2010, 05:15 AM
  #21
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

yeah theres a washer in there that acts as a oneway pass for the oil... so i welded it still ,then cut slits in the side to let oil pass like ya said

i used plumbers solder to join it all together coz i only have an arc welder... its very hard to weld water tight with an arc lol so i soldered it first..
Old 08-11-2010, 05:19 AM
  #22
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project


ORIGINAL: Mudgy

Good idea.


BTW ''wash yer hands, Geoffrey'' !!!
LOL they're never clean for too long
Old 08-11-2010, 07:29 AM
  #23
Dirty_Vinylpusher

Dirty_Vinylpusher's Avatar

Join Date: Jan 2009
Location: Close to the beach, AUSTRALIA
Posts: 3,497
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

"wash yer hands, Geoffrey"
Ah the signs of a long day in the shed.
My hands looked the same just earlier.




i used plumbers solder to join it all together coz i only have an arc welder... its very hard to weld water tight with an arc lol so i soldered it first..
Yeah tell me about it.
Arc welder here too.




Plumbers solder hey... must look in to that.
Got a mate who's a plumber.













Old 08-11-2010, 04:05 PM
  #24
martsrc
Senior Member

martsrc's Avatar

Join Date: Jul 2006
Location: Garlic Empire, CA
Posts: 126
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

Looking good. Keep us updated
Old 08-13-2010, 04:07 AM
  #25
da mad maori
Senior Member
Thread Starter

Join Date: Jul 2006
Location: , AUSTRALIA
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/3 scale project

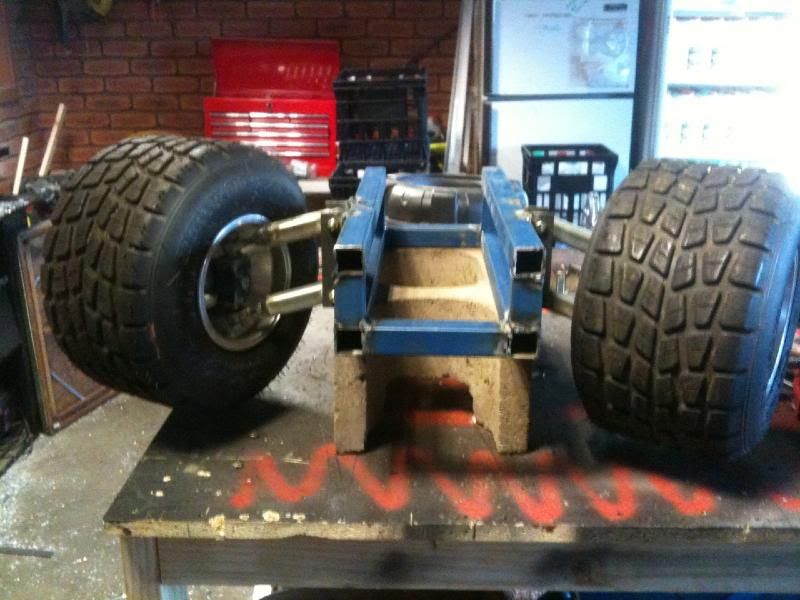

front suspension finished (ish.. havent filled them with oil yet)











next is steering including the steering servo
