So impending doom (rain) forcasted for tomorrow led to a trip to the LHS today. yesterday when i looked, they had a small assortment of balsa, but everything was mixed up and i didn't feel like sorting thru it. Anyways, after 4 hours today, i came up with enough sheeting to get started on the build. I finished up all the parts needed for the stabs, minus the root and tip block (LHS didn't have anything big enough) to start building. Here's a pictures of the parts for the other stab, and one 1/4 complete stab (still gotta do the root/tip block, and finish.





After looking around the internet for a bit today, i found matt haltons website and his electric speed 400 size pusher F-14 (32" wingspan). For those who have no idea, he's the original design of the EDF JHH F-14. His pusher version is 72% the size of the JHH EDF. Anyways, i might find myself scratch building one of these during this build. After-all you can never have to many tomcats right? Plus it'll give me something to play around with until the 1/7 gets done. I'd "like" to get 100-120mph out of the little pusher. But we will see...


Hope ya enjoy the thread. If anyone wants to get rid of some 3/32" x 4 x 48" balsa sheets for cheap, shoot me a PM.. i need about 60 to 80 of the things and at $2.20 a sheet, its expensive!
Old 07-05-2009, 10:49 AM
  #52
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Lil bit more work done so far today.. Made up the root and tip blocks for 1 stab, and the tip block for the other. Ran out of balsa to do the root block for the other stab. I've still got to sand both of them, but other than that, they are done minus glass and detailing. I also took the stab shaft bearing mounts and installed them to there respective bulkheads, make sure the bulkhead centerlines were aligned. After doing that, i couldn't help but slide the stab shafts into bulkheads. This really gave me an idea of exactly how big this model is going to be. the ruler is 20" long in the picture.




Old 07-05-2009, 11:26 AM
  #53
F14

Join Date: Aug 2003
Location: Tortona, ITALY
Posts: 174
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

WOW!
Thomas, it's wonderful to see your work proceeding so fast, by the way the photos really give a good idea how big the model will be!
Old 07-05-2009, 11:39 AM
  #54
Mike Emilio
Senior Member

Join Date: Mar 2003
Location: TorontoOntario, CANADA
Posts: 800
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Angelo, , ,

An envelope was mailed to you yesterday.
- Seperate drawing for the fins, so you don't have to cut-up the side view.
- Additional seperate drawing for a jig to support the engine nacells better.
Instead of the one centerline jig, it will now be the centerline as well as two nacelle jigs.
Old 07-05-2009, 12:07 PM
  #55
F14

Join Date: Aug 2003
Location: Tortona, ITALY
Posts: 174
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Thanks Mike,
that's what I mean for customer care!!!
Thanks again!

Angelo
Old 07-05-2009, 01:08 PM
  #56
ps2727

Join Date: Feb 2003
Location: ft worth, TX
Posts: 481
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Nice work Thomas!!
Old 07-07-2009, 11:37 AM
  #57
NickC5FE
My Feedback: (31)

NickC5FE's Avatar

Join Date: Feb 2003
Location: Fairfield, CA
Posts: 2,887
Likes: 0
Received 1 Like on 1 Post
Default RE: 1/7th F-14D Scratch build thread *building started*

Thomas, as i told you i would send you pix, here is how the hatch is on mine. The main sliding mechanism is the Radio Antennae on the top, from there a thin music wire is routes o the back and is attached to a 1/8 inch brass tube that goes out laterally to two bvm hatch latches and those engage the fuse. It works great and is totally hidden!Hope the pix help
Attached Thumbnails Click image for larger version

Name:	Tr49198.jpg
Views:	131
Size:	41.1 KB
ID:	1231396   Click image for larger version

Name:	Xs57092.jpg
Views:	178
Size:	65.6 KB
ID:	1231397   Click image for larger version

Name:	Rw58678.jpg
Views:	132
Size:	38.1 KB
ID:	1231398
Old 07-07-2009, 12:18 PM
  #58
ianober
My Feedback: (12)

ianober's Avatar

Join Date: Aug 2002
Location: Scottsdale, AZ
Posts: 4,461
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Looks great Thomas!! I cheated a little on my stabs and will be using a part already in production. I figure it will save me sometime.
Old 07-07-2009, 01:39 PM
  #59
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*


ORIGINAL: NickC5FE

Thomas, as i told you i would send you pix, here is how the hatch is on mine. The main sliding mechanism is the Radio Antennae on the top, from there a thin music wire is routes o the back and is attached to a 1/8 inch brass tube that goes out laterally to two bvm hatch latches and those engage the fuse. It works great and is totally hidden!Hope the pix help
Now thats so simple i would have never thought of it.. thanks for the pics nick.
Old 07-07-2009, 01:47 PM
  #60
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*


ORIGINAL: ianober

Looks great Thomas!! I cheated a little on my stabs and will be using a part already in production. I figure it will save me sometime.
I wish i had that option! then again, it would of only saved me 2 days of building, and about 2 weeks of "detail" work. lol
Old 07-07-2009, 05:54 PM
  #61
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

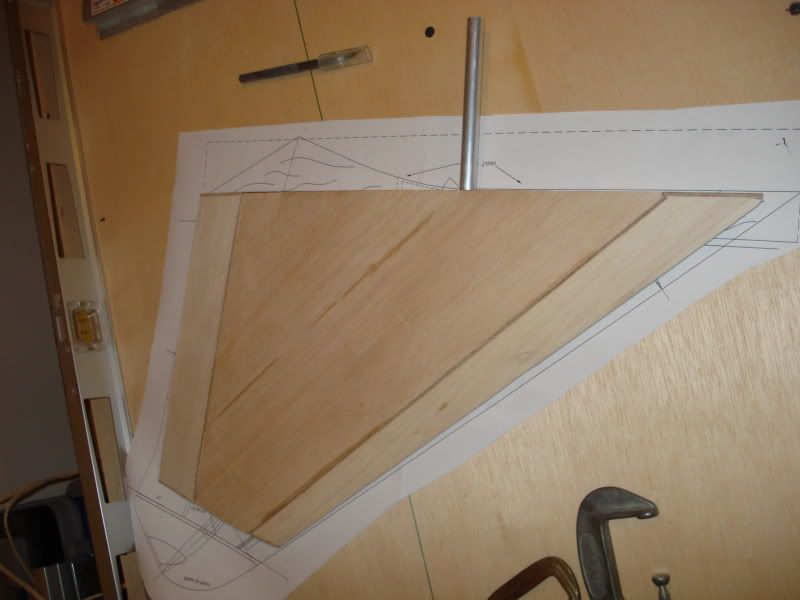

One horizontal stab is complete and ready for glassing... If i can find my fiberglass and have enough laminating resin left, i might get that done tonight.. I also got the mock-up wingbox assembled and installed to the C20 and C21 bulkheads. Using 3 squares, 2 laser levels, the jig i cut out earlier and about 45 minutes later, I got it all lined up. Wing box is made of 1/4" thick birch ply w/ 1/2" balsa triangle, and then AN-3 bolts w/ 1/4" OD carbon spacers. I wasn't going for strength on this box since its just used to align the 2 bulkheads together so the wing incidence can be set later on.. Here's pictures. I'm going to try and get the other horizontal stab done tonight as well, so the tail will be done minus the verticals.




Old 07-07-2009, 08:44 PM
  #62
Shaun Evans

Shaun Evans's Avatar

Join Date: Jan 2002
Location: San Diego, CA
Posts: 7,131
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

THOMAS!

You are, now and forever, the man. Awesome so far, friend!
Old 07-07-2009, 08:47 PM
  #63
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

ORIGINAL: YellowAircraft

THOMAS!

You are, now and forever, the man. Awesome so far, friend!

Haha.. thanks! If YA would of had theirs out by now, i would of just bought theirs (hell even when it does come out, i'll probly end up getting one )... but im stuck doing it this way for now Heyy.. speaking of... how in the crap was the spoiler setup hinged and actuated on the YA F-14? I vaguely remember seeing pictures of the spoilers.. They seemed to be brass sheet soldered to a brass tube.. Is this accurate? When i get to the point of needing some "detail" done to the gear and cockpit, I'm going to have to make a trip out that way to twist/pull Mr. Reese's arm to get him to do an F-14


**Update 2 for the day**

The Second stab is done minus a bit of filling and final sanding... should have that done tomorrow.... Now its just a matter of time to wait for 2 more drawings to get here, along w/ a balsa order. I've got the stuff to make up the wing spars, so i'll probly get started laying out the wing ribs and spars so the wing panels are ready to sheet by the time the balsa order gets here. I should have the stuff for the TCS pod under the nose as well, i've just got to come up w/ the drawings for that one... Which i'll probly do this week while i wait on those vertical stab drawings to get here.
Old 07-10-2009, 09:17 AM
  #64
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

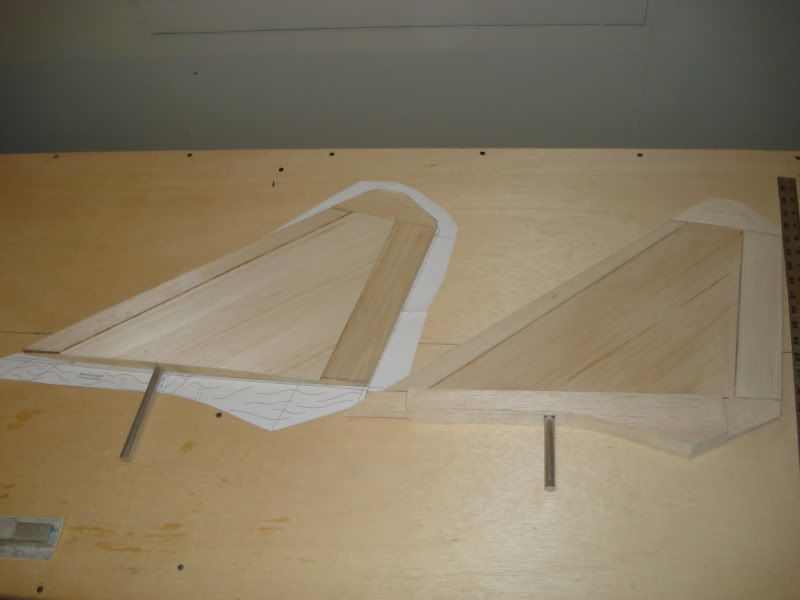

Both horizontal stabs are done and ready for glassing. Hopefully the LHS will have some Finishing resin, so i can get that done this weekend.. I made my balsa order.. about 90 sheets of balsa (60 of which are 3/32") and a couple of blocks for the slats, wingtips, etc.. Got 2- 16oz bottles of glue as well.. Hopefully that stuff will arrive on tuesday or wed. of next week. I'm going to try and get the vertical stabs and rudders done this weekend as well, so when the balsa arrives, its a matter of getting the wings built and starting on the fuselage.
Old 07-10-2009, 11:06 AM
  #65
ianober
My Feedback: (12)

ianober's Avatar

Join Date: Aug 2002
Location: Scottsdale, AZ
Posts: 4,461
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Good stuff Thomas, moving along nicely!
Old 07-12-2009, 12:36 AM
  #66
Hustler58
My Feedback: (1)

Hustler58's Avatar

Join Date: Feb 2005
Location: Mansfield, TX
Posts: 1,478
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Thomas, I put all the F-14 info I had on a CD and mailed it today. Let me know if that is what you wanted. Butch
Old 07-12-2009, 06:36 PM
  #67
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*


ORIGINAL: Hustler58

Thomas, I put all the F-14 info I had on a CD and mailed it today. Let me know if that is what you wanted. Butch

Butch,
thanks a ton! If i can ever repay the favor or owe ya for your time, just lemme know.

thomas
Old 07-12-2009, 06:44 PM
  #68
bela
Senior Member

Join Date: Jan 2003
Location: Okinawa, AP, JAPAN
Posts: 335
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Looking good![sm=thumbup.gif]
Old 07-12-2009, 09:34 PM
  #69
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

Both stabs are complete and ready to be fiberglassed, primed and then surface detailed. The plans for the Vertical stabs arrived and i'm going to build them and the rudders before i do the glass work to the horizontals, that way i can do all four at once (i've got to do a bit of fiberglassing on the rotors of an autogyro i'm buidling for a friend as well). Here are 2 pictures showing the horizontal stabs mounted into the stab bulkheads w/ a 4 foot bubble level for size reference (as if yall haven't gotten enough of these already)


Old 07-13-2009, 07:08 PM
  #70
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

I apologize for the slow progress, but i'm still waiting on my balsa order, and being a newly wed, the wife expects me to spend as much time with her as the tomcat... anyways, i got a bit more work done today before running out of both balsa and glue... Hopefully national balsa will have my balsa order shipped out tomorrow since i placed it with them friday. I've also got 2 16oz bottles of glue coming (1-medium, 1-thin) which i fully expect to use completely once the sheeting of the fuselage begins. Anyways, both vertical stabs have been framed and sheeted, all thats left to do is cut out the parts for the rudders, the leading edges and the tips, shape, final sand and glass, then they will be ready for detail work.. here's a few pictures showing the stabs in "progress" of being built. Sorry, but i forgot to get pictures of the mods i did to make the vertical stabs removable.

Now that these are all done, i can start laying out the wing ribs and spars, so that once the sheeting arrives they will be ready for the leading edge caps (and slats) to be made, and the wings to be sheeted...



Old 07-13-2009, 10:04 PM
  #71
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*

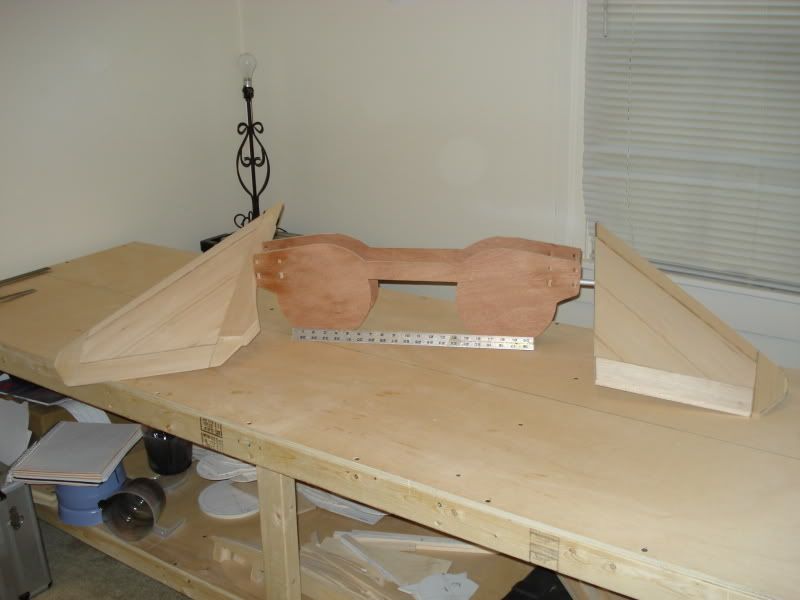

2 more pictures... Does it look like an F-14 yet?


Old 07-13-2009, 10:19 PM
  #72
NickC5FE
My Feedback: (31)

NickC5FE's Avatar

Join Date: Feb 2003
Location: Fairfield, CA
Posts: 2,887
Likes: 0
Received 1 Like on 1 Post
Default RE: 1/7th F-14D Scratch build thread *building started*

AWESOME THOMAS! LOOKS AWESOME!

Heres how my stabs looked when i got her, and the last pic shows as of today! Happy with the outcome!
Attached Thumbnails Click image for larger version

Name:	Qo40258.jpg
Views:	89
Size:	66.5 KB
ID:	1235877   Click image for larger version

Name:	Id95429.jpg
Views:	83
Size:	47.0 KB
ID:	1235878   Click image for larger version

Name:	Db85886.jpg
Views:	131
Size:	44.9 KB
ID:	1235879
Old 07-13-2009, 10:25 PM
  #73
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*


ORIGINAL: NickC5FE

AWESOME THOMAS! LOOKS AWESOME!

Heres how my stabs looked when i got her, and the last pic shows as of today! Happy with the outcome!
damnn nick.. that was BAD! Looks great now though.. ya gonna put some lights on that thing
Old 07-13-2009, 11:07 PM
  #74
NickC5FE
My Feedback: (31)

NickC5FE's Avatar

Join Date: Feb 2003
Location: Fairfield, CA
Posts: 2,887
Likes: 0
Received 1 Like on 1 Post
Default RE: 1/7th F-14D Scratch build thread *building started*

It had lights, but i am not going to put them back in, all the lenses were jacked up from the incident, and i am not putting that much work into molding new lenses. Plus, i dont have the channel available with athe other functions going on in this pig......

Hell, the whole left stab broke clear off of the bulkead/spar-no bueno
Old 07-13-2009, 11:10 PM
  #75
invertmast
Thread Starter
My Feedback: (23)

invertmast's Avatar

Join Date: Dec 2003
Location: North Port, Fl
Posts: 7,883
Received 9 Likes on 7 Posts
Default RE: 1/7th F-14D Scratch build thread *building started*


ORIGINAL: NickC5FE

It had lights, but i am not going to put them back in, all the lenses were jacked up from the incident, and i am not putting that much work into molding new lenses. Plus, i dont have the channel available with athe other functions going on in this pig......

Hell, the whole left stab broke clear off of the bulkead/spar-no bueno

I can understand that.. i'll probly end up having to upgrade to a 12x and channel x-pander for the F-14 once i get the prototype flying and the bugs worked out... how did ya over-come the issue of the stab breaking off the bulkhead/spar?
