nitrosportsandrunner 02-11-2012 06:38 AM
Model support...exploded views

1 Attachment(s)
This thread has all the exploded views I could find.
Exploded views can help us find part #'s as well as see how to take things apart and put them back together again

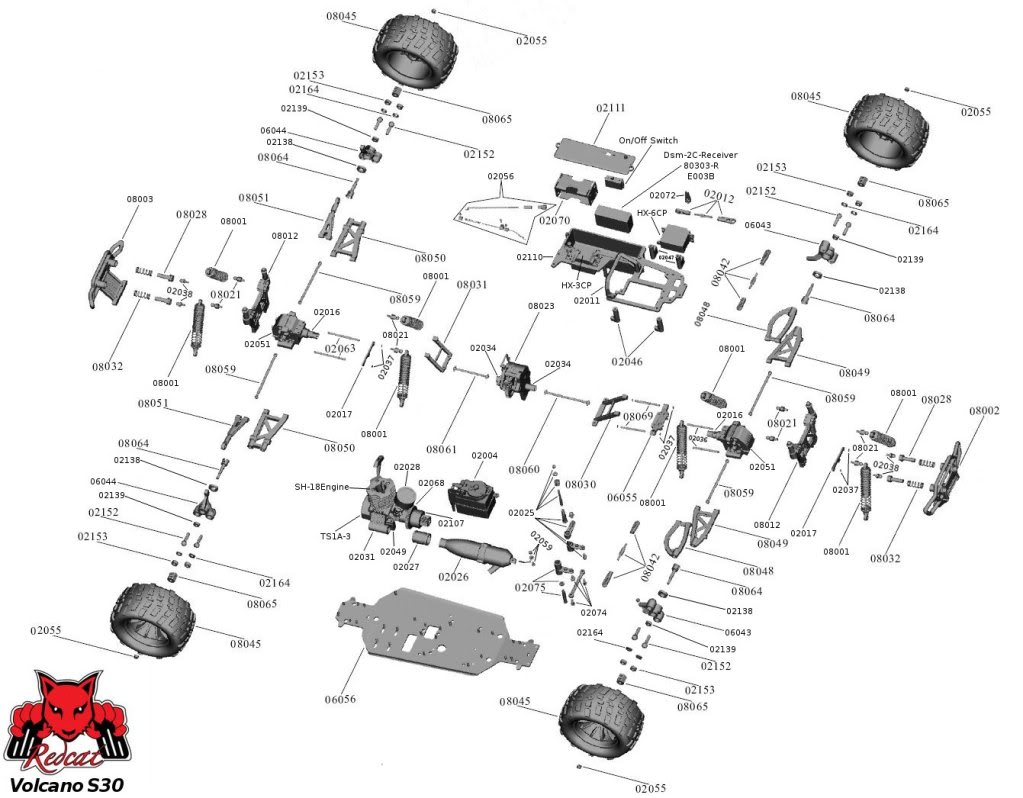

Volcano s30
Attachment 2236610

nitrosportsandrunner 02-11-2012 06:39 AM
RE: Model support...exploded views

Volcano EPX/EPX PRO
http://i1224.photobucket.com/albums/...canoepxpro.jpg

nitrosportsandrunner 02-11-2012 06:40 AM
RE: Model support...exploded views

Tornado EPX/EPX PRO
http://i1224.photobucket.com/albums/...nadoepxpro.jpg

nitrosportsandrunner 02-11-2012 06:43 AM
RE: Model support...exploded views

Lightning EPX PRO
http://i1224.photobucket.com/albums/...ningepxpro.jpg

nitrosportsandrunner 02-11-2012 06:45 AM
RE: Model support...exploded views

Backdraft 8E Brushless
http://i1224.photobucket.com/albums/...ackdraft8E.png

nitrosportsandrunner 02-11-2012 06:47 AM
RE: Model support...exploded views

Aftershock 3.5 Nitro
http://i1224.photobucket.com/albums/...rshock35-2.png

nitrosportsandrunner 02-11-2012 06:53 AM
RE: Model support...exploded views

Backdraft 3.5 Nitro
http://i1224.photobucket.com/albums/...ackdraft35.png

nitrosportsandrunner 02-11-2012 06:58 AM
RE: Model support...exploded views

Avalanche Nitro
http://i1224.photobucket.com/albums/...-schematic.jpg

nitrosportsandrunner 02-11-2012 07:01 AM
RE: Model support...exploded views

Earthquake 3.0-3.5 Nitro
http://i1224.photobucket.com/albums/...quake30-35.png

nitrosportsandrunner 02-11-2012 07:07 AM
RE: Model support...exploded views

Lightning Nitro
http://i1224.photobucket.com/albums/...-schematic.jpg

nitrosportsandrunner 02-11-2012 07:09 AM
RE: Model support...exploded views

Caldera 3.0 Nitro
http://i1224.photobucket.com/albums/.../Caldera30.png

nitrosportsandrunner 02-11-2012 07:11 AM
RE: Model support...exploded views

Shockwave Nitro Buggy
http://i1224.photobucket.com/albums/...-schematic.jpg

BobbyMcGee 02-11-2012 07:12 PM
RE: Model support...exploded views

1 Attachment(s)
Here aremy exploded views.
