Default Model support...exploded views
This thread has all the exploded views I could find.
Exploded views can help us find part #'s as well as see how to take things apart and put them back together again

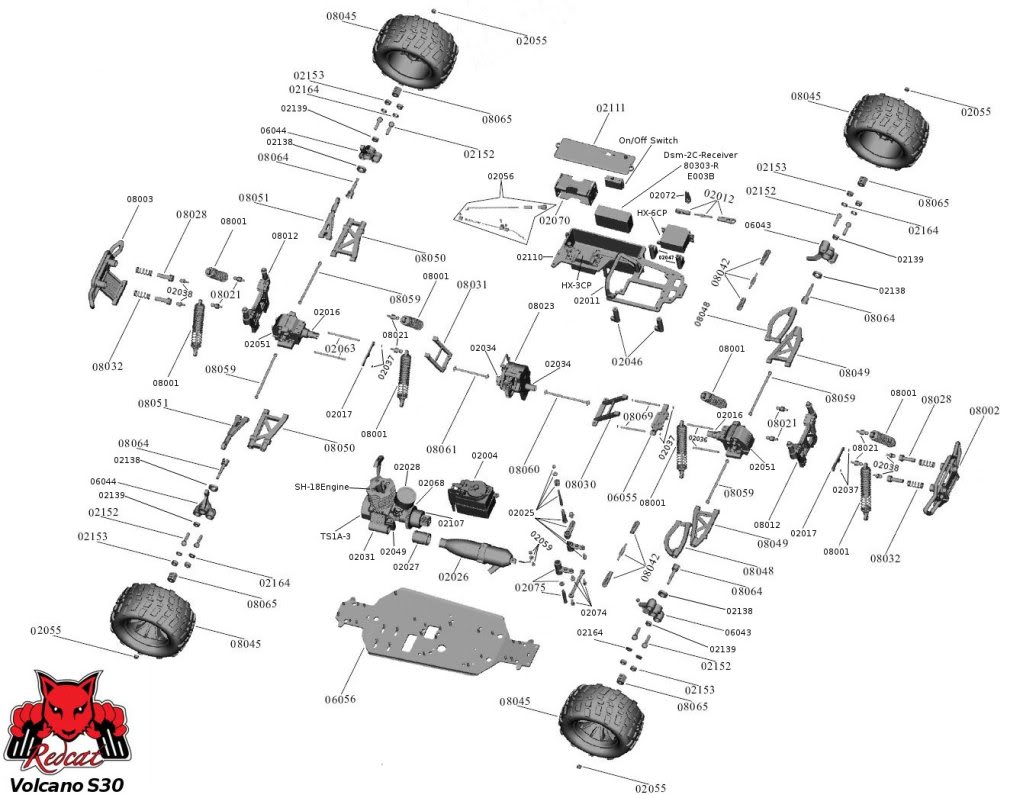

Volcano s30
Click image for larger version Name: volcanos30-schematic.jpg Views: 4362 Size: 109.5 KB ID: 2236610
