Default RE: How to import airfoils into autocad?
The modern aerobats use a different profile... fat forward, tapering almost linearly to the trailing edge, unlike the standby NACA shapes...
Here's two Eppler's... 474 and 479,

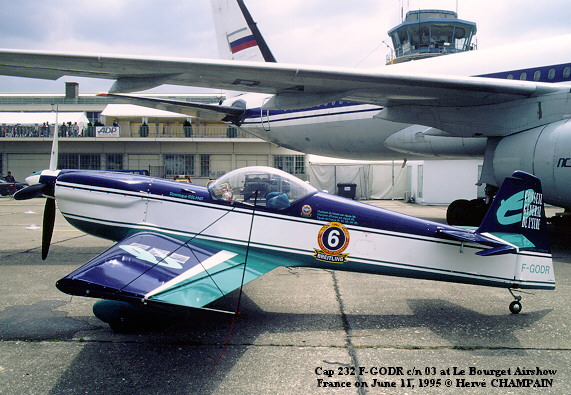

and a couple photos of Extras and a Cap..
Note at the root the straight line from max thickness to t.e.
Attached Thumbnails Click image for larger version Name: Vt57280.jpg Views: 783 Size: 39.2 KB ID: 66464   Click image for larger version Name: Kf14415.jpg Views: 256 Size: 97.3 KB ID: 66465   Click image for larger version Name: Kq35714.jpg Views: 165 Size: 44.5 KB ID: 66466
