Default Build a Wood Q500 Fuselage

If your model uses a different airfoil than provided on the fuselage, don't worry.

The pictures show how to update the sides based upon the actual airfoil.

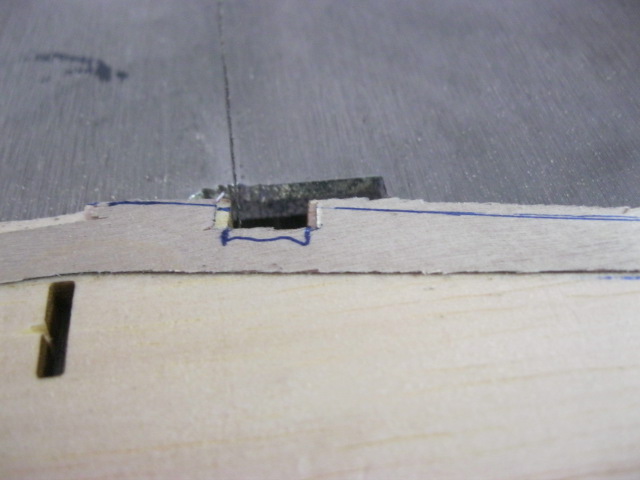

1) Trace the airfoil on to the fuselage side.

2) Cut the sides with the tool of your choice. I used a jig saw here.

3) Build the model with the updated wing sides.

Good luck!
