Veco Tom-Tom

Old 04-28-2010, 01:46 PM
  #1
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default Veco Tom-Tom

I can't seem to find the plans or anything for this old VECO kid. The Smoothie thread reminded me.
Any ideas on where I can find it? It was the last model my dad built before he gave up, and I'd like to build one.
Old 04-28-2010, 02:34 PM
  #2
skaliwag
My Feedback: (1)

skaliwag's Avatar

Join Date: Jan 2003
Location: Corralitos CA
Posts: 2,469
Received 2 Likes on 2 Posts
Default RE: Veco Tom-Tom

Joe Wagner is still around... I believe he sells them.
Old 04-28-2010, 06:00 PM
  #3
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Web site is "Blocked", and not by me.
Old 05-03-2010, 05:07 PM
  #4
gcb

Join Date: Oct 2002
Location: Port Ewen, NY
Posts: 3,440
Likes: 0
Received 4 Likes on 4 Posts
Default RE: Veco Tom-Tom


ORIGINAL: rw Guinn
I can't seem to find the plans or anything for this old VECO kid. The Smoothie thread reminded me.
Any ideas on where I can find it? It was the last model my dad built before he gave up, and I'd like to build one.

Here is Tom Dixon's plans site. http://tomdixon.tripod.com/plans2.htm

It's under the "Classic Era" section. Trouble is, it's the kit plan. If I remember correctly, the kit plan is an isometric assembly sheet - not something you can use to build without a kit.

If Joe Wagner has them, they will be excellent plans.

BTW, a Tom Tom was the first larger than 1/2A plane I flew. It belonged to a friend.

George
Old 05-05-2010, 06:57 PM
  #5
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

There were 2 different Tom Toms. not sure when the design change was made before or after Dumas acquired Veco.?

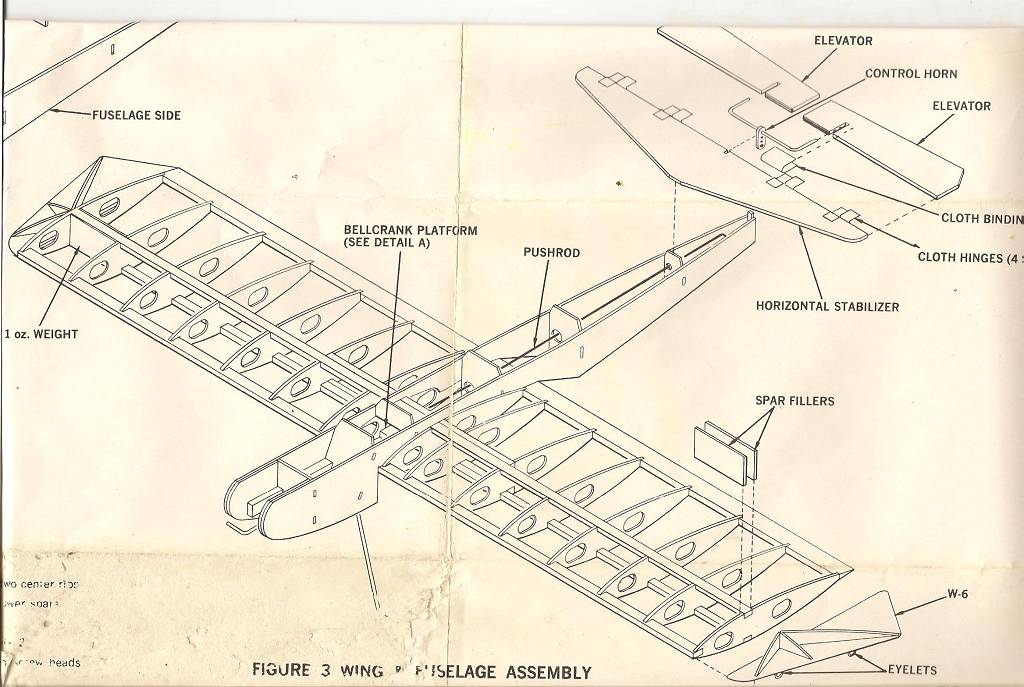

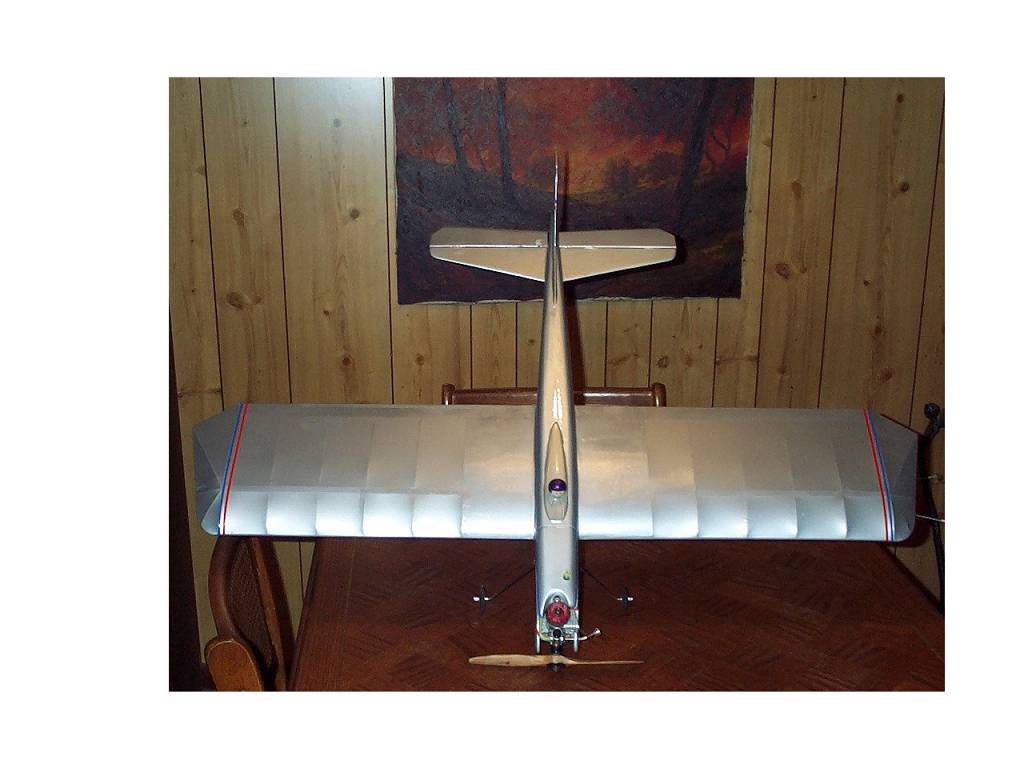

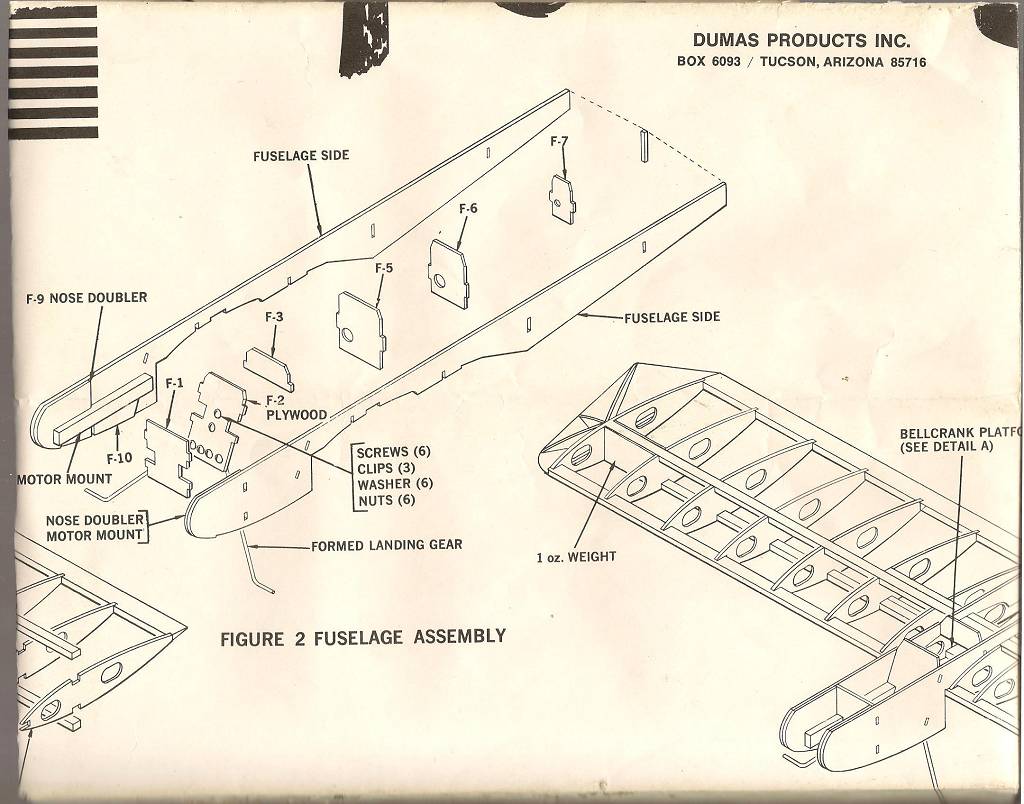

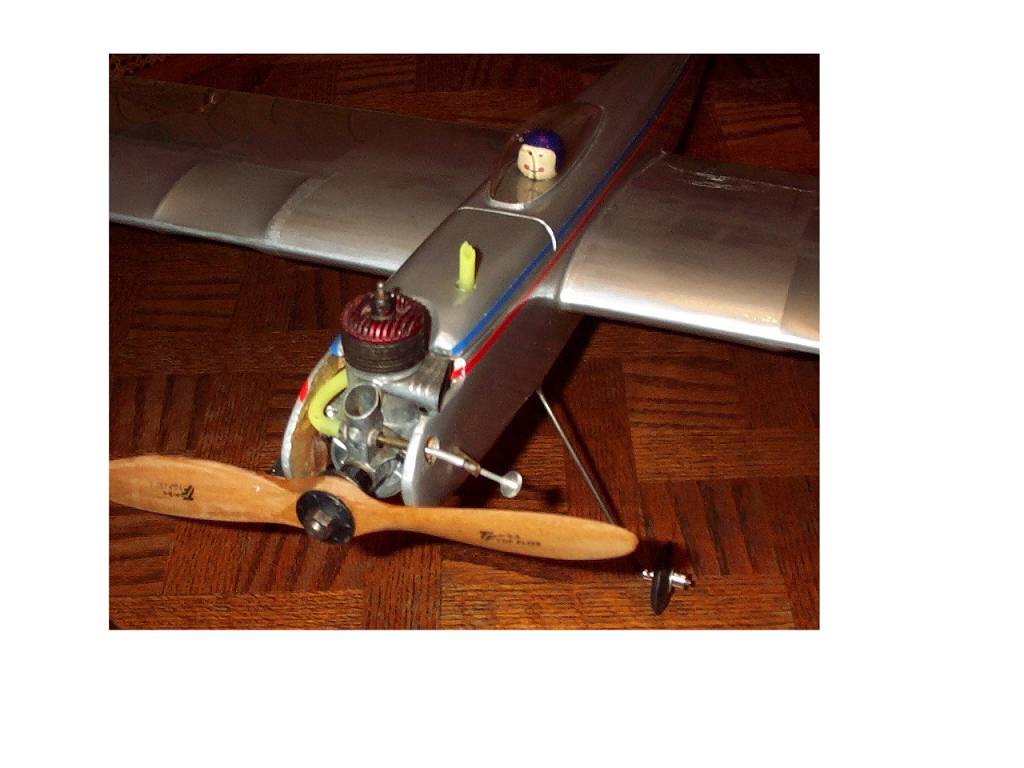

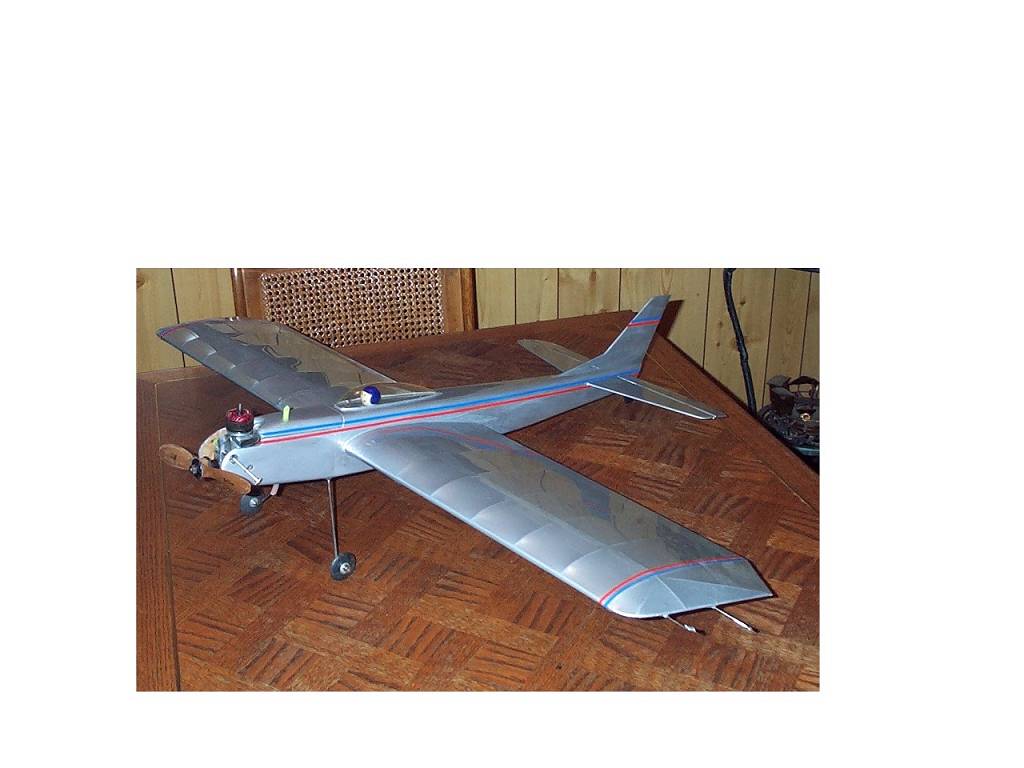

If it is the one in the pictures below then I can help. When building this one I traced the parts onto the back of the iso plans.

Will have copies made soon and have someone on another site waiting for a set.

Let me know.

David
Attached Thumbnails Click image for larger version

Name:	Bz78323.jpg
Views:	342
Size:	63.2 KB
ID:	1431410   Click image for larger version

Name:	To45411.jpg
Views:	218
Size:	63.1 KB
ID:	1431411   Click image for larger version

Name:	Ot48736.jpg
Views:	207
Size:	63.9 KB
ID:	1431412
Old 05-05-2010, 07:29 PM
  #6
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

That's IT!
I want one!
Old 05-05-2010, 09:44 PM
  #7
BtnFlyGuy
Senior Member

BtnFlyGuy's Avatar

Join Date: Jul 2009
Location: Ayer, MA
Posts: 246
Likes: 0
Received 1 Like on 1 Post
Default RE: Veco Tom-Tom

You just like the pilot fiigure!
(I'd like those plans too, BTW)
Old 05-06-2010, 09:13 AM
  #8
da Rock
Senior Member

Join Date: Oct 2005
Location: Near Pfafftown NC
Posts: 11,517
Likes: 0
Received 2 Likes on 2 Posts
Default RE: Veco Tom-Tom

Hey, anybody got plans of the pilot figure?
Old 05-06-2010, 02:34 PM
  #9
BtnFlyGuy
Senior Member

BtnFlyGuy's Avatar

Join Date: Jul 2009
Location: Ayer, MA
Posts: 246
Likes: 0
Received 1 Like on 1 Post
Default RE: Veco Tom-Tom

I used a "Sheriff Woody" head from "Toy Story" once in my Ringmaster. He wasn't too fond of my daisy cutter inverted passes.
Old 05-06-2010, 03:41 PM
  #10
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Just don't use "Barbie".
Gal can't fly worth beans...
Old 05-17-2010, 11:52 AM
  #11
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Taking plans to town today to check on copying them.

OH..
The pilot is some kind of doll head from one of the places in town(Michals? Hobby Lobby? Academy??????)
The helmet area was done with felt tip pen. came with 5-6 in a package for couple of dollars.

Barbie crashed my Christen Eagle...She was necked?

David
Old 05-17-2010, 12:14 PM
  #12
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

ORIGINAL: supertiga

Taking plans to town today to check on copying them.

OH..
The pilot is some kind of doll head from one of the places in town(Michals? Hobby Lobby? Academy??????)
The helmet area was done with felt tip pen. came with 5-6 in a package for couple of dollars.

Barbie crashed my Christen Eagle...She was necked?

David
She crashed several of mine. (She was "busted" to fit...)
Best pilot I ever had was a troll. Dude even recovered a Falcon 56 with the ailerons backwards...
Old 05-17-2010, 01:00 PM
  #13
dennis
My Feedback: (90)

Join Date: Jan 2002
Location: Minersville, PA
Posts: 1,872
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Veco Tom-Tom


ORIGINAL: supertiga

There were 2 different Tom Toms. not sure when the design change was made before or after Dumas acquired Veco.?

If it is the one in the pictures below then I can help. When building this one I traced the parts onto the back of the iso plans.

Will have copies made soon and have someone on another site waiting for a set.

Let me know.

David

Thats the later version. The earlier version is decidedly different. Turtle deck, canopy and generally a more interesting model.
Larry Richards kitted that version and it was an excellent kit. Sadly he's retired from the kit business.
Dennis
Old 05-17-2010, 06:40 PM
  #14
Bill Adair
My Feedback: (1)

Bill Adair's Avatar

Join Date: Feb 2005
Location: Beaverton, OR
Posts: 220
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

The Veco Tom Tom was my first larger than half A airplane, and was powered with my first Fox 35 engine.

It was built with Ambroid cement on my foot locker at Sembach AB Germany in 1956, and painted with Aerogloss. I've no idea what happened to it (probably crashed), but would sure like to build another someday.

I have a CLC kit of the Tom Tom, but it's not for sale at any reasonable price.

Tony Drago (CLC) on another forum, probably knows where to get plans.

Bill

Old 06-04-2010, 12:53 PM
  #15
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Hi All
Took plans to town then forgot about them!
Absent minded.
Lets see if I can make this work.

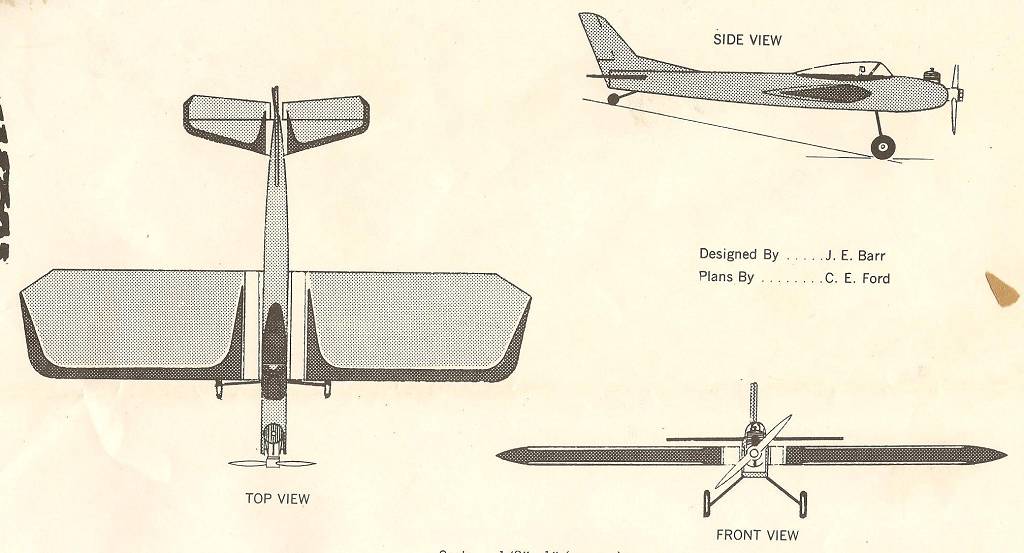

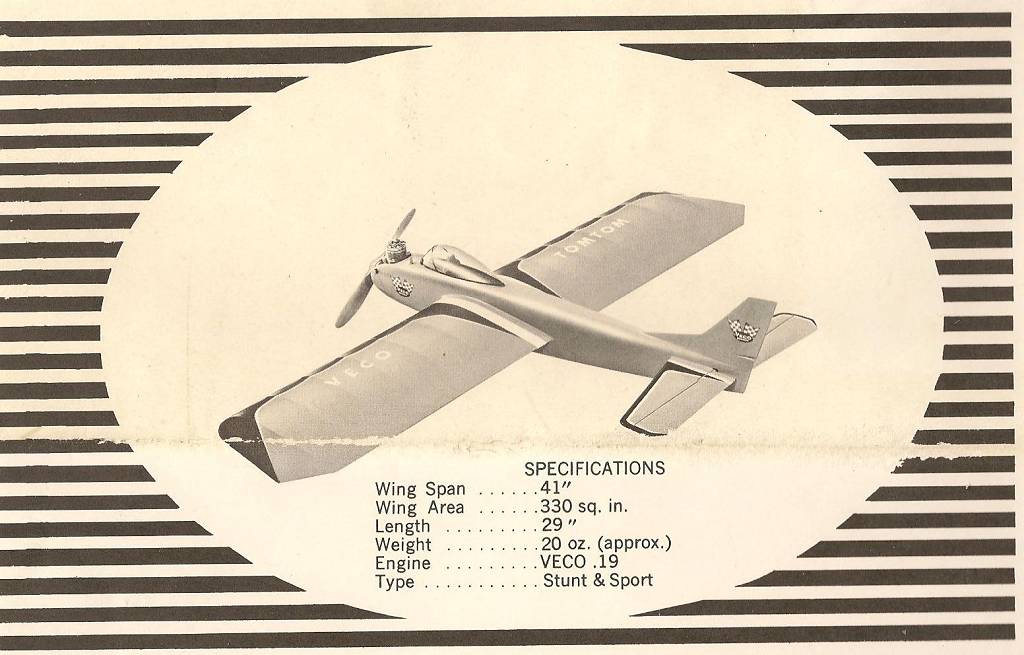

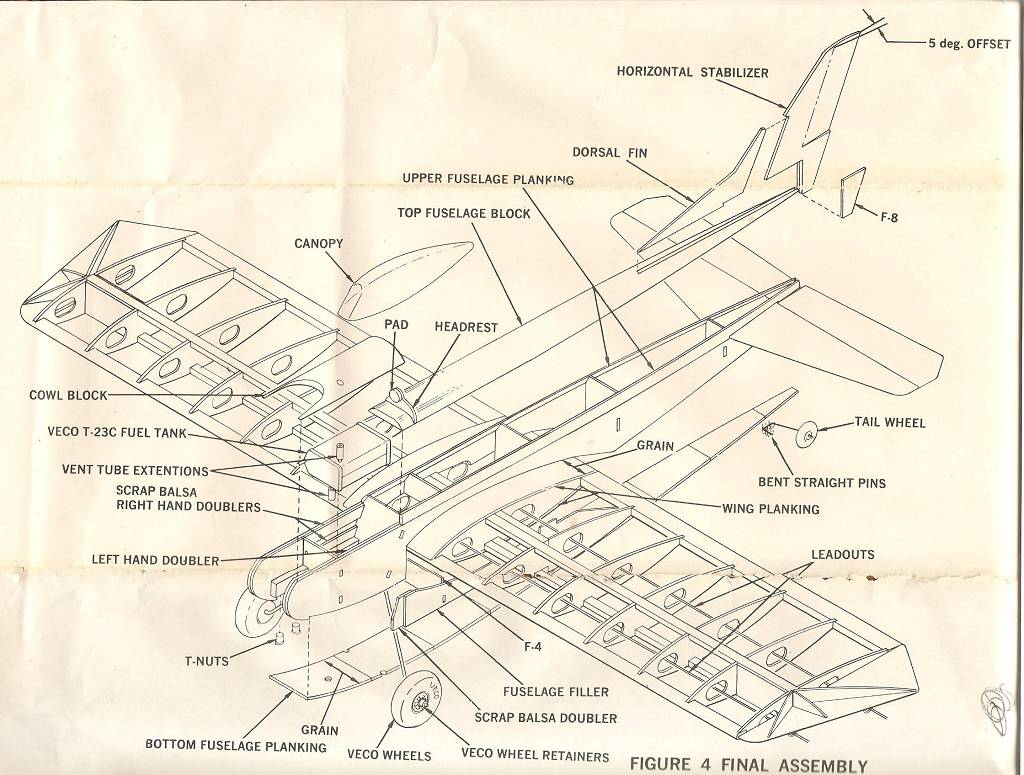

Some one make a test run and make sure size is not distorted from electronic transmissions.
When the vertical dashed lines are lined up fuselage length on tracing is 26 and 1/2 inches long
The push rod length on the original plans is 16 and 3/8 inches long C.to C.
This will probably take several post.

Save to my pictures.
Open with windows picture and fax Viewer and print from there seems to give me best results on the sizing.
Attached Thumbnails Click image for larger version

Name:	Ge96849.jpg
Views:	208
Size:	86.1 KB
ID:	1447858   Click image for larger version

Name:	So42856.jpg
Views:	147
Size:	65.7 KB
ID:	1447859
Old 06-04-2010, 01:03 PM
  #16
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

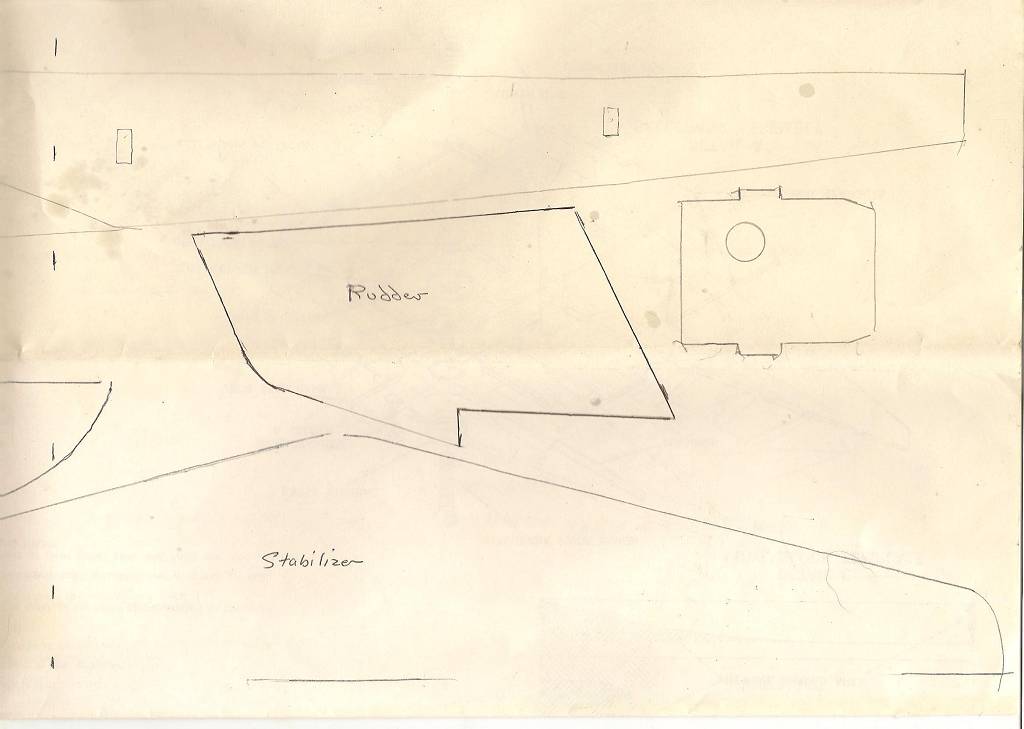

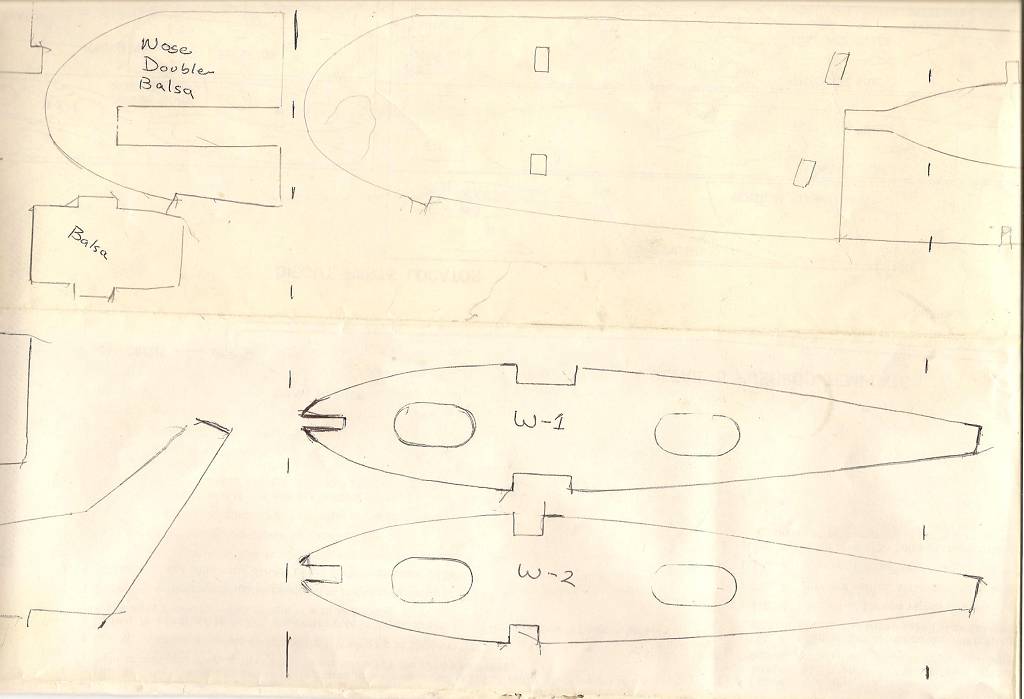

Tracings
The crude die cutting, stuffing drawings into small scanner and probably done in a rapid hurry they need some checking.
Attached Thumbnails Click image for larger version

Name:	Ig11071.jpg
Views:	135
Size:	53.9 KB
ID:	1447862   Click image for larger version

Name:	Zu65487.jpg
Views:	117
Size:	49.5 KB
ID:	1447863   Click image for larger version

Name:	Va73066.jpg
Views:	109
Size:	46.8 KB
ID:	1447864   Click image for larger version

Name:	Vp39439.jpg
Views:	118
Size:	42.5 KB
ID:	1447865
Old 06-04-2010, 01:10 PM
  #17
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

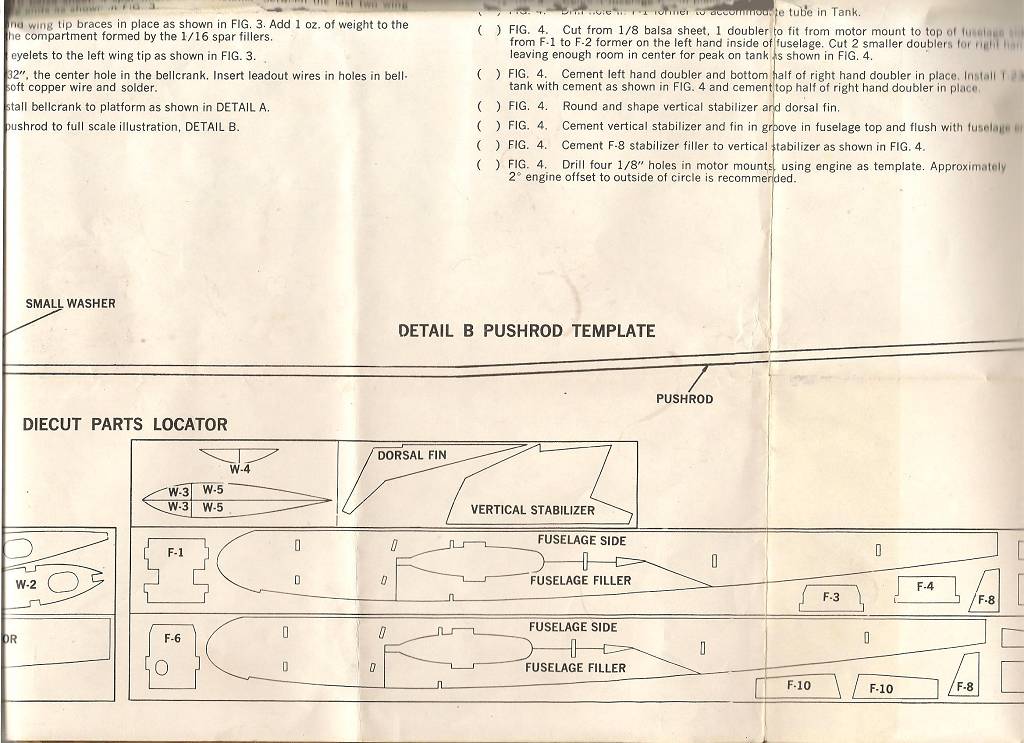

Iso-
The 2 inner W-1 ribs should not be glued to spar,L.E. and T.E. until after main fuselage is installed on to wing.
The length of spars L.E. and T.E. is 36 inches.
The rib spacing BETWEEN ribs is 2 and 1/2 inches.( not for center ribs)
Attached Thumbnails Click image for larger version

Name:	Ig13130.jpg
Views:	111
Size:	120.1 KB
ID:	1447866   Click image for larger version

Name:	Zv66755.jpg
Views:	115
Size:	111.8 KB
ID:	1447867   Click image for larger version

Name:	Sy63380.jpg
Views:	110
Size:	109.6 KB
ID:	1447868   Click image for larger version

Name:	Wp40492.jpg
Views:	113
Size:	128.4 KB
ID:	1447869
Old 06-04-2010, 02:06 PM
  #18
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

RW
Hope this is working for you!

More
These are not full size parts but can be used to make corrections like adding to the bottom rear of the rudder.
Parts bill
Pushrod
Attached Thumbnails Click image for larger version

Name:	Sp45315.jpg
Views:	99
Size:	139.2 KB
ID:	1447882   Click image for larger version

Name:	Ea84305.jpg
Views:	101
Size:	109.8 KB
ID:	1447883   Click image for larger version

Name:	Hm24582.jpg
Views:	94
Size:	102.2 KB
ID:	1447884
Old 06-04-2010, 02:13 PM
  #19
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

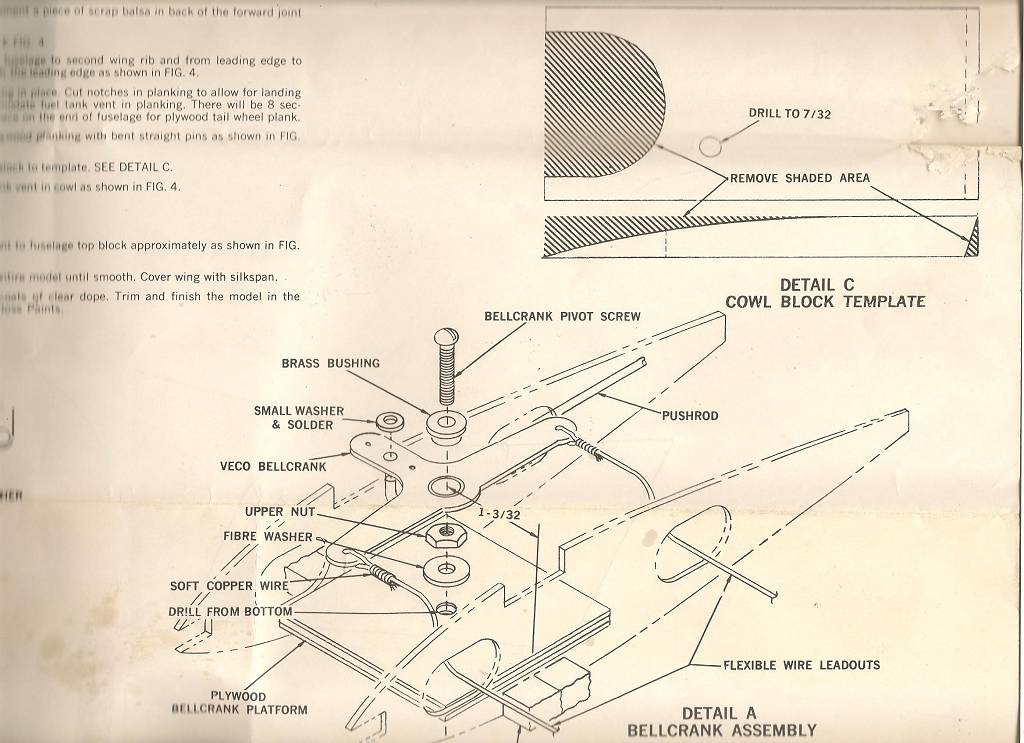

Bellcrank and cowl block
Attached Thumbnails Click image for larger version

Name:	Ec88795.jpg
Views:	170
Size:	97.9 KB
ID:	1447886
Old 06-04-2010, 04:35 PM
  #20
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

give us a rib lengthit will help. The thing looks a bit small when I print.../
Old 06-04-2010, 10:04 PM
  #21
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

7 and 11/16 inches on tracing of rib W1.
This is from C/L at T.E. to the longest point at L.E.
Note that the T.E. portion of rib is not square. This is correct but may need changing for currently available wood.
Old 06-05-2010, 08:43 AM
  #22
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Gracias, senor!
gonna get started, soon!
Old 06-21-2010, 09:59 PM
  #23
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

How goes it RW?
Old 06-22-2010, 10:18 AM
  #24
rw Guinn
Senior Member
Thread Starter

rw Guinn's Avatar

Join Date: Jan 2002
Location: Fort Worth, TX
Posts: 506
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

slowly.
Too Damn hot here in N Texas. I've got the plans to the right size (I hope), just need to start cutting.
Old 06-22-2010, 02:52 PM
  #25
DaveSR71
Senior Member

Join Date: Jun 2004
Location: , LA
Posts: 246
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Veco Tom-Tom

Hi RW
You had to re size them?
How did you save, open. print them?(what programs?)

Was really hoping they would come across correctly and have done it in the past as long as the same programs were used.

Let me know what happened.

David
