Gas Engines Questions or comments about gas engines can be posted here

thor 45cc cdi

Thread Tools

Search this Thread

Old 07-15-2014 | 03:25 PM
  #1
meinekeman
Thread Starter
Junior Member

Joined: Sep 2013
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default thor 45cc cdi
can anyone give me a diagrams on a cdi ignition the way it hooksup to battery and motor both ends have 3 or 4 wires
meinekeman is offline
Reply Like
Old 07-15-2014 | 04:16 PM
  #2
av8tor1977's Avatar
av8tor1977
My Feedback: (6)

Joined: May 2003
Posts: 7,245
Likes: 0
Received 6 Likes on 5 Posts
From: Tucson, AZ
Default
Well, this is how FTL, RCEXL, RCEXP, and CH Igntions hook up. (Pic shamelessly stolen from a Jody post.)



AV8TOR
Attached Thumbnails Click image for larger version Name: Vt57030.jpg Views: 1091 Size: 70.9 KB ID: 2014554
av8tor1977 is offline
Reply Like
Old 07-15-2014 | 04:27 PM
  #3
meinekeman
Thread Starter
Junior Member

Joined: Sep 2013
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default
my cdi wire has a red on one side a white on the other side and silver in the middle that gos to the battery
meinekeman is offline
Reply Like
Old 07-15-2014 | 05:10 PM
  #4
meinekeman
Thread Starter
Junior Member

Joined: Sep 2013
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default
my cdi wire has a red on one side a white on the other side and silver in the middle that gos to the battery
meinekeman is offline
Reply Like
Old 07-15-2014 | 05:43 PM
  #5
captinjohn

Joined: Jan 2002
Posts: 12,957
Received 4 Likes on 4 Posts
From: Hesperia Michigan, MI
Default
Post a photo of your ignition or give us all the data on the ignition case. Like the Brand.....ect. Thanks
captinjohn is offline
Reply Like
Old 07-16-2014 | 02:46 AM
  #6
meinekeman
Thread Starter
Junior Member

Joined: Sep 2013
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Default

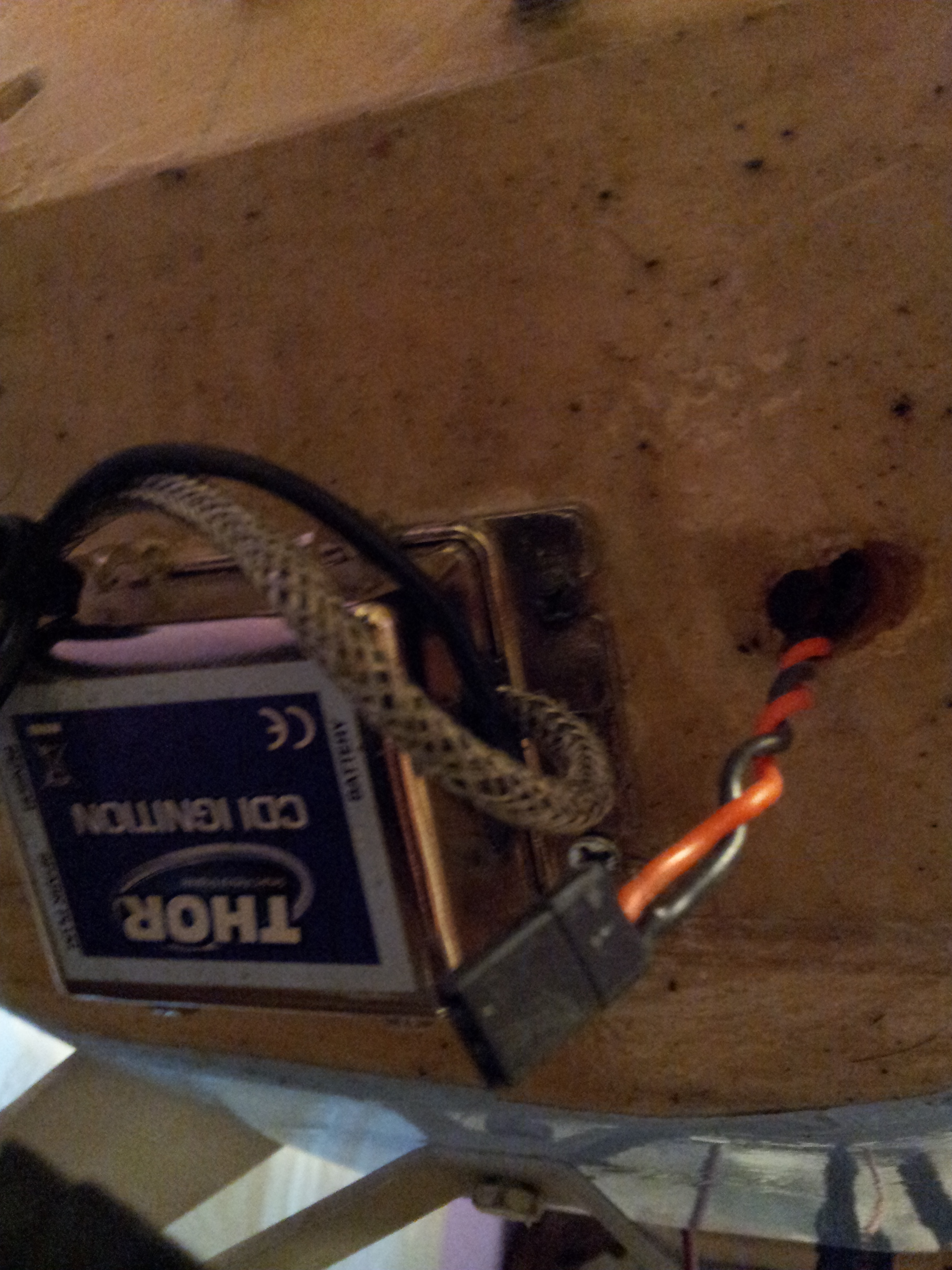

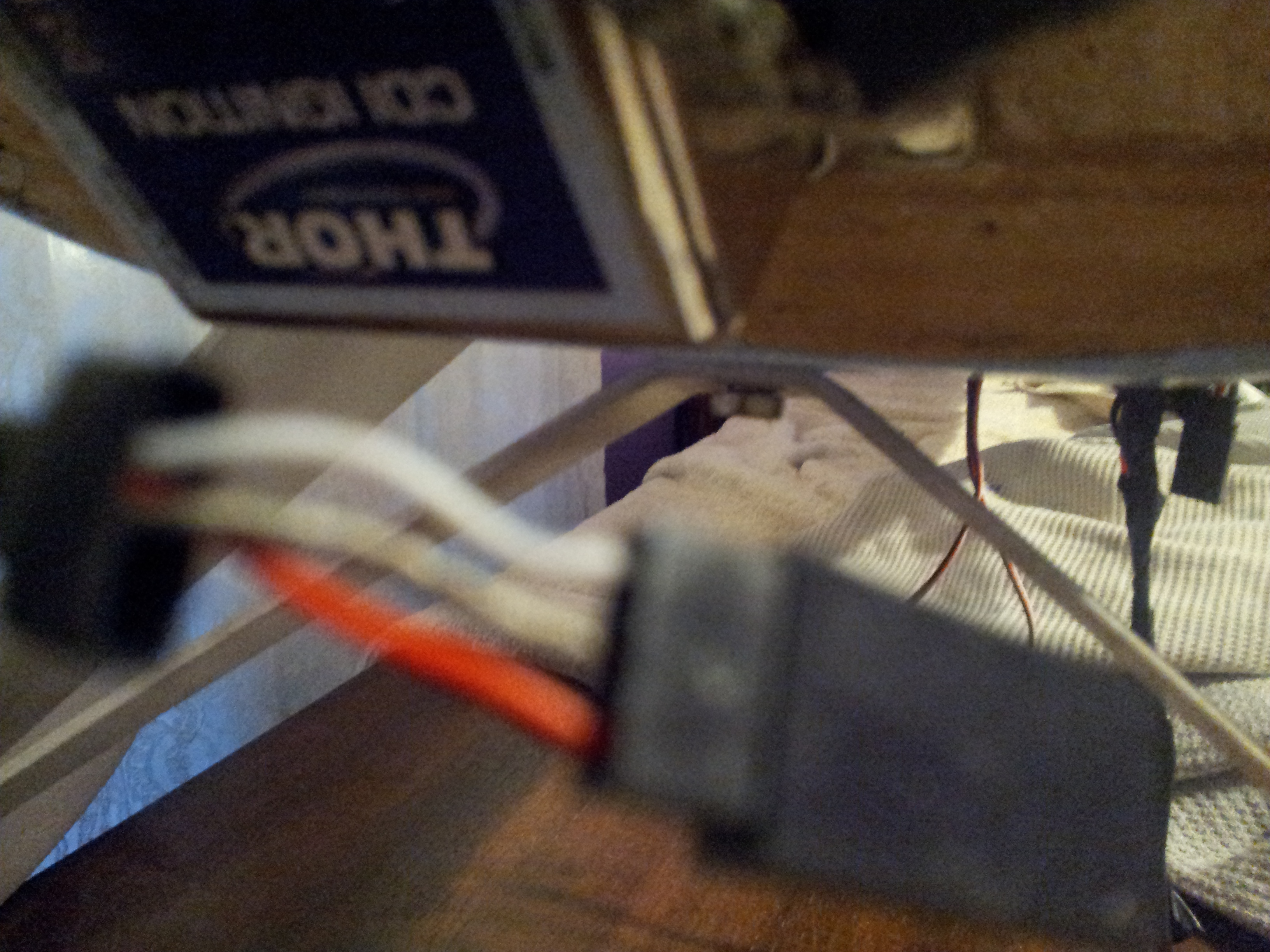

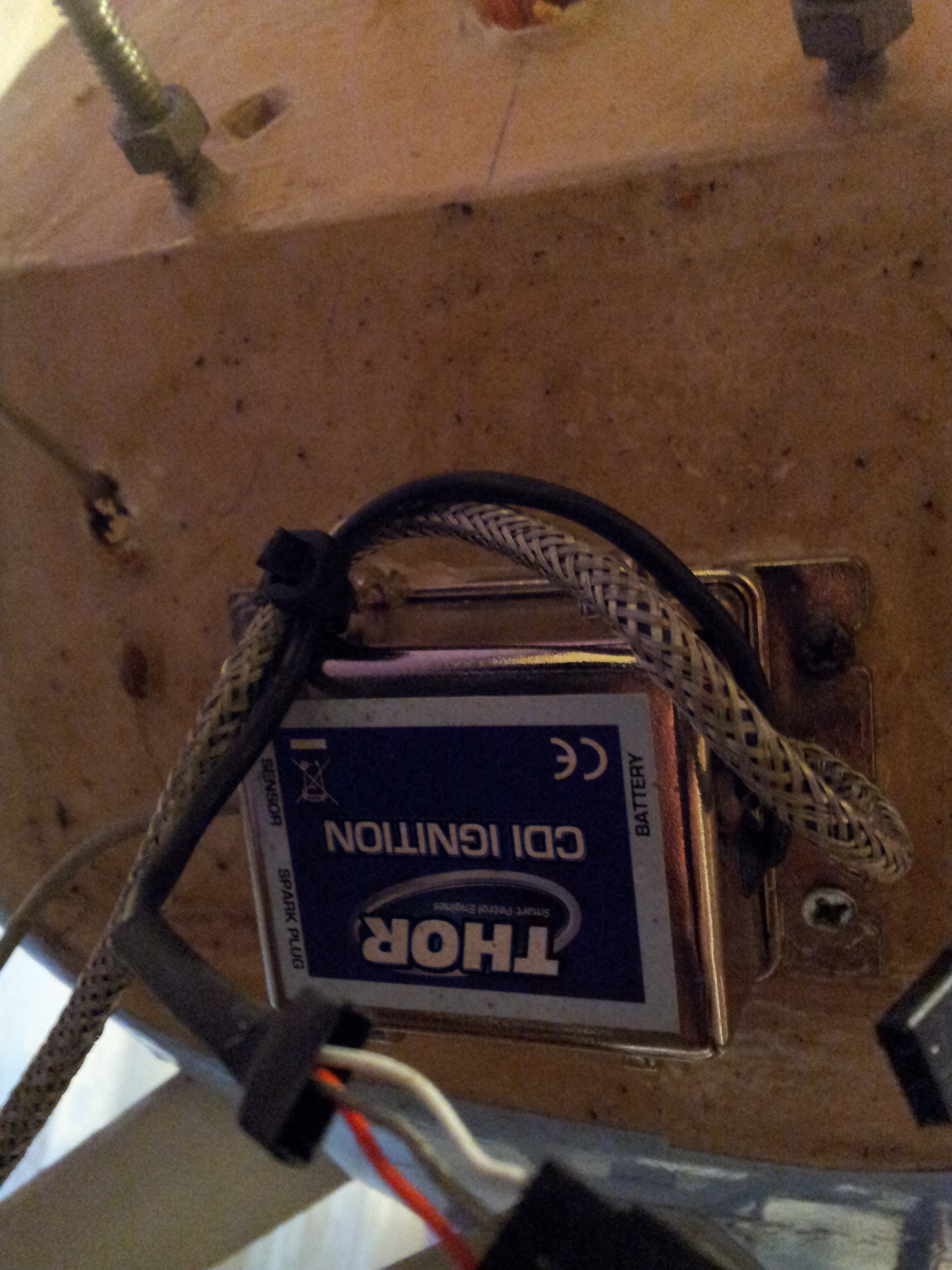

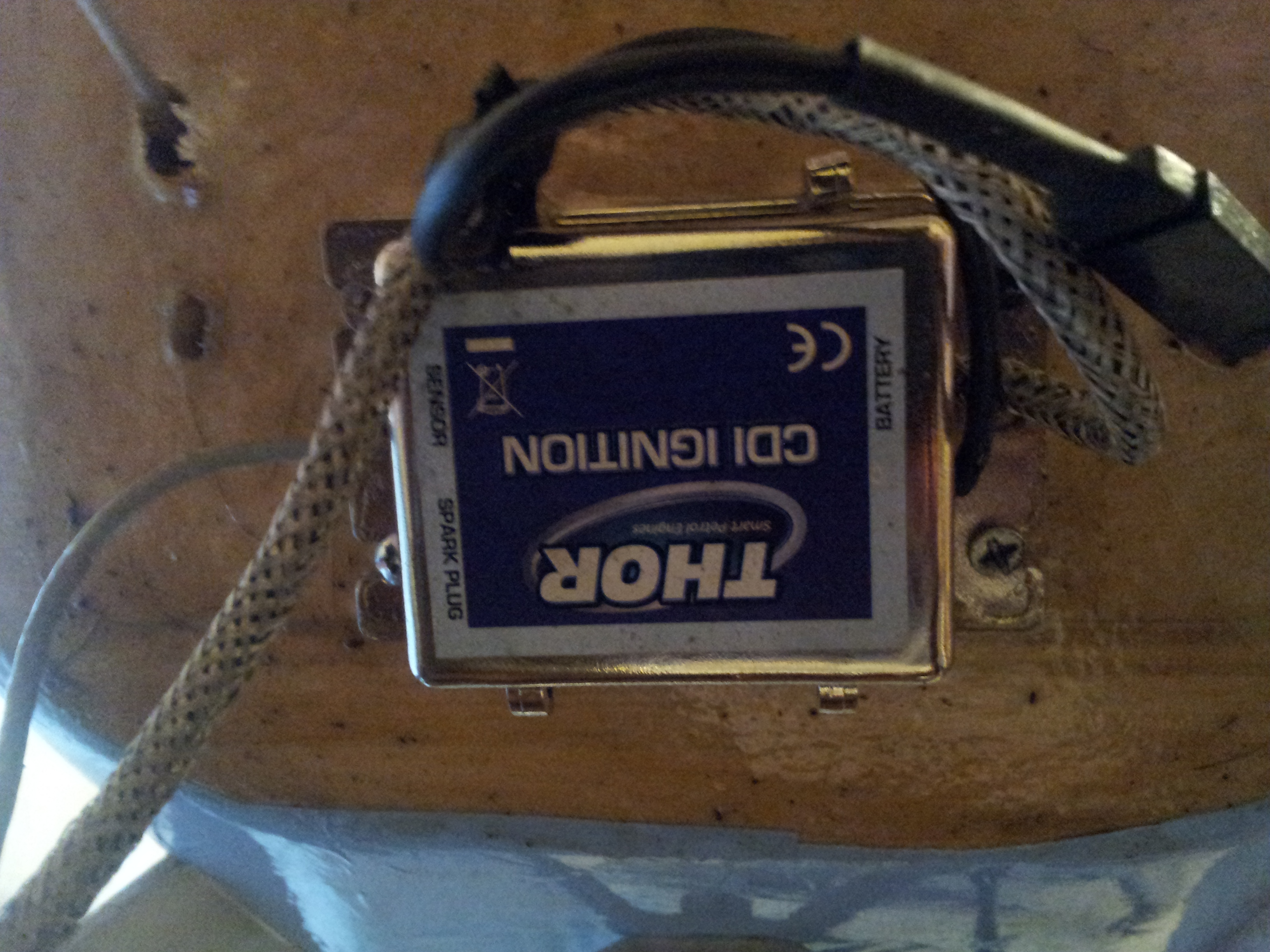

here is pic​this gos to battery
Attached Thumbnails Click image for larger version Name: pic 002.jpg Views: 436 Size: 2.76 MB ID: 2014607   Click image for larger version Name: pic 003.jpg Views: 462 Size: 2.70 MB ID: 2014608   Click image for larger version Name: pic 004.jpg Views: 462 Size: 2.60 MB ID: 2014609   Click image for larger version Name: pic 005.jpg Views: 471 Size: 2.66 MB ID: 2014611   Click image for larger version Name: pic 001.jpg Views: 554 Size: 2.79 MB ID: 2014613
meinekeman is offline
Reply Like
Old 07-16-2014 | 07:42 AM
  #7
BadAzzMaxx

Joined: Dec 2005
Posts: 1,369
Likes: 0
Received 1 Like on 1 Post
From: Auburn, GA
Default
It tells you on the ignition box what each wire goes to. ??

Milton
BadAzzMaxx is offline
Reply Like
