Xicoy ecus Telemetry!
#1
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts
Xicoy ecus Telemetry!

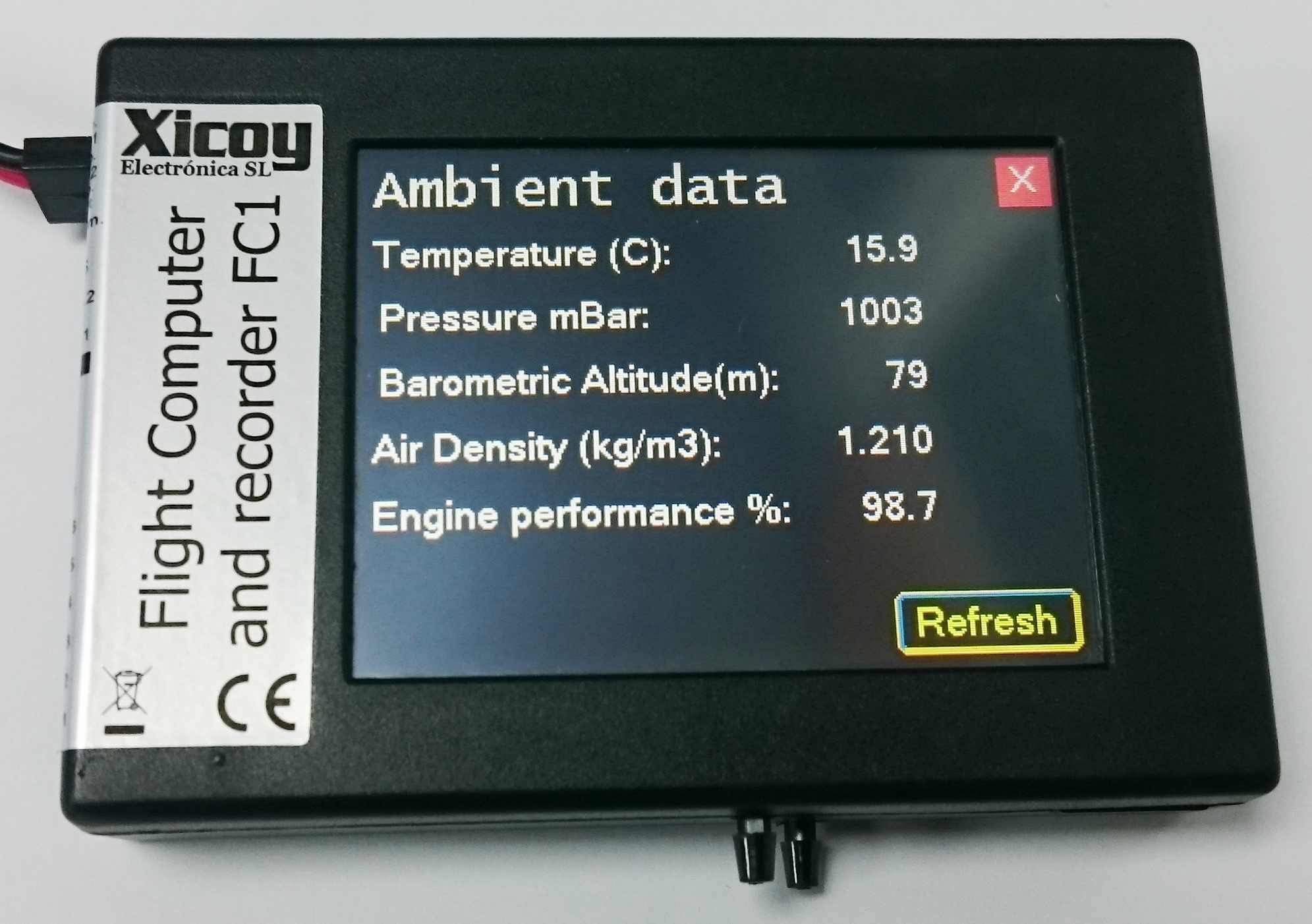

We are happy to announce the addition of another three radio brands to our Xicoy telemetry products. Now all 7 major brands are covered by our Flight Computer (FC1). It can interface to Jeti, Futaba, Multiplex, HoTT, JRPropo, Spektrum and Weatronic.
The amount of data displayed on the TX is currently limited by the TX software itself. There are huge differences in telemetry capability betweenthe different radio manufacturers . At present time, only Jeti radios can use all the data available from the FC1 in bidirectional mode, displaying and storing the measured data (RPM, EGT, Pump, Throttle, Fuel remain, 3 axis G meter, Barometric altitude, pitot airspeed, GPS position, Gps height, heading and GPS altitude), plus emulating the engine data terminal from the TX. Other brands have more or less limitations. I'm in direct contact direct with the developers of several radio brands in order to expand the information available, some are very collaborative, but others are very slooooow to answer.
Here you have some videos of a typical engine startup, that show the telemetry screens of the different radios during engine operation, including the non engine data (GPS, Gmeter, Airspeed, Altitude) along with the comments of each particular system, so that you can see what telemetry data the particular radio can display and how this data is presented. All manufacturers contacted promise to improve this area, but at today date, the situation is as you can see on the videos. I'm sorry for the quality of the videos, not easy to hold the camera, the radio and operate the engine all at same time!
Jeti: All engine parameters / sensors displayed, alarms in all parameters, multiengine capable, data terminal emulation. Video: https://youtu.be/XF5vjQvGp9U
Spektrum: All engine parameters / sensors displayed, alarms in some parameters, single engine, no data terminal emulation. Video: https://youtu.be/gxDlzs4WKc0
Multiplex: All engine parameters displayed, Alarms in some parameters. all sensors except GPS (G load unit is Amperes). Multiengine capable. Video: https://youtu.be/5a9D3iYvUgs
HoTT (Graupner): Data terminal emulation (slow). Alarms adjustable in some parameters. G load displayed as Ampers, temperature shows divided by 10 (max 250º). Single engine only. video: https://youtu.be/_nNrGLzmjMA
Futaba T18MZ: All engine parameters and sensors (except GPS) displayed. Alarms on the radio side. Some sensors have incorrect units due at limited flexibility of Futaba. Multiengine operation possible. Video: http://youtu.be/IgSQDmXPUGQ
Futaba T18SZ: Same as the 18MZ, except that the software of the SZ limits to 4 parameters to be displayed in the telemetry screen. Multiengine is possible, limited to 2 measures for each engine. video: https://youtu.be/X5E06nsAEzI
Weatronic: Current Wea software only support GPS and LinkVario sensor. Single engine. Unknown if alarms can be set. The GPS sensor on the FC1 is correctly displayed, but the engine data is displayed emulating the LinkVario sensor, developed for an electric motor, so the RPM is displayed in Amperes and fuel used in mAh. Video: https://youtu.be/dMU0eas5qWQ
JR XG14: Maximum of 6 parameters displayed, remain fuel in mAh. Single engine. Bug in the display of RPM (max displayed 65.000, should be 500.000 as per JR information).: video: https://youtu.be/XdrV18-v2Ls
Besides the TX, there are two more possibilities for standalone telemetry, in the case your current radio don't support telemetry or need/prefer that your helper monitors the data on separate handheld terminal.
Full Range: JetiBox Profi. All sensors displayed alarms, data recording, multiengine, bidirectional data, engine parameters can be modified in flight. Video: https://youtu.be/gE-kaYACaZo
Short range: (to monitor the engine startup and ecu setup): Bluetooth adapter. Your phone becomes the data terminal. Future product, expected by end of April. video: https://youtu.be/SLvKWSqlz-A
On turbine side our FC1 supports now the following turbine manufacturers:
Kingtech: All.
JetsMunt: All.
ATJ: All
Hawk Turbine: All
HYBL turbines: All
Black Mamba: All
Wren: All engines except the PRO series.
Lambert: All using the Xicoy ecu. "Digitech" ecus partially supported, recommended upgrading for improved engine performance.
PST & TJT: All except the ones using "TEMS" ecu.
Jetbeetle: All
JetCat: All from V5
JetCentral: All except the new "SE" series.
Don't hesitate to contact me for any question related to telemetry.
Gaspar
The amount of data displayed on the TX is currently limited by the TX software itself. There are huge differences in telemetry capability betweenthe different radio manufacturers . At present time, only Jeti radios can use all the data available from the FC1 in bidirectional mode, displaying and storing the measured data (RPM, EGT, Pump, Throttle, Fuel remain, 3 axis G meter, Barometric altitude, pitot airspeed, GPS position, Gps height, heading and GPS altitude), plus emulating the engine data terminal from the TX. Other brands have more or less limitations. I'm in direct contact direct with the developers of several radio brands in order to expand the information available, some are very collaborative, but others are very slooooow to answer.
Here you have some videos of a typical engine startup, that show the telemetry screens of the different radios during engine operation, including the non engine data (GPS, Gmeter, Airspeed, Altitude) along with the comments of each particular system, so that you can see what telemetry data the particular radio can display and how this data is presented. All manufacturers contacted promise to improve this area, but at today date, the situation is as you can see on the videos. I'm sorry for the quality of the videos, not easy to hold the camera, the radio and operate the engine all at same time!
Jeti: All engine parameters / sensors displayed, alarms in all parameters, multiengine capable, data terminal emulation. Video: https://youtu.be/XF5vjQvGp9U
Spektrum: All engine parameters / sensors displayed, alarms in some parameters, single engine, no data terminal emulation. Video: https://youtu.be/gxDlzs4WKc0
Multiplex: All engine parameters displayed, Alarms in some parameters. all sensors except GPS (G load unit is Amperes). Multiengine capable. Video: https://youtu.be/5a9D3iYvUgs
HoTT (Graupner): Data terminal emulation (slow). Alarms adjustable in some parameters. G load displayed as Ampers, temperature shows divided by 10 (max 250º). Single engine only. video: https://youtu.be/_nNrGLzmjMA
Futaba T18MZ: All engine parameters and sensors (except GPS) displayed. Alarms on the radio side. Some sensors have incorrect units due at limited flexibility of Futaba. Multiengine operation possible. Video: http://youtu.be/IgSQDmXPUGQ
Futaba T18SZ: Same as the 18MZ, except that the software of the SZ limits to 4 parameters to be displayed in the telemetry screen. Multiengine is possible, limited to 2 measures for each engine. video: https://youtu.be/X5E06nsAEzI
Weatronic: Current Wea software only support GPS and LinkVario sensor. Single engine. Unknown if alarms can be set. The GPS sensor on the FC1 is correctly displayed, but the engine data is displayed emulating the LinkVario sensor, developed for an electric motor, so the RPM is displayed in Amperes and fuel used in mAh. Video: https://youtu.be/dMU0eas5qWQ
JR XG14: Maximum of 6 parameters displayed, remain fuel in mAh. Single engine. Bug in the display of RPM (max displayed 65.000, should be 500.000 as per JR information).: video: https://youtu.be/XdrV18-v2Ls
Besides the TX, there are two more possibilities for standalone telemetry, in the case your current radio don't support telemetry or need/prefer that your helper monitors the data on separate handheld terminal.
Full Range: JetiBox Profi. All sensors displayed alarms, data recording, multiengine, bidirectional data, engine parameters can be modified in flight. Video: https://youtu.be/gE-kaYACaZo
Short range: (to monitor the engine startup and ecu setup): Bluetooth adapter. Your phone becomes the data terminal. Future product, expected by end of April. video: https://youtu.be/SLvKWSqlz-A
On turbine side our FC1 supports now the following turbine manufacturers:
Kingtech: All.
JetsMunt: All.
ATJ: All
Hawk Turbine: All
HYBL turbines: All
Black Mamba: All
Wren: All engines except the PRO series.
Lambert: All using the Xicoy ecu. "Digitech" ecus partially supported, recommended upgrading for improved engine performance.
PST & TJT: All except the ones using "TEMS" ecu.
Jetbeetle: All
JetCat: All from V5
JetCentral: All except the new "SE" series.
Don't hesitate to contact me for any question related to telemetry.
Gaspar
#4
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts

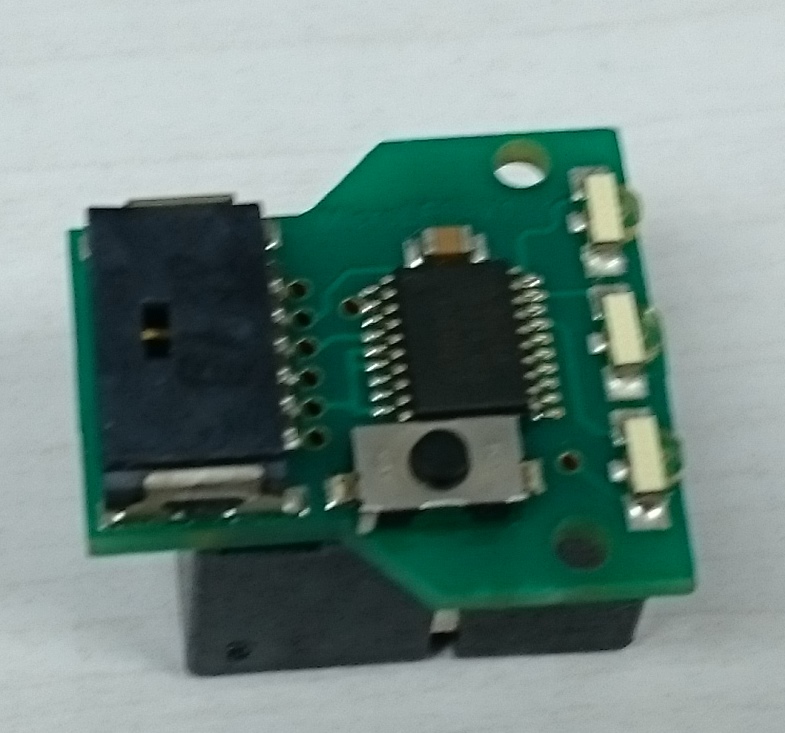

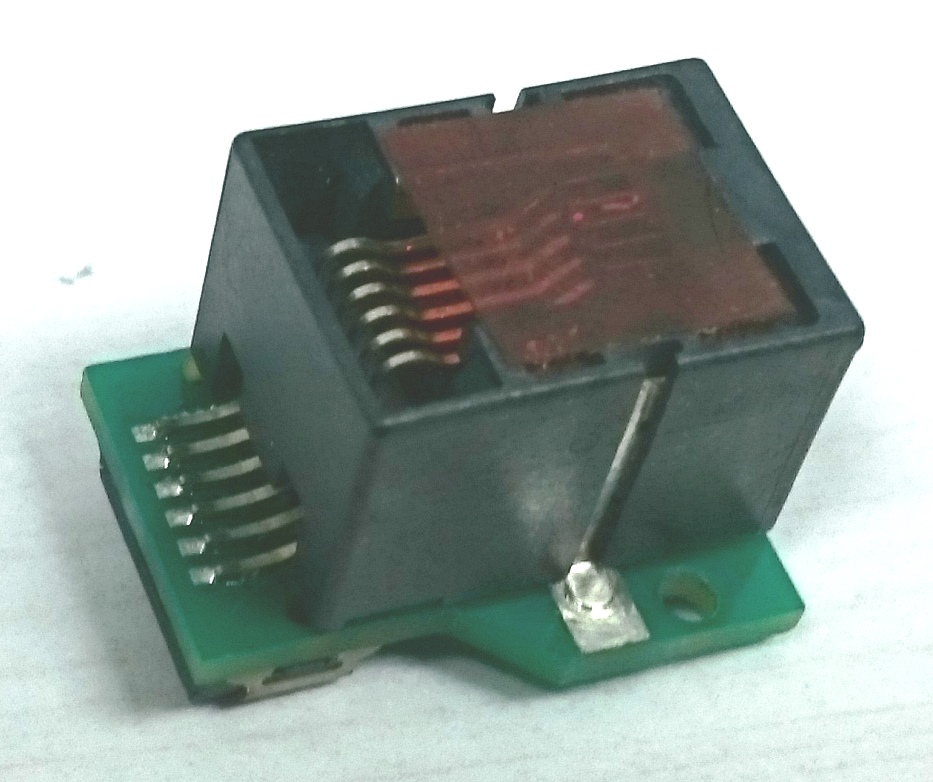

Haven't not tested in a JR28, but soon will be done.
Gaspar
#7
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts
Gaspar
Last edited by Gaspar; 02-06-2016 at 08:12 AM. Reason: Typo
#9
Join Date: Jan 2007
Location: Castle Rock,
CO
Posts: 267
Likes: 0
Received 0 Likes
on
0 Posts
#16
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts
Hello,
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
#18
My Feedback: (67)
Hello,
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
Gaspar, any update with pricing and availability for the JR line of radios?
Thank you
#19
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts
If you are happy with the telemetry shown in the JR video on first post, then it is available now on our flight computer (check DreamworksRC or our website for different options). In my opinion, the JR telemetry is very limited, but well, always better something than nothing. The firmware of our Flight computer can be field updated, so if JR allow new features, you will be able to upgrade.
Gaspar
#20
My Feedback: (10)
Hello,
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
Thanks for your interest. Answers:
@ LA JetGuy: Jeti is fully supported from V1.0. Version 1.1 added the posibility to switch to US units (feet, mph).
@ ZivBit: At this moment is not planned to suport other ecus.
@ JR 28x users: The parametres displayed in the video of the XG14 should be available on the 28x. I will confirm once tested. But don't expect an excellent telemetry system on JR radios, the protocol on the receiver side is extremely slow, for example, it takes 2 seconds to transmit a single set of GPS data.
Gaspar
JR28X needs a sdk to make a plugin for it , so far jr has not released one .
asked for one but it seems they will make their own App for it since all runs on Android.
you cant get to the radio side , only the apps directly.
#22
Join Date: Jul 2006
Location: Norfolk , UNITED KINGDOM
Posts: 1,409
Likes: 0
Received 0 Likes
on
0 Posts
Dave
I recenty asked Gaspar the same question. You have to arrow to the Tx on the bottom menu bar. Then you press right arrow 2 times and Mx appears. I then pressed down arrow and it then displays the normal Xicoy display. Once you have displayed it the Jeti box seems to retain it in the memory so you can switch between the usual parameters and the tx engine screen without having to do all the arrow presses. If you turn off it does not remember it.
This means you can use the Jeti box as an EDT but you cannot edit it just view it.
I am just getting to grips with the Jeti box amazing bit of kit. Reminder for all that you can use it with any Rx and send the telemetry signals via the supplied Jeti Rx. I use mine with 18SZ and an 14 channel Rx. I have a FC1 installed in the plane. On my first flight with it I found that the Rx regulator switch was not supplying sufficient voltage and the FC1 was tripping out. The Futaba Rx is amazing as it did not cause any problems with the widely fluctuating voltage but I guess it would have only been a matter of time.... the FC1/jeti certainly saved me a plane. Don't forget that both the Jeti box and the FC1 store data for later download.
John
I recenty asked Gaspar the same question. You have to arrow to the Tx on the bottom menu bar. Then you press right arrow 2 times and Mx appears. I then pressed down arrow and it then displays the normal Xicoy display. Once you have displayed it the Jeti box seems to retain it in the memory so you can switch between the usual parameters and the tx engine screen without having to do all the arrow presses. If you turn off it does not remember it.
This means you can use the Jeti box as an EDT but you cannot edit it just view it.
I am just getting to grips with the Jeti box amazing bit of kit. Reminder for all that you can use it with any Rx and send the telemetry signals via the supplied Jeti Rx. I use mine with 18SZ and an 14 channel Rx. I have a FC1 installed in the plane. On my first flight with it I found that the Rx regulator switch was not supplying sufficient voltage and the FC1 was tripping out. The Futaba Rx is amazing as it did not cause any problems with the widely fluctuating voltage but I guess it would have only been a matter of time.... the FC1/jeti certainly saved me a plane. Don't forget that both the Jeti box and the FC1 store data for later download.
John
#23
My Feedback: (13)
Originally Posted by Current Wea software only support GPS and LinkVario sensor. Single engine. Unknown if alarms can be set. The GPS sensor on the FC1 is correctly displayed, but the engine data is displayed emulating the LinkVario sensor, developed for an electric motor, so the RPM is displayed in Amperes and fuel used in mAh. Video: [URL
https://youtu.be/dMU0eas5qWQ[/URL]
Don't hesitate to contact me for any question related to telemetry.
Gaspar
Don't hesitate to contact me for any question related to telemetry.
Gaspar
Is there anything else needed?
Thanks.
#25
Thread Starter
Join Date: Jun 2002
Location: Arenys de Munt- BARCELONA, SPAIN
Posts: 425
Likes: 0
Received 5 Likes
on
3 Posts
https://www.youtube.com/watch?v=gE-kaYACaZo Gaspar
