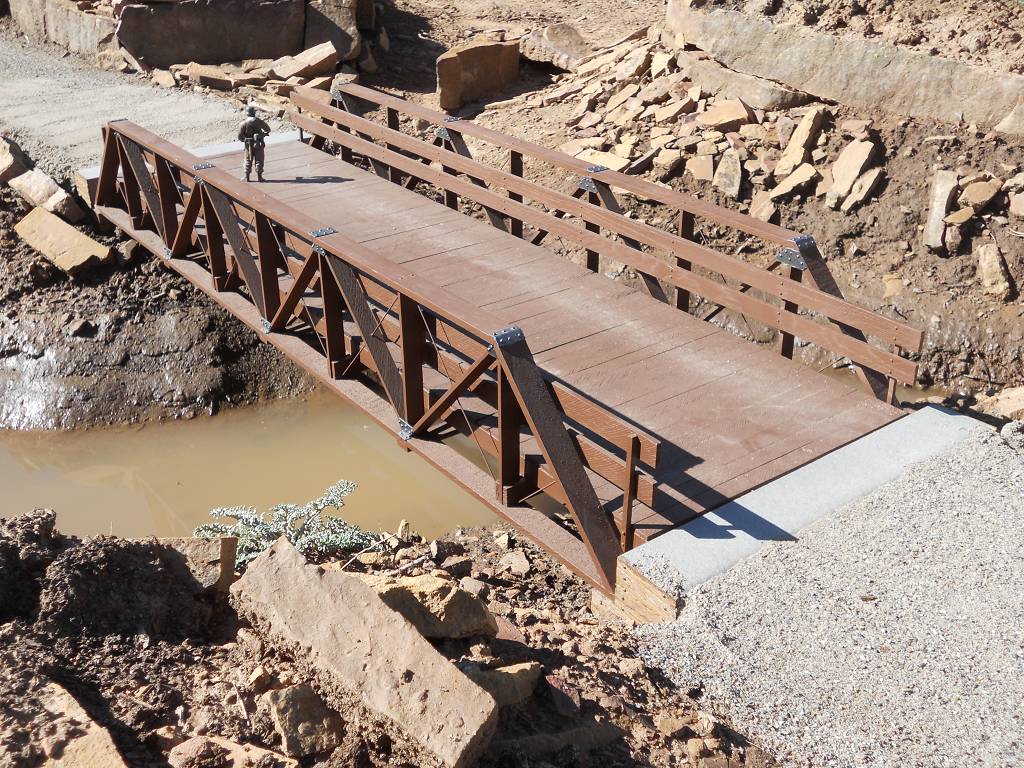

<div>Simple (Tank) Bridge</div><div>1924 design, built 1926</div><div></div><div>I used these plans as a guide to build this 1/16 scale model . I then altered the finished shape and size to fit my materials and application. My finished bridge is 14 scale feet wide and 20 scale feet long. This gives a clear span of 18 scale feet.. 10 &frac12; inches wide by 15 inches long.</div><div></div>
<a href="http://www.arkansashighways.com/historic_bridge/Early%20Standard%20Bridge%20Plans/Steel%20Multi%20Beam/30'%20Steel%20Multi-%20Beam%20-%2020'%20roadway%20(1926).pdf">http://www.arkansashighways.com/historic_bridge/Early%20Standard%20Bridge%20Plans/Steel%20Multi%20Beam/30'%20Steel%20Multi-%20Beam%20-%2020'%20roadway%20(1926).pdf

<br type="_moz" /></a>

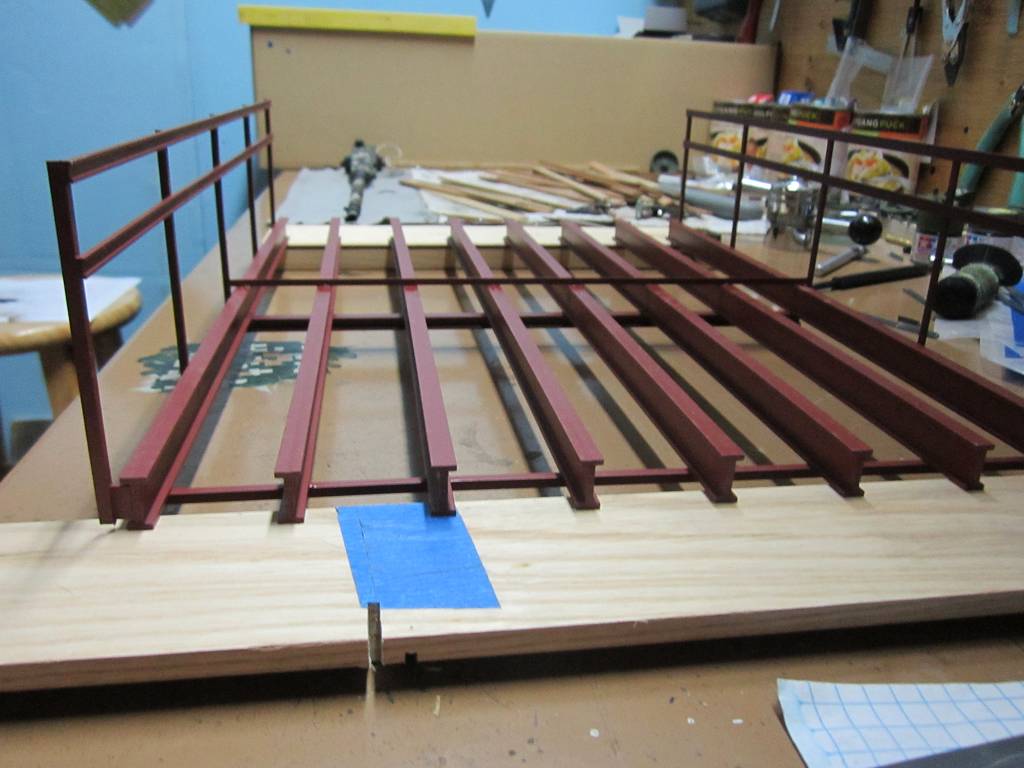

<div><div><div>I used ABS plumbers glue to assemble the structural frame from ABS I beams.</div></div></div><div>

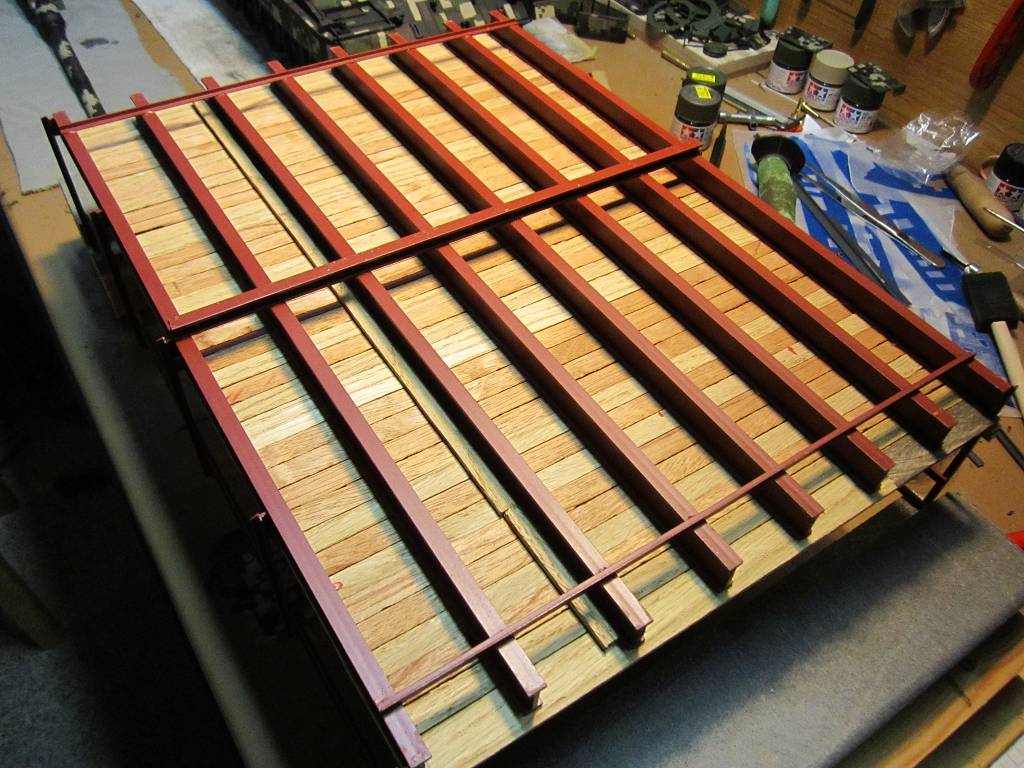

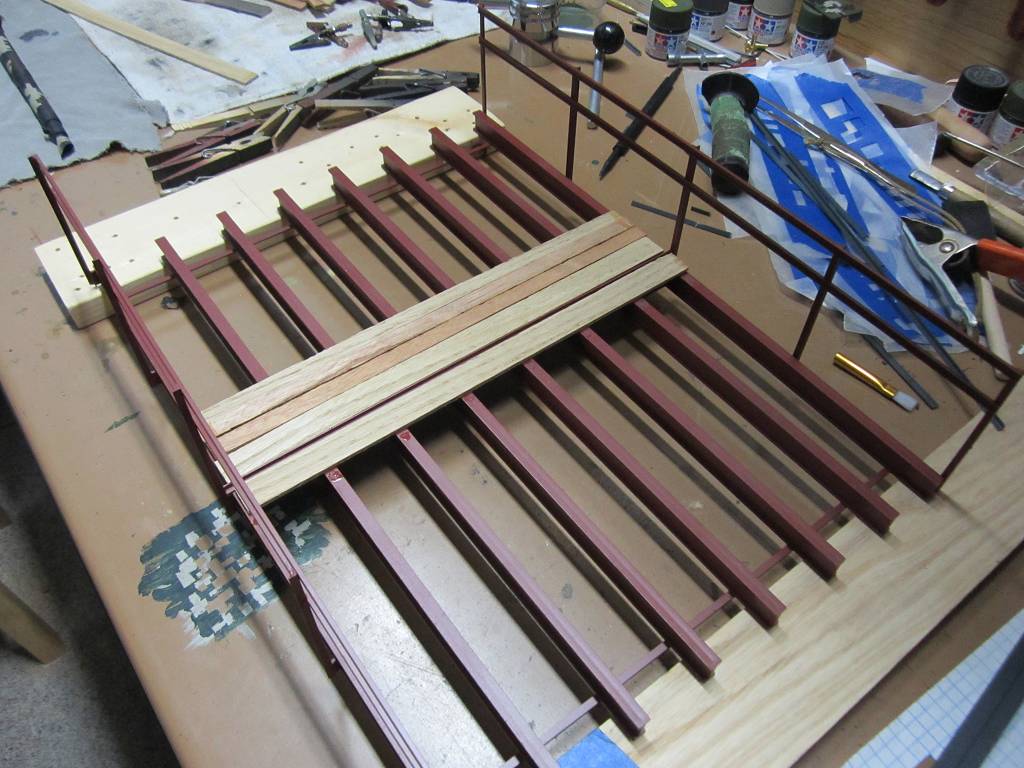

<div><div>The I beams are 2 scale feet on center. The plans show a wood deck so I used Oak and Mahogany planks I ripped down from scrap wood. Mixing the wood types was necessary to have enough material to complete the deck. It gives it a &ldquo;repaired&rdquo; look.</div><div>I used a gel type CA glue to attach the wood to the ABS I beam joists.</div></div></div><div></div><div></div>

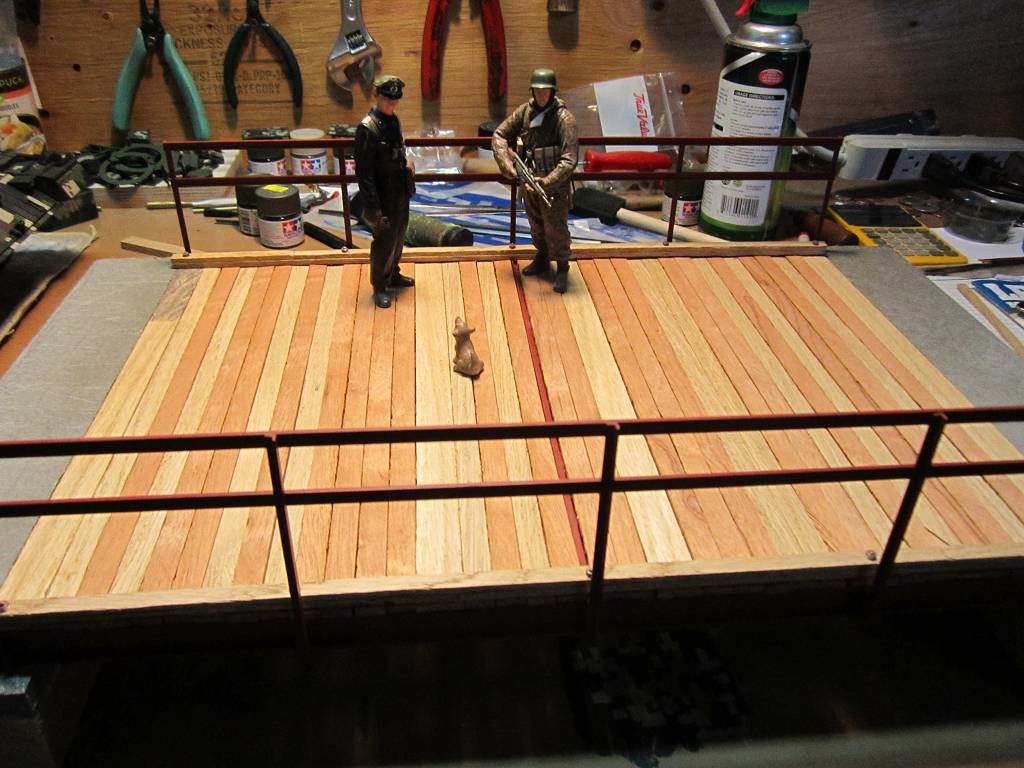

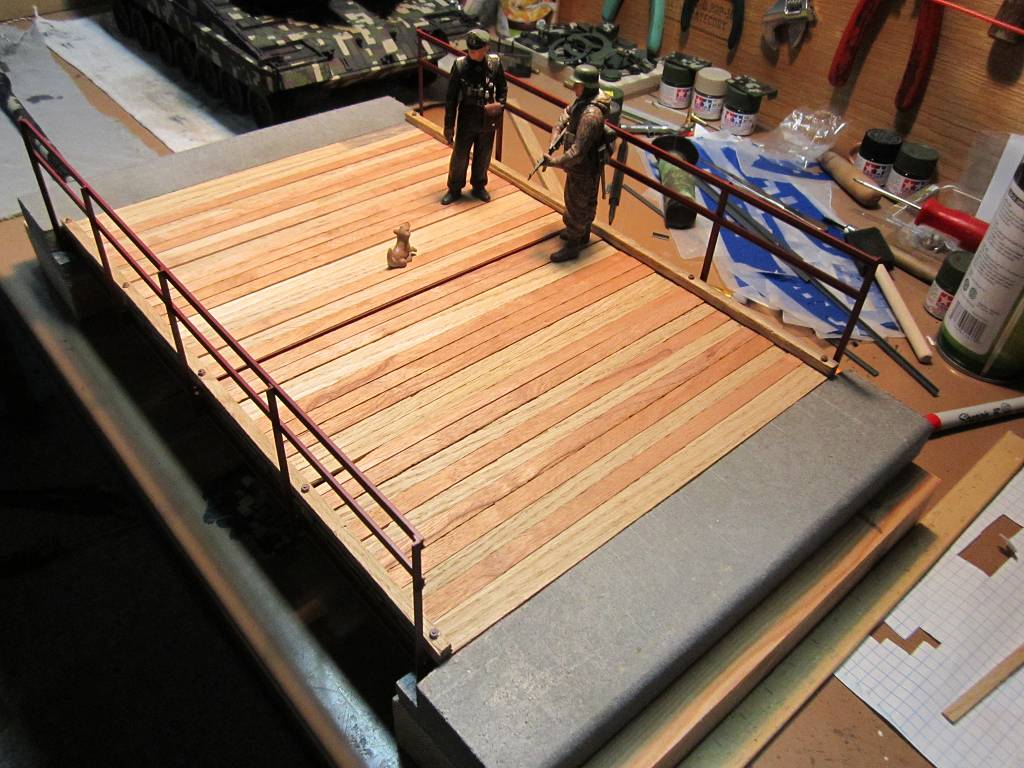

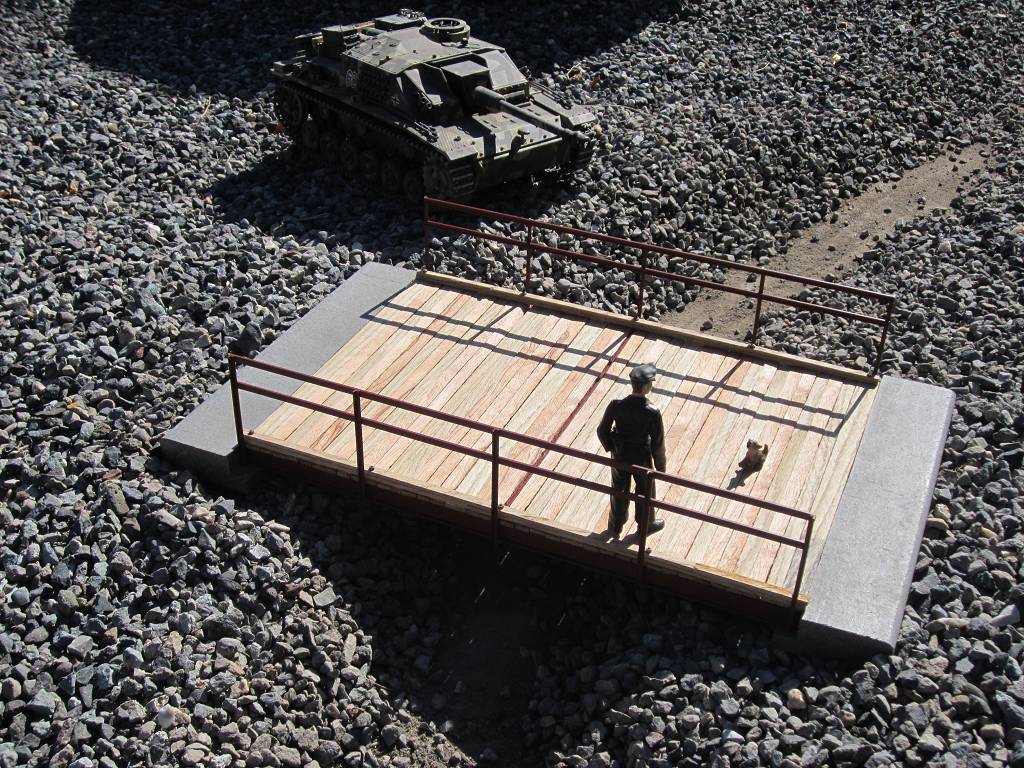

The finished bridge&hellip;<div></div><div>I cut bridge foundations from some left over &ldquo;Trex&rdquo; plastic decking. It looks kinda like concrete.</div><div></div>

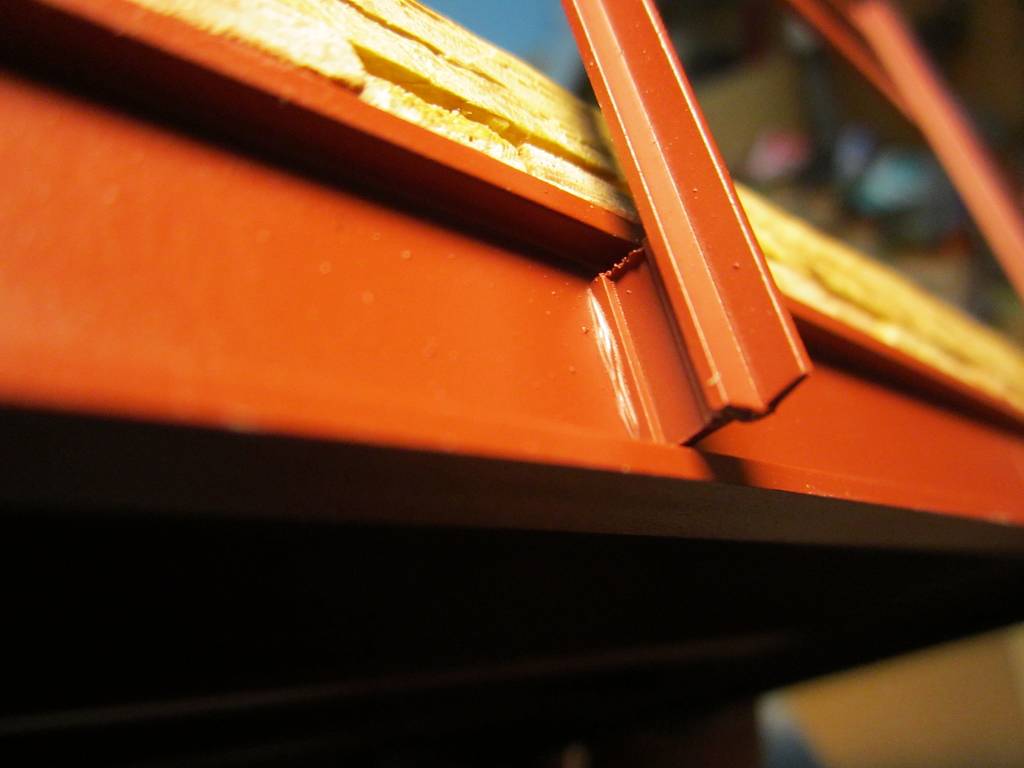

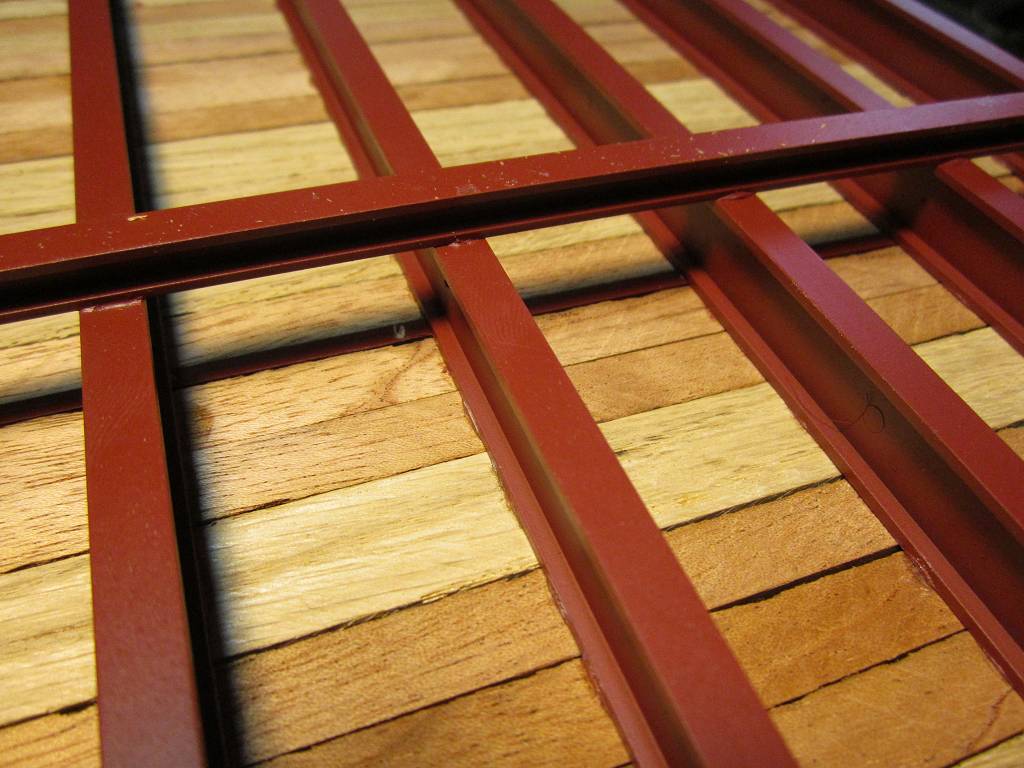

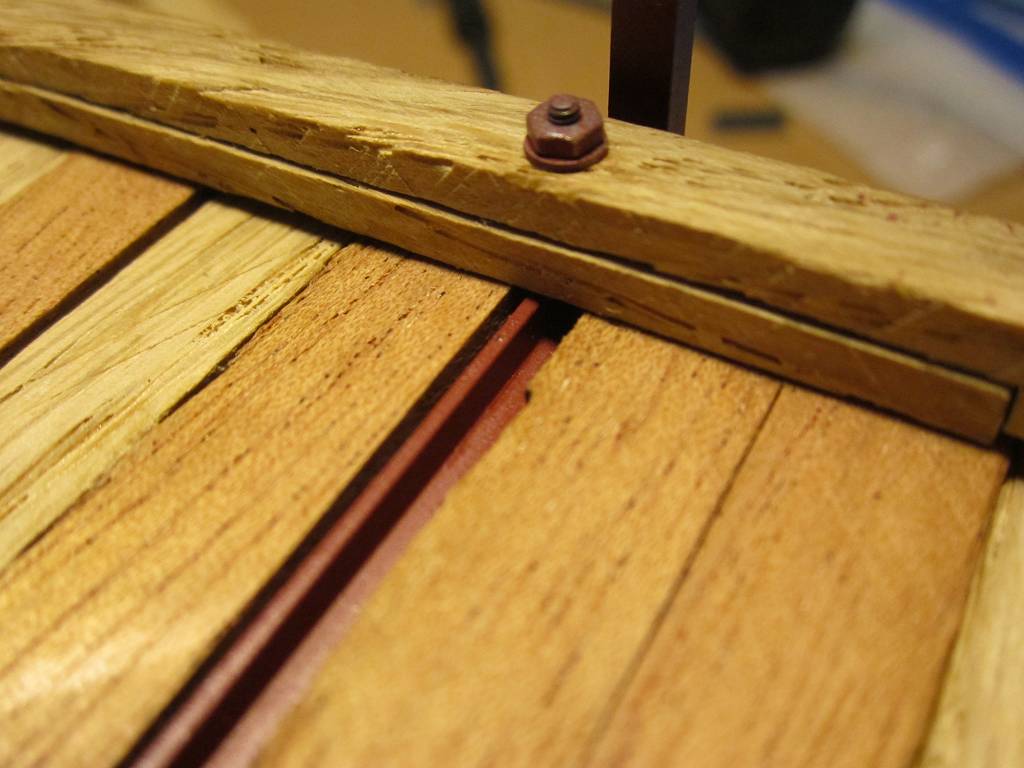

Some detail shots&hellip;<div></div><div></div><div>The ABS comes in grey, I painted it with a red primer to give it the red iron look.</div><div></div><div></div><div>The underside&hellip;</div><div></div>

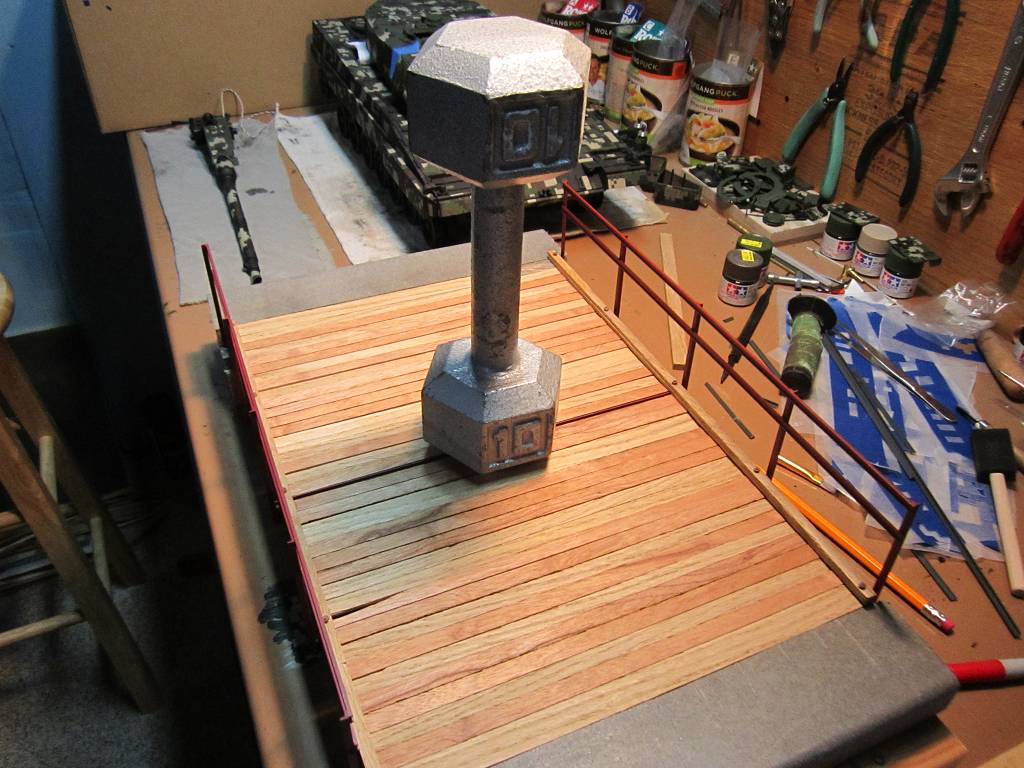

Load testing&hellip;
Data:Live loads-
Uniform = .2 lbs / sq. inch
Concentrated = 3 lbs / sq. inch

Measured deflection at max. load 1/16 inch at center of span.

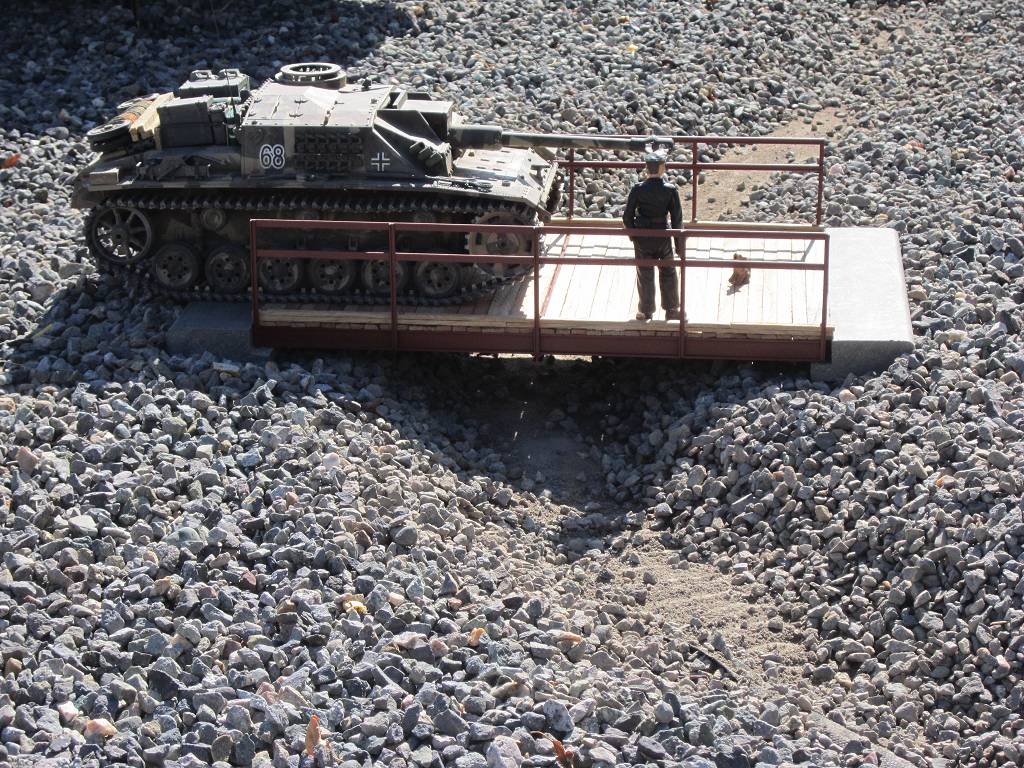

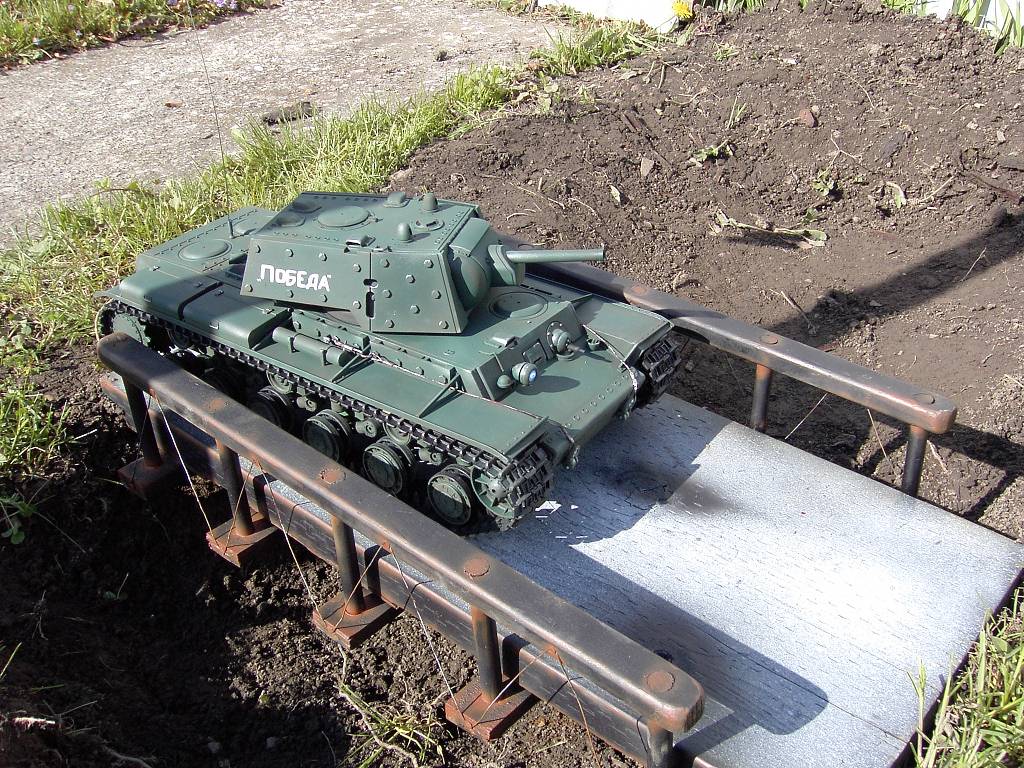

Setup outside for pictures&hellip;<div></div><div></div><div>I plan to do one more like this but with a solid ABS deck with side pans so the road base, dirt, sand, etc&hellip; can be graded across the bridge. This will eliminate the wood making the bridge weather resistant. I can also do a concrete roadway if I want to.</div><div></div>

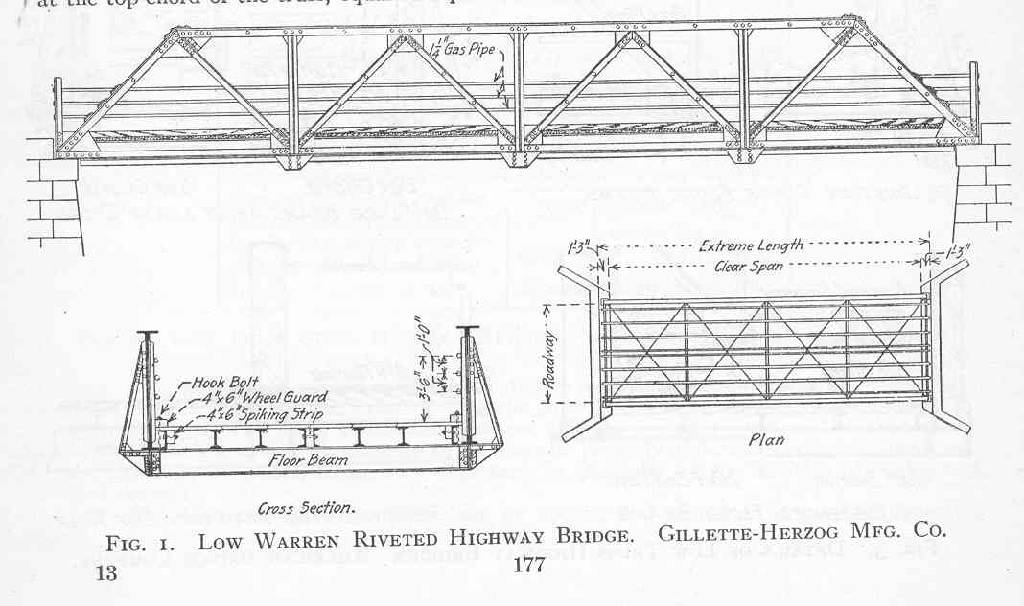

<div>After that I plan to tackle this one in ABS in 1 /16 scale&hellip;</div><div></div><div>It will have a concrete roadway.</div><div></div><div>All this just to play with my tanks.

I found these plans here...</div><div></div>
http://www.arkansashighways.com/hist...dge_plans.aspx<br type="_moz" />
