GunnerView Prototype Teaser
Well, I finally finished the first prototype for my "GunnerView" project (just the viewing system)
And, what the heck is that?
It's pretty simple. Our hobby is based on battling our tanks remotely. That's the "remote control" part (duh).
It's my intent to change that by builidng a simple to use and inexpensive FPV (First Person View) system for RC tanking.
Finally, we will be part of the battle as we will be able to directly view the engage enemy, site the cannon and fire! We will be the commander fighting for the life of our tank and crew.
The key elements are the viewing system (see attached photos), the camera and TX, the IR Apple and the heart of the system; the GunnerView OSD and it's sensors.
Let me break it down:

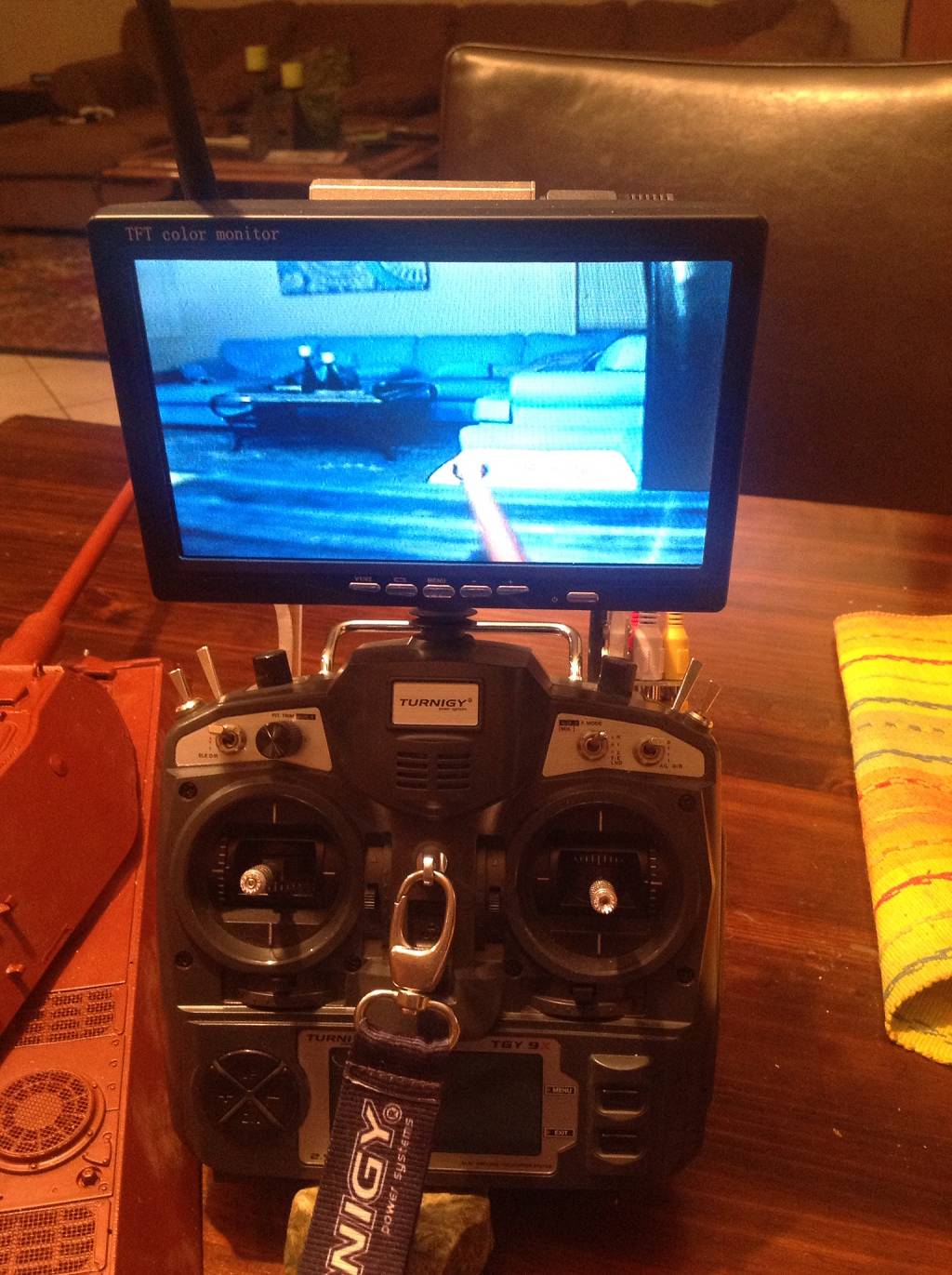

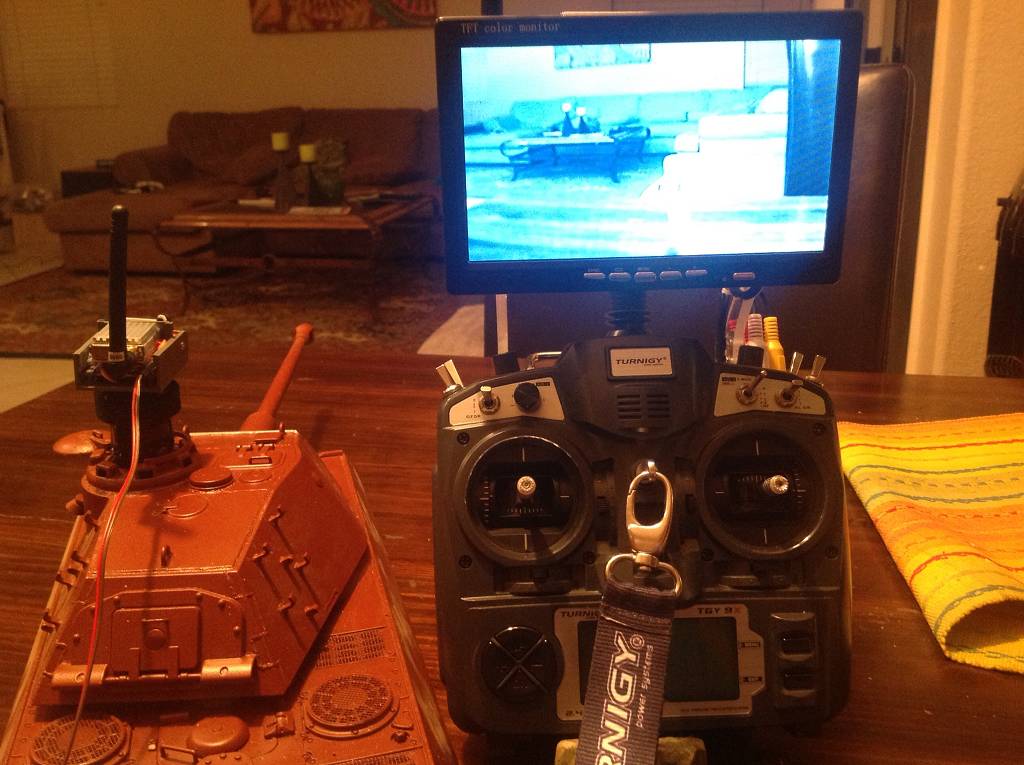

Viewing System: based on a TFT 8" screen mounted to a 9 channel TX with secondary 11.7 lipo battery system - the viewing system is designed for immediate view (look down and see what is happening) and for complete video immersion by using light blocking googles along with a sound system (now-you can really hear when you throw a tread). The 5.8Ghz RX outputs two video signals along with sound (non-stereo at this time).
Camera/IR System: uses an enlarged IR apple (standard sensors and LED's) along with a camera and minature TX system. This "GunnerView Apple" provides the platform for viewing the front of the tank and terrain along with video overlay that the OSD produces.
OSD: is the heart and brains behind the GunnerView system. This device overlays data into the screen along with a gunner reticle that is tied to the barrel (gyro) to provide elevation readouts. Secondary sensor information includes complete GPS (heading, speed, etc) along with battery condition, temperature, "home" and other information. As part of the OSD data, I'm hoping to be able to program a tank and turret rotation symbol along with other advancements.
With the Video TX, the GunnerView IR Apple and the OSD system, we will be able to finally and directly particpate first hand in our battles. I believe it has the capability of completely changing RC Tanking.
But - baby steps first. The Video TX works well. It was a lot of trial and error, but no burned out screens and all systems worked as they should have (yes - thanks to everyone here - I've learned alot this past year! I even configured the LED's by using a LED calculator and the right resitors...).
I should have the first GunnerView/IR Apple ready for our next DAK battle next month. Once it works well, I'll start on the programming of the OSD system (I have the parts on order - it's a little complicated..../first I have to have the circuit boards printed and components placed and soldered).
If all goes well, I'm hoping to have a professional system ready by summer and I can have a couple of the DAK guys (and girls!) test it out in the heat of battle.
I'll keep everyone posted!
tjsull
And, what the heck is that?
It's pretty simple. Our hobby is based on battling our tanks remotely. That's the "remote control" part (duh).
It's my intent to change that by builidng a simple to use and inexpensive FPV (First Person View) system for RC tanking.
Finally, we will be part of the battle as we will be able to directly view the engage enemy, site the cannon and fire! We will be the commander fighting for the life of our tank and crew.
The key elements are the viewing system (see attached photos), the camera and TX, the IR Apple and the heart of the system; the GunnerView OSD and it's sensors.
Let me break it down:
Viewing System: based on a TFT 8" screen mounted to a 9 channel TX with secondary 11.7 lipo battery system - the viewing system is designed for immediate view (look down and see what is happening) and for complete video immersion by using light blocking googles along with a sound system (now-you can really hear when you throw a tread). The 5.8Ghz RX outputs two video signals along with sound (non-stereo at this time).
Camera/IR System: uses an enlarged IR apple (standard sensors and LED's) along with a camera and minature TX system. This "GunnerView Apple" provides the platform for viewing the front of the tank and terrain along with video overlay that the OSD produces.
OSD: is the heart and brains behind the GunnerView system. This device overlays data into the screen along with a gunner reticle that is tied to the barrel (gyro) to provide elevation readouts. Secondary sensor information includes complete GPS (heading, speed, etc) along with battery condition, temperature, "home" and other information. As part of the OSD data, I'm hoping to be able to program a tank and turret rotation symbol along with other advancements.
With the Video TX, the GunnerView IR Apple and the OSD system, we will be able to finally and directly particpate first hand in our battles. I believe it has the capability of completely changing RC Tanking.
But - baby steps first. The Video TX works well. It was a lot of trial and error, but no burned out screens and all systems worked as they should have (yes - thanks to everyone here - I've learned alot this past year! I even configured the LED's by using a LED calculator and the right resitors...).
I should have the first GunnerView/IR Apple ready for our next DAK battle next month. Once it works well, I'll start on the programming of the OSD system (I have the parts on order - it's a little complicated..../first I have to have the circuit boards printed and components placed and soldered).
If all goes well, I'm hoping to have a professional system ready by summer and I can have a couple of the DAK guys (and girls!) test it out in the heat of battle.
I'll keep everyone posted!
tjsull
#4
RE: GunnerView Prototype Teaser
Nice setup. Ihave mounted my video monitors on small palstic boxes in lieu of the radio like you have done. I'll post a picture later today.
The OSD portion sound interesting, Ionly have the camera mounted. More information on this would be great. Also do you find the radio to be heavy after a while with all theat electronics mounted on it?
The OSD portion sound interesting, Ionly have the camera mounted. More information on this would be great. Also do you find the radio to be heavy after a while with all theat electronics mounted on it?
#5
Senior Member
Thread Starter
Join Date: Dec 2008
Location: Scottsale,
AZ
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
RE: GunnerView Prototype Teaser
I'll keep this post active as the GunnerView/IR Apple is completed and tested.
To answer your question, YES - it's definitely requires a neck strap. Although I used 1/4" lexen for the frame, the added weight of the secondary battery and box balanced it, but added too much to the weight. The next prototype, I'll replace the 9X TX battery with a LiPoly (and alarmed regulator) and run the 9X/TX, FPV RX and Monitor with a master plugin and see how that works and how long a 5000 mah will operate.
The OSD will be the most interesting part. Trying to learn the coding and how the sensors operate is a burden.
tsull
To answer your question, YES - it's definitely requires a neck strap. Although I used 1/4" lexen for the frame, the added weight of the secondary battery and box balanced it, but added too much to the weight. The next prototype, I'll replace the 9X TX battery with a LiPoly (and alarmed regulator) and run the 9X/TX, FPV RX and Monitor with a master plugin and see how that works and how long a 5000 mah will operate.
The OSD will be the most interesting part. Trying to learn the coding and how the sensors operate is a burden.
tsull
#6
RE: GunnerView Prototype Teaser

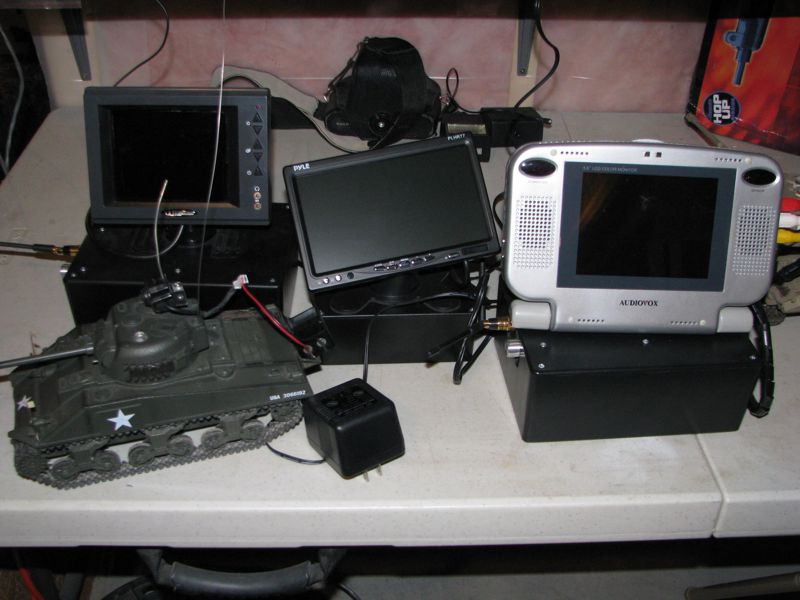

Here you can see that the video monitors are on top of the black boxes that contain the receiver & wires. I use wallwarts for power, the monitors can be set on a table or flat surface, the black box can be postioned for best reception. Hard to see on the tank but there are two small flags on either side of the front fenders. That's so Ican ell when the turret if facing front.
#8
RE: GunnerView Prototype Teaser
When you talked about it I did not think it was this close to operational. Good show!
#10
Senior Member
Thread Starter
Join Date: Dec 2008
Location: Scottsale,
AZ
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
RE: GunnerView Prototype Teaser

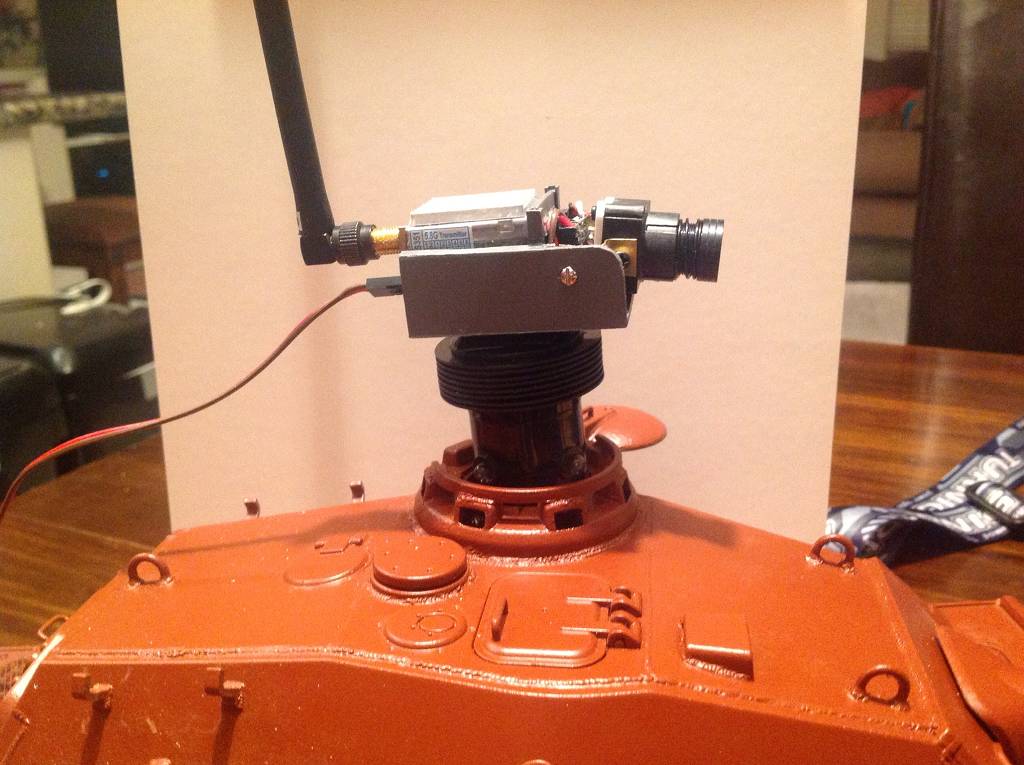

Well, I have finally finished prototyping the camera and video transmitter. It was little more complex than I first thought..

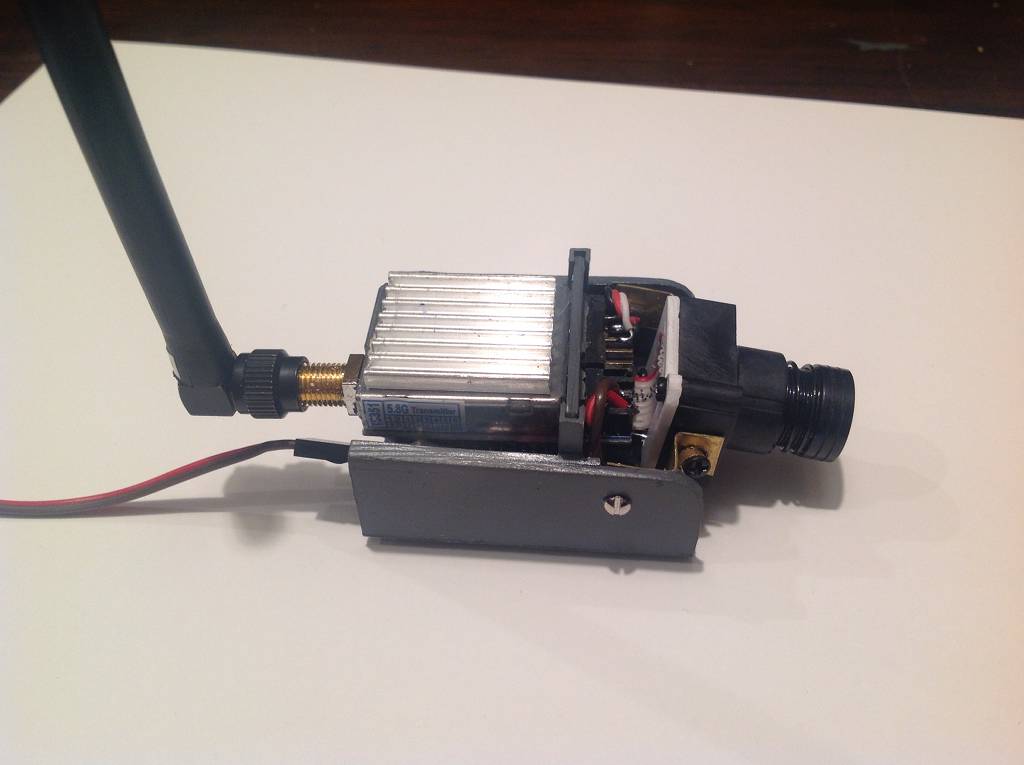

But, here's some pictures of the camera and VTX system.
