Hi guys, I was wondering if anyone has any pics of their HL control and receiver board? I began to re-wire some parts of the board and forgot where one wire goes. Any help would be appreciated! Thanks

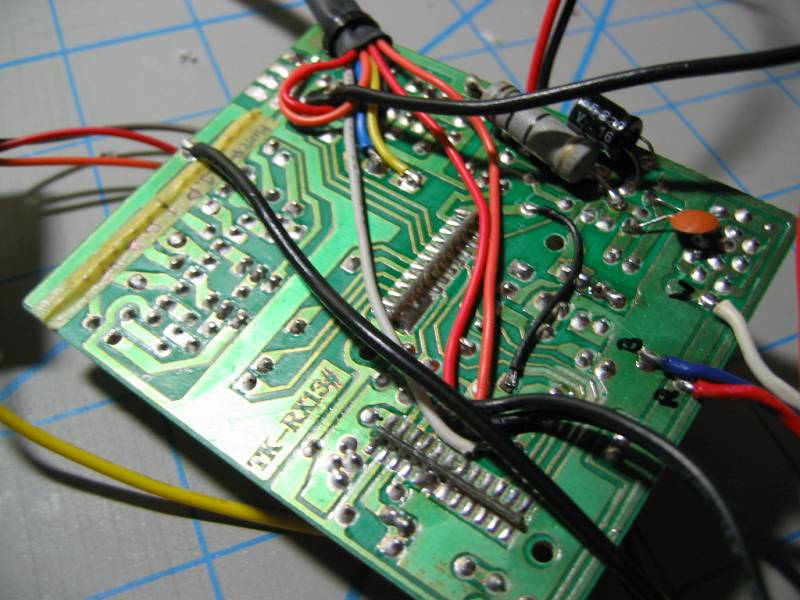

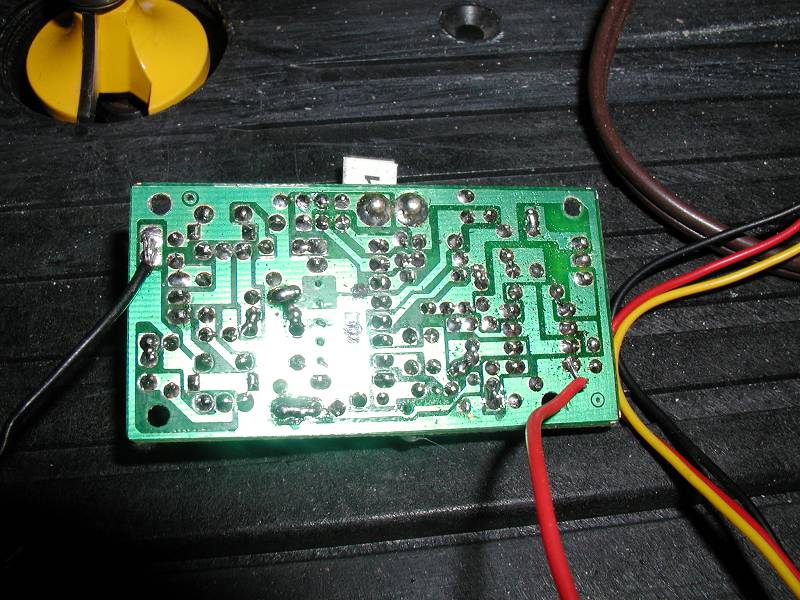

Hope these help

Thanks Woz! Do you know where the power line for the receiver with the antenna goes to? Thanks?

This should help. It is the Lager red wire in the picture.

Jeff

Thanks! Thats what I was looking for! I cleaned up the wire arrangement on my new HL Pershing. I have a build progress and lots of photos and some video coming! These HL tanks are great. Stay tuned

Hey Killhammer, do you know or have a picture where the larger red wire goes after the receiver board?

No. But it goes to the power switch. Their are 3 wires that go to the power switch the + wire goes to the middle terminal the - to the on position and the other to the off position.

Jeff

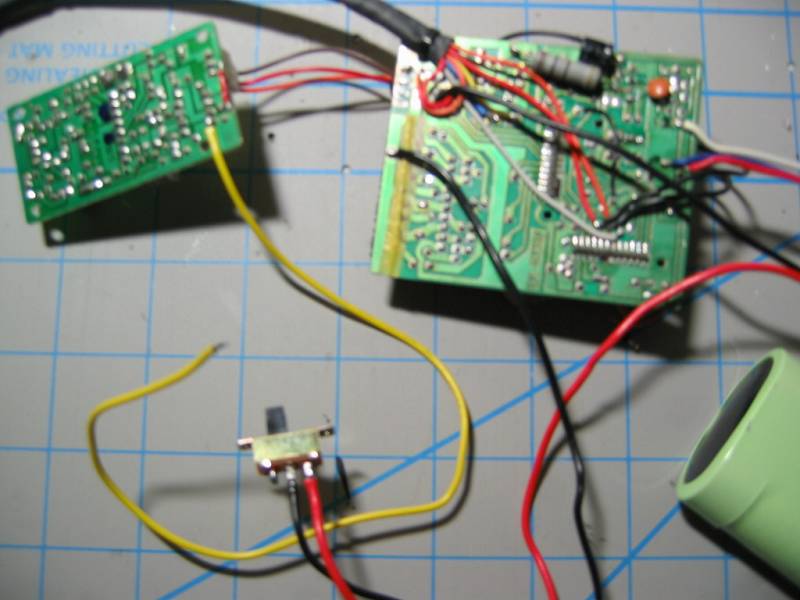

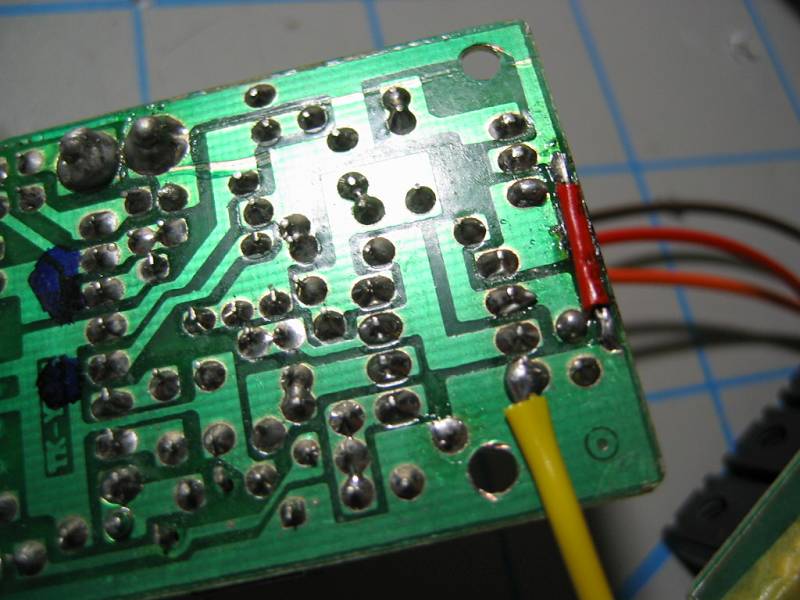

Thanks for your help Kill. Can you be more specific with the wires in your last post. I don't know what is going on but everything turns on and seems to be working fine without my yellow receiver wire attached to anything?? But when I apply the reverse throttle only one track goes?? I've posted some pics. If you need to see something else tell me and I will post it.

The receiver board in my tiger doesnt have that wire on it. The only wires connected to the receiver board are the three with the white connector block and the antenna wire.

I real do not know what the wire coming off the transmitter board and going to the power switch dose. Be best guess I have is it is some kind of reset. When the tank is turned on power is removed from it and when the switch is turned on it has power on it. sorry that I can not be more help at this time.

Jeff

Thanks for your help guys. Hopefully some one else may shed some light on this latter on. For now I'm going to move on to other areas of the Pershing.

Is it possible to fix one of the boards instead of waiting for the parts to come from canada? If it was a simple replace something for a burnt out parts. I've got one track that I burnt up the part- smelled in but it was to late. If there is something that hopefully Radio shack might carry I could solder a new one in it's place- Pershing.

hi bullfrog,
if you find out where to buy these electronics replacement parts ,
please let us know.
[]

Does anyone have a picture of the HL airsoft assembly with the wire attachments? Thanks.

Been down that rout already..one of the chips cost $12!!!

it's cheaper to buy it from Mato or direct from the factory.

12$ ... to bad []
thanks for letting us know turbobearcat.

Yes that's expensive except when you add the freight from mato- that's expensive.

yes mato got expensive shipping fees even for a Canadian)
my board at mato cost me 16.00$ can.(april2006).
with the shipping ended 31.00$ ,
that`s 15$ for shipping when the real shipping cost is more like 7.00$[&o].

i suggest buying the replacement board(15$) and tank at nova hobby ebay store,cheaper shipping fees and price:

http://cgi.ebay.ca/1-16-RC-German-Ti...QQcmdZViewItem
my tiger was purchased from him(also faster shipping then mato).
[sm=thumbup.gif]

Hi Guys
Can anyone help me out here?
I Installed a LED light inside the barrel of the Tiger I HL tank.
I want to know where on the reciver board I can solder it so that it will work with the K key on the remote controle?
Here is a picture of what I mean:
www.joecanestrari.net/tiger1.htm
you can reach me at [email protected]
thanks

that is a good "k" question !!
[sm=confused.gif]

let me now if you find out where to weld it...


salut

me to

hi guys
for those that are interested
LED inside the cannon of a HL tank
this is where to solder the wires on the board

http://www.joecanestrari.net/circuitboard.jpg

Let me ask you joec07, are the front and rear lights in series or parallel. I hooked up my front lights each + to+ and - to -. Only one light works now?? I will post a pic soon

I don't think you can hook up LEDs of different colors together, can you?

As for the extra wire on the RC board to the switch. One fella told me it was used to discharge the board or something like that, he told me on the MTG forum.

Hi
why not..... all you have to do is add a ressistor to the positve lead if you use one color LED or the 3rd wire is for the psoitf lead of the other color inside the bulb
