does any one have pics and pinout for the rx 18 board

http://www.rctankwarfare.com/Forums/...pic,241.0.html Tthere ya go bubba, not pin outs but some good pics taken by me (can get more if you want)

Hi bubba
not sure if these will help you out http://www.rctankwarfare.com/Forums/...pic,241.0.html

a couple of posts down is a written guide too



Kind regards Rob

he he same one lol

thanks but pics a bit unclear I need to be able to read the lettering and need pin by pin pinout bought 3 of these boards to play with and I dont want to burn them out

Are the connectors labeled such as "A" "B" "C" (for example) for the pins/wires, or are they blank?

Might be small, but most connectors (maybe not Chinese?) have some sort of label for each pin.

no there are not thats why you have to map them on the board

Hi Can RX 18 be used to replace RX 13?

it can be used to replace it but you need to make the motors use 2pin connector, the battery switch use 2pin connector and the speaker volume control use a 3pin connector

Hi Norse,

Thanks for your response. I guess I can solder directly if I can't get the connector. But how about the connector to the receiver board? Are the pinout the same?

Hi Bubbajoexx try Darkiths web site http://darkith.dyndns.org/~darkith/html/rx18.shtml

has full write up on the rx 18

regards pete

now thats a start just need the rest the bottom plug thats not marked

http://www.rctankhq.com/Downloads/Pr...g-Ground-2.pdf

found this today some may find it interesting

the bottom long plug is the turret one

I know but i dont have a pinout yet for the plug

i think its the same as normal plug

Xmas came early got some of my parts in today


stug gear boxes

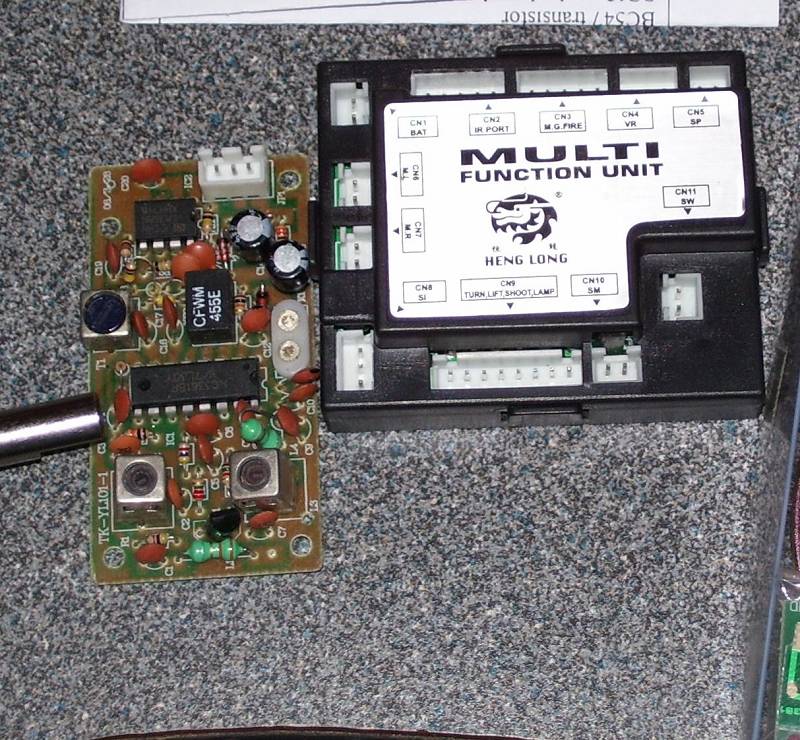

rx 18

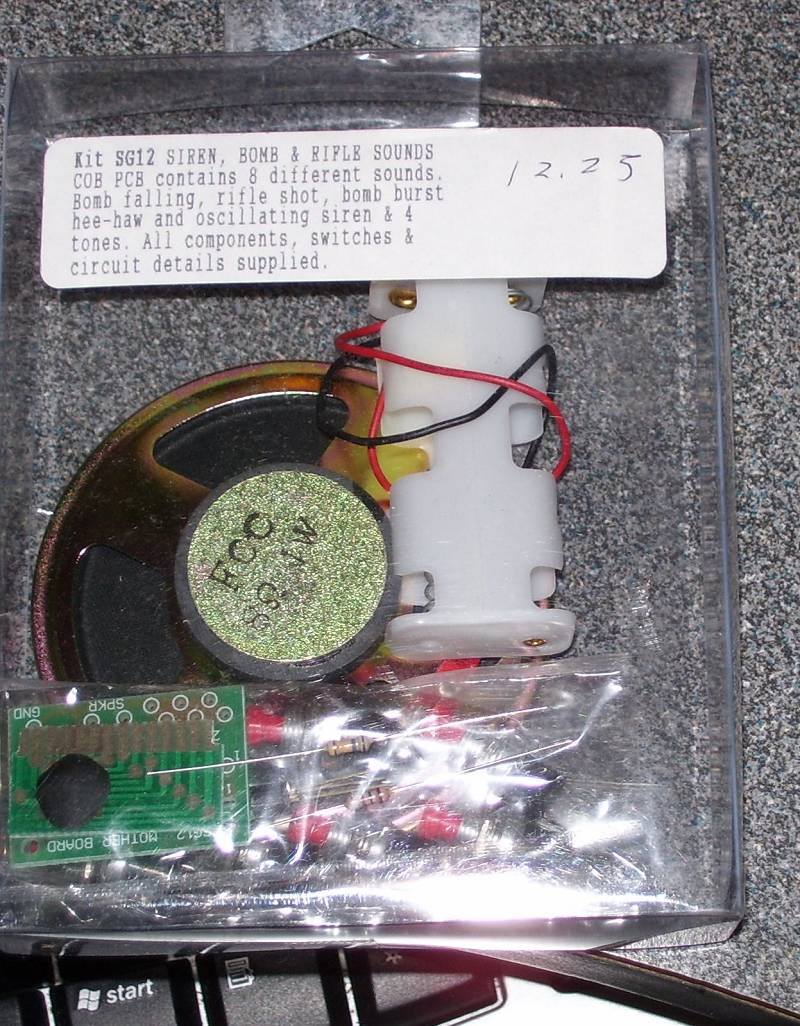

8 sound sound card kit

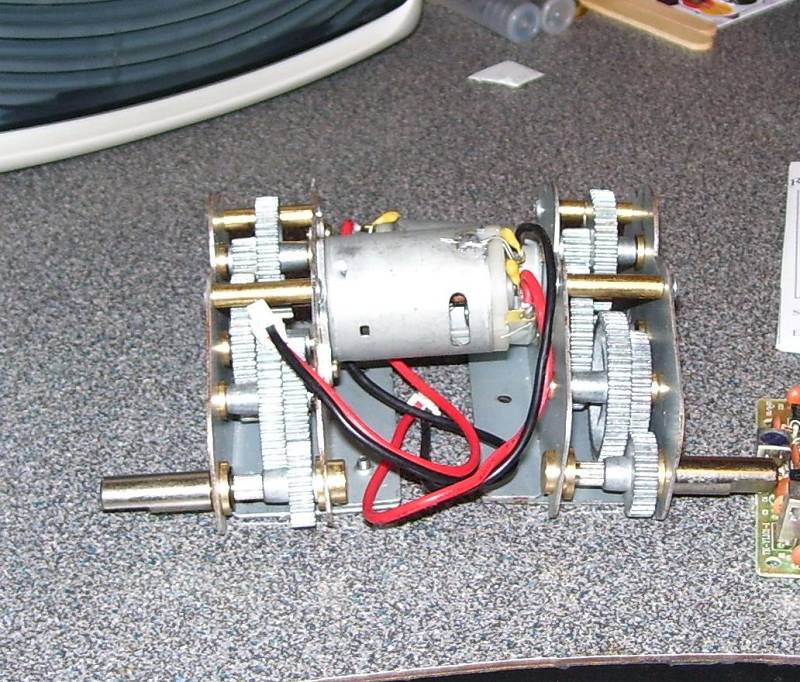

compact gearboxes
