Originally Posted by doxilia View Post
JH,

not so! Your static display pictures are taken with much artistry and excellent lighting. It is very nice to see the model stand out as yours does from the white neutral background.

As to your building a covering, any "1 foot" model (viewing distance) qualifies as top notch in my book. I know how difficult these little pattern models are to build and cover so I very much applaud your efforts.

What 20 size design will you be building next year? The sister ship to the Aurora, the Cosmos, would be great!

Otherwise, the Skymaster and Arrow would be excellent choices in my humble opinion. If you need a glass deck for the Skymaster, I can provide you with one.

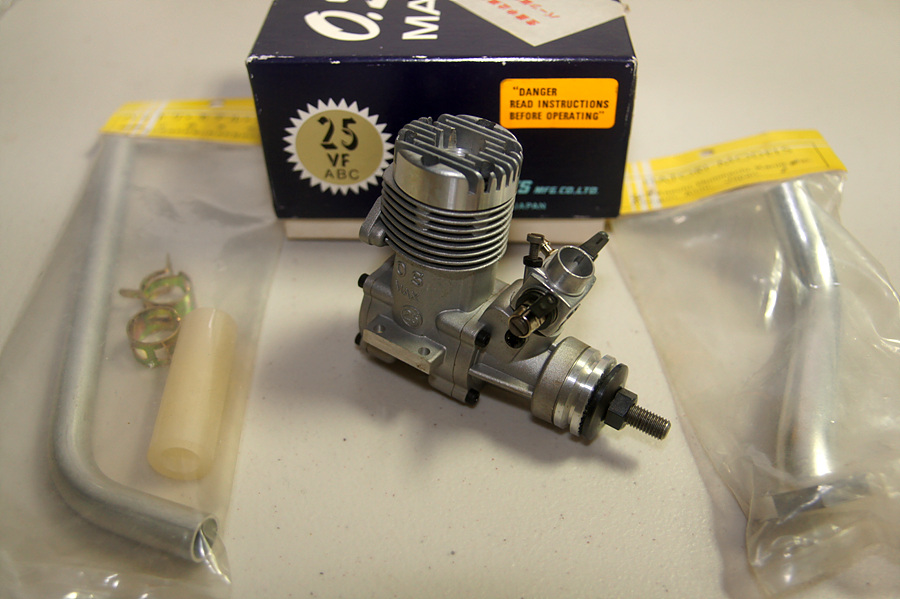

As far as I know, the Arrow 20 never came to market (please let us know if otherwise in Asia) but Hatori seemed ready for it as they actually have a header designed for the OS 25 VF intended specifically for the Arrow. Using a scaled down Arrow 40 plan, simplified somewhat, could work well. Hatori also has the S-shaped headers for the inverted VF in the Skymaster.

Best, David

P.S. Say, how much does each model weight ready to fly without fuel? I assume you have 180 cc tanks in them?

David

Thank you.



Originally It is recomended a MK 150cc fuel tank, but I used the MK 190cc oval type fuel tank for the aurora 25.
And a.u.w without fuel is 1395g+ 55g(prop + spinner ) with 1600mAh 6V 5cell Ni-MH battery.

I saw a Hatory header for Arrow 20 (OS 25vf abc), but never find the MK arrow 20 in Korea & Japan at least today.
I like MK SKYMASTER 20 so much , but next project is other one,

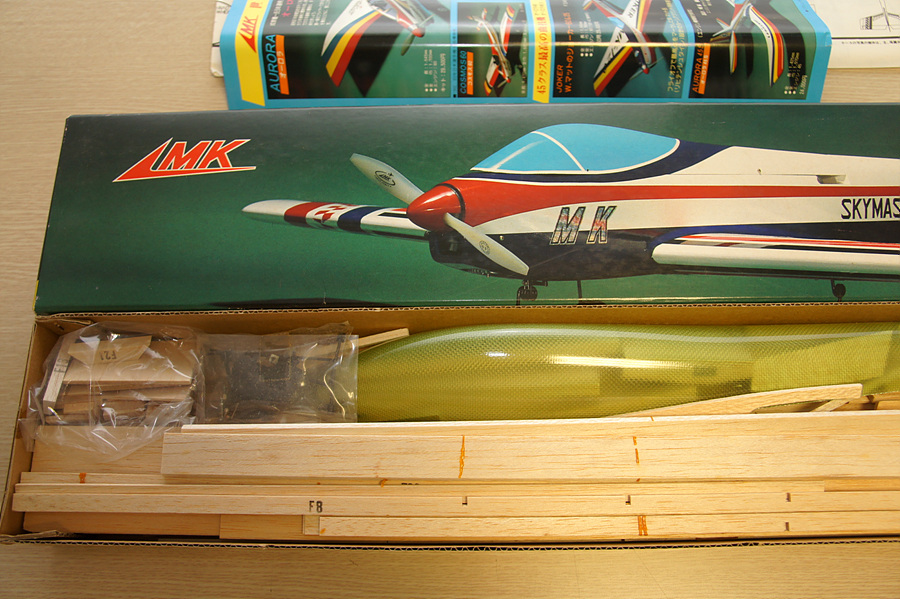

Here is one complete set of MK SKYMASTER 20 of mine,(thanks for providing glass deck for me)



JHMIN

Attached Thumbnails Click image for larger version

Name:	DSC09702.jpg
Views:	3991
Size:	298.9 KB
ID:	2042563   Click image for larger version

Name:	DSC09713.jpg
Views:	3997
Size:	254.7 KB
ID:	2042564   Click image for larger version

Name:	DSC09718.jpg
Views:	3932
Size:	310.9 KB
ID:	2042565   Click image for larger version

Name:	DSC09721.jpg
Views:	3996
Size:	330.8 KB
ID:	2042566   Click image for larger version

Name:	DSC09722.jpg
Views:	4223
Size:	345.3 KB
ID:	2042567   Click image for larger version

Name:	DSC09723.jpg
Views:	3970
Size:	312.7 KB
ID:	2042568   Click image for larger version

Name:	DSC09727.jpg
Views:	3875
Size:	293.7 KB
ID:	2042569   Click image for larger version

Name:	DSC02327.jpg
Views:	4048
Size:	229.6 KB
ID:	2042570


Last edited by JHMIN; 10-27-2014 at 11:52 PM. Reason: A.U.W : missing prop & spinner (55g)
Old 11-16-2014, 01:18 PM
  #27
doxilia
My Feedback: (3)

doxilia's Avatar

Join Date: Apr 2008
Location: Montreal, QC, CANADA
Posts: 5,195
Likes: 0
Received 3 Likes on 3 Posts
Default

TS,

thanks for your PM reply. I PM'd you back. Please follow up by email if you don't mind.

Originally Posted by ThermalSniffer View Post
Nicely done David and thanks for that in depth review.
I hope it's of some use.

Originally Posted by ThermalSniffer
I wondered what happened to those kits as I was planning to buy one of them. There were 3 and they had languished unnoticed until I mentioned them here and then they disappeared before I got my chance to buy. Luckily I've since found the original manufacturers website. It seems it is very much a cottage industry product which is manufactured on order.
Good to know! I take it you were able to source a kit then?

Originally Posted by ThermalSniffer
I have a CNC router and have cut a few kits for myself with it. It is deadly accurate but if you get the router bit, speed through the wood or depth of pass wrong it can leave ragged edges on the parts. I don't think it's the tool best suited for wooden kits, I bought it with the modern milled foam core molded wing in mind as is prevalent in soaring circles right now.
Nice. I know that it is possible to produce nice parts with CNC routers. I just felt that this kit was a little "coarse". Then again, I'm used to the accuracy of laser.

Originally Posted by ThermalSniffer
... I am looking for a small pattern flyer to follow on from it. Perhaps you could suggest something that would have been available to me in the late 80's early 90's as far as a 20-25 size mini pattern model goes. I have identified that there were a couple of Supra Fly's in the photos so I'm thinking of building a Supra Fly 25 but am loathe to scratch build one if I can't get a canopy and cowl for it.
We might be on our way to solving this. The OK Model (Pilot) kits are very easy and straight forward to build and given Hanno's simpler later designs they are ideally suited to each other. The one thing that I will change in the CAD re-design is the "weight" of the fuses. The wings and empennage are standard and fine in weight but the fuses are built like tanks with too much birch plywood. If one were to use glow 25-35 size engines most all ply can be swapped for lite ply (half the weight) and if they are going to be e-powered, much of the 1/8" lite ply (doublers in particular) can be substituted for 1/8" balsa. I expect to cut weight down by 0.5 - 0.75 lbs all up and be able to carry a couple more ounces (7-8) of fuel if needed in the larger models (e.g., Mystic) if using a 35 or even a light 40 size engine. The mid-wing designs (Mystic) will likely use plug-in wings while the low wing (Curare, Calypso, SF, SS, etc.) will be standard one piece wings. All models will be designed with e-tracts in mind whether conventional (Calypso forward) or trike (Magic backward).

David
Old 11-16-2014, 01:42 PM
  #28
doxilia
My Feedback: (3)

doxilia's Avatar

Join Date: Apr 2008
Location: Montreal, QC, CANADA
Posts: 5,195
Likes: 0
Received 3 Likes on 3 Posts
Default

Originally Posted by JHMIN View Post
David

Thank you.

Originally It is recommended a MK 150cc fuel tank, but I used the MK 190cc oval type fuel tank for the aurora 25.
And a.u.w without fuel is 1395g+ 55g(prop + spinner ) with 1600mAh 6V 5cell Ni-MH battery.
JH,

I hope you're enjoying your Curare's!

The 190 cc (~6.5 oz) tanks for the larger MK and OK 20 size birds (Aurora, Cosmos, Joker, Kingbird, Mystic, Rubin, etc.) makes a lot of sense. I'm hoping that in re-designing them I might be able to fit a 7 to 8 oz tank (200 - 236 cc) particularly if they have plug-in wings (Aurora, Cosmos, Mystic, Arrow?). For the smaller guys (Curare, Magic, Mattlas, Skymaster) a 5-6 oz (150 - 175 cc) seems more than enough as these are using 25-32 size engines instead of 35-40 size.

Originally Posted by JHMIN View Post
I saw a Hatori header for Arrow 20 (OS 25vf abc), but never find the MK arrow 20 in Korea & Japan at least today.
Yes, I'm not certain but I suspect that MK had plans to do the Arrow 20 and maybe Hatori got ahead of the plans (literally) making the appropriate header for the 25 VF. In any case it should be a standard 1/2" or 1" fuse top header. An Arrow 20 would be just too cool on the fight line! Now there is even a very powerful NovaRossi 28 RE (not a Japanese OS but given the Arrow is a European design, an Italian engine seems fitting. )

Originally Posted by JHMIN View Post
I like MK SKYMASTER 20 so much, but next project is other one,

Here is one complete set of MK SKYMASTER 20 of mine,(thanks for providing glass deck for me)

JHMIN
I guess that makes two of us - SM20 perhaps my favorite RE design with the Arrow 20. One day I hope to have a pair on the flight line side by side. But you'll probably get there much before me! if I only spent more time building and flying and quit all this conservation effort stuff!

One of my ideas (and I'm not the only one) has been to modify the Magic 20 design to a RE (Skymaster like) inverted engine setup - like its bigger 40 and 60 size siblings. But there is much to do already. Working on a Mystic 45 CAD design at the moment. Hope to be prototyping it before years end!

I'm eager to see and hear about your next project.

David
Attached Thumbnails Click image for larger version

Name:	1.jpg
Views:	182
Size:	1.08 MB
ID:	2047920   Click image for larger version

Name:	2.jpg
Views:	143
Size:	1.05 MB
ID:	2047921   Click image for larger version

Name:	7.JPG
Views:	131
Size:	408.2 KB
ID:	2047922
Old 12-05-2014, 10:37 AM
  #29
elmshoot
My Feedback: (6)

Join Date: Dec 2001
Location: Nashville, IN,
Posts: 1,639
Received 22 Likes on 20 Posts
Default

One of our club members passed away and in the estate was a completed Curare 20 with a OS .25. I did some trading for it with another member and Finally have my hands on it. I pulled the engine and installed a K&B .21 RE with a Magic Muffler and lots of tiny JR $ervos to run the retracts and all flight surfaces with the little 700 MAH LiFe from Hobby king. 3 pounds 4 oz I think it really goes like stink I am sure this is much faster than intended with that little piped powerhouse! The engine really doesn't have much mid range, pretty much on and off the pipe.
I had some flutter issues but gap seals fixed that issue. Really a fun plane to do Old School pattern flying.
I found out that it had one flight probably in the 80's then it was put up until I got the plane I am honored to be able to fly the plane and it really is a blast from the past.
Sparky
Old 12-05-2014, 09:50 PM
  #30
stuntflyr

stuntflyr's Avatar

Join Date: Oct 2007
Location: Tucson, Arizona
Posts: 1,891
Received 0 Likes on 0 Posts
Default

Pictures Sparky, or it didn't happen!
Chris...
Old 09-21-2019, 05:31 PM
  #31
Dad3353

Join Date: May 2017
Location: France
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Question Help with nose wheel retract, please..?

Good evening, JHMIN...

My apologies for awakening this (excellent...) topic, asleep for far too long, but I have an issue that you may be able to help me with, if you would. I am building a Curare 20 from a short kit, for electric motorisation. I've received the chosen retracts for this 'plane, the same set as you have used (Turnigy MCR All Metal Retract System...). I want to install 3mm legs, and had no problems removing the original 3mm 'leg' from the two wing units, by backing off the two grub screws 'hidden' in their bronze bushings.. Not so easy for the nose wheel unit, though. There are no grub screws in the bushings; the 'leg' is held in place by the steering collar. This I was able to remove easily enough, but the 'leg' still refuses to come out. It appears, from close inspection, as if the inner end of the 'leg' has a flange, which prevents forward movement, and therefore extraction.
I see from your (excellent...) photos that you have succeeded in fitting a 3mm nose wheel leg, so I assume that you managed to remove the original 'leg'. Do you remember how you did this..? Did you have the same issue of the inner flange preventing it from coming out..? I don't wish to start disassembly of this unit if it can be avoided, but will do so, if it's the only way of removing this 'leg'. Did you have to resort to such measures, or have I overlooked something..?
Thanks in advance for any information or assistance you're able to offer, and warm thanks for having posted, all that time ago, such an excellent topic; meanwhile...

Have a nice day

Douglas
Old 12-14-2020, 05:47 PM
  #32
elmshoot
My Feedback: (6)

Join Date: Dec 2001
Location: Nashville, IN,
Posts: 1,639
Received 22 Likes on 20 Posts
Default

I got my Curare at an estate sale. Mechanical retracts (Proline maybe) replaced the engine and radio. I have a K&B .21 FIRE with a magic muffler. 3.5 pounds and 17,000 RPM on a 8x6. 30% Nitro. I had flutter problems but solved it with sealing the hinge lines. It is fast as heck!
