This airplane still strikes me as being kinda small,,, untill you put the cowling on and see how much space there is in there!



Old 10-18-2009, 05:54 PM
  #27
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Throttle servo is placed on the bottom of the engine box. I did have to relieve a little of the tri-stock bracing the engine box.



Old 10-18-2009, 06:02 PM
  #28
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Simple throttle push rod.

Old 10-18-2009, 06:03 PM
  #29
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Cannisters were secured with JMB mounts,,, feel free to use your favorite method.




Gotta let the hot air out,



Old 10-18-2009, 06:07 PM
  #30
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Manual choke linkage for me!


Old 10-18-2009, 06:09 PM
  #31
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Fuel tank is pre installed, three line system. You add the tygon.




Fuel dot,, being a prototype, we will ask EG to leave a little more wood for mounting fuel dot and switches.


Old 10-18-2009, 06:11 PM
  #32
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Engine and ignition install.

Old 10-18-2009, 06:13 PM
  #33
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Photo of the root rib of a stab.
Notice the notch cut out for the servo wire.


Old 10-18-2009, 06:14 PM
  #34
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Lots of good hardware. Nice anodized aluminum servo arms are included, these would work well with the Uni Hub,,,, but I did not have any Uni hubs around so I used SWB servo arms.

Old 10-18-2009, 06:15 PM
  #35
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Hardpoints are pre slotted. Just cut away the Ultracoat with a sharp #11 blade.


Old 10-18-2009, 06:16 PM
  #36
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

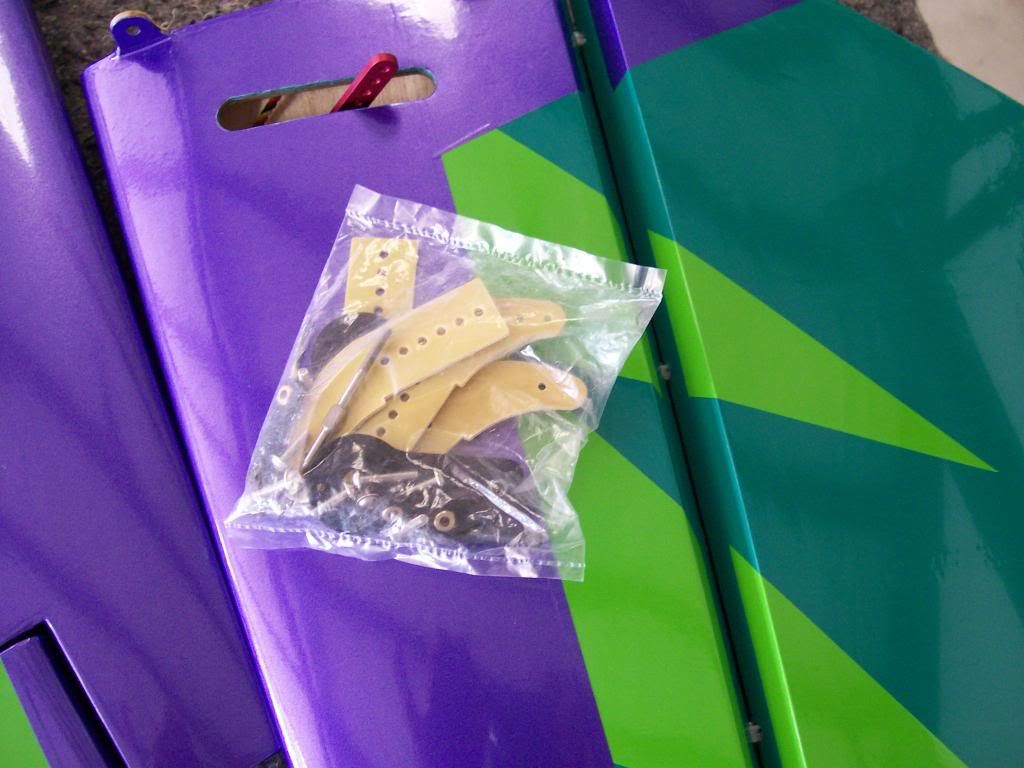

The fiberglass arm in this prototype needed to be trimmed, they were slightly long. Also some 120 grit sandpaper was used to scuff the bonding surfaces.


Old 10-18-2009, 06:18 PM
  #37
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Assemble two arms with the supplied hardware and ball link, and glue into the hardpoints with some 30 minute epoxy.



Old 10-18-2009, 06:20 PM
  #38
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Same goes for the rudder, dry fit everything first. Measure and mark before epoxying in place.




Old 10-18-2009, 06:22 PM
  #39
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Ailerons get the same treatment.


Old 10-18-2009, 07:04 PM
  #40
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

I used 'Gorilla glue' on the rudder hinges.

Old 10-18-2009, 07:06 PM
  #41
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

The rudder servo tray is a sturdy piece of ply, still like to harden the screw holes with CA.

Old 10-18-2009, 07:08 PM
  #42
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

The stock rudder arms have the correct offset to keep constant cable tension.
I glued and screwed the arms to pair of Hitec wheels. Crossed rudder cables work well.

Old 10-18-2009, 07:10 PM
  #43
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Looking into the aft fusalge section, note the guide tube for the elevator servo extensions,,,also the crossed rudder cables.
See any carbon fiber tubes adding strength and stiffness to the fuse?




Old 10-18-2009, 07:12 PM
  #44
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Again, this is a prototype. What do you guys think? There is just enough there for the large, heavy duty switches now. Want the cut outs for switches (pre-cut)?

Old 10-18-2009, 07:14 PM
  #45
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

The tailwheel employs a tiller for steering, very positive. A small length of threaded rod and a ball link drive the tiller on this really cool carbon tailwheel.



Old 10-18-2009, 07:15 PM
  #46
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Plenty of these servo saftey clips are included.

Old 10-18-2009, 07:18 PM
  #47
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Lots of goodies, Smart Fly power expander and optical ignition cut off. Also using their HD charge switches. Two two thousand something mah A123 batteries from Wrongway RC ( the schnizzle dizzle). http://www.wrongwayrc.com/

The ignition is powered from one of the batteries also, through a five volt reg. The batteries actually wound up under the rudder tray, puts the CG on the wing tube.

Old 10-18-2009, 07:19 PM
  #48
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

There are also some really nice fiberglass fillets for the fuselage/wing leading edge interface. I'll have to come up with a way to attach them, they look great!!
Old 10-18-2009, 07:20 PM
  #49
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Everything else is simple,,,, four bolts hold the canopy/hatch on. Six on the cowling,, you have to cut the cowling for cooling.

Oh, BTW, the maiden went great. Pretty conservative,,,, new engine so no 3D.
Old 10-18-2009, 07:22 PM
  #50
Taildragger726
Senior Member
Thread Starter

Taildragger726's Avatar

Join Date: Jan 2004
Location: N Ft Myers, FL
Posts: 1,232
Likes: 0
Received 0 Likes on 0 Posts
Default RE: 100cc MX2

Maiden voyage,, http://www.youtube.com/watch?v=jOwQCxPJPnw
