AD Scorpion quick build thread

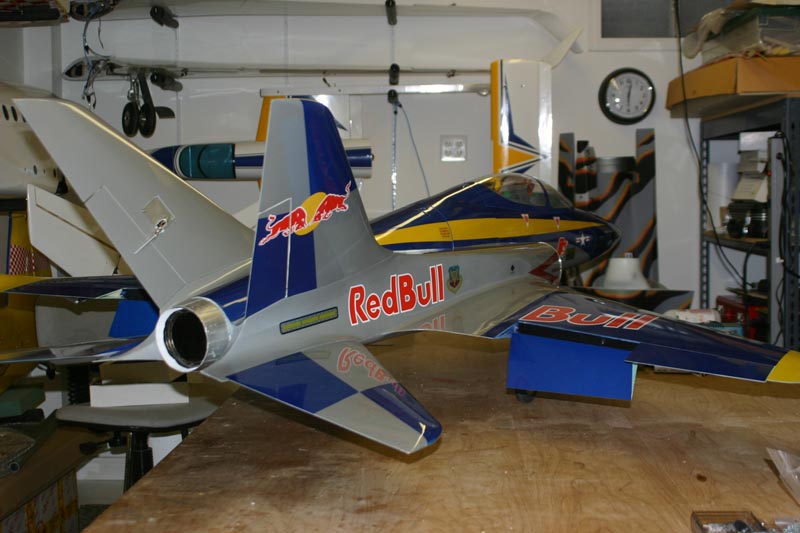

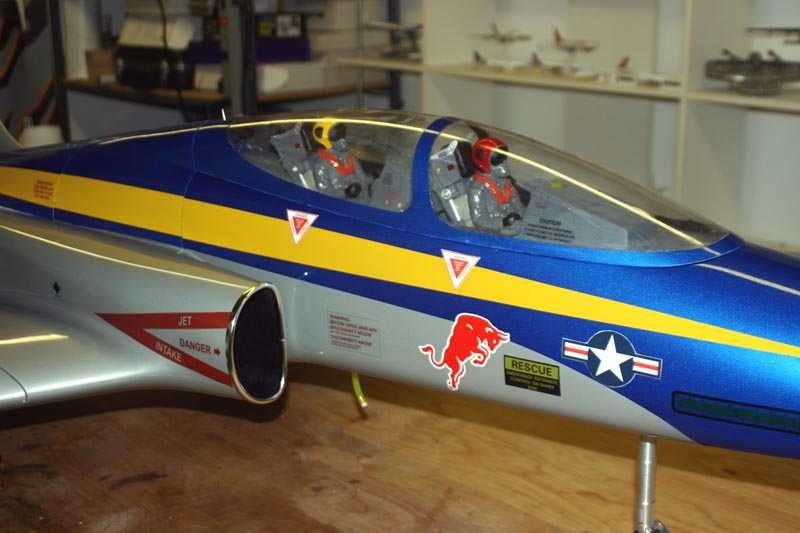

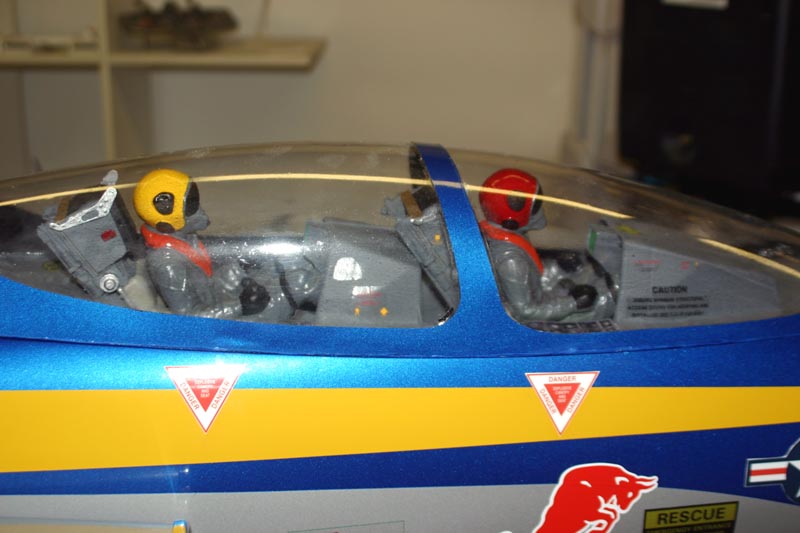

This is a very very quick build thread of the Aviation Design Scorpion.
This kit is a very quick build, should not take more than a 2 to 3 weeks to finish.
Specs: Span: 70” - Length: 83’’ - Weight: 27lbs dry.
This is the RedBull version with JR8411 throughout except for the stabs which use JR8611. Radio is Furaba FASST 2.4GHz, and turbine is Behotec JB180 Kero start.

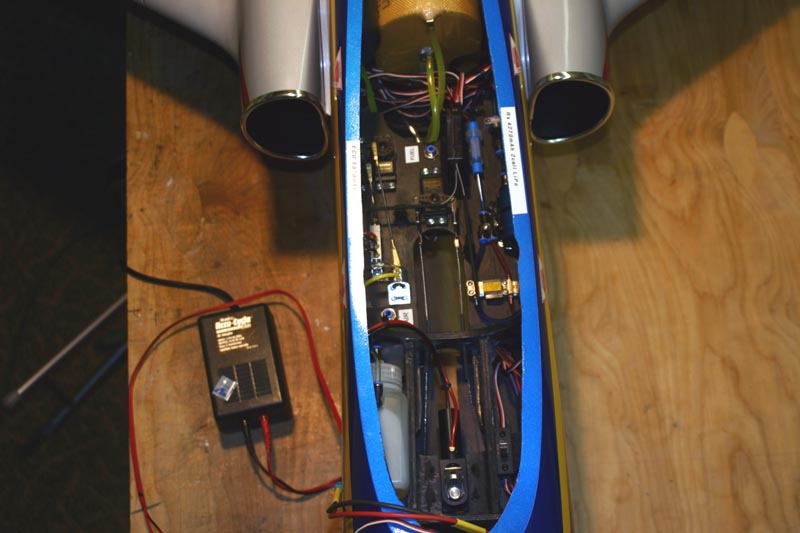

Tank is Kevlar 4L and ECU battery is a 3 cell LiPo 5350mAh and Rx is 2 cell LiPo 4250mAh with regulator. Retracts are Behotec C36/2 with upgraded twin nose wheel strut.
No weight is needed in the nose, CG should be set at or around the main struts.
This is my 2nd Scorpion, the first was sold to a local flier who still enjoys flying it.
Test flight is scheduled for either tomorrow or in the coming week.
Video link below is of another local flier who tested his RedBull Scorpion a couple of weeks ago.
Will update when test flight is done.
http://www.youtube.com/watch?v=W52QcUKsUPs
This kit is a very quick build, should not take more than a 2 to 3 weeks to finish.
Specs: Span: 70” - Length: 83’’ - Weight: 27lbs dry.
This is the RedBull version with JR8411 throughout except for the stabs which use JR8611. Radio is Furaba FASST 2.4GHz, and turbine is Behotec JB180 Kero start.
Tank is Kevlar 4L and ECU battery is a 3 cell LiPo 5350mAh and Rx is 2 cell LiPo 4250mAh with regulator. Retracts are Behotec C36/2 with upgraded twin nose wheel strut.
No weight is needed in the nose, CG should be set at or around the main struts.
This is my 2nd Scorpion, the first was sold to a local flier who still enjoys flying it.
Test flight is scheduled for either tomorrow or in the coming week.
Video link below is of another local flier who tested his RedBull Scorpion a couple of weeks ago.
Will update when test flight is done.
http://www.youtube.com/watch?v=W52QcUKsUPs
#4
Thread Starter
My Feedback: (34)
Join Date: Aug 2002
Location: Mississauga,
ON, CANADA
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread

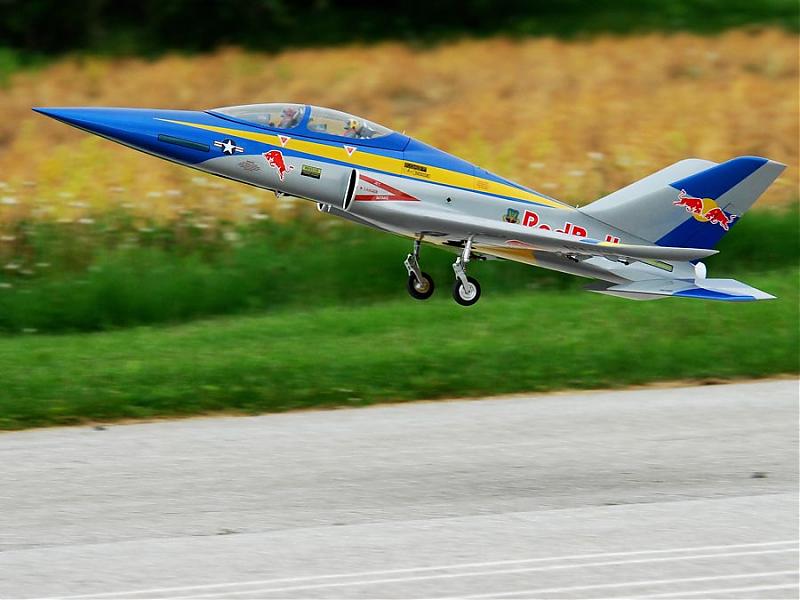

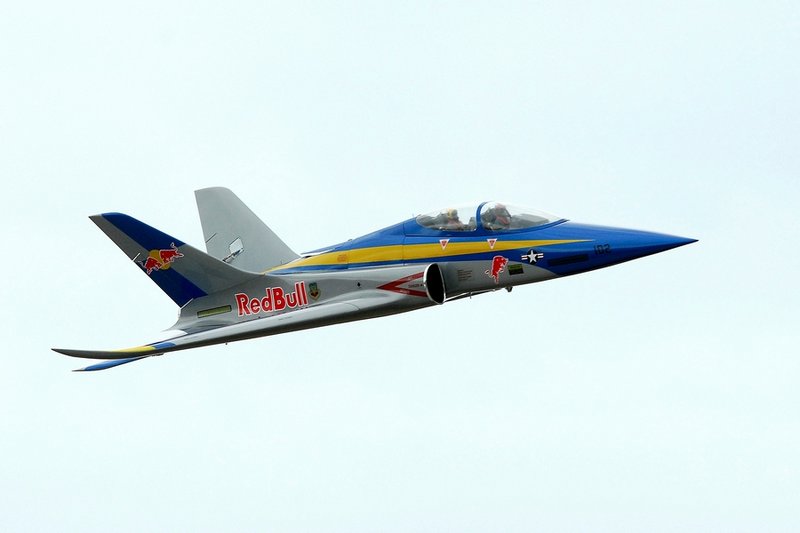

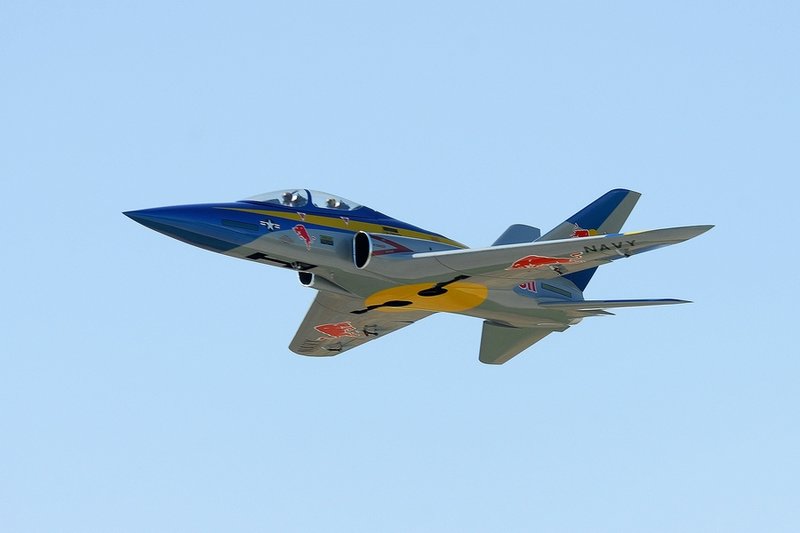

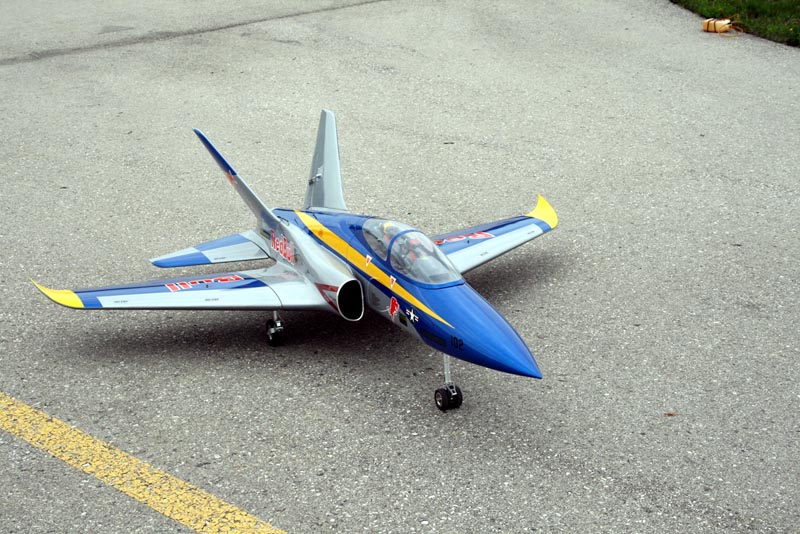

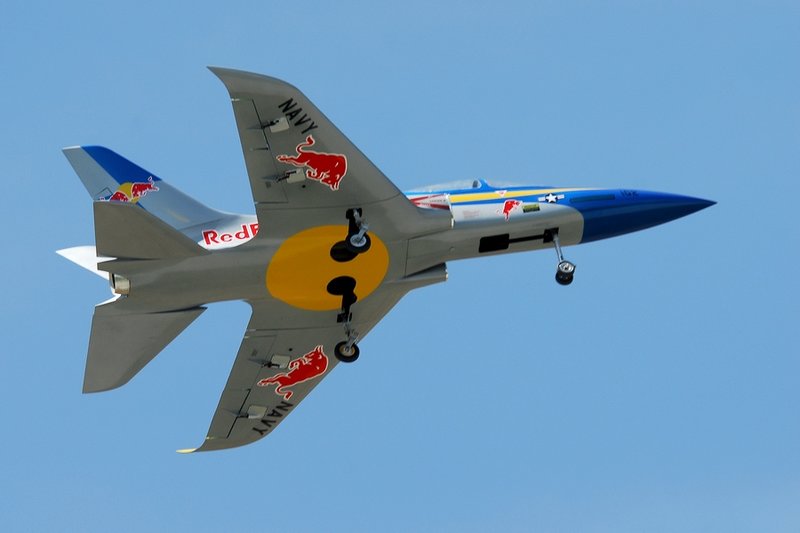

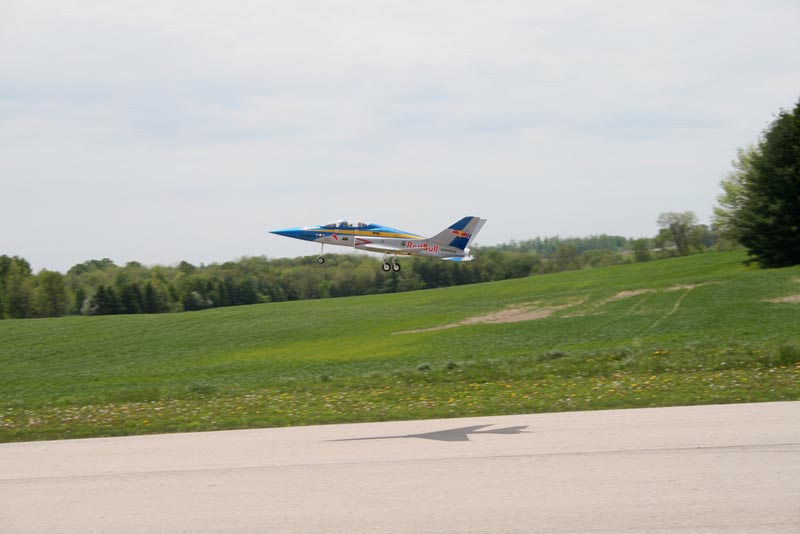

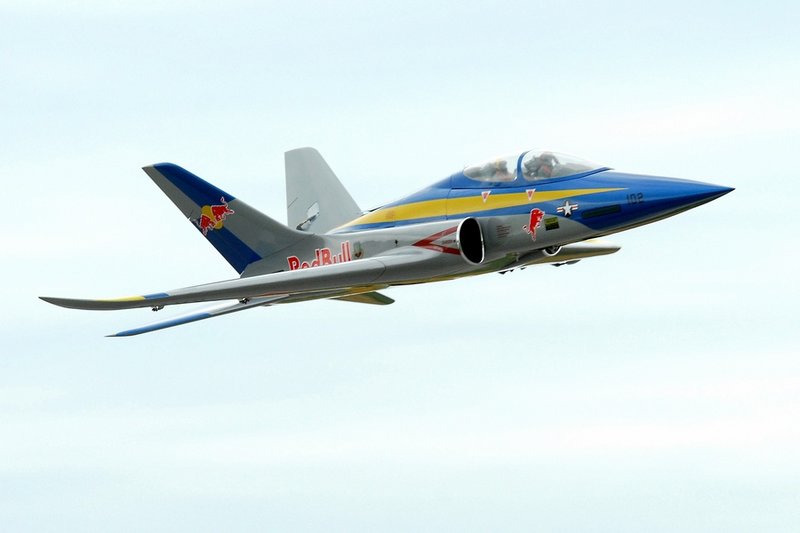

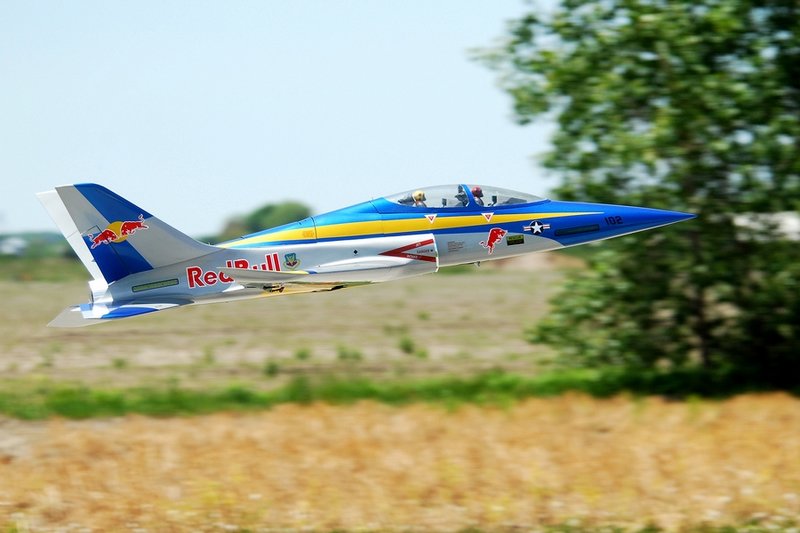

Test flew the Scorpion yesterday. No surprises, a solid plane, very stable and super fast.
Thanks Angus for hosting me and for the pictures.
Thanks Angus for hosting me and for the pictures.
#6
Senior Member
My Feedback: (1)
Join Date: Apr 2005
Location: Bergen, NORWAY
Posts: 138
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread
I have a AD Scorpion (not a Super Scorpion) with a SimJet 2250 turbine. I need a bigger engine as we fly off grass and have decided to exchange it for a Nexus (16 kilo thrust).
I was afraid that I had to program the engine a bit down not to rip the model apart? Or does the model handle this kind of power with ease?
I was afraid that I had to program the engine a bit down not to rip the model apart? Or does the model handle this kind of power with ease?
#7
RE: AD Scorpion quick build thread
Hi Anderhau, I have a Black Mamba in mine wound up to about 14kg and it handles that no problems. I think you'll find no problems.
[youtube]http://www.youtube.com/watch?v=zCX8DO_LFuk[/youtube]
[youtube]http://www.youtube.com/watch?v=zCX8DO_LFuk[/youtube]
#9
My Feedback: (39)
RE: AD Scorpion quick build thread
Scroll down on this page.
http://www.altecare.com/scorpion.htm
There is an option for both a 4L tank and a 3+1L tank so you can carry smoke.
I used the 4L tank as I like the longer flight times. [8D]
PaulD
http://www.altecare.com/scorpion.htm
There is an option for both a 4L tank and a 3+1L tank so you can carry smoke.
I used the 4L tank as I like the longer flight times. [8D]
PaulD
#10
My Feedback: (67)
RE: AD Scorpion quick build thread
Oh OK. I thought it was a bigger tank cuz it looks like it extends through to the main former. Maybe I'll contact Gary Mueller about an extension. The tank I'm using now is the same dimensions as that on the website but there is room for about another 3-4" . I'm running a Titan and don't want to give up fuel capacity for smoke oil. Thanx for the info !
-SK
-SK
#11
My Feedback: (39)
RE: AD Scorpion quick build thread
SK,
I have the same tank as the one shown in the pictures in the posts above and I don't think it could be made any bigger and still fit into the airframe. It is semi-oval shaped to match the former cut outs in the main body and extends from the back of the tray bulkhead to just in front of the turbine. The only way I could see to add more capacity would be to add a tapered bulge at the back of the tank. You might gain 1/2 a litre.
There is so much room in this jet under the cockpit cover you could put another tank there. I did this on my Reaction to add a 32oz smoke tank and it worked well. Only issue was all of the smoke fluid was ahead of the CG. [&:]
PaulD
I have the same tank as the one shown in the pictures in the posts above and I don't think it could be made any bigger and still fit into the airframe. It is semi-oval shaped to match the former cut outs in the main body and extends from the back of the tray bulkhead to just in front of the turbine. The only way I could see to add more capacity would be to add a tapered bulge at the back of the tank. You might gain 1/2 a litre.
There is so much room in this jet under the cockpit cover you could put another tank there. I did this on my Reaction to add a 32oz smoke tank and it worked well. Only issue was all of the smoke fluid was ahead of the CG. [&:]
PaulD
#14
My Feedback: (67)
RE: AD Scorpion quick build thread
I'm pumpin' heat from a JetCat Titan in mine thru the stock pipe! No probs to date. This is the second season with it.
PualD, thanx for the info. The tank I'm using now is 4 liters. Gary M. of Jet-Tech made it for me last year when I started outfitting this ride. My tank extends flush with the former in front of the landing gear. I can get another 3" easily and plan to call Gary later today to request this custom build. I thought the new tank was about that long. I want to use smoke without losing the capacity I carry now.... give or take a few ounces.
PualD, thanx for the info. The tank I'm using now is 4 liters. Gary M. of Jet-Tech made it for me last year when I started outfitting this ride. My tank extends flush with the former in front of the landing gear. I can get another 3" easily and plan to call Gary later today to request this custom build. I thought the new tank was about that long. I want to use smoke without losing the capacity I carry now.... give or take a few ounces.
#18
Senior Member
My Feedback: (1)
Join Date: Apr 2005
Location: Bergen, NORWAY
Posts: 138
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread
Thanks guys!:-) I put in my Nexus a week ago and have got 6 trips on it since. My god what a fantastic plane!!!:-) It flies just brilliant with this kind of thrust. I have also just today started to use the flaps and air-brake. It's just impressing how effective they are together. The plane just stops in mid air!:-)
Some Q's for you other users.
1) I have mine balanced at around 16cm and it flies well. But I need quite a bit of up-elevator trim fo fly level. Is this normal?
2) I have the stock elevator throw but when using flaps and brake I would like some more up elevator. I'm not able to flare the plane completely like forinstance my Eurosport. But then again - I don't know if it's possible to flare the Scorpion as much as the Euro....? How much up elevator throw are you guys flying with?
Some Q's for you other users.
1) I have mine balanced at around 16cm and it flies well. But I need quite a bit of up-elevator trim fo fly level. Is this normal?
2) I have the stock elevator throw but when using flaps and brake I would like some more up elevator. I'm not able to flare the plane completely like forinstance my Eurosport. But then again - I don't know if it's possible to flare the Scorpion as much as the Euro....? How much up elevator throw are you guys flying with?
#19
My Feedback: (39)
RE: AD Scorpion quick build thread
Anderhau,
1) Mine has 5-7 mm of up elevator for level flight. I think this is normal and recommended.
2) I also added 15mm up up elevator with full flaps and another 5 mm with full airbrake. I ran into the same problem on the first flights where I did not have the up-elevator mix and ran out of elevator on landing.
The plane likes to land nose-high and needs the elevator up trim.
Good luck with the trimming and don't be afraid to play with the mixes as they are sensitive to CG.
PaulD
1) Mine has 5-7 mm of up elevator for level flight. I think this is normal and recommended.
2) I also added 15mm up up elevator with full flaps and another 5 mm with full airbrake. I ran into the same problem on the first flights where I did not have the up-elevator mix and ran out of elevator on landing.
The plane likes to land nose-high and needs the elevator up trim.
Good luck with the trimming and don't be afraid to play with the mixes as they are sensitive to CG.
PaulD
#21
My Feedback: (9)
Join Date: May 2002
Location: Midland,
TX
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread
Move the CG back to the struts and turn the elevators up
It only gets better
have some expo for the highspeed stuff though you need to see this http://www.youtube.com/watch?v=ETUpZ...eature=related
It only gets better
have some expo for the highspeed stuff though you need to see this http://www.youtube.com/watch?v=ETUpZ...eature=related
#22
Senior Member
My Feedback: (1)
Join Date: Apr 2005
Location: Bergen, NORWAY
Posts: 138
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread
I have seen that video!:-) I wonder why he has the airbrake out...? Does it help pushing the tail down mabe, or does he just have flaps and airbrake on the same switch?:-) Do you think he has full tank, or just enough to make it back down to make it look spectacular?;-) With the Nexus in place, and a trip to a tarmac strip next weekend, I will try to replica this takeoff...:-)
I think I have the balance right. If I have empty the tank it just marely stays on the noseleg. If I lift it up with the tail touching the ground it will stay there. I guess the next is to increase the up throw on elevator...:-)
Thanks!:-)
I think I have the balance right. If I have empty the tank it just marely stays on the noseleg. If I lift it up with the tail touching the ground it will stay there. I guess the next is to increase the up throw on elevator...:-)
Thanks!:-)
#23
My Feedback: (9)
Join Date: May 2002
Location: Midland,
TX
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
RE: AD Scorpion quick build thread
That is mine and the air brake gives a good pitch up moment
the rudders are in also, they do the same. you dont need much up elevator with all that stuff hanging out
the rudders are in also, they do the same. you dont need much up elevator with all that stuff hanging out
