Building an RC Bike from a toy
Hi,
I have purchased some toy grade 1/5th scale rc bikes - Nasaki and Winyea
The first came from the Uk, the second is the exact same model, but from the US and has slightly different stickers.
Think they are very closely related to the Nikkon bikes too...
Was not sure what I was buying at the time - noob.... but were pretty cheap.
They run ok and have a moving rider to change direction, as per the Hyosho HOR.
The main problem with them is, the throttle and steering are pretty much on or off
So you have to blip the throttle to get a steady pace, and as you can imagine, steering is quite jerky.
What I would like to do is replace all the electronics for something better.
Have progressive throttle and steering responses.
Then would look at replacing the rather hard tyres.
I am going to start stripping one of them down this week, to get an idea of the size of the parts inside.
Need to measure the motor mount and (motor) 'can' diameter before ordering replacements,
If anyone who has already built something of a similar size and type had any suggestions, recommended parts etc, they would be very gratefully received.
Many thanks in advance.
Drew
I have purchased some toy grade 1/5th scale rc bikes - Nasaki and Winyea
The first came from the Uk, the second is the exact same model, but from the US and has slightly different stickers.
Think they are very closely related to the Nikkon bikes too...
Was not sure what I was buying at the time - noob.... but were pretty cheap.
They run ok and have a moving rider to change direction, as per the Hyosho HOR.
The main problem with them is, the throttle and steering are pretty much on or off
So you have to blip the throttle to get a steady pace, and as you can imagine, steering is quite jerky.
What I would like to do is replace all the electronics for something better.
Have progressive throttle and steering responses.
Then would look at replacing the rather hard tyres.
I am going to start stripping one of them down this week, to get an idea of the size of the parts inside.
Need to measure the motor mount and (motor) 'can' diameter before ordering replacements,
If anyone who has already built something of a similar size and type had any suggestions, recommended parts etc, they would be very gratefully received.
Many thanks in advance.
Drew
#2
Senior Member
Thread Starter
Join Date: Sep 2007
Location: Oldham, UNITED KINGDOM
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
RE: Building an RC Bike from a toy
The strip down has started - quite a lot of little screws in this thing and working out what to undo first... lots of fun.
Ok, pictures time.
Stage 1: Got the rider off and the front fairing.
Stage 2: removed one of the side panels

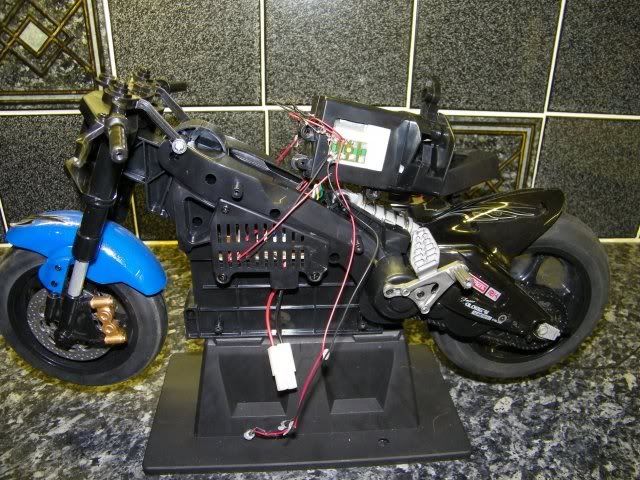

Stage 3: have access to the rider movement mechanism
