Default DLE 20cc Gasser! (Data & Links 1st Post)



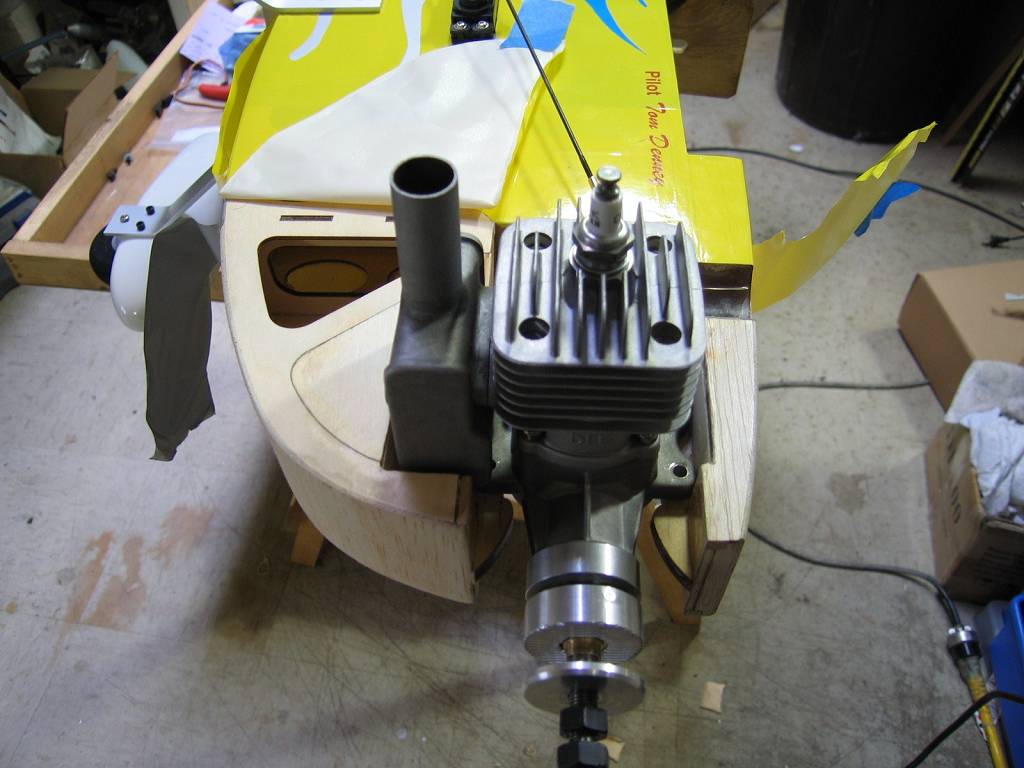

OK, went out and flew the DLE20 this evening, it's an excellent runner especially for it's size. The SD Models 60" profile it was in weighed 7 lbs. 15 ounces dry. The 6 ounce fuel tank I used will run for 10 minute flight and still be 1/3 full. When was the last time you could fly all weekend on 1/2 gallon of fuel? Took some thrust numbers on the props I posted RPMs on the other day. I'm sure there may be some other props that might produce a little more but I used what I had laying around the test bench, should be enough to get a pretty good idea of what it'll do.



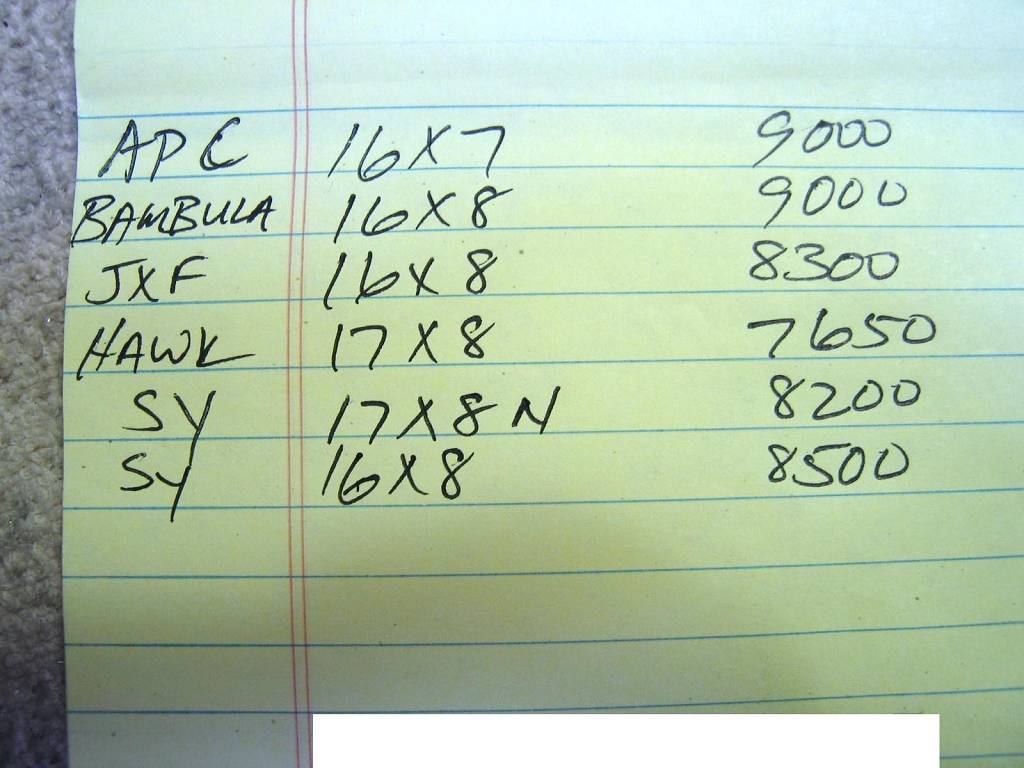

APC Sport 16x7 9000 RPM 14lbs. 7oz.



JXF Beech 16x8 8300 13lbs. 10oz.



JXF Beech 17x7 7970 13lbs. 12oz.



SY 16x8 850013lbs. 5oz.



SY 17x8N820014lbs. 9oz.




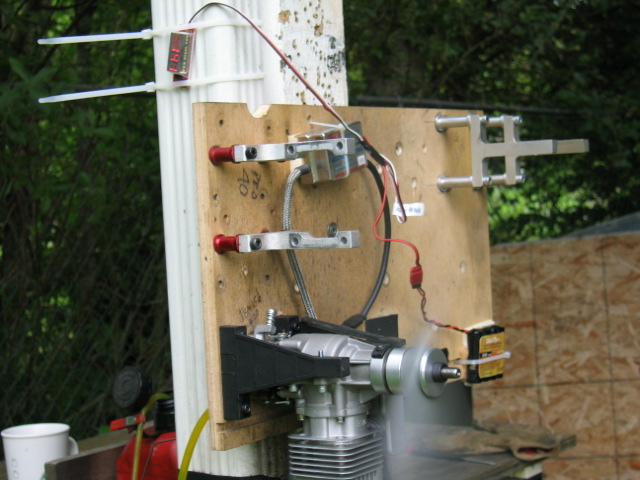

So far it's running like a watch and I haven't exactly been nice to it either, 3 hrs on a test stand and another hour on a plane tonight in only about 3/4 of a gallon of gas. I'll get some video soon, the videographer had to put his skirt on tonight for the wife at the last minute.

It weighs 29.2 ounces with everything, more power than a CRRC Pro 26 or a Saito 1.25 and has unique timing curve in the Rcexl ignition that lets it idle at 1500 RPM. I'll try to get some thrust numbers with a couple props then also. Should just be able to make out the tach reading in the last picture of it idling at 1410.

- = - = - = - = - = - = - = - = - = - = - = - = - = - = - = - = - = - = - = - =
Quote:
ORIGINAL:JediJody
The DLE20 requires 32:1 minimumfuel/oil ratio, read the manual. We administrate the DLE warranty for Aeroworks, if your engine has a failure and inspection reveals that the factory recommended oil raio could have prevented it it would not be covered under warranty.


EDIT UPDATE: Added this collection of data at Jody's request
Quote:
ORIGINAL: a1pcfixer

Recapping the bits & pieces of info on this new engine, here's the
DLE 20cc gas engine details (misc updated info added).......


[Basic Info]

Advertised weight: 29.2 oz with ign. and muffler
Prop range: 16 X 8 to 18 X 6
Rear Carb
Beam style mount
DLE20cc mfg stated - compression ratio 10.5:1
Tower Hobbies - compression ratio 7.6:1


[Dimensions]

Motor mount bolt spacing is 1'', case width is 1-7/8''

Center to center spacing on engine bolts is 2.400"

Distance from firewall to prop washer is 5-11/16''

From the center of the rear mounting hole to the edge of the open choke valve is 2-5/16''

Distance from propeller hub to the front of the cylinder: 42 mm

Width of cylinder at exhaust port: 56 mm

Distance from the center line to the top of spark plug cap: 120 mm
(with spark plug cap fully inserted).

Prop shaft size : M8 x1.0 mm (w/two nuts)

[Muffler]

Stock muffler dimensions;

2.260" tall @ end caps - 3.800" incl exh pipe
1.100" thick out from exh port of eng
2.050" wide @ end caps

Pitts style muffler (optional);

Jtec wrap around muffler.......

J'tec Muffler Dimensions.....

[Ignition info]

Stock sparkplug is a made in China CM-6 type (DLE 3)
Valley View R/C will include true NGK/CM-6
Electronic auto advance ignition
Ignition is a new model (#3- or- #4) and special designed for this engine.
DLE recommended voltage range 4.8-6.0 volts
A 4-cell NiMh/NiCd of 1650-2000mAh is a good starting point

Quote:
Oiginal:Jedijody
The manuals on Tower's website incorrectly state the timing as 45 deg. BTDC. The DLE factory does indeed attempt to set the timing at 32* on all their engines, with varying degrees of success, they run best set at 28-30. The ignitions for the rear carbed 30 and the 20 do have a different timing curve with more retard to help them idle better, the full advance and static timing is the same as all the rest, 28-30 BTDC.


[Ignition current consumption + ign voltage issues]

Ignition draw + Voltage issues......

Ignition current consumption.....



[Prop Data]:

APC Sport 16x7 9000 RPM 14lbs. 7oz.
JXF Beech 16x8 8300 13lbs. 10oz.
JXF Beech 17x7 7970 13lbs. 12oz.
SY 16x8 8500 13lbs. 5oz.
SY 17x8N 8200 14lbs. 9oz.

Vess 17x6 14lb. 8oz. - Great throttle response and crappy tach showed 8549RPM
Vess 17x8 14lb. 0oz. - Great throttle response only slightly less RPM than 17x6
Vess 18x6 14lb. 3oz. - Above average throttle response, may be perfect when fully broken in
Vess 16x8 13lb. 9oz. RPM through the roof (by ear) and instant throttle response spools up like an electric motor!

Zinger 16x8 - stinks, no power, way low on thrust
APC 17x4W 3D prop - decent but the idle transition was terrible, 9700 rpm!
Xoar 16x8 - Good prop but not as much thrust on the high end as the next one...
Xoar 17x6 - Hands down the best prop so far. Great punch out of hover, great top end, improved low end but more to come on this....

MA K-series 15x8 2 blade- 13lbs 11oz @ 9750 rpm.
MA K-series 15x10 2 blade- 12lbs 13oz @ 8400 rpm.
Xoar 15x8- 13lbs 5oz @ 9000 rpm.
The MA 15x8 and Xoar 15x8 have unbelievable throttle response

MA K-series 15x6 3-blade 13.0lbs @ 9100 rpm

NO thrust numbers for 4-blade props....YET!



[VIDEO's]

[link=http://www.youtube.com/watch?v=lCHXY6_w6RY]Jody Haack - test flight video......[/link]


[link=http://www.youtube.com/watch?v=SZRdtZxxQP0]Test run of DLE20cc......[/link]


[link=http://www.youtube.com/watch?v=bBwqL9AIJ1U]First bench run (mpascualslp).......[/link]


[link=http://www.youtube.com/watch?v=kkwr_jc9HVA]and the engine response after 1 hour (mpascualslp)......[/link]


FUNTANA 125 WITH DLE 20.....




[Photos]

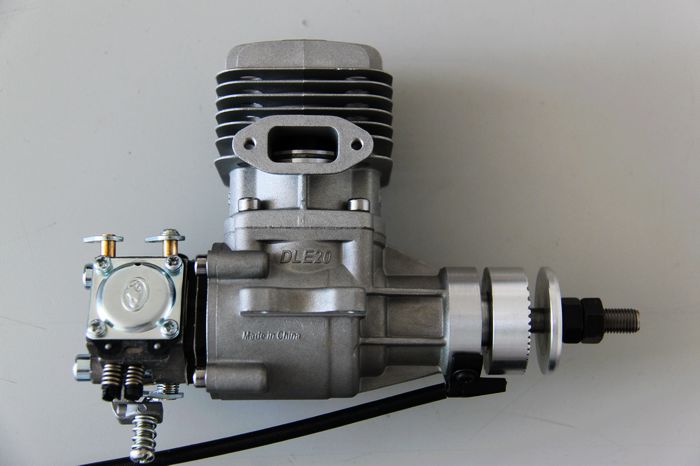

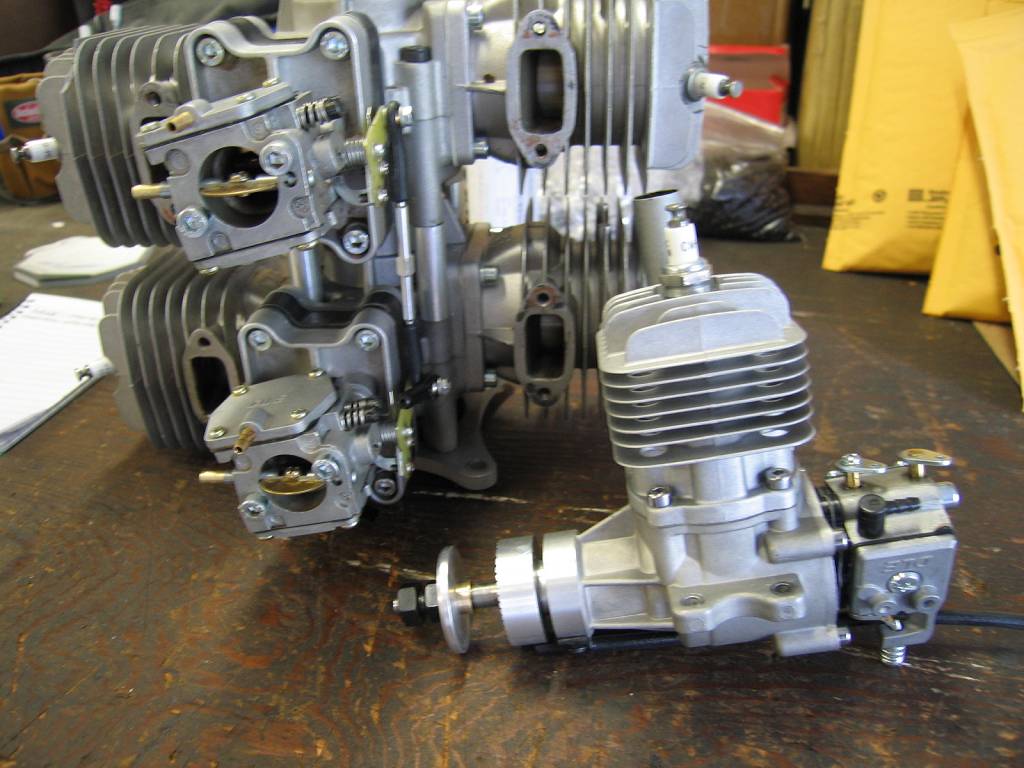

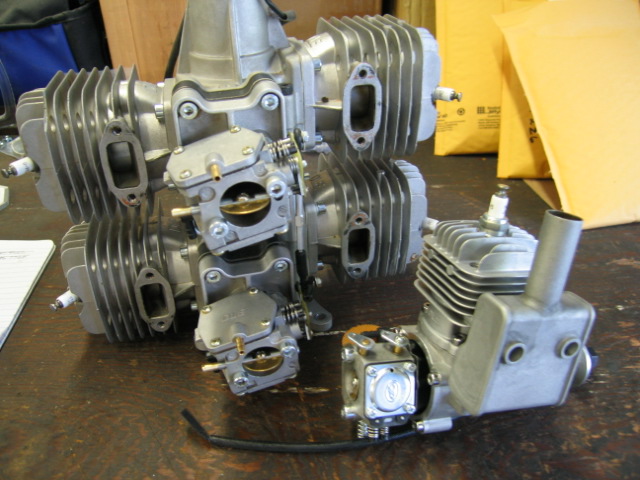

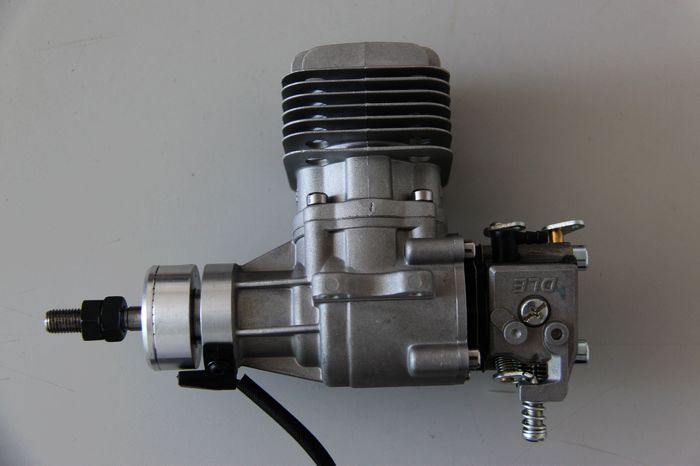

DLE20cc engine dissasembled photos......

Exhaust diverter.....

Link to ALL photos on this DLE20cc msg thread......




[Interesting comments]


same mount size as OS 1.20

a 20cc is a drop in replacement for .90 to 1.20 size four stroke

more power than a CRRC Pro 26 or a Saito 1.25 (Saito FG-20/gasser)

20cc = 1.20 c.i.
30cc = 1.80 c.i.


The Jtech {muffler} is supposed to be quieter {than the stock one}
and that is important to me

When propping aerobatic planes the most important engine aspect to
consider {is} the torque curve, peak torque comes in at approximately
3/4 of the peak HP RPM, so you want a prop that loads the engine in
a manner that takes advantage of that RPM band, typically these are
the larger props in an engines acceptable use range.

prop the engine for the performance you want for the airframe it's
mounted on, forget about the "break in prop" they are unnecessary


[Warranty]

Valley View R/C; 1 year
Tower Hobbies; 2 years


[Ordering info....]

[link=http://www.valleyviewrc.com/DLE-20cc%20Gas%20Engine.htm]Valley View RC.....[/link]


[link=http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXAEPW&P=ML]DLE20cc @ Tower Hobbies.......[/link]


[Owners manual]

[link=http://images.rcuniverse.com/forum/upfiles/22988/Ig11581.pdf]DLE20cc Factory Manual.....[/link]


[link=http://manuals.hobbico.com/dle/dleg0020-manual.pdf]DLE20cc Tower manual.....[/link]


Jody's gas engine tuning tips (pdf files);
http://www.rcuniverse.com/forum/fb.asp?m=10293852

Attached Thumbnails
Click image for larger version

Name:	Db84612.jpg
Views:	1385
Size:	47.5 KB
ID:	1467657   Click image for larger version

Name:	Gc91337.jpg
Views:	1510
Size:	53.4 KB
ID:	1467658   Click image for larger version

Name:	Kp34849.jpg
Views:	770
Size:	99.5 KB
ID:	1467659   Click image for larger version

Name:	Kd89305.jpg
Views:	898
Size:	119.0 KB
ID:	1467660   Click image for larger version

Name:	Xi61183.jpg
Views:	672
Size:	80.2 KB
ID:	1467661   Click image for larger version

Name:	Xo89295.jpg
Views:	809
Size:	83.4 KB
ID:	1467662   Click image for larger version

Name:	Wy49357.jpg
Views:	793
Size:	107.2 KB
ID:	1467663

jedijody is offline
Reply With Quote
Old 07-14-2010, 03:03 AM
  #2
mpascual

Join Date: Oct 2003
Location: Tres Cantos, SPAIN
Posts: 464
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Many thanks for the info ...


Regards
mpascual is offline
Reply With Quote
Old 07-14-2010, 06:22 AM
  #3
JNorton

JNorton's Avatar

Join Date: Jan 2002
Location: Coopersville, MI
Posts: 4,322
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Subscribed.
JNorton is offline
Reply With Quote
Old 07-14-2010, 07:10 AM
  #4
w8ye
Moderator

w8ye's Avatar

Join Date: Dec 2001
Location: Shelby, OH
Posts: 37,535
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

When is it going to be available?
w8ye is offline
Reply With Quote
Old 07-14-2010, 08:17 AM
  #5
Whistling Death

Whistling Death's Avatar

Join Date: Feb 2006
Location: Alexander City, AL
Posts: 2,584
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

This little engine is such good news for us. DLE won't be able to make them fast enough.
Now come on DLE you made half of my wishes (a 20cc and a 40 cc) come true now please make the other come true.
Whistling Death is offline
Reply With Quote
Old 07-14-2010, 09:02 AM
  #6
Lifer

Lifer's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 3,956
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Jody,

Any idea of it's price?
Lifer is offline
Reply With Quote
Old 07-14-2010, 09:04 AM
  #7
ggraham500

ggraham500's Avatar

Join Date: Sep 2005
Location: Fredericksburg, VA
Posts: 605
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)


Quote:
ORIGINAL: w8ye

When is it going to be available?
and what price? If it sells around $200, IMHO it would be a huge seller.
ggraham500 is offline
Reply With Quote
Old 07-14-2010, 09:06 AM
  #8
TimBle

Join Date: Apr 2010
Location: Cape Town, SOUTH AFRICA
Posts: 2,744
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Subscribed. This sounds like the ideal motor for the Ta152H I'm planning on building soon.

Many thanks for the heads up
TimBle is offline
Reply With Quote
Old 07-14-2010, 12:10 PM
  #9
jedijody
Thread Starter

jedijody's Avatar

Join Date: Mar 2005
Posts: 2,812
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

It came in a DLE30 box with no manual or special instructions. I'm using my regular mix of 87/89 octane pump gas and Stihl HP Ultra @ 32:1. The main bearings are both sealed and both ends of the rod are caged roller bearings but with revs this engine unloads to in flight I wouldn't want to run any less oil. Cylinder and piston are a scaled down version of the 30, carb and reed assembly appears to be the same as the 30, I didn't take the intake tract apart yet to verify that though, ignition has unique timing curve that allows it to idle real slow. The other modules work with it also but idle quality suffers.

It is a little loud for it's size, not as loud as a 30 on stock exhaust but.....power makes noise. I'm going to try my little 26cc canister on it later on but it might be a little much for a lot of 1.20 sized airframes to carry around.

My gut feeling is that it will be available before October but it will be more than $200, though it's less than 50% of a DLE55 in cubic capacity, the manufacturing cost is probably 70-75% of the bigger engine.
jedijody is offline
Reply With Quote
Old 07-14-2010, 12:43 PM
  #10
krayzc-RCU

Join Date: Mar 2002
Location: Kannapolis, NC
Posts: 7,415
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

what size is the mounting ie 91-4 stroke or a 120 size ect?
krayzc-RCU is offline
Reply With Quote
Old 07-14-2010, 02:25 PM
  #11
jedijody
Thread Starter

jedijody's Avatar

Join Date: Mar 2005
Posts: 2,812
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Bolt spacing is 1", case width is 1-7/8"
jedijody is offline
Reply With Quote
Old 07-14-2010, 02:28 PM
  #12
seagull extra

Join Date: Sep 2003
Location: Elmira, ON, CANADA
Posts: 280
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

What is the weight differance RTF between the 30 and the 20?
seagull extra is offline
Reply With Quote
Old 07-14-2010, 02:58 PM
  #13
jedijody
Thread Starter

jedijody's Avatar

Join Date: Mar 2005
Posts: 2,812
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

41 oz. for the 30, 29 oz. for the 20.

Includes mufflers stand-offs, ignitions, spark plugs, prop hardware, etc.
jedijody is offline
Reply With Quote
Old 07-14-2010, 03:21 PM
  #14
Edwin

Join Date: Feb 2002
Location: Leander, TX
Posts: 6,199
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Subscribed
Edwin
Edwin is offline
Reply With Quote
Old 07-14-2010, 03:32 PM
  #15
krayzc-RCU

Join Date: Mar 2002
Location: Kannapolis, NC
Posts: 7,415
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

thanks thats in line wiht a 120 size bottom end......[8D]
krayzc-RCU is offline
Reply With Quote
Old 07-14-2010, 07:38 PM
  #16
BullardRM

Join Date: Mar 2002
Location: Gulf Breeze, FL
Posts: 286
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Are these avaliable yet? TBM nor Tower have them listed.
BullardRM is offline
Reply With Quote
Old 07-14-2010, 07:49 PM
  #17
ggraham500

ggraham500's Avatar

Join Date: Sep 2005
Location: Fredericksburg, VA
Posts: 605
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

not yet per Jody Haack (jedijodi) at Valley View. The engines are in test mode and won't be available until later. Some of us are guessing around October and unknown price.
ggraham500 is offline
Reply With Quote
Old 07-14-2010, 08:43 PM
  #18
litterbug

Join Date: Mar 2010
Location: Taylor, MI
Posts: 82
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

This engine would solve my questions of what to get when entering into the gas market.
litterbug is offline
Reply With Quote
Old 07-14-2010, 09:41 PM
  #19
fly24-7

fly24-7's Avatar

Join Date: Dec 2005
Location: Shrewsbury, MA
Posts: 381
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

What would be the minimum mounting distance (firewall to prop drive washer) without having to cut a hole in the firewall for the carb?
fly24-7 is offline
Reply With Quote
Old 07-14-2010, 10:10 PM
  #20
jedijody
Thread Starter

jedijody's Avatar

Join Date: Mar 2005
Posts: 2,812
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)



5-11/16"

jedijody is offline
Reply With Quote
Old 07-15-2010, 07:13 AM
  #21
Bpar4

Join Date: Sep 2002
Location: Powhatan, VA
Posts: 117
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

This looks wonderful.  Will have one when they are available.  The Saito 125 w/ muffler weighs ~25oz.  With an IBE this puts this 20cc engine in a bunch of airplanes.  And especially so if it is smooth runner.  Bob
Bpar4 is offline
Reply With Quote
Old 07-15-2010, 07:43 AM
  #22
Whistling Death

Whistling Death's Avatar

Join Date: Feb 2006
Location: Alexander City, AL
Posts: 2,584
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Here are the stats so far for those who have ADD or just won't read the whole thread.
All information is straight from jedijody.

Price:

"My gut feeling is that it will be available before October but it will be more than $200, though it's less than 50% of a DLE55 in cubic capacity, the manufacturing cost is probably 70-75% of the bigger engine."


Weight:

29.2 ounces with everything


Dimensions:

Motor mount bolt spacing is 1", case width is 1-7/8"

Distance from firewall to prop washer is 5-11/16"


Prop Data:

APC Sport 16x7 9000 RPM 14lbs. 7oz.

JXF Beech 16x8 8300 13lbs. 10oz.

JXF Beech 17x7 7970 13lbs. 12oz.

SY 16x8 8500 13lbs. 5oz.

SY 17x8N 8200 14lbs. 9oz.

Interesting quote:

"more power than a CRRC Pro 26 or a Saito 1.25"
Whistling Death is offline
Reply With Quote
Old 07-15-2010, 07:55 AM
  #23
TimBle

Join Date: Apr 2010
Location: Cape Town, SOUTH AFRICA
Posts: 2,744
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

and more we don't need to know. just need to place on backorder asap
TimBle is offline
Reply With Quote
Old 07-15-2010, 09:40 AM
  #24
hairy46

Join Date: Jan 2007
Location: Sinclair, WY
Posts: 2,183
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Jody, How soon can they be preordered? I would like to get on a list, Thanks for letting us know! Bob





My doctor told me I would need allot more therapy, So I bought more airplanes!
hairy46 is offline
Reply With Quote
Old 07-15-2010, 10:47 AM
  #25
P-51B

P-51B's Avatar

Join Date: Oct 2002
Location: An Iceburg in, ANTARCTICA
Posts: 6,747
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: NEW DLE 20cc Gasser! (Data & Links 1st Post)

Any chance they will change it to a radial mount instead of being set up for beams?
