Kit Bashing... Lets See Watcha Got

Notices
Kit Building If you're building a kit and have questions or want to discuss kit building post it here.

Kit Bashing... Lets See Watcha Got

Old 03-14-2008, 11:55 PM
  #1
Aurora_60
Senior Member
Thread Starter
My Feedback: (1)

Aurora_60's Avatar

Join Date: Feb 2008
Location: kaneohe, HI
Posts: 571
Likes: 0
Received 0 Likes on 0 Posts
Default Kit Bashing... Lets See Watcha Got

I always have a hard time keeping a kit "stock". I want to see what ideas you guys have come up with through the years.
Do I need to say it.... PICS !!!


DM
Old 03-15-2008, 06:24 AM
  #2
dalolyn
My Feedback: (7)

Join Date: Jun 2002
Location: wilber, NE
Posts: 696
Likes: 0
Received 1 Like on 1 Post
Default RE: Kit Bashing... Lets See Watcha Got

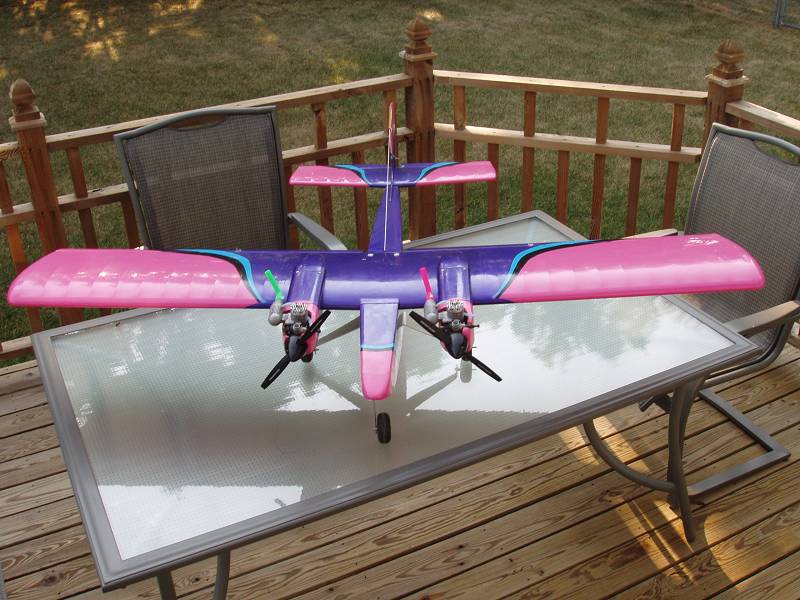

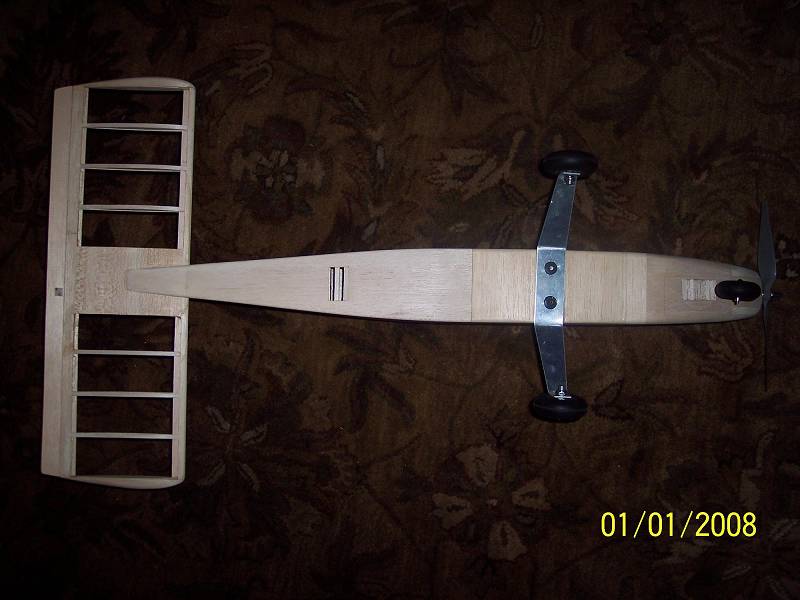

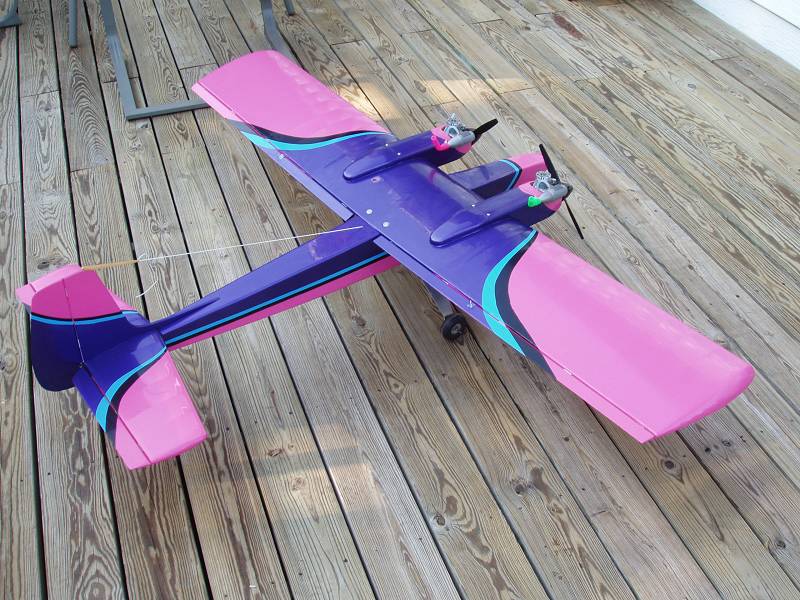

Don't Know if this counts. But this was, are is, a Goldberg Sr.falcon. Although I kitted it myself from plans The only deviation form the original lines [ except for the obvious ] Is the nose and I added more rudder area.
Attached Thumbnails Click image for larger version

Name:	Us52972.jpg
Views:	120
Size:	81.1 KB
ID:	903781
Old 03-15-2008, 06:28 AM
  #3
dalolyn
My Feedback: (7)

Join Date: Jun 2002
Location: wilber, NE
Posts: 696
Likes: 0
Received 1 Like on 1 Post
Default RE: Kit Bashing... Lets See Watcha Got

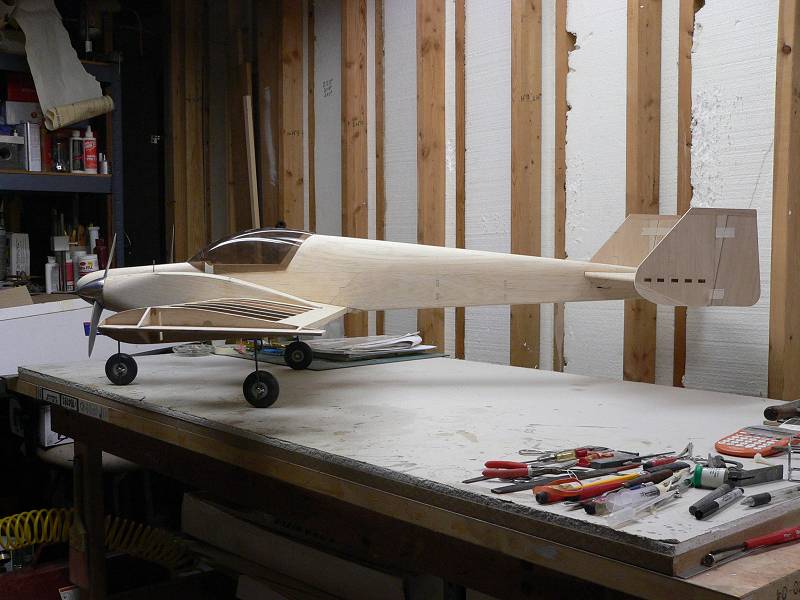

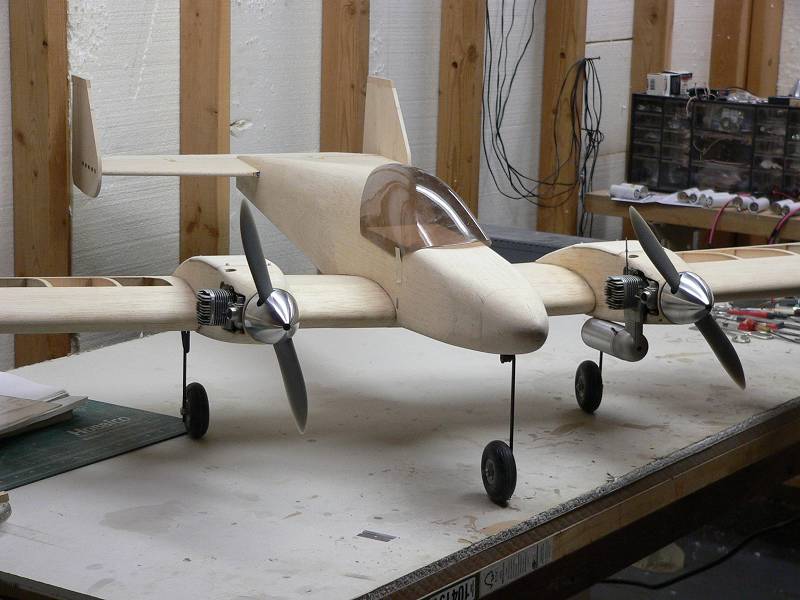

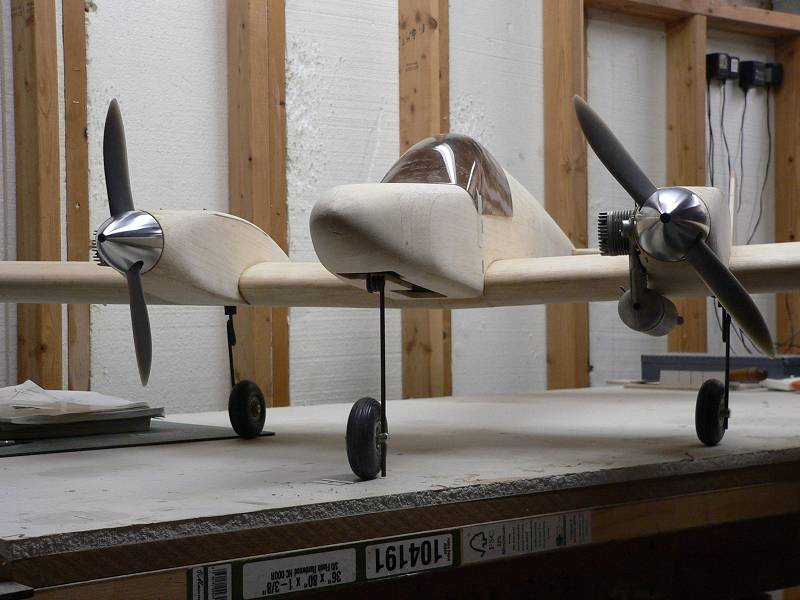

Here is another pic. Two ASPs .32 for power. Plenty of thrust but would be really "hot" with a couple of .40s
Attached Thumbnails Click image for larger version

Name:	Pm34914.jpg
Views:	86
Size:	104.5 KB
ID:	903782
Old 03-15-2008, 09:48 AM
  #4
somegeek
Senior Member
My Feedback: (2)

somegeek's Avatar

Join Date: Jul 2005
Location: Vancouver, WA
Posts: 2,138
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Nice port and starboard deflectors, dalolyn!

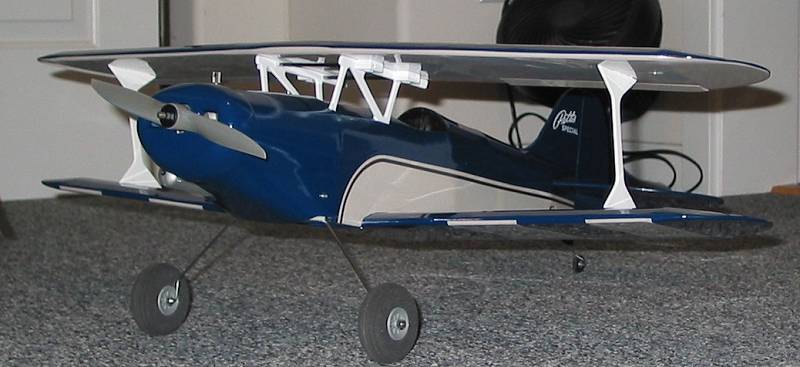

Herr Pitts Special - build with bolt-on wings vs rubber band.

Sig Somethin' Extra - replaced cheeks with cowl, built up front end(doesn't taper), sheeted turtle deck, added 1.25" to rudder and .25" to ailerons and elevator.

somegeek
Attached Thumbnails Click image for larger version

Name:	Ig13100.jpg
Views:	78
Size:	42.3 KB
ID:	903849   Click image for larger version

Name:	Ni23438.jpg
Views:	91
Size:	15.1 KB
ID:	903850
Old 03-15-2008, 03:54 PM
  #5
Aurora_60
Senior Member
Thread Starter
My Feedback: (1)

Aurora_60's Avatar

Join Date: Feb 2008
Location: kaneohe, HI
Posts: 571
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Great pictures guys!!! I Love that twin rendition. I can picture two rear exhaust 45s on that thing
Your Pitts looks a lot bigger than it is SomeGeek and I love your SE. Abosultely finished beautiful (from other posts I've seen) at first I thought your gear was a polished aftermarket product! Nice.
Keep 'um comming

DM
Old 03-15-2008, 05:32 PM
  #6
Acs_guitars
My Feedback: (3)

Acs_guitars's Avatar

Join Date: Feb 2004
Location: Jacksonville, FL
Posts: 2,203
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

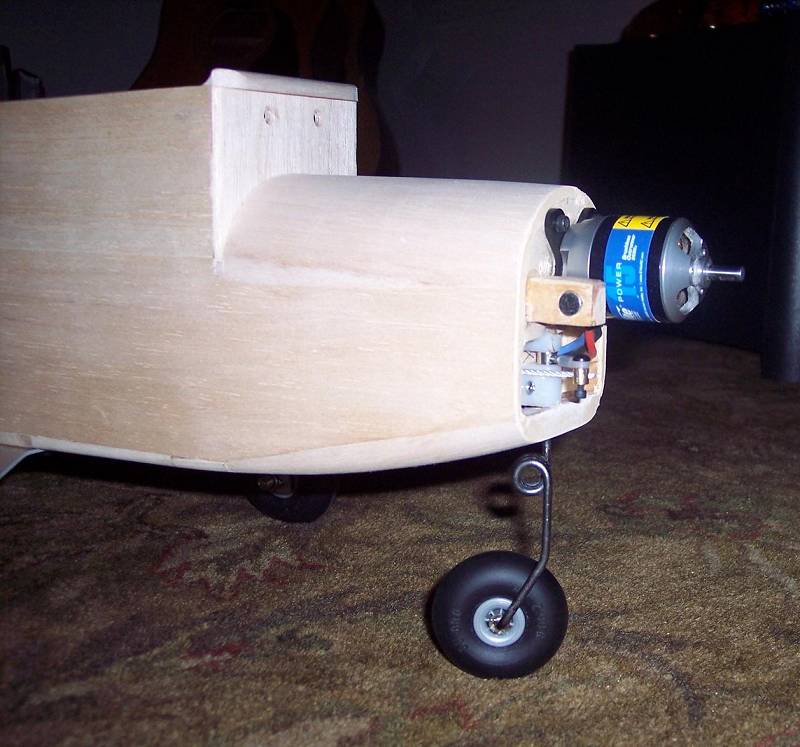

I cannot seem to build a kit without changing things either. Here's a few of my most recent bashes over winter....

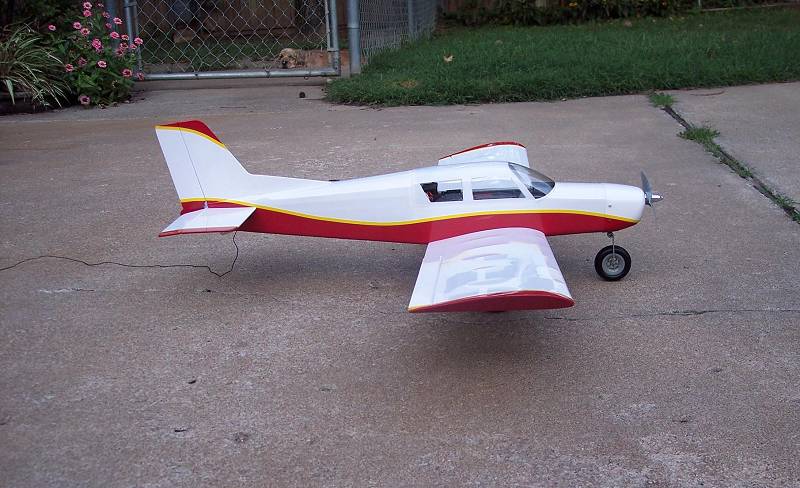

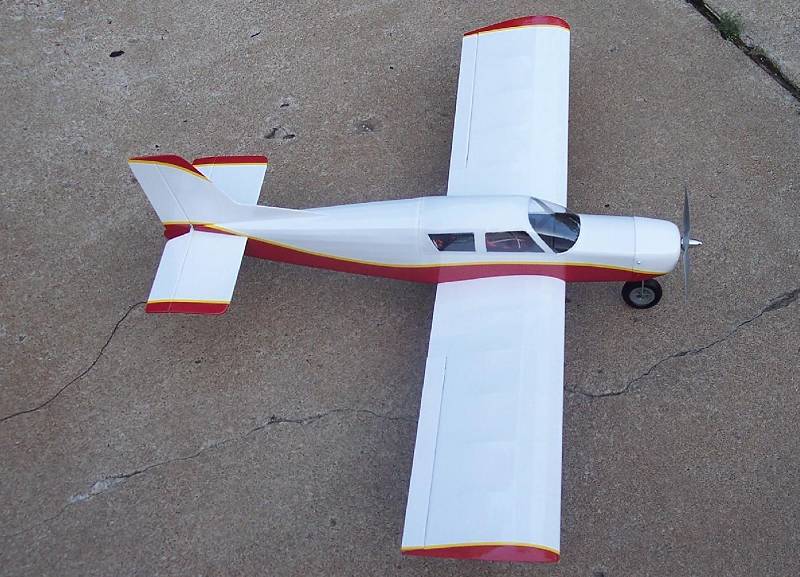

1) Herr Piper Cherokee- converted to Electric, added ailerorns, converted to bolt-on wing, and re-shaped tail to more resemble the Piper Arrow.

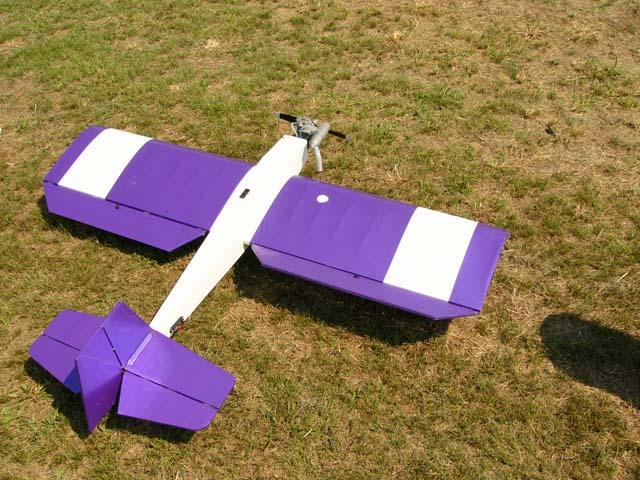

2) Midwest TriSquire- Converted to Electric, Increased elevator size, Perm. mounted horiz. stab and filled in underneath, fuse mods to lighten and get rid of old-time galloping ghost accomodations, micro servos, steerable nosewheel, converted to bolt-on wing, added louvered vents for ESC and motor cooling, and removable balsa cowl held in place by magnets.

3) Four Star 40 (currently finishing) Moved cockpit area forward about 3", Raised and sheeted turttledeck, Raised dash and front sheeting, room to install scale inst panel, trimmed canopy, Perm. balsa cowl around Saito 56, Reshaped tail feathers, larger control surfaces, Sullivan tailwheel, dual aileron servos (to mix flapperons), clipped wings one bay and added rounded tips, and added structural doublers where needed.

edit: pics added
Second post on page 2 for final list of mods and pics of 4 star.
Attached Thumbnails Click image for larger version

Name:	Wu62323.jpg
Views:	53
Size:	72.2 KB
ID:	904134   Click image for larger version

Name:	Wr54517.jpg
Views:	35
Size:	81.4 KB
ID:	904135   Click image for larger version

Name:	Af89876.jpg
Views:	39
Size:	26.4 KB
ID:	904136   Click image for larger version

Name:	Au57125.jpg
Views:	36
Size:	50.6 KB
ID:	904137   Click image for larger version

Name:	Pa32993.jpg
Views:	41
Size:	72.3 KB
ID:	904138   Click image for larger version

Name:	Aq98769.jpg
Views:	57
Size:	37.0 KB
ID:	904139   Click image for larger version

Name:	Df72607.jpg
Views:	39
Size:	48.2 KB
ID:	904140   Click image for larger version

Name:	Sr60263.jpg
Views:	48
Size:	40.7 KB
ID:	904141

Click image for larger version

Name:	Hg70672.jpg
Views:	48
Size:	44.4 KB
ID:	904142   Click image for larger version

Name:	Bn68070.jpg
Views:	43
Size:	70.3 KB
ID:	904143   Click image for larger version

Name:	Vb20287.jpg
Views:	47
Size:	62.1 KB
ID:	904144
Old 03-15-2008, 06:16 PM
  #7
flyinsolo11
Senior Member

Join Date: Nov 2007
Location: Anchorage, AK
Posts: 679
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Jeez, acs guitars- is that a bush piper cherokee? Lol, I see that all the time up here in AK.
Old 03-15-2008, 06:33 PM
  #8
gboulton
My Feedback: (15)

gboulton's Avatar

Join Date: May 2005
Location: La Vergne, TN
Posts: 3,743
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Well, if a "blew up a set of .40 sized plans to full scale, re-engineered the formers, converted to foam wings, and then 'scratch built'" counts as "kit-bashing" :



33% Jim LeRoy Bulldog I, Zenoah G-62, smoke
Old 03-15-2008, 08:14 PM
  #9
Acs_guitars
My Feedback: (3)

Acs_guitars's Avatar

Join Date: Feb 2004
Location: Jacksonville, FL
Posts: 2,203
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got


ORIGINAL: flyinsolo11

Jeez, acs guitars- is that a bush piper cherokee? Lol, I see that all the time up here in AK.
The color scheme was actually taken from a pic of a real one that I believe was registered in AK.... I changed the scheme from blue to red is the only thing I modified. It was a nice clean layout to begin with.
Old 03-15-2008, 10:01 PM
  #10
kbear
Senior Member

kbear's Avatar

Join Date: Sep 2004
Location: Denton, TX
Posts: 295
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Here is my Slow Poke That I'm in the process off bashing for a build of on another forum. Extended the rons one bay. Inverted the engine. and added a bomb drop for foam cup flour bombs. She will get retracts and the rest, well, look at the pics.
Attached Thumbnails Click image for larger version

Name:	Tr51125.jpg
Views:	59
Size:	258.8 KB
ID:	904410   Click image for larger version

Name:	Oj26757.jpg
Views:	63
Size:	207.6 KB
ID:	904411   Click image for larger version

Name:	Kq35691.jpg
Views:	46
Size:	168.8 KB
ID:	904412   Click image for larger version

Name:	Ib82251.jpg
Views:	52
Size:	208.6 KB
ID:	904413   Click image for larger version

Name:	Db83642.jpg
Views:	52
Size:	200.7 KB
ID:	904414
Old 03-17-2008, 10:27 AM
  #11
Mttvannest
Member

Mttvannest's Avatar

Join Date: Feb 2008
Location: Columbus, OH
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Kbear,
I think you and i are building almost the same airplane. I'm bashing a slow poke to look like a p-51B. I'm at work and don't have my camera, but i will post some pics when i get home tonight. Mine has modified tail feather shaping, retracts, and carries 4 dropable bombs. I started covering it last fri. It's gonna get the old crow mustang markings, AKA "SLOW CROW"!
Old 03-17-2008, 12:34 PM
  #12
sscherin
Senior Member
My Feedback: (1)

sscherin's Avatar

Join Date: Aug 2005
Location: Eugene, Or
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Well I have a Planned Kit Bash for a Goldberg Falcon III kit I have on the shelf.
The plan was to turn it into a Skylark.. or maybe a Mid Wing if I cut new fully symmetrical ribs.
Old 03-17-2008, 02:40 PM
  #13
iron eagel

iron eagel's Avatar

Join Date: Jul 2004
Location: Middleboro, MA
Posts: 3,275
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

One in process right now...
http://www.rcuniverse.com/forum/m_6641498/tm.htm
Old 03-18-2008, 09:33 AM
  #14
saramos

saramos's Avatar

Join Date: Dec 2003
Location: Northridge, CA
Posts: 3,037
Likes: 0
Received 2 Likes on 2 Posts
Default RE: Kit Bashing... Lets See Watcha Got

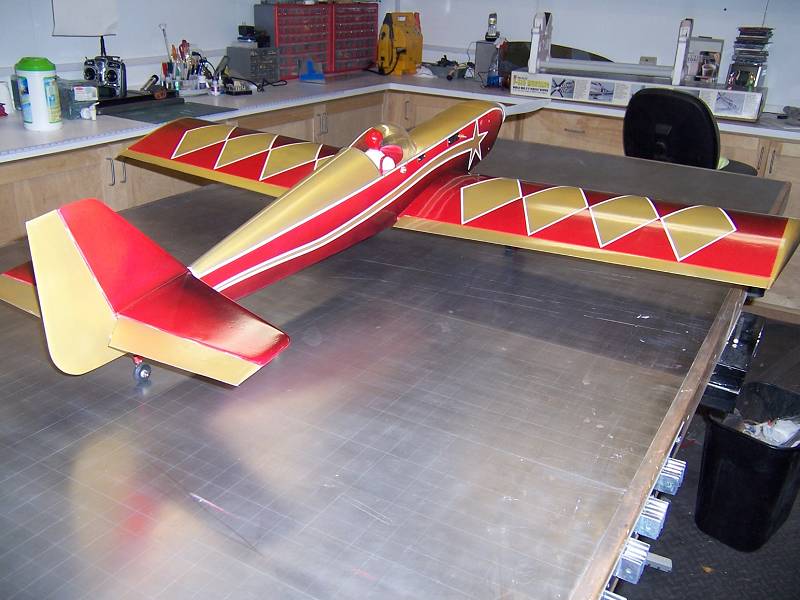

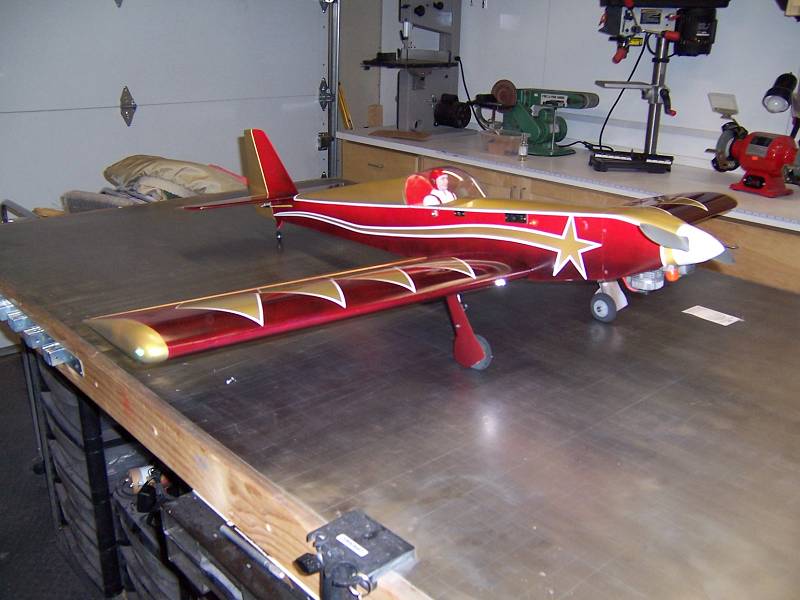

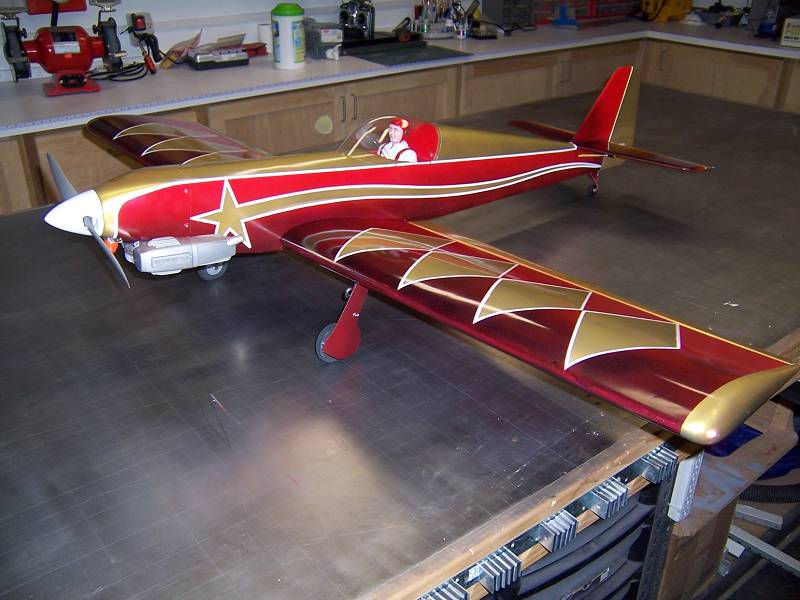

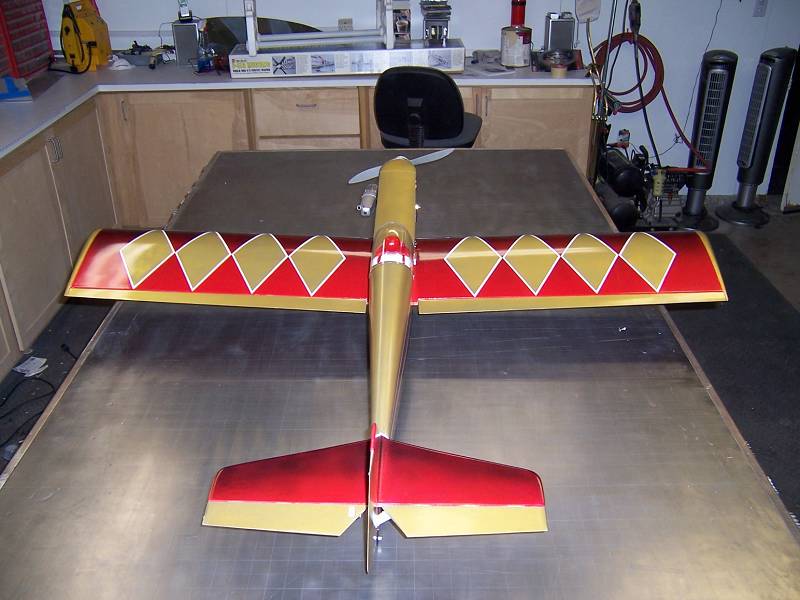

Heres' my modified Sig Four Star Fourty. Mods include:

Fully Sheeted and glassed wing.
Fuselage and control surfaced covered with FliteSkin.
Clipped wings and added rounded wingtips.
Redesigned vertical stabilizer and rudder (modeled after the Venture).
Robart air retracts.
Custom fiberglass cowl.
Fiberglass gear doors.
Wingtip nav lights, landing lights, and strobe.
Modified canopy.
Automotive red and gold metal flake paint.
Polyurethane clear coat.

Scott

Attached Thumbnails Click image for larger version

Name:	Ge96467.jpg
Views:	99
Size:	66.1 KB
ID:	906710   Click image for larger version

Name:	Zu64645.jpg
Views:	72
Size:	69.1 KB
ID:	906711   Click image for larger version

Name:	Ou50004.jpg
Views:	96
Size:	60.1 KB
ID:	906712   Click image for larger version

Name:	Tn32989.jpg
Views:	63
Size:	62.9 KB
ID:	906713
Old 03-18-2008, 01:57 PM
  #15
somegeek
Senior Member
My Feedback: (2)

somegeek's Avatar

Join Date: Jul 2005
Location: Vancouver, WA
Posts: 2,138
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Damn - that's pretty, saramos!

somegeek
Old 03-18-2008, 02:05 PM
  #16
carrellh
Senior Member

carrellh's Avatar

Join Date: Mar 2003
Location: Garland, TX
Posts: 6,544
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Mine are minor changes compared to these.
The ailerons on the Uproar are cur at simple 45 degree angles versus the sharp taper specified on the plans.
The PT-60 has no dihedral, tail dragger, dual aileron servos, and reshaped fin/rudder.
Attached Thumbnails Click image for larger version

Name:	Lj21563.jpg
Views:	66
Size:	47.8 KB
ID:	906897   Click image for larger version

Name:	Cx74924.jpg
Views:	52
Size:	72.4 KB
ID:	906898
Old 03-18-2008, 03:18 PM
  #17
sscherin
Senior Member
My Feedback: (1)

sscherin's Avatar

Join Date: Aug 2005
Location: Eugene, Or
Posts: 1,152
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

Oh yeah I forgot my Midwest Sweet Stick..
Recovered and bashed last year.. plane is 20 years old.

Enlarged Ailerons 1" and reversed the taper.
Enlarged the elevator 1" and added counter balance
Enlarged the Rudder and extended down to elevator.
Also added counter balance.
Converted to Tail dragger
Added dual Aileron servos and wiring tubes in the wing.

It will KE but it's got a lot of roll coupling.

Rebuild thread is here
http://www.rcuniverse.com/forum/m_59..._1/key_/tm.htm


Old 03-18-2008, 11:58 PM
  #18
OldRookie
My Feedback: (13)

Join Date: Dec 2001
Location: Prior Lake, MN
Posts: 1,380
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

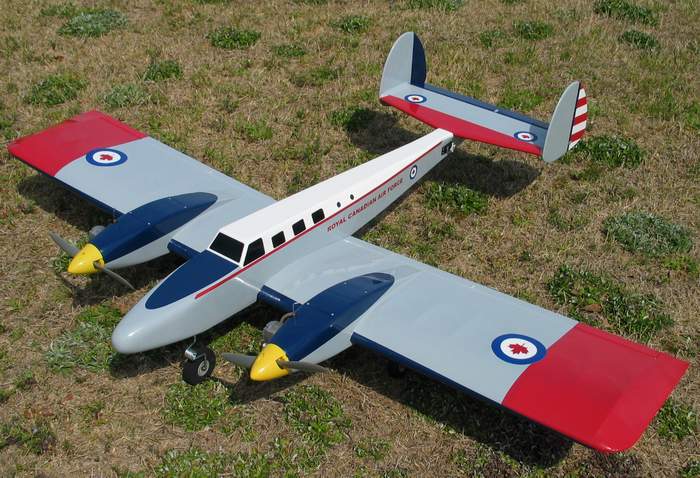

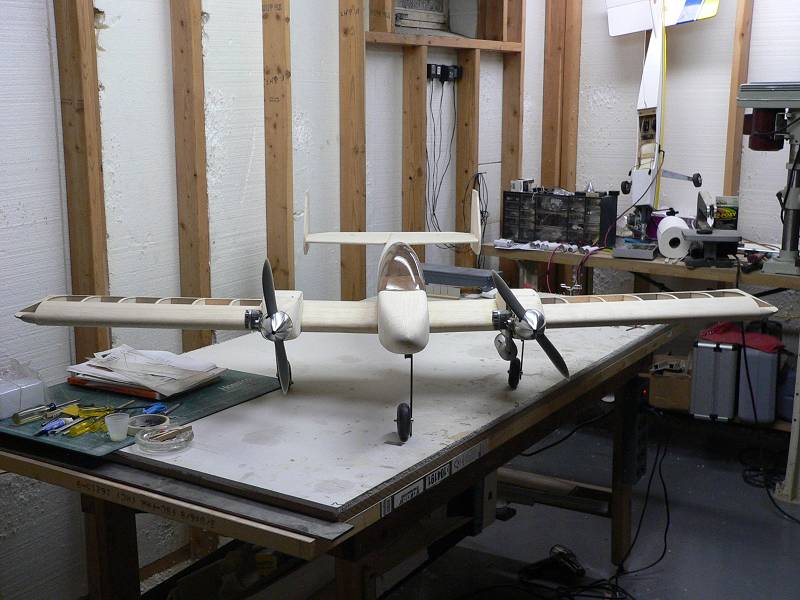

I am in the process of finishing my Northeast Aerodynamics Twin-Air 45.

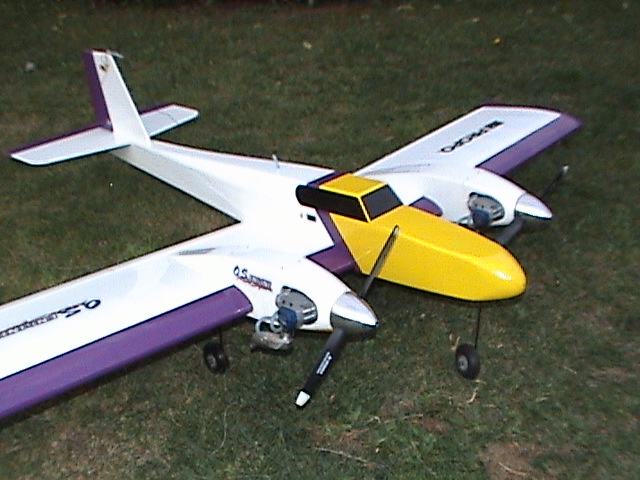

Here are a couple of pictures of the plane built in both a twin tail and single tail.

Attached Thumbnails Click image for larger version

Name:	Ec87548.jpg
Views:	44
Size:	122.3 KB
ID:	907422   Click image for larger version

Name:	Fa84638.jpg
Views:	43
Size:	69.3 KB
ID:	907423
Old 03-19-2008, 12:12 AM
  #19
OldRookie
My Feedback: (13)

Join Date: Dec 2001
Location: Prior Lake, MN
Posts: 1,380
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

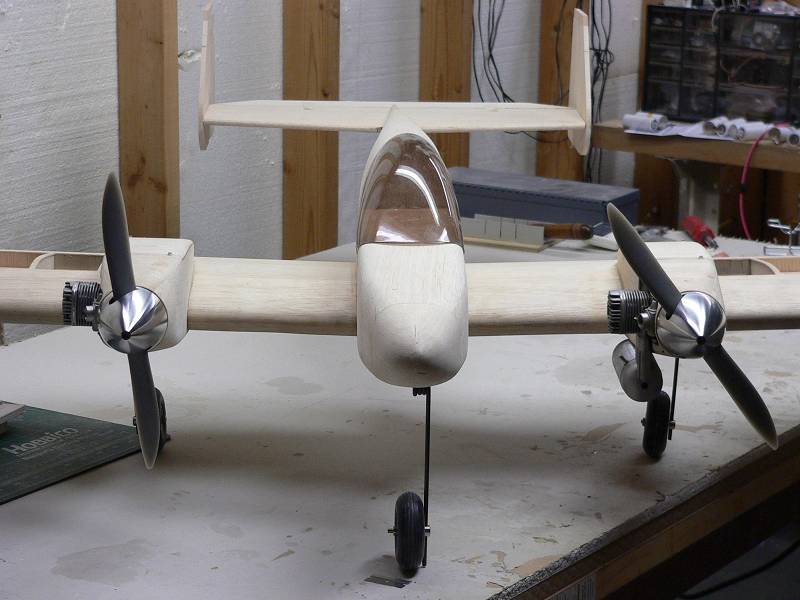

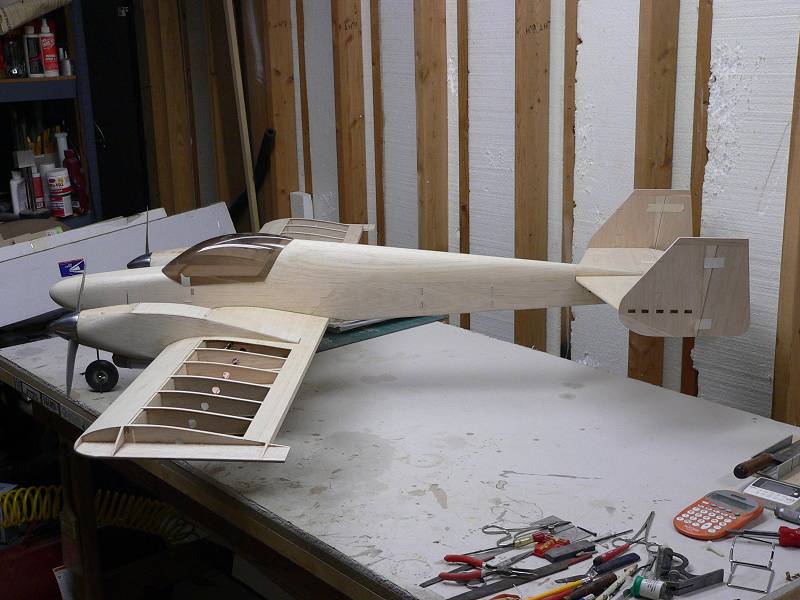

Here is my bashed Twin-Air 45 in the bones.
I am just starting to cover this plane.
I liked the lines of the Ultra Sport so I made it resemble it.
Attached Thumbnails Click image for larger version

Name:	Rp44333.jpg
Views:	59
Size:	59.7 KB
ID:	907430   Click image for larger version

Name:	Vq51361.jpg
Views:	56
Size:	52.8 KB
ID:	907431   Click image for larger version

Name:	Xc77983.jpg
Views:	56
Size:	67.8 KB
ID:	907432   Click image for larger version

Name:	Rk23318.jpg
Views:	59
Size:	57.3 KB
ID:	907433   Click image for larger version

Name:	Fq87741.jpg
Views:	70
Size:	64.0 KB
ID:	907434   Click image for larger version

Name:	Ct16360.jpg
Views:	77
Size:	65.1 KB
ID:	907435
Old 03-20-2008, 01:57 AM
  #20
Aurora_60
Senior Member
Thread Starter
My Feedback: (1)

Aurora_60's Avatar

Join Date: Feb 2008
Location: kaneohe, HI
Posts: 571
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

That is DAMN Nice OldRookie!!



DM
Old 03-20-2008, 03:22 PM
  #21
Rcpilot
My Feedback: (78)

Rcpilot's Avatar

Join Date: Mar 2002
Posts: 7,793
Received 9 Likes on 8 Posts
Default RE: Kit Bashing... Lets See Watcha Got

ORIGINAL: gboulton

Well, if a "blew up a set of .40 sized plans to full scale, re-engineered the formers, converted to foam wings, and then 'scratch built'" counts as "kit-bashing" :



33% Jim LeRoy Bulldog I, Zenoah G-62, smoke
I don't see the plane. [sm=confused.gif]

Old 03-22-2008, 02:50 AM
  #22
Aurora_60
Senior Member
Thread Starter
My Feedback: (1)

Aurora_60's Avatar

Join Date: Feb 2008
Location: kaneohe, HI
Posts: 571
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got


ORIGINAL: Rcpilot

ORIGINAL: gboulton

Well, if a "blew up a set of .40 sized plans to full scale, re-engineered the formers, converted to foam wings, and then 'scratch built'" counts as "kit-bashing" :



33% Jim LeRoy Bulldog I, Zenoah G-62, smoke
I don't see the plane. [sm=confused.gif]

plane ???

Old 03-22-2008, 07:24 AM
  #23
flyst
Junior Member

Join Date: Jan 2003
Location: WINSTON SALEM, NC
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

well i guess i got a little lost in the plans for my three channel Kadet...and had to buy a 9 channel radio and mix and couple channels to be able to use all the fun buttons...you will see the first change was tri gear to tail dragger, then add cut the streight wing for barn door ailerons...add the three light systems,with stearable nose lights..light up the insturment panel and cockpit...redesign all the tail feathers ,make a bombbay box inside the fuse ..add the extrernal bombs ,carve out a wooden cowling ...add a side door to hide all the on-off swithces and charging jacks ....make Barbies head turn and sew a lacy red bra for her, as you can not find lingerie for Barbie any more ..invert the engine ...find a set of wheel pants to have that 1930's look...make a momemade saddle for the night glider ...and well needless to say ...room for all 12 servos.....shew glad it is done and flying...next kit.....hummmmmmmm
Attached Thumbnails Click image for larger version

Name:	Wu61826.jpg
Views:	70
Size:	63.4 KB
ID:	910287
Old 03-22-2008, 07:28 AM
  #24
flyst
Junior Member

Join Date: Jan 2003
Location: WINSTON SALEM, NC
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Kit Bashing... Lets See Watcha Got

here is more pics ot the big bananna...hope they come thru
Attached Thumbnails Click image for larger version

Name:	Ur52312.jpg
Views:	70
Size:	116.2 KB
ID:	910288   Click image for larger version

Name:	Xs57569.jpg
Views:	64
Size:	162.8 KB
ID:	910289
Old 03-27-2008, 05:22 PM
  #25
TEBerg
My Feedback: (1)

TEBerg's Avatar

Join Date: Jan 2004
Location: Clovis, CA
Posts: 477
Likes: 0
Received 1 Like on 1 Post
Default RE: Kit Bashing... Lets See Watcha Got

That is a GREAT Goldberg Sr. Falcon!!!!

I keep thinking I should do a biplane some day, but that looks like a LOT of fun...

OK here are some photos of my last "bash"...

I picked up the Krafty 60 on sale at a local hobby store.. Well, not local to me, but I could not pass up a good deal..

After a couple of years, in the box it was time to build.. But I already have a Kadet MKII for a high-wing plane.. Soooo, you take the Krafty and make it a Low-wing with RETRACTS and FLAPS!!! Oh, and set it up ready for Floats also... It is really nice, retract the gear, keep them un-plugged put some of the "foamy glider" colored tape over the wheel wells and off to the lake...
Oh, BTW, I did not turn the fuselage over.. I kept the tail fins on top like planned, removed the cabin and cut the wing saddle into the bottom of the fuselage.. She tracks very straight...
Attached Thumbnails Click image for larger version

Name:	Om32394.jpg
Views:	47
Size:	31.5 KB
ID:	915091   Click image for larger version

Name:	Oj27525.jpg
Views:	57
Size:	58.7 KB
ID:	915092   Click image for larger version

Name:	Ch95744.jpg
Views:	60
Size:	80.2 KB
ID:	915093   Click image for larger version

Name:	Xr47222.jpg
Views:	66
Size:	71.8 KB
ID:	915094

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
