Hello guys! Since I've been a dyed-in-the-wool scratch builder for over 30 years,,(been into RC for over 40 years),, I have to wonder if there isn't other guys out there that don't wonder the same thing! (yes,, made out of balsa,, plywood,,etc.,,NO PLASTIC or FIBERGLASS!!) Anybody know of any plans? I get all glassy-eyed over the big F-84,, and some guy in Brazil,,I think,, built a big F-86!,,(sigh) [sm=tongue_smile.gif],,,LOL I'm one of those guys that does a lot of off-the-wall stuff,,got a lathe and mill in my shop,, made my own retractable landing gear,,etc,,(oh,, and it works,,too!!),,LOL ok,, any "hints" would be welcome!! thanks guys!

Here's a video of my effort.

m

http://www.youtube.com/watch?v=4s3zjlHcVhc

How's this. The fuse is 138"s long.
It can be supplied at any size!

Where do you guys get these diagrams from????

"DIAGRAMs"???? LOL sounds so foreign and unusual. cute!!! anyhow, this design looks like a scratch design. Otherwise, search this site for "plans," "sections," "drawings" "DIAGRAMS" etc and you should come up with an interesting find....not least of which is that excellent Russian site

The post by bofrcr is for plans, I don't think 3 views count as plans, like those Russian sites, etc.

This is the russian site...

http://www.airwar.ru/other/draw_fn.html

http://www.airwar.ru/other/draw_an.html

http://www.airwar.ru/other/draw_on.html



Enrique

erbroens . . .

No plans on those sites.
Those are just 3 views. . .

LOL Emilio. You are a plans "HOG"[:-]

3-views are plans. some even go as far as to provide sectional drawings........

Ya, I guess you could call them a sort of plan. But definetly not anything "ready-to-go" to build an r/c model.

The outline and a few cross-sections are a great documentation source to start with, but believe me, there's tons of work involved putting in:

- all the internal structural parts
- landing gear stuff
- all those wing ribs every 3-4 inches or so.
- work out the balance
- working out removable wings
- etc, etc, etc.

Literally tons of hours of Auto Cad work taking a 3 view into full blown r/c plans!

That's why, I personally don't think they would classify as r/c plans.

you are right. i'm in the middle of sorting all that stuff out right now with a fighter i have loved for a very long time. it is bitter-sweet to say the least.[:'(][:'(]

those "plans" are a far cry from a flyable product.......

starwoes . .
what ya workin on . . I might have it.

another redundant design. Sometimes I enjoy the pain lol of going through the motions.....

starwoes . .

You b-a-d Boy !!! That's a super undertaking!!!! 1/10th or 1/9??

This is 1/10th . .[sm=lol.gif][sm=lol.gif][sm=lol.gif]

Here's another plan of the CF-100. 1/6 scale with a 115" span.

Slightly different construction method.
The entire fuse is made of blue foam. Fiberglass the whole thing with 4 -6 oz cloth. Get your super finish on the outside, then burn out the foam on the inside.

Voila !! A one-off fiberglass shell!!
Those engine nacelles are 4 feet long.

edited . . oops, , forgot "no fiberglass" . . . ..

Mike, Bofcr says that he is a dyed-in-the-wool scratch builder for over 30 years... this kind of modeler has his own preferences in building methods and materials, so if he is up to the task and wants to dedicate his time to it, a detailed 3 view of a particular airplane will help him more than plans to make a truly outstanding model.

30+ years ago, a r/c magazine showed each month a 3 view from aircraft they called "planes worth modelling"... many people used them to do everything from rubber powered models to u/c or r/c "full house, .61 powered r/c planes"... this russian site can be used as
it modern equivalent for anyone who wants to build a jet from scratch.

Enrique

erbroens . . .

I guess so . . .

Then your really a plan builder......right. The hard part is getting it from nothing to the plans.

Live a little ......start from scratch..........wipe the tears from your eyes and show us what you got.


David Hudson
www.dcmodelshop.com

How about a twin Avro Arrow monster!
Yup, , , bigger is definetly better
Gee, I can post these one-of-a-kind oddities all night!

DC . . .
Love the F8 Crusader

I haven't seen one of those fan units in years. The one I remember is smaller I guess for a 3.5 K&B. Kress fan or something like that. Too much water under the bridge.[:-]


David Hudson

bofrcr,

The art of scratch building and especially planking a fueslage is generaly lost and dimnishing skill in todays modeling.

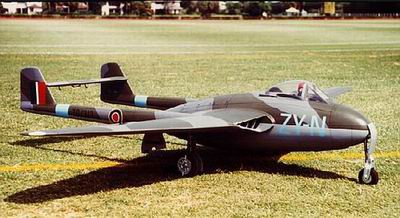

I have been offering plans for several years now of my DH-100 DeHavilland VAMPIRE and DH-110 Sea Vixon and they are all wood designs.

The Vampire is available in 3 sizes, 1/6th - 80 in W.S., 1/5th - 96 in. W.S. [ most popular size] and 1/4 - 102 in. W. S. Laser cut wood sets are also avalible in all 3 sizes as well as F/G wing tanks, nose bowls, Canopies, Inlets etc, etc.

I have plans all other the world but find that the majority of my sales are in Eroupe, Austriala and South Africa.

If interested, please drop me a line.

DCM . . .

You have a keen eye!

I built the CF-100 about 35 years ago. In those days we only had T-squares. No turbines.

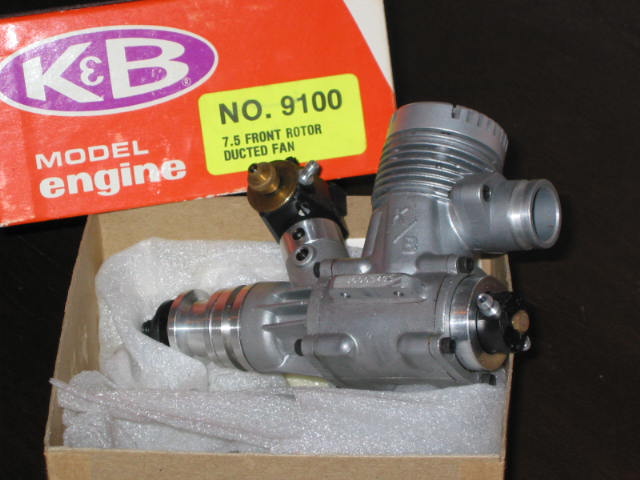

Those fan units are the RK-40 Axiflow, originally sold by Midwest Industries. Midwest later sold out the Axiflow line to Kress, including the RK-20, smaller size. The RK-40 used K&B 7.5's. They were real dependable engines that came from the factory with a Perry carb and a Perry fuel pump built right into the rear engine cover.
The RK-40 was good for about 8-9 pounds thrust.

Vampire . . .

sent you a pm.

WOW! vampire!! VERY,,VERY,,KEWL!! It figures,, somebody almost in my neck 'o the woods too!! northern ohio here! Ya going to toledo? (silly question?),,LOL I'd bet the vampire is a good flyer too,, ya have other plans too? my e-mail is [email protected] yep!! VERY interested! thank you very much!!
