X-treme Composite Altair 200

Old 04-09-2009, 06:18 AM
  #1
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default X-treme Composite Altair 200

I received my X-treme Altair 200 yesterday, and will start a build thread soon.

Earlier this year, I was planning to order another plane from Akiba, his latest design - the ProLine Evolution. However, since I didn't know whether I could make the Hong Kong team again, I just couldn't make up my mind for the longest time. At one point, I was actually thinking of placing an order regardless of the outcome, and was communicating with Akiba. Unfortunately, because of the appreciation of the Japanese Yen - all the way from 110 to 88 Yen to US$1.00. In addition, with Akiba's reply indicating to me that he will not be able to finish my plane until the end of May for a mid June delivery, I decided to scrap that idea. Since my wood ProLine is still more than capable of handling the P sequence, I will fly it again at this year's WC. Nevertheless, I would still like to have a spare plane just in case, so I started to look around at different designs. Unfortunately, there were just not too many offerings out there for a quick delivery.

After much searching, I kept coming back to the Altair 200. To be honest, the plane wasn't really on top of my list at first. I still remember my team mate - Alex Lau - representative of the Altair contacted me late last year, wondering whether I would like to be the first few to own one. However, since I was not really happy with my prototype X-treme PL - over weight and some workmanship issue - I decided not to accept his offer. However, after I saw the plane, actually, planes in person during my team trial - all 5 of the competitors from Hong Kong were flying the same design, I changed my mind. The workmanship and the quality of the plane was just a lot better than my Astral XX and the PL, and after I have seen the way the plane performed in the wind, I decided to place an order. Fortunately, because of Alex's connection and also with the help from my good friend Nuttawut - one of X-treme's representative - I received the plane in record time.

Here are some background info on the Altair 200, the plane is designed by two times World Champion - Giichi Naruke. It's an evolution from the Aries/ Altair series, it has a slightly shorter wing span and smaller wing area for better rolling/ snapping maneuvers. Please correct me if I'm wrong, I believe it also has a slightly taller fuselage as well. By looking at the way Alex putting the plane through the F sequence, I could tell it is a much better design than my Astral XX.

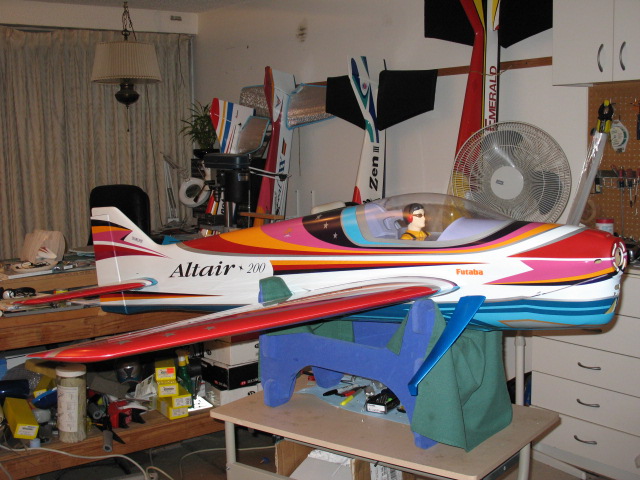

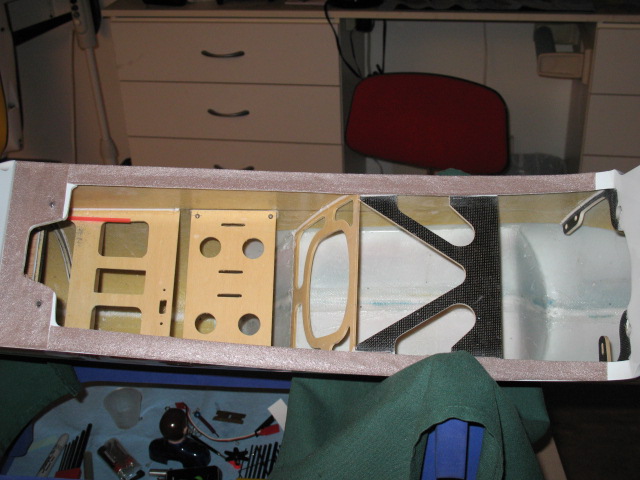

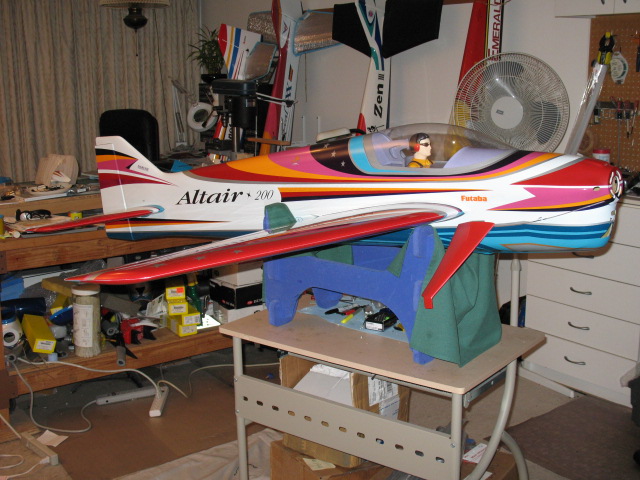

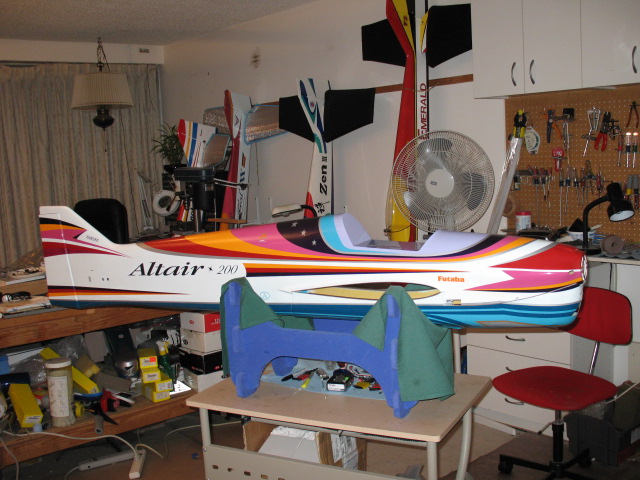

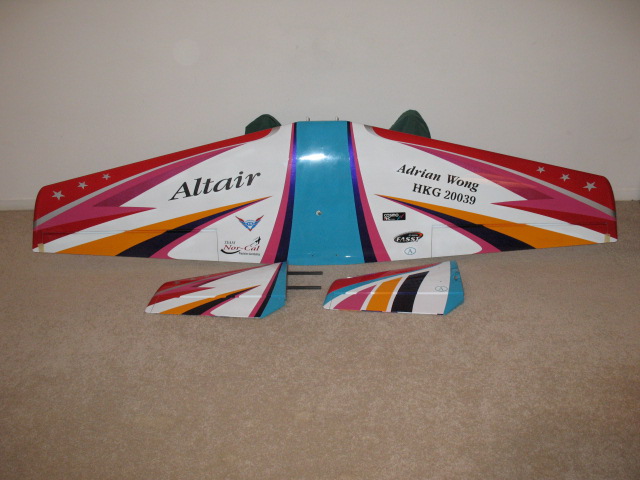

Here are some pix, and the build thread will start in the next few days:-

Adrian
Attached Thumbnails Click image for larger version

Name:	Eb87088.jpg
Views:	44
Size:	125.7 KB
ID:	1176424   Click image for larger version

Name:	To45103.jpg
Views:	63
Size:	107.0 KB
ID:	1176425   Click image for larger version

Name:	Qv55391.jpg
Views:	47
Size:	126.3 KB
ID:	1176426   Click image for larger version

Name:	Wq42929.jpg
Views:	41
Size:	90.1 KB
ID:	1176427   Click image for larger version

Name:	Xi60730.jpg
Views:	41
Size:	101.1 KB
ID:	1176428   Click image for larger version

Name:	Sj72615.jpg
Views:	41
Size:	69.9 KB
ID:	1176429   Click image for larger version

Name:	Vx46680.jpg
Views:	45
Size:	85.5 KB
ID:	1176430   Click image for larger version

Name:	Ed11375.jpg
Views:	39
Size:	75.1 KB
ID:	1176431

Click image for larger version

Name:	Zy43427.jpg
Views:	59
Size:	93.7 KB
ID:	1176432   Click image for larger version

Name:	Dq76358.jpg
Views:	45
Size:	121.4 KB
ID:	1176433   Click image for larger version

Name:	Ot84398.jpg
Views:	44
Size:	128.3 KB
ID:	1176434   Click image for larger version

Name:	Mx93551.jpg
Views:	44
Size:	130.5 KB
ID:	1176435
Old 04-09-2009, 07:17 AM
  #2
jim woodward

Join Date: Sep 2006
Location: boca raton, FL
Posts: 415
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Hi Adrian,

The plane looks really nice. If you get a chance, post some pictures of the landing gear installation. How are the gear with the stubby mounting tab held in? Also, have you talked to anyone that has flown the skinny and wide versions of the landing gear back to back?
Thanks,
Jim
Old 04-09-2009, 07:33 AM
  #3
Nickolas
Senior Member

Nickolas's Avatar

Join Date: Jun 2004
Location: Athens, GREECE
Posts: 917
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Adrian looks gorgeous,

One of the most beautiful planes ever.

Internal quality is similar to the ProLine though.

The plane flown by Onda at the Japanese champs is wooden and made by Naruke Hobby right? Is there any difference with that in terms of design characteristics etc?

Regards,
Nikos

Old 04-09-2009, 09:20 AM
  #4
rgreen24
My Feedback: (6)

rgreen24's Avatar

Join Date: Jan 2002
Location: Omaha, NE
Posts: 1,101
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

any weights?
Old 04-09-2009, 02:32 PM
  #5
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: jim woodward

Hi Adrian,

The plane looks really nice. If you get a chance, post some pictures of the landing gear installation. How are the gear with the stubby mounting tab held in? Also, have you talked to anyone that has flown the skinny and wide versions of the landing gear back to back?
Thanks,
Jim

Hi Jim,

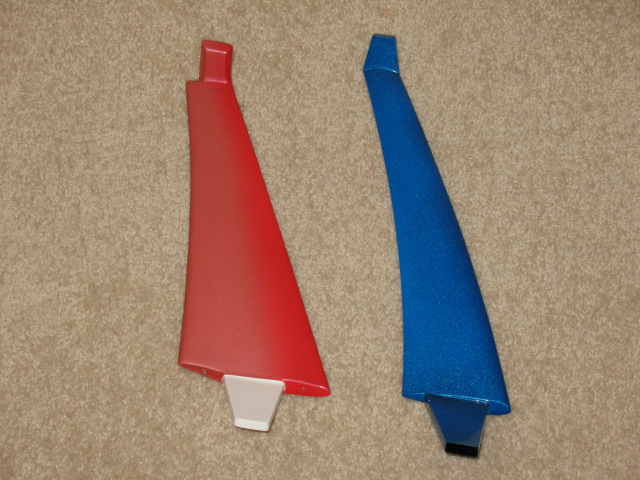

The angle of the pix is slightly distorted. The mounting tab on the gear is actually not that short, see attached pix

I have been using the wider canard gear on my X-treme PL for more than 6 months now, and more than a year on my Astral. I felt it does help the knife edge flight slightly, but you pay a slight weight penalty of 10g.

Attached Thumbnails Click image for larger version

Name:	Qo39250.jpg
Views:	36
Size:	76.5 KB
ID:	1176652
Old 04-09-2009, 02:38 PM
  #6
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: Nickolas

The plane flown by Onda at the Japanese champs is wooden and made by Naruke Hobby right? Is there any difference with that in terms of design characteristics etc?

As far as I know, Onda owns none of those planes, it's all a loaner from Naruke, and it's made by Nishioka - the most elite builder in Japan.

It is quite difference between the wood and the composite, with the Oxai version being closest to the original.
Old 04-09-2009, 02:46 PM
  #7
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: rgreen24

any weights?

Fuse - 998 g
Wing - 930 g
Lt stab - 130 g
Rt stab - 120 g
Bellypan - 150 g
Canopy & some included hardware - 173 g
Lt gear (supplied) - 61 g, (canard) - 80 g
Rt gear (supplied) - 60 g, (canard) - 70 g
Old 04-09-2009, 08:50 PM
  #8
tIANci
Senior Member

tIANci's Avatar

Join Date: Jan 2004
Location: Kuala Lumpur, MALAYSIA
Posts: 10,489
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Having seen the plane in the flesh it is a real beauty. The finish is immaculate. It seems that AUW for GP is in the 4.8 kg region.
Old 04-09-2009, 11:44 PM
  #9
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: tIANci

Having seen the plane in the flesh it is a real beauty. The finish is immaculate. It seems that AUW for GP is in the 4.8 kg region.

As long as it's under 5 kg, that's all I care ...
Old 04-10-2009, 01:36 AM
  #10
Nickolas
Senior Member

Nickolas's Avatar

Join Date: Jun 2004
Location: Athens, GREECE
Posts: 917
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

About 130gr heavier than the latest version of the PL.

With the CDI engine you will probably be at the 4900gr range.
Old 04-10-2009, 02:21 AM
  #11
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: Nickolas

About 130gr heavier than the latest version of the PL.

With the CDI engine you will probably be at the 4900gr range.

I will not be using the cdi, I'll be using the new steam power unit ...
Old 04-10-2009, 02:51 AM
  #12
Nickolas
Senior Member

Nickolas's Avatar

Join Date: Jun 2004
Location: Athens, GREECE
Posts: 917
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

hehe water tank will add some extra weight then...

Nice plane anyway sure it would fly well even if it came at the 6Kg range. Happy building...
Old 04-10-2009, 06:30 AM
  #13
tIANci
Senior Member

tIANci's Avatar

Join Date: Jan 2004
Location: Kuala Lumpur, MALAYSIA
Posts: 10,489
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Come on ... if you are really worried about weight then let's:

i. remove the pilot and instrument panel decal (btw, I am curious, are pilots a must for events?)
ii. lighten then US by drilling some holes
iii. lighten firewall a little (you can go EP to ensure less vibration)

Hehehehee ... I think there is an EP version of the Altair in Singapore now. I need to ask my pal. I heard he wanted to go EP and that the plane is completed. Wonder if he went the EP path ...
Old 04-10-2009, 06:45 PM
  #14
Chris Moon
My Feedback: (8)

Chris Moon's Avatar

Join Date: Dec 2002
Location: Leesburg, VA
Posts: 1,366
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Adrian flies mode 1 just to prevent his buddies from being able to fly all of his cool planes. Not really true but we want to fly his planes. He has good stuff nobody else has...
Old 04-14-2009, 03:59 PM
  #15
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

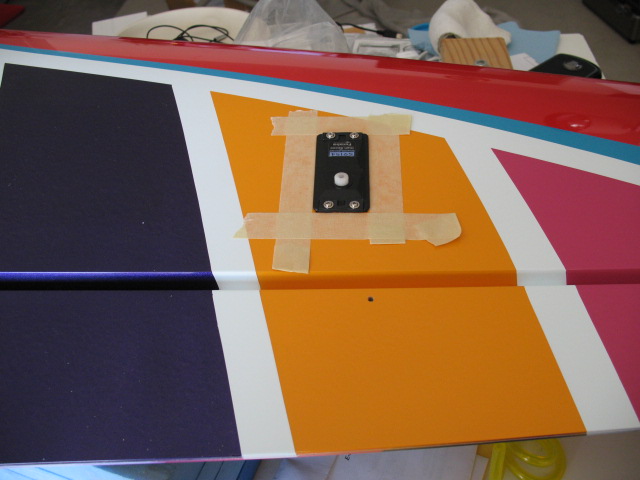

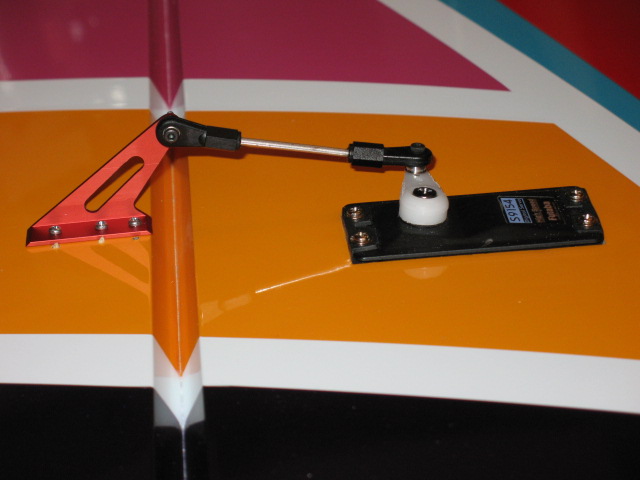

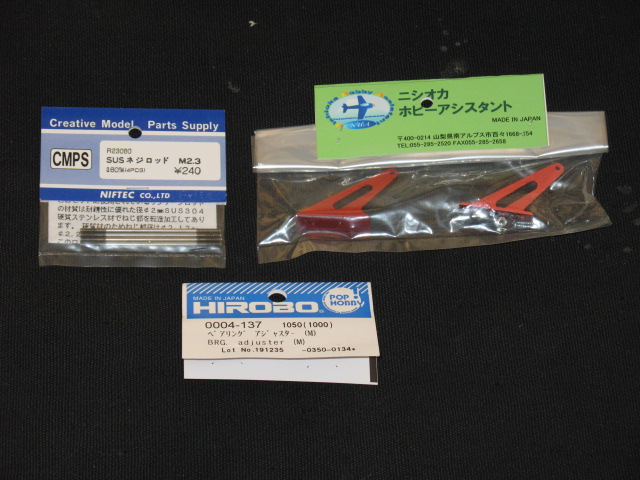

Some progress has been made this week, the aileron servo and connection is done. I'm using push rods from Creative Models, rod ends from Hirobo and horns from Nishioka. Since the push rods' length are pre-determined - 55mm - it took a bit of cutting & measuring to ensure a correct fit.

Whenever I install servos on a plane with a one piece wing configuration, I always glue a small piece of foam inside the servo lead opening to prevent the leads from dropping back into the wing by accident.
Attached Thumbnails Click image for larger version

Name:	Qo40581.jpg
Views:	33
Size:	110.5 KB
ID:	1180333   Click image for larger version

Name:	Hc93415.jpg
Views:	40
Size:	180.9 KB
ID:	1180334   Click image for larger version

Name:	Fk16865.jpg
Views:	37
Size:	78.9 KB
ID:	1180335   Click image for larger version

Name:	Wq43663.jpg
Views:	48
Size:	73.0 KB
ID:	1180336   Click image for larger version

Name:	Hs95116.jpg
Views:	38
Size:	64.3 KB
ID:	1180337   Click image for larger version

Name:	Zp94729.jpg
Views:	36
Size:	89.8 KB
ID:	1180338
Old 04-14-2009, 04:11 PM
  #16
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

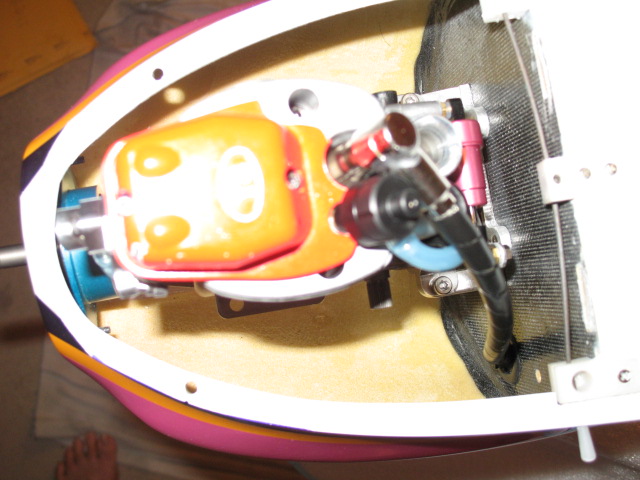

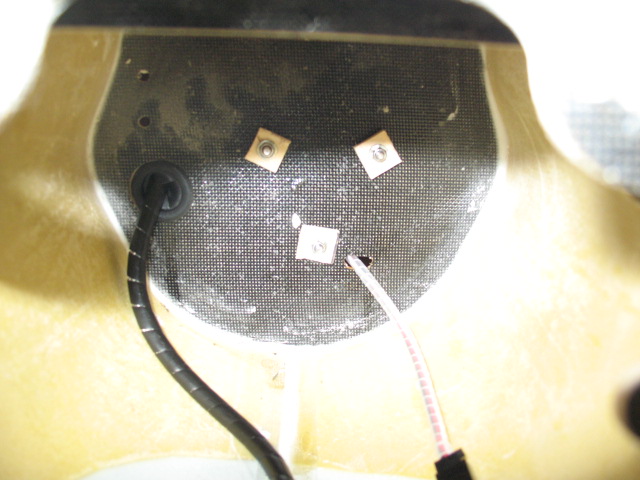

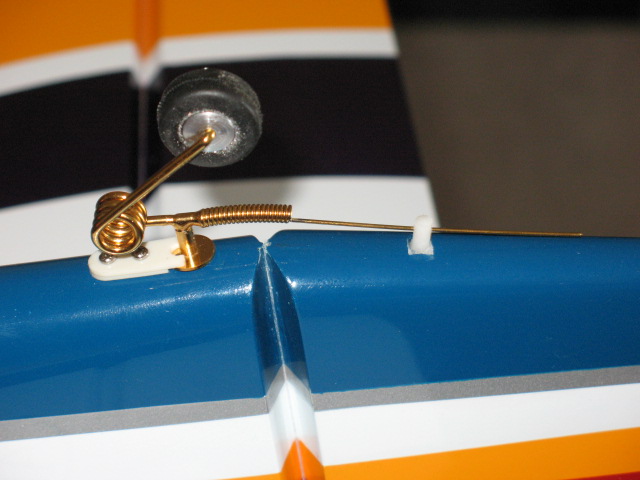

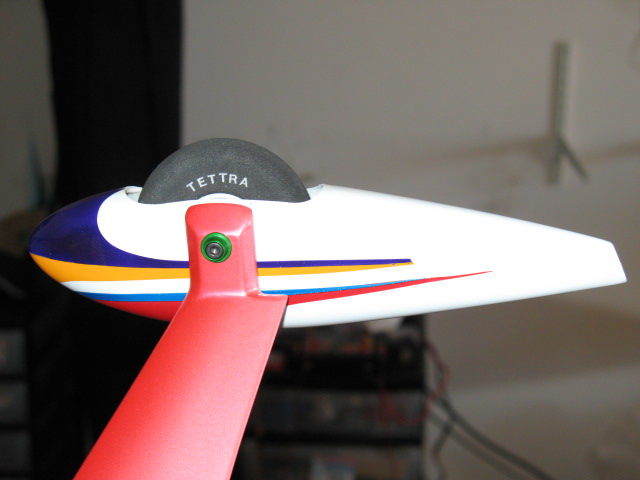

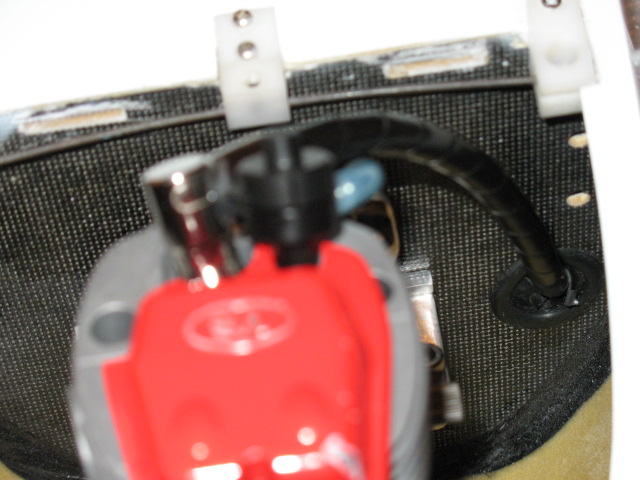

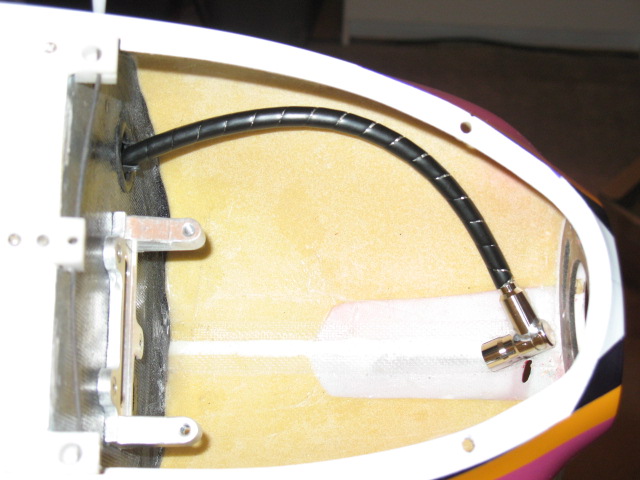

Landing gear, wheel pants and tail wheel are also done. Presently, I'll be using the wide canard gear. However, if that makes it over weight, I'll switch it back to the narrower one.

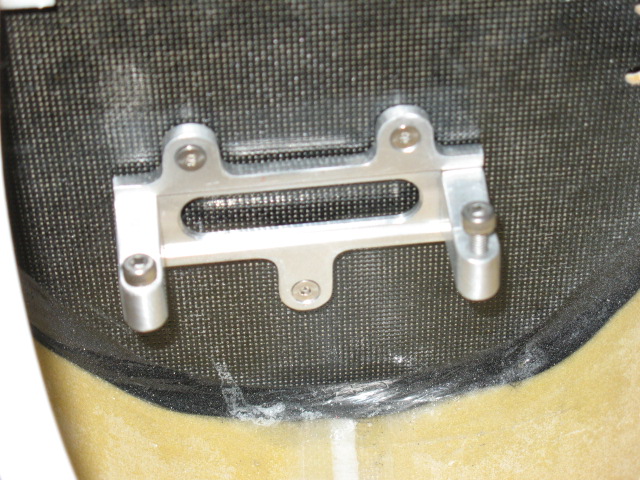

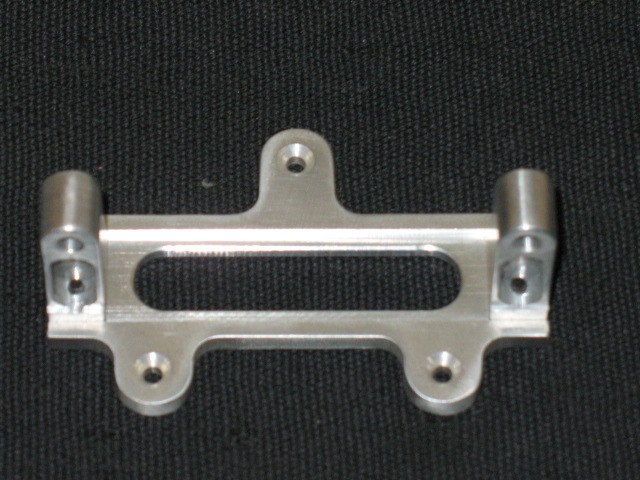

The plane has the option of either using a Budd or YS mount. Since I have had good luck with the YS mount on both my Astral XX and ProLine, I chose the YS option. However, if you want to use the YS mount, you will need to purchase a mount bracket manufactured by my friend Alex Lau, This particular bracket has the same mounting holes as the Budd, and will fit X-treme's Astral XX, ProLine and the Altair 200.

Next step will be ele & rud installation. Hopefully, will be done in the next few evenings.

Attached Thumbnails Click image for larger version

Name:	Tr50673.jpg
Views:	51
Size:	66.6 KB
ID:	1180355   Click image for larger version

Name:	Vq52766.jpg
Views:	36
Size:	76.0 KB
ID:	1180356   Click image for larger version

Name:	Rw59554.jpg
Views:	35
Size:	78.2 KB
ID:	1180357   Click image for larger version

Name:	Tm31322.jpg
Views:	39
Size:	107.3 KB
ID:	1180358   Click image for larger version

Name:	Bn77165.jpg
Views:	51
Size:	141.1 KB
ID:	1180359
Old 04-15-2009, 04:49 AM
  #17
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

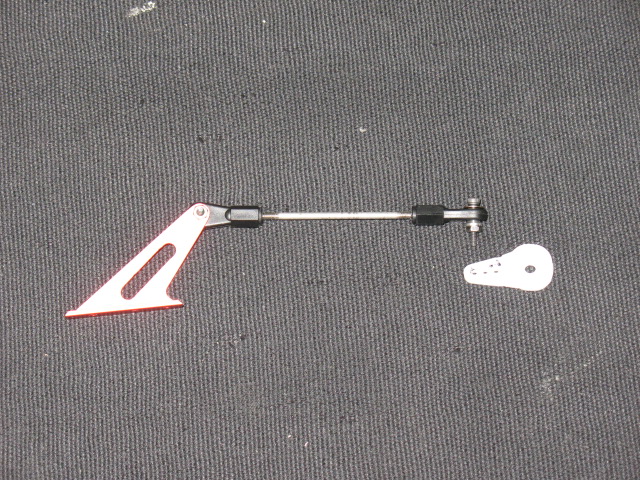

Due to carelessness, I installed the ail push rods on the wrong side of the horn. Luckily, my friend Alex Lau was reading the thread and pointed out the obvious, it's now all fixed.
Attached Thumbnails Click image for larger version

Name:	Ca80644.jpg
Views:	31
Size:	69.0 KB
ID:	1180652
Old 04-15-2009, 08:47 AM
  #18
mups53
My Feedback: (41)

Join Date: Jan 2002
Location: Algonquin Illinois IL
Posts: 2,346
Received 1 Like on 1 Post
Default RE: X-treme Composite Altair 200


ORIGINAL: ual767

Adrian flies mode 1 just to prevent his buddies from being able to fly all of his cool planes. Not really true but we want to fly his planes. He has good stuff nobody else has...
Mode1!!!!
Hey Adrian I could fly your planes now. Great!!! Thanks dude. Mike
Old 04-16-2009, 02:12 AM
  #19
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

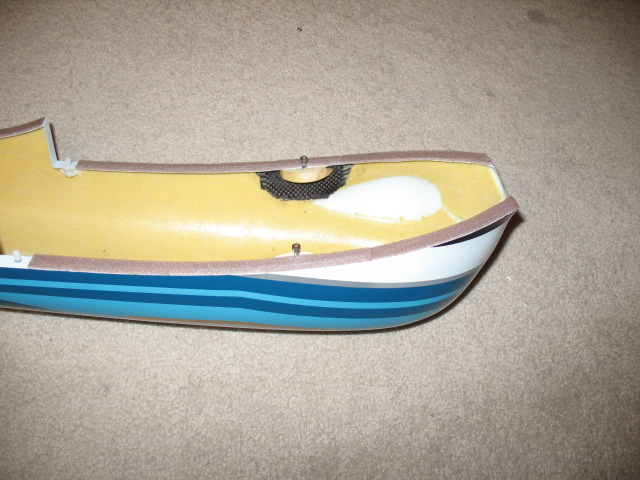

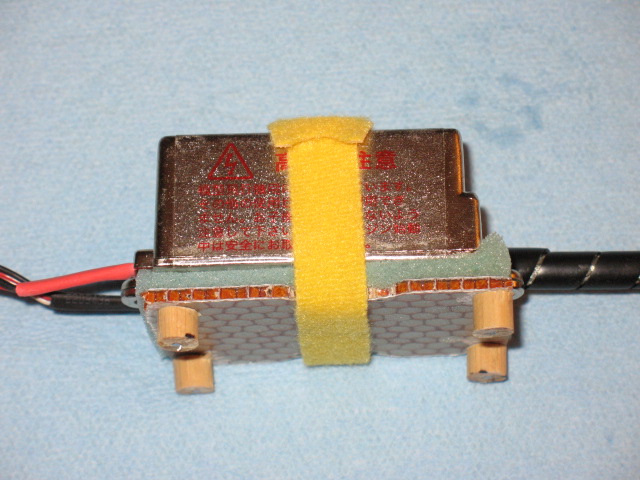

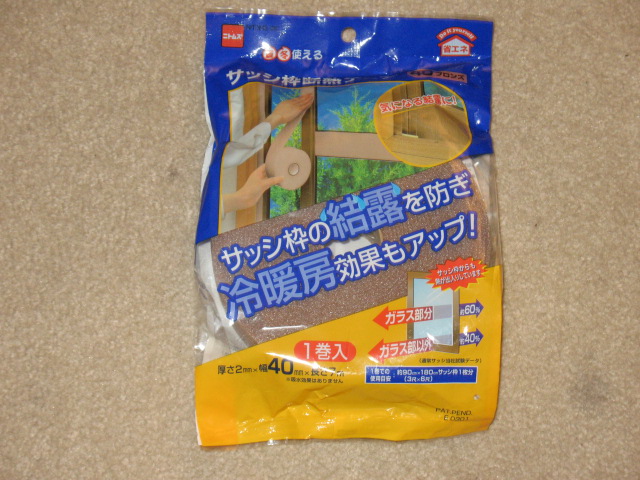

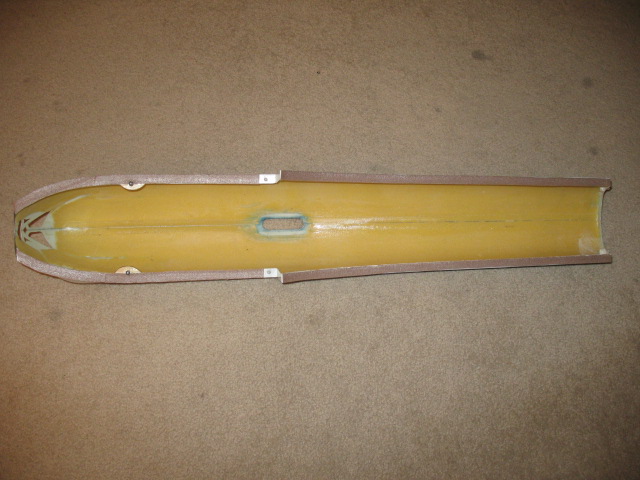

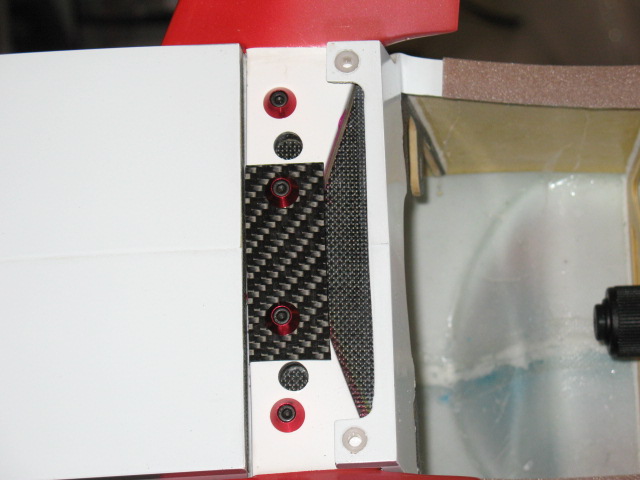

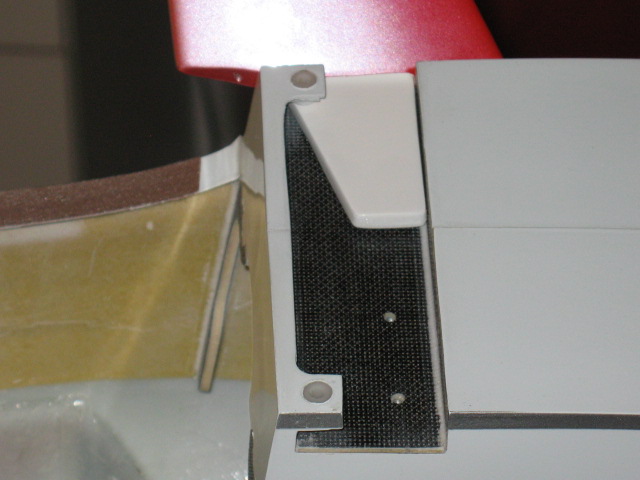

I have been using some very thin foam insulation tape from Japan on all of the contact surfaces with good results - the wing saddle, the stab and the bellypan - to cut down on the rubbing noises. Since it is extremely thin and light weight, I also wrap it around the aileron & elevator extension leads. And, because this plane will be using two servos on the elevator, the long extensions will most likely be rattling inside the fuse if it is not properly insulated also. However, you must use a very sharp knife each time. For some reason, these tape snags easily.
Attached Thumbnails Click image for larger version

Name:	Bz79518.jpg
Views:	36
Size:	134.3 KB
ID:	1181189   Click image for larger version

Name:	Rm36215.jpg
Views:	32
Size:	112.2 KB
ID:	1181190   Click image for larger version

Name:	Ot49289.jpg
Views:	35
Size:	101.6 KB
ID:	1181191   Click image for larger version

Name:	Tn33392.jpg
Views:	49
Size:	98.6 KB
ID:	1181192   Click image for larger version

Name:	Uf50402.jpg
Views:	43
Size:	112.8 KB
ID:	1181193   Click image for larger version

Name:	Mc50279.jpg
Views:	55
Size:	111.2 KB
ID:	1181194   Click image for larger version

Name:	Km99437.jpg
Views:	44
Size:	111.7 KB
ID:	1181195   Click image for larger version

Name:	Hg22163.jpg
Views:	34
Size:	94.7 KB
ID:	1181196

Click image for larger version

Name:	Zy42735.jpg
Views:	39
Size:	88.6 KB
ID:	1181197
Old 04-16-2009, 04:52 AM
  #20
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

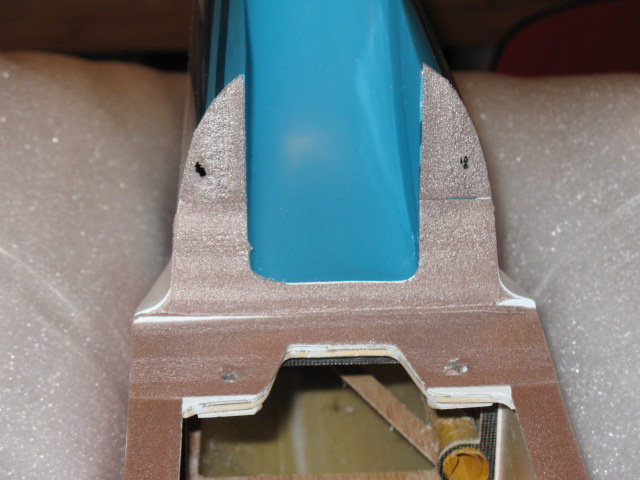

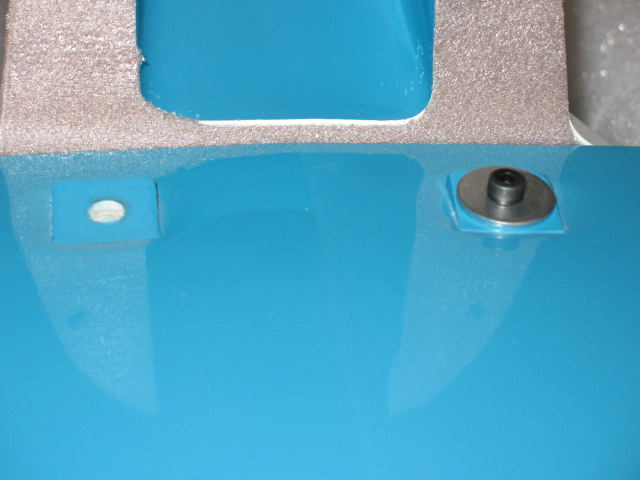

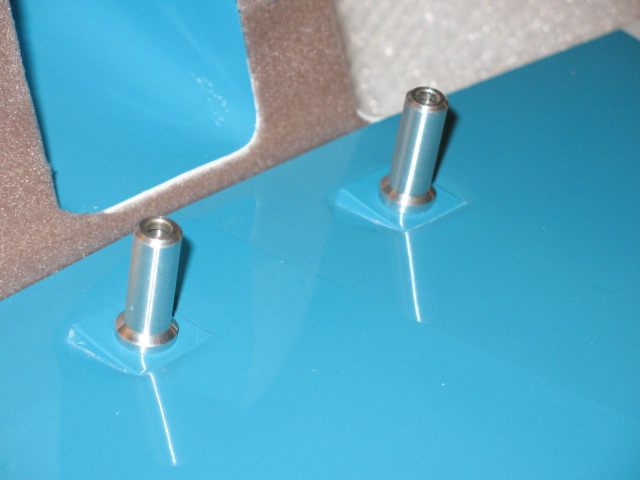

One thing I have noticed, the mounting point/ platform on the wing is not that strong. You can easily crush it if you over tighten the wing bolts, even if you use some relatively big flat washers to spread the load. In addition, you always have to worry about losing the wing bolts after removing the wing.

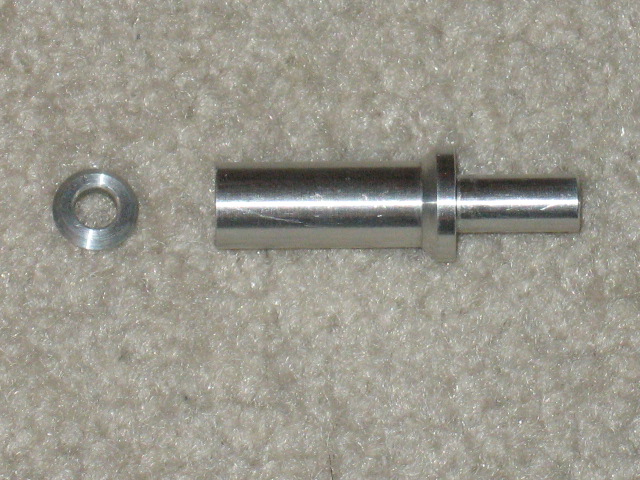

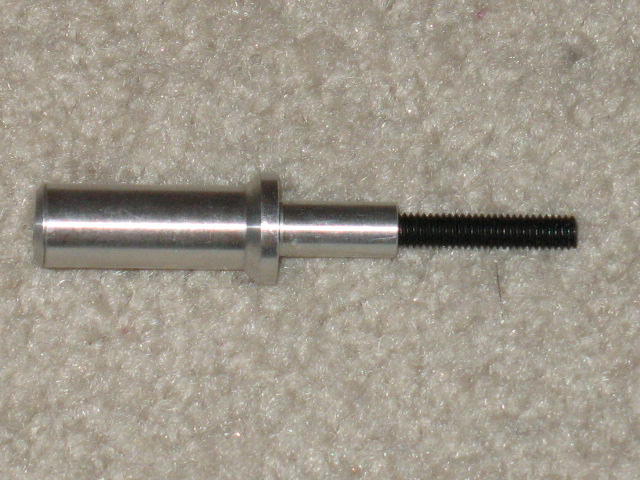

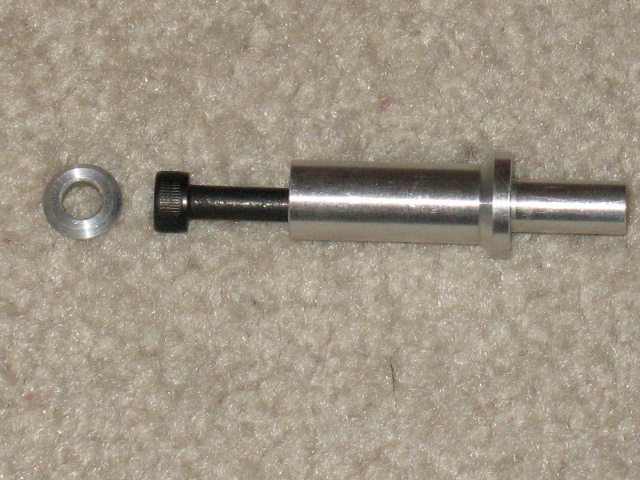

Luckily, I have some aluminum wing bolt retainers with a cap opening for M4 bolts. Once the bolt is inside, you glue the cap with epoxy, and you no longer have to worry about bolts falling out. Then, after you glue those retainers onto the wing with slow cured epoxy, you're done. The mounting bolts will always go in straight, and you will never have to worry about damaging the mounting platform.
Attached Thumbnails Click image for larger version

Name:	Vt56355.jpg
Views:	33
Size:	70.4 KB
ID:	1181224   Click image for larger version

Name:	Rm37332.jpg
Views:	36
Size:	80.5 KB
ID:	1181225   Click image for larger version

Name:	Sx60418.jpg
Views:	34
Size:	131.3 KB
ID:	1181226   Click image for larger version

Name:	Qk22736.jpg
Views:	35
Size:	136.9 KB
ID:	1181227   Click image for larger version

Name:	Ep86346.jpg
Views:	41
Size:	142.8 KB
ID:	1181228   Click image for larger version

Name:	Ja42145.jpg
Views:	42
Size:	136.1 KB
ID:	1181229   Click image for larger version

Name:	Jl94994.jpg
Views:	36
Size:	68.7 KB
ID:	1181230   Click image for larger version

Name:	Sr59162.jpg
Views:	30
Size:	69.9 KB
ID:	1181231

Old 04-16-2009, 03:51 PM
  #21
tggilkey
Senior Member

Join Date: Nov 2003
Location: Mendota Hts., MN
Posts: 175
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Adrian

What is the thickness of the foam tape?

Have you seen a comparable product in the States?

The build is looking good! Keep the photos coming.

Thanks,
Tom
Old 04-16-2009, 05:50 PM
  #22
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200


ORIGINAL: tggilkey

Adrian

What is the thickness of the foam tape?

Have you seen a comparable product in the States?

The build is looking good! Keep the photos coming.

Thanks,
Tom

Tom,

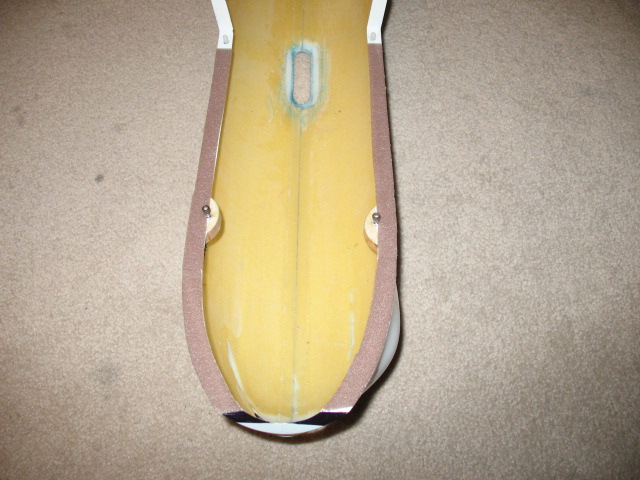

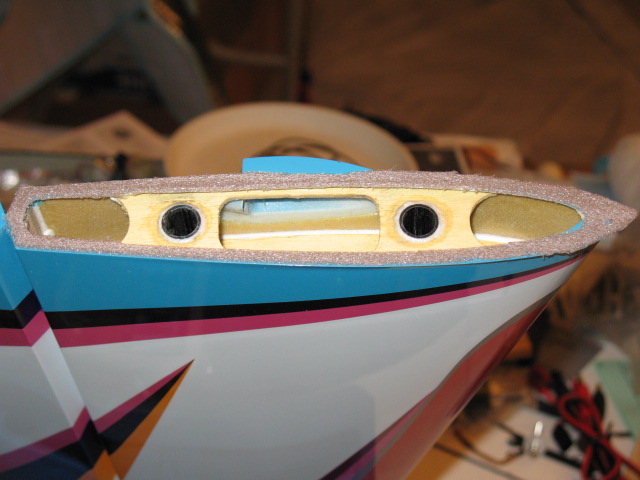

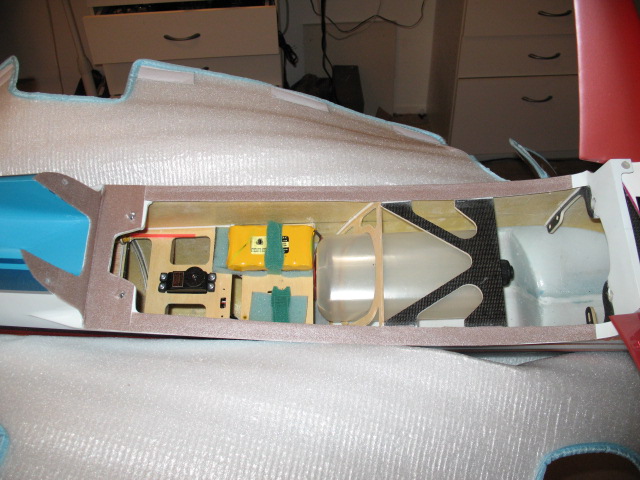

According to the packaging, L - 7 m x W - 40 mm x Thickness - 2 mm.

I have not seen anything comparable here in the States. Then, again, I have never really did much of a search on the net either.

Adrian
Old 04-21-2009, 02:50 AM
  #23
riot3d
Thread Starter

Join Date: Feb 2005
Location: oakland, CA
Posts: 1,081
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

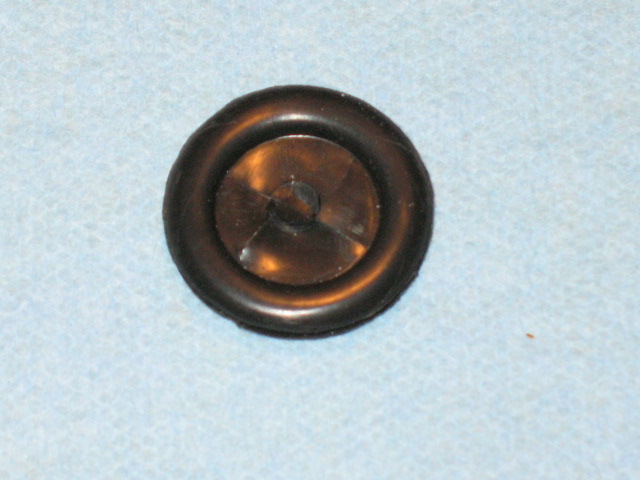

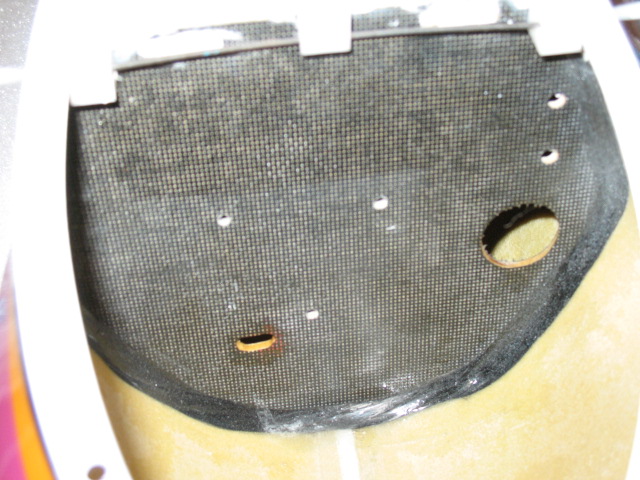

I finally found some time to start installing the engine. First, two holes has to be cut on the firewall. One for the spark plug cable, the other for the timing sensor wire. Be sure to insert rubber grommet onto the firewall to prevent the spark plug cable from chaffing.

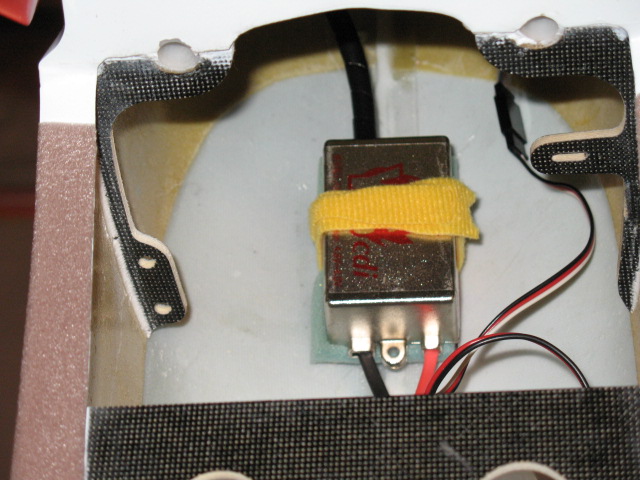

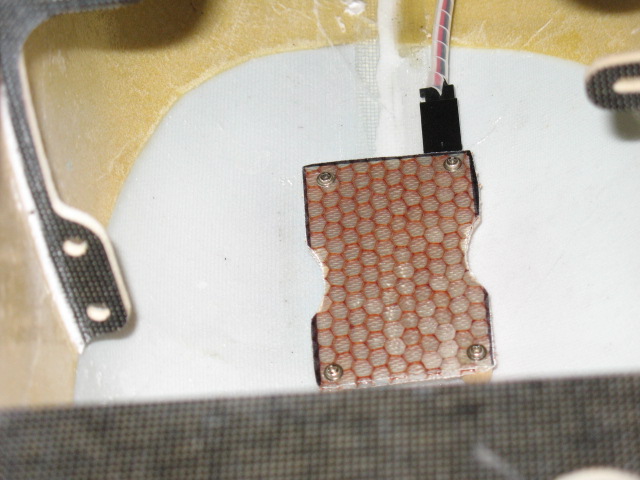

The next step is to install a honeycomb platform for the cdi unit, all real straight forward. Next is to install plumbing, throttle servo/ push rod, header and pipe. Hopefully, will get that taking care of in the next two evenings.
Attached Thumbnails Click image for larger version

Name:	Sq47716.jpg
Views:	32
Size:	120.7 KB
ID:	1184470   Click image for larger version

Name:	Ie98256.jpg
Views:	30
Size:	84.9 KB
ID:	1184471   Click image for larger version

Name:	Sx63261.jpg
Views:	43
Size:	74.6 KB
ID:	1184472   Click image for larger version

Name:	Yr48042.jpg
Views:	32
Size:	92.1 KB
ID:	1184473   Click image for larger version

Name:	Yk66783.jpg
Views:	26
Size:	91.4 KB
ID:	1184474   Click image for larger version

Name:	Qh66660.jpg
Views:	35
Size:	103.0 KB
ID:	1184475   Click image for larger version

Name:	Qs29508.jpg
Views:	36
Size:	95.5 KB
ID:	1184476   Click image for larger version

Name:	Ml38280.jpg
Views:	42
Size:	95.8 KB
ID:	1184477

Click image for larger version

Name:	Yw38791.jpg
Views:	30
Size:	88.1 KB
ID:	1184478   Click image for larger version

Name:	Ht87948.jpg
Views:	29
Size:	94.5 KB
ID:	1184479   Click image for larger version

Name:	Ua15622.jpg
Views:	28
Size:	105.1 KB
ID:	1184480   Click image for larger version

Name:	It80598.jpg
Views:	31
Size:	112.1 KB
ID:	1184481
Old 04-27-2009, 05:23 AM
  #24
dragonlhk2388
Junior Member

Join Date: Mar 2007
Location: Hong Kong, BC, HONG KONG
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

good job Adrian,happy landing. Altair really flies good. you will enjoy much from it I,m sure.
Old 04-27-2009, 04:17 PM
  #25
Ryan Smith
Senior Member
My Feedback: (25)

Join Date: Mar 2002
Posts: 1,579
Likes: 0
Received 0 Likes on 0 Posts
Default RE: X-treme Composite Altair 200

Adrian,

Do you get your valve covers painted overseas, or do you do them yourself? Do you know what kind of paint is used?

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
