Tank Plans
Hey Fellas!
I've been kicking around doing some scratchbuilt tanks since nobody makes them in 1/16 scale. Where would I get the plans for them? I've seen guys with plans for the Panther where they simply made a trace of the slab of armor and traced it right onto the material to be cut. I'd like something like that but anything is a start. Anything you can provide would be greatly appreciated!
I've been kicking around doing some scratchbuilt tanks since nobody makes them in 1/16 scale. Where would I get the plans for them? I've seen guys with plans for the Panther where they simply made a trace of the slab of armor and traced it right onto the material to be cut. I'd like something like that but anything is a start. Anything you can provide would be greatly appreciated!
#2
Senior Member
Join Date: Apr 2006
Location: Launceston, AUSTRALIA
Posts: 2,161
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tank Plans
paper models? heaps can be found on P2P programs, just look for "Papermodels@Emule" or just "paper model ______ " (insert tank name). Theres tons out there!!
#6
Senior Member
Join Date: Apr 2006
Location: Launceston, AUSTRALIA
Posts: 2,161
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tank Plans
Would an Elephant do?
(Papermodels@emule) [GPM 147] [Armor] SdKfz 184 Tiger I (Elephant).pdf - 39mb
Have attached some pics of the complete paper model in 1/25, and an example of the plans
(Papermodels@emule) [GPM 147] [Armor] SdKfz 184 Tiger I (Elephant).pdf - 39mb
Have attached some pics of the complete paper model in 1/25, and an example of the plans
#7
RE: Tank Plans
Here are some site I've run across
http://cardmodelshop.com/store2/prod...fb9eab23e9369e
http://www.papermodelstore.com/advan...8229a6&x=0&y=0
If you look at Merle Mohring's Elephant on our site, he started out with a paper model, and scaled it to fit an old King Tiger chassis he had. In first few photos you can see the paper pattern's camouflage still on the tank.
http://web.mac.com/ksoc/Special_Proj..._184_Ferd.html
Good luck
http://cardmodelshop.com/store2/prod...fb9eab23e9369e
http://www.papermodelstore.com/advan...8229a6&x=0&y=0
If you look at Merle Mohring's Elephant on our site, he started out with a paper model, and scaled it to fit an old King Tiger chassis he had. In first few photos you can see the paper pattern's camouflage still on the tank.
http://web.mac.com/ksoc/Special_Proj..._184_Ferd.html
Good luck
#9
RE: Tank Plans
If you have ACAD you can make a very accurate as I did for the Zrinyi:
http://www.sead.us/Zrinyi-Eric-Views.pdf
http://www.sead.us/Zrinyi-Eric-Views.pdf
#11
Senior Member
Join Date: Jan 2006
Location: Colona,
IL
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tank Plans
ORIGINAL: wackywheelz
Would an Elephant do?
(Papermodels@emule) [GPM 147] [Armor] SdKfz 184 Tiger I (Elephant).pdf - 39mb
Have attached some pics of the complete paper model in 1/25, and an example of the plans
Would an Elephant do?
(Papermodels@emule) [GPM 147] [Armor] SdKfz 184 Tiger I (Elephant).pdf - 39mb
Have attached some pics of the complete paper model in 1/25, and an example of the plans
SURE DOES!!!!!! Thansk Very Much WACKYWHEELS
#13
Senior Member
Join Date: Aug 2007
Location: Cardiff,
ON, CANADA
Posts: 1,439
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tank Plans

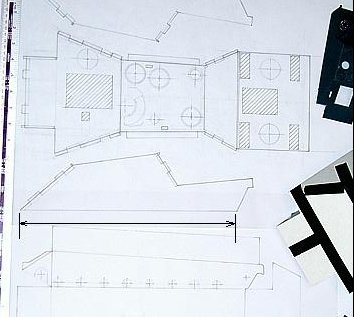

Wozwasnt can you give me the measurement I have indicated on your drawing? I need to check an enlargement of a paper model I enlarged from a printout of the pdf tank file
#20
RE: Tank Plans
If you're printing out PDF's then make sure that the plans are all in the same direction ie the front of the tank is always facing the top.
A lot of printers distort an image (usually length ways) as the paper feed isn't 100% accurate. Even top end printers can have this problem.
A lot of printers distort an image (usually length ways) as the paper feed isn't 100% accurate. Even top end printers can have this problem.
