Tamiya Leo 2 instructions
Hi
I just got a hold of a nice Tamiya Leo 2 but I did not get the little book that comes with it describing the full options functions. Does anybody have a scan of this or know where I can get one or alternativly tell me what all these are on the handset.
THanks
Gorehound
I just got a hold of a nice Tamiya Leo 2 but I did not get the little book that comes with it describing the full options functions. Does anybody have a scan of this or know where I can get one or alternativly tell me what all these are on the handset.
THanks
Gorehound
#3
Thread Starter
Join Date: Feb 2006
Location: HighlandsScotland, UNITED KINGDOM
Posts: 628
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tamiya Leo 2 instructions
Thanks H8ted. They don't have the one I need as it only has the build manual for the Leo 2 but it is a very useful link for future needs thanks
cheers
cheers
#4
RE: Tamiya Leo 2 instructions
h8ted, try Willy at his site, custom R/C models he may be able to help you with the manual you need. His address is www.customrcmodels.com
Good luck,
jjackso5
Good luck,
jjackso5
#5
RE: Tamiya Leo 2 instructions
*All transmitter references are with the Futaba Attack 4WD, set up according to the manual.
Movement
Left Stick: Stick Up=Hull Forward Stick Down=Hull Reverse Stick Left=Turret Left Rot Stick Right=Turret Right Rot
Right Stick: Stick Up=Cannon Up Stick Down=Cannon Down Stick Left=Hull Left Stick Right=Hull Right
Turret Weapons
Right Stick UP/DOWN TRIM fully up=Main Gun Fire when Right Stick is pushed up quickly
Right Stick UP/DOWN TRIM fully down=Coax gun fire when Right Stick is pulled down quickly
Light Modes
Left Stick LEFT/RIGHT TRIM fully left=Rotation Light ON/OFF when Left Stick is pushed left quickly.
Left Stick LEFT/RIGHT TRIM fully right=Cycle through B/N light modes when Left Stick is pushed right quickly
Left Stick LEFT/RIGHT TRIM fully right AND Right Stick UP/DOWN TRIM fully up=Select B/N light modes when Left Stick is first pushed right and held, then Right Stick is pushed up quickly.
Tank-Engine ON/OFF
Left Stick LEFT/RIGHT TRIM fully right AND Right Stick UP/DOWN TRIM fully down=Tank-Engine ON/OFF when Left Stick is first pushed right and held, then Right Stick is pulled down quickly.
DMD panel
VR1 = Channel 3/4 dead band range trim (R stick UP/DOWN - L stick LEFT/RIGHT used if Main Gun or Turret move when Trims are moved)
VR2 = Main Gun UP/DOWN TRIM (when tank is started or back deck switch is activated)
VR3 = Speaker Volume
PW-ST = Motor Power Setting ST=Standard mode PW=Power Mode
N1-N3/B0-B3 = Indicator Lights and Switches for Battle Mode Lights (B) and Non-Battle Mode Lights (N)
L M H = Tank Recoil Movement and Main Gun Fire interval
L = light tank/large recoil/3-5 second reload time
M = medium tank/medium recoil/5 second reload time
H = heavy tank/small recoil/9 second reload time
Hope this helps.
Movement
Left Stick: Stick Up=Hull Forward Stick Down=Hull Reverse Stick Left=Turret Left Rot Stick Right=Turret Right Rot
Right Stick: Stick Up=Cannon Up Stick Down=Cannon Down Stick Left=Hull Left Stick Right=Hull Right
Turret Weapons
Right Stick UP/DOWN TRIM fully up=Main Gun Fire when Right Stick is pushed up quickly
Right Stick UP/DOWN TRIM fully down=Coax gun fire when Right Stick is pulled down quickly
Light Modes
Left Stick LEFT/RIGHT TRIM fully left=Rotation Light ON/OFF when Left Stick is pushed left quickly.
Left Stick LEFT/RIGHT TRIM fully right=Cycle through B/N light modes when Left Stick is pushed right quickly
Left Stick LEFT/RIGHT TRIM fully right AND Right Stick UP/DOWN TRIM fully up=Select B/N light modes when Left Stick is first pushed right and held, then Right Stick is pushed up quickly.
Tank-Engine ON/OFF
Left Stick LEFT/RIGHT TRIM fully right AND Right Stick UP/DOWN TRIM fully down=Tank-Engine ON/OFF when Left Stick is first pushed right and held, then Right Stick is pulled down quickly.
DMD panel
VR1 = Channel 3/4 dead band range trim (R stick UP/DOWN - L stick LEFT/RIGHT used if Main Gun or Turret move when Trims are moved)
VR2 = Main Gun UP/DOWN TRIM (when tank is started or back deck switch is activated)
VR3 = Speaker Volume
PW-ST = Motor Power Setting ST=Standard mode PW=Power Mode
N1-N3/B0-B3 = Indicator Lights and Switches for Battle Mode Lights (B) and Non-Battle Mode Lights (N)
L M H = Tank Recoil Movement and Main Gun Fire interval
L = light tank/large recoil/3-5 second reload time
M = medium tank/medium recoil/5 second reload time
H = heavy tank/small recoil/9 second reload time
Hope this helps.
#6
Thread Starter
Join Date: Feb 2006
Location: HighlandsScotland, UNITED KINGDOM
Posts: 628
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tamiya Leo 2 instructions
That is superb thanks Ron. I had figured most out by trial and error but there were a couple I had not found so this is invaluable for me.
cheers again
Gorehound
cheers again
Gorehound
#7
Senior Member
Join Date: Mar 2007
Location: Brea, CA
Posts: 1,751
Likes: 0
Received 0 Likes
on
0 Posts
RE: Tamiya Leo 2 instructions

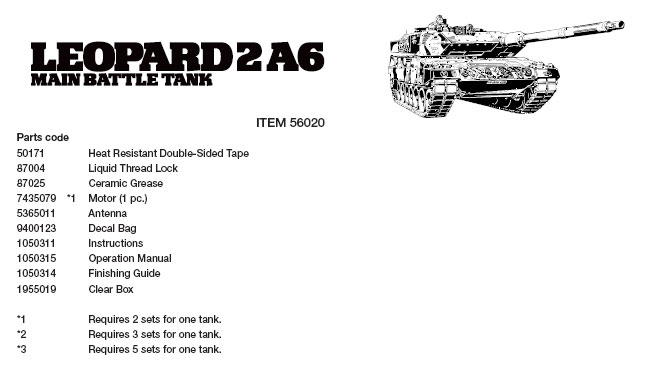

Order, online, a Tamiya Leo operations manual part number 1050315 here: https://www.tamiyausa.com/contact/index.php
Go here for rc setup basics: http://www.customrcmodels.com/Tanks/id92.htm
Go here for rc setup basics: http://www.customrcmodels.com/Tanks/id92.htm
