Comp ARF BAE Hawk build thread

Reply
Old 12-12-2012, 07:14 AM
  #976
RCISFUN

RCISFUN's Avatar

Join Date: Apr 2002
Location: Erie, PA
Posts: 6,098
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread


Quote:
ORIGINAL: jkeze

I used a Hitec 645 on the nose gear sterring. Metal gears and enough power and fast enough.
+1
RCISFUN is offline
Reply With Quote
Old 12-13-2012, 06:44 PM
  #977
husafreak

husafreak's Avatar

Join Date: Dec 2004
Location: Livermore, CA
Posts: 723
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Thanks for everyone's help. I settled on DS8711's for the elevators and DS8411's for the ailerons for appropriate power and ultimate precision. I am trying out the Spectrum (Savox) A6030 servos on steering, rudder and flaps. They are digital MG servos with 278 oz in of torque and at 68$ a pop very reasonable. They are performing well in another large jet I know of. I personally wanted digital on steering, especially if I elect to use a gyro. The JR 579 is not sold here in the states.
husafreak is offline
Reply With Quote
Old 12-17-2012, 09:59 AM
  #978
husafreak

husafreak's Avatar

Join Date: Dec 2004
Location: Livermore, CA
Posts: 723
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Has anyone tried an Airpower EV5 sequencer in a Hawk? It is recommended by Todd at Dreamworks and has apparently had some bugs worked out so it is a solid unit now. I looked a a great variety of ways to do the gear/brakes but they all end up costing as much and being a great deal more complicated to assemble than the EV5, this on account that I want air pressure readouts, low pressure failsafe, and proportional braking. http://dreamworksrc.com/catalog/func...lve-p-756.html
husafreak is offline
Reply With Quote
Old 12-17-2012, 10:54 AM
  #979
dubd

dubd's Avatar

Join Date: Aug 2007
Location: Bay Area, CA
Posts: 4,253
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Eric, the EV5 unit is very popular and has been out for a few years. I have used them in almost all my jets with only one being defective. If you do a search on RCU you will find a number of threads on it.
dubd is offline
Reply With Quote
Old 12-17-2012, 11:15 AM
  #980
husafreak

husafreak's Avatar

Join Date: Dec 2004
Location: Livermore, CA
Posts: 723
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Sweet!
husafreak is offline
Reply With Quote
Old 12-28-2012, 11:20 AM
  #981
Zetti

Join Date: Nov 2009
Location: , GERMANY
Posts: 11
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Hi Guys,

just got my Navy Hawk right before christmas (ordered in november this year) and started building now.

So fare everything seems fine, but there are two things I'm wondering about:

1.) There's no cut out for the rudder servo

2.) The flap rod hole and especially the flap horn are misaligned

Since the instructions say, that this only occurs on early kits - I'm wondering how this can happen? Is it possible that CARF sold me an "old" leftover kit??? Or are these things still not sorted out, even in the new kits?

Many thanks and greetings from Germany

Stephan
Zetti is offline
Reply With Quote
Old 12-28-2012, 12:04 PM
  #982
luv2flyrc

luv2flyrc's Avatar

Join Date: Jan 2002
Location: Mississauga, ON, CANADA
Posts: 1,616
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread


Quote:
ORIGINAL: Zetti

Hi Guys,

just got my Navy Hawk right before christmas (ordered in november this year) and started building now.

So fare everything seems fine, but there are two things I'm wondering about:

1.) There's no cut out for the rudder servo

2.) The flap rod hole and especially the flap horn are misaligned

Since the instructions say, that this only occurs on early kits - I'm wondering how this can happen? Is it possible that CARF sold me an "old" leftover kit??? Or are these things still not sorted out, even in the new kits?

Many thanks and greetings from Germany

Stephan
I think if I remember correctly, there's paperwork on or in the CARF box that will tell you the date of manufacture. It's on bottom of the list on contents. I don't think CARF has corrected these problems even in later runs as both my Hawks, Display scheme and Red Arrows are like this. The fixes are very easy though and not much of an issue.

Mike

luv2flyrc is online now
Reply With Quote
Old 12-28-2012, 12:42 PM
  #983
Dave Wilshere
Thread Starter

Join Date: Jun 2002
Location: Watford, UNITED KINGDOM
Posts: 9,452
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread


Quote:
ORIGINAL: Zetti

Hi Guys,

just got my Navy Hawk right before christmas (ordered in november this year) and started building now.

So fare everything seems fine, but there are two things I'm wondering about:

1.) There's no cut out for the rudder servo

2.) The flap rod hole and especially the flap horn are misaligned

Since the instructions say, that this only occurs on early kits - I'm wondering how this can happen? Is it possible that CARF sold me an ''old'' leftover kit??? Or are these things still not sorted out, even in the new kits?

Many thanks and greetings from Germany

Stephan

Stephan

The fins are normally cut, but if yours is not follow the pictures and put a hole in the rough centre and Dremel out to the plywood. I thought the flap horns were sorted, I'll talk with the factory and see what's up. Easy fix even if you shouldn't have to do it.
Almost no chance its an old kit!

regards

Dave Wilshere
Dave Wilshere is offline
Reply With Quote
Old 12-28-2012, 02:44 PM
  #984
Zetti

Join Date: Nov 2009
Location: , GERMANY
Posts: 11
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Hi Mike, hi Dave,

just looked and the quality seals say 05/2011 - so it's over a year old! Nevertheless should it be "young" enough not to have the reported issues!? Interesting that other points which are reported in the manual are okay - e.g. the double control horns on the elevator are factory installed.

So the cut in the fin shouldn't be a big deal, but cracking the flap horns makes me nervous! Should I mill the bondig first and hope that the horns stay in one piece, or is the cut meant to be breaking the horn in two and glue the upper part in again!? The later is nothing I would trust in!!!

Regards

Stephan
Zetti is offline
Reply With Quote
Old 12-28-2012, 04:43 PM
  #985
luv2flyrc

luv2flyrc's Avatar

Join Date: Jan 2002
Location: Mississauga, ON, CANADA
Posts: 1,616
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Stephan,

Some people have moved the horn but, my "fix" was simply to "raise" the flap servo in it's pocket by blocking it up enough to move it over in proper alignment with the horn. You have to elongate the opening in the the shear webbing to allow the control rod to move over and line up with the horn as well. I hope you can follow what I am saying without a picture.

Also, I slipped carbon fibre tubes of the appropriate size over the flap push rods to stiffen them as I found they can flex under load with out the reinforcement.

Mike
luv2flyrc is online now
Reply With Quote
Old 12-28-2012, 08:13 PM
  #986
afterburner

afterburner's Avatar

Join Date: Jun 2002
Location: New City, NY
Posts: 2,894
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Stephan,
I received my Hawk last May 2012 and it was a 2010 production. I had the same issues. The cutout for the rudder is a two minute fix. The flap misalignment not so fast. I tried the "cracking' of the horn but that didn't turnout so well for me. I ended up dremeling the entire horn out and making new horns and re-seating them into the wood and then used blocking wood on each side of the new horn and aeropoxied it. It was time consuming and a little frustrating trying to get the correct shape of the replacement horns but in the end it was worth it. I also used carbon fiber tubes on all the threaded control rods for all the surfaces.

Marty
afterburner is offline
Reply With Quote
Old 12-29-2012, 02:21 AM
  #987
Stig Andersen

Stig Andersen's Avatar

Join Date: Feb 2003
Location: Nordborg, DENMARK
Posts: 1,277
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Hi.
I got my Hawk kit the week before Christmas. I had the same issues as Stephan. But is was an easy fix. The Q-seal is dated 6/2011. I used brass tubing over the 3 mm threaded pushrod for the flaps.

Is there a good alternative to the sport gear from CARF?
Attached Thumbnails
Click image for larger version

Name:	Us53806.jpg
Views:	107
Size:	77.2 KB
ID:	1834478
Stig Andersen is offline
Reply With Quote
Old 12-29-2012, 02:32 AM
  #988
Stig Andersen

Stig Andersen's Avatar

Join Date: Feb 2003
Location: Nordborg, DENMARK
Posts: 1,277
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Another question.

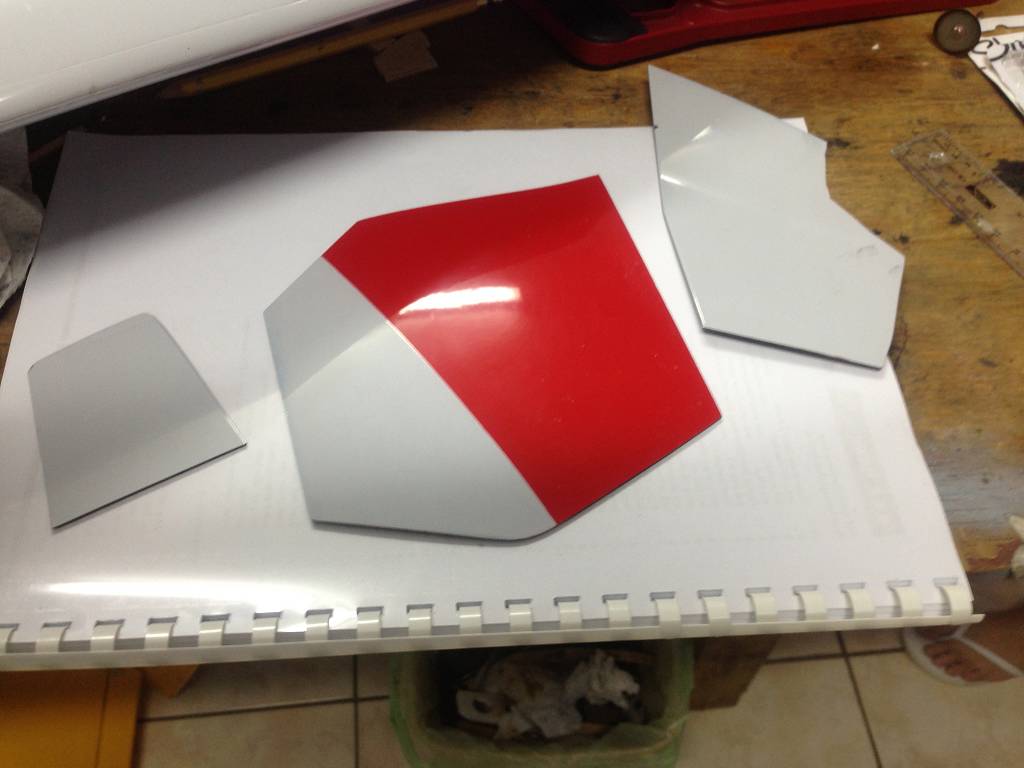

The carbon tube for the all flying elevater is oversize. I cannot find any procedure in the manual for this carbon tube. What is to be done with it?
Attached Thumbnails
Click image for larger version

Name:	Ca80593.jpg
Views:	127
Size:	80.6 KB
ID:	1834480
Stig Andersen is offline
Reply With Quote
Old 12-29-2012, 03:03 AM
  #989
fireblade5437

fireblade5437's Avatar

Join Date: Dec 2005
Location: Leicester, UNITED KINGDOM
Posts: 907
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Stig

How much is the carbon tube out by? mm?

Mine was tight I just 'polished' with 1000 wet/dry paper

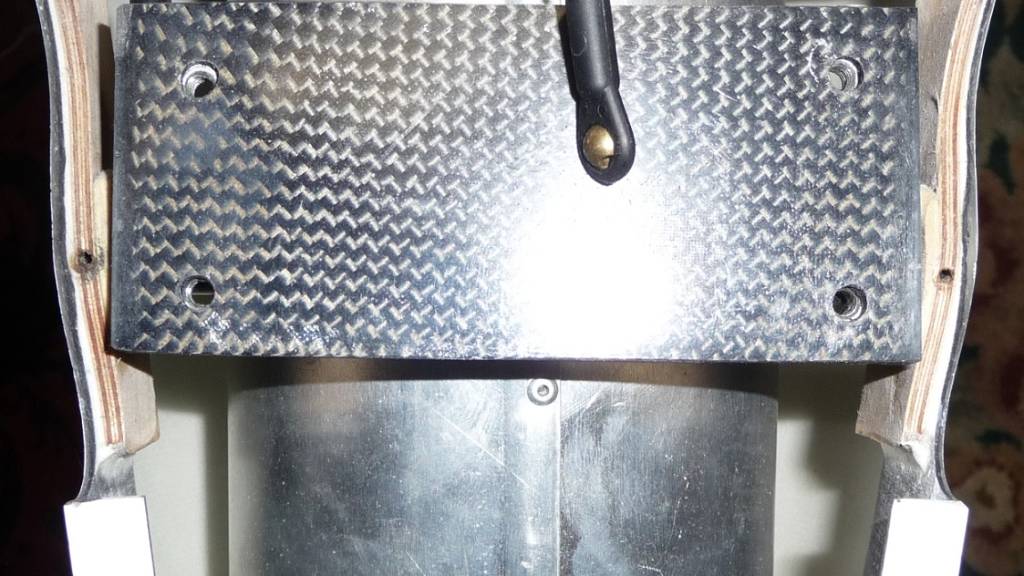

Some pics of the fittings I made for end of carbon tube also the servo mount I made out out FG board as the wooden ones in my kit.... well I would not use them for what they were intended for...

Also made bushes for the purple servo arms (Phosphor bronze) so there was zero play in clevis. Grey glue is Hysol 9461 same tear strength as 9462 but works out a lot cheaper I buy it in tubes of 200ml (400ml total)

From: grampianfasteners.com

Loctite® Hysol® 9461 A&B 400ml (451233) 1 £36.84 £7.37 £44.21
Sub Total: £36.84
Delivery: £3.50
VAT: £8.07
Total: £48.41

From site:

Description
Loctite® Hysol® 9461 A&B
Loctite® Hysol® 9461 A&B is a toughened, 2K-Epoxy adhesive, suitable for applications requiring gap filling and high peel strength. Ideal for bonding dissimilar substrates like GRP, SMC and composites.
This product requires: Loctite® Dual Cartridge Dispenser

Specifications
• Non-sag paste
• Heat accelerated (4 min. @ 120°C)
• High peel strength

Typical Properties
• Mix ratio by volume: 1:1
• Mix ratio by weight: 100:100
• Working life: 40 min.
• Fixture time: 240 min.
• Colour: Grey
• Viscosity: 270 Pa.s
• Shear strength (GBMS): 24 N/mm²
• Peel strength (GBMS): 10.0 N/mm
• Operating temperature: up to 100°C

Description
Code
Price
(Inc. VAT )
Est. Delivery

50ml

451231
£13.72
In stock


400ml

451233

£46.67

1 week

Alan
Attached Thumbnails
Click image for larger version

Name:	Zx69989.jpg
Views:	153
Size:	172.5 KB
ID:	1834481   Click image for larger version

Name:	Cx75509.jpg
Views:	128
Size:	109.4 KB
ID:	1834482   Click image for larger version

Name:	Kh17342.jpg
Views:	102
Size:	113.5 KB
ID:	1834483
fireblade5437 is offline
Reply With Quote
Old 12-29-2012, 05:34 AM
  #990
Dave Wilshere
Thread Starter

Join Date: Jun 2002
Location: Watford, UNITED KINGDOM
Posts: 9,452
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

The horn crack I literally got the horn held in some bull nose pliers, bent it the direction needed till they cracked, soaked in some thin CA and ran a bead of hysol.
The fibrous horns generally hang together.

The carbon pivot, I cut flush and pinned inside the bearings.

Dave
Dave Wilshere is offline
Reply With Quote
Old 12-29-2012, 06:06 AM
  #991
RCISFUN

RCISFUN's Avatar

Join Date: Apr 2002
Location: Erie, PA
Posts: 6,098
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Stig,

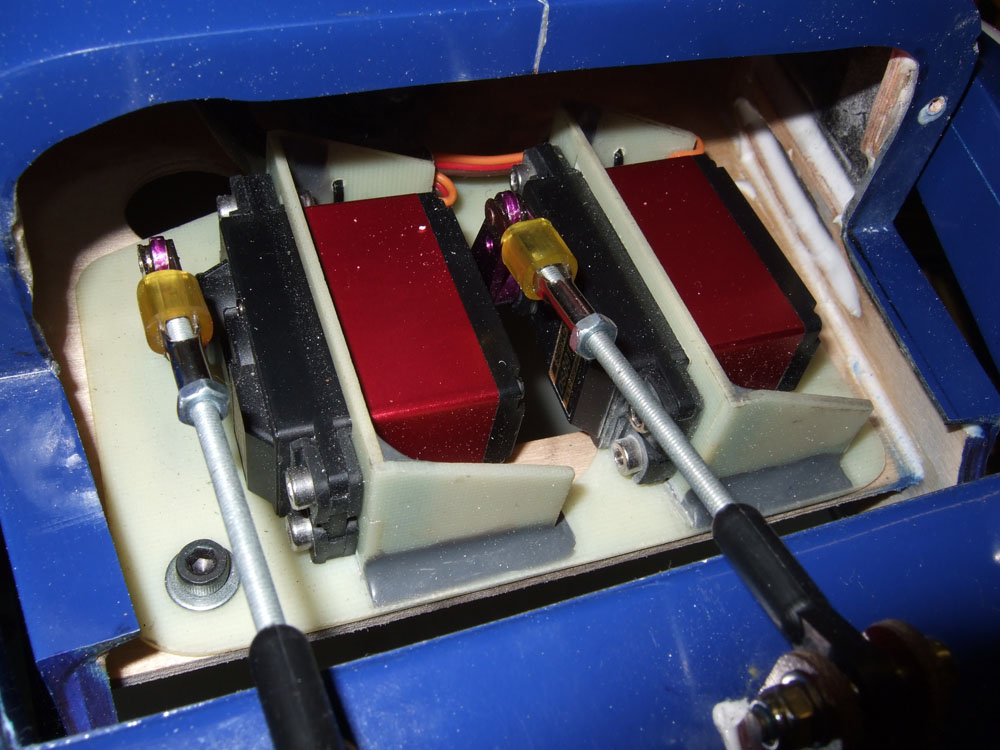

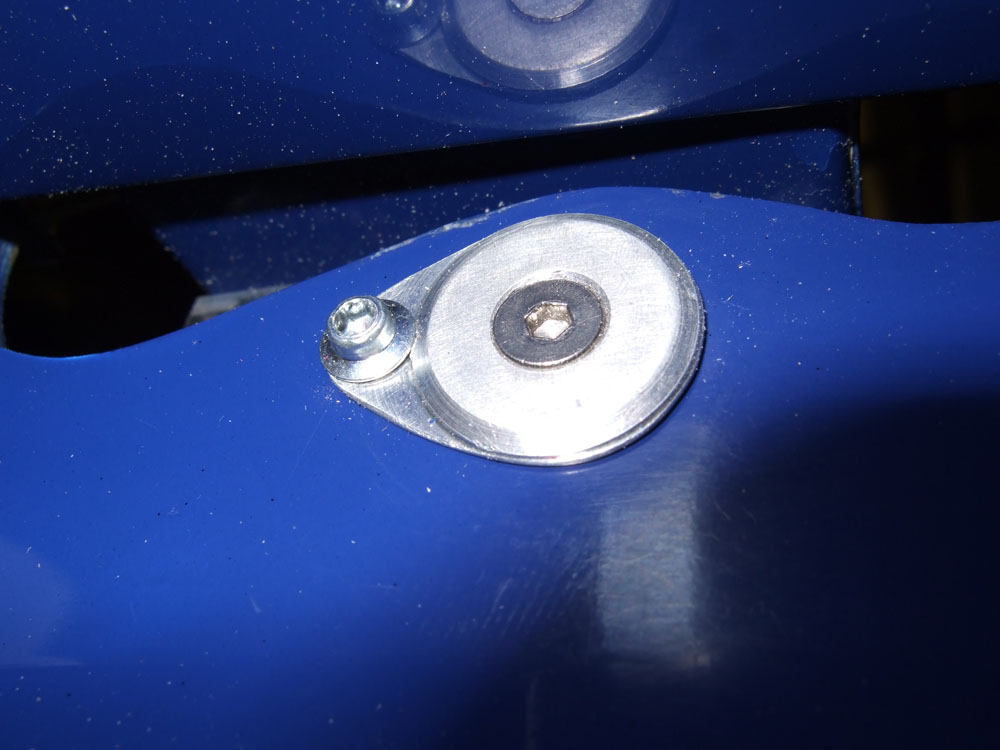

My tube was cut flush and pinned, it looks like an extra inner piece of plywood was added to take up the slop.

In the photos the pins are removed I need to install before the final assembly.
Attached Thumbnails
Click image for larger version

Name:	Nl28946.jpg
Views:	108
Size:	96.5 KB
ID:	1834534   Click image for larger version

Name:	Sn41202.jpg
Views:	121
Size:	75.8 KB
ID:	1834535   Click image for larger version

Name:	Dj11367.jpg
Views:	112
Size:	63.8 KB
ID:	1834536   Click image for larger version

Name:	Qk21866.jpg
Views:	122
Size:	62.7 KB
ID:	1834537   Click image for larger version

Name:	Uf50507.jpg
Views:	133
Size:	26.5 KB
ID:	1834538

RCISFUN is offline
Reply With Quote
Old 12-29-2012, 07:29 AM
  #992
afterburner

afterburner's Avatar

Join Date: Jun 2002
Location: New City, NY
Posts: 2,894
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

I had some hardwood dowel in my wood box that was a perfect slip fit inside the CF tube. I epoxied that in the tube, cut it flush to the outside of the fuse and then pnned it inside the fuse on both sides with small diameter CF tube. I felt more comfortable drilling through a solid tube.

Marty
afterburner is offline
Reply With Quote
Old 12-30-2012, 02:15 AM
  #993
Stig Andersen

Stig Andersen's Avatar

Join Date: Feb 2003
Location: Nordborg, DENMARK
Posts: 1,277
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Thanks for the input. [8D]

Can anybody tell me if there is a good alternative to the sport landing gear from C-ARF. I want to do a T-45-like version of the Hawk with twin nose wheels.
Stig Andersen is offline
Reply With Quote
Old 01-07-2013, 11:35 AM
  #994
fireblade5437

fireblade5437's Avatar

Join Date: Dec 2005
Location: Leicester, UNITED KINGDOM
Posts: 907
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

TUCSON (Stan)

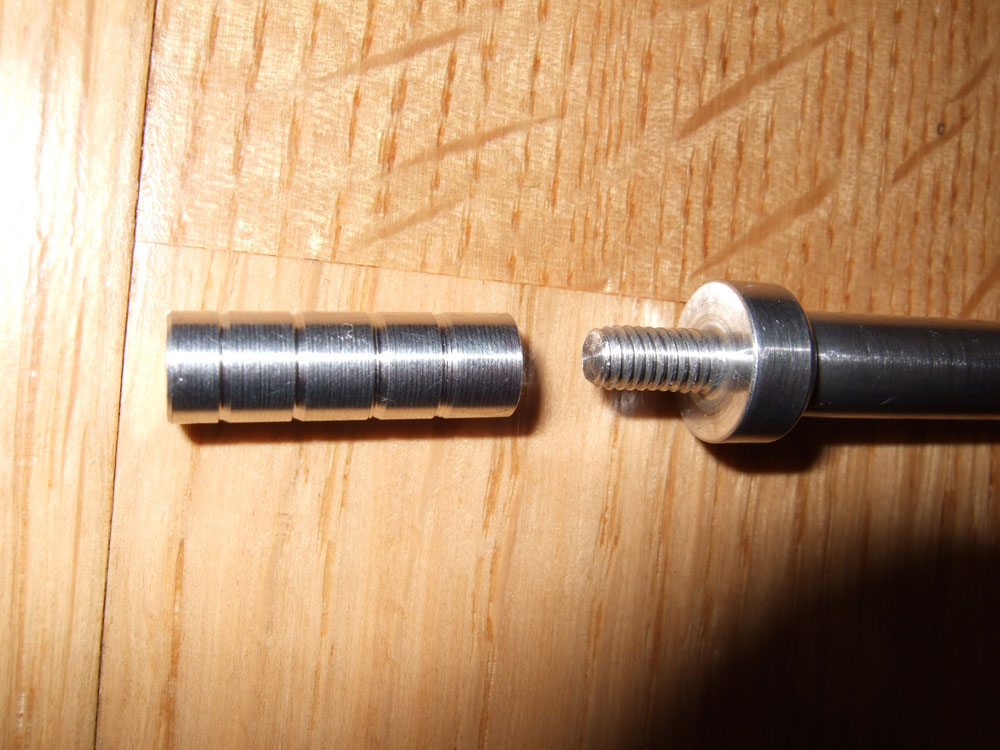

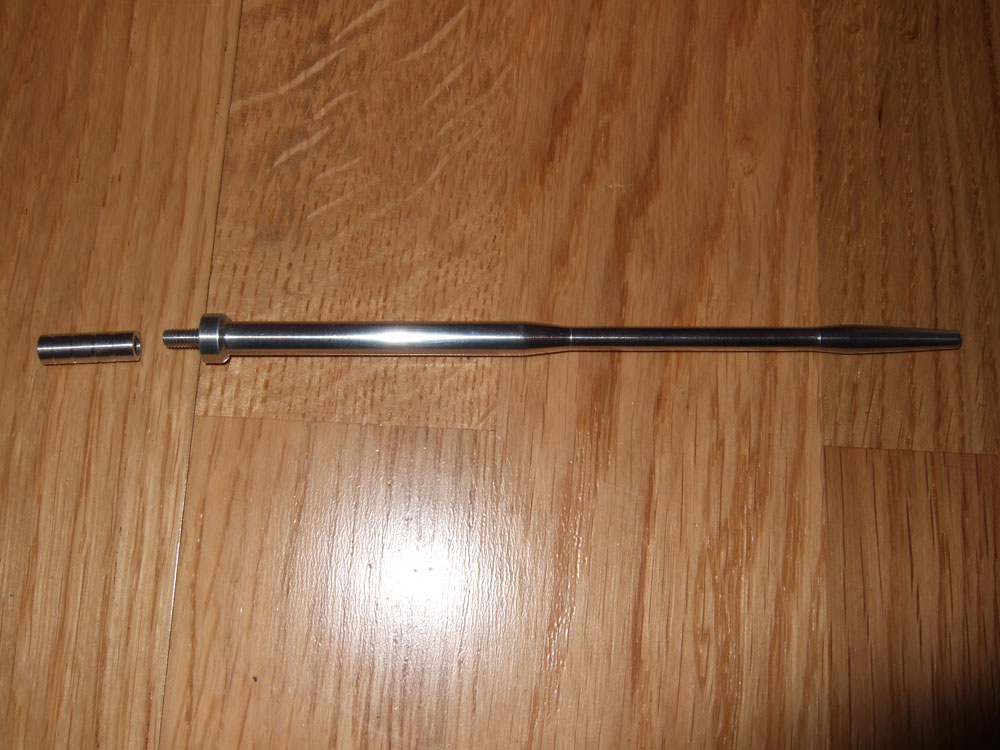

Your pitot probe for your CARF Hawk is finished, will pack into a carbon tube for protection then it will be on it's way over the pond!

Alan

Attached Thumbnails
Click image for larger version

Name:	Hf99023.jpg
Views:	71
Size:	169.8 KB
ID:	1837828   Click image for larger version

Name:	Mh19360.jpg
Views:	72
Size:	175.8 KB
ID:	1837829
fireblade5437 is offline
Reply With Quote
Old 01-07-2013, 12:52 PM
  #995
Dave Wilshere
Thread Starter

Join Date: Jun 2002
Location: Watford, UNITED KINGDOM
Posts: 9,452
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread


Quote:
ORIGINAL: Stig Andersen

Thanks for the input. [8D]

Can anybody tell me if there is a good alternative to the sport landing gear from C-ARF. I want to do a T-45-like version of the Hawk with twin nose wheels.

Not really, though Jet 1A in Austria did some sets for the Hawk, Peter might be able to build you a nose unit with a twin wheel nose leg..

Dave W
Dave Wilshere is offline
Reply With Quote
Old 01-07-2013, 01:32 PM
  #996
tucson

Join Date: Dec 2001
Location: tucson, AZ
Posts: 776
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Alan,

The probe looks great.

You are quite the craftsman.

Looking forward (No pun intended) to putting it on my Hawk.

Thank you,

Stan



tucson is offline
Reply With Quote
Old 01-08-2013, 02:56 AM
  #997
Stig Andersen

Stig Andersen's Avatar

Join Date: Feb 2003
Location: Nordborg, DENMARK
Posts: 1,277
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread


Quote:
ORIGINAL: Dave Wilshere

Not really, though Jet 1A in Austria did some sets for the Hawk, Peter might be able to build you a nose unit with a twin wheel nose leg..

Dave W
Thanks, Dave. I ordered the sport landing gear from CARF. Maybe I can do something with the nose leg myself. [8D]
Stig Andersen is offline
Reply With Quote
Old 01-09-2013, 08:08 AM
  #998
Kenrico

Kenrico's Avatar

Join Date: Sep 2004
Location: La Ceiba , HONDURAS
Posts: 461
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Finally got the hawk out of the box today.
will get some pics later
Kenrico is offline
Reply With Quote
Old 01-12-2013, 03:06 PM
  #999
Kenrico

Kenrico's Avatar

Join Date: Sep 2004
Location: La Ceiba , HONDURAS
Posts: 461
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

Started the build last night
Attached Thumbnails
Click image for larger version

Name:	Ur52123.jpg
Views:	127
Size:	72.2 KB
ID:	1839625   Click image for larger version

Name:	Ok28810.jpg
Views:	174
Size:	80.1 KB
ID:	1839626   Click image for larger version

Name:	Ay74739.jpg
Views:	122
Size:	91.2 KB
ID:	1839627   Click image for larger version

Name:	Sq48296.jpg
Views:	108
Size:	53.9 KB
ID:	1839628   Click image for larger version

Name:	Us53818.jpg
Views:	120
Size:	69.6 KB
ID:	1839629

Kenrico is offline
Reply With Quote
Old 01-12-2013, 03:20 PM
  #1000
Kenrico

Kenrico's Avatar

Join Date: Sep 2004
Location: La Ceiba , HONDURAS
Posts: 461
Gallery
My Gallery
Models
My Models
Ratings
My Feedback
Default RE: Comp ARF BAE Hawk build thread

for those who have built the Hawk, where did you route the Aileron Servo extensions? I know Dave said in front on the Spar but does that mean they would exit between the gear and spar like where we would also route the airline?
I was thinking on bringing them behind the spar (between spar and trailing edge) and then enter the center some where by the flap servo. there is also a slot there that looks like it was intended for that but not sure.
any help greatly appreciated !

Thanks!
Kenrico is offline
Reply With Quote
Reply


Thread Tools
Search this Thread
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -8. The time now is 05:27 AM.
