these dots

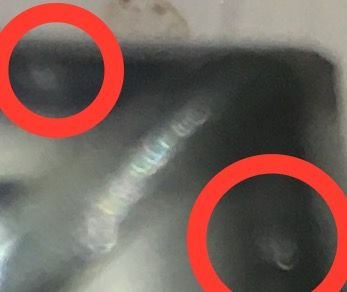

these dots look like spotwelds there are a few more around the joint.
https://cimg5.ibsrv.net/gimg/www.rcu...917d437284.jpg |
Those are not spotwelds, as there is nothing to weld there, also not on the inside. They are probably clamping marks from the welding jig used to hold the two halves in position when welding the two halves together.
|
is this joint a weak point?
It appears only to have welds on the side and not the inside and outside of the joint.
And does it limit the amount of heat this cap can handle if i choose to solder? |
Originally Posted by cmulder
(Post 12740621)
It appears only to have welds on the side and not the inside and outside of the joint.
And does it limit the amount of heat this cap can handle if i choose to solder? I tend to replace the ignition if the cap gets damaged. |
inserts are done - Always a challenge to make little pieces all the same :) had to make a couple for setup. O
https://cimg1.ibsrv.net/gimg/www.rcu...5266f9039b.jpg nce I got rolling I could make one in 10 min.. 3 on the way Lonnie... |
Parts for the printer arrived. Just need to revise the filament spool bracket and I can start printing abs and asa.
https://cimg2.ibsrv.net/gimg/www.rcu...497949c80b.jpg |
Looking good Dave!! how do you like the Bed leveler? I have one but haven't got around to installing it yet.
|
Originally Posted by cmulder
(Post 12740607)
This is the one it appears to already have spotwelds at the joint. The resistor is already inside.
https://cimg6.ibsrv.net/gimg/www.rcu...d9b35dd867.jpg Yes that is the new 1/4-32 plug cap design with the circle clip-loc... those come already spot welded together, just insert the hi-tension lead end into the resistor, and then attach the shield braid... you could use the spot welder to attach the braid, but the silver solder allows easier removal of the braid, if or when you need to replace the plug cap. The ones Bert is referring too are the earlier twist-loc type... those you have to completely assemble the inner insulator, and resistor and then solder the two sections together... the solder would fail if you didn't get a good soldered joint... those twist-loc plug caps are still available from CH ignitions, but they come fully assembled now and induction welded together, all you have to do is just insert the hi-tension lead end and attach the shield braid. I prefer the the twist-loc type myself, but the RCxel 1/4-32 spark plugs have very soft hex base to them, and wear with engine vibration ( mostly 2 strokes )... rounds off the edges and the twist-loc won't hold, that's why they came up with that circle clip-loc idea.... not too impressed with that idea either... I don't know what would be a good solution, none of the 1/4-32 plug caps are any good... CH has the higher quality twist-loc caps, and that's what I've been using along with the Rimfire VR2 / VR2L spark plugs. |
Most definitely prefer the twist lock types too. Their only (slight) downside is that the cap cannot be turned on the plug to get the HT lead in the "perfect" position, but that is only a minor inconvenience.
|
Originally Posted by Cat 1
(Post 12740689)
Looking good Dave!! how do you like the Bed leveler? I have one but haven't got around to installing it yet.
Here's where it's useful, once the sensor z offset is determined, you no longer have to use a feeler gage (sheet of paper) to zero out z. The sensor does the measuring and the deviation is displayed on the screen during tramming. It's pretty slick. the machine stores a mesh of the build plate that it generated using the probe and then when you print, you issue a couple g codes and it now probes the bed in 3 or 4 spots and tilts the bed mesh to match the probed points before printing. You should install yours and flash the new Merlin firmware. |
Originally Posted by Cat 1
(Post 12740663)
inserts are done - Always a challenge to make little pieces all the same :) had to make a couple for setup. O
https://cimg1.ibsrv.net/gimg/www.rcu...5266f9039b.jpg nce I got rolling I could make one in 10 min.. 3 on the way Lonnie... I'm still waiting on that return address Chris. If you don't send it I'll be emotionally damaged.:D |
Originally Posted by Glowgeek
(Post 12740734)
:):):):):):):):)!!
I'm still waiting on that return address Chris. If you don't send it I'll be emotionally damaged.:D |
And another tested engine..
This .40 la was on the now black plane when i got it.
Yesterday took it apart, cleaned it and changed all crappy screws with proper socket head. The carb mounting screws are m3.5 no idea why they choose a relative obscure size.. Found some of the screws bought almost 30 years ago to replace damaged screws on my .40 sf. The only original screws are the air bleed and the self tapping remore needle mounts. So today mounted on the test stand. Just for fun used just a hand pump, chicken stick and nicd glow igniter. The engine fired on the first flip but did not keep running. Flipping again it kept running backwards like a way to rich engine does. So slowly leaning and it started the right direction. Another engine that starts by hand, runs and idles reliable, power.. not so much. It will go on a controll line model under restoration so power is not a requirement but handstarting is verry usefull. https://cimg3.ibsrv.net/gimg/www.rcu...35365ddfd3.jpg os .40 la |
plugin
Originally Posted by Raleighcopter
(Post 12740726)
The bed leveling is interesting. The sensor ensures the perfect z spacing for the first layer, helping adhesion. What it doesn't do: actually level the bed, especially if your gantry isn't square, so the process for me is: level the x using measurement blocks (in case the 2 z axis steppers are misaligned), tram the bed to ensure the bed is level, and then apply the bed mesh to ensure the perfect first layer
|
The visualization is also built right into the printer firmware too. Still not quite started using octoprint. And I'm not sure I really need it with the new Marlin firmware.
|
only if in another room
Originally Posted by Raleighcopter
(Post 12740748)
The visualization is also built right into the printer firmware too. Still not quite started using octoprint. And I'm not sure I really need it with the new Marlin firmware.
If your printer is near your computer then its less usefull. |
this does not look right

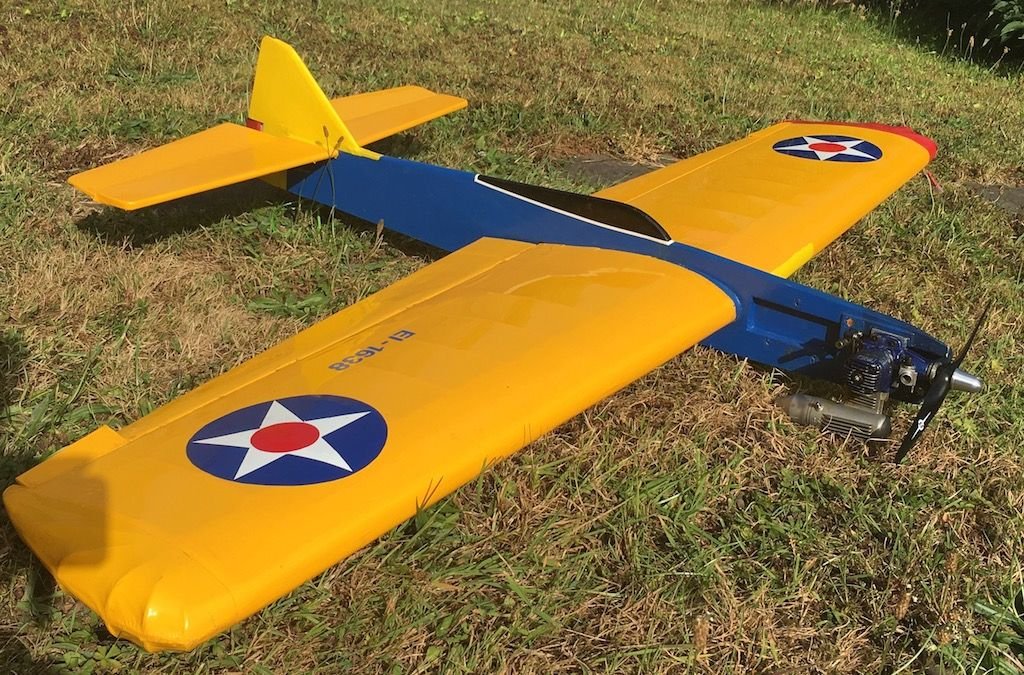

Don't think this plane is designed for .40 engines.
Mounting does not line up at all. Lets see if other engines fit better. https://cimg5.ibsrv.net/gimg/www.rcu...2aeea3b922.jpg big plane, to small engine? |
Originally Posted by 1967brutus
(Post 12740720)
Most definitely prefer the twist lock types too. Their only (slight) downside is that the cap cannot be turned on the plug to get the HT lead in the "perfect" position, but that is only a minor inconvenience.
|
about spark plug caps
The impression i get from looking at mine is that they are just a tube for shielding/ground and a resistor that contacts the center of th spark plug.

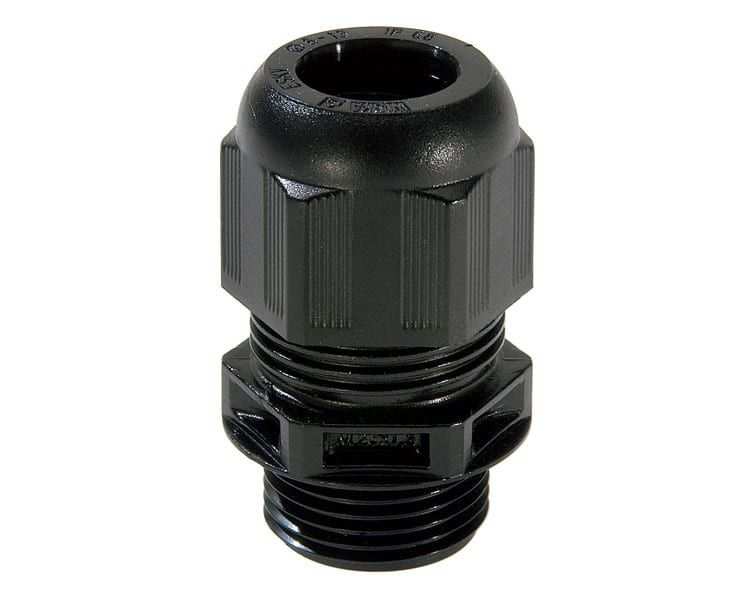

There are 2 plastic spacers and a spring. That is all i see. Should not be too complicated to copy with a lathe or tube bending tools. What if the plug side is make like a "gland" used with junction boxes. like one of these https://cimg1.ibsrv.net/gimg/www.rcu...c111f9706e.jpg Make a metal version that mounts upside down (compaired to thte picture) and tighten the nut to secure. If really paranoid about vibrations include a setscrew to lock the nut in place. The other side could be tube bend with a radius so it can be one piece. Likely way to expensive to mass produce but as a home made unit it might outlast all others |
9 Attachment(s)
Originally Posted by cmulder
(Post 12740785)
The impression i get from looking at mine is that they are just a tube for shielding/ground and a resistor that contacts the center of th spark plug.
There are 2 plastic spacers and a spring. That is all i see. Should not be too complicated to copy with a lathe or tube bending tools. What if the plug side is make like a "gland" used with junction boxes. like one of these Make a metal version that mounts upside down (compaired to thte picture) and tighten the nut to secure. If really paranoid about vibrations include a setscrew to lock the nut in place. The other side could be tube bend with a radius so it can be one piece. Likely way to expensive to mass produce but as a home made unit it might outlast all others Full scale aircraft engines use something similar, https://ibb.co/tKhT90x |
3 Attachment(s)
Double post,
|
Originally Posted by cmulder
(Post 12740785)
The impression i get from looking at mine is that they are just a tube for shielding/ground and a resistor that contacts the center of th spark plug.
There are 2 plastic spacers and a spring. That is all i see. Should not be too complicated to copy with a lathe or tube bending tools. What if the plug side is make like a "gland" used with junction boxes. like one of these https://cimg1.ibsrv.net/gimg/www.rcu...c111f9706e.jpg Make a metal version that mounts upside down (compaired to thte picture) and tighten the nut to secure. If really paranoid about vibrations include a setscrew to lock the nut in place. The other side could be tube bend with a radius so it can be one piece. Likely way to expensive to mass produce but as a home made unit it might outlast all others |
The spark plug itself is involved in the connection between the hi tension lead and the spark plug body...
Just found out that your rights to manage your uploaded images are take away, So I'm looking for a different image host, as the one I'm using to control access, RCU stores a copy of those images Here an cut away image https://ibb.co/tKhT90x |
Originally Posted by John_M_
(Post 12740797)
Just found out that your rights to manage your uploaded images are take away, So I'm looking for a different image host, as the one I'm using to control access, RCU stores a copy of those images |
RCG stores uploaded images as well. Not uncommon.
|
