Default stowage (cont;d)

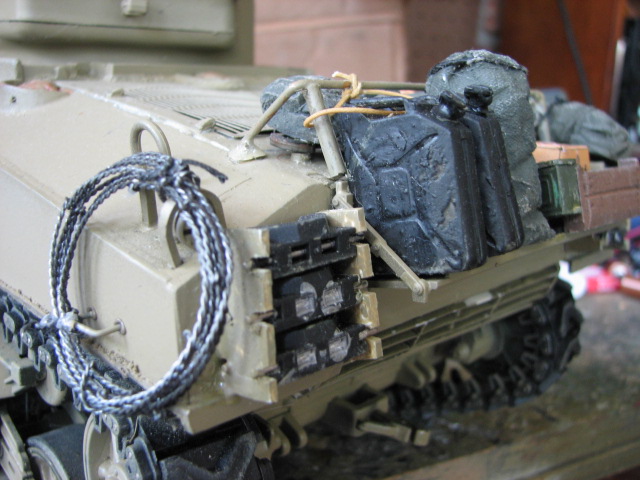

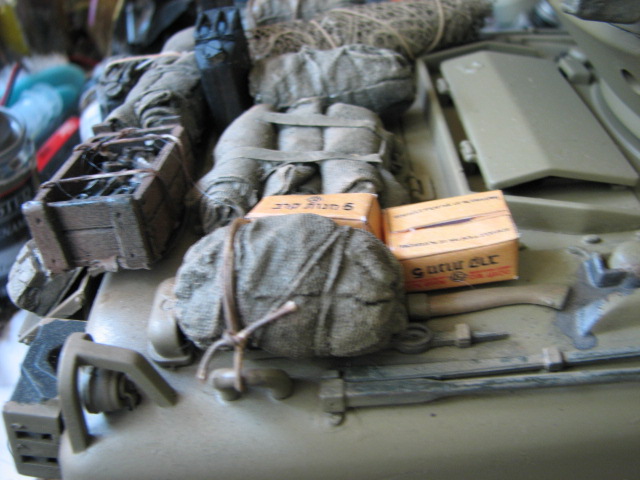

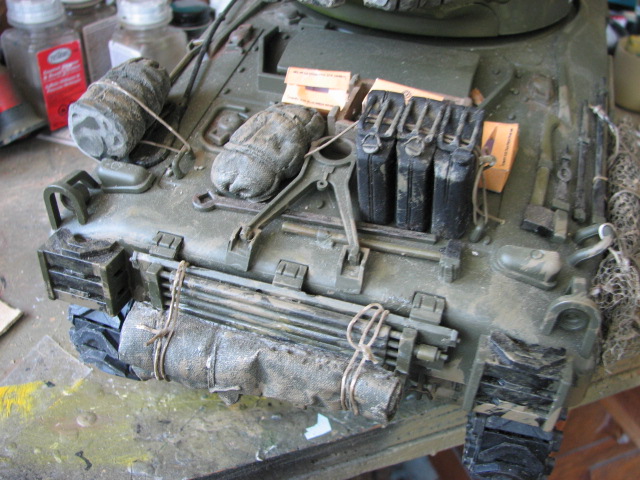

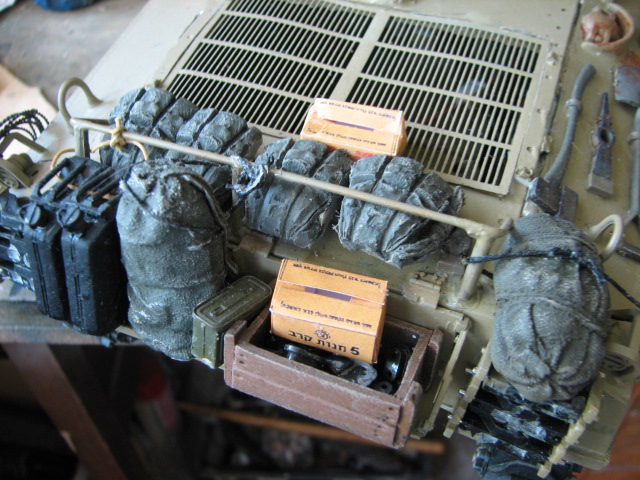

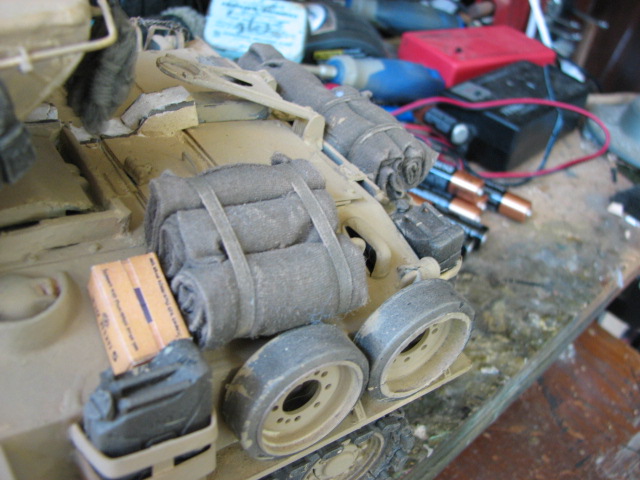

IDF M-50, & 51, M-1 Super Sherman, M-3 (M-4A3 75mm) Note that the M-3 has a deck for V-8, which is left open for ventilation. A rack has been installed by IDF for tying down stowed items and keeping the grille clear.

The tanks with VVSS have a rack for carrying track blocks, but do not acomodate end connectors and center guides. These tanks carry an old grenade box with those items, to keep them at hand and safe.

Hope this helps to clarify the why and why not's of stowing items on tanks.

Bill
Attached Thumbnails Click image for larger version

Name:	Yw67209.jpg
Views:	19
Size:	138.8 KB
ID:	1598945   Click image for larger version

Name:	Ni24170.jpg
Views:	47
Size:	121.4 KB
ID:	1598946   Click image for larger version

Name:	Sx60847.jpg
Views:	38
Size:	100.0 KB
ID:	1598947   Click image for larger version

Name:	Jd87118.jpg
Views:	35
Size:	123.6 KB
ID:	1598948   Click image for larger version

Name:	Yj65131.jpg
Views:	31
Size:	105.4 KB
ID:	1598949   Click image for larger version

Name:	Aq98923.jpg
Views:	41
Size:	146.8 KB
ID:	1598950   Click image for larger version

Name:	Ik92786.jpg
Views:	22
Size:	112.9 KB
ID:	1598951   Click image for larger version

Name:	Qp53454.jpg
Views:	24
Size:	113.3 KB
ID:	1598952

Old 04-25-2011, 11:52 AM
  #2
Airbrushler

Airbrushler's Avatar

Join Date: Apr 2011
Location: Windsor, ON, CANADA
Posts: 3,813
Received 15 Likes on 10 Posts
Default RE: stowage (cont;d)

nice work
what do you use for rope and how do you keep it on the tank are you looping it through somewhere or gluing it on
i just have mine sitting on the tank my camo net but i'm sure once i get to run it outside it will fall off i just have it stuffed inbetween the helmets and the box
Attached Thumbnails Click image for larger version

Name:	Fd91683.jpg
Views:	28
Size:	226.9 KB
ID:	1598973
Old 04-26-2011, 04:58 PM
  #3
pattoncommander
Senior Member
Thread Starter

pattoncommander's Avatar

Join Date: Dec 2006
Location: Columbia, SC
Posts: 5,058
Likes: 0
Received 1 Like on 1 Post
Default RE: stowage (cont;d)

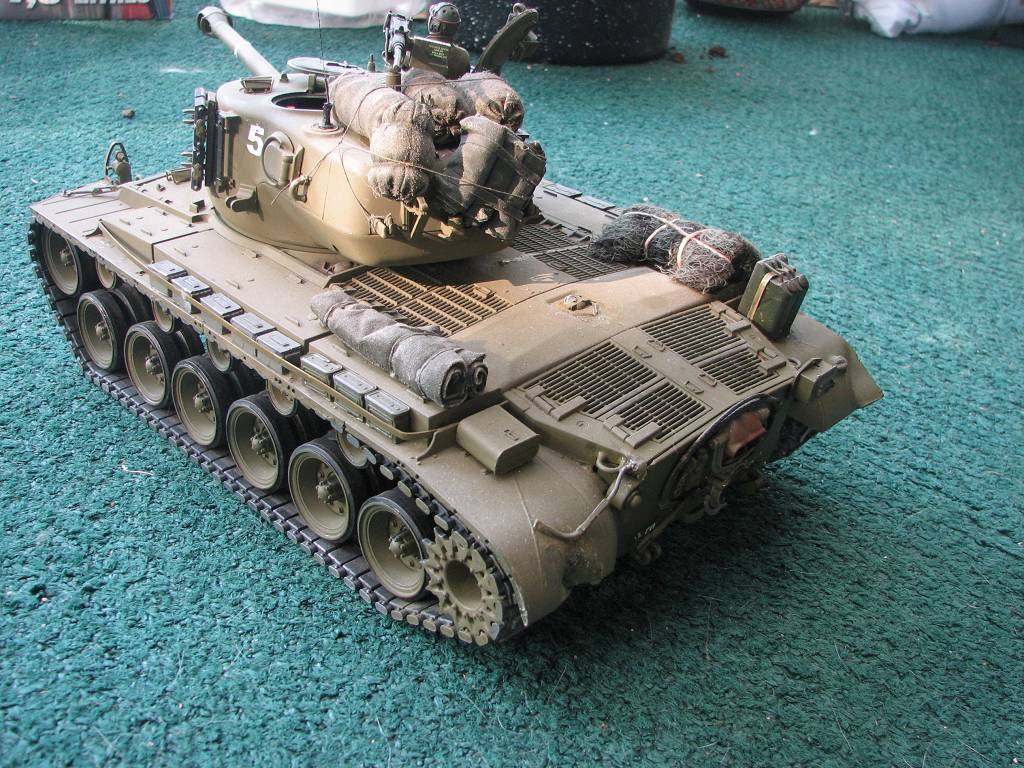

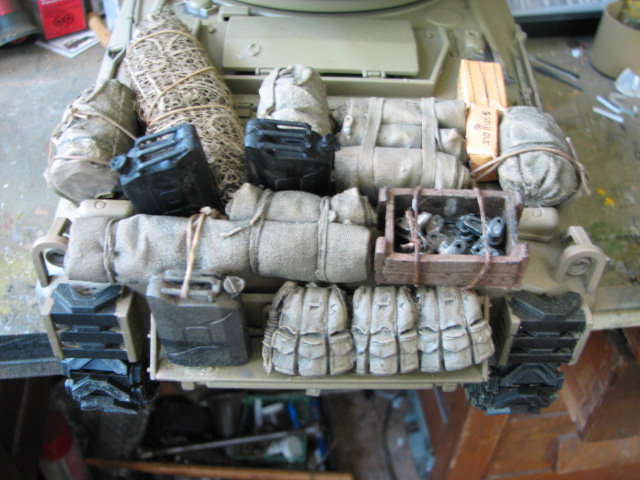

Military vehicles carry or have access to Footman loops. These are metal loops with a hole at each end and a raised portion between to secure a web belt. If the crew wants to mount a 5 gal water/oil can say, on the rear fender, all that is required is to drill two holes for 3/8 bolts and mount a pair, insert a web belt and lash them down. If no web belt, use a rope. On the Pershing, there are (supposed to be) Footman Loops on the side of the sponson boxes to lash down the tarp. Those cans on the rear of your tank are totally wrong from the Chinese toy makers concept. Jerry cans all leak and with the opening down as they are, the can would be empty and you'd have a slick mess all over the fender when you got where you're going. Also, those mg ammo cans have to move or braced as shown in my photos. It's easy to scratch-make a footman loop and run a "rope" though it and tie a knot...it will add a bit of optical realism in showing that your stowage is tied down and ready to roll. For water cans, you can use a field expedient and use a strap or rope to just hang a couple through the handle to the big lifting eyes on the back.

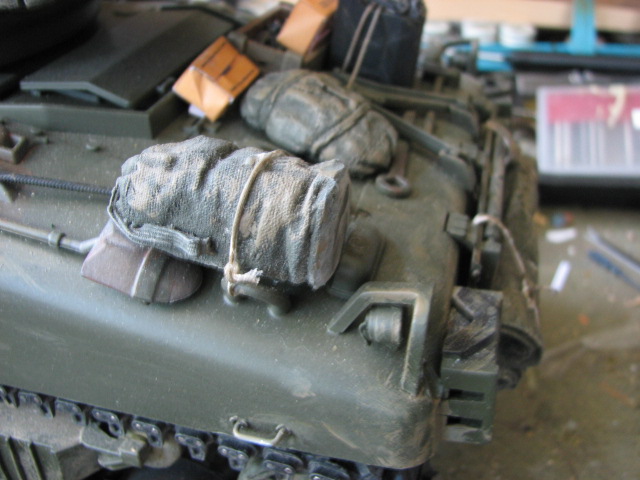

As for rope, a thick thread/thin string (eyeball it) will do.....stain it a brown-yellow. You see lifting some eyes on the rear deck.. (round or triangular) tap a hole on each side and loop the string under as if it were actually under the ring....or remove the ring and make one to stand up....OR just glue the rope in position....idea is to give the optical impression that the rope is going through the ring, over and through the lifting handle of the can and to where you want to to secure it. A pair of cans on the rear deck will look good tied together against the last brace with a belt/rope through the handle down to a F-loop at the base of the cans.

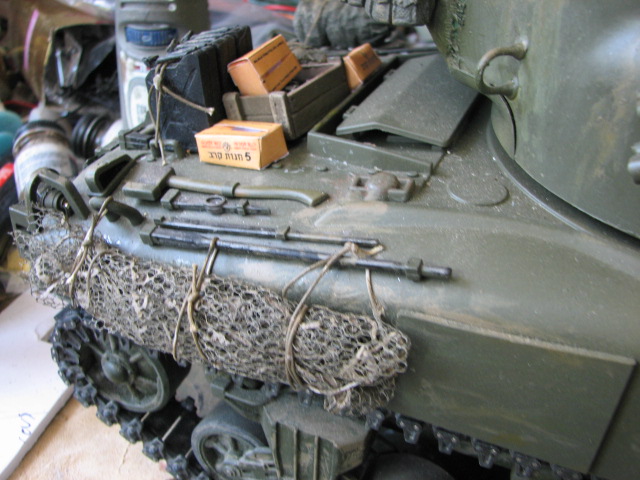

Tarp, camo net, use rope and tie it off (at two points for one rolled as long as yours) to any convenient tie offs along the upper hull. There should be one by the gas filler cap. Generally, a tarp or camo net is heavy enought that it will sit where it is placed...just strap or rope it where it doesn't open up. On placing the net/tarp, make sure it is not in the way of the turret movement. The rear of the deck on the rear sponson (stowage) boxes is a good place...and it will also help cover the 2 holes left when you remove the boxes that are there.

Hope this helps. bill
Old 04-27-2011, 06:11 PM
  #4
Airbrushler

Airbrushler's Avatar

Join Date: Apr 2011
Location: Windsor, ON, CANADA
Posts: 3,813
Received 15 Likes on 10 Posts
Default RE: stowage (cont;d)

don't see anything thatlooks like loopslikethat Bill

could you show me a pic of the angle my commanders hatch is suppose to be on do i have to make a stopper to keep it going all the way open and what would the stopper look like
Old 04-28-2011, 10:02 PM
  #5
swathdiver
Senior Member

swathdiver's Avatar

Join Date: Mar 2006
Location: Port Saint Lucie, FL
Posts: 5,031
Likes: 0
Received 1 Like on 1 Post
Default RE: stowage (cont;d)

http://www.rcuniverse.com/forum/m_64...tm.htm#6413851


Scroll down about 3/4 of the way and you'll see them on my Pershing right where they're supposed to go.
Old 05-03-2011, 08:04 PM
  #6
pattoncommander
Senior Member
Thread Starter

pattoncommander's Avatar

Join Date: Dec 2006
Location: Columbia, SC
Posts: 5,058
Likes: 0
Received 1 Like on 1 Post
Default RE: stowage (cont;d)

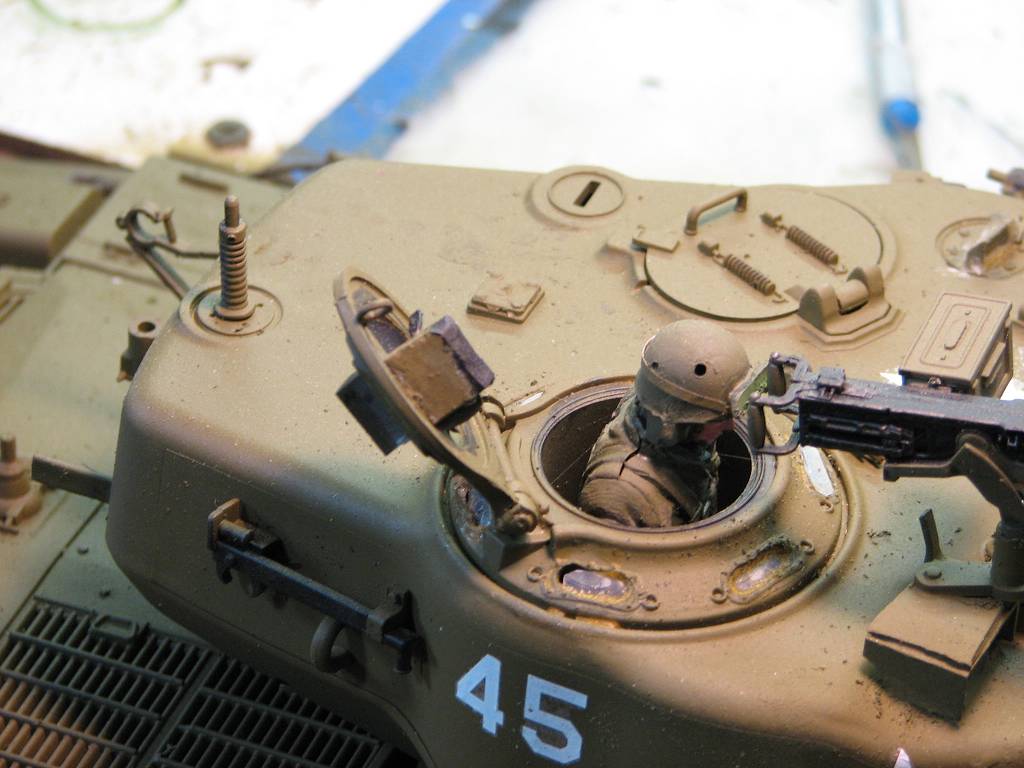

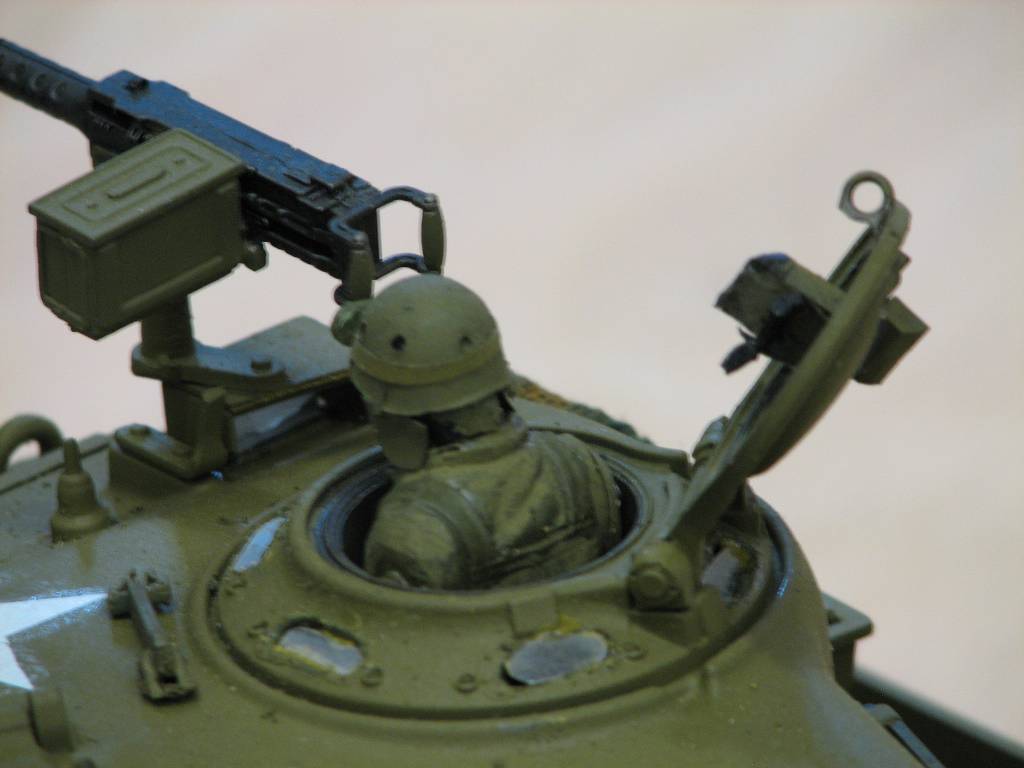

Should be about 45 degrees....there is a stop cam on the base, if you line up the hatch hinge, it should stop by itself. Heres a couple of tanks in progress.
Attached Thumbnails Click image for larger version

Name:	Gd93769.jpg
Views:	25
Size:	81.3 KB
ID:	1604013   Click image for larger version

Name:	Bx73955.jpg
Views:	28
Size:	50.4 KB
ID:	1604014
Old 05-03-2011, 08:16 PM
  #7
pattoncommander
Senior Member
Thread Starter

pattoncommander's Avatar

Join Date: Dec 2006
Location: Columbia, SC
Posts: 5,058
Likes: 0
Received 1 Like on 1 Post
Default RE: stowage (cont;d)

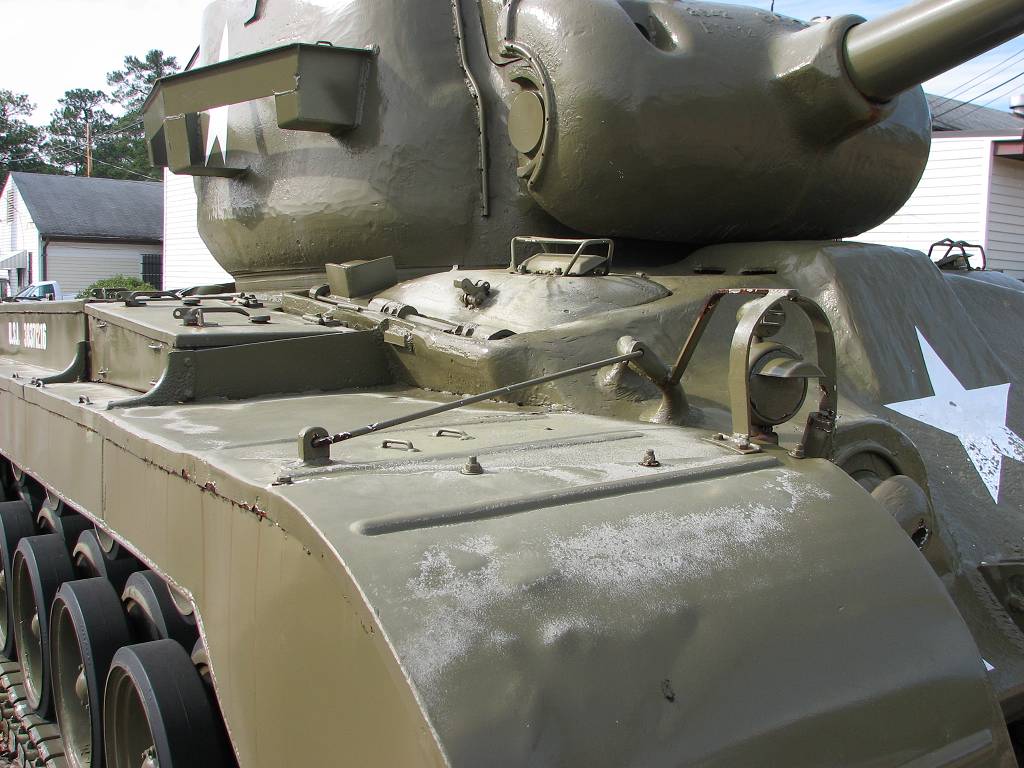

Here's a shot of one of our Museum Pershings, 2 footman loops on the fender and 4 on the front sponson box. these are tack welded, but they also come with bolt holes to install anywhere.
Attached Thumbnails Click image for larger version

Name:	Ro42076.jpg
Views:	30
Size:	109.0 KB
ID:	1604016
Old 05-07-2011, 11:18 AM
  #8
Airbrushler

Airbrushler's Avatar

Join Date: Apr 2011
Location: Windsor, ON, CANADA
Posts: 3,813
Received 15 Likes on 10 Posts
Default RE: stowage (cont;d)

i see i think i will have to make them HL not as detailed as a Tamiya
but thats ok gives me a challenge
all those ammo boxes on the side of mine came like that already glued on
Attached Thumbnails Click image for larger version

Name:	Yv65925.jpg
Views:	32
Size:	226.9 KB
ID:	1605381
Old 06-25-2011, 03:37 PM
  #9
pattoncommander
Senior Member
Thread Starter

pattoncommander's Avatar

Join Date: Dec 2006
Location: Columbia, SC
Posts: 5,058
Likes: 0
Received 1 Like on 1 Post
Default RE: stowage (cont;d)

Gregg, those ammo boxes on the fenders are a toy makers fantasy and wouldn't be there after the tank ran 100 yards down the road. Korean War, Pershings and M-46s either used a bar, cable or folded up the center skirts to hold them in place. WW II, you should just pry them off and smooth out where they were glued on.
Attached Thumbnails Click image for larger version

Name:	Ki18542.jpg
Views:	23
Size:	175.3 KB
ID:	1627587   Click image for larger version

Name:	Ni23618.jpg
Views:	31
Size:	75.2 KB
ID:	1627588   Click image for larger version

Name:	Xv64152.jpg
Views:	39
Size:	108.7 KB
ID:	1627589
Old 06-25-2011, 03:57 PM
  #10
Airbrushler

Airbrushler's Avatar

Join Date: Apr 2011
Location: Windsor, ON, CANADA
Posts: 3,813
Received 15 Likes on 10 Posts
Default RE: stowage (cont;d)

yep thats what i did Bill i got rid of them here is a couple of pics
Attached Thumbnails Click image for larger version

Name:	Sp45393.jpg
Views:	28
Size:	67.3 KB
ID:	1627590   Click image for larger version

Name:	Ez81928.jpg
Views:	27
Size:	55.8 KB
ID:	1627591
