Old 11-10-2006, 12:53 PM
  #51
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build


ORIGINAL: Gringo Flyer
...you have a great area for building and way too few planes.

Yeah, right! As soon as I rented this garage, my wife started parking in it- so I can only get work done when she's at school, or on Saturdays [&o]

Besides, next winter begins my full-scale kit build (RV-7), so I gotta save some space (not to mention $ [X(]) for that. Tools alone minimum $2k; I'm figuring approx $80k over 5-6 years with a mid-time Lycoming. Then you will see an awesome shop!
Old 11-14-2006, 10:33 PM
  #52
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

OK, finally some progress! Sorry for the long wait, everyone. I got the top wing spars glued and all the ribs prepped. The die-cutting, while certainly not as good as a laser, was nevertheless nice and easy to separate from the sheets, with minimal trimming.

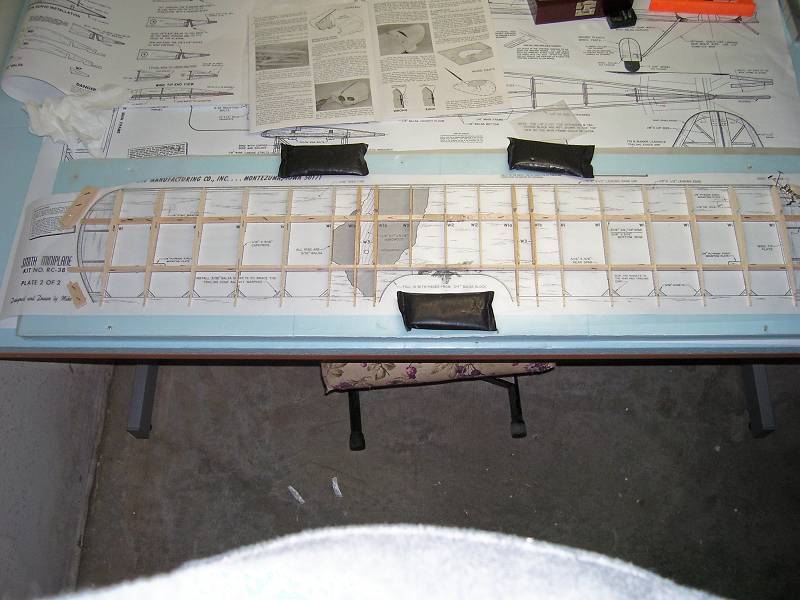

Attached Thumbnails Click image for larger version

Name:	Li21295.jpg
Views:	652
Size:	67.4 KB
ID:	560484
Old 11-14-2006, 10:38 PM
  #53
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

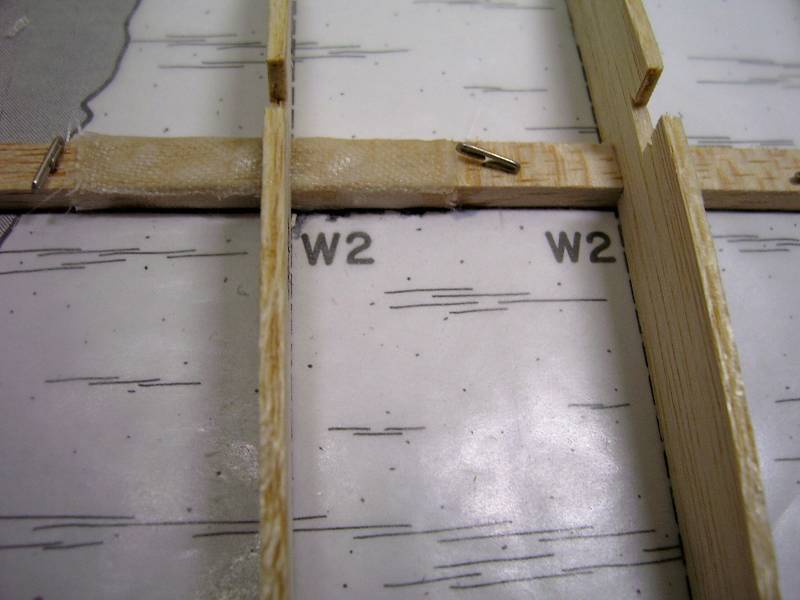

One thing that I had to improve upon were the spar glue joints. The wing spars are butt-joined together in the center of the wing, and the instructions say to simply epoxy them. I plan on putting this bird through its paces in the air, so I reinforced the spars with medium-weave fiberglass tape, wrapped around the spar joints and glued securely. Very strong!

Thin CA was used here, soaked thoroughly into the tape. [&:]
Attached Thumbnails Click image for larger version

Name:	Nk27805.jpg
Views:	552
Size:	44.7 KB
ID:	560487
Old 11-15-2006, 06:13 PM
  #54
Richardrc
Member

Join Date: Jan 2006
Location: Ionia, MI
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

Probably overkill, especially if that is a balsa spar. The wings are so short it probably doesn't need much of a spar. Good luck.
Old 11-15-2006, 07:19 PM
  #55
andrew66
Senior Member

andrew66's Avatar

Join Date: Jan 2006
Location: Brandon, MB, CANADA
Posts: 1,057
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

its good to see you making progress! hopefully more to come next week
Old 11-15-2006, 08:13 PM
  #56
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build


ORIGINAL: Richardrc

Probably overkill, especially if that is a balsa spar. The wings are so short it probably doesn't need much of a spar. Good luck.

Oh, well... its just the engineer in me[sm=bananahead.gif]


Andrew- yeah, I've been really jonesing to get some work done. The plan is to come home on Friday and lock myself in to the workshop. Will post good progress on Sunday.
Old 11-20-2006, 07:21 AM
  #57
MP3_tilaco
Senior Member

MP3_tilaco's Avatar

Join Date: Dec 2005
Location: Santiago, CHILE
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

Yesterday morning I went to fly my Smith, I had to add 200 gr. in the front, for firt time I enyjoyed this plane, the landing was very slow and soft, this plane is great but be careful with CG, is in the front od the botton wing.



My regard from Chile
Old 11-20-2006, 01:04 PM
  #58
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

Thanks, MP3- I'll be sure to check it. Nice looking plane! One question for you- was there much shaping of the nose portion necessary in order to get a good cowl fit? Some of the instructions are vague.
Old 11-20-2006, 03:10 PM
  #59
MP3_tilaco
Senior Member

MP3_tilaco's Avatar

Join Date: Dec 2005
Location: Santiago, CHILE
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

I did a Liberty Sport and this model have the same problem with the cowling, while I was building I trimmed the nose.
You can see my building there

http://cach.cl/foroSMF/index.php?topic=146.0



Old 11-21-2006, 10:49 PM
  #60
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

Well guys, looks like this thread is going to disappear for a while. My digital camera is broken! I sent it in for warrantee service, but who knows how long that will take. Sorry!
Old 11-22-2006, 12:45 AM
  #61
andrew66
Senior Member

andrew66's Avatar

Join Date: Jan 2006
Location: Brandon, MB, CANADA
Posts: 1,057
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build



oh well, i guess that means one heck of a progress report later on! depending on where you bought it or if you are sending directly to the mfg it could take at least 3-4 weeks.
Old 11-22-2006, 09:37 AM
  #62
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

Yeah, I'm not planning on seeing it anytime soon; will count myself lucky if its back in my hands before Christmas.

The good news is that the top wing came off the building board last night. [&:]
Old 12-26-2006, 10:13 AM
  #63
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

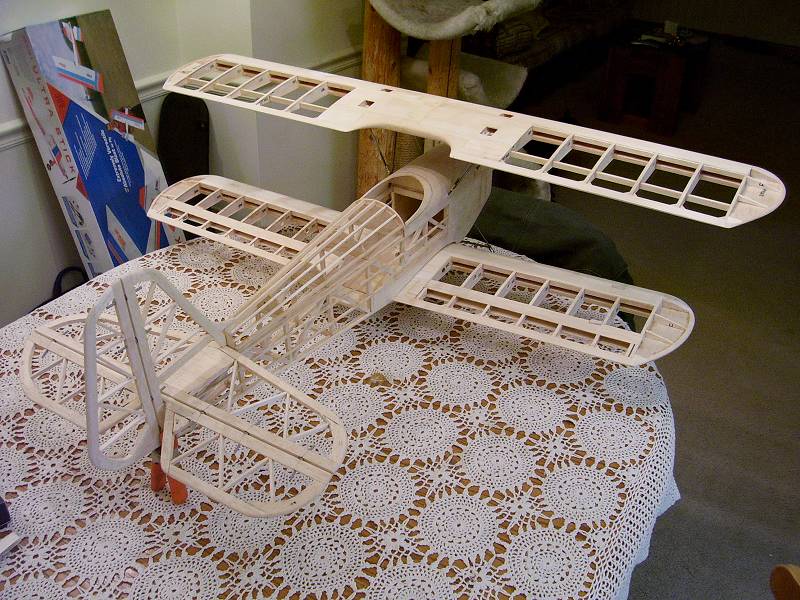

You waited. Then you waited some more. Well, my digicam is back, so here we go again!
Attached Thumbnails Click image for larger version

Name:	Wt59394.jpg
Views:	1257
Size:	121.2 KB
ID:	583798   Click image for larger version

Name:	Kg15179.jpg
Views:	707
Size:	117.9 KB
ID:	583799
Old 12-26-2006, 10:19 AM
  #64
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

Funny story behind the digital camera- I sat on it by mistake, and the little display screen broke. I was literally on the last day of the warrantee period! Well, I called Kodak and they said to send it in, and the short ending is that they fixed my camera for free! Thanks, Kodak.

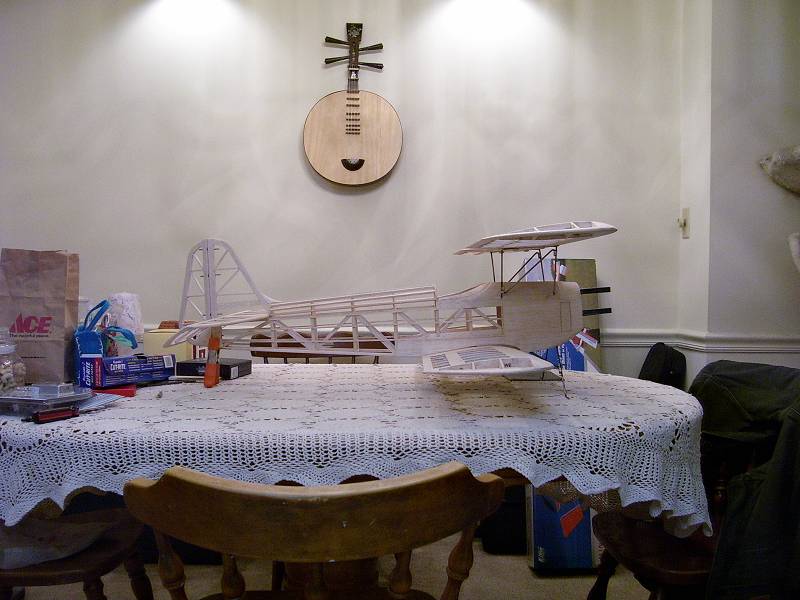

Back to the Miniplane- the top wing is fully mounted. Trim needs to be completed, but otherwise done with the top one. I have the bottom wing taped on just to show you guys; it still needs the ailerons cut out and servo hatches installed for dual servos.
Attached Thumbnails Click image for larger version

Name:	Nl30807.jpg
Views:	898
Size:	66.8 KB
ID:	583801   Click image for larger version

Name:	Up48814.jpg
Views:	549
Size:	117.6 KB
ID:	583802
Old 12-26-2006, 10:21 AM
  #65
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

I'm using hinge points for all the control surfaces, and the rudder will be a pull-pull setup. She's really starting to take shape!
Attached Thumbnails Click image for larger version

Name:	Tr51456.jpg
Views:	564
Size:	126.3 KB
ID:	583803
Old 12-26-2006, 10:25 AM
  #66
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

My beautiful, loving wife also got me a new toy for Christmas (you can see her new toy on the table by the empennage [8D]). I've been really curious about getting into the electric side of this hobby, so I'm looking forward to getting this one up in the air.
Attached Thumbnails Click image for larger version

Name:	Ca81294.jpg
Views:	444
Size:	59.5 KB
ID:	583804
Old 12-26-2006, 10:28 AM
  #67
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

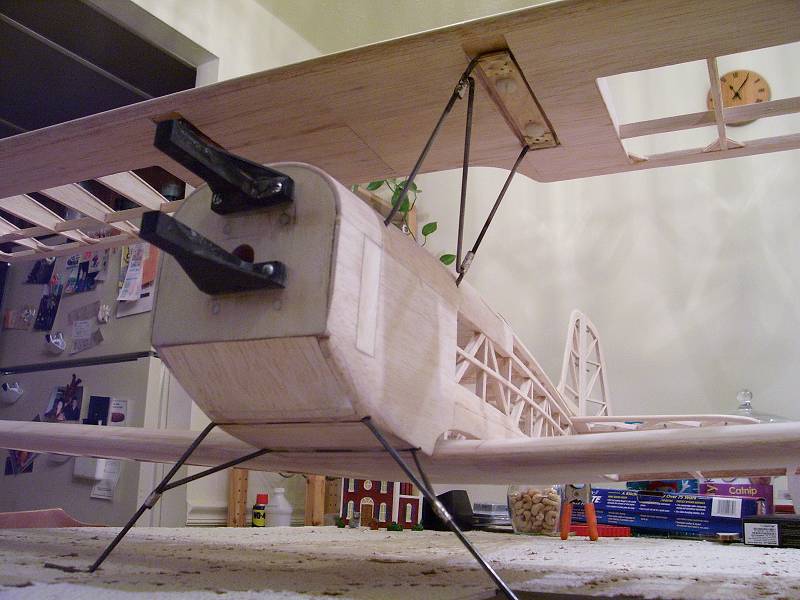

One more pic, a side view...along with a shot of my supervisor for the evening.
Attached Thumbnails Click image for larger version

Name:	Us54495.jpg
Views:	513
Size:	63.1 KB
ID:	583805   Click image for larger version

Name:	Rm36477.jpg
Views:	392
Size:	32.2 KB
ID:	583806
Old 12-26-2006, 06:10 PM
  #68
MP3_tilaco
Senior Member

MP3_tilaco's Avatar

Join Date: Dec 2005
Location: Santiago, CHILE
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

Guauuu, my wife gift me this plane



I have a cat too.



Old 12-26-2006, 06:41 PM
  #69
EscapeFlyer
Senior Member
My Feedback: (1)

EscapeFlyer's Avatar

Join Date: Aug 2003
Location: Brooklyn Center, MN
Posts: 2,396
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

This is one of my favorite bipes! I've built a couple of them now. What is nice is to save the plans. Everything is there for you to cut new pieces and build more!

Here is my plans built Mini:

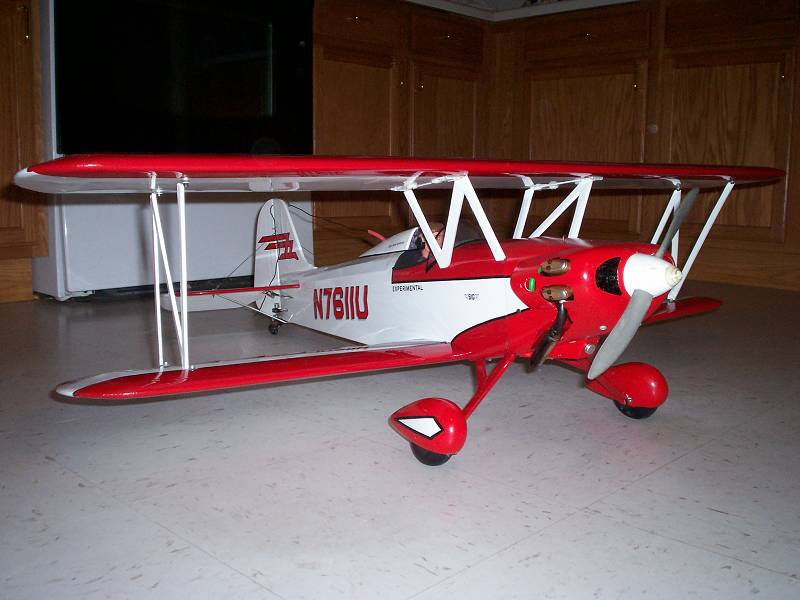

[img] [/img]
Attached Thumbnails Click image for larger version

Name:	Om34011.jpg
Views:	602
Size:	55.7 KB
ID:	584011   Click image for larger version

Name:	Wr53984.jpg
Views:	526
Size:	56.1 KB
ID:	584012
Old 12-27-2006, 09:15 AM
  #70
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build


ORIGINAL: Ilikebipes

...What is nice is to save the plans....

I went so far as to scan the plans and save them to CD... I'm starting to build a plans collection!
Old 12-27-2006, 11:52 AM
  #71
Rv7garage
Thread Starter
My Feedback: (10)

Join Date: Feb 2005
Location: MUNDELEIN, IL
Posts: 1,753
Likes: 0
Received 3 Likes on 3 Posts
Default RE: Sig Smith Miniplane build

Hey Ilikebipes, excellent job on the plans-built Mini, by the way. Couple of questions for you:

What size Saito is that, and

how did you do the cowl cutouts for the valve covers?

The reason i ask is I'll be installing an O.S. 52 Surp in my Mini, and was figuring that I'd have to remove the valve cover in order to get the engine inside the cowl for initial measurements- you know, to get the correct drive washer clearance. Any tips or even just a description of your engine/cowl experience would be appreciated.
Old 12-28-2006, 12:04 AM
  #72
EscapeFlyer
Senior Member
My Feedback: (1)

EscapeFlyer's Avatar

Join Date: Aug 2003
Location: Brooklyn Center, MN
Posts: 2,396
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

Hey Ilikebipes, excellent job on the plans-built Mini
Thank you very much.

I'm running the Saito .56. It gives me all the power "I" want. Enough to pull through loops. Definitely not unlimited vertical, but that is not why we would want a Mini. I've run the OS .52 surpass on a Mini, and I felt it was underpowered. (Sorry) For some reason the saito puts out a bit more "gumption." I'm interrested in mounting a Magnum .52. I think that ought to do well also.

Be prepared for some "schooling" on take-offs. She is a ground looping queen. But once in the air, she is amazing. Snaps, spins, lomcevaks, etc. It does not like large round loops. I think it has to do with the flat bottom wing. I'm actually considering building a semi-or fully symetrical wing to see how aerobatics improve. Even still, she flies like she is on rails. Pretty quick for a bipe too-IMHO.

You will love landing this bipe. She comes in very slow. Trainer speed slow.

how did you do the cowl cutouts for the valve covers?
I mounted the moter on the firewall and installed the cowl by lining up the spinner ring on the cowl with the back plate of the spinner with an 1/8 inch gap. Yes, I did have to pull the valve covers off to put the cowl on to start, And you might find there will be more sanding to mount the cowl.

Once the cowl was initially mounted, I pulled the cowl back off and put my valve covers back on.

Then I taped a piece of 8 1/2 x 11 white or tracing paper, length way, from behind the the cowl towards the front of where the cowl would be. Trace the outline of the valve cover or cylinder heads that will protrude out of the cowl onto the paper how you would like to see it fit. Cut the necessary holes out of the paper and line it up with the engine to ensure it lines up properly, and fits over the valve covers or cylinder head.

Do not remove the taped paper from the fuse. Remount the cowl with the valve covers removed. With a finetipped felt permanant marker, trace the hole you cut out of the paper onto your cowl.

Remove your cowl and do not cut to the lines you traced with a rotary tool. Rather cut inside the traced line.

Re-install the cowl, try fit the cutout of the hole over the valves. More than likely you will not have perfectly placed the hole where it needs to be. This is okay, and the reason you do not want to cut all the way to the lines you traced out, but it puts you in the right place geographicly Cut only little bits at a time, eyeballing it, and keep refitting the cowl to make sure you don't go too far. Be patient, and you'll get it perfect.

Re-install the cowl and enjoy your handiwork. Use sandpaper to clean up the holes you've cut out. That's how I do it.

Good Luck! I'll gladly answer any other questions you may have.

-Bipes
Old 12-28-2006, 07:24 AM
  #73
bps
My Feedback: (3)

bps's Avatar

Join Date: Oct 2002
Location: Indianapolis, IN
Posts: 1,348
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

MP3,
Hope you decide to do a building thread on the Se5a. I have that kit as well and it seems to be a very nice sport kit and the parts are of high quality. I have a few more in front of the Se5a though.
JEB
Old 12-28-2006, 08:39 AM
  #74
MP3_tilaco
Senior Member

MP3_tilaco's Avatar

Join Date: Dec 2005
Location: Santiago, CHILE
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build


ORIGINAL: bps

MP3,
Hope you decide to do a building thread on the Se5a. I have that kit as well and it seems to be a very nice sport kit and the parts are of high quality. I have a few more in front of the Se5a though.
JEB
Now I'm building Goldberg J-3 for my son (and my self) but my next proyect is SE5a, this plane will be red like this...



Most of SE5a are olive but the red one is very nice, maybe it look like DR1 but the red one is different.
Old 12-28-2006, 08:44 AM
  #75
MP3_tilaco
Senior Member

MP3_tilaco's Avatar

Join Date: Dec 2005
Location: Santiago, CHILE
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Default RE: Sig Smith Miniplane build

To day I asked to my hobby store a new kit fron Smith Miniplane, actualy TowerHobbies doesn't have this plane and I afraid this model will disappear soon[&o].
That happened with Liberty Sport and many models, I feel the modelist will do the same. []
